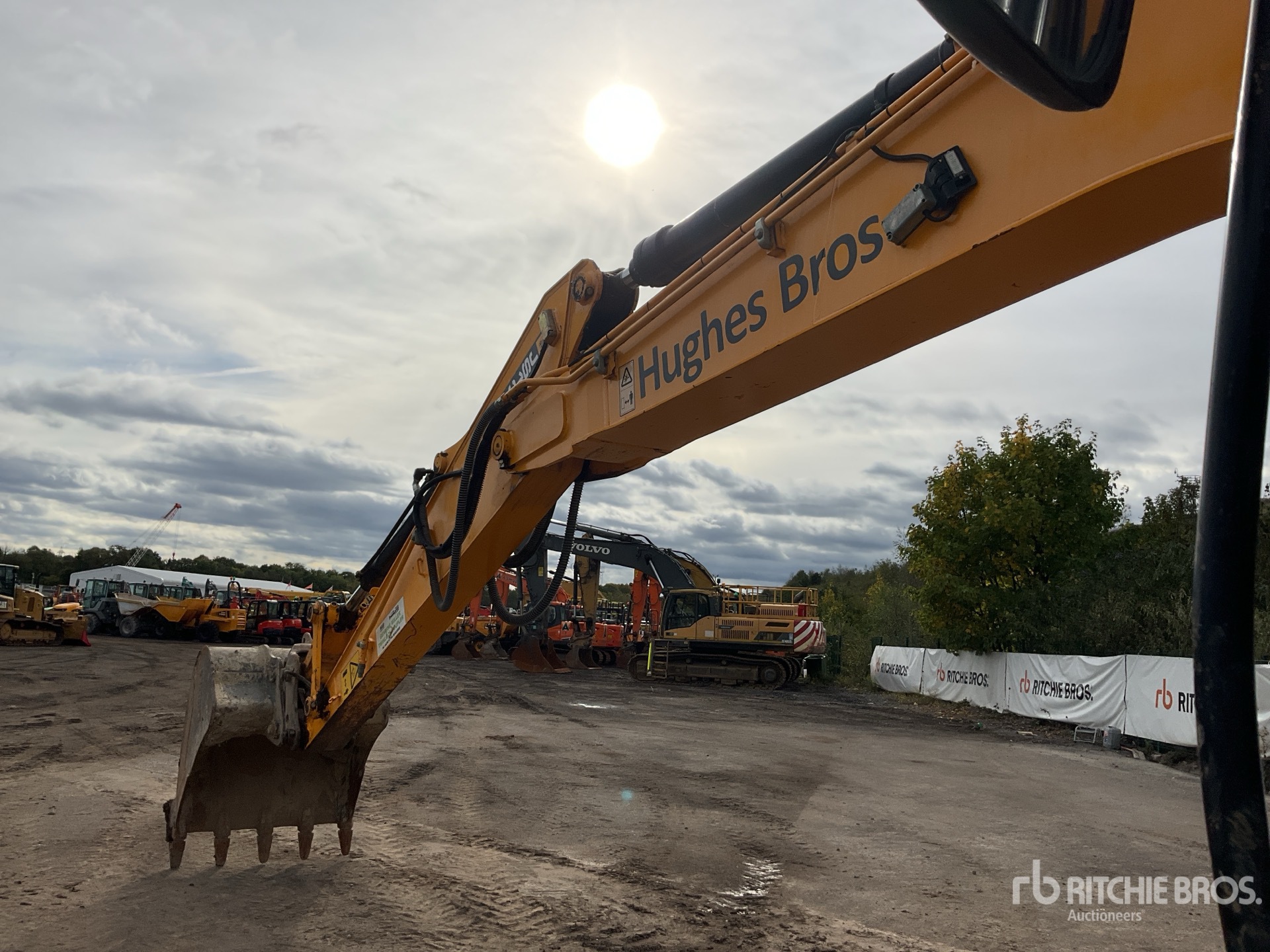

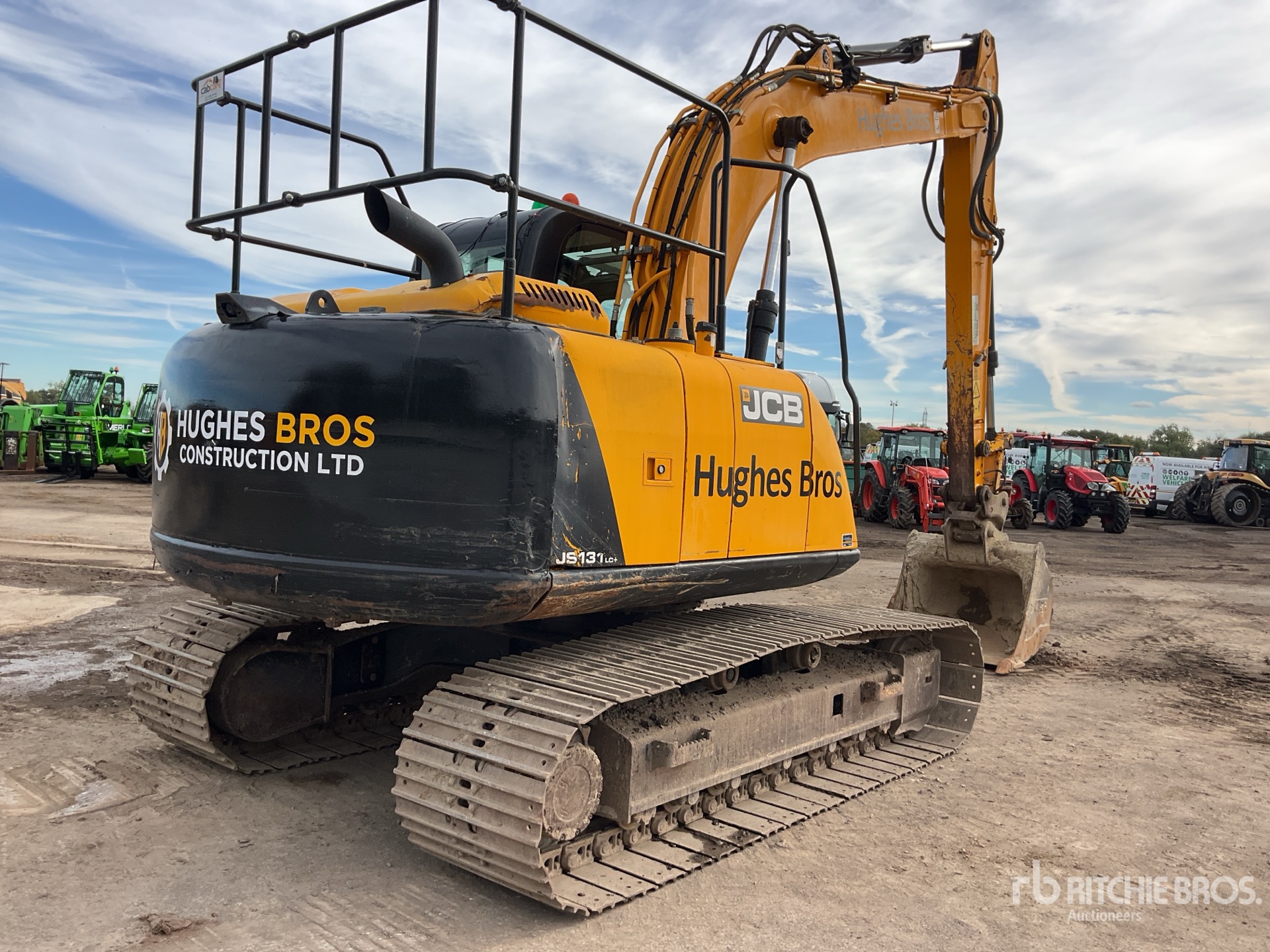

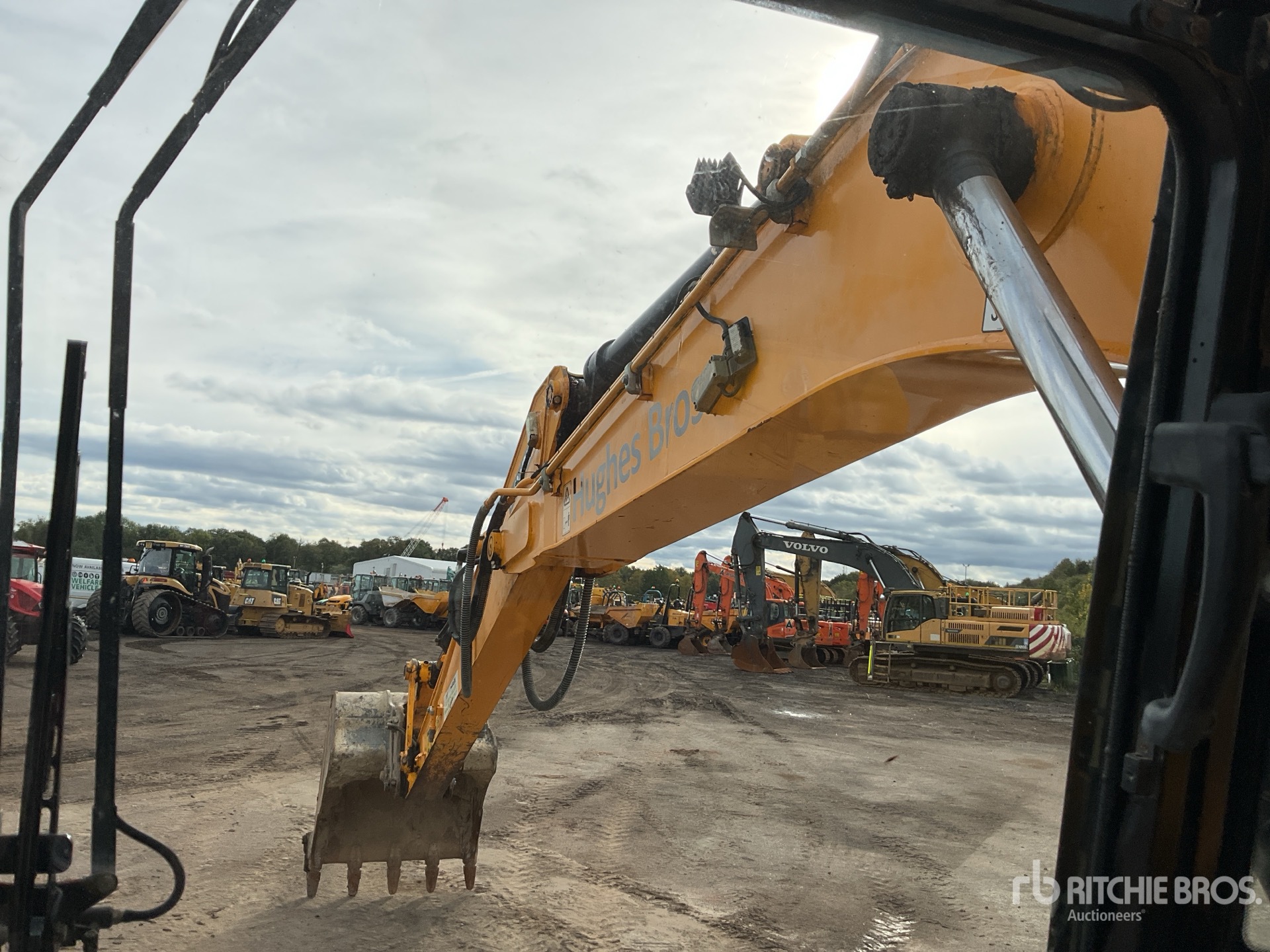

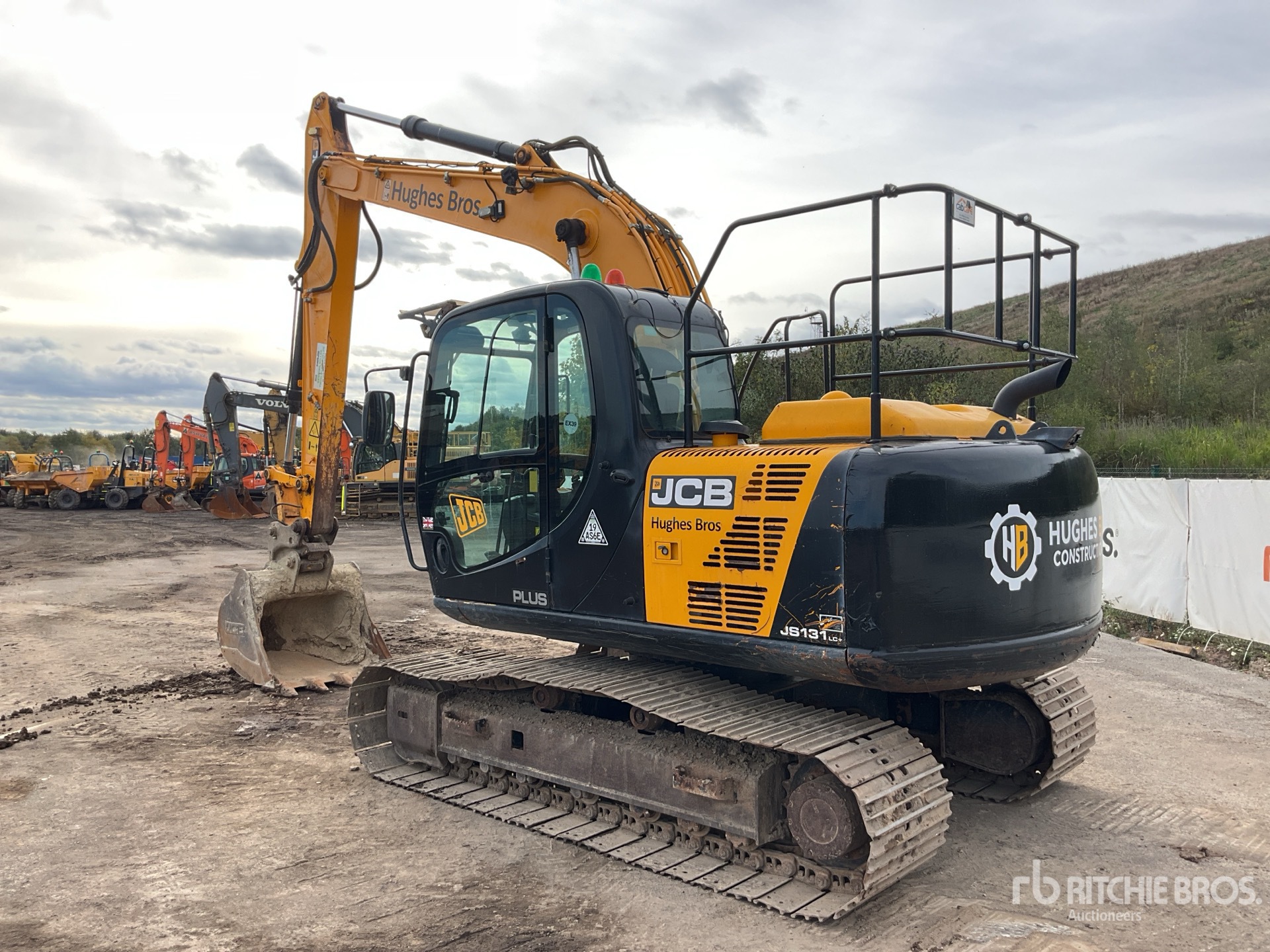

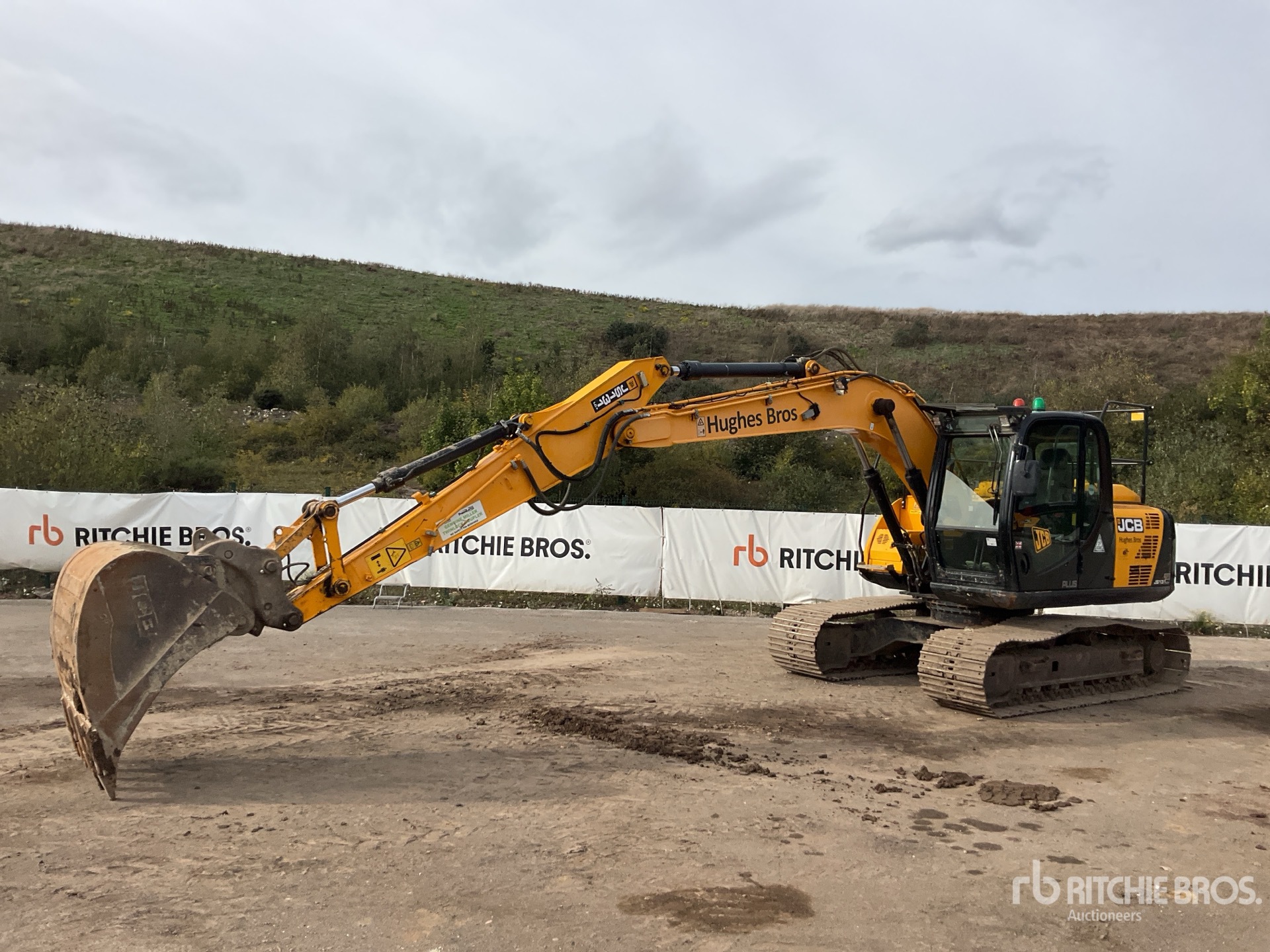

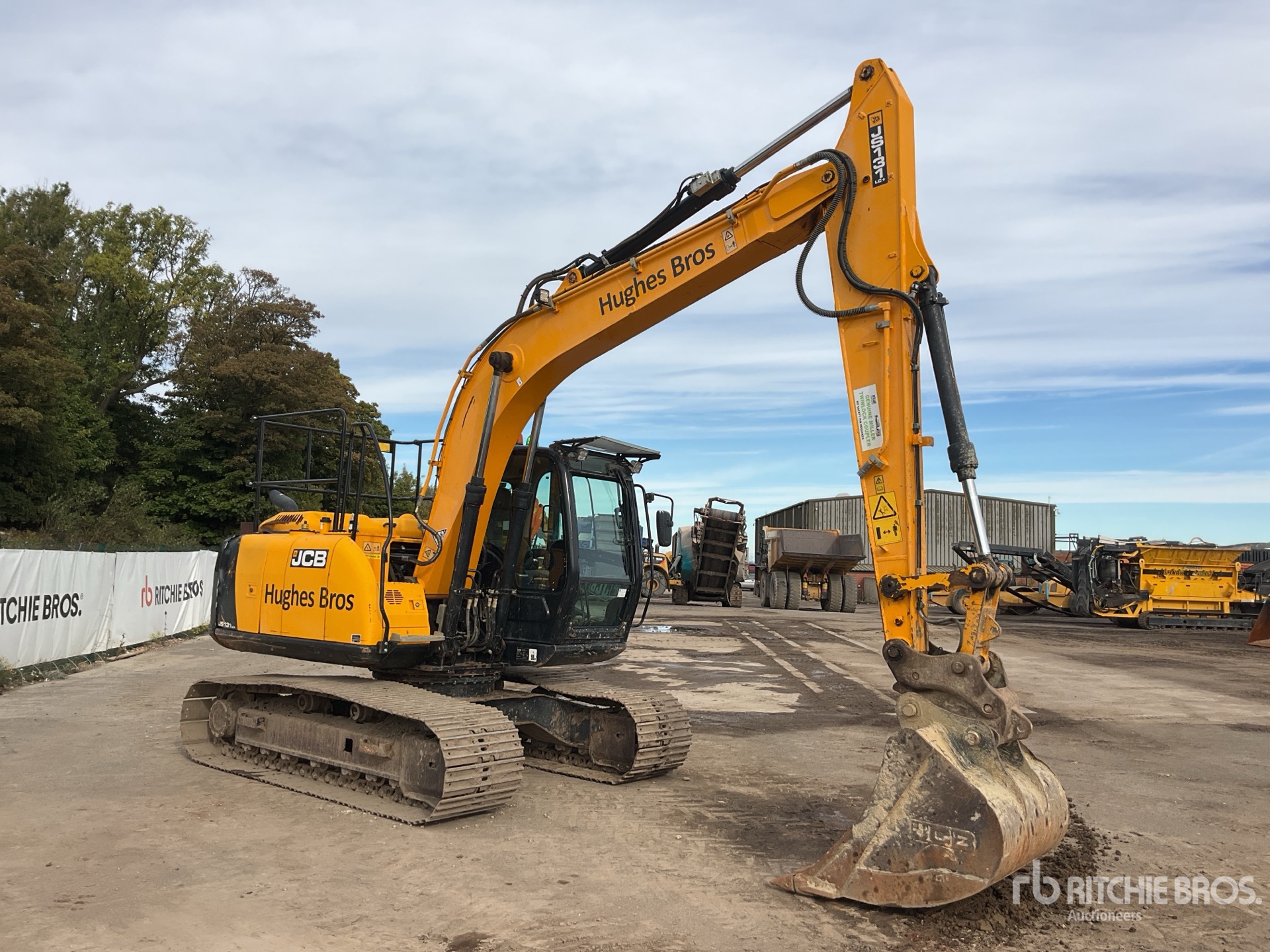

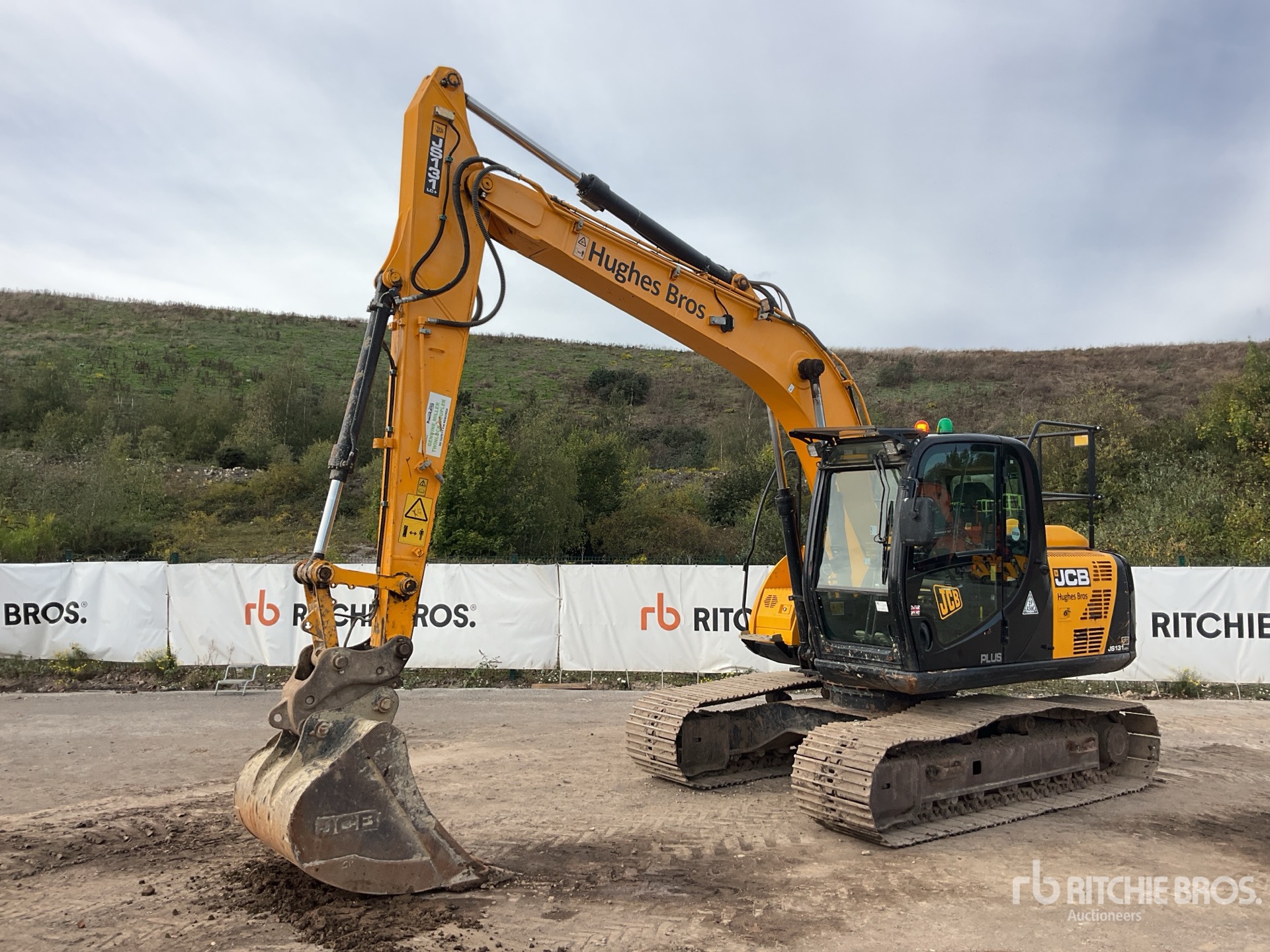

2018 JCB JS131LC For Sale in Maltby, Gbr

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

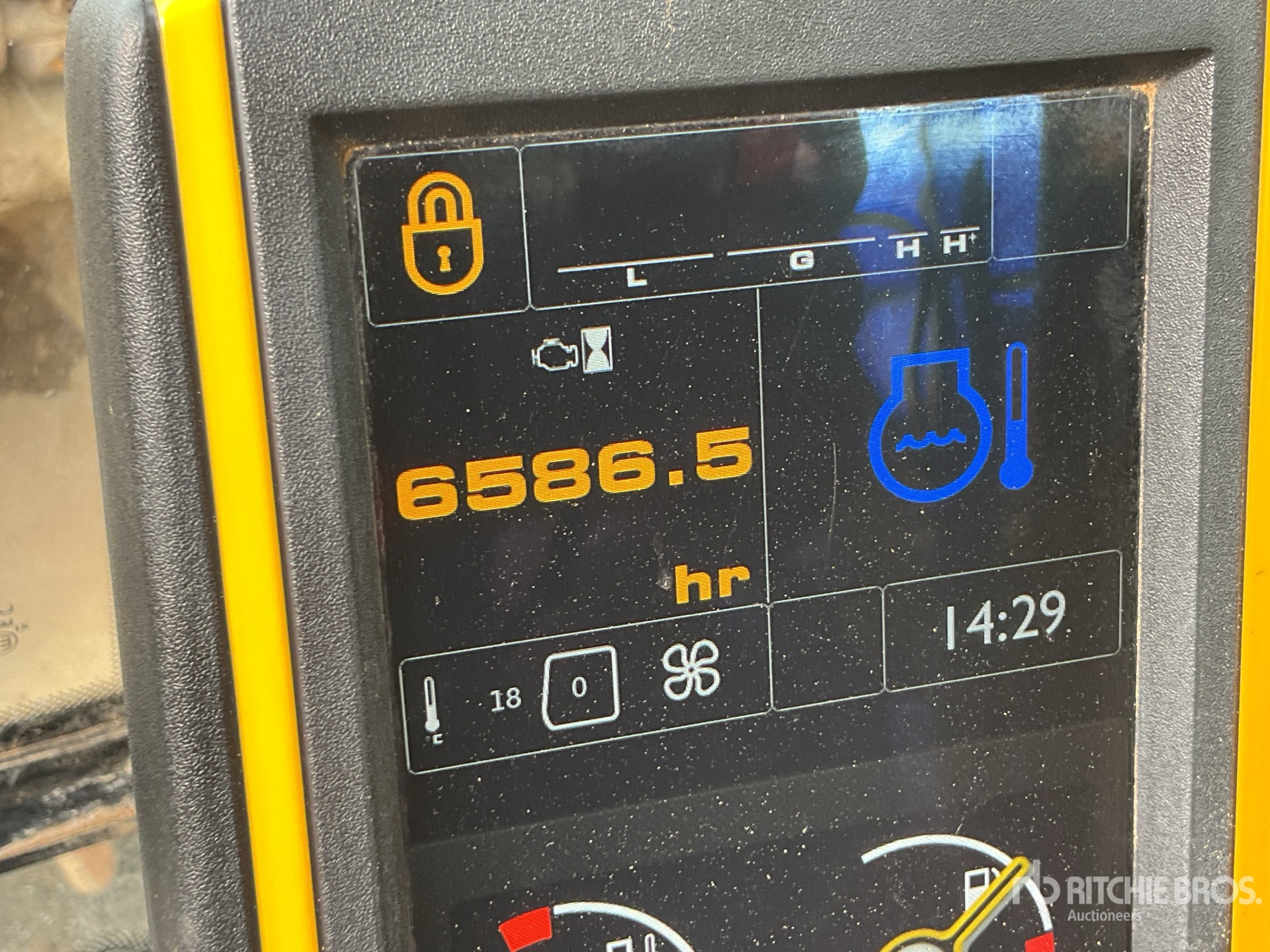

Hours:	6586

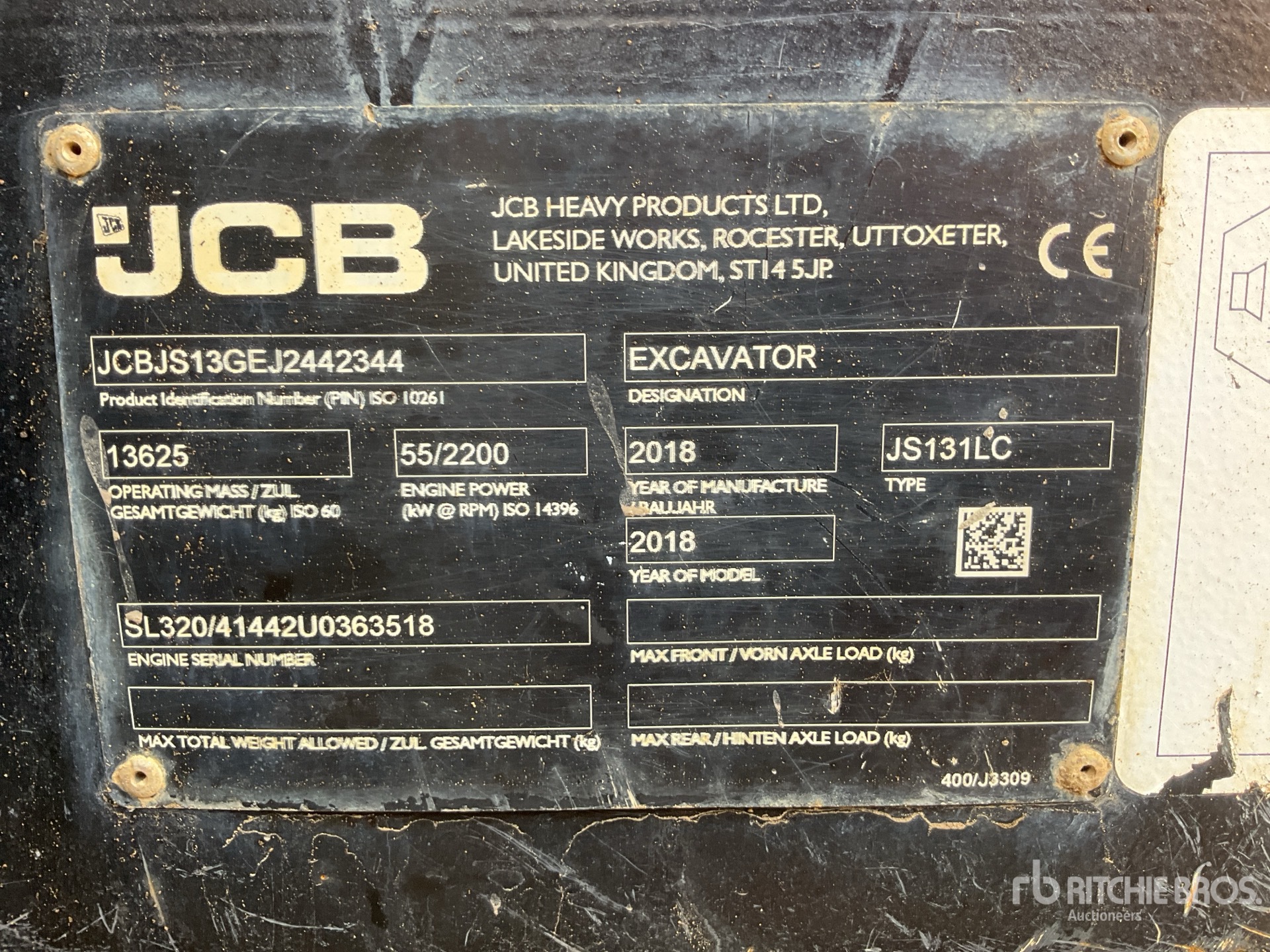

Serial Number:	JCBJS13GEJ2442344
Machine Location:	MALTBY, GBR

Description:

Rear View Camera, US EPA Label, 3000 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, 700 mm Triple Grouser Track Shoes, Hydraulic Quick Coupler, 1200 mm Digging Bucket Closing Time: 2026-10-21 11:08:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Brakes
Gradeability	75
Master Brake	Planetary reduction, bolt-on sprockets
Park Brake	Disc type, spring applied, automatic hydraulic release.
Service Brake	Hydraulic counter balance valve
Travel Speed	4 mph (7 kph)
Bucket
Bucket Width	2 ft (1 m)
Largest Bucket Capacity	1 cu yd
Multi Purpose Bucket Weight	631 lbs (286 kg)
Dimensions
Counterweight Clearance	3 ft (1 m)
Ground Clearance	1 ft (0 m)
Height To Top Of Cab	9 ft (3 m)
Length Of Track On Ground	9 ft (3 m)
Tail Swing Radius	7 ft (2 m)
Tailswing Radius	7 ft (2 m)
Track Gauge	7 ft (2 m)
Transport Height	113 in (287 cm)
Transport Length	296 in (752 cm)
Undercarriage Overall Length	12 ft (4 m)
Width To Outside Of Tracks	8 ft (2 m)
Engine
Air Filter Type	Dry
Alternator	55 amps
Battery	2 x 12 V
Displacement	269 cu in (4,402 cu cm)
Engine Model	JCB EcoMAX 444 TCA 55 EU Stage IIIB, EPA Tier 4 Final compliant
Engine Type	Water cooled, 4-stroke, 4-cylinder in-line, common rail injection, turbocharged fixed geometry intercooled diese
Fuel Tank	58 gal (220 l)
Net Power	74 hp (55 kw)
Power Measured @	1,800 rpm
Starting System	24 V
Hydraulic System
Control Valve	A combined four and five spool control valve with auxiliary service spool as standard
Main Pump - Maximum Flow	34 gpm (130 lpm)
Maximum Flow -Servo Pump, Low Noise Gear Pump	5 gpm (20 lpm)
Pilot Circuit	580 psi
Power Boost	4,975 psi
Swing Circuit	4,047 psi
Travel Circuit	4,975 psi
Operational
Cooling System Fluid Capacity	5 gal (20 l)
Engine Oil Capacity	4 gal (14 l)
Fuel Capacity	58 gal (220 l)
Hydraulic System Fluid Capacity	33 gal (126 l)
Slew System
Slew Brake	Hydraulic braking plus automatic spring applied disc type parking brake
Slew Gear	Large diameter, internally toothed fully sealed grease bath lubricated.
Slew Motor	Axial piston type
Slew Speed	13 rpm
Slew Torque	36.2 KNm
Undercarriage
Number Of Shoes Per Side	44
Track Adjustment	Grease cylinder type.
