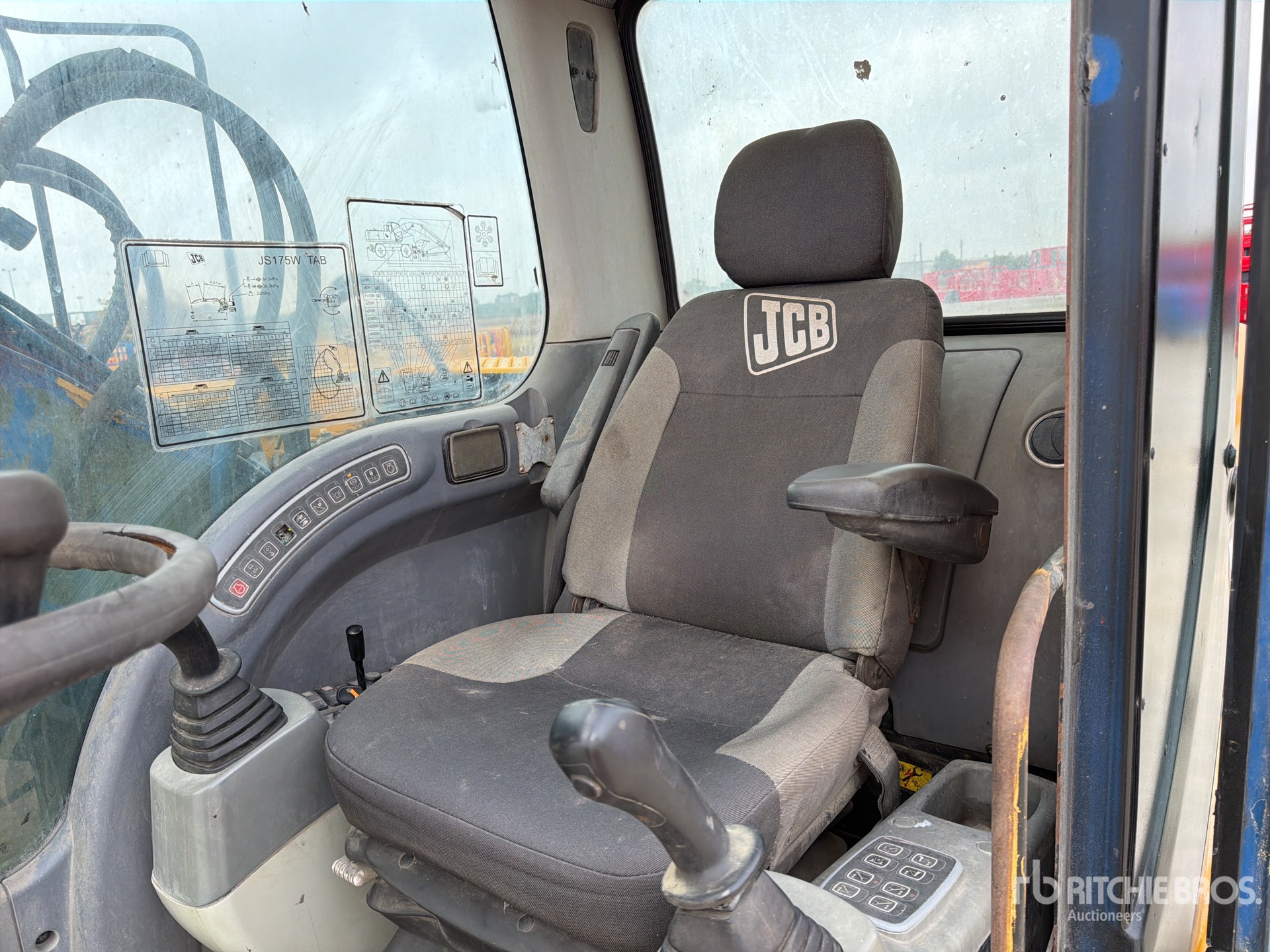

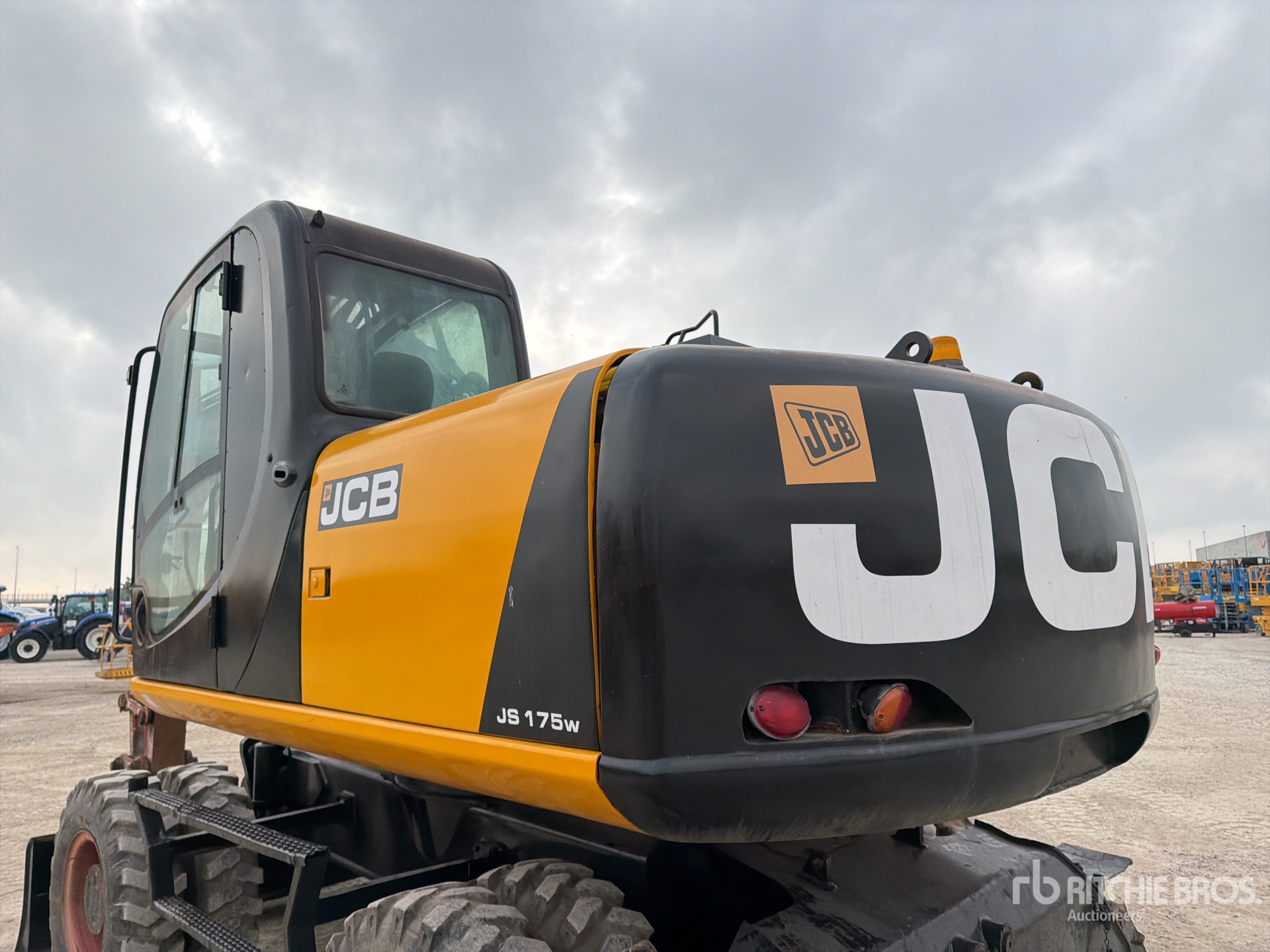

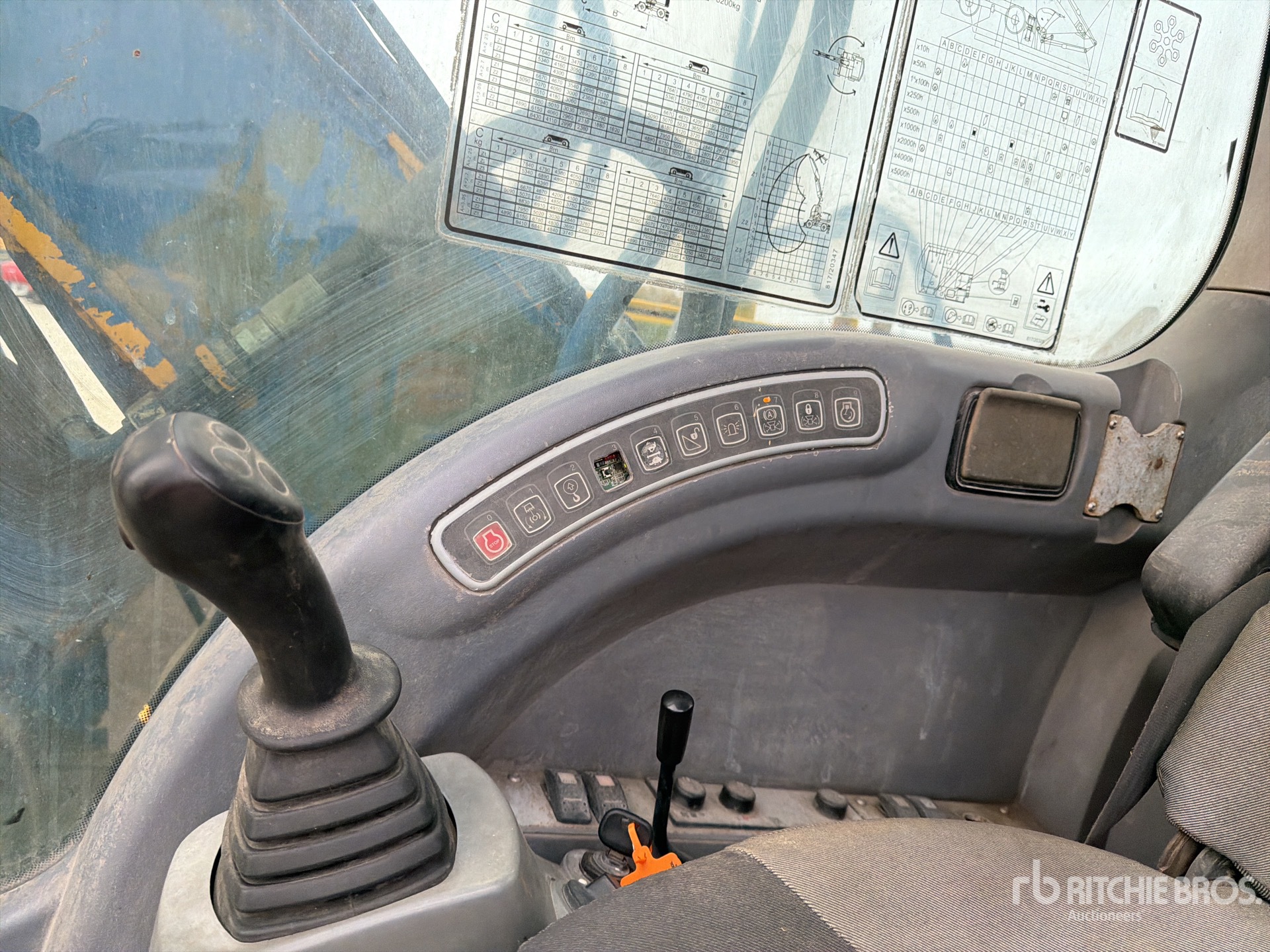

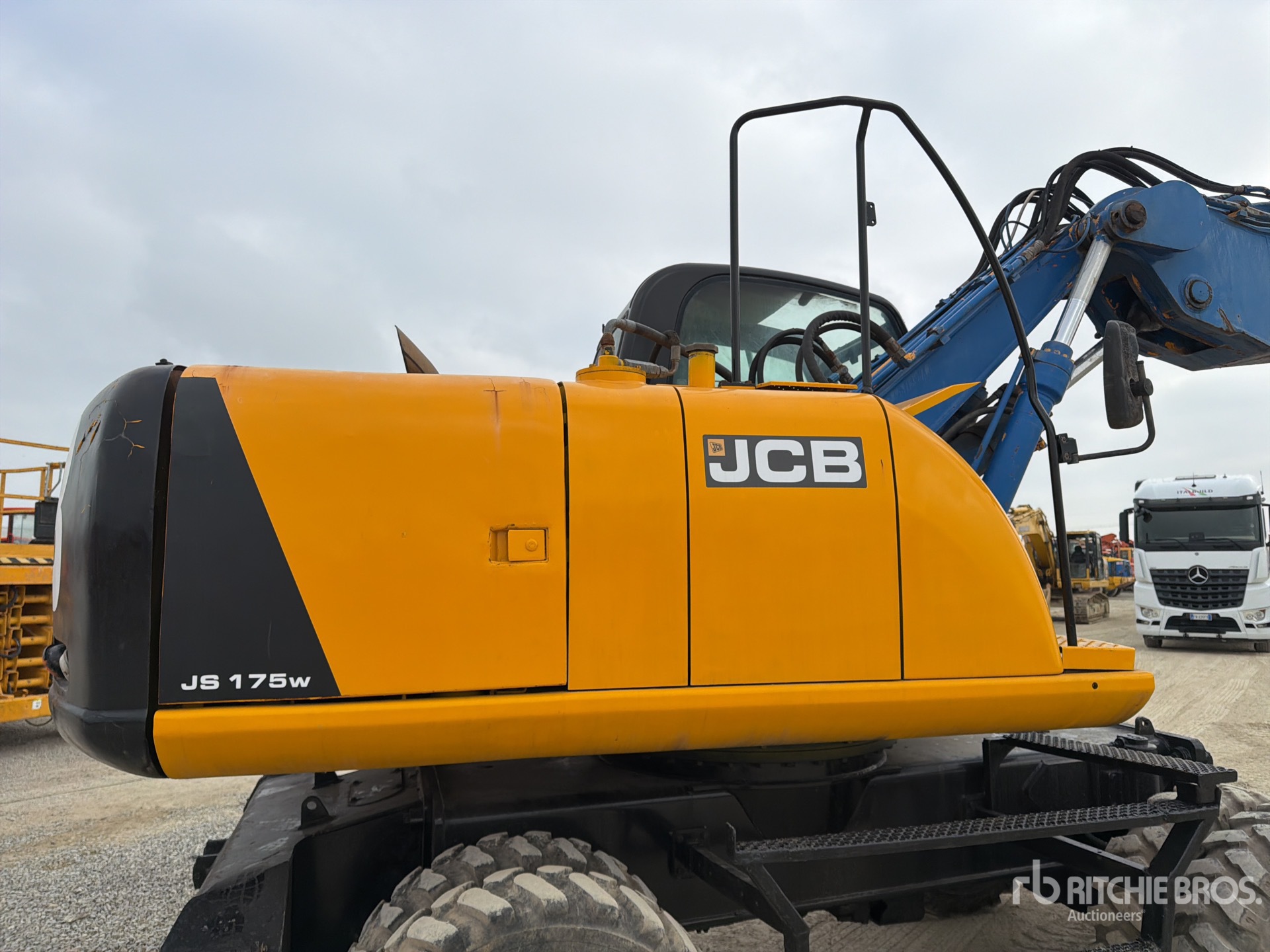

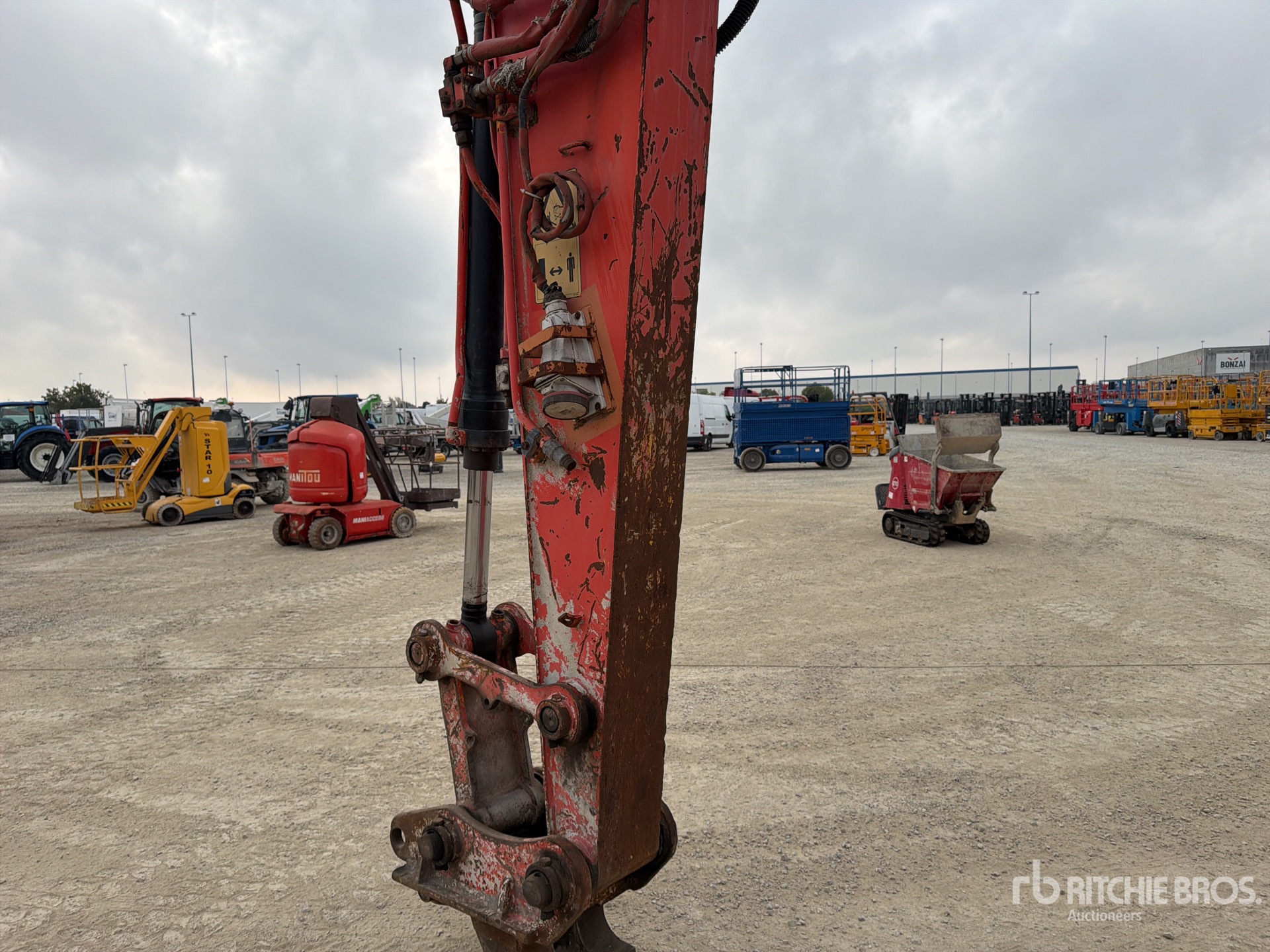

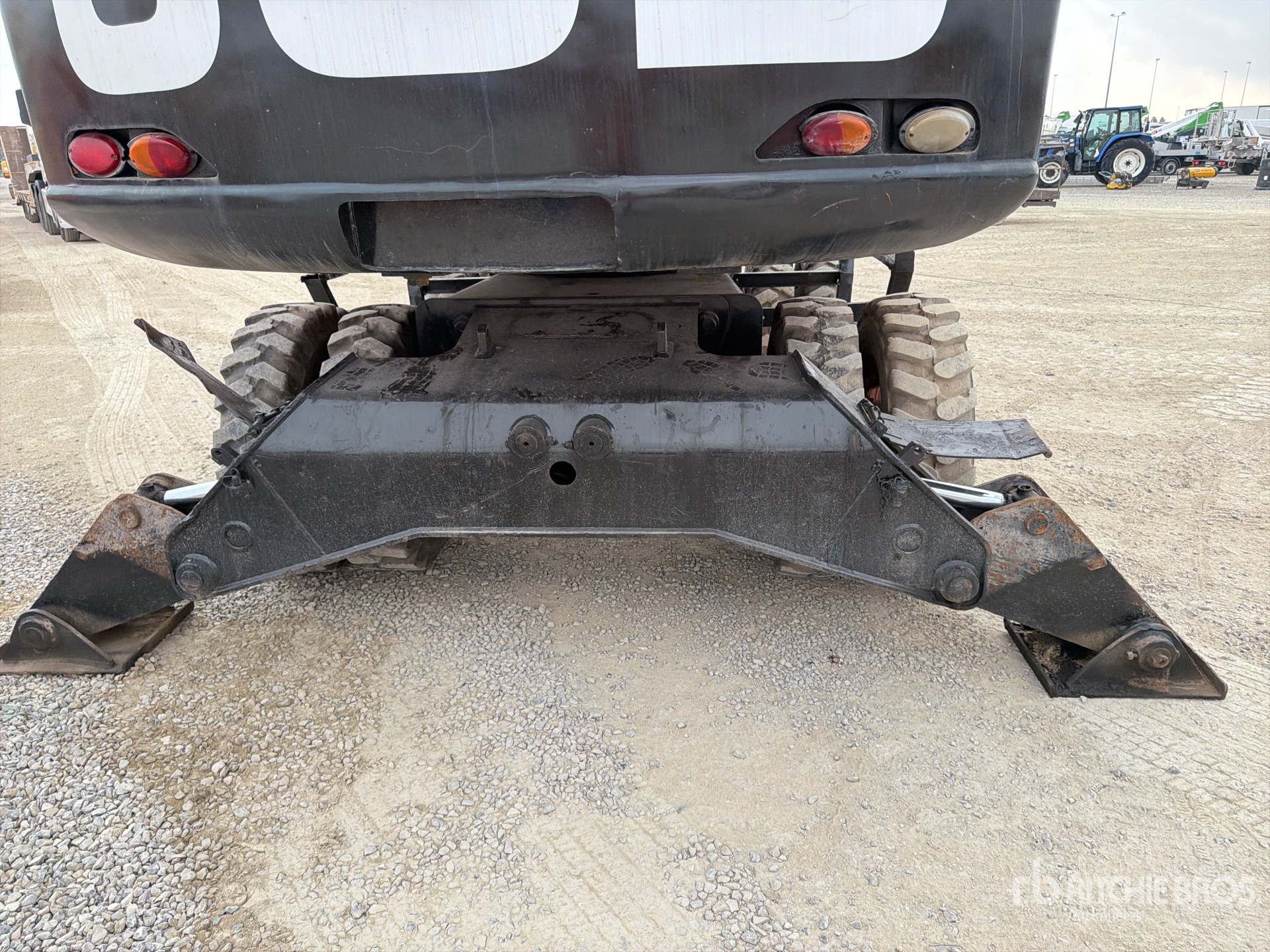

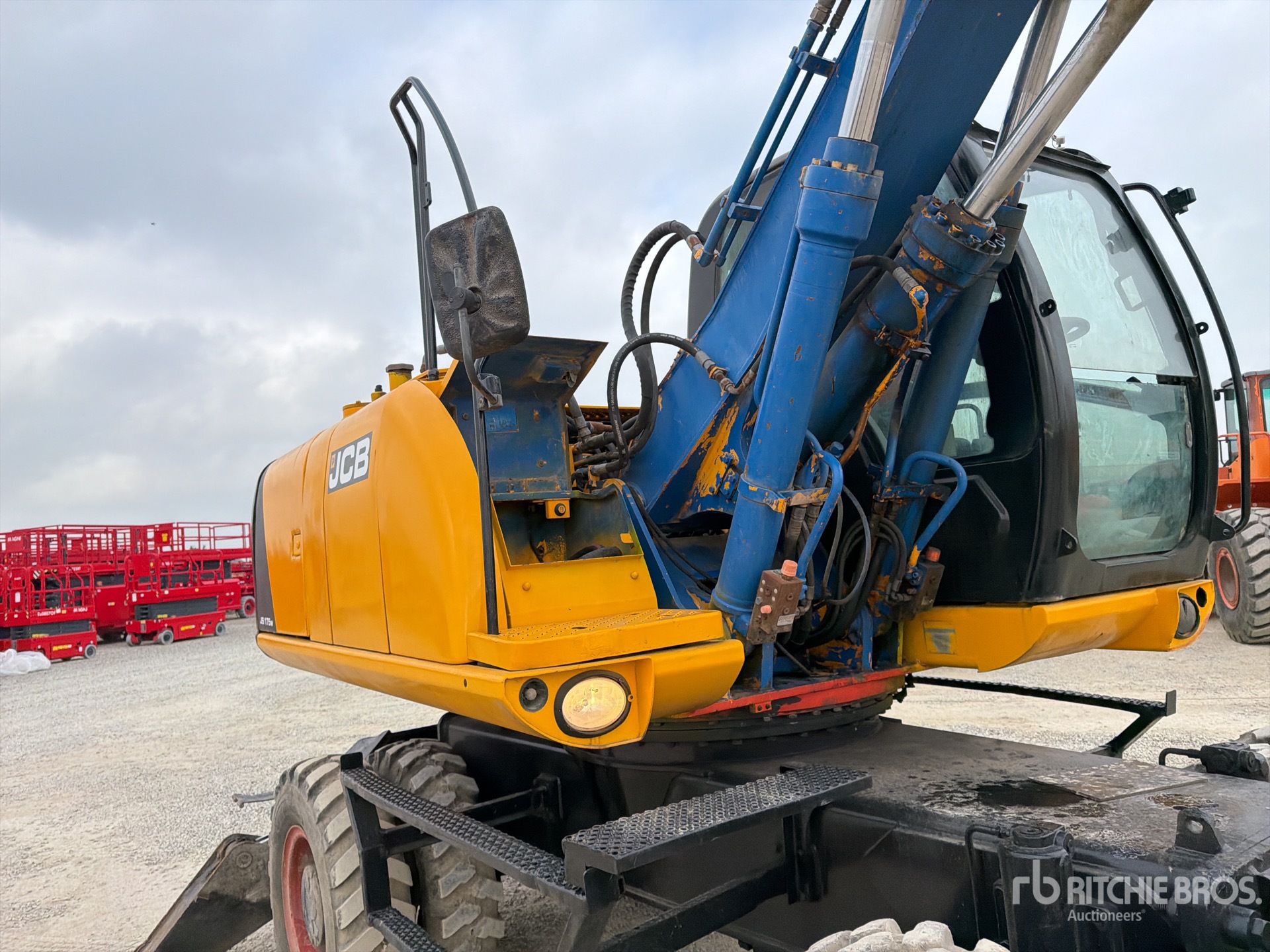

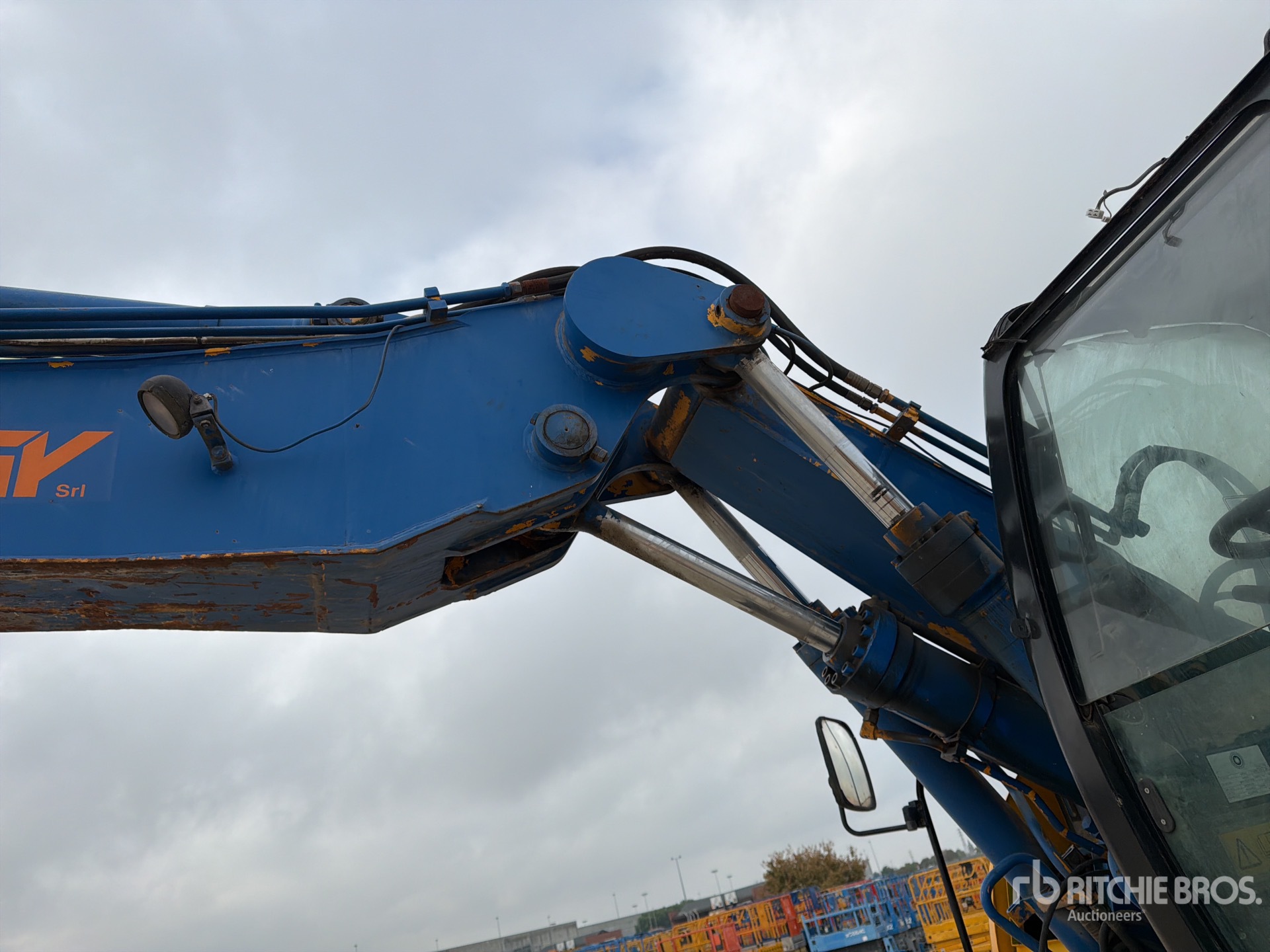

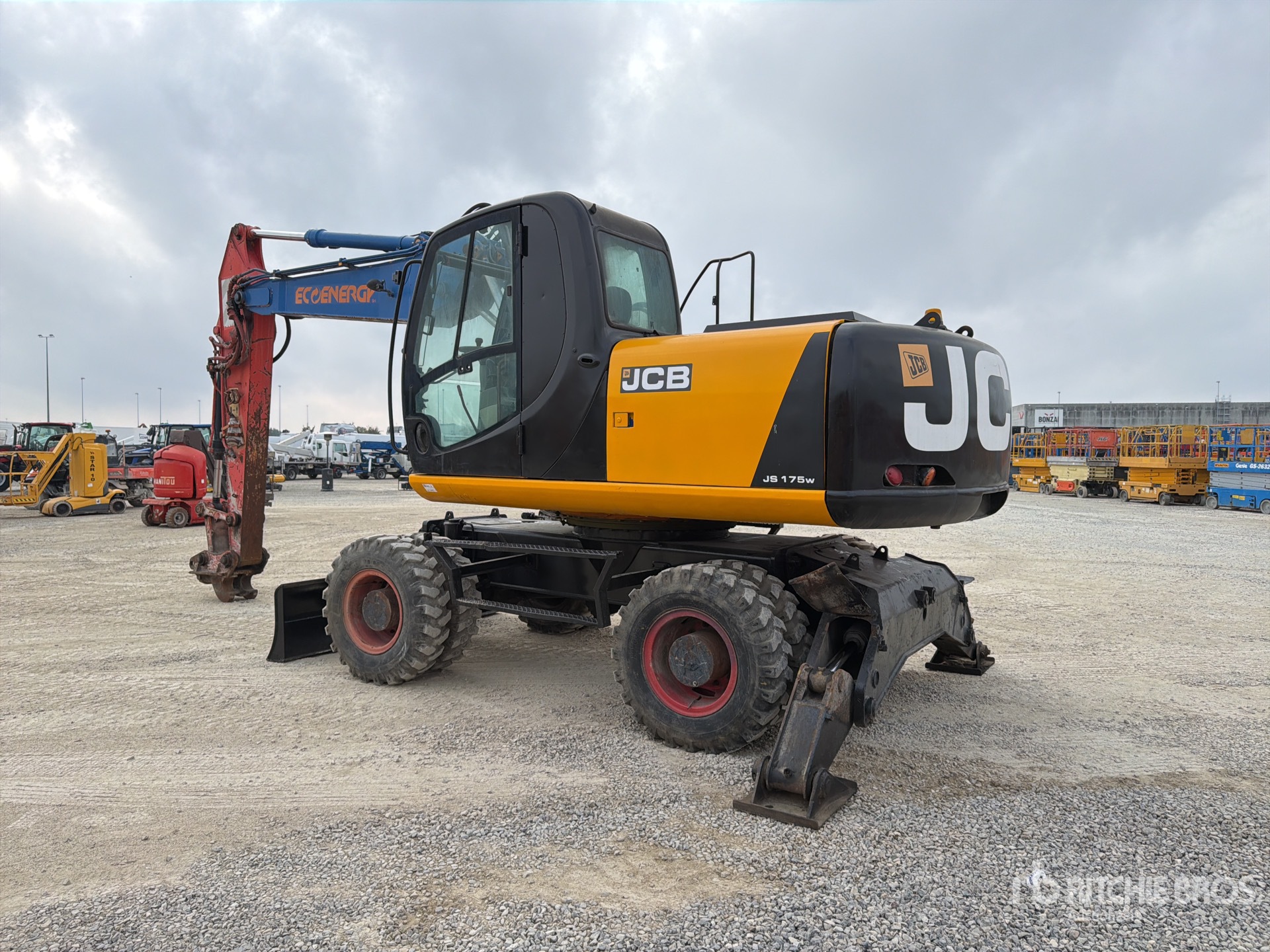

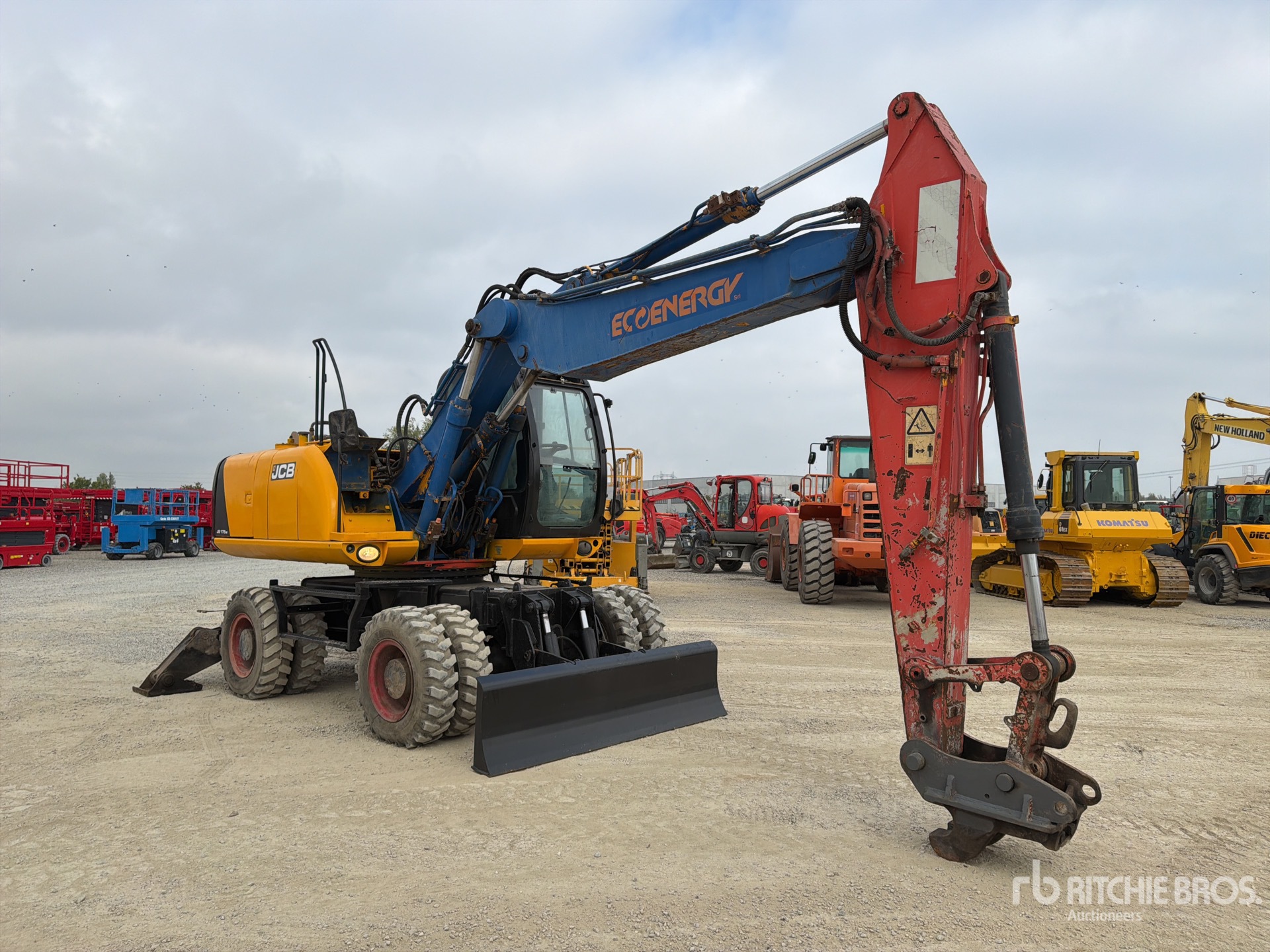

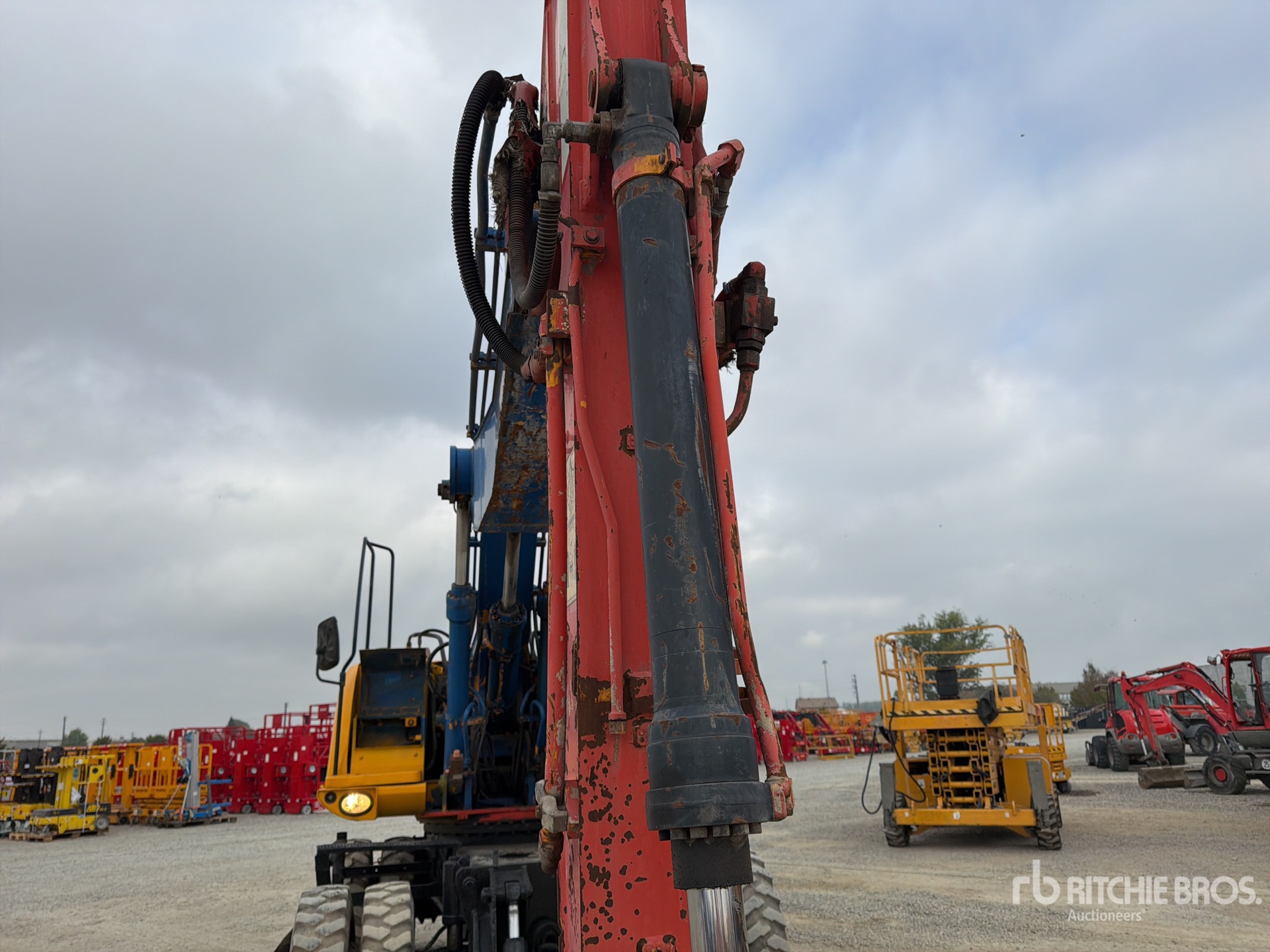

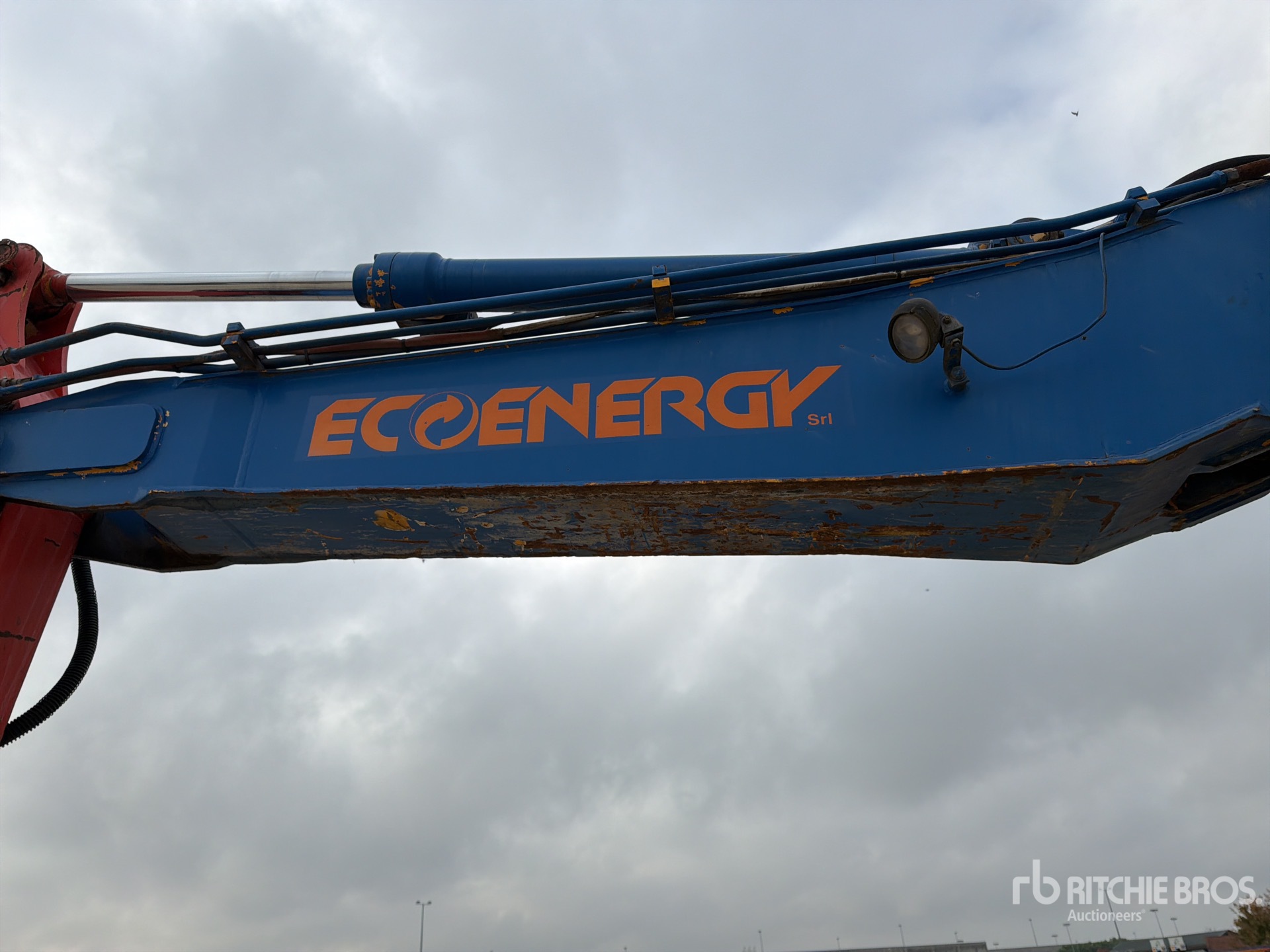

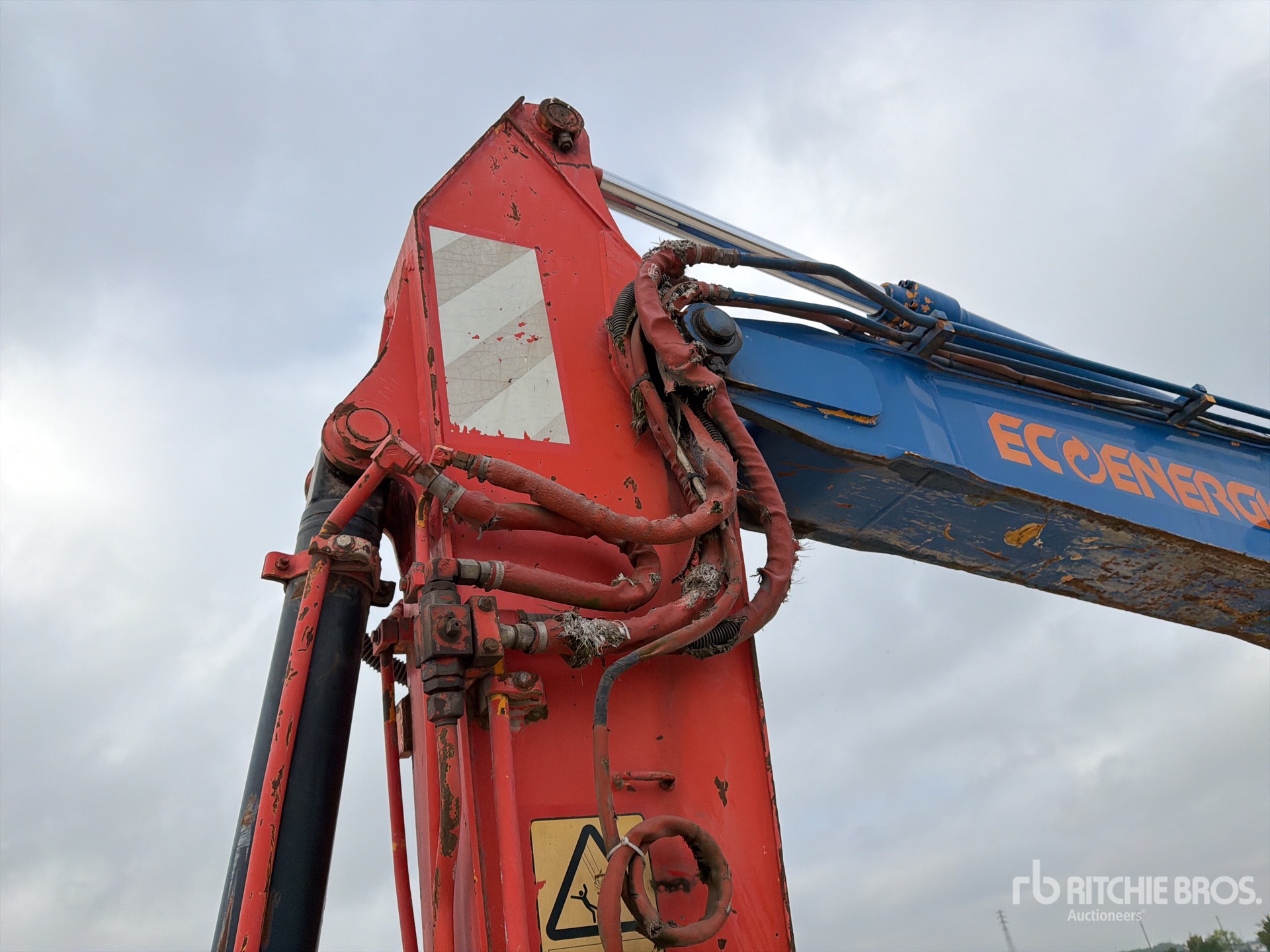

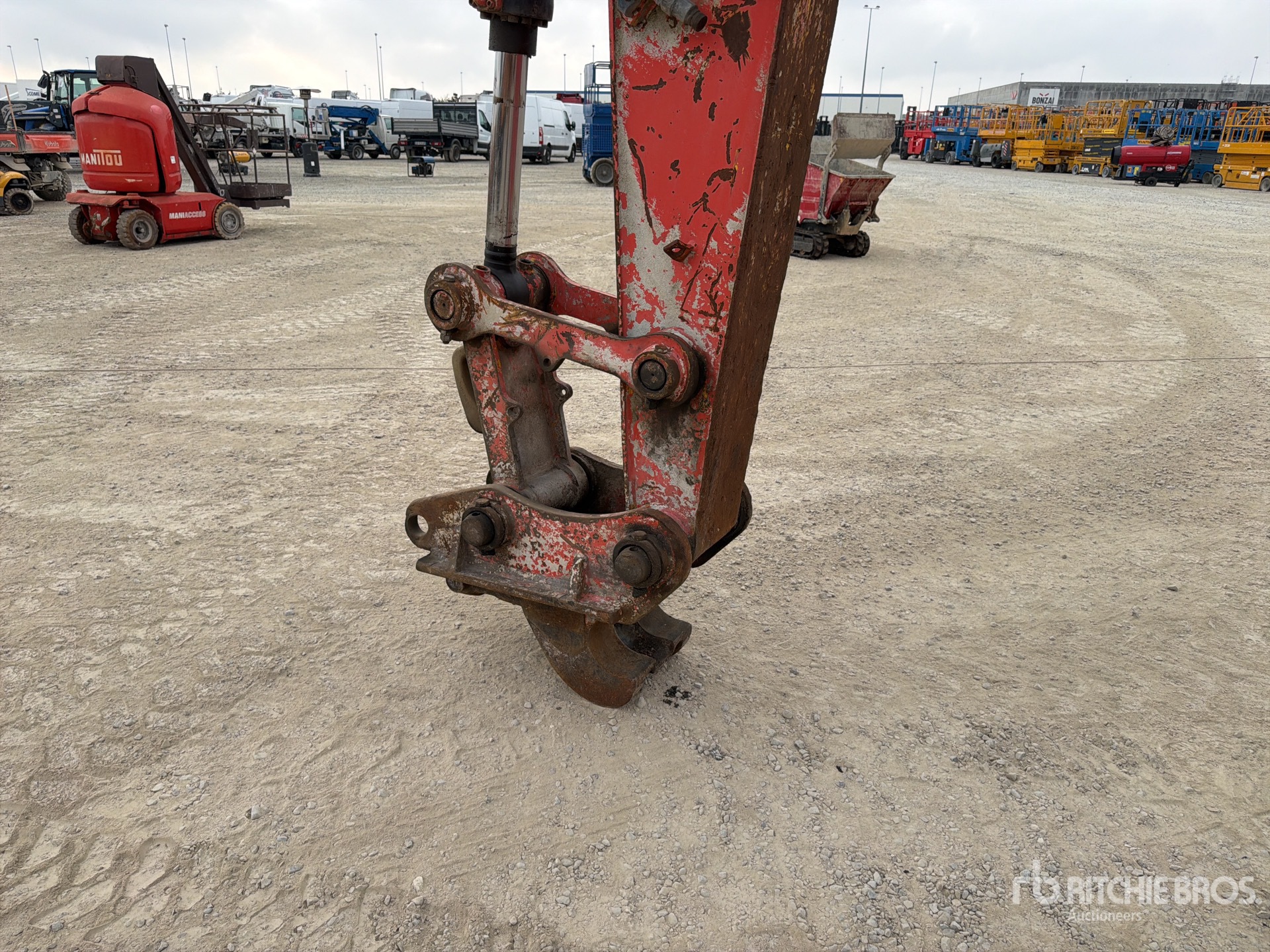

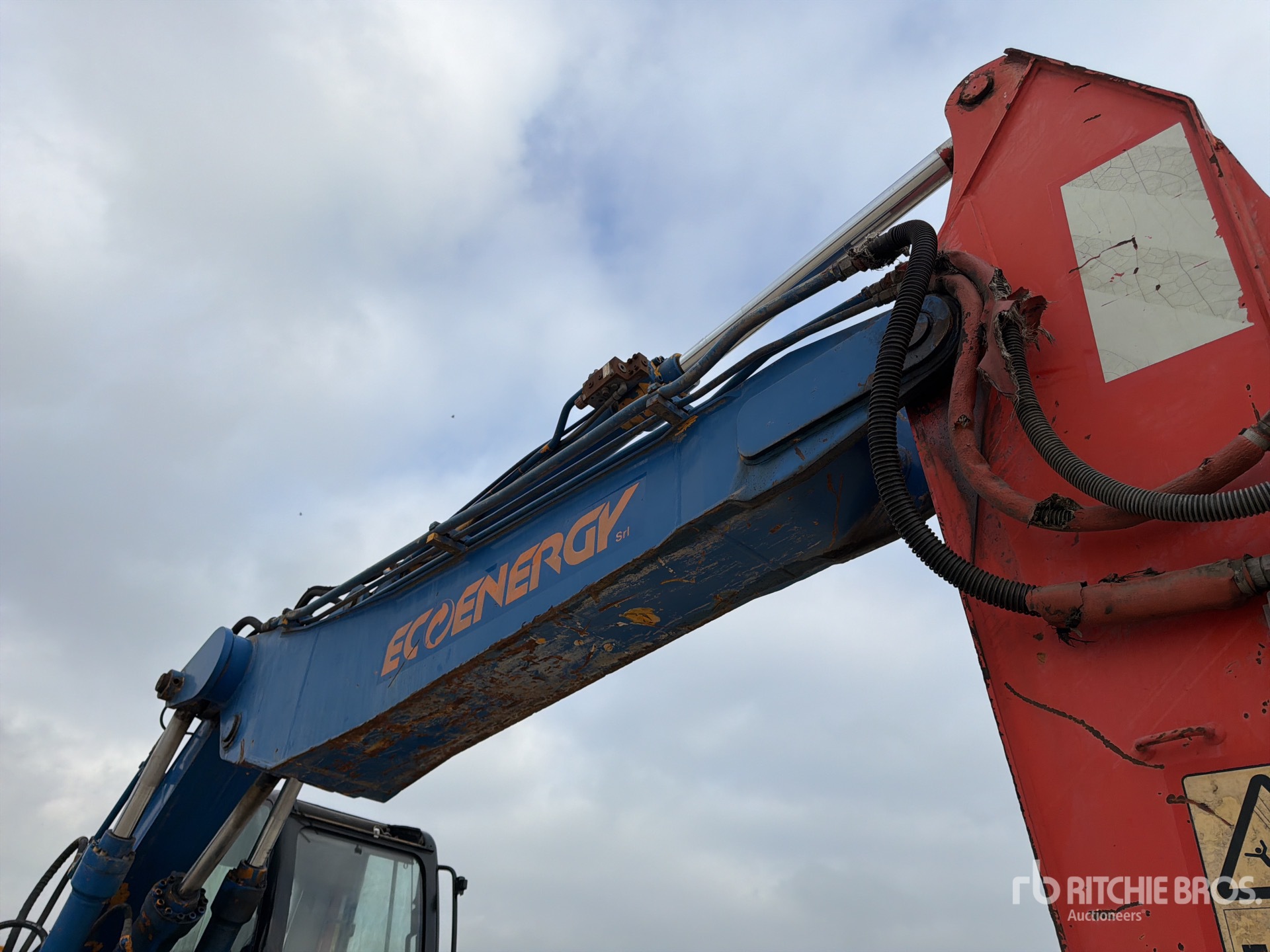

| Boom/Stick Option (Mex) 1 |
|
Boom/Stick Option (Mex) 1 |
monoboom w/ dipper 2250mm |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
28 ft (8 m)
|
|
Max Vertical Wall Dig Depth |
13 ft (4 m)
|
|
Shipping Height Of Unit |
9 ft (3 m)
|
|
Shipping Length Of Unit |
27 ft (8 m)
|
| Boom/Stick Option (Mex) 2 |
|
Boom/Stick Option (Mex) 2 |
monoboom w/ dipper 2700mm |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
14 ft (4 m)
|
|
Shipping Height Of Unit |
9 ft (3 m)
|
|
Shipping Length Of Unit |
27 ft (8 m)
|
| Boom/Stick Option (Mex) 3 |
|
Boom/Stick Option (Mex) 3 |
monoboom w/ dipper 3050mm |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
30 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
28 ft (8 m)
|

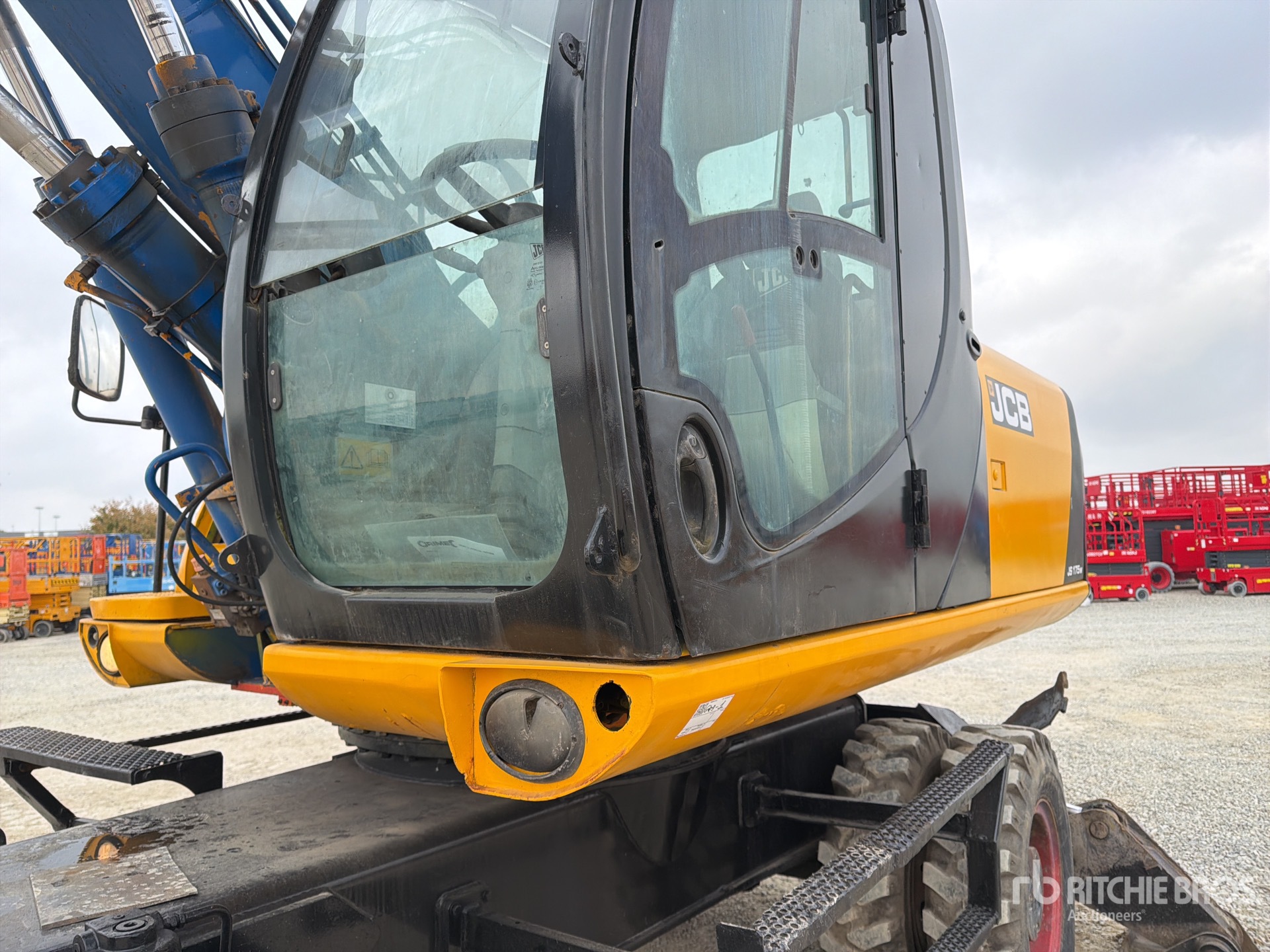

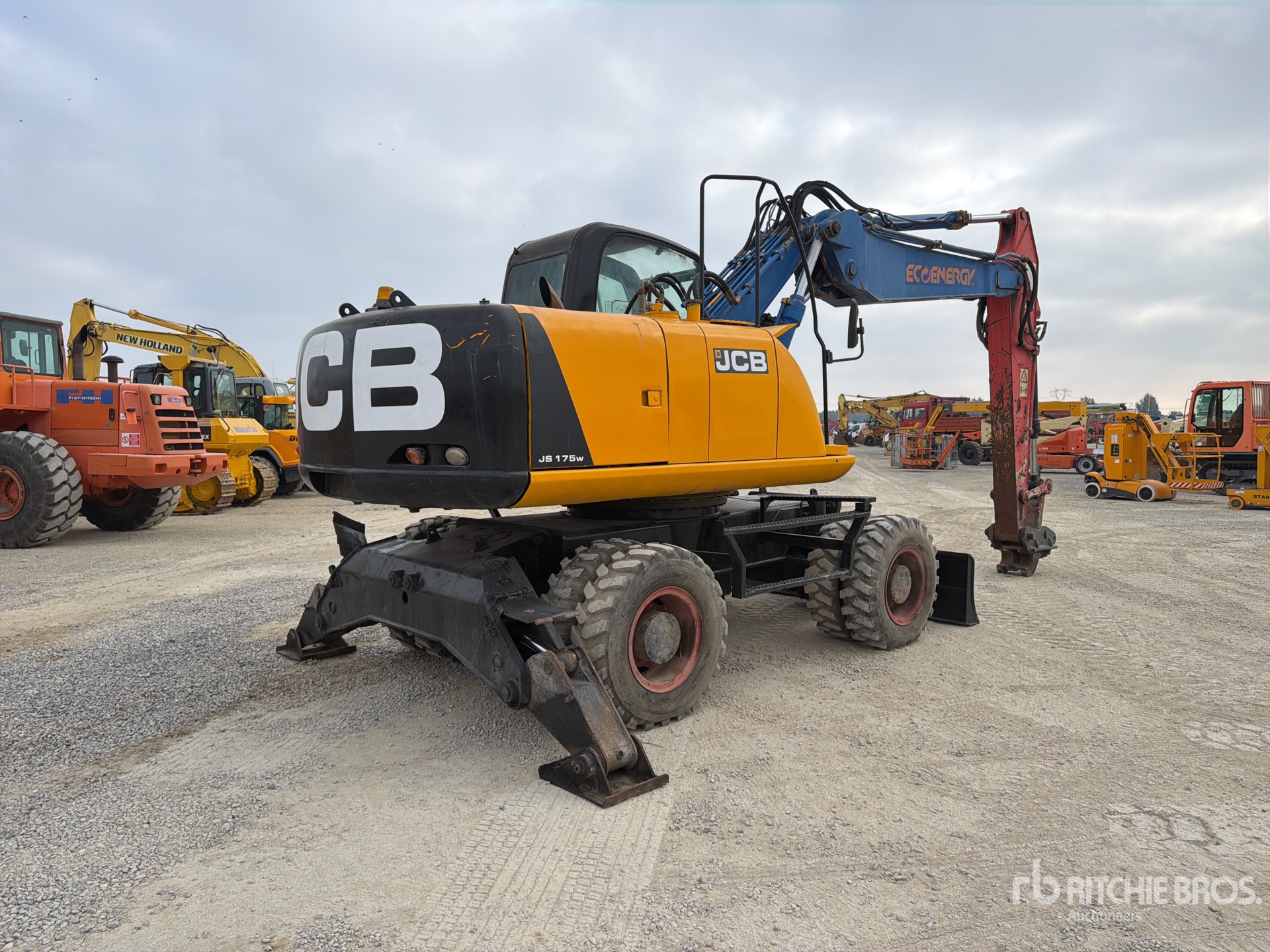

| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
27 ft (8 m)
|
|
Overall Width |
8 in (21 cm)
|
|
Upper Structure Clearance |
4 ft (1 m)
|
|
Weight |
37,540 lbs (17,028 kg)
|
|
Width |
8 ft (2 m)
|
| Engine |
|
Air Filter Type |
Dry element with secondary safety element and in cab warning indicator |
|
Alternator |
55 amps |
|
Aspiration |
turbocharged diesel |
|
Battery |
2 x 12 volt Heavy Duty. |
|
Cooling System |
Large capacity radiator |
|
Displacement |
293 cu in (4,801 cu cm)
|
|
Engine Model |
JCB EcoMAX 448 TCA-99 Eu Stage IIIB, EPA Tier 4 interim compliant. |
|
Engine Type |
Water cooled, 4-stroke, 4-cylinder in-line, direct injection, turbocharged diesel |
|
Injection |
Electronic injection |
|
Net Power |
138 hp (103 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,950 rpm |
|
Rated Power |
172 hp (128 kw)
|
|
Starting System |
24 volt – 4kW. |

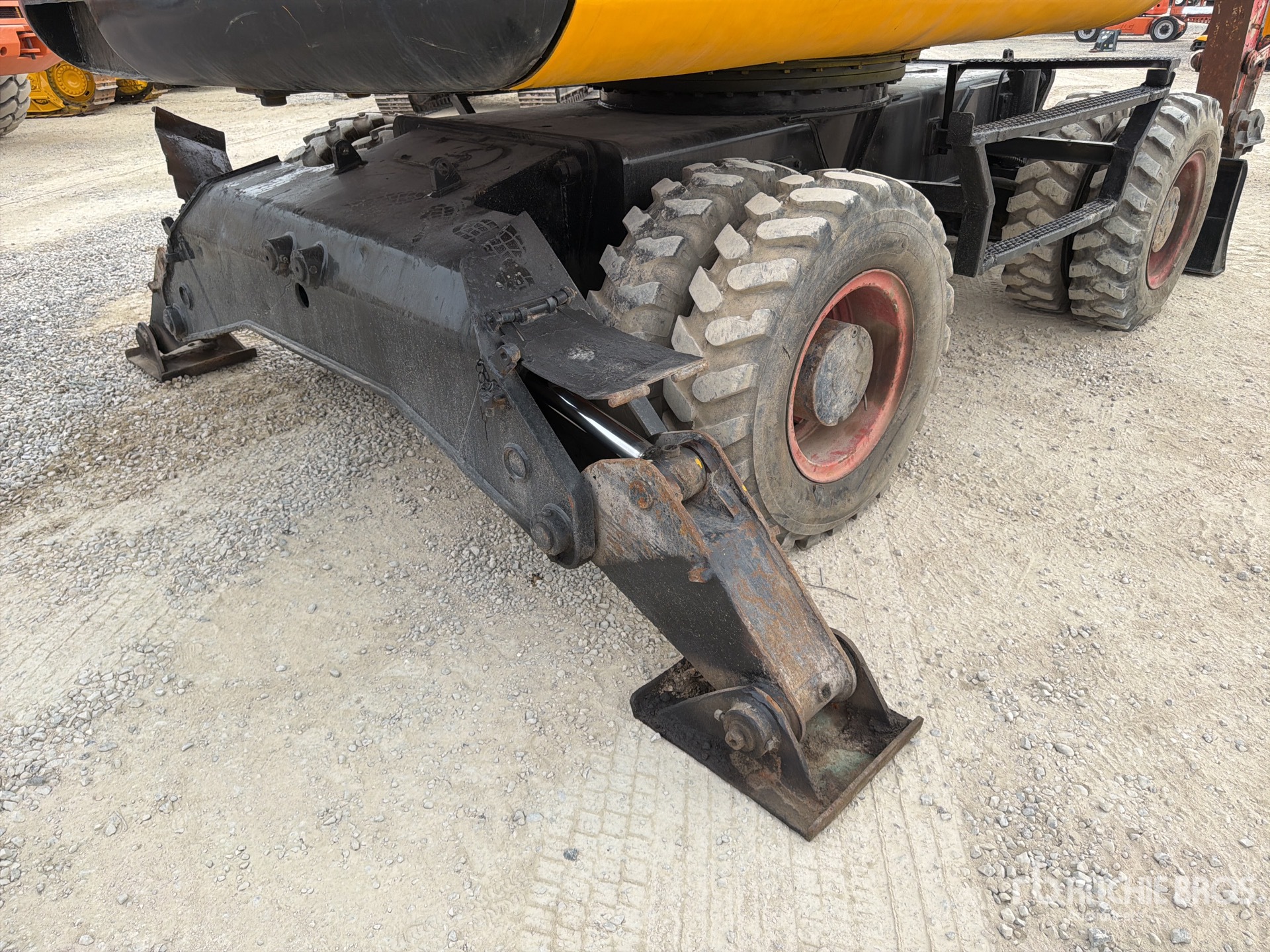

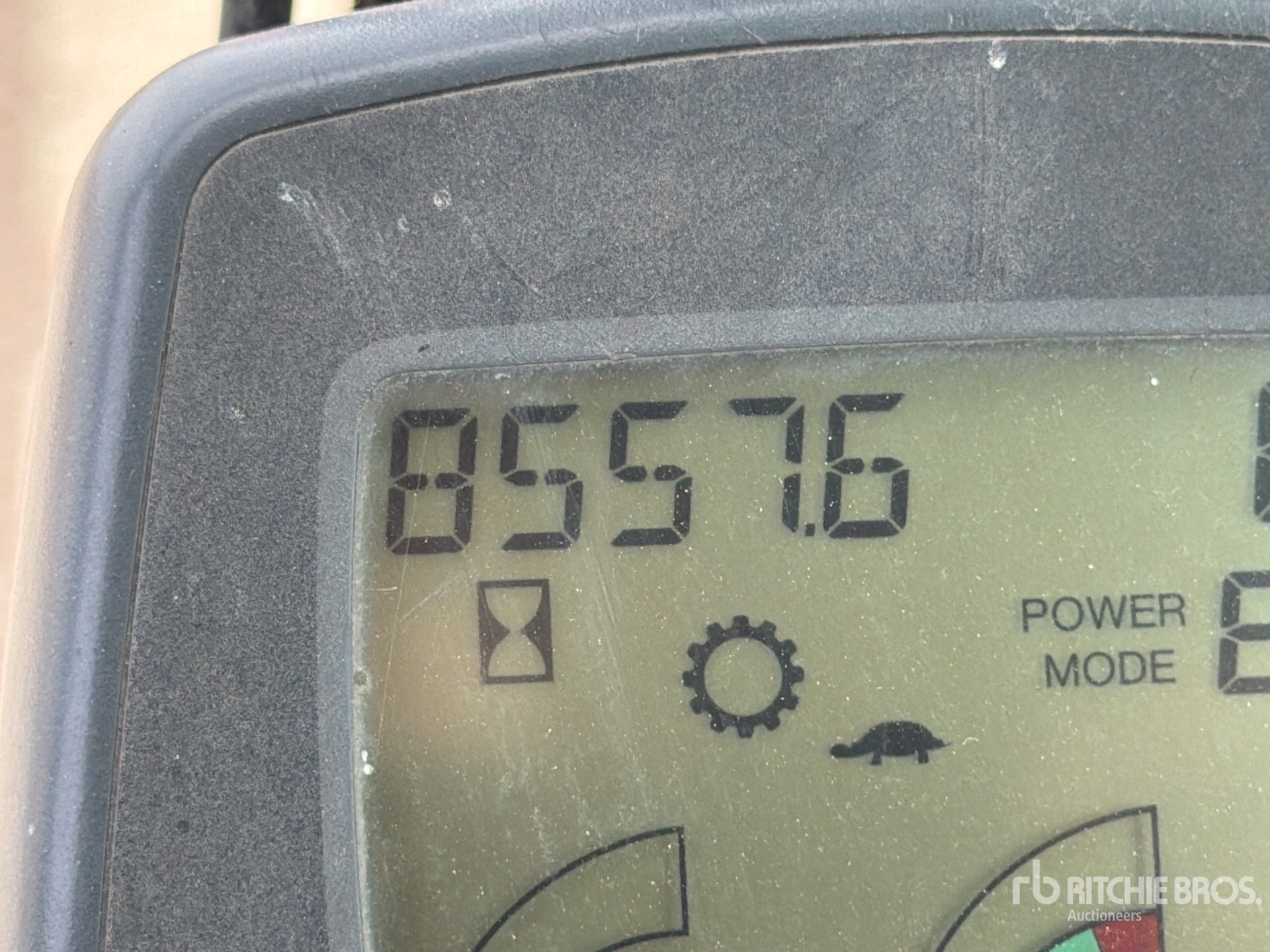

| Operational |
|
Alternator Supplied Amperage |
40 amps |
|
Cooling System Fluid Capacity |
7 gal (26 l)
|
|
Engine Oil Capacity |
5 gal (20 l)
|
|
Front Diff Fluid Capacity |
4 gal (14 l)
|
|
Fuel Capacity |
77 gal (290 l)
|
|
Hydraulic Pump Flow Capacity |
83 gpm (312 lpm)
|
|
Hydraulic Pump Type |
load-sensed hydraulic system with twin variable flow piston pumps providing flow on demand for maximum efficiency |
|
Hydraulic System Fluid Capacity |
33 gal (124 l)
|
|
Hydraulic System Relief Valve Pressure |
4,975 psi |
|
Operating Weight |
39,948 lbs (18,120 kg)
|
|
Operational Voltage |
24 V |
|
Oscillating Axle Angle |
17 degrees |
|
Rear Diff Fluid Capacity |
3 gal (12 l)
|
|
Tire Size |
twins: 10x20 16PR, single: 18Rx19.5 (radials) |
| Swing Mechanism |
|
Swing Speed |
11 rpm |
| Transmission |
|
Max Travel Speed |
19 mph (30 kph)
|
|
Number Of Forward Gears |
2 |
|
Number Of Reverse Gears |
2 |
|
Transmission Type |
hydrostatic, powershift |
