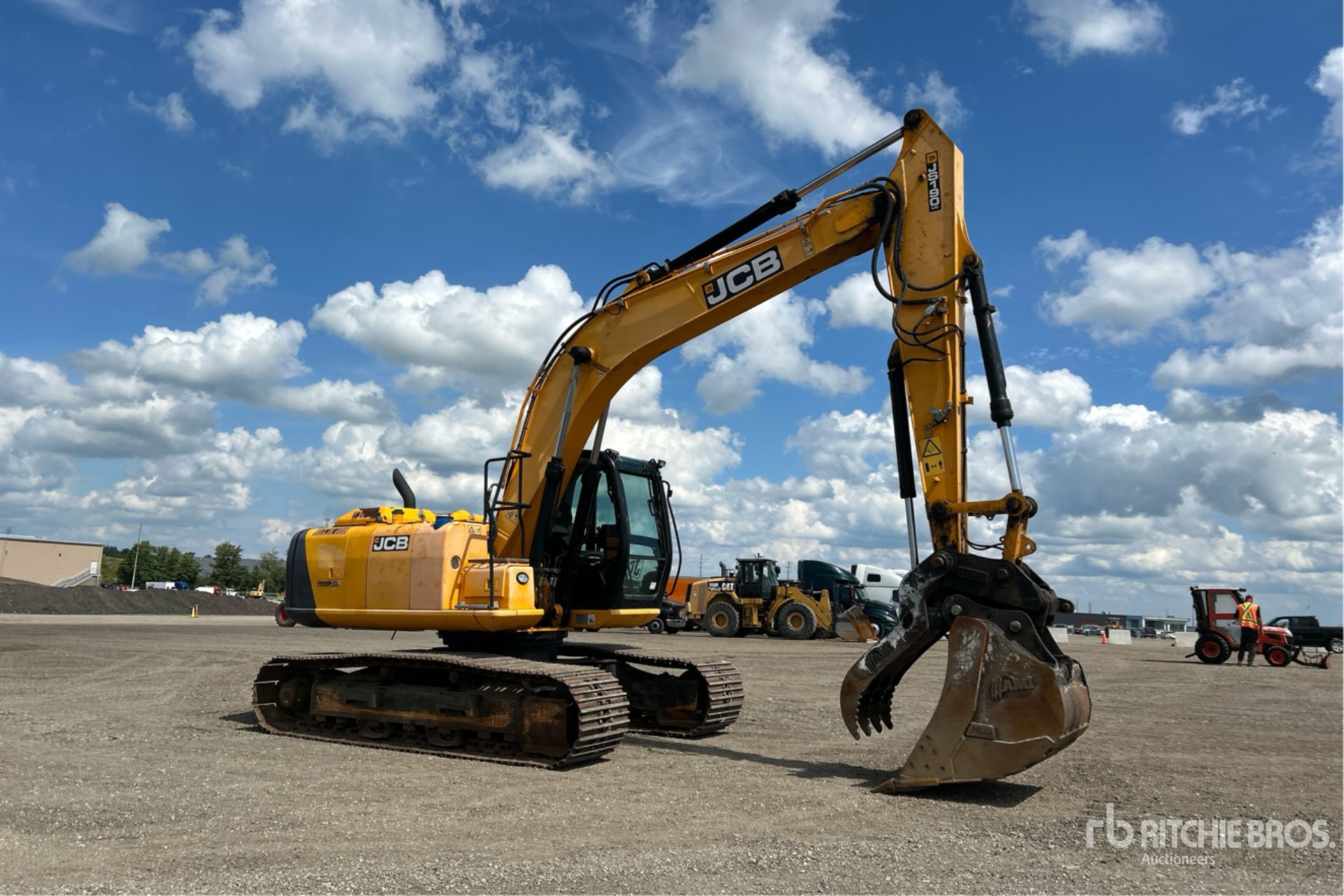

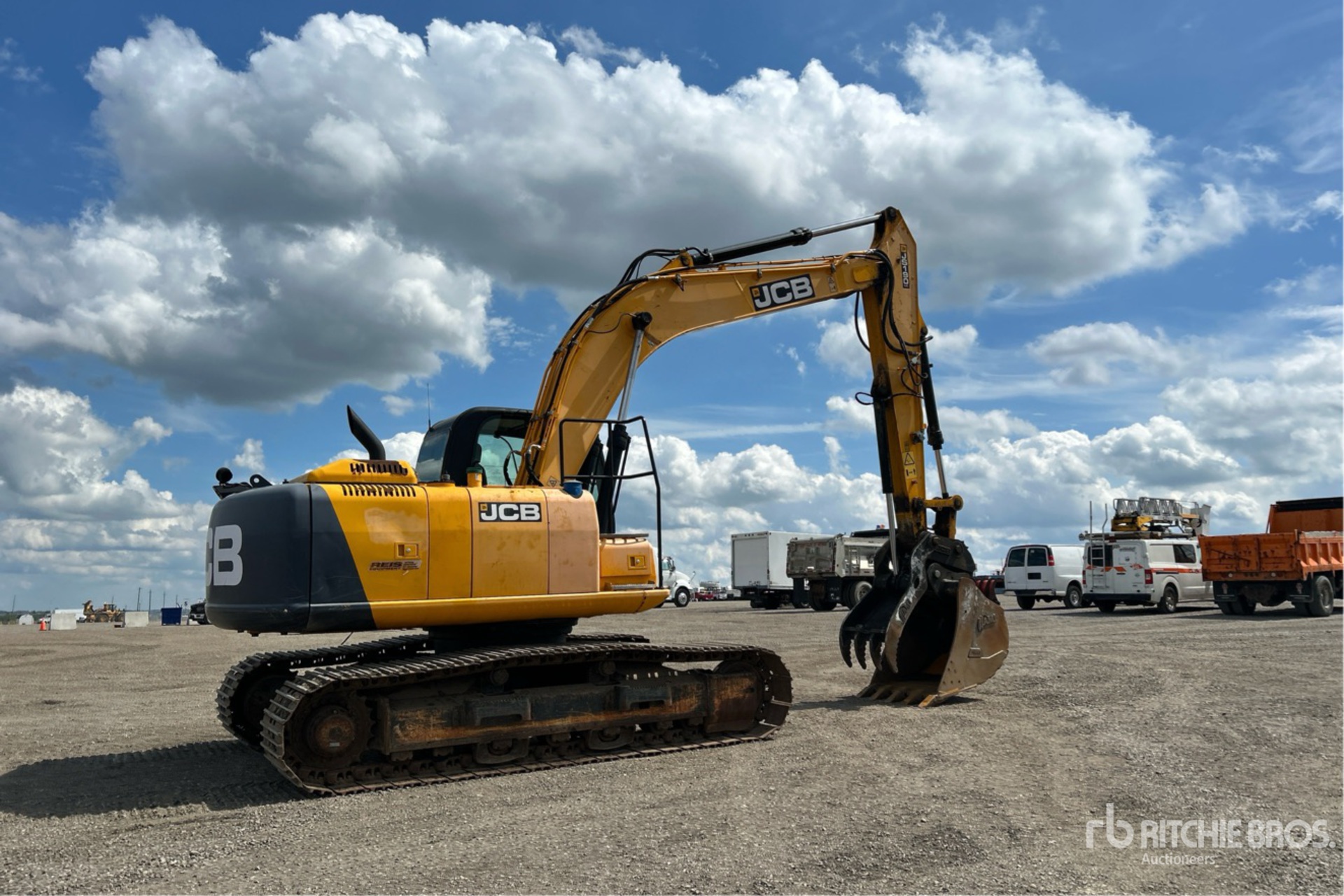

| Boom/Stick 1 |
|
Boom/Stick 1 |
T.A. boom 5350 mm with arm 2250 mm |
|
Max Cutting Height |
31 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Digging Reach |
28 ft (9 m)
|
|
Max Digging Reach On Ground |
27 ft (8 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Minimum Swing Radius |
118 in (300 cm)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
T.A. boom 5350 mm with arm 2700 mm |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Digging Reach |
29 ft (9 m)
|
|
Max Digging Reach On Ground |
29 ft (9 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Minimum Swing Radius |
118 in (300 cm)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
T.A. boom 5350 mm with arm |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Digging Reach |
30 ft (9 m)
|
|
Max Digging Reach On Ground |
30 ft (9 m)
|
|
Max Loading Height |
25 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
20 ft (6 m)
|
|
Minimum Swing Radius |
118 in (300 cm)
|
| Brakes |
|
Gradeability |
70 % |
|
Park Brake |
Disc type, spring applied, automatic hydraulic release |
|
Service Brake |
Hydraulic counter balance valve |
| Buckets |
|
Maximum Bucket Capacity |
1 cu yd |
|
Minimum Bucket Capacity |
1 cu yd |
|
Reference Bucket Capacity |
1 cu yd |
| Capacities |
|
Def Tank |
14 gal (54 l)
|
|
Engine Coolant |
5 gal (20 l)
|
|
Engine Oil |
1 gal (2 l)
|
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
28 ft (8 m)
|
|
Length Of Track On Ground |
11 ft (3 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
8 ft (2 m)
|
|
Transport Height |
124 in (316 cm)
|
|
Transport Length |
339 in (861 cm)
|
|
Undercarriage Overall Length |
14 ft (4 m)
|
|
Weight |
44,099 lbs (20,003 kg)
|
|
Width |
10 ft (3 m)
|
|
Width To Outside Of Tracks |
8 ft (2 m)
|

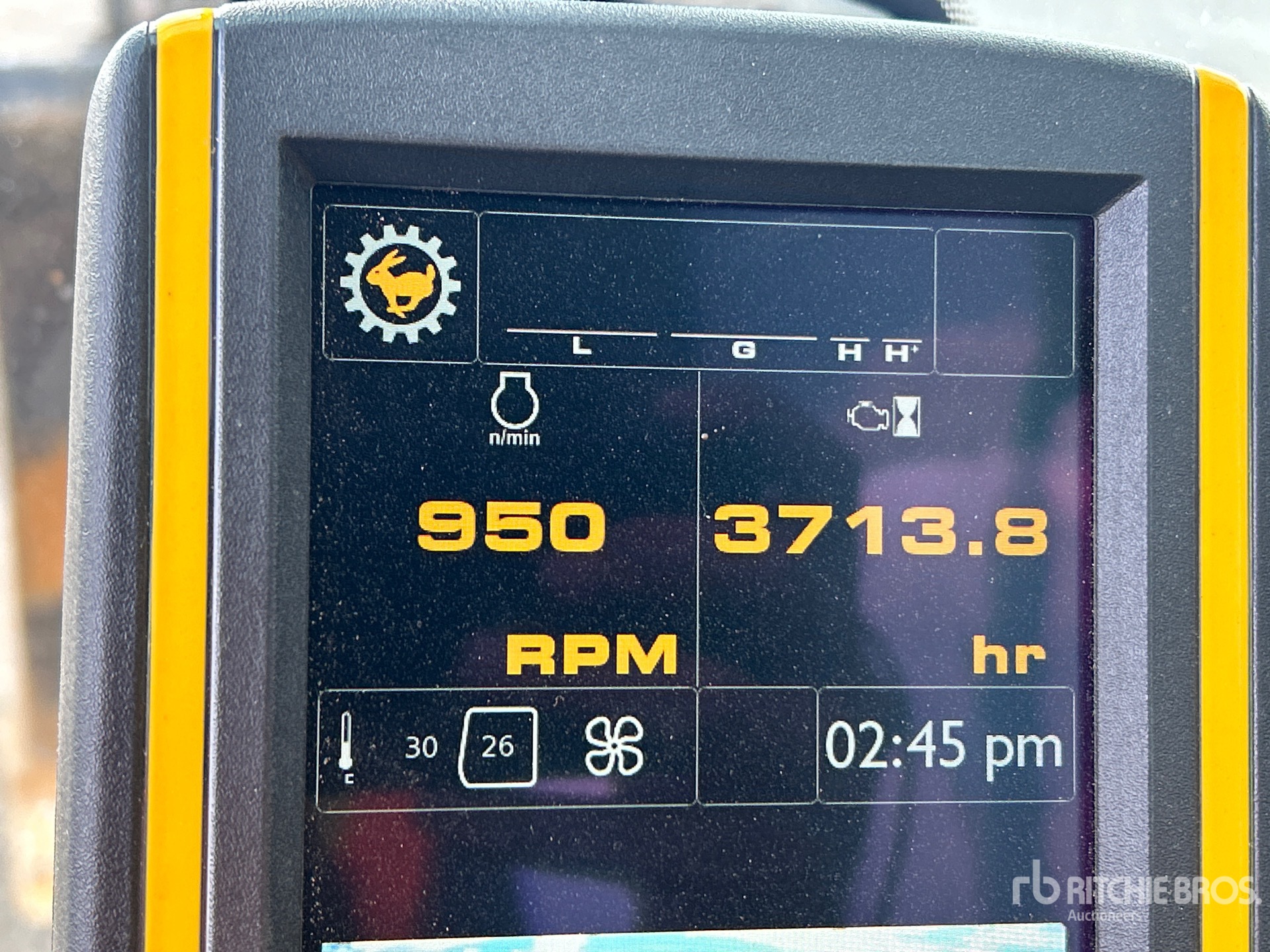

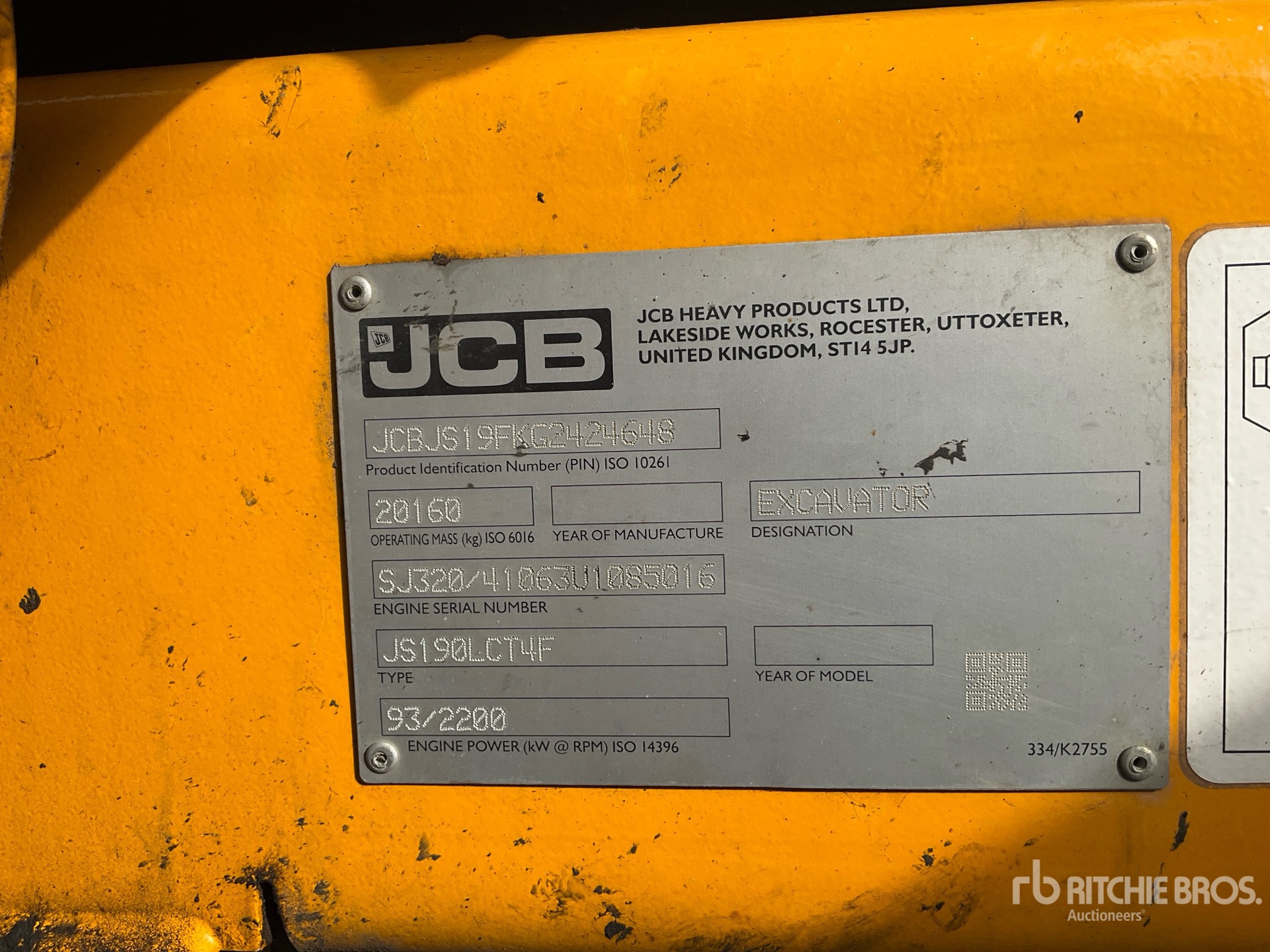

| Engine |
|
Alternator |
55 amps |
|
Battery |
2 x 12 V |
|
Displacement |
264 cu in (4,329 cu cm)
|
|
Engine Make |
2,353 |
|
Engine Model |
JCB EcoMAX 444 TCA EU Stage IV, EPA Tier 4 Final compliant |
|
Net Power |
109 hp (81 kw)
|
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
| Hydraulic System |
|
Control Valve |
A combined ten spool control valve with auxiliary service spool as standard |
|
Main Pump - Maximum Flow |
87 gpm (328 lpm)
|
|
Maximum Flow -Servo Pump, Low Noise Gear Pump |
6 gpm (21 lpm)
|
|
Pilot Circuit |
3 psi |
|
Power Boost |
24 psi |
|
Swing Circuit |
19 psi |
|
Travel Circuit |
24 psi |
| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
4 gal (17 l)
|
|
Engine Oil Capacity |
4 gal (13 l)
|
|
Fuel Capacity |
67 gal (253 l)
|
|
Hydraulic Pump Flow Capacity |
73 gpm (276 lpm)
|
|
Hydraulic System Fluid Capacity |
38 gal (142 l)
|
|
Hydraulic System Relief Valve Pressure |
4,975 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
43,345 lbs (19,658 kg)
|
|
Swing Drive Fluid Capacity |
2 gal (6 l)
|
| Swing Mechanism |
|
Swing Brake |
Hydraulic braking plus automatic spring applied disc type parking brake |
|
Swing Gear |
Large diameter, internally toothed fully sealed grease bath lubricated |
|
Swing Motor |
Axial piston type |
|
Swing Speed |
10 rpm |
|
Swing Torque |
2,582 lbs ft (3,500 nm)
|
| Undercarriage |
|
Ground Pressure |
7 psi |
|
Max Travel Speed |
2 mph (3 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
46 |
|
Number Of Track Rollers Per Side |
7 |
|
Shoe Size |
20 in (50 cm)
|
|
Track Adjustment |
Grease cylinder type |
|
Track Gauge |
7 ft (2 m)
|
