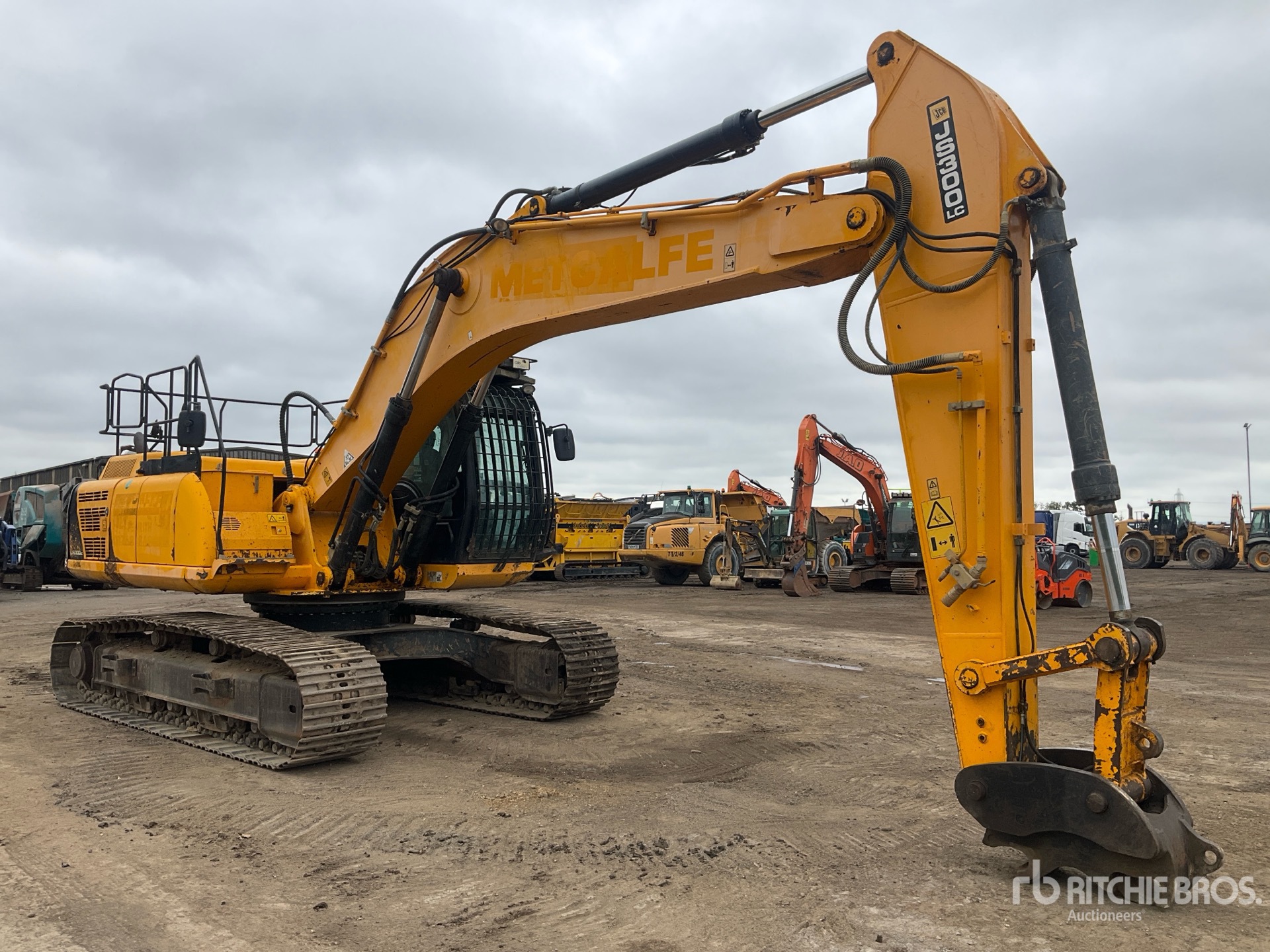

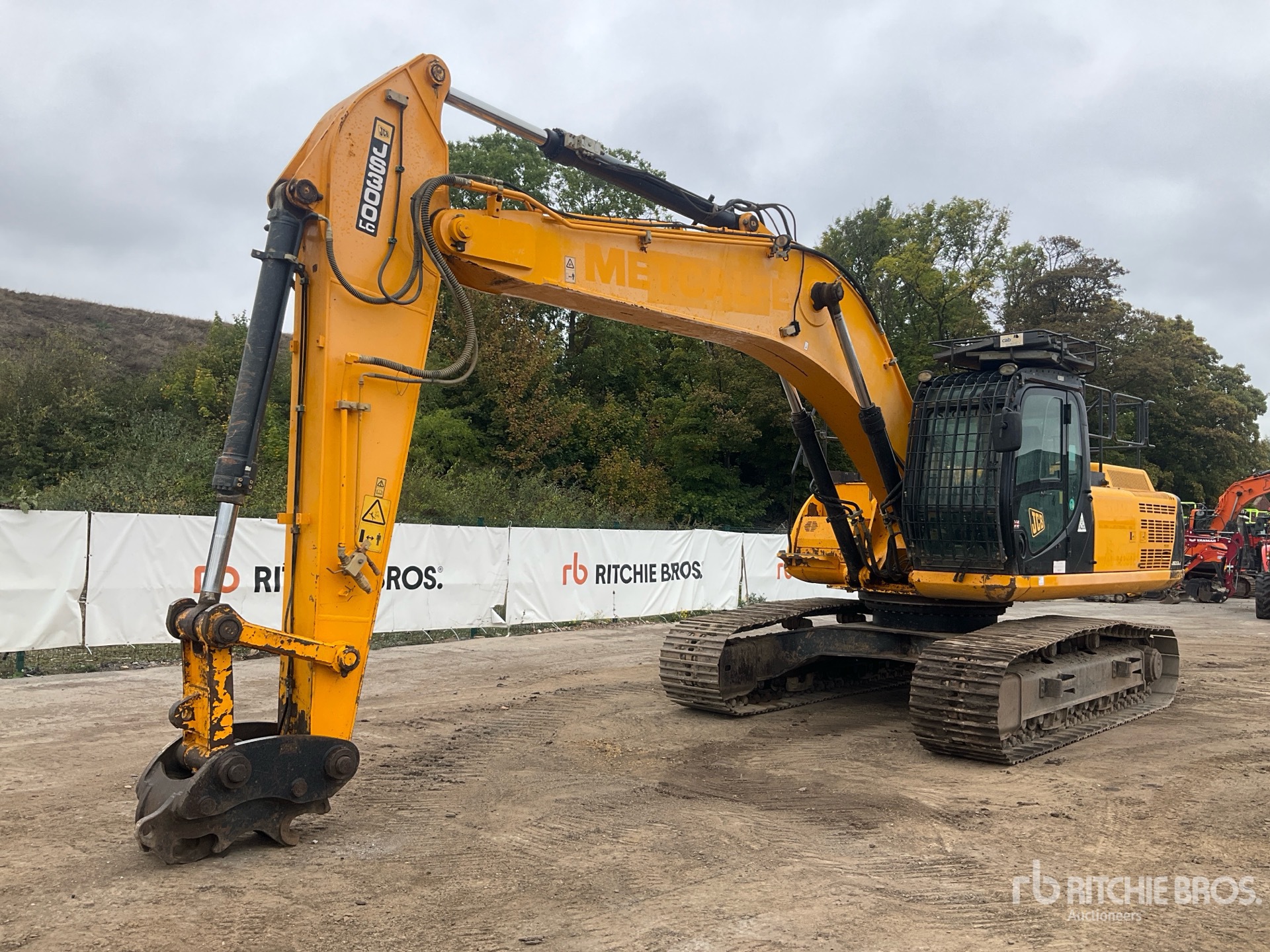

| Boom/Stick 1 |
|
Boom/Stick 1 |
Dipper Length 2.21m Boom 6.45m |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Digging Reach |
33 ft (10 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Max.Dumping Height |
22 ft (7 m)
|
|
Minimum Swing Radius |
184 in (467 cm)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
36 ft (11 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Dipper Lenght 2.63m Boom 6.45m |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Digging Reach |
34 ft (10 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
18 ft (6 m)
|
|
Max.Dumping Height |
23 ft (7 m)
|
|
Minimum Swing Radius |
183 in (464 cm)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
36 ft (11 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Dipper Length 3.23m Boom 6.45m |
|
Max Cutting Height |
34 ft (10 m)
|
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Digging Reach |
36 ft (11 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
36 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
21 ft (6 m)
|
|
Max.Dumping Height |
24 ft (7 m)
|
|
Minimum Swing Radius |
160 in (406 cm)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
36 ft (11 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Dipper Length 4.03m Boom 6.45m |
|
Max Cutting Height |
35 ft (11 m)
|
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Digging Reach |
39 ft (12 m)
|
|
Max Loading Height |
25 ft (7 m)
|
|
Max Reach Along Ground |
38 ft (12 m)
|
|
Max Vertical Wall Dig Depth |
23 ft (7 m)
|
|
Max.Dumping Height |
25 ft (8 m)
|
|
Minimum Swing Radius |
178 in (452 cm)
|
|
Shipping Height Of Unit |
13 ft (4 m)
|
|
Shipping Length Of Unit |
36 ft (11 m)
|
| Brakes |
|
Brakes Type |
Fully hydrostatic, two speed with autoshift. |
|
Gradeability |
70 |
|
Parking Brake |
Disc type |
|
Service Brake |
Hydraulic counter balance valve. |
|
Travel Speed |
3 mph (5 kph)
|
| Buckets |
|
Maximum Bucket Capacity |
3 cu yd |
|
Minimum Bucket Capacity |
2 cu yd |
|
Reference Bucket Capacity |
2 cu yd |

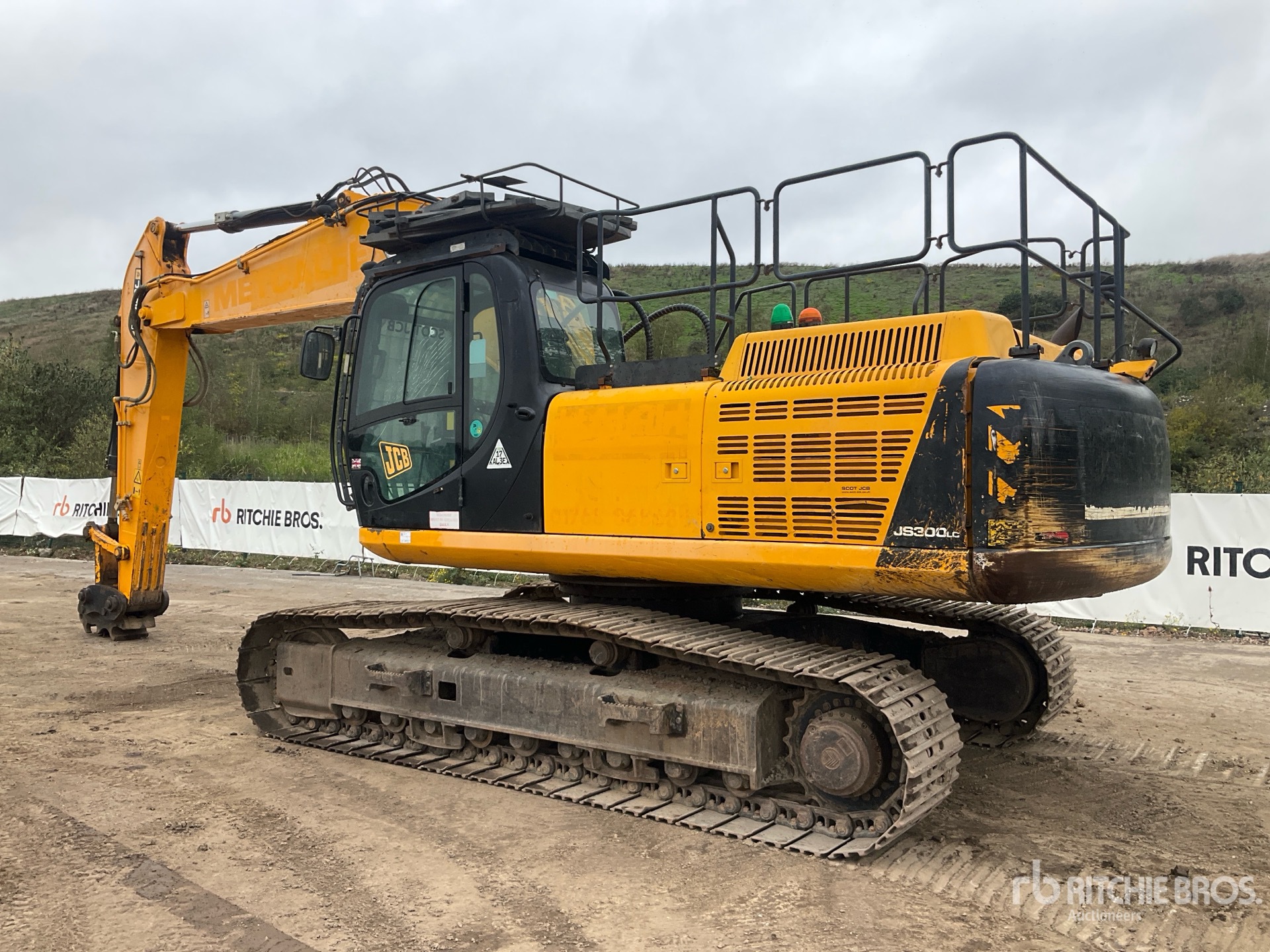

| Dimensions |
|
Counterweight Clearance |
4 ft (1 m)
|
|
Ground Clearance |
2 ft (1 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length Of Track On Ground |
13,009 ft (3,965 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
11 ft (3 m)
|
|
Track Length On Ground |
13 ft (4 m)
|
|
Undercarriage Overall Length |
16 ft (5 m)
|
|
Width To Outside Of Tracks |
10 ft (3 m)
|
| Electrical System |
|
Alternator |
100Amp |
|
Batteries |
2 X 12 Volt |
|
System |
24 V |

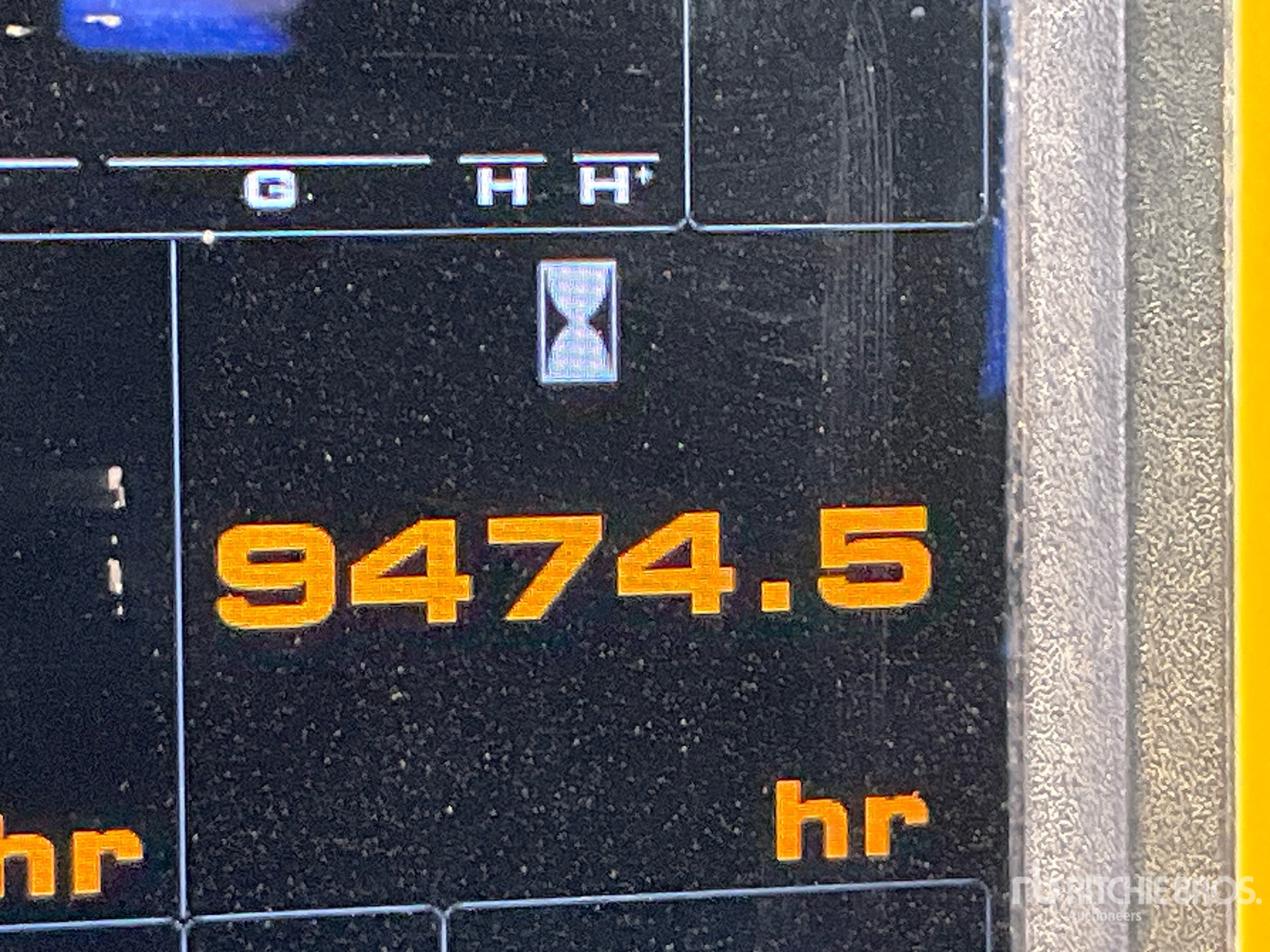

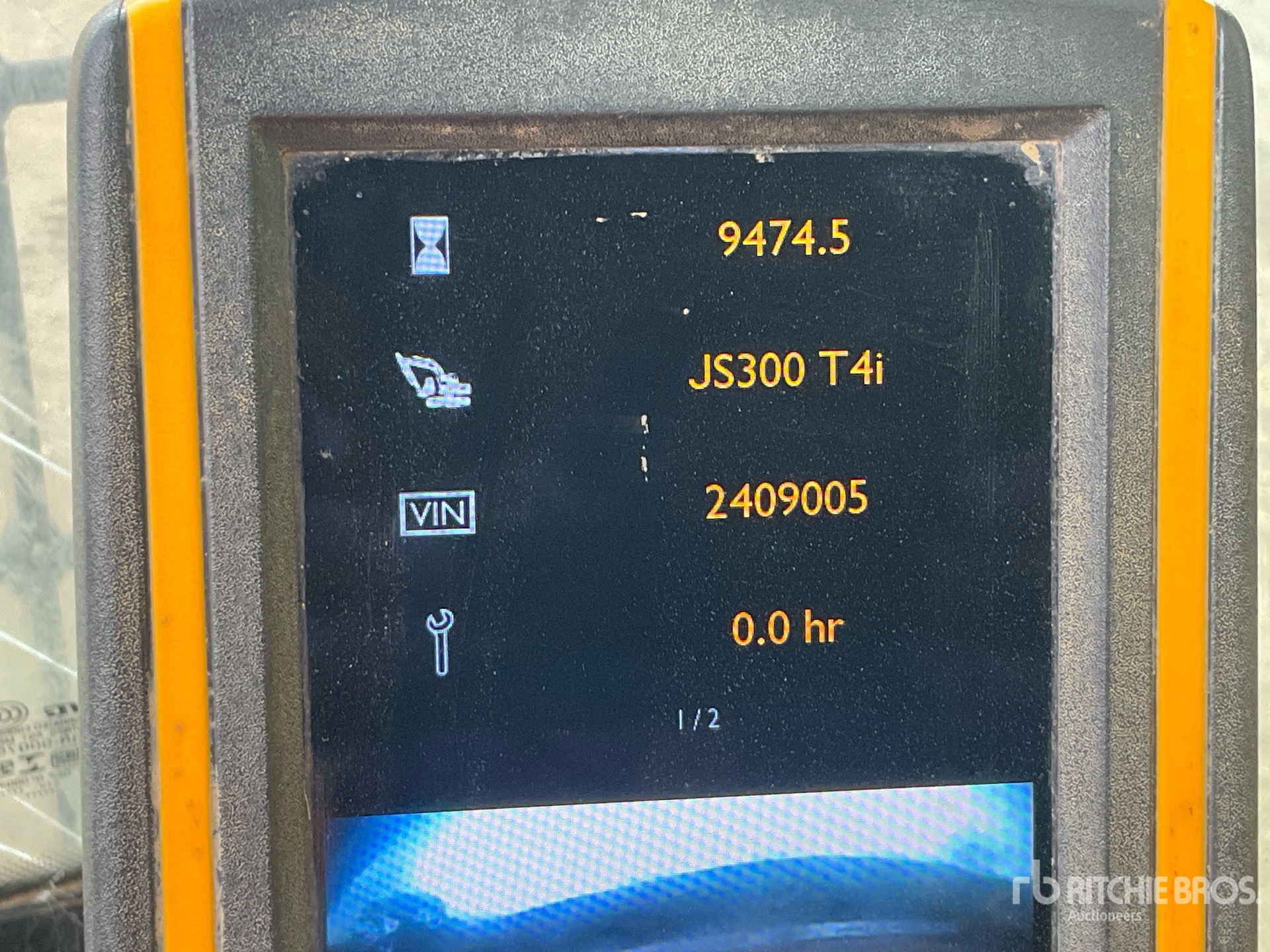

| Engine |
|
Aspiration |
Turbocharged and intercooled |
|
Diesel Fuel Tank Capacity - Standard Tank |
13 gal (47 l)
|
|
Displacement |
470 cu in (7,700 cu cm)
|
|
Engine Make |
2,353 |
|
Engine Model |
MTU 6R1000 |
|
Gross Power |
271 hp (202 kw)
|
|
Net Power |
281 hp (210 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
|
Tier 1 Engine: Model |
Tier 4 Final compliant |
| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
10 gal (38 l)
|
|
Engine Oil Capacity |
7 gal (25 l)
|
|
Fuel Capacity |
156 gal (590 l)
|
|
Hydraulic Pump Flow Capacity |
153 gpm (580 lpm)
|
|
Hydraulic System Fluid Capacity |
114 gal (430 l)
|
|
Hydraulic System Relief Valve Pressure |
4,627 psi |
|
Operating Voltage |
24 V |
|

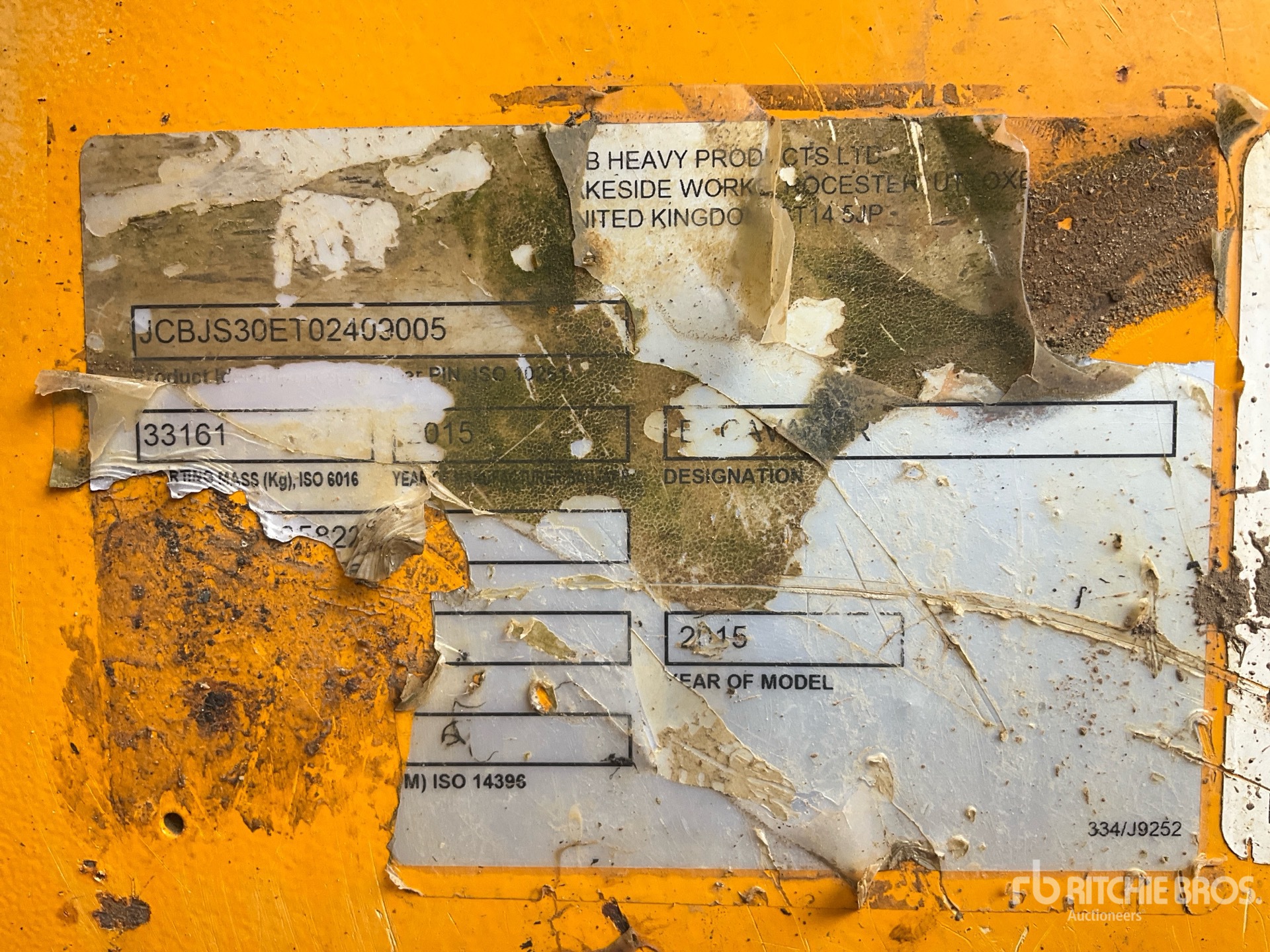

Operating Weight |
71,053 lbs (32,229 kg)
|
|
Swing Drive Fluid Capacity |
4 gal (15 l)
|
| Slew System |
|
Slew Brake |
Hydraulic braking plus automatic spring applied disc type parking brake. |
|
Slew Gear |
arge diameter, internally toothed fully sealed grease bath lubricated |
|
Slew Motor |
Axial piston type |
|
Slew Torque |
JS330:111kNm , JS370: 129kNm |
| Swing Mechanism |
|
Swing Speed |
10 rpm |

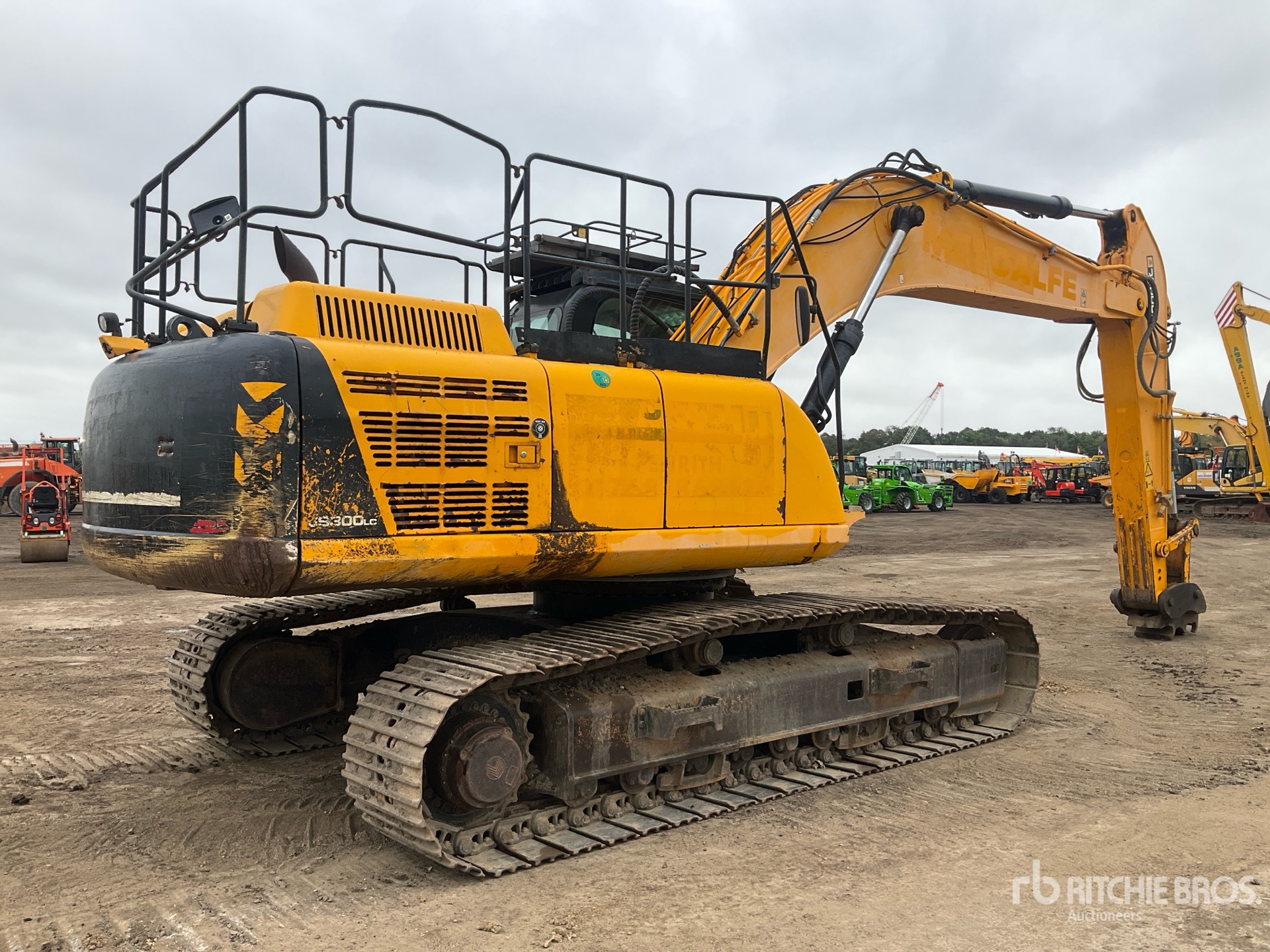

| Undercarriage |
|
Drawbar Pull |
54,904 lbs (24,904 kg)
|
|
Ground Pressure |
9 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
9 |
|
Number Of Shoes Per Side |
50 |
|
Number Of Track Rollers Per Side |
2 |
|
Shoe Size |
24 in (61 cm)
|
|
Track Adjustment |
Grease cylinder type. |
|
Track Gauge |
8 ft (2 m)
|
