2026 JCB 18Z-1 For Sale in Baton Rouge, LA

❮

❯

/ Save to Watch List

For Sale: $28,381.00 USD

Apply for Financing

Gulf Coast JCB

Gulf Coast JCB Dealer Info

Gulf Coast JCB Website

Click here to email Gulf Coast JCB.

Click for Phone Number

Machine Info:

Machine Location:	BATON ROUGE, LA
More Information:	https://gulfcoastjcb.com/inventory/excavators/2026-jcb-18z-1-pooler-ga-69a5cd999c2772b3fb084544/

Description:

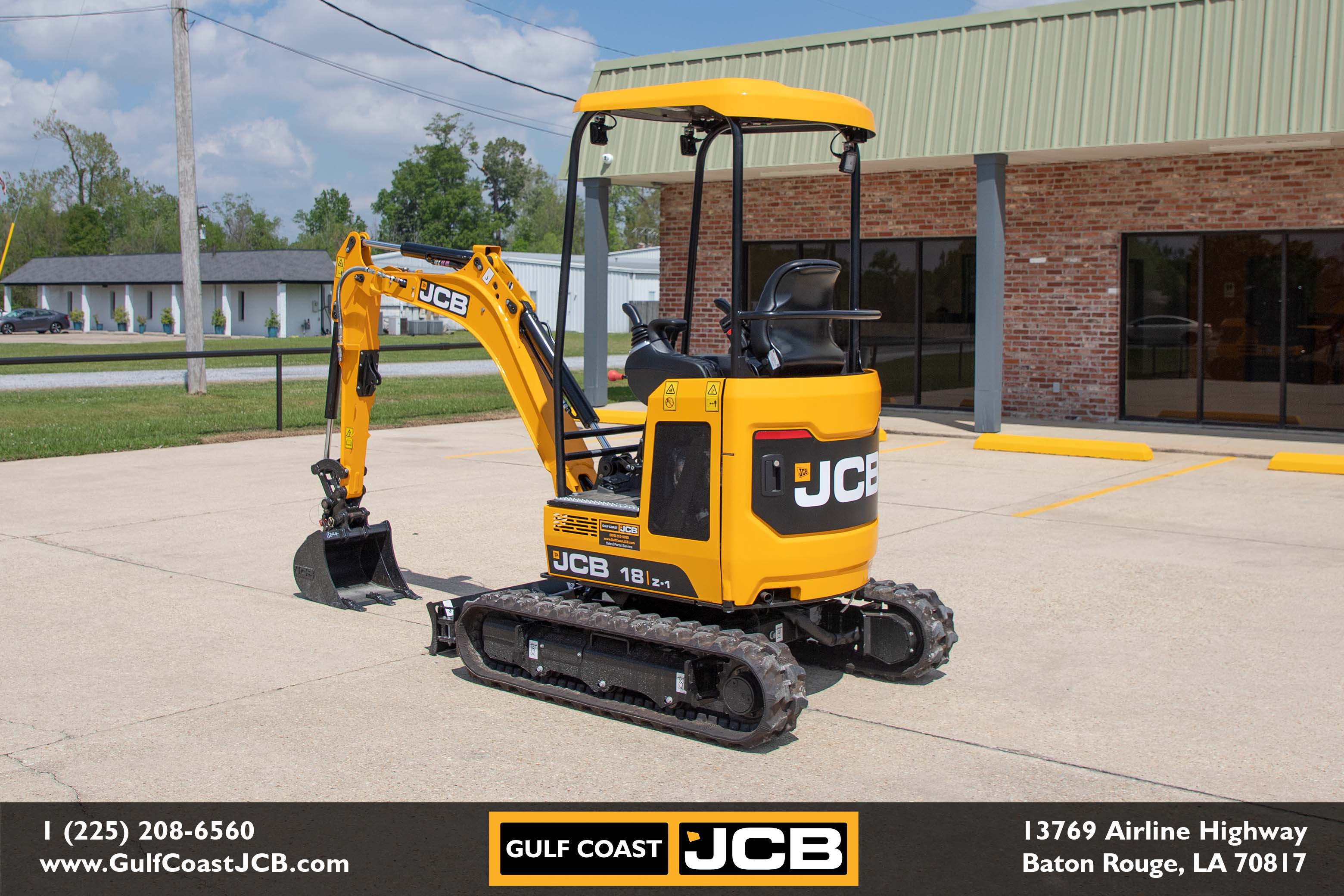

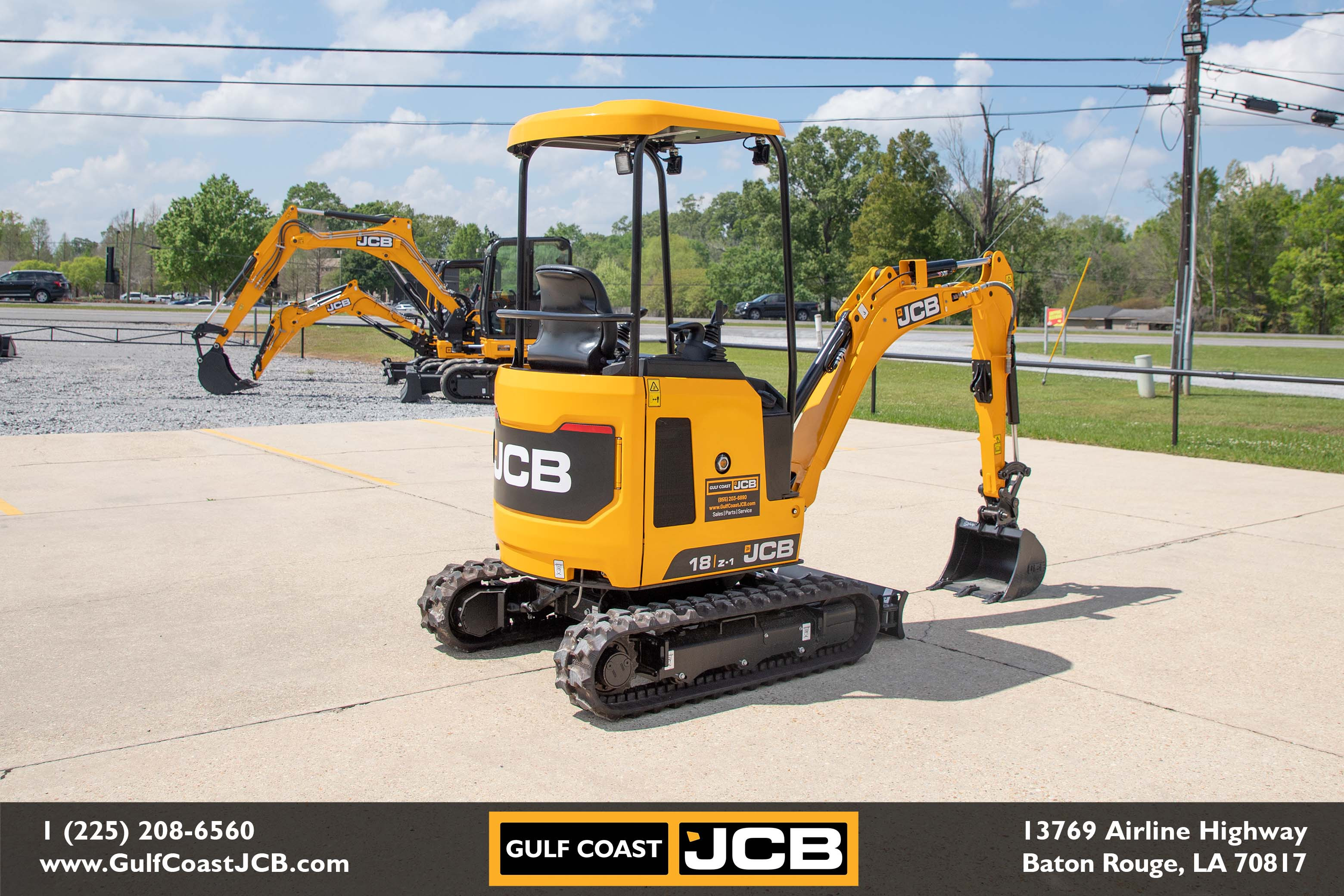

Choosing a mini excavator just got easier. The 18Z-1 is a zero tailswing model, facilitating work in tight environments such as footways and in between buildings.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

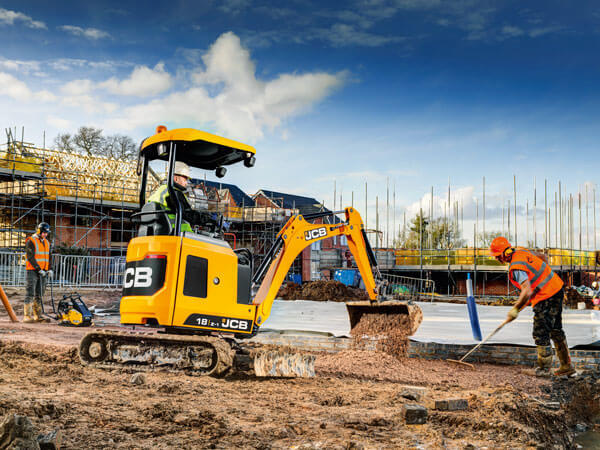

JCB 18Z-1 is a compact zero-tail-swing mini excavator designed for confined job sites, landscaping, utility work, and light construction. It is part of JCB's 1.8-ton class and features a short-radius upper structure for improved maneuverability near walls and obstacles. The machine is typically equipped with a canopy or cab, hydraulic pilot controls, and a variable undercarriage for stability and transport width reduction. The 18Z-1 supports digging, trenching, grading, and attachment use with auxiliary hydraulics. Its compact size, low operating weight, and transport-friendly dimensions make it suitable for urban and residential applications where space is limited.

Blade
Approach Angle	25 degrees
Blade Height	9 in (24 cm)
Dig Depth (Below Ground)	1 ft (0 m)
Maximum Height	1 ft (0 m)
Width	3 ft (1 m)
Boom
Boom Swing Left	75 degrees
Boom Swing Right	55 degrees
Bucket Rotation	201 degrees
Bucket Tearout	3,507 lbs (1,591 kg)
Dipper Rotation	126 degrees
Dipper Tearout	1,978 lbs (897 kg)
Slew Speed	8 rpm
Boom/Stick 1
Max Digging Depth	8 ft (2 m)
Max Digging Height	12 ft (4 m)
Max Digging Reach	13 ft (4 m)
Max Digging Reach On Ground	13 ft (4 m)
Max.Dumping Height	9 ft (3 m)
Maximum Digging Depth – Dozer Down	8 ft (2 m)
Maximum Digging Depth – Dozer Up	7 ft (2 m)
Maximum Height To Dipper Nose Pivot Pin	10 ft (3 m)
Maximum Vertical Wallcut Depth	6 ft (2 m)
Minimum Front Swing Radius (No Offset)	5 ft (1 m)
Capacities
Engine Coolant	1 gal (5 l)
Engine Oil	1 gal (3 l)
Fuel Tank	6 gal (21 l)
Hydraulic System	7 gal (28 l)
Hydraulic Tank	4 gal (15 l)
Dimensions
Cab Length	292 gal (1,107 l)
Cab Width	39 in (98 cm)
Ground Clearance	1 ft (0 m)
Overall Width Of Superstructure	3 ft (1 m)
Tail Swing Radius	4 ft (1 m)
Track Gauge	2 ft (1 m)
Transport Length	140 in (355 cm)
Undercarriage Overall Length	5 ft (2 m)
Width Over Tracks	3 ft (1 m)
Engine
Alternator	60 amps
Cooling System	Water cooled
Displacement	22 cu in (361 cu cm)
Engine Model	403D-07
Fuel	Diesel
Gross Power	16 hp (12 kw)
Max Torque	34 lbs ft (46 nm)
Net Power	15 hp (11 kw)
Starter Motor	1.2 KW
General Specifications
Digging Depth (Since 2025)	8 ft (2 m)
Digging Reach (Since 2025)	13 ft (4 m)
Engine (Since 2025)	23 hp (17 kw)
Operating Weight (Since 2025)	3,856 lbs (1,749 kg)
Hydraulic System
Auxiliary Hydraulic Flow	9 gpm (32 lpm)
Excavator/Track Main Relief	235 bar
Nominal Output	10 gpm (36 lpm)
Slew Main Relief	167 bar
Operational
Operating Weight	3,856 lbs (1,749 kg)
Operational Voltage	12 V
Performance
Gradeability	35 %
Travel Speed Low	1 mph (2 kph)
Undercarriage
Number Of Bottom Rollers Per Side	3
Tractive Effort	29 lbs (13 kg)
Weights
Ground Bearing Pressure (Rubber Tracks)	1 psi
Ground Bearing Pressure (Steel Tracks)	1 psi
Long Dozer	20 lbs (9 kg)
Mechanical Quickhitch	21700.1 in2
Shipping	3,219 lbs (1,460 kg)
Steel Tracks	179 lbs (81 kg)
