Equipment ↠ JCB ↠ Mini Excavators ↠ 2022 JCB 48Z-1

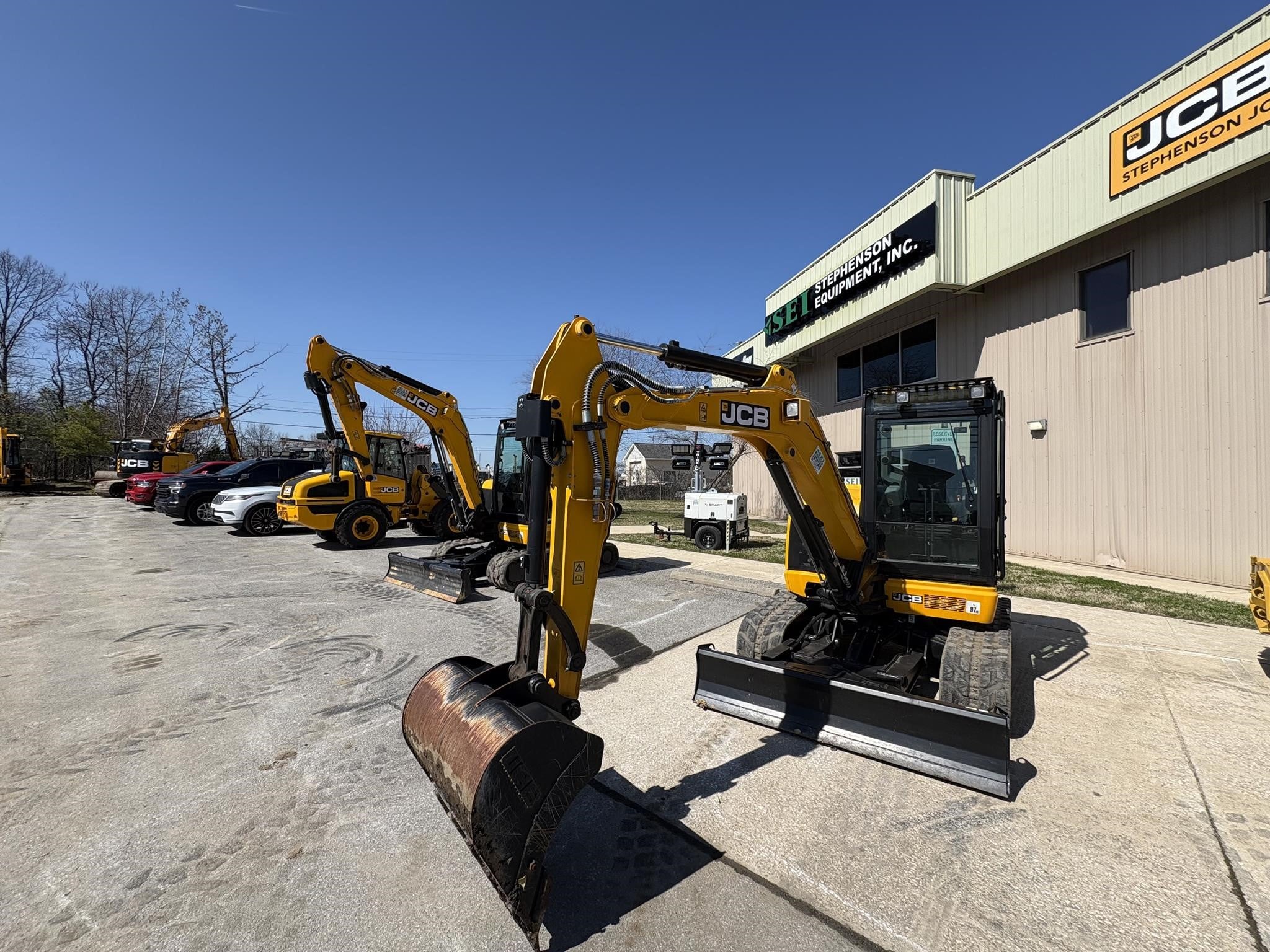

2022 JCB 48Z-1 For Sale in Harrisburg, PA

❮

❯

/ Save to Watch List

For Sale: $59,900.00 USD

Apply for Financing

Stephenson Equipment, Inc.

Stephenson Equipment, Inc. Dealer Info

Stephenson Equipment, Inc. Website

Click here to email Stephenson Equipment, Inc..

Contact: Kyle Hoffman

Click for Phone Number

Machine Info:

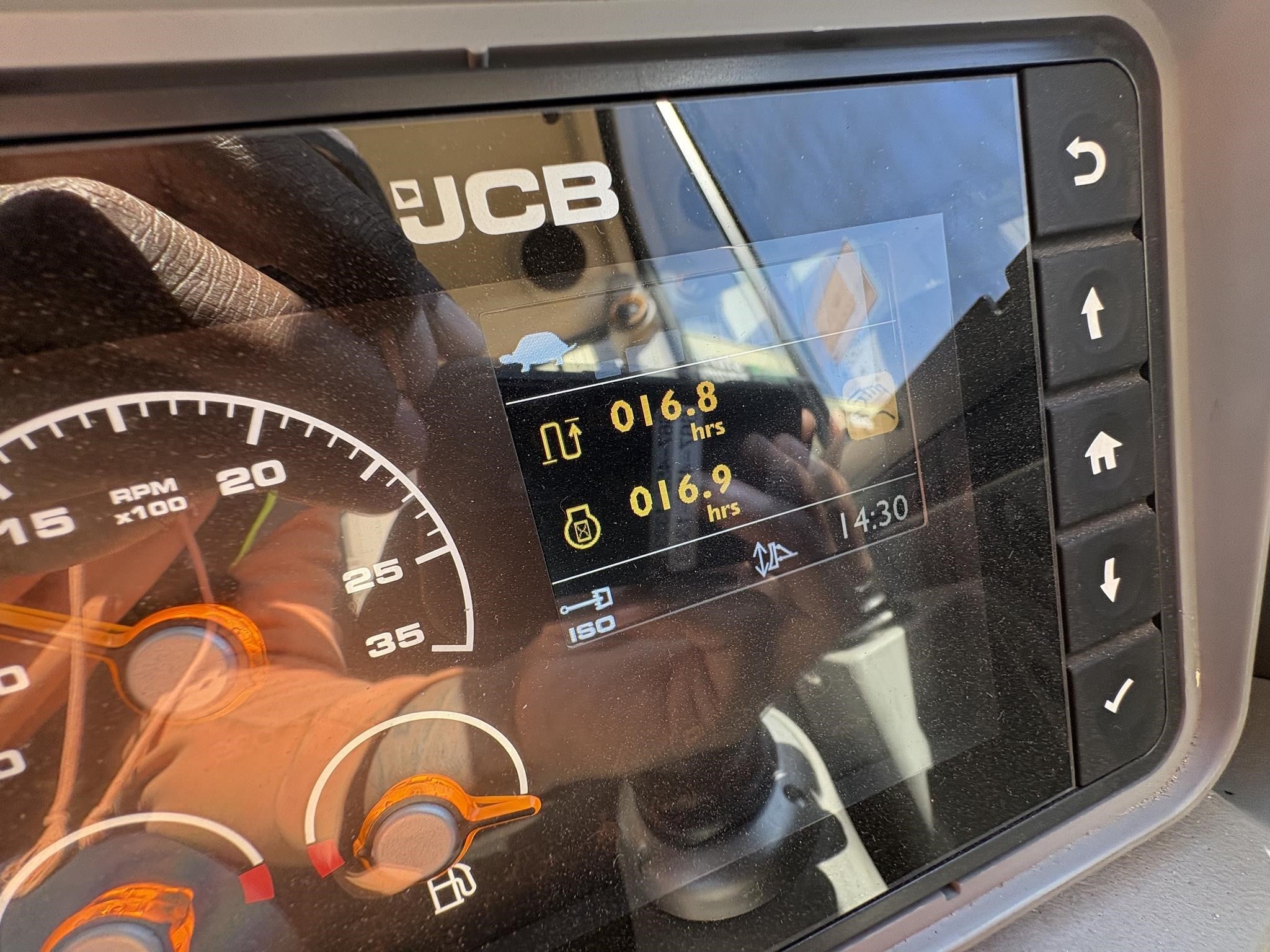

Hours:	17
Stock Number:	RAJ8CCB6JM3077606
Machine Location:	HARRISBURG, PA
More Information:	https://stephensonequipmentjcb.com/inventory/excavators+-+mini/2022-jcb-48z-1-hagerstown-md-6a62027b371dccc0850551ac/

Description:

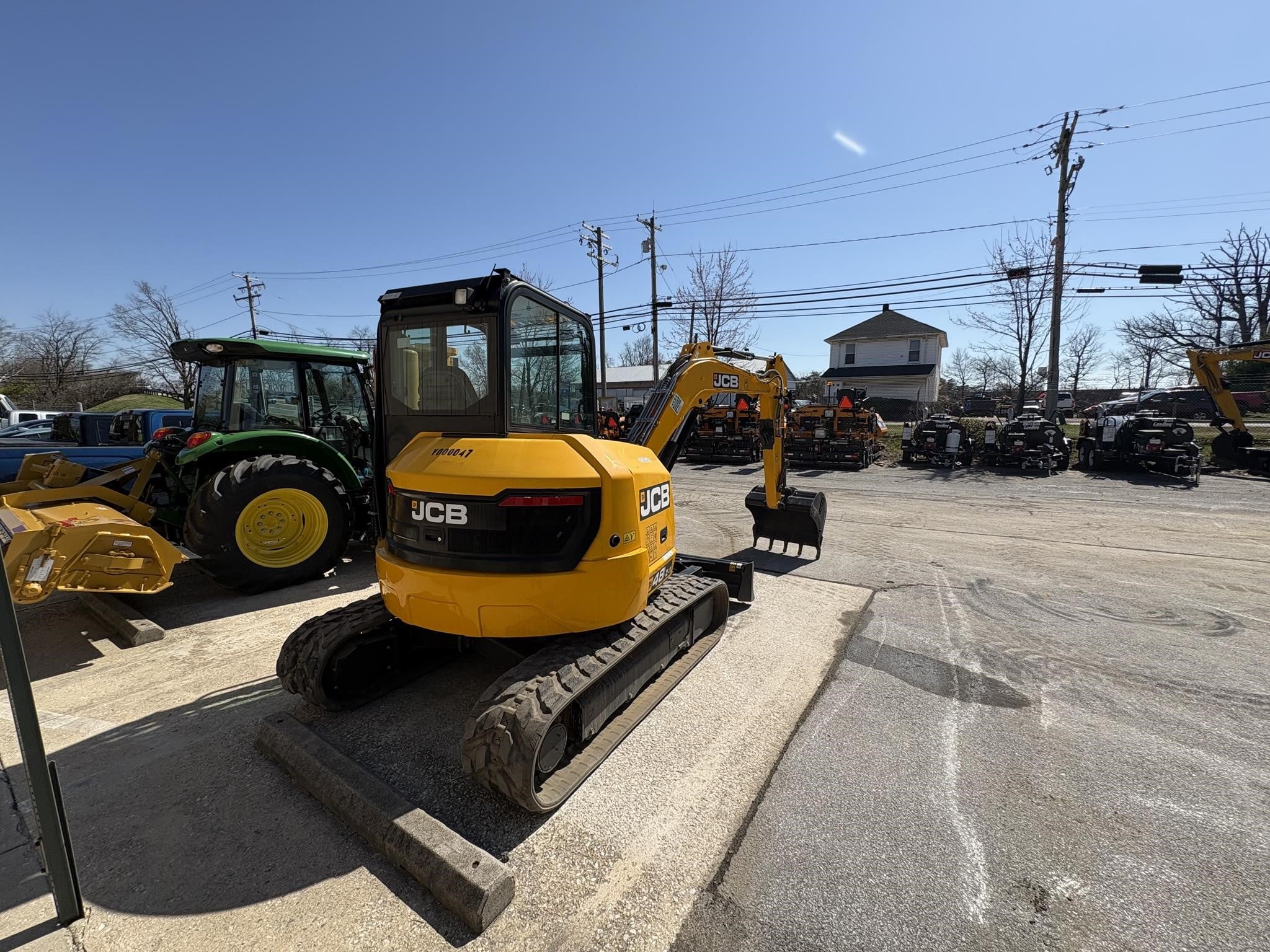

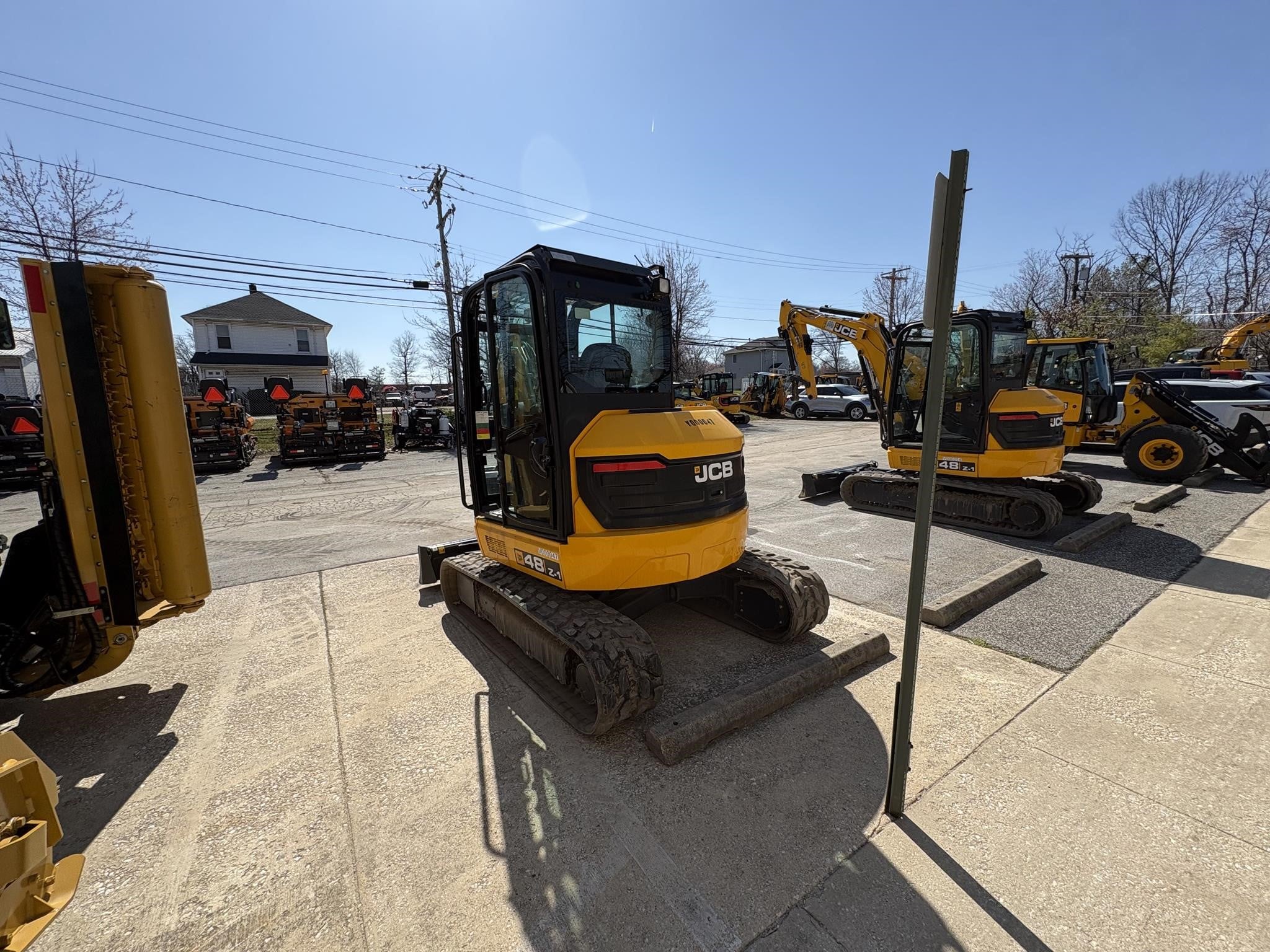

2022 JCB, 48Z-1 Excavators - Mini, 2022 JCB 48Z-1 Mini Excavator, 17 Hours, Cab, Heat & Air, Hydraulic Angle Blade, 48hp JCB Diesel, 10,564lb Operating Weight, 11' 11" Max Digging Depth. *Stephenson Equipment has a large inventory spread out across 8 locations in PA & NY. Please contact us before coming to inspect a piece of equipment.*

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 48Z-1 is a compact mini excavator designed for construction, utility, landscaping, and site preparation work. It is part of JCB's zero tailswing range, allowing operation in confined spaces with reduced risk of rear overhang contact. The 48Z-1 typically features a conventional cab layout, hydraulic controls, and a digging depth and lifting capacity suited to small and medium job sites. Common applications include trenching, grading, material handling, and foundation work. As a mini excavator, the JCB 48Z-1 is valued for maneuverability, transportability, and versatility across urban and restricted-access environments.

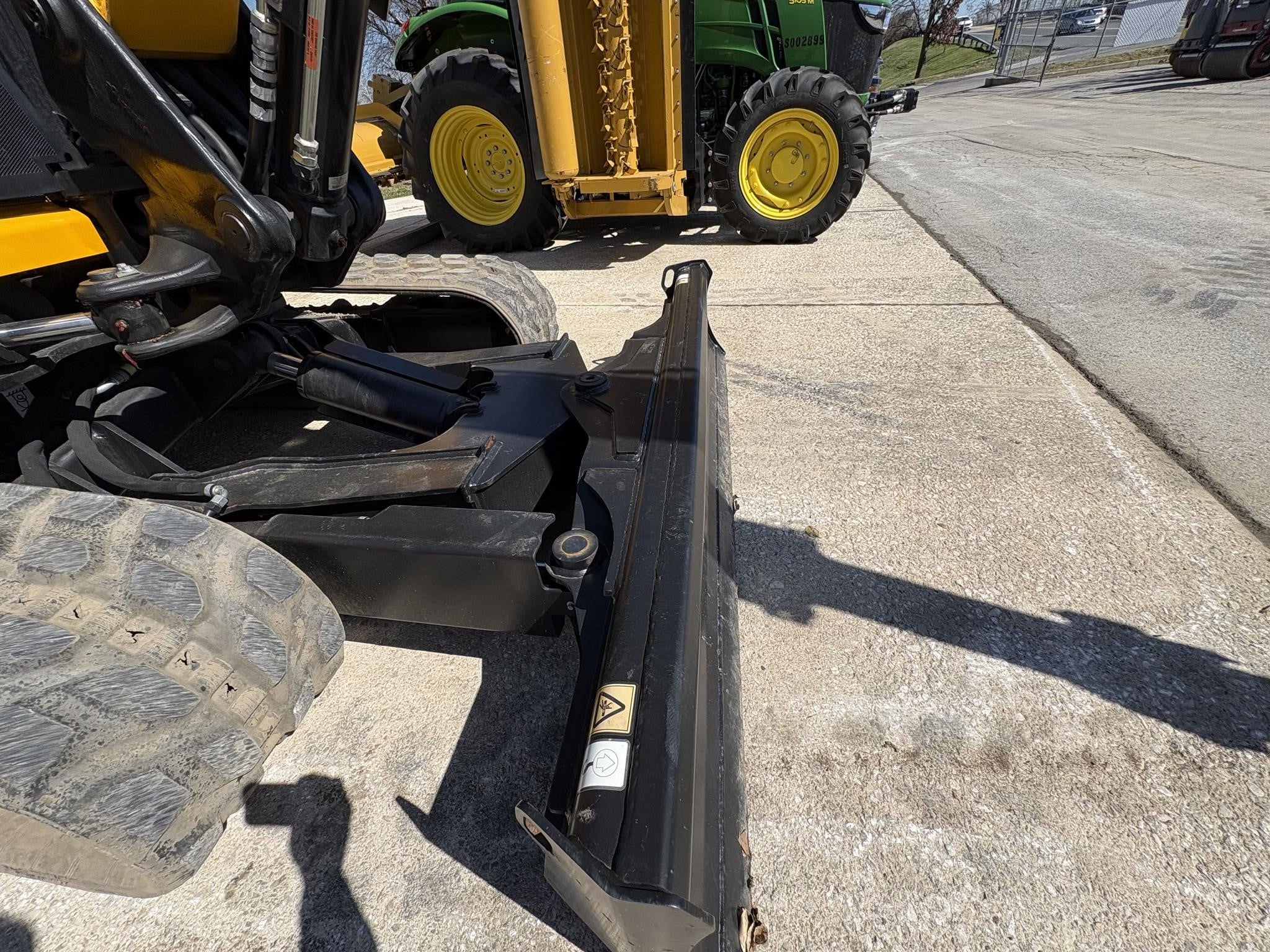

Blades
Approach angle	31 degrees
Blade Height	16 in (40 cm)
Blade Width	7 ft (2 m)
Dig depth (below ground)	2 ft (0 m)
Maximum height	2 ft (0 m)

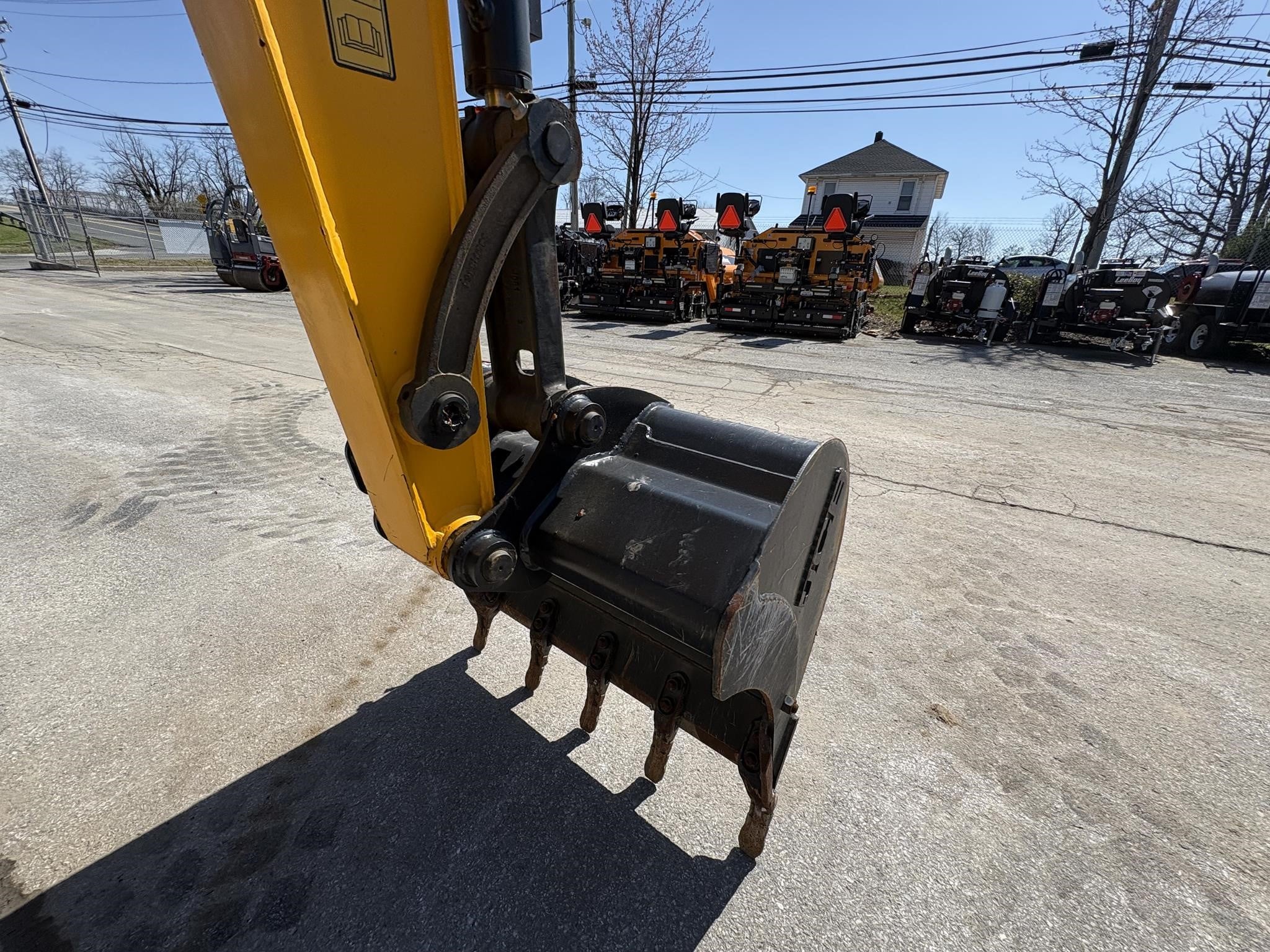

Boom
Boom swing left	75 degrees
Boom swing right	55 degrees
Bucket rotation	201 degrees
Bucket tearout	3,507 lbs (1,591 kg)
Dipper rotation	126 degrees
Dipper tearout	1,978 lbs (897 kg)
Slew speed	8 rpm
Boom/Stick Excavator Option 1
Max Digging Depth	8 ft (2 m)
Max Digging Height	18 ft (5 m)
Max Digging Reach	19 ft (6 m)
Max Digging Reach on Ground	19 ft (6 m)
Max.Dumping Height	13 ft (4 m)
Maximum digging depth - dozer down	12 ft (4 m)
Maximum digging depth - dozer up	11 ft (3 m)
Maximum height to dipper nose pivot pin	15 ft (5 m)
Maximum vertical wallcut depth	7 ft (2 m)
Minimum front swing radius (no offset)	9 ft (3 m)
Capacities
Engine coolant	3 gal (12 l)
Engine Oil	3 gal (9 l)
Fuel Tank	20 gal (76 l)
Hydraulic system	27 gal (100 l)
Hydraulic Tank	15 gal (55 l)
Dimensions
Cab height	2,551 mm (100 in)
Cab length	341 gal (1,291 l)
Cab width	40 in (102 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (3 m)
Overall width of superstructure	6 ft (2 m)
Tail Swing Radius	3 ft (1 m)
Track Gauge	5 ft (2 m)
Transport length	140 in (355 cm)
Undercarriage Overall Length	8 ft (3 m)
Width Over Tracks	3 ft (1 m)

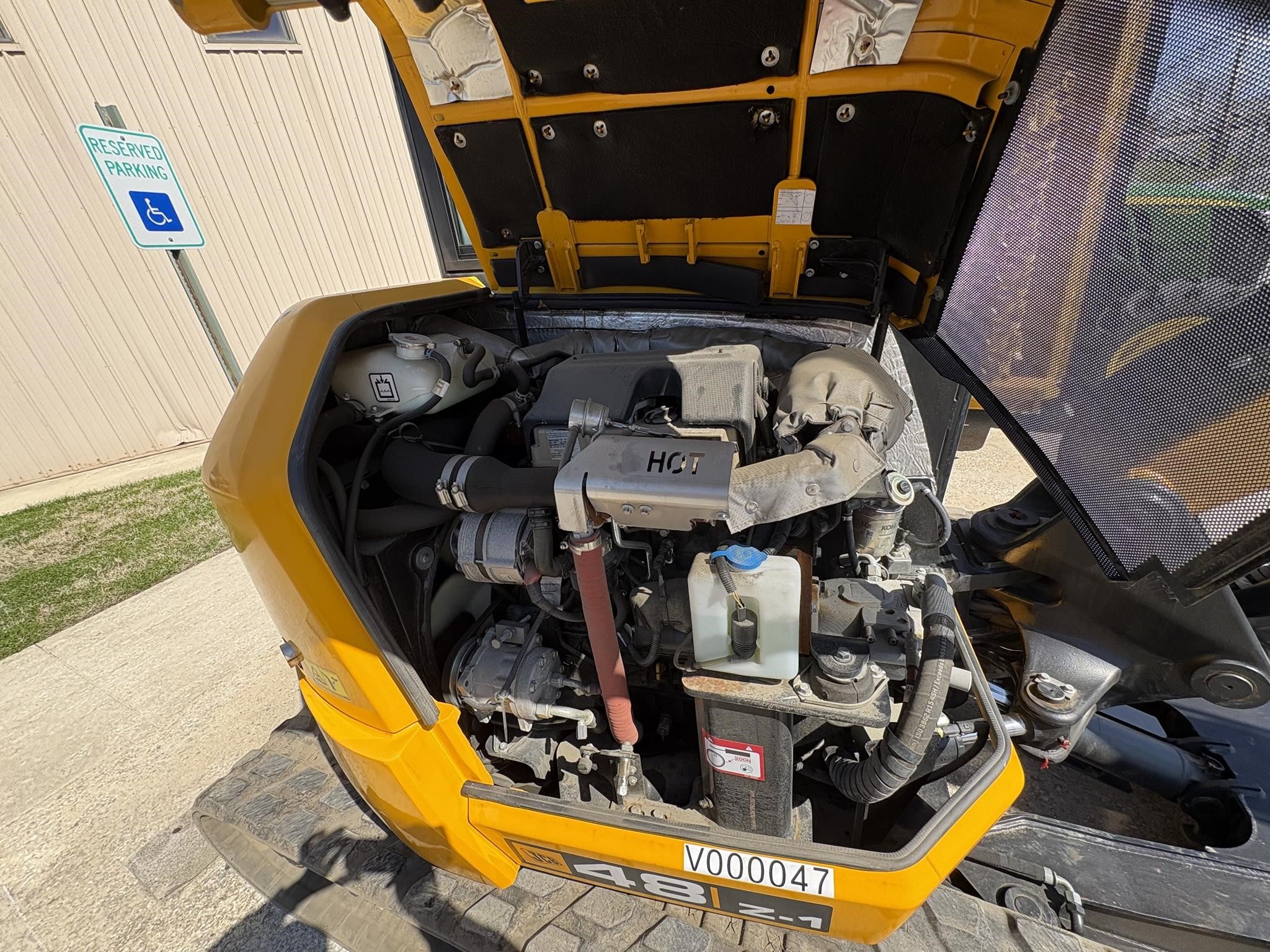

Engine
Alternator	85 amps
Cooling system	Water cooled
Displacement	132,971 cu in (2,179,006 cu cm)
Engine Model	Stage 3A 404D-22
Fuel	Diesel
Gross Power	36 hp (27 kw)
Net Power	15 hp (11 kw)
Hydraulic System
Auxiliary hydraulic flow	24 gpm (90 lpm)
Excavator/track main relief	240 bar
Nominal output	33 gpm (126 lpm)
Slew main relief	216 bar
Operating Specifications
Operating Voltage	12 V
Operating Weight	10,565 lbs (4,792 kg)
Performance
Travel speed low	2 mph (3 kph)
Travel Speed - High	3 mph (5 kph)

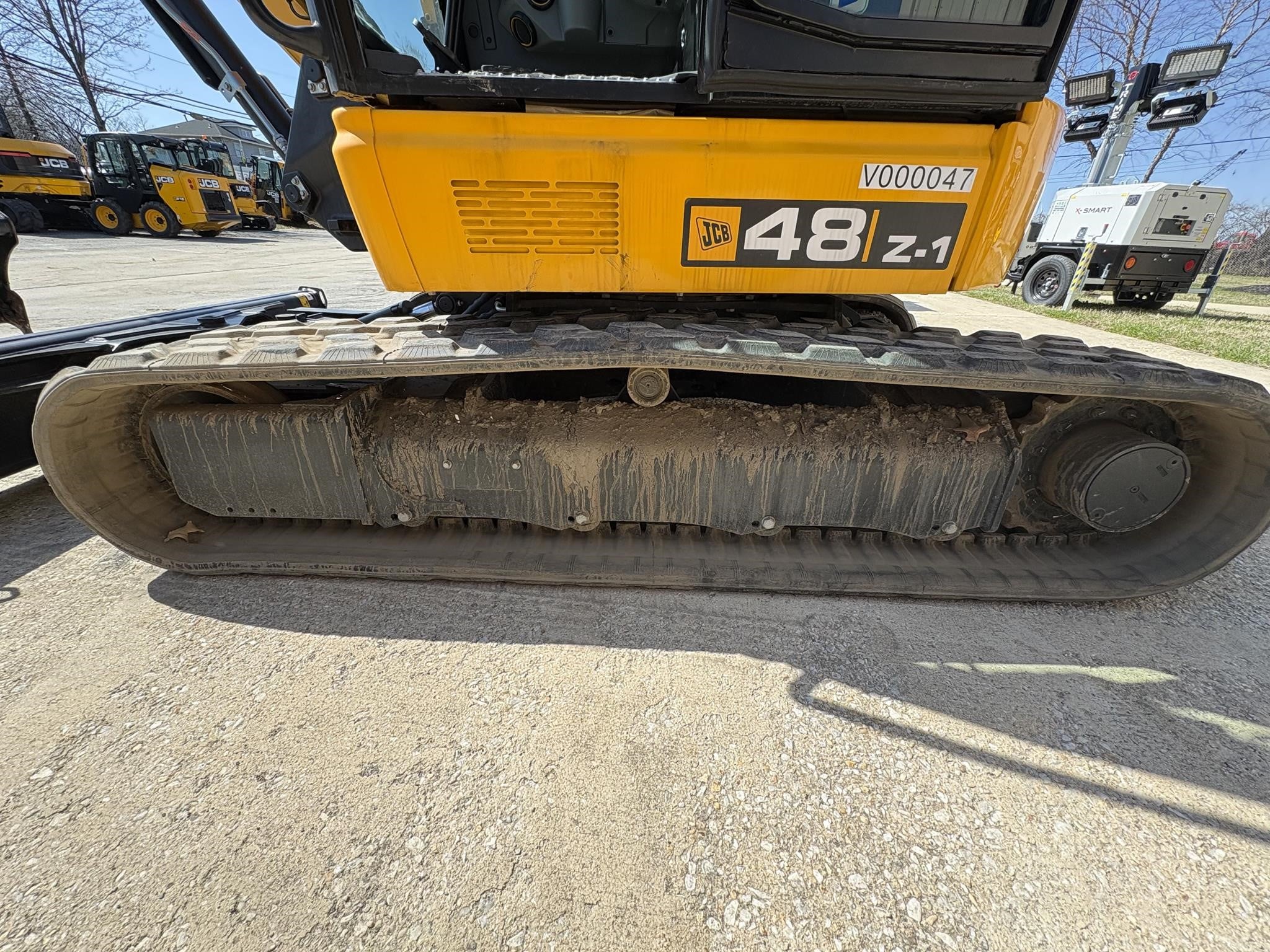

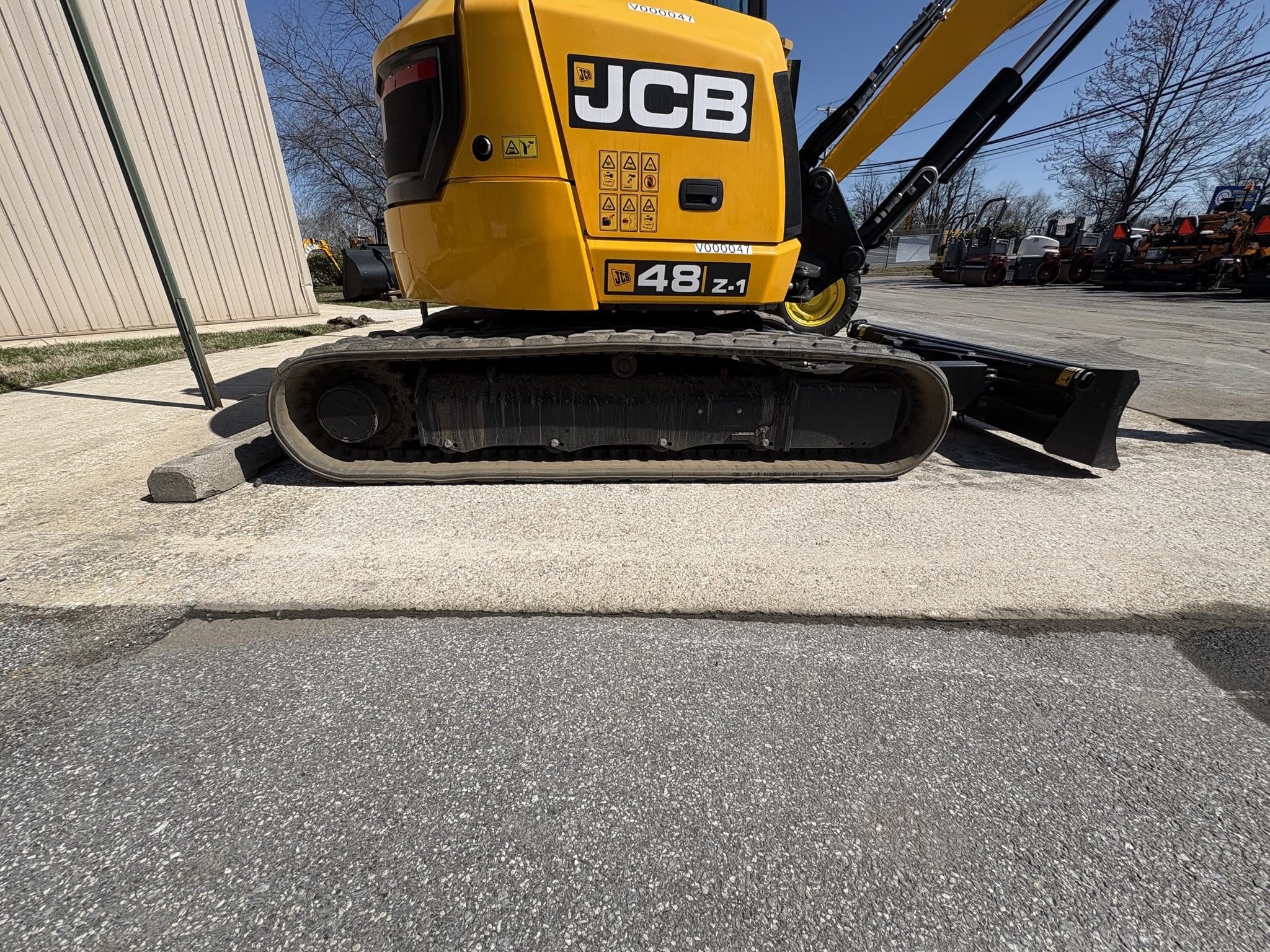

Undercarriage
Number of bottom rollers per side	4
Track tension	Grease
Tractive Effort	29 lbs (13 kg)
Weights
Shipping	10,278 lbs (4,662 kg)
