2017 JCB 48Z-1 For Sale in Caorso, Ita

2017 JCB 48Z-1
2017 JCB 48Z-1
2017 JCB 48Z-1
2017 JCB 48Z-1
2017 JCB 48Z-1
2017 JCB 48Z-1
2017 JCB 48Z-1 2017 JCB 48Z-1 2017 JCB 48Z-1 2017 JCB 48Z-1 2017 JCB 48Z-1 2017 JCB 48Z-1

/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-10-01   Click here to place a bid


Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info
Ritchie Bros. Auctioneers Website
Click here to email Ritchie Bros. Auctioneers.

Request an equipment inspection

Get shipping quotes
Click for Phone Number


Machine Info:

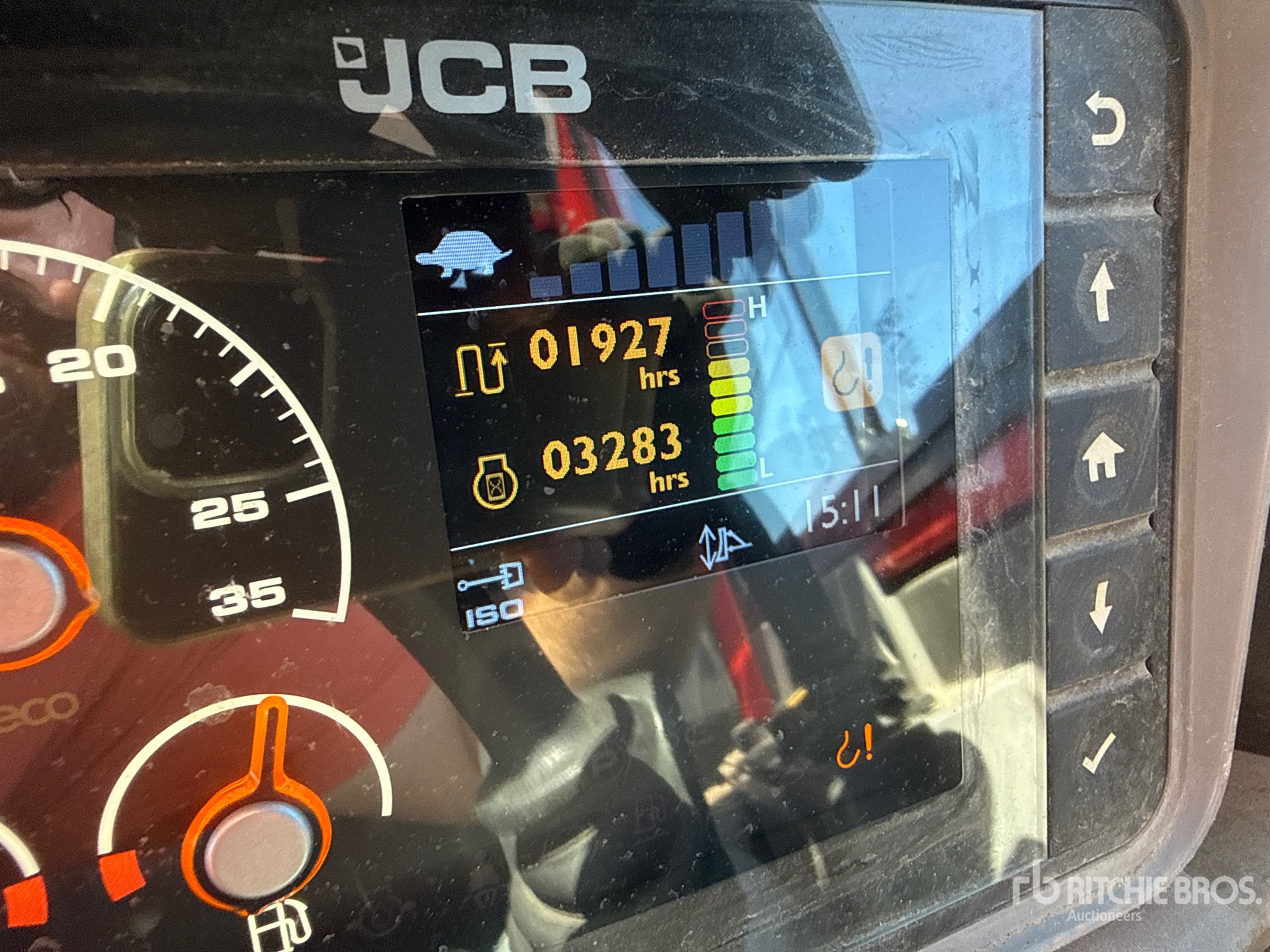

Hours:3283

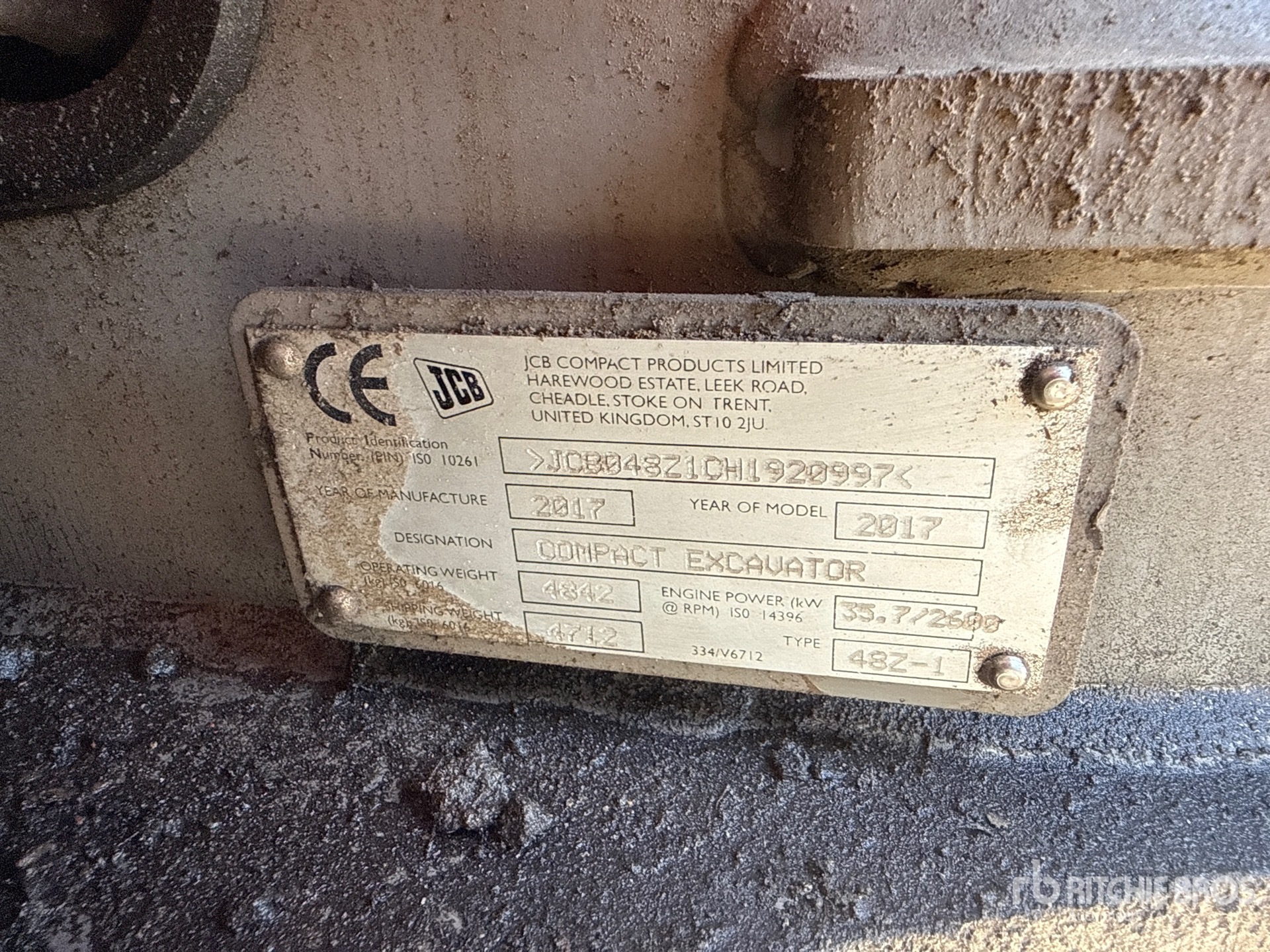

Serial Number:JCB048Z1CH1920997
Machine Location:CAORSO, ITA

Description:

Enclosed Cab, Swing Boom, 1450 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, Backfill Blade, Manual Quick Coupler, 300 mm Digging Bucket Closing Time: 2026-10-01 10:17:55 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The JCB 48Z-1 is a compact zero tail swing mini excavator designed for construction, utility, landscaping, and site preparation work. It is part of JCB's 4.8-ton class and is commonly used where maneuverability and reduced rear overhang are important. The machine typically features a diesel engine, hydraulic digging system, dozer blade, and a choice of digging attachments for trenching, grading, and material handling. The 48Z-1 is built for operation in confined spaces while maintaining stability and digging performance. It is used on urban job sites, roadwork projects, and general earthmoving applications.
Blade
Approach Angle 31 degrees
Blade Height 16 in (40 cm)
Dig Depth (Below Ground) 2 ft (0 m)
Maximum Height 2 ft (0 m)
Width 7 ft (2 m)
Boom
Boom Swing Left 75 degrees
Boom Swing Right 55 degrees
Bucket Rotation 201 degrees
Bucket Tearout 3,507 lbs (1,591 kg)
Dipper Rotation 126 degrees
Dipper Tearout 1,978 lbs (897 kg)
Slew Speed 8 rpm
Boom/Stick 1
Max Digging Depth 8 ft (2 m)
Max Digging Height 18 ft (5 m)
Max Digging Reach 19 ft (6 m)
Max Digging Reach On Ground 19 ft (6 m)
Max.Dumping Height 13 ft (4 m)
Maximum Digging Depth – Dozer Down 12 ft (4 m)
Maximum Digging Depth – Dozer Up 11 ft (3 m)
Maximum Height To Dipper Nose Pivot Pin 15 ft (5 m)
Maximum Vertical Wallcut Depth 6 ft (2 m)
Minimum Front Swing Radius (No Offset) 9 ft (3 m)
Capacities
Engine Coolant 3 gal (12 l)
Engine Oil 3 gal (9 l)
Fuel Tank 20 gal (76 l)
Hydraulic System 27 gal (100 l)
Hydraulic Tank 15 gal (55 l)
Dimensions
Cab Height 2,551 mm (100 in)
Cab Length 341 gal (1,291 l)
Cab Width 40 in (102 cm)
Ground Clearance 1 ft (0 m)
Height Over Cab 8 ft (3 m)
Overall Width Of Superstructure 6 ft (2 m)
Tail Swing Radius 3 ft (1 m)
Track Gauge 5 ft (2 m)
Transport Length 140 in (355 cm)
Undercarriage Overall Length 8 ft (2 m)
Width Over Tracks 3 ft (1 m)
Engine
Alternator 85 amps
Cooling System Water cooled
Displacement 132,971 cu in (2,179,006 cu cm)
Engine Model Stage 3A 404D-22
Fuel Diesel
Gross Power 36 hp (27 kw)
Gross Torque 106 lbs ft (143 nm)
Net Power 15 hp (11 kw)
Hydraulic System
Auxiliary Hydraulic Flow 24 gpm (90 lpm)
Excavator/Track Main Relief 240 bar
Nominal Output 33 gpm (126 lpm)
Slew Main Relief 216 bar
Operational
Operating Weight 10,565 lbs (4,791 kg)
Operational Voltage 12 V
Performance
Travel Speed - High 3 mph (5 kph)
Travel Speed Low 2 mph (3 kph)
Undercarriage
Number Of Bottom Rollers Per Side 4
Track Tension Grease
Tractive Effort 29 lbs (13 kg)
Weights
Shipping 10,278 lbs (4,661 kg)
