2019 JCB 86C-1 For Sale in Atlanta, Ga

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-02 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

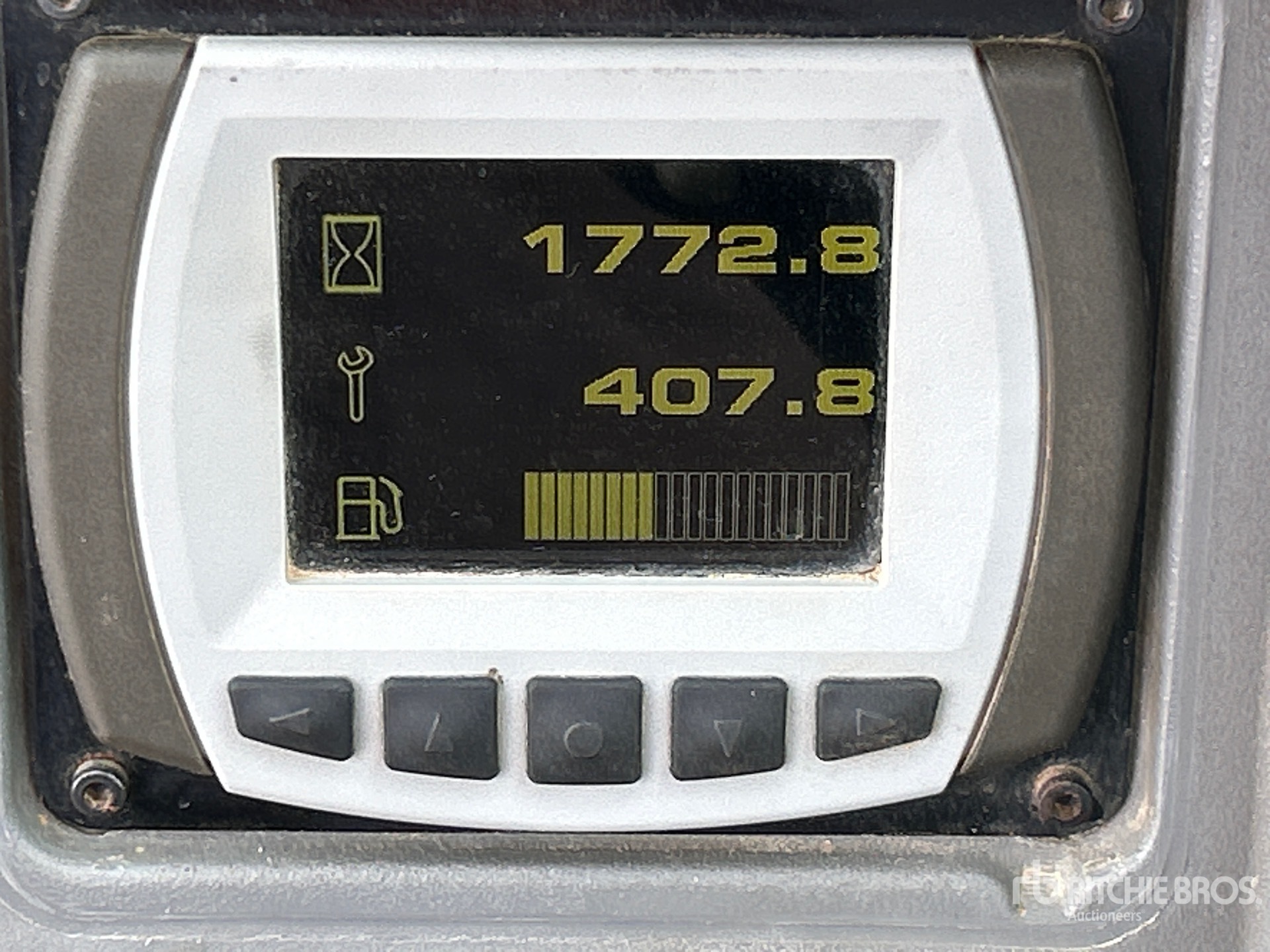

Hours:	1772

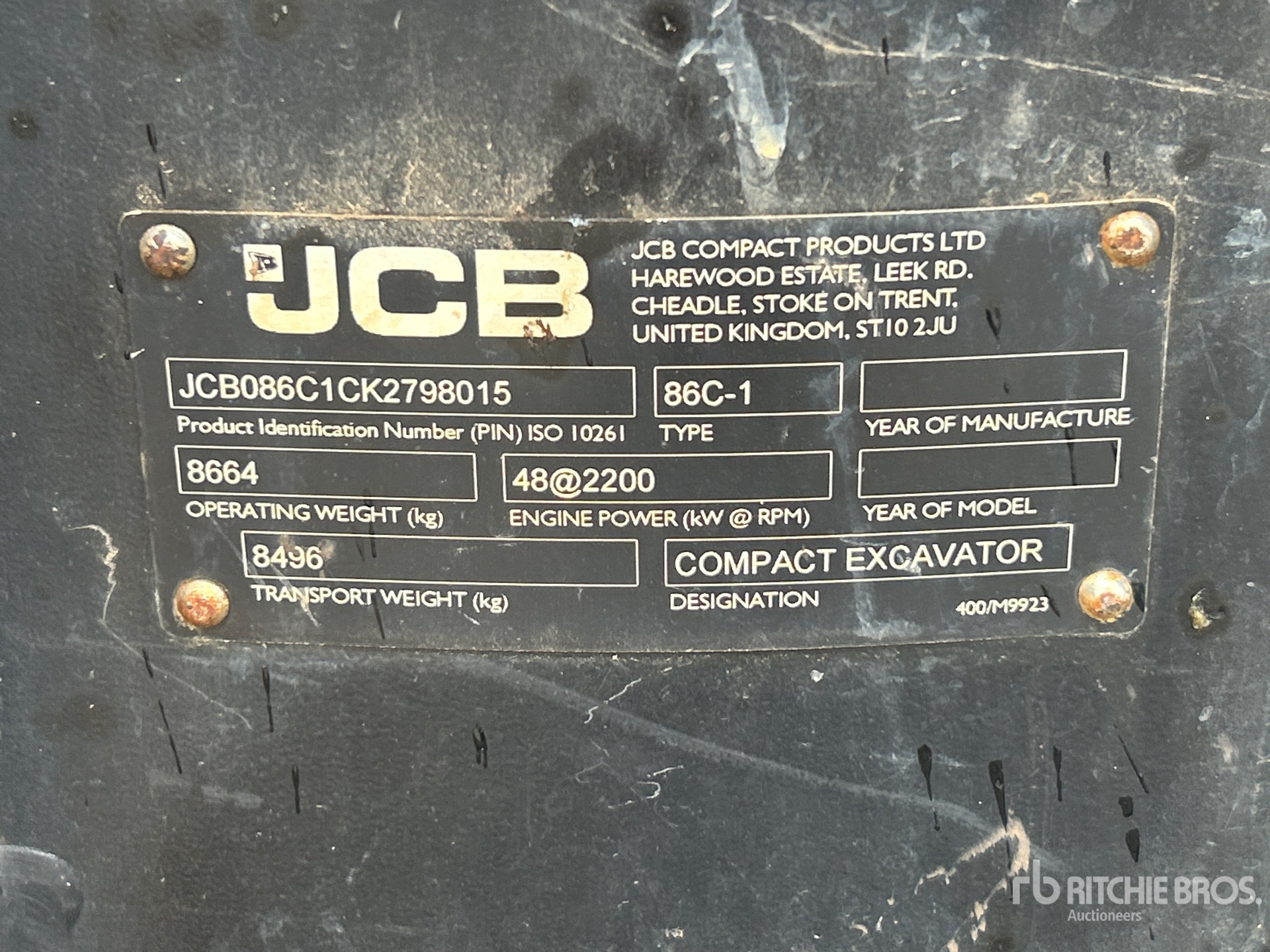

Serial Number:	JCB086C1CK2798015
Machine Location:	ATLANTA, GA

Description:

Located in Lane 12 Spot 46, Enclosed Cab, Air Conditioner, 2019 US EPA Label, Swing Boom, 7 ft 5 in Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 18 in Rubber Tracks, Manual Quick Coupler, 24 in Digging Bucket, Hydraulic Thumb

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Blades
Approach angle	28 degrees
Blade Height	19 in (48 cm)
Blade width	2,320 mm (91 in)
Dig depth (below ground)	2 ft (0 m)
Maximum height	2 ft (0 m)
Reach in front of tracks	2 ft (1 m)
Boom
Boom swing left	55 degrees
Boom swing right	60 degrees
Bucket rotation	188 degrees
Bucket tearout	12,837 lbs (5,823 kg)
Dipper rotation	122 degrees
Dipper tearout	11,218 lbs (5,088 kg)
Slew speed	10 rpm
Boom/Stick Excavator Option 1
Max Digging Reach	24 ft (7 m)
Max Reach Along Ground	24 ft (7 m)
Max.Dumping Height	18 ft (6 m)
Maximum digging depth - dozer down	15 ft (5 m)
Maximum digging depth - dozer up	7 ft (2 m)
Maximum height to dipper nose pivot pin	21 ft (6 m)
Maximum vertical wallcut depth	11 ft (3 m)
Minimum front swing radius (fully offset)	8 ft (2 m)
Minimum front swing radius (no offset)	9 ft (3 m)
Dimensions
Cab height	61 in (155 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	8 ft (2 m)
Overall width of superstructure	7 ft (2 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	5 ft (1 m)
Track Gauge	6 ft (2 m)
Transport Height- Minimum	8,878 ft (2,706 m)
Transport Length, Minimum	19,137 ft (5,833 m)
Width Over Tracks	8 ft (2 m)
Engine
Alternator	100 amps
Cooling system	Water cooled
Displacement	152,559 cu in (2,500,006 cu cm)
Engine Model	KDI 2504 TCR
Fuel	Diesel
Gross Power	48 hp (36 kw)
Net Power	45 hp (34 kw)
Power Measured @	2,200 rpm
Starter Motor	2 KW hp (1 kw)
Torque Measured @	1,500 rpm
Hydraulic System
Auxiliary hydraulic flow	50 gpm (190 lpm)
Excavator/track main relief	300 bar
Nominal output	42 gpm (159 lpm)
Slew main relief	226 lpm
Operating Specifications
Cooling System Fluid Capacity	3 gal (12 l)
Engine Oil Capacity	3 gal (11 l)
Fuel Capacity	30 gal (115 l)
Hydraulic Pump Flow Capacity	18 gpm (66 lpm)
Hydraulic System Fluid Capacity	31 gal (118 l)
Operating Voltage	12 V
Operating Weight	14,553 lbs (6,601 kg)
Performance
Gradeability	30%
Travel speed low	2 mph (3 kph)
Travel Speed - High	3 mph (5 kph)
Undercarriage
Number of Track Rollers per Side	5
Track tension	Grease
Tractive Effort	143 lbs (65 kg)
