| Dimensions |
|
Angle Of Departure |
29 degrees |
|
Clearance At Max Lift And Dump |
8 ft (2 m)
|
|
Dig Depth |
394 in (1,000 cm)
|
|
Dump Angle |
42 degrees |
|
Dump Height |
8 ft (2 m)
|
|
Ground Clearance |
10 in (25 cm)
|
|
Height |
7 ft (2 m)
|
|
Height To Top Of Cab |
7 ft (2 m)
|
|
Length |
12 ft (4 m)
|
|
Length With Bucket |
12 ft (4 m)
|
|
Loadover Height |
9,514 ft (2,900 m)
|
|
Pin Height |
10,499 ft (3,200 m)
|
|
Reach At Max Lift And Dump |
35 in (90 cm)
|
|
Rollback - Ground Level |
30 degrees |
|
Turning Radius From Center - Inc Bucket |
87 in (220 cm)
|
|
Turning Radius From Center - Machine Rear |
69 in (176 cm)
|
|
Weight |
9,054 lbs (4,106 kg)
|
|
Wheelbase |
4 ft (1 m)
|
|
Width |
6 ft (2 m)
|
|
Width Over Tires |
6 ft (2 m)
|

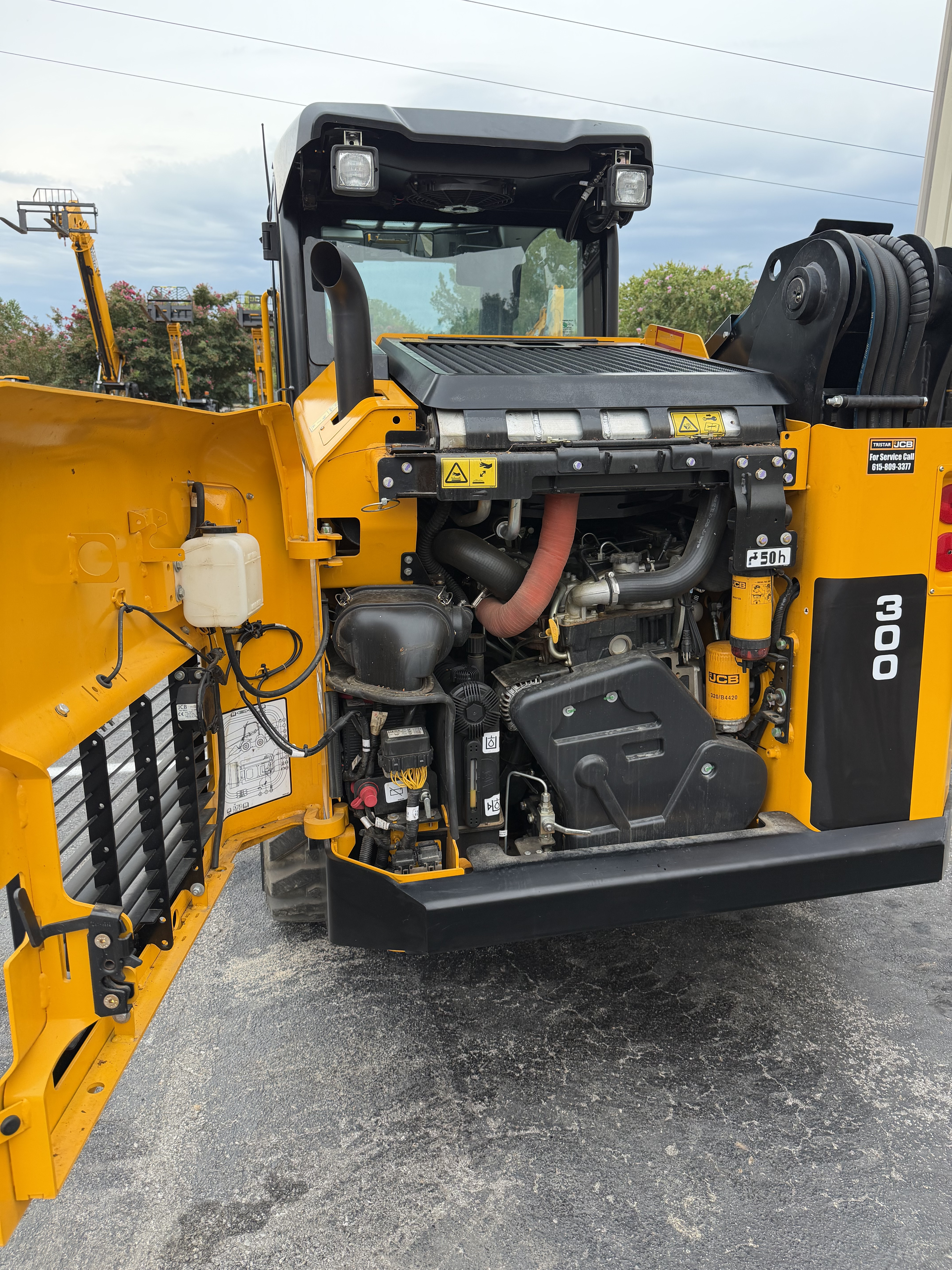

| Engine |
|
Aspiration |
Turbo |
|
Battery |
12 V |
|
Cooling System |
Liquid |
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Emissions Certification |
EPA-T4F (EU St3B) |
|
Engine Make |
2,257 |
|
Engine Model |
EcoMAX TCAE-55 |
|
Engine Oil Service Interval |
500 hours |
|
Fuel |
Diesel |
|
Gross Power |
74 hp (55 kw)
|
|
Max Torque |
295 lbs ft (400 nm)
|
|
Power Measured @ |
2,400 rpm |
|
Starter Motor |
4.2 KW |
|
Torque Measured @ |
1,200 rpm |
| General Specifications |
|
ENGINE POWER (Since 2016)
|
74 hp (55 kw)
|
|
ENGINE POWER (2017)
|
74 hp (55 kw)
|
|
ENGINE POWER (2019)
|
74 hp (55 kw)
|
|
ENGINE POWER (2020)
|
74 hp (55 kw)
|
|
Engine Power (Since 2021)
|
74 hp (55 kw)
|
|
Engine Power (2022)
|
74 hp (55 kw)
|
|
Engine Power (2023)
|
74 hp (55 kw)
|
|
Engine Power (2024)
|
74 hp (55 kw)
|
|
Engine Power (2025)
|
74 hp (55 kw)
|
|
Engine Power (2026)
|
74 hp (55 kw)
|
|
MODEL (Since 2016)
|
300 |
|
MODEL (2017)
|
300 |
|
MODEL (2019)
|
300 |
|
MODEL (2020)
|
300 |
|
OPERATING LOAD (Since 2016)
|
3,000 lbs (1,361 kg)
|
|
OPERATING LOAD (2017)
|
3,000 lbs (1,361 kg)
|
|
OPERATING WIDTH (Since 2016)
|
72 in (183 cm)
|
|
OPERATING WIDTH (2017)
|
72 in (183 cm)
|
|
OPERATING WIDTH (Since 2019)
|
75 in (191 cm)
|
|
OPERATING WIDTH (2020)
|
75 in (191 cm)
|
|
Operating Width (Since 2021)
|
75 in (191 cm)
|
|
Operating Width (2022)
|
75 in (191 cm)
|
|
Operating Width (2023)
|
75 in (191 cm)
|
|
Operating Width (2024)
|
75 in (191 cm)
|
|
Operating Width (2025)
|
75 in (191 cm)
|
|
Operating Width (2026)
|
75 in (191 cm)
|
|
Rated Operating Capacity (Since 2025)
|
3,186 lbs (1,445 kg)
|
|
RATED OPERATING CAPACITY (50%) (Since 2019)
|
3,186 lbs (1,445 kg)
|
|
RATED OPERATING CAPACITY (50%) (2020)
|
3,186 lbs (1,445 kg)
|
|
Rated Operating Capacity LBS. (KG) 50% (Since 2021)
|
3,186 (1,445) |
|
Rated Operating Capacity LBS. (KG) 50% (2022)
|
3,186 (1,445) |
|
Rated Operating Capacity LBS. (KG) 50% (2023)
|
3,186 (1,445) |
|
Rated Operating Capacity LBS. (KG) 50% (2024)
|
3,186 (1,445) |
|
Rated Operating Capacity LBS. (KG) 50% (2026)
|
3,186 (1,445) |
| Hydraulic |
|
Pump Flow Capacity |
24 gpm (90 lpm)
|
|
Relief Valve Pressure |
3,335 psi |
| Loader |
|
Breakout Force |
6,543 lbs (2,968 kg)
|
|
Bucket Capacity |
1 cu yd |
|
Bucket Width |
75 in (190 cm)
|
|
Loader Lift Capacity With Bucket |
6,056 lbs (2,747 kg)
|
|
Operating Load Rating |
3,000 lbs (1,361 kg)
|
|
Tipping Angle |
6,369 degrees |
| Operational |
|
Alternator Supplied Amperage |
95 amps |
|
Chain Box Fluid Capacity - Each Side |
6 gal (23 l)
|
|
Cooling System Fluid Capacity |
4 gal (16 l)
|
|
Engine Oil Fluid Capacity |
4 gal (15 l)
|
|
Fuel Capacity |
27 gal (103 l)
|
|
Hydraulic System Fluid Capacity |
15 gal (55 l)
|
|
Max Speed |
12 mph (20 kph)
|
|
Operating Speed |
7 mph (11 kph)
|
|
Operating Voltage |
12 V |
|
Operational Weight |
9,288 lbs (4,213 kg)
|
|
Tire Size |
12 x 16.5 |
| Transmission |
|
Travel Speed |
13 mph (20 kph)
|
| Tyres |
|
Standard |
12 x 16.5 - 10 PR Xtra Wall Off Road |
