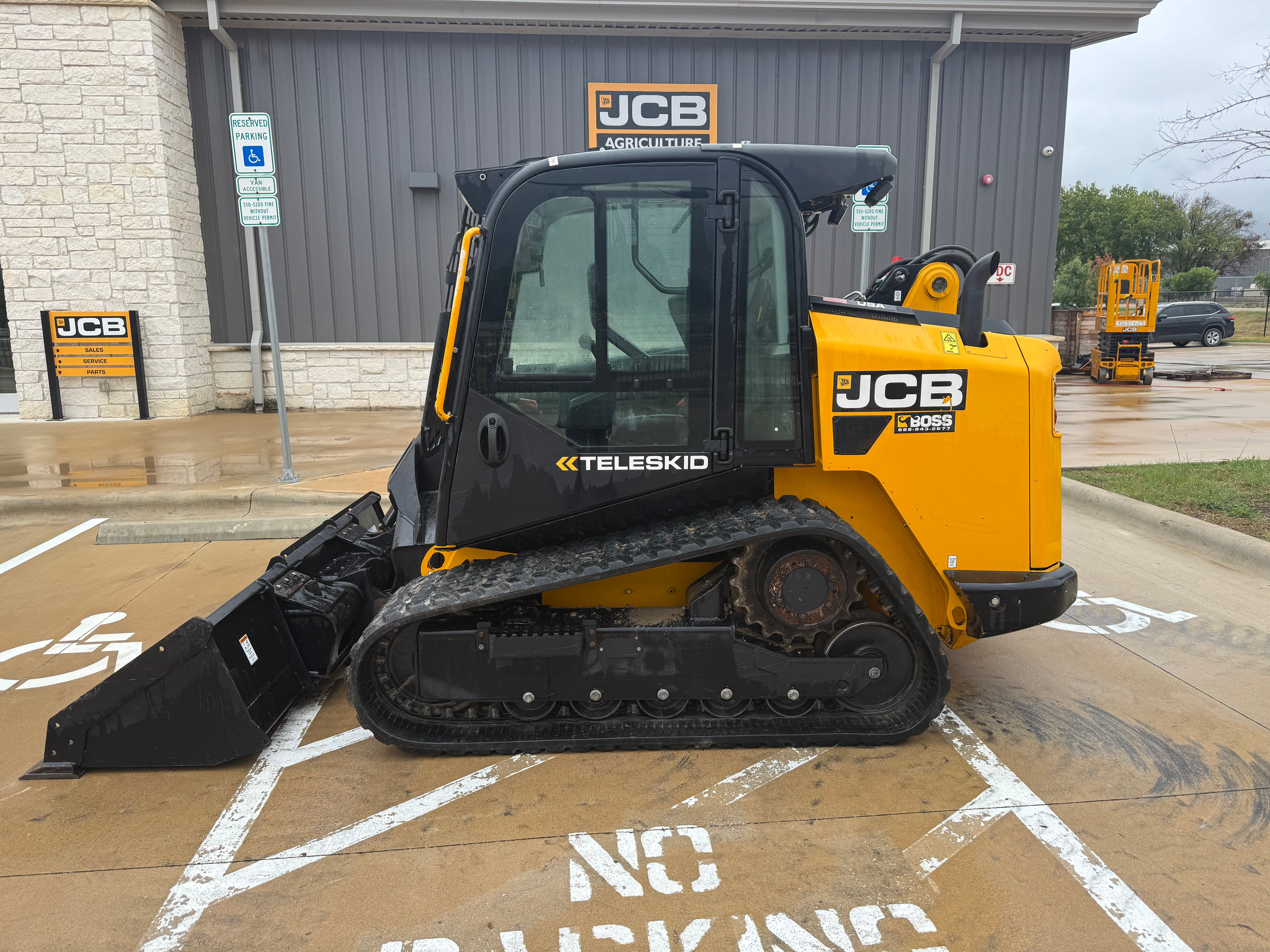

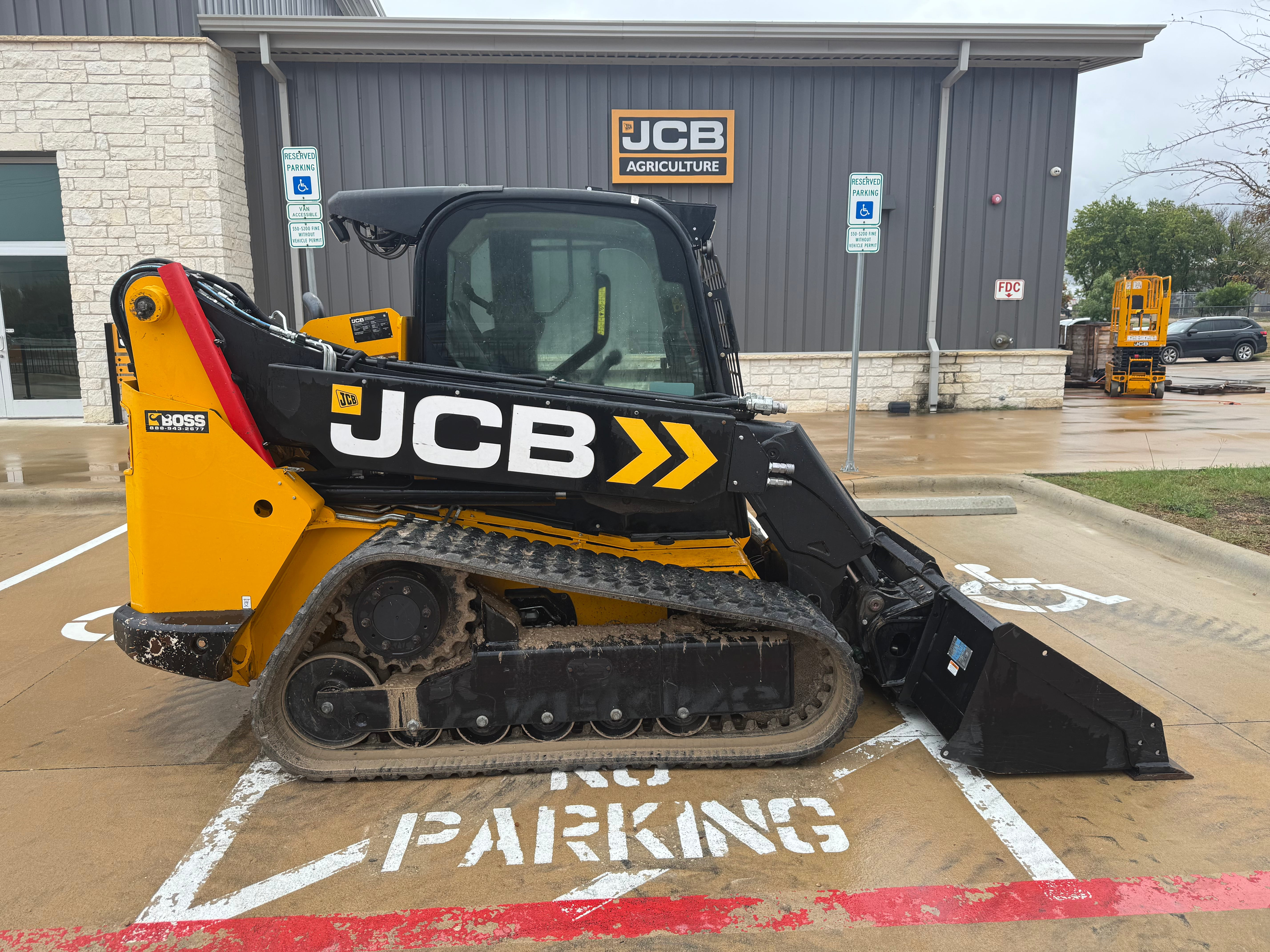

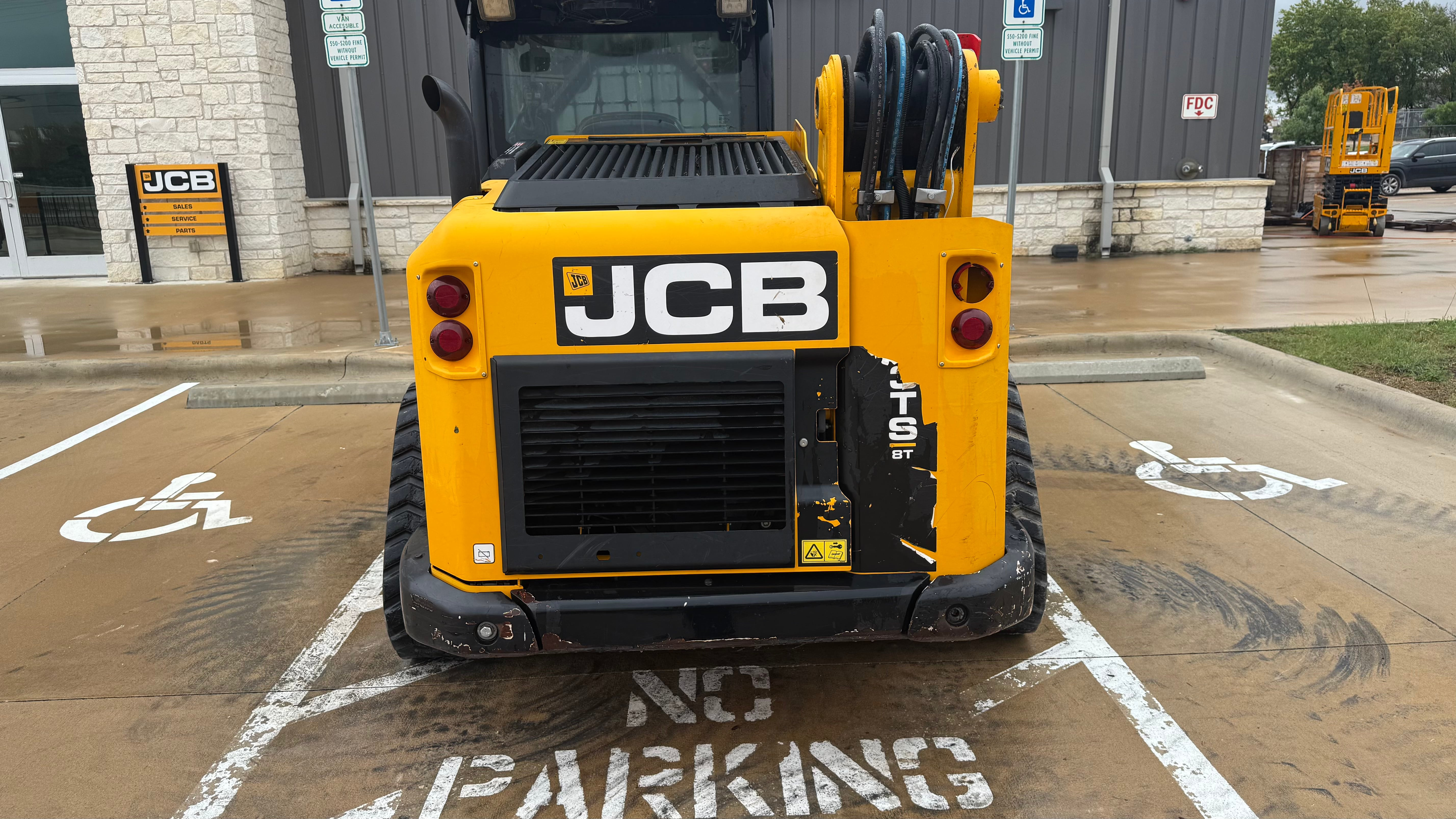

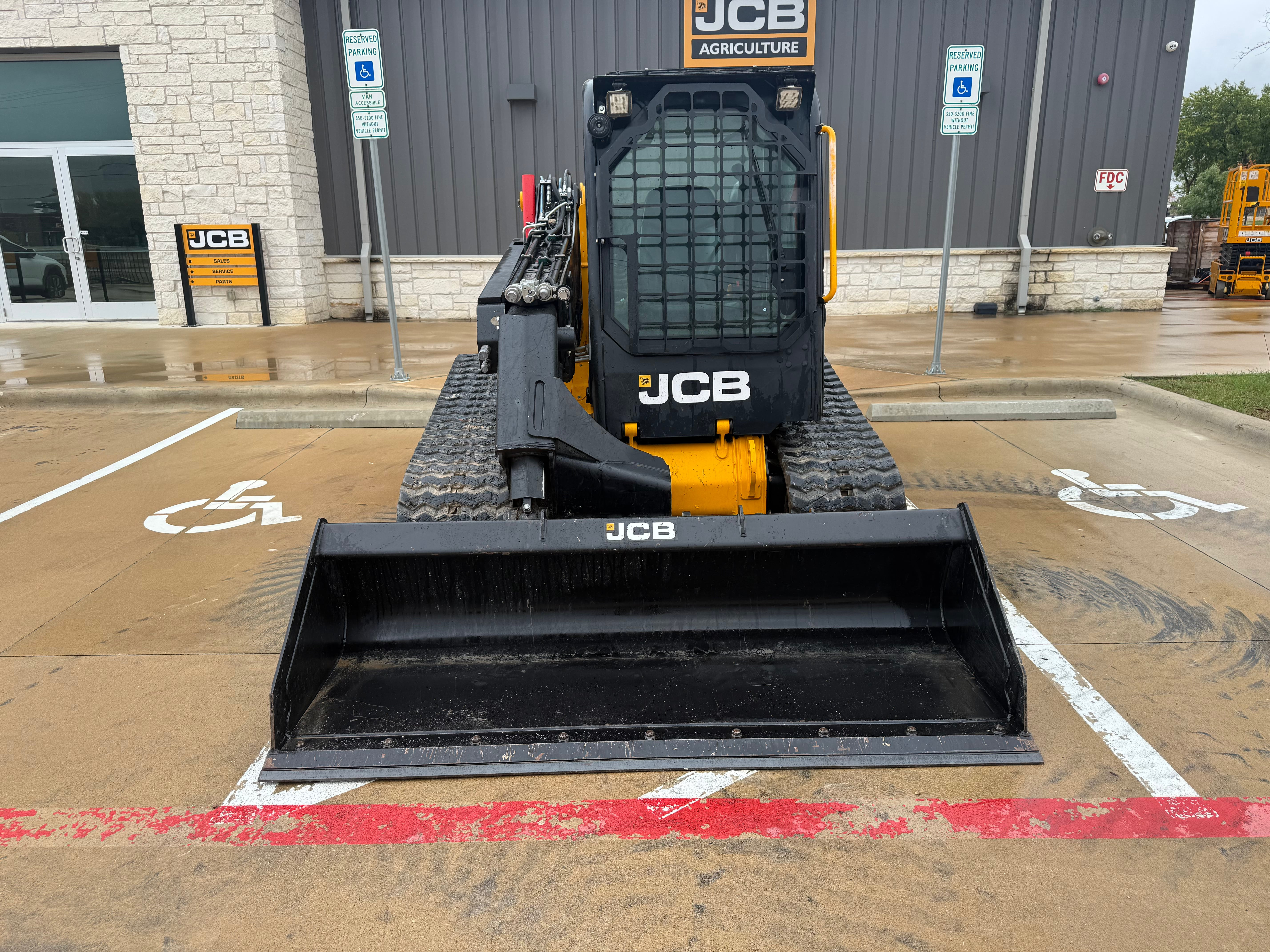

2022 JCB 3TS-8T For Sale in San Antonio, TX

2022 JCB 3TS-8T
2022 JCB 3TS-8T
2022 JCB 3TS-8T
2022 JCB 3TS-8T
2022 JCB 3TS-8T
2022 JCB 3TS-8T
2022 JCB 3TS-8T
2022 JCB 3TS-8T 2022 JCB 3TS-8T 2022 JCB 3TS-8T 2022 JCB 3TS-8T 2022 JCB 3TS-8T 2022 JCB 3TS-8T 2022 JCB 3TS-8T

/ Save to Watch List

Email Dealer


For Sale: $65,200.00 USD

Apply for Financing


Machine Info:

Hours:1601
Machine Location:SAN ANTONIO, TX
More Information:https://bossjcb.com/inventory/skid+steers/2022-jcb-3ts-8t-austin-tx-6ac52fcb22474f2156091302/

Description:

The world’s first compact track loader with a telescopic boom, the JCB Teleskid 3TS-8T compact track loader is able to reach 60 percent further and lift 8 percent higher than any skid steer on the market, and—in another industry first—it can dig to a depth of 3 feet (1 m)., The Teleskid is also the only skid steer to offer the advantages of vertical lift—for greater lift capacity and lift height—and radial lift—for improved excavating and grading—in a single machine., The JCB Teleskid offers u Nmatched versatility on the job site. Load high-sided trucks without a ramp. Reach across an 8-foot flatbed trailer. Lift and place over silt fences and other barriers. Dig out trees and roots or clear a drainage ditch. Never before have you been able to accomplish these tasks with a skid steer. NOW YOU CAN!, Based on JCB’s proven large-platform skid steer design, the Teleskid 3TS-8T tracked model has a rated operating capacity of 3,695 lb (1,676, kg) with the Powerboom™ retracted, or 1,600 lb (725, kg) when fully extended. The Teleskid 3TS-8T has an SAE operating weight of 12,615 lb (5,722, kg)., The JCB Teleskid is proudly designed and built in the United States by the men and women of JCB North America.


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The JCB 3TS-8T is a compact skid steer loader designed for lifting, loading, grading, and material handling in construction, landscaping, agriculture, and utility work. It features a telescopic boom for increased reach and lift height compared with standard skid steer loaders, improving access to trucks, trailers, and elevated work areas. The 3TS-8T is built for maneuverability in confined spaces and is commonly used where a small footprint and versatile attachment compatibility are required. Typical applications include site preparation, debris handling, pallet movement, and general earthmoving. Its design supports efficient operation in tight jobsite conditions.
Dimensions
Angle Of Departure 29 degrees
Dig Depth -394 in (-1,000 cm)
Dump Angle 42 degrees
Ground Clearance 9 in (24 cm)
Height To Top Of Cab 7 ft (2 m)
Length Without Attachment 10 ft (3 m)
Max. Rollback Angle 94 degrees
Rollback @ Ground 30 degrees
Standard Shovel Width 73 in (185 cm)
Wheelbase 7 ft (2 m)
Width Over Tires 7 ft (2 m)
Engine
Alternator 95 amps
Aspiration Turbo
Battery 12 V
Cooling System Water
Displacement 269 cu in (4,400 cu cm)
Emissions Certification EPA-T4F (EU St3B)
Engine Model EcoMAX TCAE-55
Engine Oil Service Interval Hours 500
Fuel Diesel
Gross Power 74 hp (55 kw)
Max Torque 295 lbs ft (400 nm)
Power Measured @ 2,400 rpm
Starter Motor 4.2 Kw
Torque Measured @ 1,200 rpm
Hydraulic
Loader Lift Extended 3,874 lbs (1,757 kg)
Main Relief Pressure 3,335 psi
Pump Flow Capacity 24 gpm (90 lpm)
R.O.C Extended 1,614 lbs (732 kg)
Shovel Tilt Extended 6,517 lbs (2,956 kg)
Loader
Tipping Angle 4,612 degrees
Operational
Cooling System Fluid Capacity 6 gal (22 l)
Engine Oil Fluid Capacity 4 gal (14 l)
Fuel Capacity 27 gal (103 l)
Hydraulic System Fluid Capacity 15 gal (55 l)
Weights
Cab 12,615 lbs (5,722 kg)
Operating Weight - Rops Canopy 12,483 lbs (5,662 kg)
