2023 JCB 407 For Sale in Harrisburg, PA

❮

❯

/ Save to Watch List

For Sale: $64,900.00 USD

Apply for Financing

Stephenson Equipment, Inc.

Stephenson Equipment, Inc. Dealer Info

Stephenson Equipment, Inc. Website

Click here to email Stephenson Equipment, Inc..

Contact: Kyle Hoffman

Click for Phone Number

Machine Info:

Hours:	872

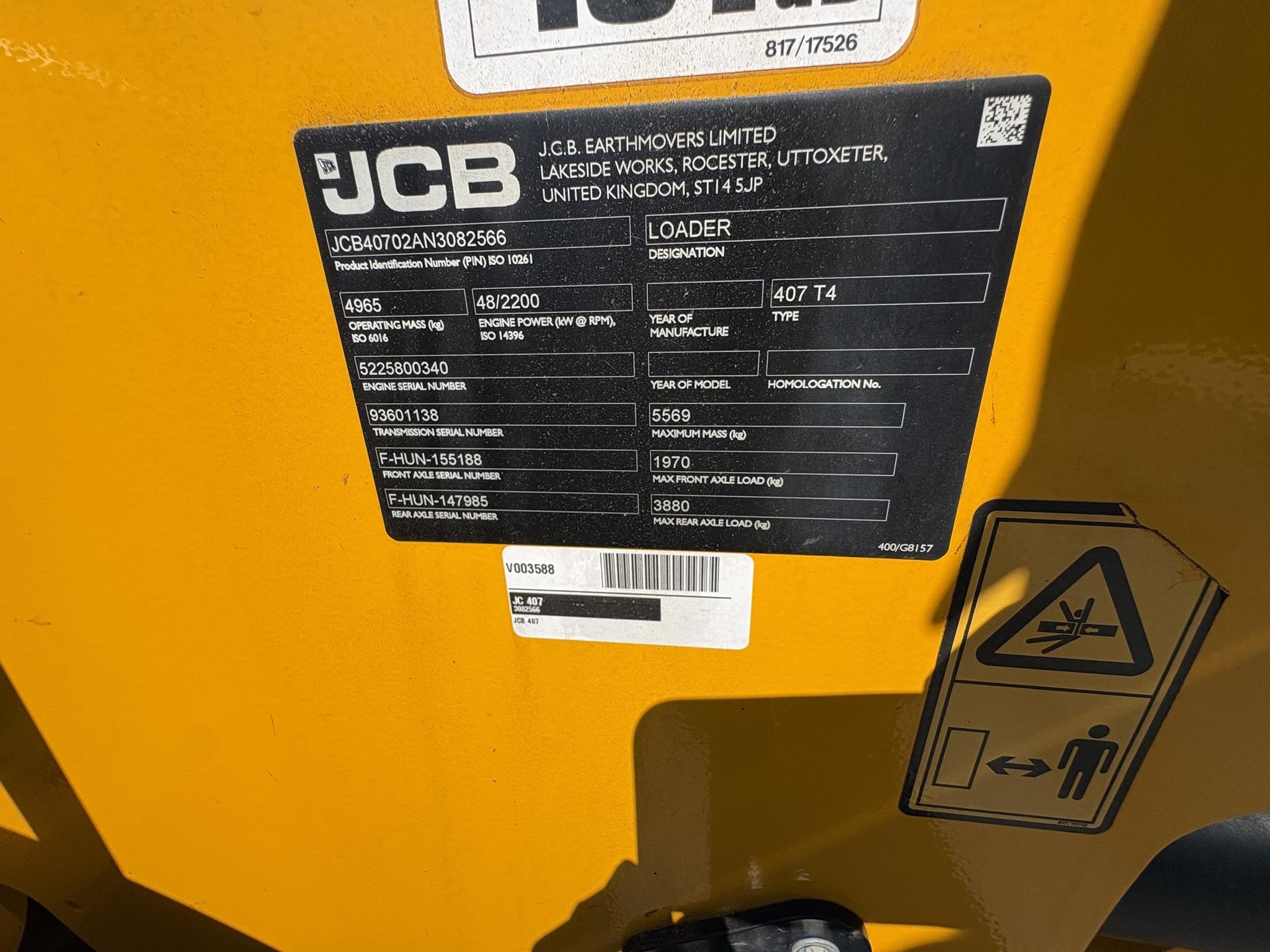

Stock Number:	JCB40702AN3082566
Machine Location:	HARRISBURG, PA
More Information:	https://stephensonequipmentjcb.com/inventory/wheel+loaders/2023-jcb-407-baltimore-md-6a31570fbf8c1703fd034988/

Description:

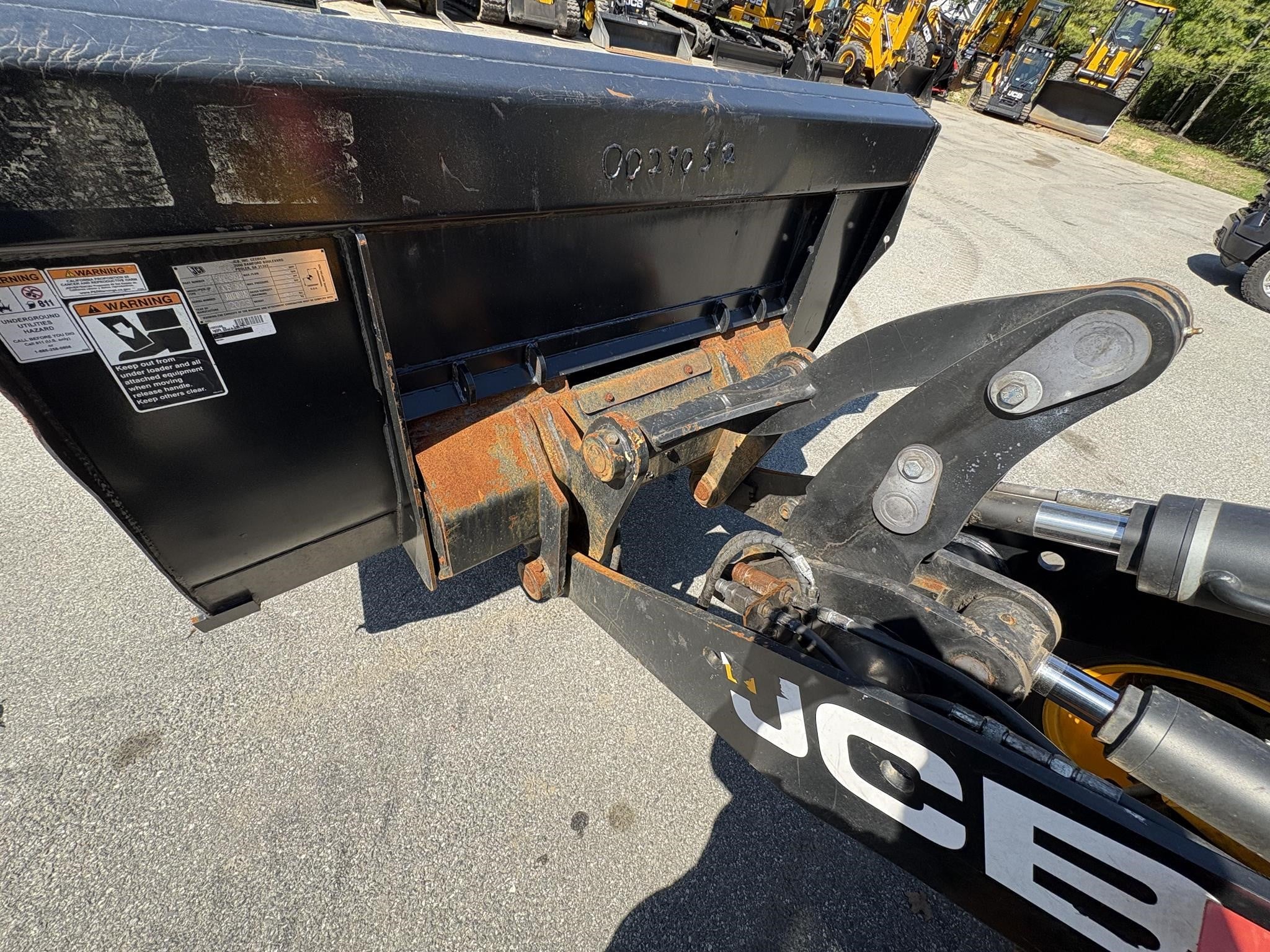

2023 JCB, 407 Wheel Loaders, 2023 JCB 407 Wheel Loader, 872 Hours, 64 HP JCB Diesel By Kohler Engine, Enclosed Cab with Heat, A/C, 3 Spool Servo Controls, Tilt & Slide Steering Column, Hydrostatic Transmission, Skid Steer Powered Quick Hitch, Front Aux. Hydraulics, Smooth Ride System, Operating Weight: 11,200 lbs, Lift Capacity: 3,660 lbs, Breakout Force: 9,400 lbs, Tipping Load: 9,500 lbs, Max Dump Height: 8'2". *Stephenson Equipment has a large inventory spread out across 8 locations in PA & NY. Please contact us before coming to inspect a piece of equipment.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 407 is a compact wheel loader designed for material handling, loading, and site support applications in construction, agriculture, landscaping, and municipal work. It is part of JCB's 400 series and is known for its articulated steering, compact dimensions, and operator visibility. The machine is typically equipped with a diesel engine, hydrostatic transmission, and a front loader attachment system for buckets and other work tools. The JCB 407 is used for moving soil, aggregate, feed, and other bulk materials in confined work areas where maneuverability and lifting performance are required.

Axles
Axle oil front	1 gal (5 l)
Axle oil rear	2 gal (6 l)
Bucket
Breakout Force	9,420 lbs (4,273 kg)
Bucket Capacity - heaped	1 cu yd (1 cu m)
Bucket Width	6 ft (2 m)
Dump Clearance at Max Raise	8 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	8 ft (3 m)
Hinge Pin - Max Height	10 ft (3 m)
Length with Bucket on Ground	17 ft (5 m)
Reach at Max Lift and Dump	3 ft (1 m)
Wheelbase	7 ft (2 m)
Width Over Tires	6 ft (2 m)
Electrical System
Alternator	80 Ah
Battery capacity	100 Ah
Voltage	12 V
Engine
Aspiration	Turbocharged
Displacement	152 cu in (2,483 cu cm)
Emissions level	Stage 3A Tier 4 Final

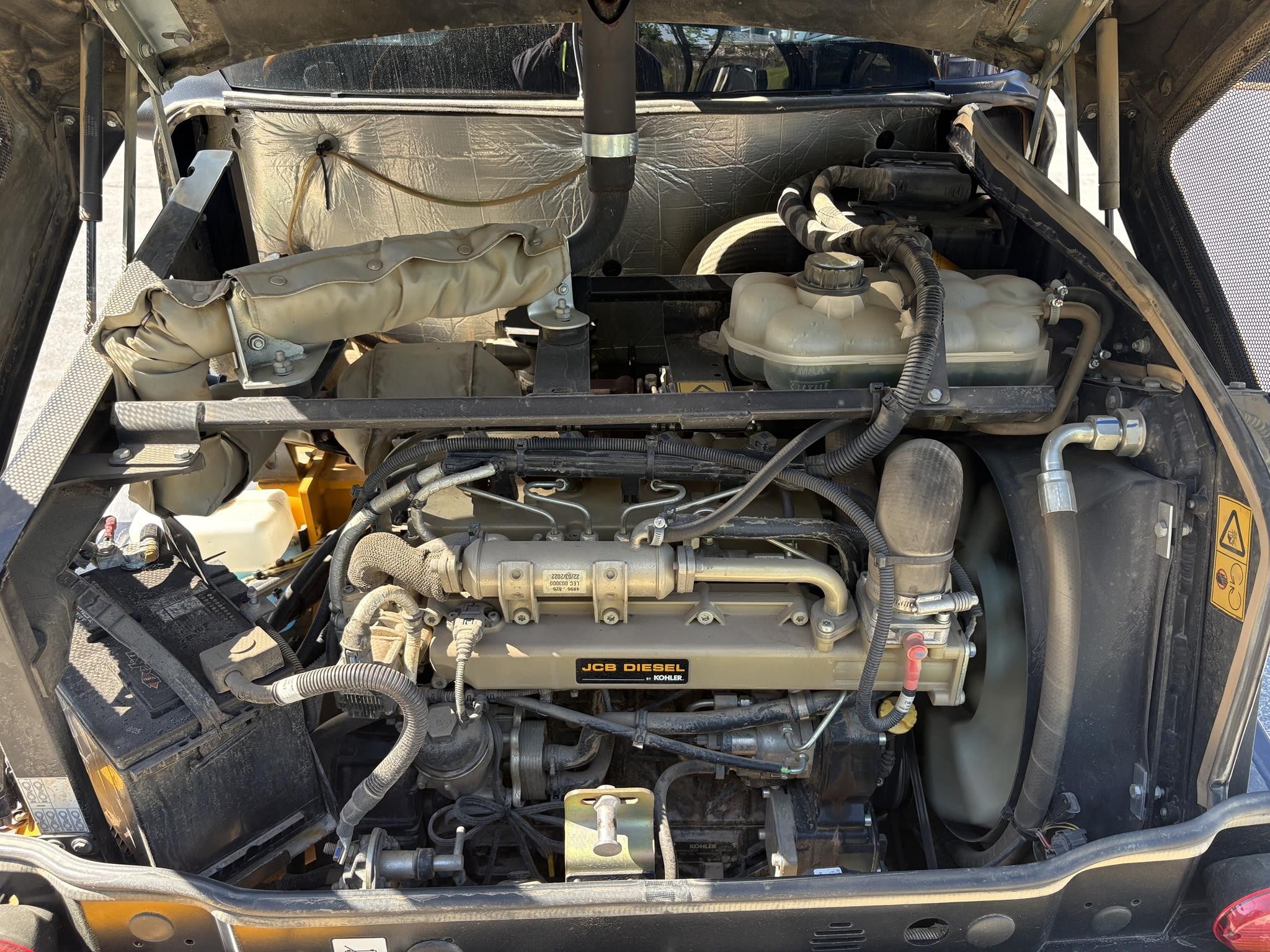

Engine Model	JCB Diesel by Kohler - KDI 2504 TCR
Engine Type	4 stroke Electronic Common Rail
Gross Power	64 hp (48 kw)
Net Power	64 hp (48 kw)
Number of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,500 rpm
General Specifications
Bucket Capacity (Since 2016)	1.3 (1.0)
Bucket Capacity (2017)	1.3 (1.0)
Bucket Capacity (2019)	1.3 (1.0)
Bucket Capacity (Since 2020)	1.1 (0.84)
Bucket Capacity (2021)	1.1 (0.84)
Bucket Capacity (2022)	1.1 (0.84)
Bucket Capacity (2023)	1.1 (0.84)
Bucket Capacity (Since 2024)	1.0 (0.84)
Bucket Capacity cu. yd. (cu m) (Since 2025)	1.0 (0.84)
Bucket Capacity cu. yd. (cu m) (Since 2026)	1.0 (0.8)
Engine Power (Since 2016)	64 (48)
Engine Power (2017)	64 (48)
Engine Power (2019)	64 (48)
Engine Power (2020)	64 (48)
Engine Power (2021)	64 (48)
Engine Power (2022)	64 (48)
Engine Power (2023)	64 (48)
Engine Power (2024)	64 (48)
Engine Power Gross hp (kW) (Since 2025)	64 (48)
Engine Power Gross hp (kW) (Since 2026)	64 (48)
Engine type (Since 2016)	JCB Diesel by Kohler KDI 2504 TCR
Engine type (2017)	JCB Diesel by Kohler KDI 2504 TCR
Engine type (2019)	JCB Diesel by Kohler KDI 2504 TCR
Engine type (2020)	JCB Diesel by Kohler KDI 2504 TCR
Engine type (2021)	JCB Diesel by Kohler KDI 2504 TCR
Engine type (2022)	JCB Diesel by Kohler KDI 2504 TCR
Engine type (2023)	JCB Diesel by Kohler KDI 2504 TCR
Engine type (2024)	JCB Diesel by Kohler KDI 2504 TCR
Engine type (2025)	JCB Diesel by Kohler KDI 2504 TCR
Engine type (2026)	JCB Diesel by Kohler KDI 2504 TCR
Max Dump Height (Since 2016)	8.9 (2.72)
Max Dump Height (Since 2017)	7.11 (2.4)
Max Dump Height (Since 2019)	8.2 (2.4)
Max Dump Height (2020)	8.2 (2.4)
Max Dump Height (2021)	8.2 (2.4)
Max Dump Height (2022)	8.2 (2.4)
Max Dump Height (2023)	8.2 (2.4)
Max Dump Height (Since 2024)	9.8 (2.5)
Max Dump Height ft. (m) (Since 2025)	9.8 (2.5)
Max Dump Height ft. (m) (Since 2026)	8' 2" (2489)
Operating Weight (Since 2016)	11486 (5210)
Operating Weight (2017)	11486 (5210)
Operating Weight (Since 2019)	11,486 (5,210)
Operating Weight (2020)	11,486 (5,210)
Operating Weight (2021)	11,486 (5,210)
Operating Weight (2022)	11,486 (5,210)
Operating Weight (2023)	11,486 (5,210)
Operating Weight (2024)	11,486 (5,210)
Operating Weight lbs. (kg) (Since 2025)	11,486 (5,210)
OperatingWeight lbs. (kg) (Since 2026)	11,162 (5,063)
Hydraulic System
3335.9	230 bar psi
Dump Time	4 seconds
Lower Time	3 seconds
Pump Flow Capacity	17 gpm (64 lpm)
Pump Type	Single Gear Pump
Raise Time	5 seconds
Operating Specifications
Engine Oil Fluid Capacity	3 gal (11 l)
Fuel Capacity	21 gal (80 l)
Hydraulic System Fluid Capacity	19 gal (70 l)
Operating Weight	11,162 lbs (5,063 kg)
Rated Bucket Capacity	2 cu yd (1 cu m)
Transmission
Max Speed - Forward	11 mph (18 kph)
Transmission Type	Hydrostatic
Weights
Operational Weight	9,171 lbs (4,160 kg)
