2009 JCB 456ZX For Sale in Dubai, Are

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

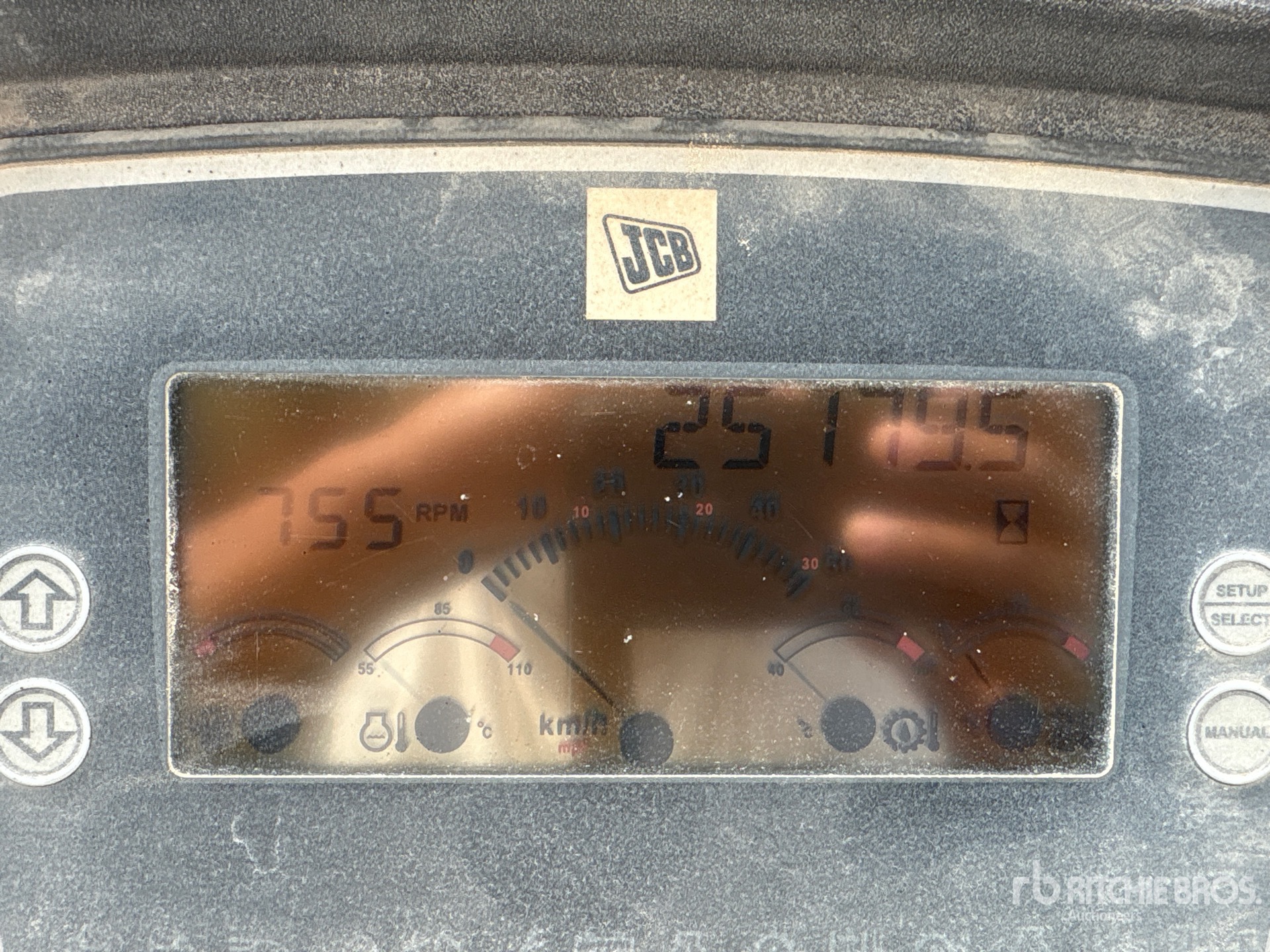

Hours:	25179

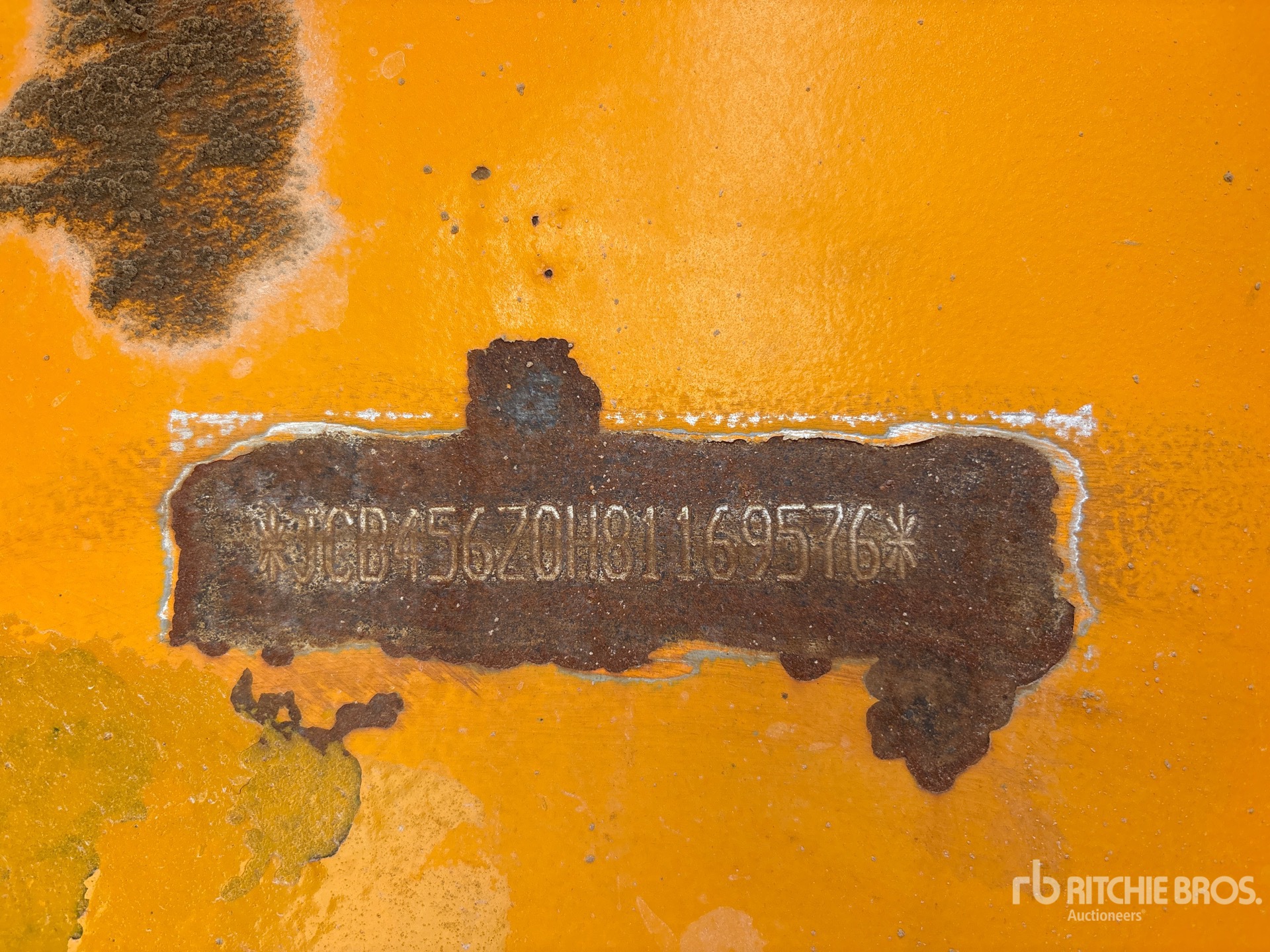

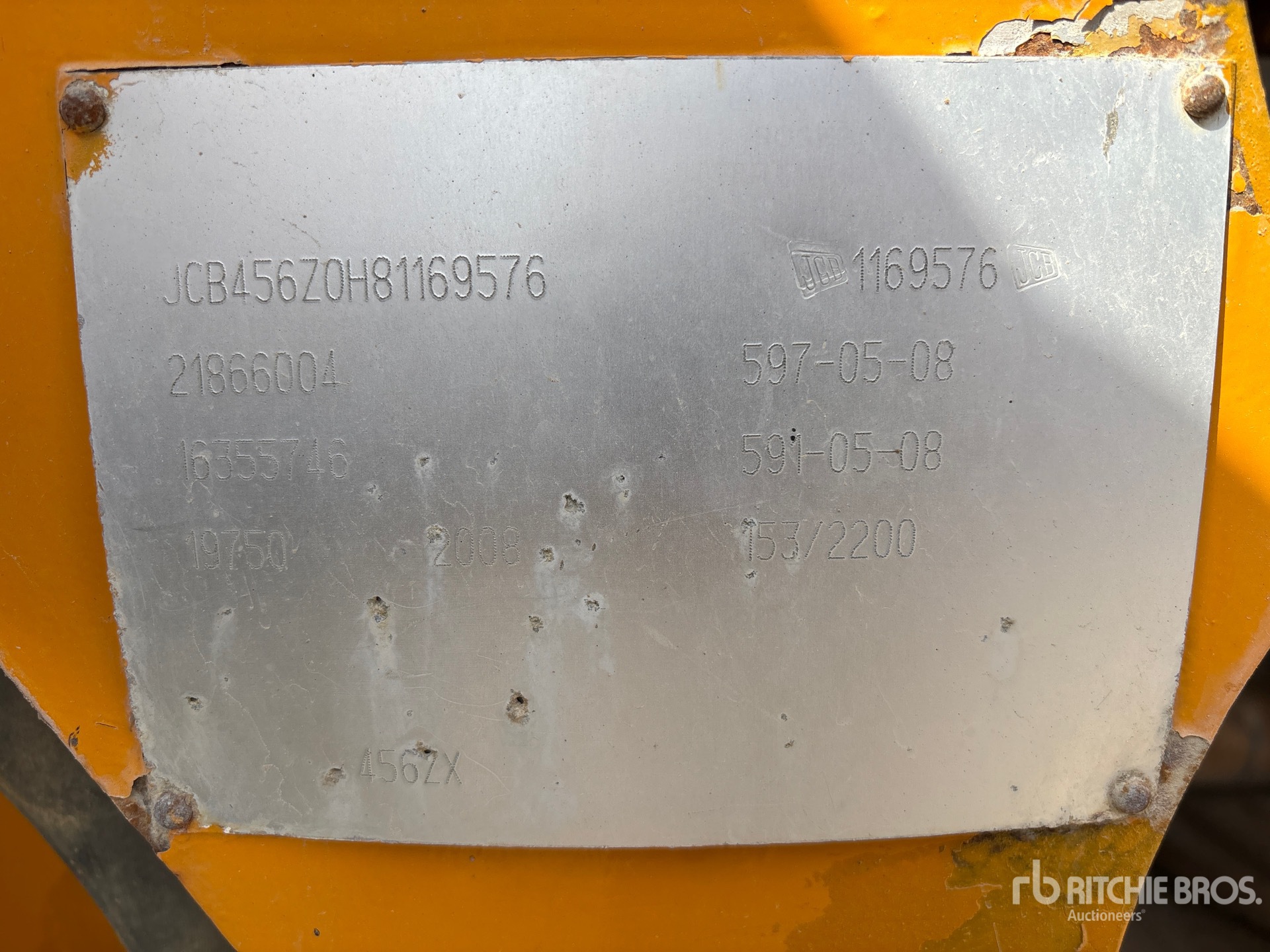

Serial Number:	JCB456ZOH81169576
Machine Location:	DUBAI, ARE

Description:

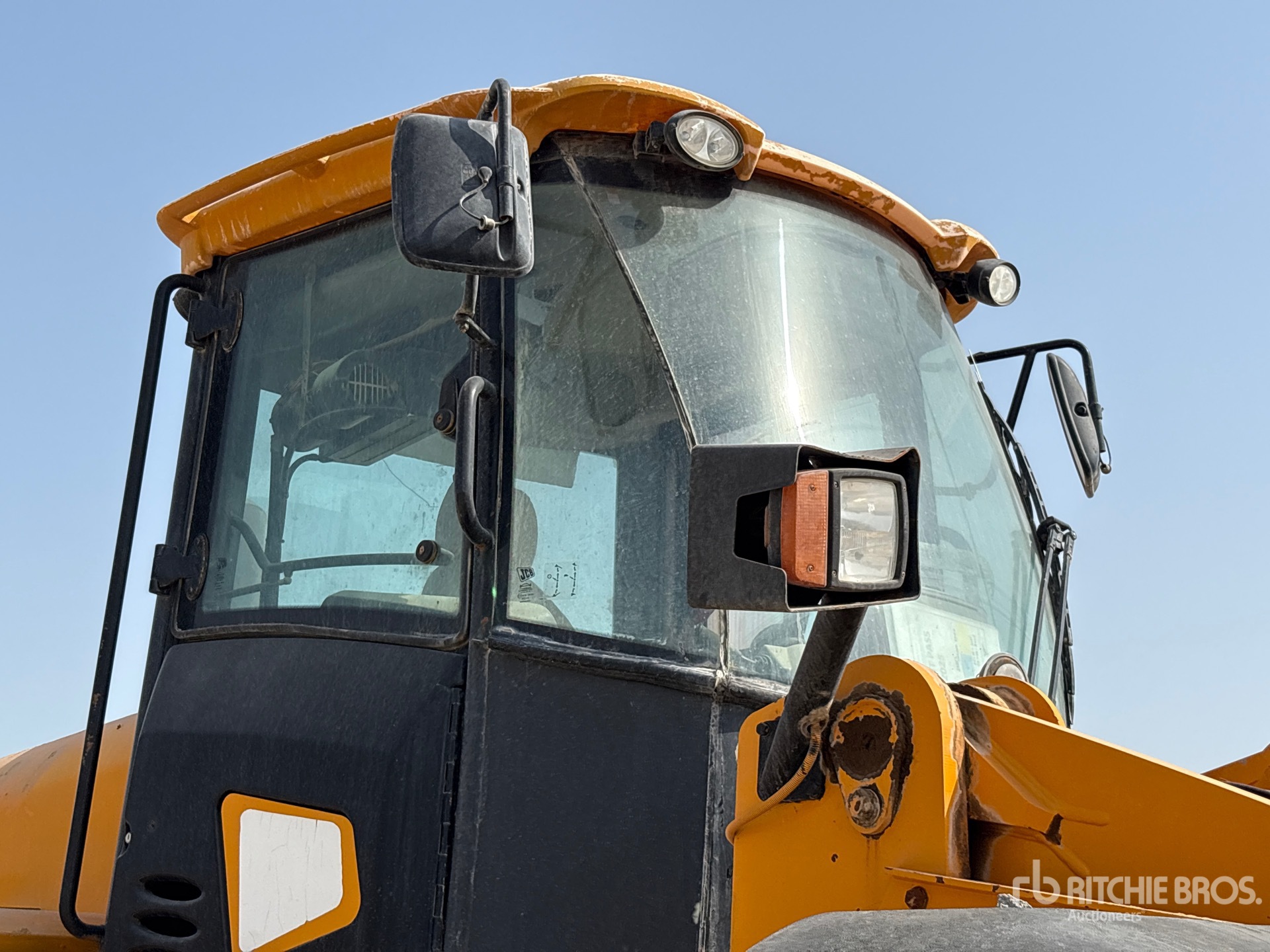

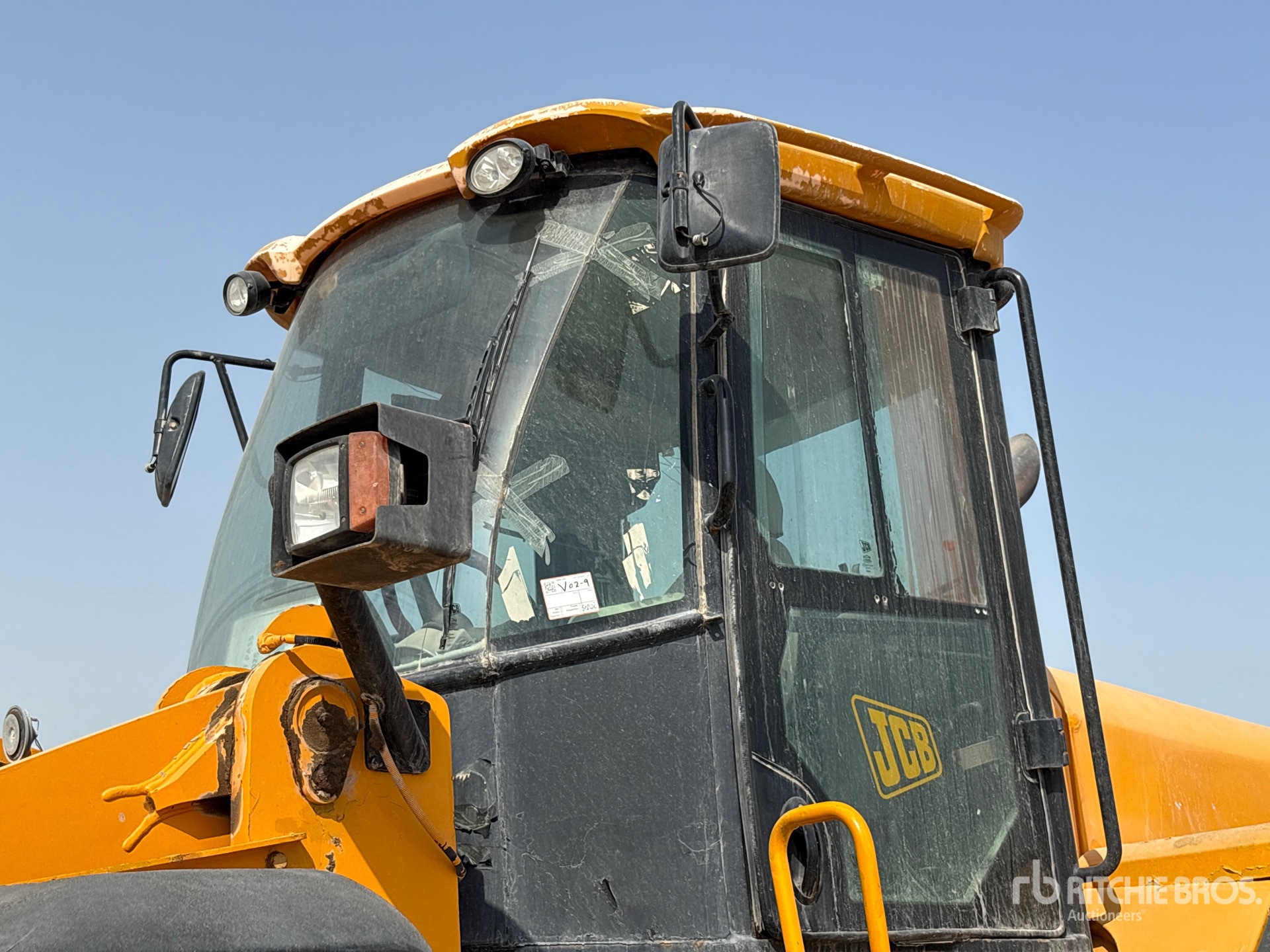

Enclosed Cab, Air Conditioner, 2820 mm Bucket, 23.5R25 Tires **Year of manufacture 2008** Closing Time: 2026-09-23 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	36,194 lbs (16,417 kg)
Breakout Force	36,194 lbs (16,417 kg)
Bucket Capacity - Heaped	4 cu yd
Bucket Capacity - Heaped	4 cu yd
Bucket Capacity - Struck	4 cu yd
Bucket Capacity - Struck	3 cu yd
Bucket Width	9 ft (3 m)
Dump Clearance At Max Raise	10 ft (3 m)
Dimensions
Bucket	GP
Dump Clearance At Max Lift	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	2 ft (0 m)
Ground Clearance	2 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Hinge Pin Max Height	13 ft (4 m)
Length	26 ft (8 m)
Length W/ Bucket On Ground	26 ft (8 m)
Length With Bucket On Ground	26 ft (8 m)
Max Lift Height	13 ft (4 m)
Reach At Max Height And Dump	4 ft (1 m)
Reach At Max Lift And Dump	4 ft (1 m)
Weight	42,000 lbs (19,048 kg)
Wheelbase	11 ft (3 m)
Wheelbase	11 ft (3 m)
Width	9 ft (3 m)
Width Over Tires	9 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	turbocharged
Aspiration	turbocharged
Displacement	507 cu in (8,300 cu cm)
Displacement	507 cu in (8,300 cu cm)
Engine Make	2,347
Engine Make	2,257
Engine Model	6CT 8.3C
Engine Model	6CT 8.3C
Gross Power	216 hp (161 kw)
Gross Power	161 hp (120 kw)
Max Torque	733 lbs ft (994 nm)
Max Torque	733 lbs ft (994 nm)
Net Power	197 hp (147 kw)
Net Power	153 hp (114 kw)
Number Of Cylinders	6
Number Of Cylinders	6
Power Measured @	2,200 rpm
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	1 sec
Dump Time	1 sec
Lower Time	4 sec
Lower Time	4 sec
Pump Flow Capacity	85 gpm (323 lpm)
Pump Flow Capacity	43 gpm (163 lpm)
Pump Type	twin variable displacement piston pump
Pump Type	twin variable displacement piston pump
Raise Time	6 sec
Raise Time	6 sec
Relief Valve Setting	3,625 psi
Relief Valve Setting	3,625 psi
Operational
Alternator Supplied Amperage	70 amps
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	11 gal (40 l)
Cooling System Fluid Capacity	11 gal (40 l)
Engine Oil Capacity	5 gal (19 l)
Engine Oil Fluid Capacity	5 gal (19 l)
Front Axle/Diff Fluid Capacity	18 gal (69 l)
Front Diff Fluid Capacity	18 gal (69 l)
Fuel Capacity	85 gal (320 l)
Fuel Capacity	85 gal (320 l)
Hydraulic System Fluid Capacity	57 gal (215 l)
Hydraulic System Fluid Capacity	57 gal (215 l)
Operating Voltage	24 V
Operating Voltage	24 V
Operating Weight	41,762 lbs (18,943 kg)
Operating Weight	48,676 lbs (22,079 kg)
Rear Axle Oscillation	25 degrees
Rear Axle Oscillation	25 degrees
Rear Axle/Diff Fluid Capacity	14 gal (51 l)
Rear Diff Fluid Capacity	14 gal (51 l)
Static Tipping Load - Bucket	33,541 lbs (15,214 kg)
Static Tipping Load - Forks	26,041 lbs (11,812 kg)
Static Tipping Weight	32,265 lbs (14,635 kg)
Tire Size	23.5x25x20 ply L2
Tire Size	23.5R25 HXA (L3)
Transmission Fluid Capacity	9 gal (34 l)
Transmission Fluid Capacity	9 gal (34 l)
Turning Radius	22 ft (7 m)
Turning Radius	22 ft (7 m)
Transmission
Max Speed - Forward	23 mph (38 kph)
Max Speed - Reverse	15 mph (24 kph)
Max Speed Forward	23 mph (38 kph)
Max Speed Reverse	15 mph (24 kph)
Number Of Forward Gears	4
Number Of Forward Gears	4
Number Of Reverse Gears	3
Number Of Reverse Gears	3
Transmission Type	smooth shift powershift
Transmission Type	smooth shift powershift
