2025 JCB TM320 AGRI For Sale in Sabina, OH

❮

❯

/ Save to Watch List

For Sale: Call for Price

AES JCB

AES JCB Dealer Info

Click here to email AES JCB.

Click for Phone Number

Machine Info:

Hours:	1
Machine Location:	SABINA, OH
More Information:	https://aesjcb.com/inventory/loaders/2025-jcb-tm320+agri-sabina-oh-69f506dea65f9db02b082748/

Description:

2025 JCB, TM320 AGRI Wheel Loaders, JCB TM320 Agri Telescopic HandlerAg Package125 HP7,450 lbs Lift Capacity17' Lift HeightCall today!Serial Number:

From the manufacturer:

Supplied by HeavyEquipmentData.com →

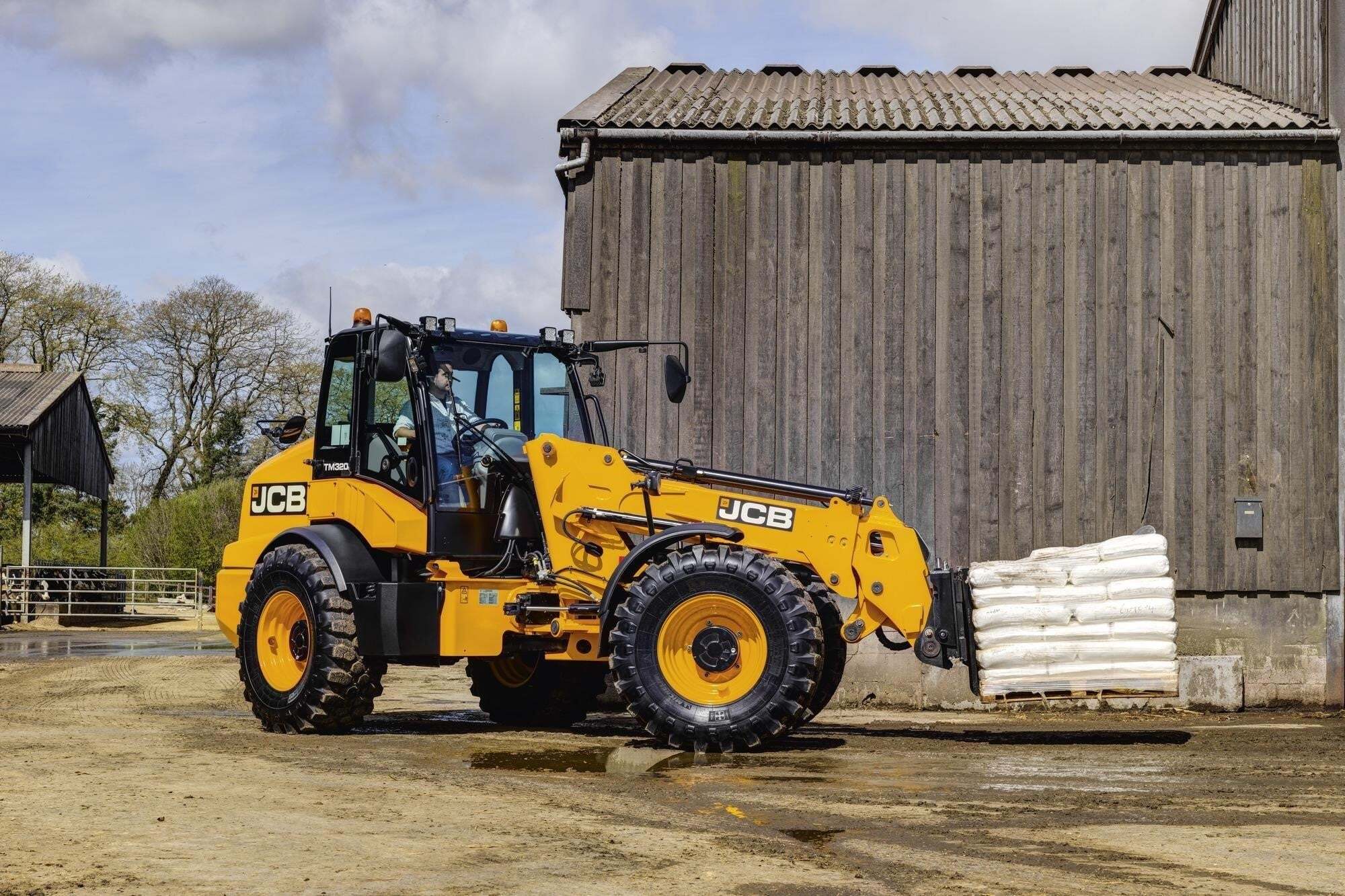

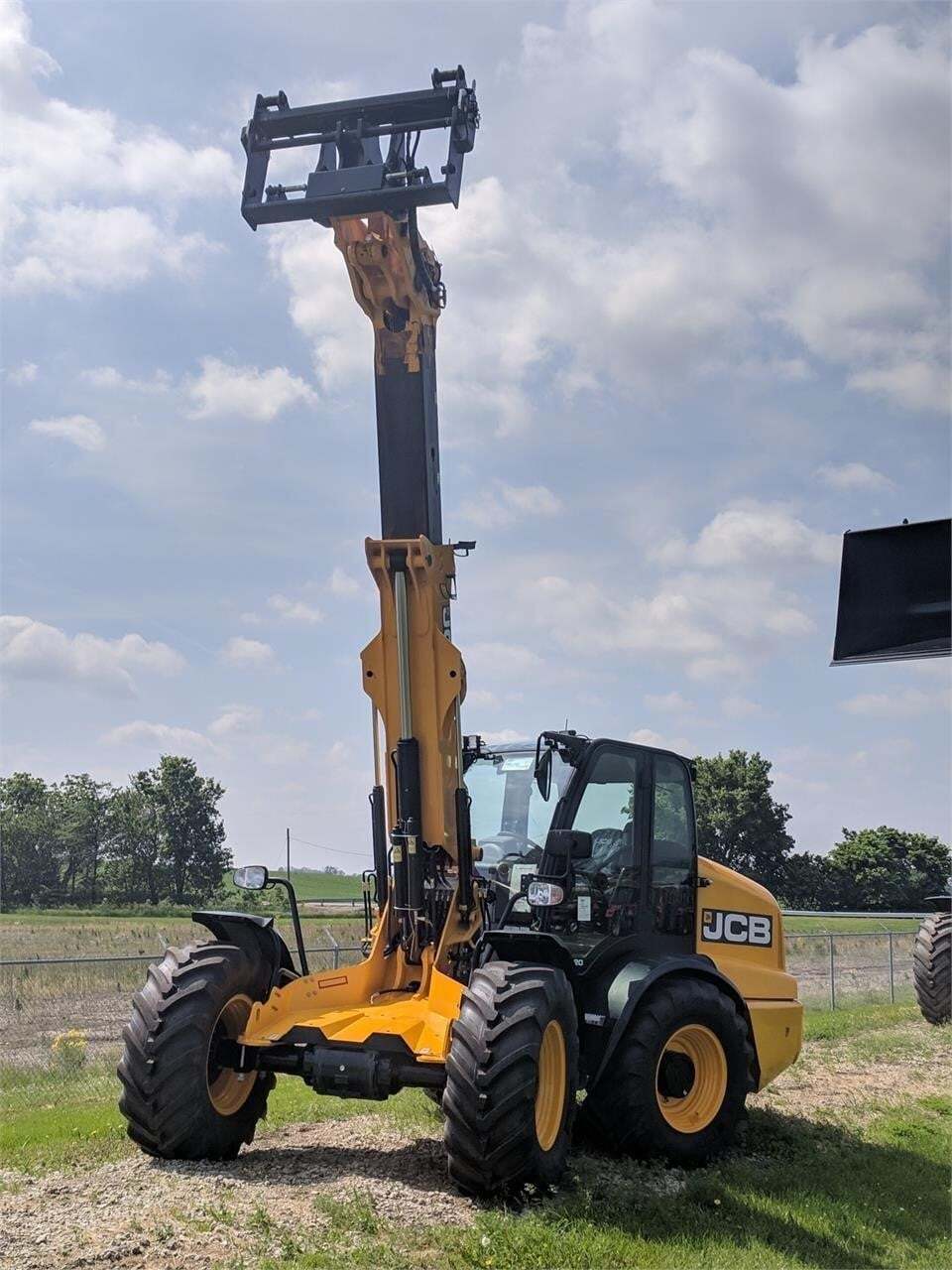

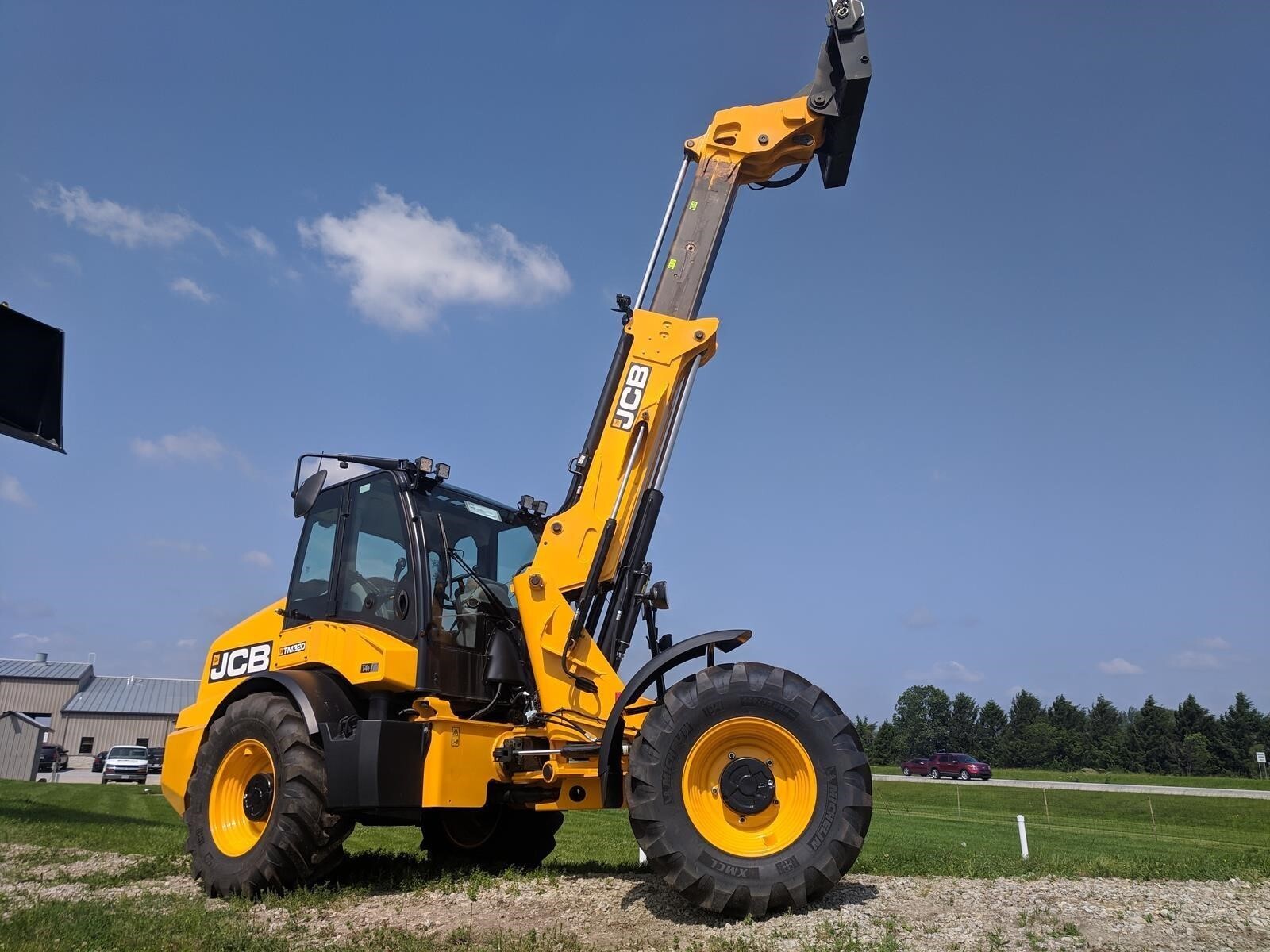

The JCB TM320 is a telescopic wheel loader designed for material handling, loading, and site support applications in agriculture, construction, and industrial environments. It combines the maneuverability of a wheel loader with the reach of a telescopic boom, allowing efficient loading, stacking, and transport of bulk materials. The TM320 is typically equipped with a JCB diesel engine, hydrostatic transmission, and four-wheel drive for traction and control on varied terrain. Common attachments include buckets, forks, and handling tools. The model is used for lifting, loading, and general-purpose material movement where compact size and reach are required.

Capacities
DEF Tank	8 gal (29 l)
Dropbox	0 gal (2 l)
Engine Oil	4 gal (14 l)
Fuel Tank	42 gal (160 l)
Hydraulic oil tank	26 gal (97 l)
Dimensions
Center of front axle to counterweight (Pusher)	7 ft (2 m)
Dump Height	15 ft (5 m)
Dump reach	37 in (93 cm)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Height to top of boom pivot	72 in (184 cm)
Hinge Pin - Max Height	18 ft (5 m)
Length with Bucket on Ground	21 ft (6 m)
Overall length	21 ft (6 m)
Turning Radius - Inside	7 ft (2 m)
Wheel track	74 in (187 cm)
Wheelbase	8 ft (3 m)
Width Over Tires	8 ft (2 m)
Electrical System
Alternator	150 Amp Hour
Battery capacity	120 Amp Hour
Voltage	12 V
Engine
Aspiration	Turbocharged-charge cooled
Bore	4 in (10 cm)
Capacity	1 gal (5 l)
Engine Make	JCB
Engine Model	EcoMAX
Gross Power	125 hp (93 kw)
Net Power	115 hp (86 kw)
Number of Cylinders	4
Power Measured @	2,200 rpm
Stroke	5 in (13 cm)
Torque Measured @	1,500 rpm
Hydraulic System
3335.9	230 bar psi
Pump Flow Capacity	37 gpm (140 lpm)
Pump Type	Variable displacement piston pump
Operating Specifications
Operating Weight	17,990 lbs (8,159 kg)
Transmission
Make	JCB
Max Speed - Forward	25 mph (40 kph)
Transmission Type	Powershift
Weights
Front axle weight	6,019 lbs (2,730 kg)
Rear axle weight	12,059 lbs (5,469 kg)
