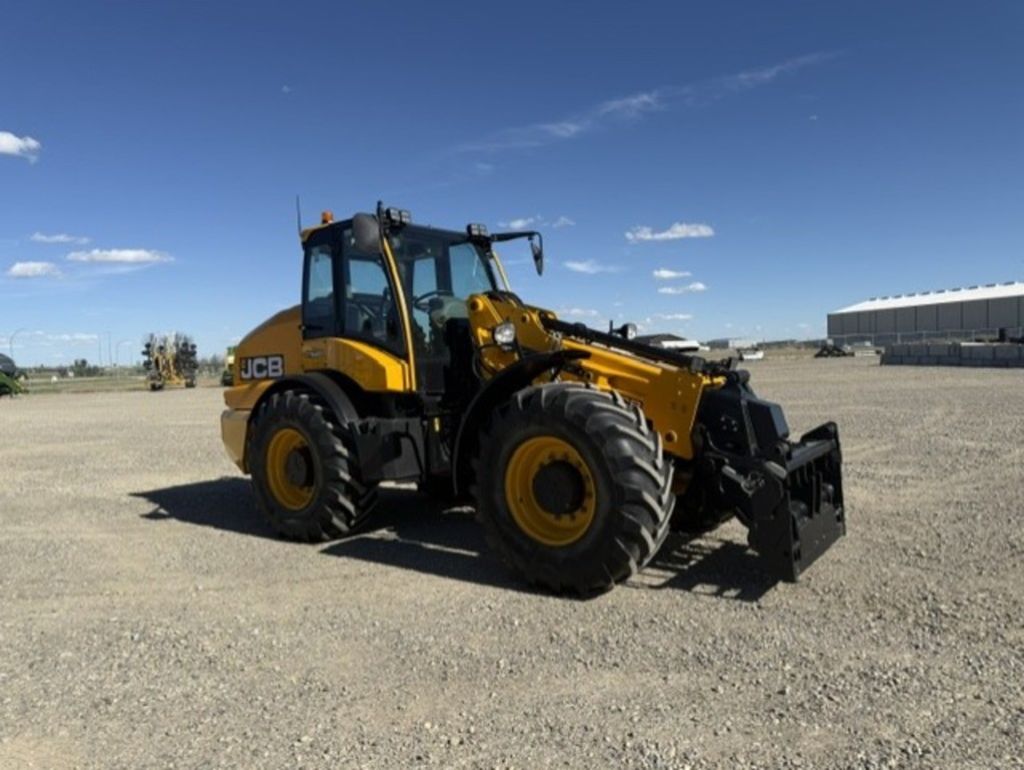

2024 JCB TM420 For Sale in olds, AB
For Sale: $205,900.00 USD
Apply for Financing
Machine Info:
Description:
2024 JCB, TM420 Wheel Loader, 1538 Hrs, 145HP, 17' 10" Lift Height, 480/80R26 Michelin Tires, 9039 lb Max Lift Capacity, Hydraulic Reversing Fan, Smooth Ride System, LED Lights, Q-Fit Quick Hitch, Air Suspension Seat, Block Heater, Beacon Lights, 20 mph Travel Speed.
*Willing to help arrange shipping and brokerage to the United States at the buyer’s expense*
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The JCB TM420 is a telescopic wheel loader designed for material handling, agricultural, and construction applications. It combines the maneuverability of a wheel loader with the reach and lift capability of a telescopic boom. The TM420 is typically equipped with a JCB diesel engine, hydrostatic transmission, four-wheel drive, and articulated steering for improved traction and control. Common features include a high-capacity loader arm, quick-hitch compatibility, and a spacious operator cab with ergonomic controls. Used for loading, lifting, stacking, and site transport, the JCB TM420 is positioned in the wheel loader category for versatile on-site material movement.
| Capacities |
|
Def Tank |
8 gal (29 l)
|
|
Dropbox |
0 gal (2 l)
|
|
Engine Oil |
4 gal (14 l)
|
|
Fuel Tank |
42 gal (160 l)
|
|
Hydraulic Oil Tank |
26 gal (97 l)
|
|
Transmission |
5 gal (19 l)
|
| Dimensions |
|
Center Of Front Axle To Counterweight (Pusher) |
6 ft (2 m)
|
|
Dump Height |
14 ft (4 m)
|
|
Dump Reach |
29 in (74 cm)
|
|
Ground Clearance |
2 ft (0 m)
|
|
Height To Top Of Boom Pivot |
78 in (198 cm)
|
|
Height To Top Of Cab |
9 ft (3 m)
|
|
Hinge Pin - Max Height |
19 ft (6 m)
|
|
Overall Length |
23 ft (7 m)
|
|
Turning Radius - Inside |
13 ft (4 m)
|
|
Wheel Track |
73 in (186 cm)
|
|
Wheelbase |
9 ft (3 m)
|
|
Width Over Tires |
8 ft (2 m)
|
| Electrical |
|
Alternator |
150 Amp Hour |
|
Battery Capacity |
120 Amp Hour |
| Engine |
|
Aspiration |
Turbocharged-charge cooled |
|
Capacity |
1 gal (5 l)
|
|
Engine Make |
JCB |
|
Engine Model |
EcoMAX |
|
Gross Power |
145 hp (108 kw)
|
|
Max Torque |
560 Nm |
|
Net Power |
135 hp (101 kw)
|
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Torque Measured @ |
1,500 rpm |
| Hydraulic System |
|
Max Operating Pressure |
260 bar |
|
Pump Flow Capacity |
42 gpm (160 lpm)
|
|
Pump Type |
Variable displacement piston pump |
| Operational |
|
Operating Weight |
21,010 lbs (9,528 kg)
|
| Transmission |
|
Make |
JCB |
|
Max Speed - Forward |
25 mph (40 kph)
|
|
Transmission Type |
Powershift |
| Weights |
|
Front Axle Weight |
7,231 lbs (3,279 kg)
|
|
Rear Axle Weight |
13,779 lbs (6,249 kg)
|
