2016 JLG 2632ES For Sale in Fort Worth, Tx

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-19 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

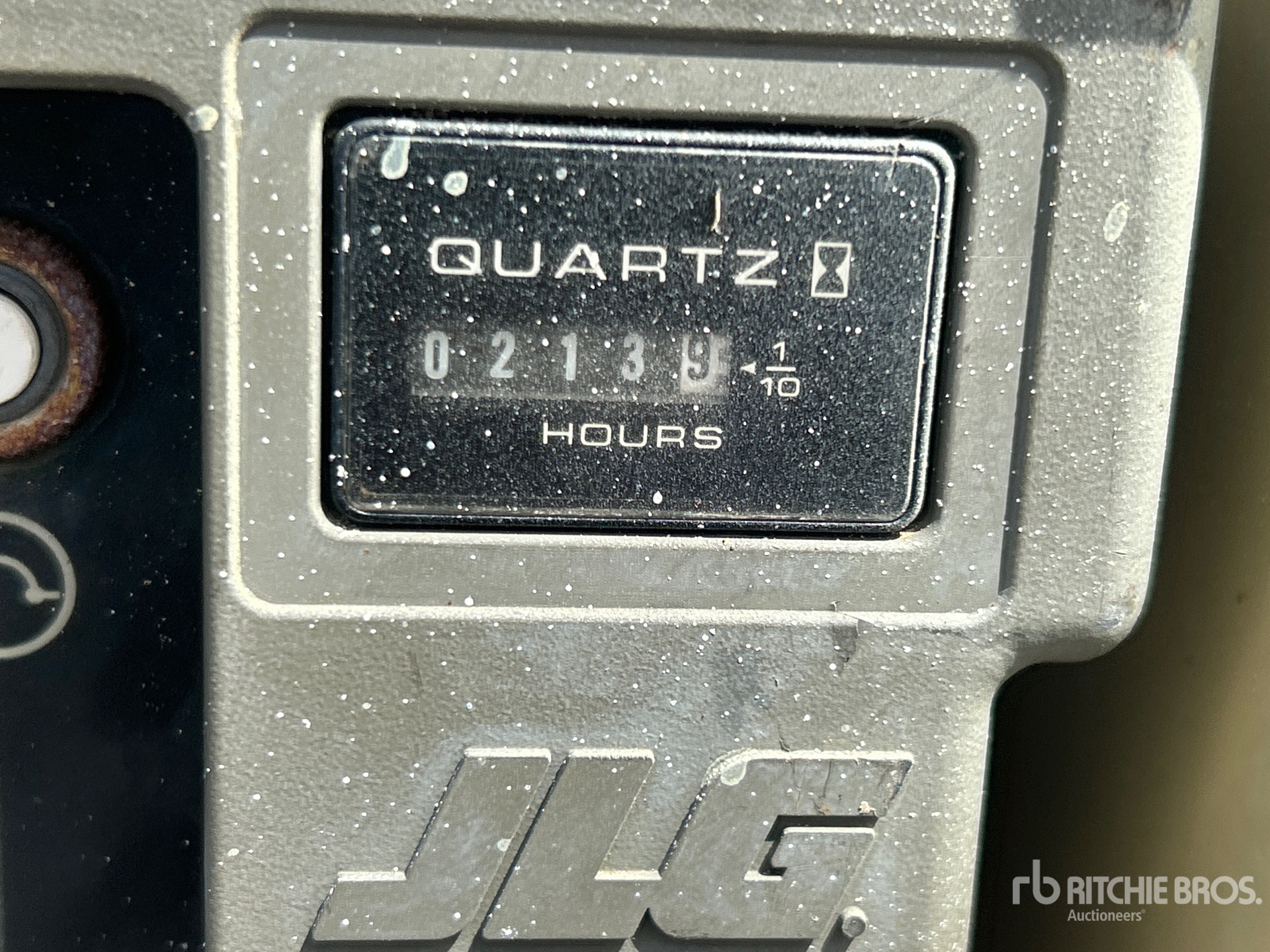

Hours:	213
Serial Number:	0200254972
Machine Location:	FORT WORTH, TX

Description:

26 ft Max Platform Height, 500 lb Max Weight Capacity, Platform Extension, Power to Platform, Solid Non-Marking Tires Inoperable items must be removed from yard by September 4th and cannot be relisted; Buyer's responsibility for removal. RBA will not be able to assist with loading. Closing Time: 2026-08-19 02:09:58 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

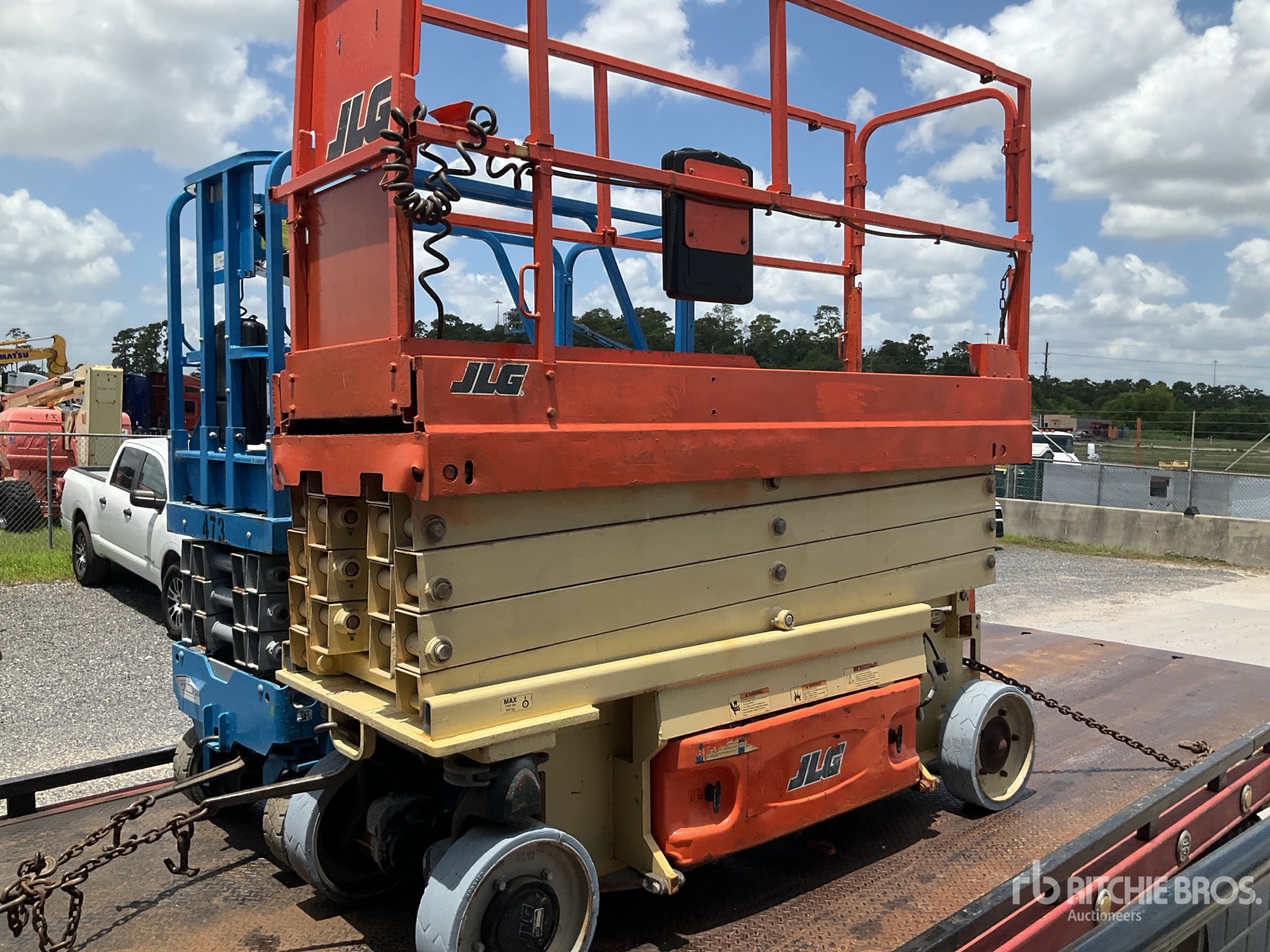

The JLG 2632ES is an electric scissor lift in the aerial lifts category, designed for indoor and outdoor access on firm, level surfaces. It features a 26-foot platform height and a narrow 32-inch chassis, making it suitable for maneuvering through standard doorways and confined work areas. The 2632ES is commonly used for maintenance, installation, warehousing, and facility work where low-noise, zero-emission operation is preferred. Its electric drive system supports efficient operation and reduced service requirements compared with engine-powered lifts. The model is part of JLG's ES series, which is known for compact dimensions, extended duty cycles, and straightforward controls.

Brakes
Brakes Type	Electric Friction
Dimensions
Ground Clearance	4 in (10 cm)
Overall Height	8 ft (2 m)
Overall Length	91 in (231 cm)
Overall Width	3 ft (1 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	8 ft (2 m)
Turning Radius	7 ft (2 m)
Wheelbase	6 ft (2 m)
Engine
Battery Amp Hours	4 x 6V 220 amp-hour
Charger Amps	20
Maximum Ground Bearing Pressure	90 psi
Performance
Drive Speed - Platform Elevated	1 mph (1 kph)
Drive Speed - Platform Lowered	3 mph (5 kph)
Drive System	24V Electric
Gradeability	25%
Hydraulic Pump Type	Fixed Displacement Gear
Hydraulic System Fluid Capacity	1 gal (5 l)
Maximum Drive Height	20 ft (6 m)
Operating Weight	4,635 lbs (2,102 kg)
Tire Size	16 X 5 in
Platform
Height of Rails	4 ft (1 m)
Lift Time	33 seconds
Lower Time	37 seconds
Max Platform Height	4 ft (1 m)
Max Working Height	32 ft (10 m)
Platform Capacity - Extension	250 lbs (113 kg)
Platform Capacity - Unrestricted	500 lbs (227 kg)
Platform Railing Height	26 ft (8 m)
