2016 JLG 2632ES

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-09-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	291
Serial Number:	0200253442
Machine Location:	MONTREAL, QC

Description:

Located in Lane 30 Spot 173, 26 ft Max Platform Height, 500 lb Max Weight Capacity, Platform Extension, Power to Platform, Stabilizers, Upper Control Box, Optimisation-de-flotte-Fleet-optimisation Harnais obligatoire pour oprer cet item / Harness required to operate this item Closing Time: 2026-09-21 11:27:48 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

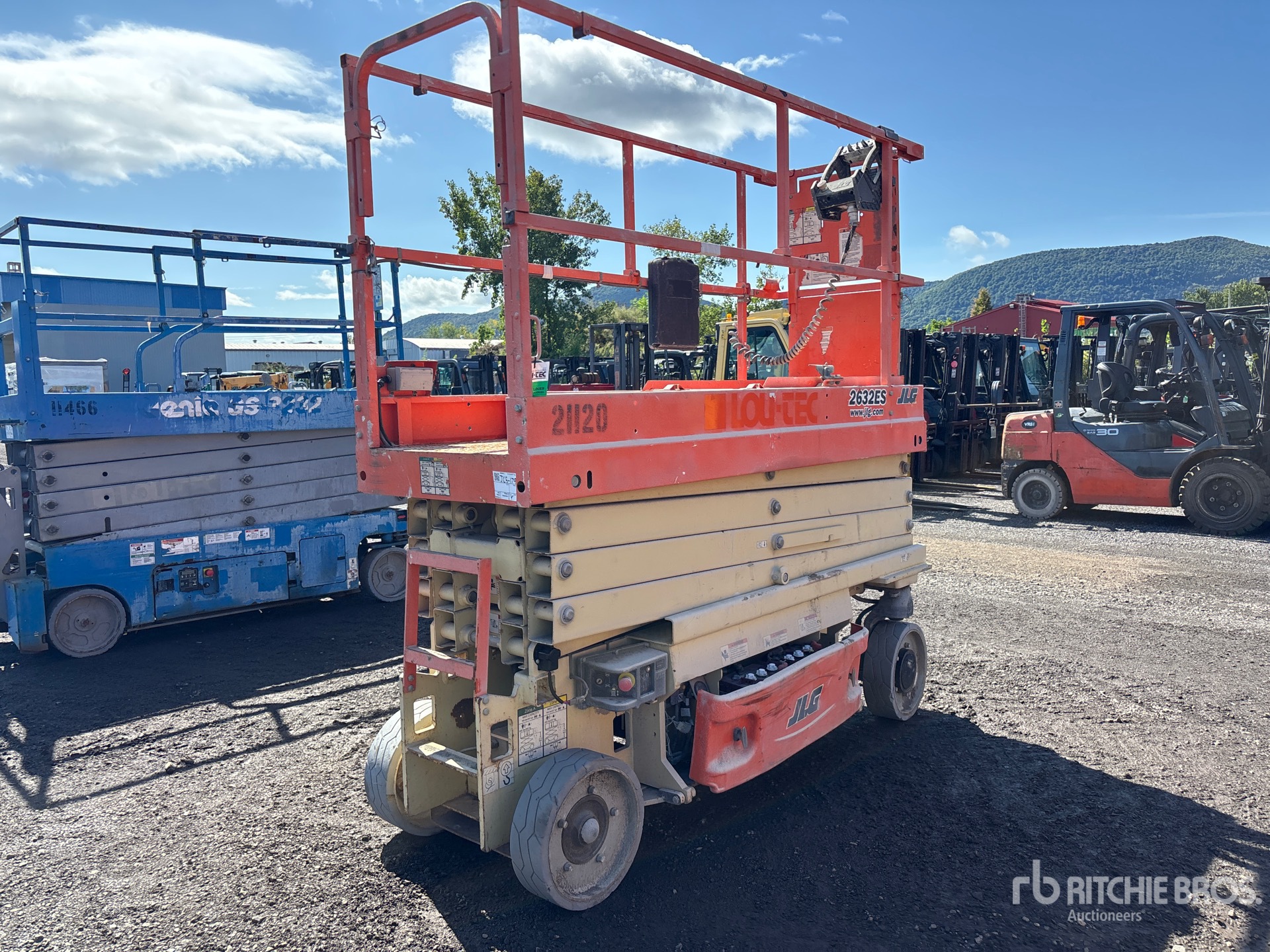

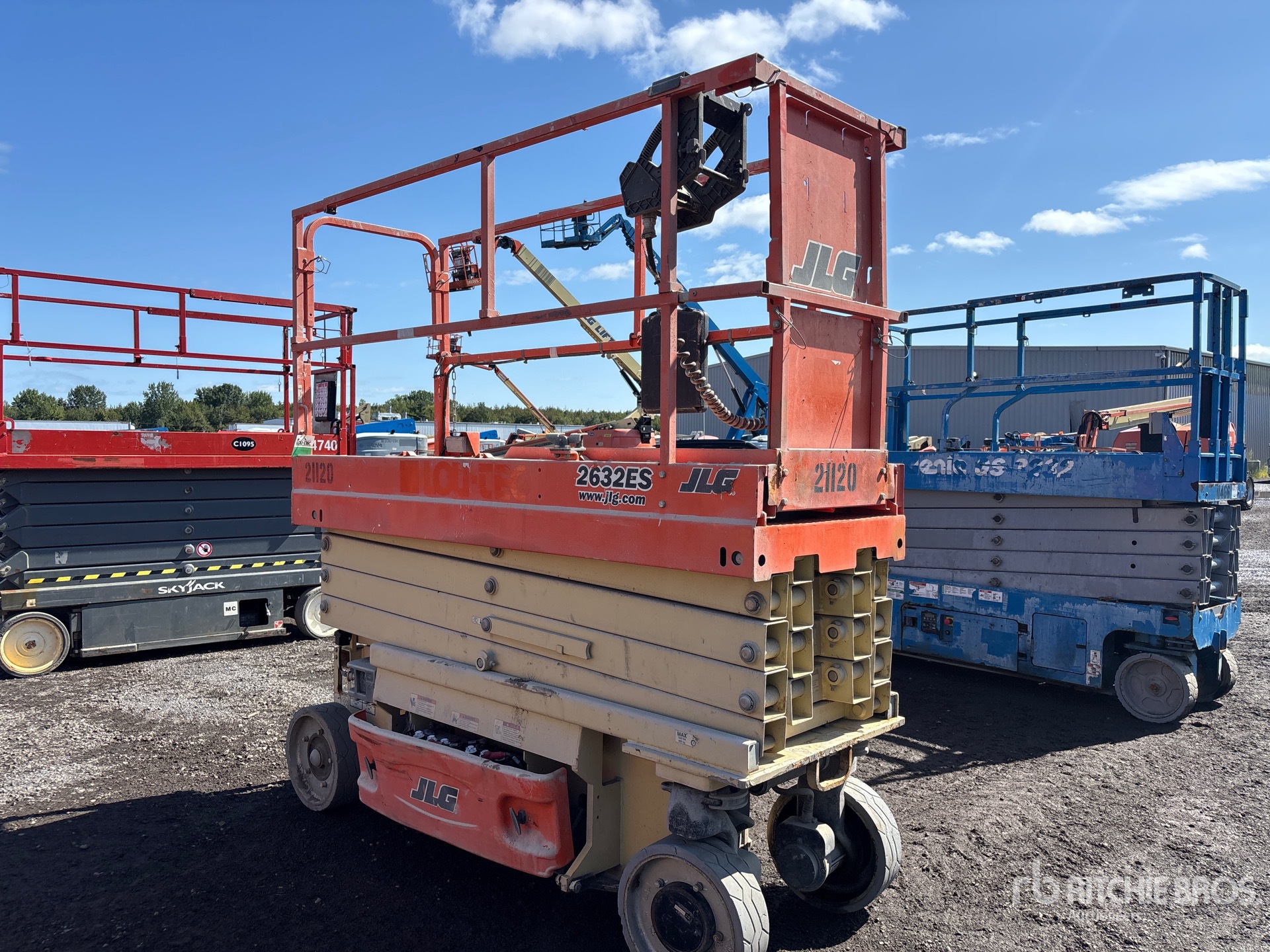

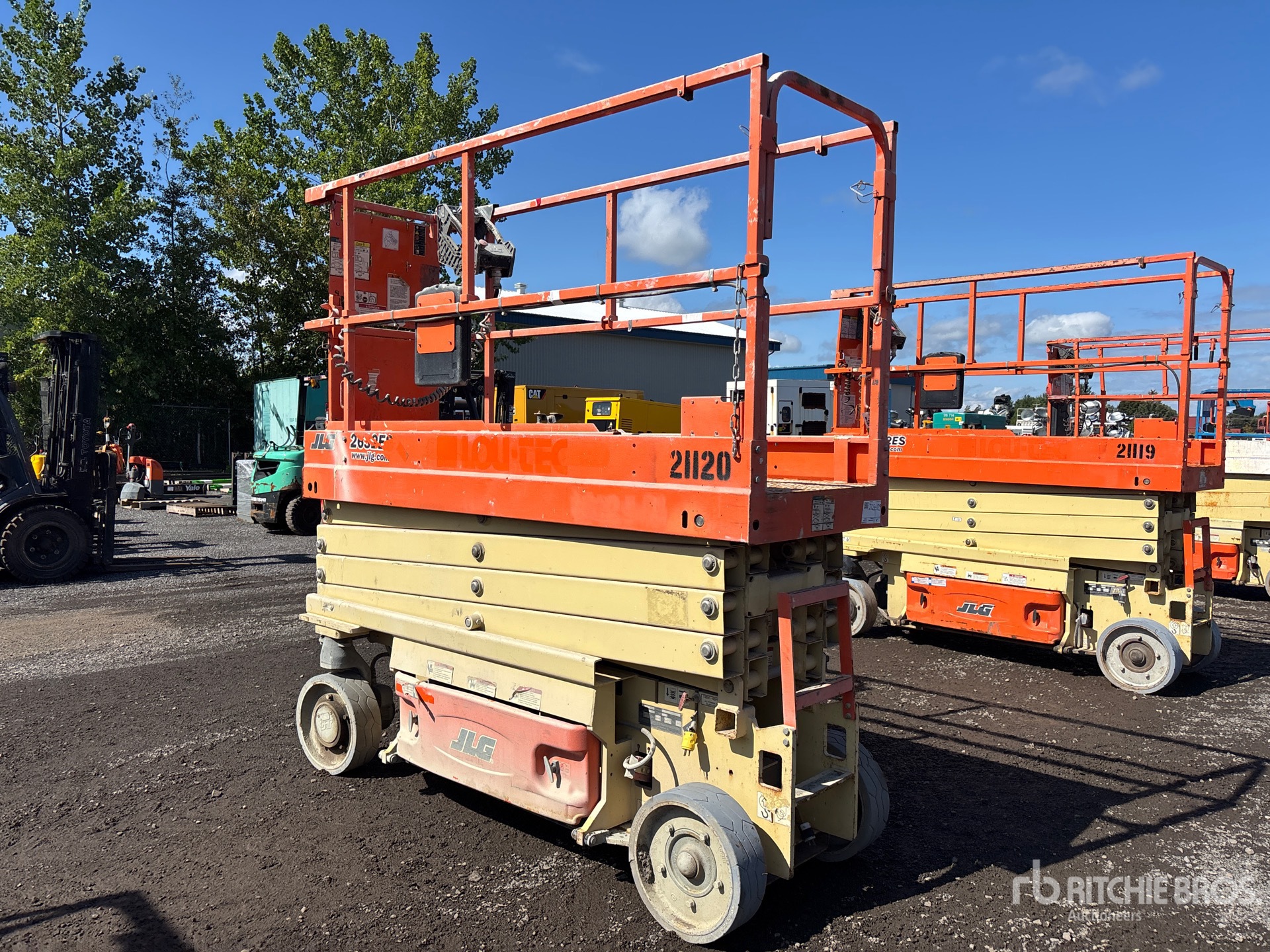

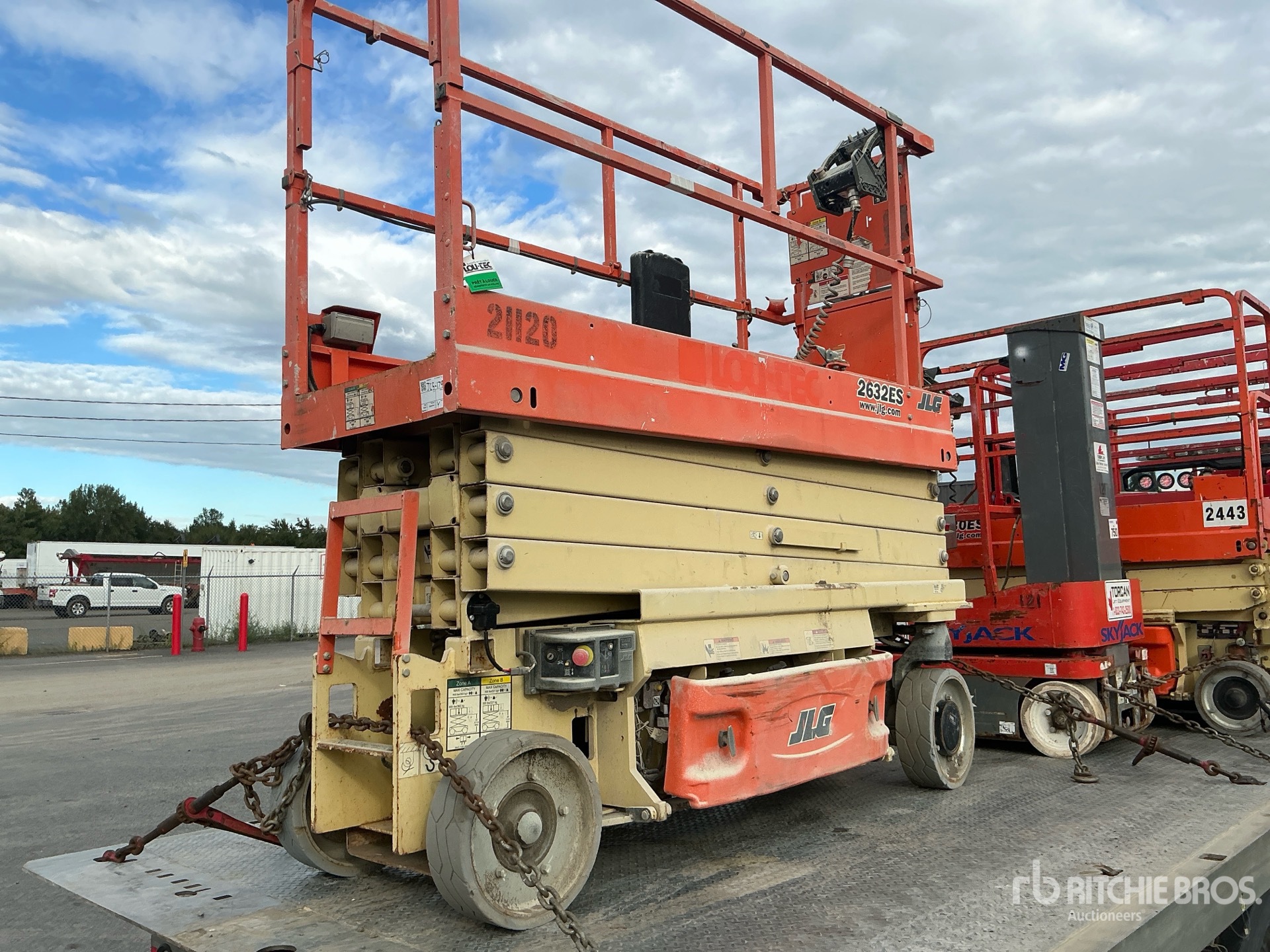

The JLG 2632ES is a compact electric scissor lift in the aerial lifts category, designed for indoor and outdoor access work on level surfaces. It features a 26-foot platform height and a narrow 32-inch chassis for maneuverability through standard doorways and confined work areas. The 2632ES is commonly used for maintenance, installation, warehousing, and facility management applications. Its electric drive system supports low-emission operation and reduced noise in occupied environments. Typical specifications include a proportional lift and drive control system, non-marking tires, and a steel platform with extension deck for added reach.

Brakes
Brakes Type	Electric, Friction
Dimensions
Ground Clearance	4 in (10 cm)
Height	8 ft (2 m)
Length	8 ft (2 m)
Overall Height	8 ft (2 m)
Overall Length	91 in (231 cm)
Overall Width	3 ft (1 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	8 ft (2 m)
Turning Radius	7 ft (2 m)
Weight	4,635 lbs (2,102 kg)
Wheelbase	6 ft (2 m)
Width	3 ft (1 m)
Engine
Battery Amp Hours	4 x 6V, 220 amp-hour
Charger Amps	20 amps
Maximum Ground Bearing Pressure	90 psi
Operational
Hydraulic Pump Type	Fixed Displacement Gear
Hydraulic System Fluid Capacity	1 gal (5 l)
Operating Weight	4,635 lbs (2,102 kg)
Tire Size	16 X 5 in
Performance
Drive Speed - Platform Elevated	1 mph (1 kph)
Drive Speed - Platform Lowered	3 mph (5 kph)
Drive System	24V Electric
Gradeability	25 %
Maximum Drive Height	20 ft (6 m)
Platform
Height Of Rails	4 ft (1 m)
Lift Time	33 sec
Lower Time	37 sec
Max Platform Height	4 ft (1 m)
Max Working Height	32 ft (10 m)
Platform Capacity - Extension	250 lbs (113 kg)
Platform Capacity - Restricted	800 lbs (363 kg)
Platform Capacity - Unrestricted	500 lbs (227 kg)
Platform Railing Height	26 ft (8 m)
