2013 JLG 3246ES For Sale in Menomonee Falls, WI

❮

❯

/ Save to Watch List

For Sale: Call for Price

YES Equipment & Services, Inc.

YES Equipment & Services, Inc. Dealer Info

YES Equipment & Services, Inc. Website

Click here to email YES Equipment & Services, Inc..

Click for Phone Number

Machine Info:

Hours:	147
Stock Number:	0200208371
Machine Location:	MENOMONEE FALLS, WI
More Information:	https://yesequipment.com/inventory/aerial+work+platforms/2013-jlg-3246es-menomonee+falls-wi-6a7b373157eb4f47880c3342/

Description:

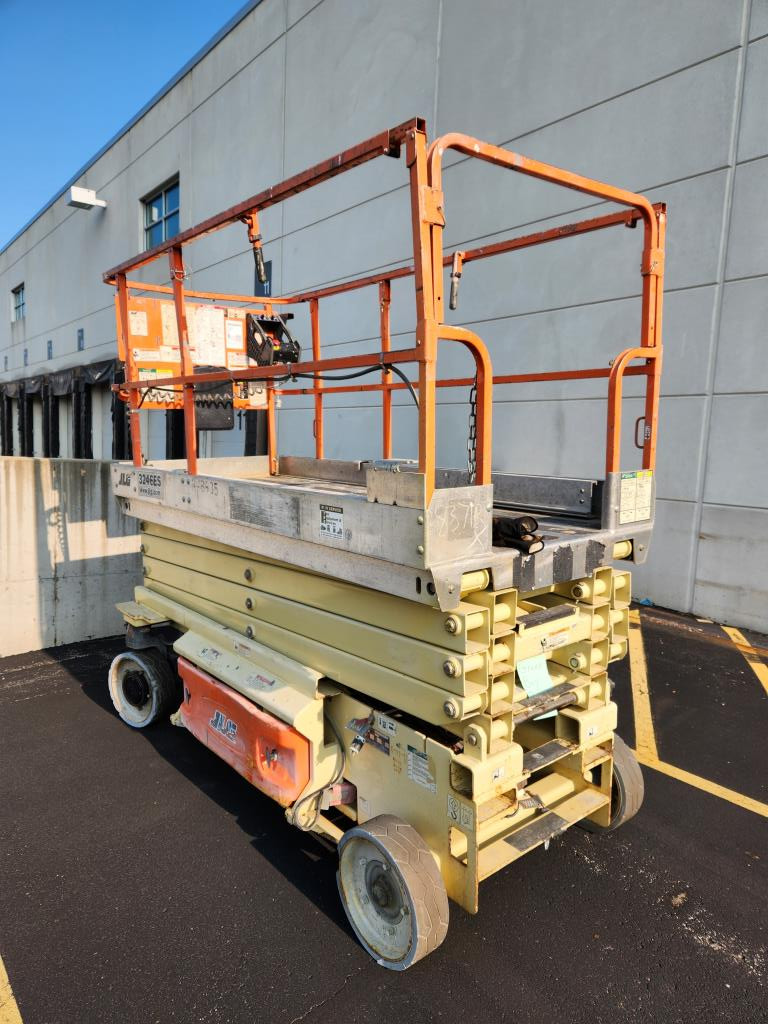

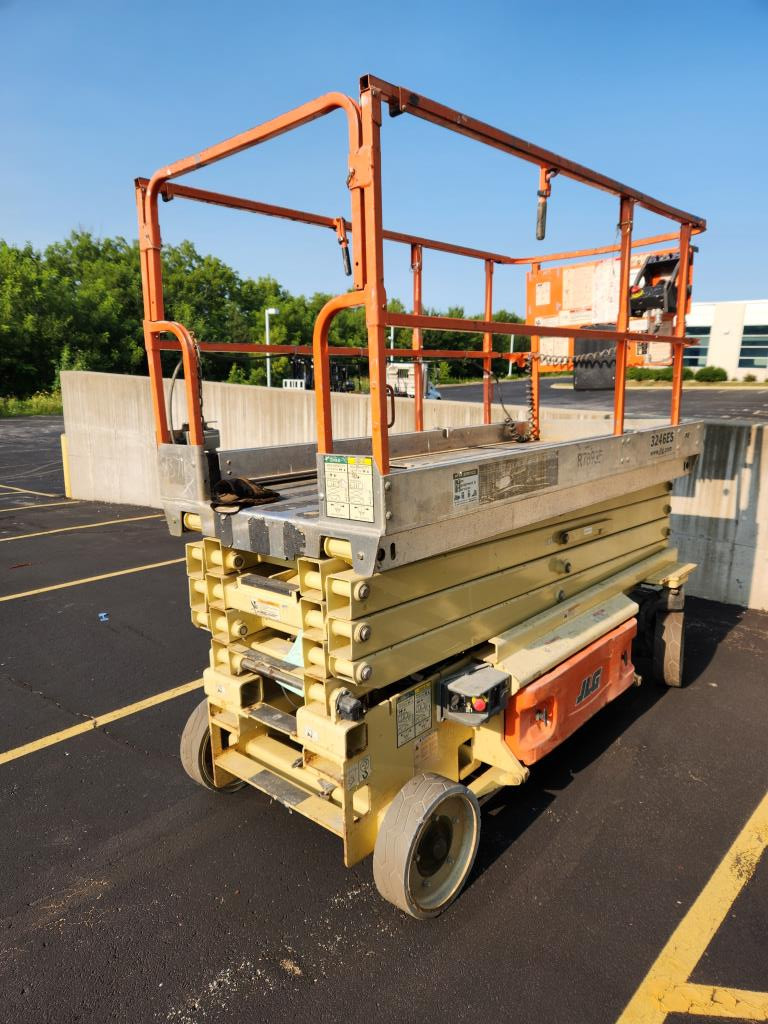

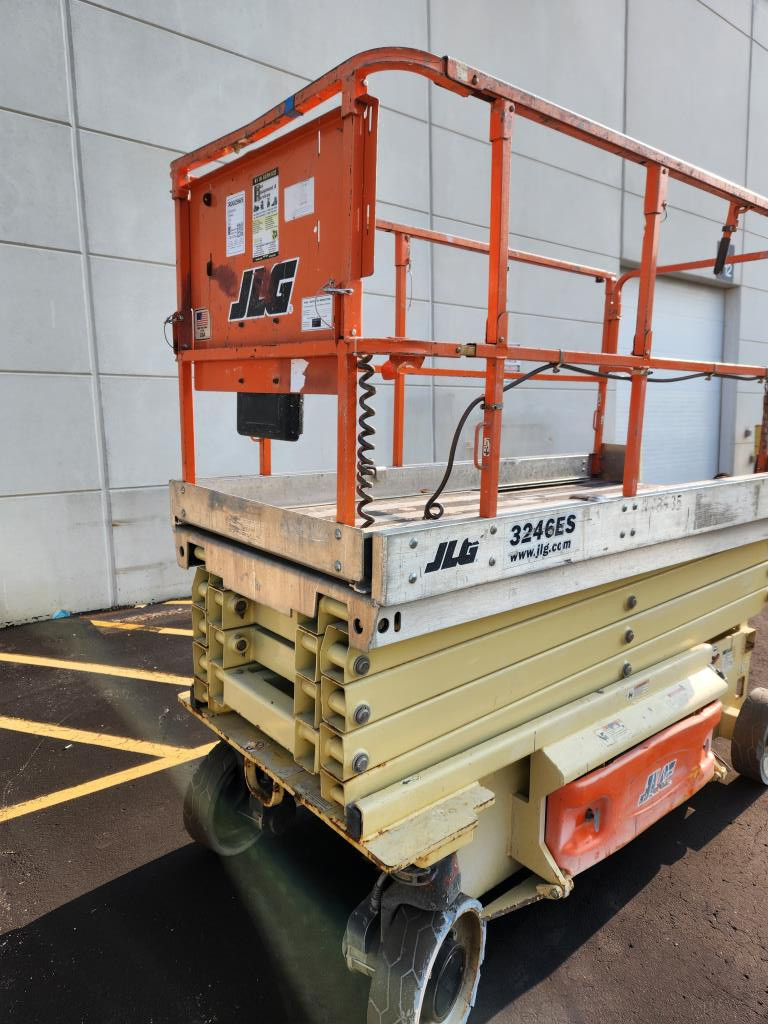

JLG 3246ES Electric Scissor-Lift

You have so much to do in your workday, and you need equipment that stays with you all day. The ES Series scissor lifts from JLG have the industry’s best on-the-job performance with double the duty cycles of other electric scissor lifts. This gives you double the operating time on a single charge.
Workstation in the Sky® accessories add to your productivity by helping you keep supplies and tools close at hand.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JLG 3246ES is an electric scissor lift in the JLG aerial lifts lineup, designed for indoor and outdoor access work on level surfaces. It features a 32-foot platform height class and a 46-inch-wide chassis for maneuverability in confined spaces. The 3246ES is commonly used for maintenance, installation, and construction tasks that require elevated work access with low emissions and reduced noise. As part of JLG's ES series, it uses an electric drive system and is suited for applications where floor loading, workspace access, and quiet operation are important. It is a compact aerial lift for material and personnel access.

Brakes
Brakes Type	Electric, Friction
Dimensions
Ground Clearance	5 in (13 cm)
Height	8 ft (2 m)
Height W/O Rails	6 ft (2 m)
Length	8 ft (3 m)
Overall Length	8 in (21 cm)
Overall Width	4 ft (1 m)
Platform Dimension A	8 ft (3 m)
Platform Dimension B	4 ft (1 m)
Turning Radius	8 ft (2 m)
Weight	6,400 lbs (2,903 kg)
Wheelbase	7 ft (2 m)
Width	4 ft (1 m)
Engine
Battery Amp Hours	4 x 6V, 220 amp-hours
Charger Amps	20 amps
Maximum Ground Bearing Pressure	87 psi
Number Of Batteries	4
System Voltage	24 V
Operational
Hydraulic Pump Type	Fixed Displacement Gear
Hydraulic System Fluid Capacity	2 gal (6 l)
Max Speed	3 mph (4 kph)
Operating Weight	4,780 lbs (2,168 kg)
Tire Fill/Type	Solid, Non-marking
Tire Size	16x5 in
Performance
Drive Speed - Platform Elevated	1 mph (1 kph)
Drive Speed - Platform Lowered	3 mph (4 kph)
Gradeability	25 %
Maximum Drive Height	32 ft (10 m)
Maximum Lift Height	32 ft (10 m)
Platform
Deck Extension	35 in (90 cm)
Height Of Rails	4 ft (1 m)
Lift Time	50 sec
Lower Time	50 sec
Max Platform Height	32 ft (10 m)
Max Platform Weight Capacity	1,001 lbs (454 kg)
Platform Capacity - Extension	250 lbs (113 kg)
Platform Capacity - Restricted	1,000 lbs (454 kg)
Platform Capacity - Unrestricted	700 lbs (318 kg)
Platform Inner Length	98 in (250 cm)
Platform Inner Width	44 in (112 cm)
Platform Railing Height	32 ft (10 m)
