2008 JLG 4069LE

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-08-06 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

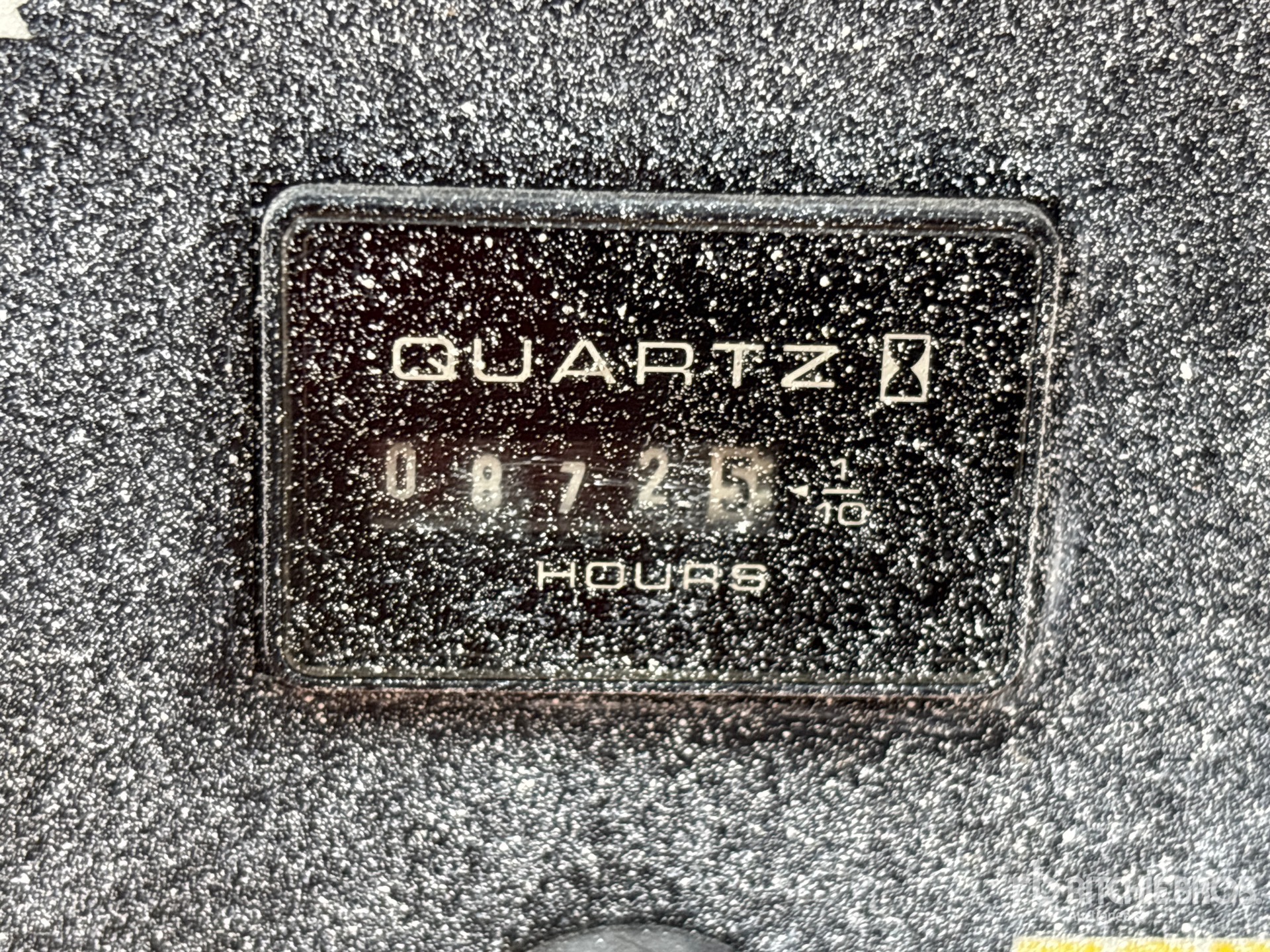

Hours:	872

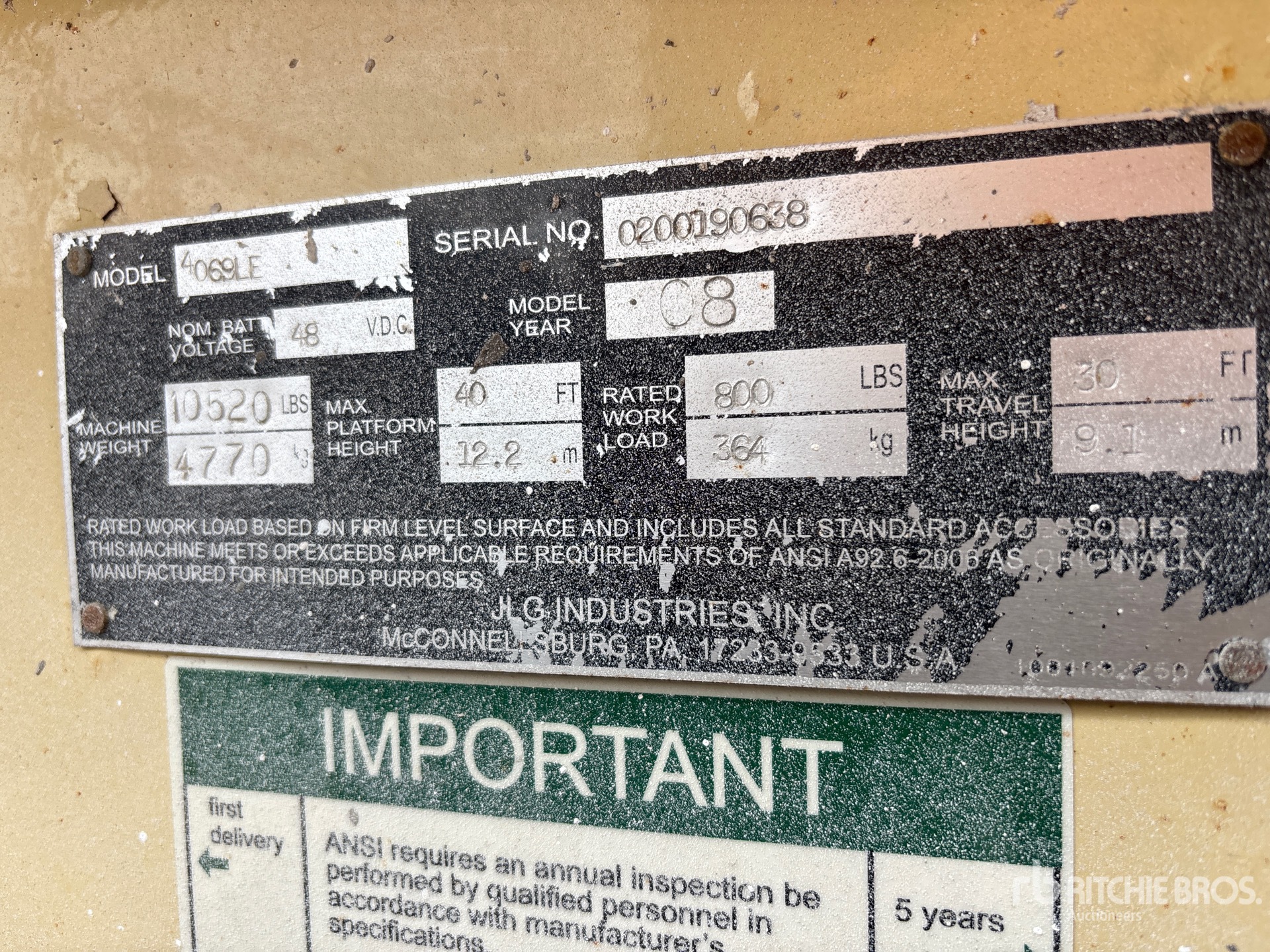

Serial Number:	0200190638
Machine Location:	CHICAGO, IL

Description:

Located in Lane 7 Spot 3, 40 ft Max Platform Height, 800 lb Max Weight Capacity, Platform Extension, Power to Platform, Power Inverter, Foam Filled Tires, Upper Control Box Please Be Aware That All Aerial Equipment Requires A Self-Supplied Safety Harness And Trained Personnel To Operate On All Ritchie Bros. Properties - On Lifts ;

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JLG 4069 LE is a battery-powered aerial lift designed for indoor and outdoor elevated work applications. It is part of JLG's low-emission electric scissor lift lineup and is used for maintenance, installation, construction, and warehouse access. The model features a working platform with guardrails, proportional controls, and a compact chassis for maneuvering in confined spaces. The 4069 LE is commonly selected for tasks requiring quiet operation and reduced emissions. As an aerial lift, it provides vertical access to elevated work areas while supporting operator and tool capacity within its rated platform limits.

Brakes
Brakes Type	Spring Applied Hyd Released Discs
Dimensions
Ground Clearance	8 in (20 cm)
Height w/ Rails	9 ft (3 m)
Height w/o Rails	7 ft (2 m)
Overall Height	7 ft (2 m)
Overall Length	10 in (26 cm)
Overall Width	6 ft (2 m)
Platform Dimension A	10 ft (3 m)
Platform Dimension B	6 ft (2 m)
Turning Radius	15 ft (4 m)
Wheelbase	8 ft (2 m)
Engine
Battery Amp Hours	8 x 6V 370 amp-hours
Charger Amps	21
Maximum Ground Bearing Pressure	33 psi
Number of Batteries	6
Performance
Drive Speed - Platform Elevated	1 mph (1 kph)
Drive Speed - Platform Lowered	4 mph (6 kph)
Hydraulic Pump Type	Single Section Gear Pump
Hydraulic System Fluid Capacity	4 gal (15 l)
Max Speed	3 mph (5 kph)
Maximum Drive Height	26 ft (8 m)
Maximum Lift Height	40 ft (12 m)
Operating Weight	7,360 lbs (3,338 kg)
Platform Capacity	1,250 lbs (567 kg)
Tire Fill/Type	Non-marking
Tire Size	240/55-17.5
Platform
Deck Extension	36 in (91 cm)
Height of Rails	4 ft (1 m)
Lift Time	54 seconds
Lower Time	50 seconds
Max Platform Height	6 ft (2 m)
Max Platform Weight Capacity	1,001 lbs (454 kg)
Max Working Height	46 ft (14 m)
Platform Capacity - Extension	300 lbs (136 kg)
Platform Inner Length	115 in (292 cm)
Platform Inner Width	65 in (165 cm)
Platform Railing Height	40 ft (12 m)
