2003 JLG 800A For Sale in Montreal, Qc

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

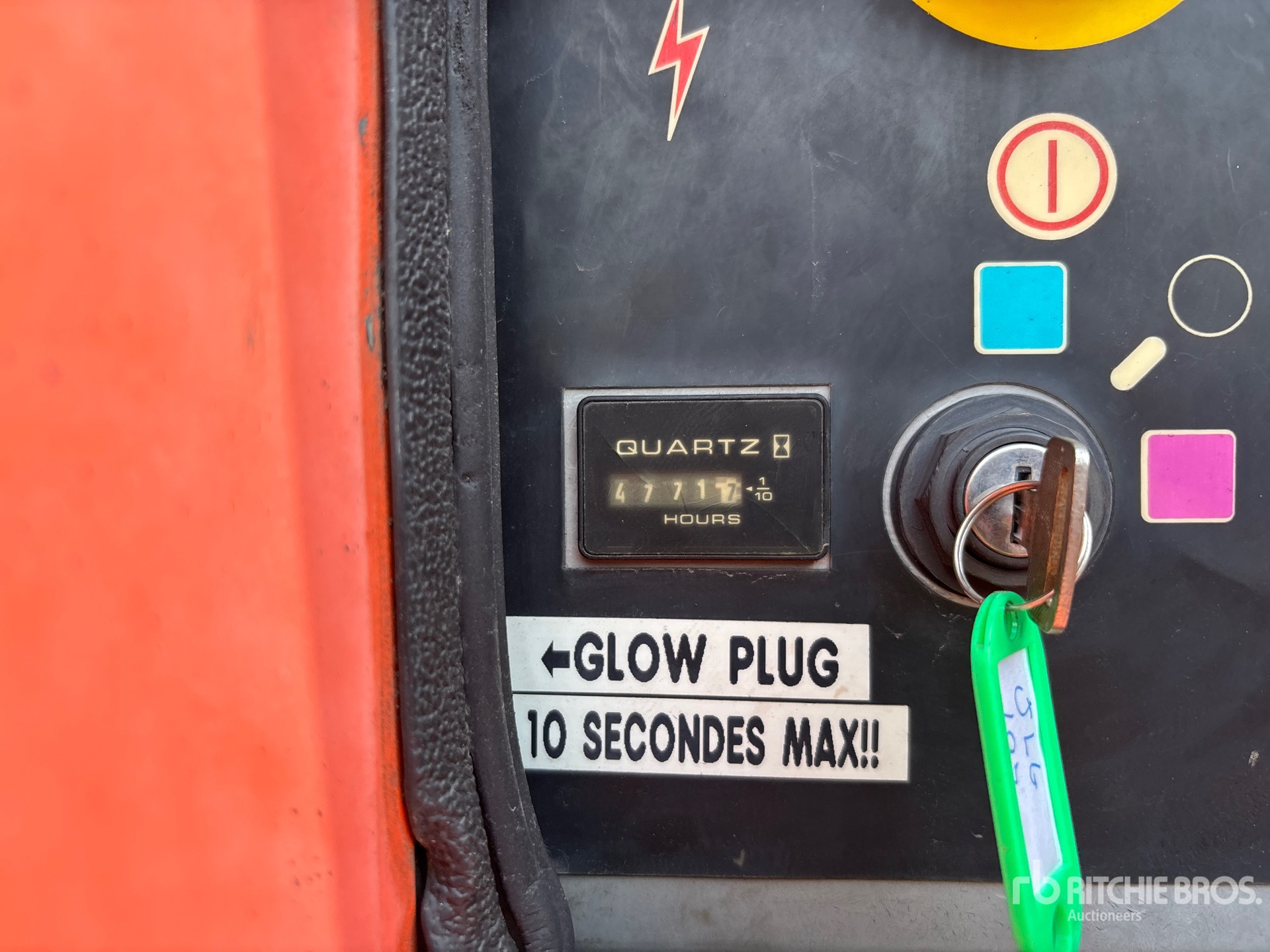

Hours:	4771

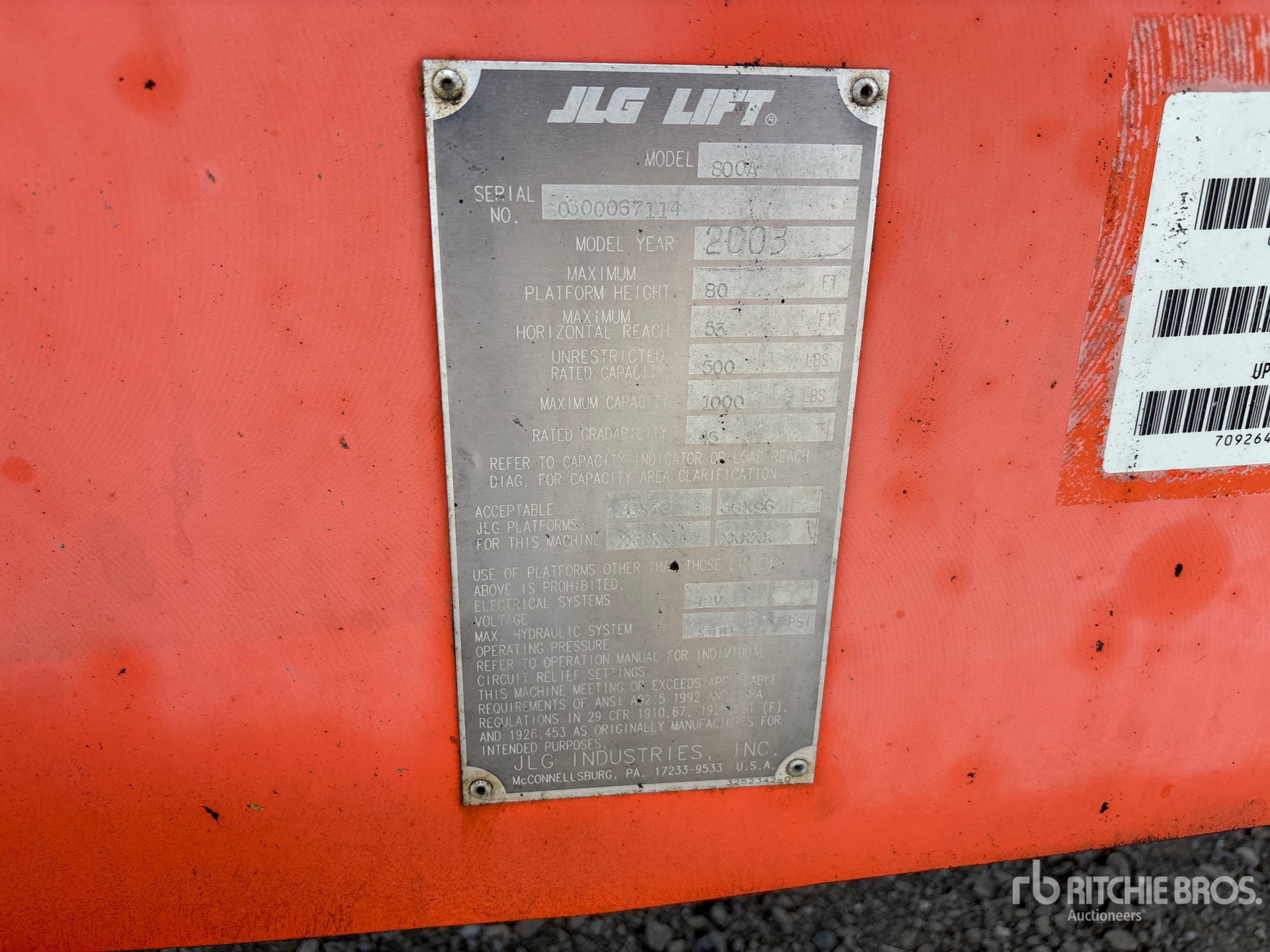

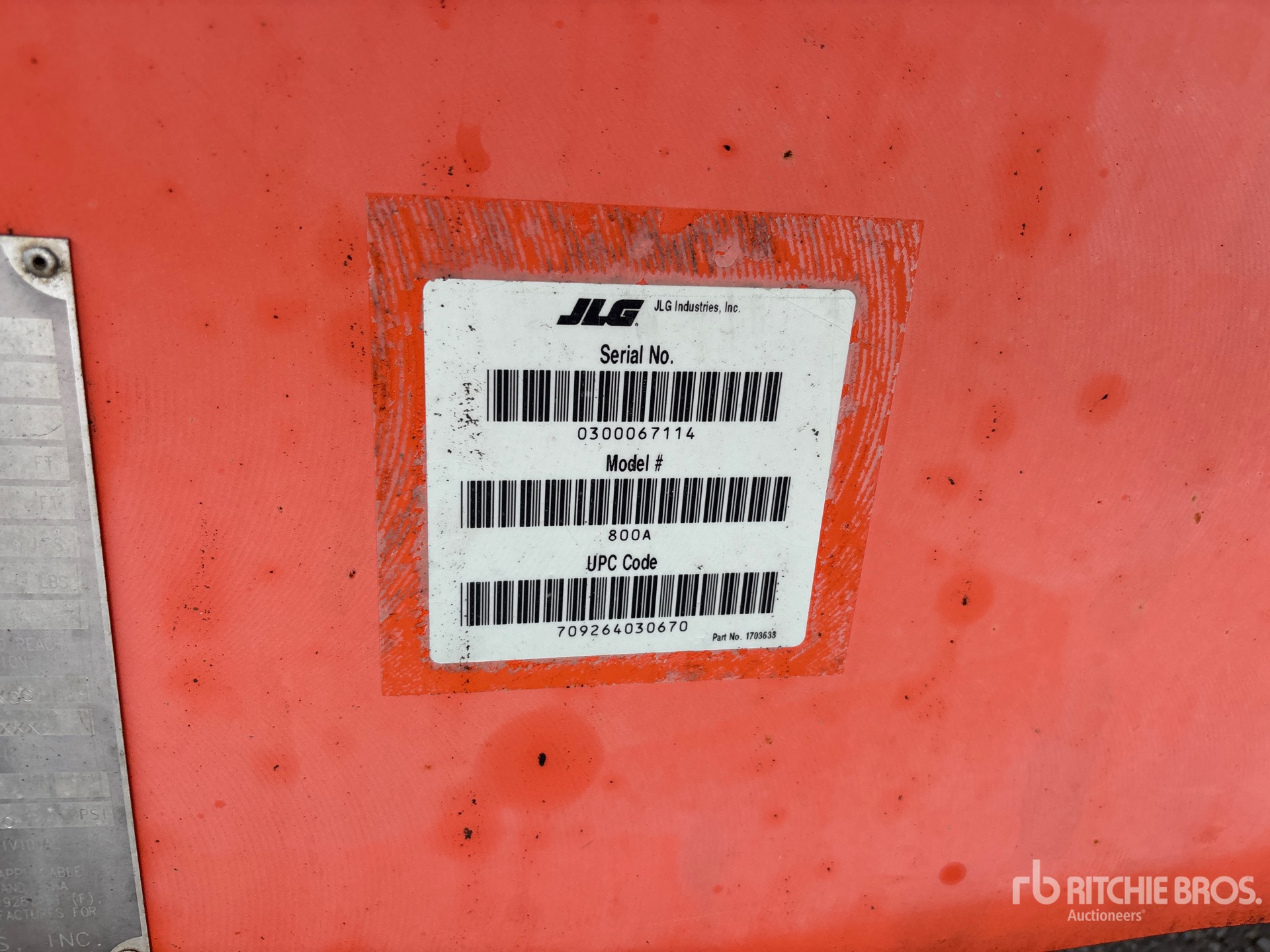

Serial Number:	0300067114
Machine Location:	MONTREAL, QC

Description:

Located in Lane 31 Spot 8, 80 ft Max Platform Height, 1000 lb Max Weight Capacity, Jib, Power to Platform, 4 Cylinder Diesel Engine, 445/55D19.5 Tires Harnais obligatoire pour oprer cet item / Harness required to operate this item Closing Time: 2026-09-21 10:53:36 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Ground Clearance	12 in (30 cm)
Ground Clearance	12 in (30 cm)
Height	10 ft (3 m)
Length	37 ft (11 m)
Overall Height - Mast Lowered	10 ft (3 m)
Overall Height - Mast Lowered	10 ft (3 m)
Overall Length	37 in (94 cm)
Overall Length	37 in (94 cm)
Overall Width	8 ft (2 m)
Overall Width	8 ft (2 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	8 ft (2 m)
Platform Dimension B	8 ft (2 m)
Turning Radius	20 ft (6 m)
Turning Radius	12 ft (4 m)
Up And Over Height	32 ft (10 m)
Up And Over Height	32 ft (10 m)
Weight	34,300 lbs (15,558 kg)
Wheelbase	10 ft (3 m)
Wheelbase	10 ft (3 m)
Width	8 ft (2 m)
Engine
Diesel Engine Power	67 hp (50 kw)
Diesel Engine Power	67 hp (50 kw)
Diesel Engine Type	DEUTZ TD 2.9L Tier 4 Final
Diesel Engine Type	DEUTZ TD 2.9L Tier 4 Final
Dual Fuel Engine Power	84 hp (63 kw)
Dual Fuel Engine Power	84 hp (63 kw)
Dual Fuel Engine Type	Ford MSG425
Dual Fuel Engine Type	Ford MSG425
Engine Make	2,349
Engine Make	2,349
Engine Model	F4M2011
Engine Model	F4M2011
Fuel Type	Diesel
Fuel Type	Diesel
Gross Power	64 hp (48 kw)
Gross Power	64 hp (48 kw)
Maximum Ground Bearing Pressure	76 psi
Maximum Ground Bearing Pressure	76 psi
System Voltage	12 V
System Voltage	12 V
Operational
Fuel Capacity	39 gal (148 l)
Fuel Capacity	39 gal (148 l)
Hydraulic System Fluid Capacity	40 gal (151 l)
Hydraulic System Fluid Capacity	40 gal (151 l)
Max Speed	3 mph (5 kph)
Max Speed	3 mph (5 kph)
Operating Weight	34,130 lbs (15,481 kg)
Operating Weight	34,130 lbs (15,481 kg)
Tire Fill/Type	Pneumatic
Tire Fill/Type	Pneumatic
Tire Size	445/55D x 19.5
Tire Size	445/55D x 19.5
Performance
Axle Oscillation
Axle Oscillation
Drive Speed	3 mph (5 kph)
Drive Speed	3 mph (5 kph)
Gradeability	30 %
Gradeability	45 %
Swing	360 degrees
Swing	360 degrees
Swing Type	Continuous
Swing Type	Continuous
Platform
Max Horizontal Reach	53 ft (16 m)
Max Horizontal Reach	53 ft (16 m)
Max Platform Height	80 ft (24 m)
Max Platform Height	80 ft (24 m)
Max Platform Weight Capacity	1,001 lbs (454 kg)
Max Platform Weight Capacity	1,001 lbs (454 kg)
Platform Capacity - Restricted	1,000 lbs (454 kg)
Platform Capacity - Restricted	1,000 lbs (454 kg)
Platform Capacity - Unrestricted	500 lbs (227 kg)
Platform Capacity - Unrestricted	500 lbs (227 kg)
Platform Inner Length	96 in (244 cm)
Platform Inner Length	96 in (244 cm)
Platform Inner Width	36 in (91 cm)
Platform Inner Width	36 in (91 cm)
Platform Rotation	180 degrees
Platform Rotation	180 degrees
