2008 JLG 800AJ For Sale in Polotitlan, Mex
Auction Pricing
Auction Info: Starting on 2026-10-09 Click here to place a bid
Machine Info:

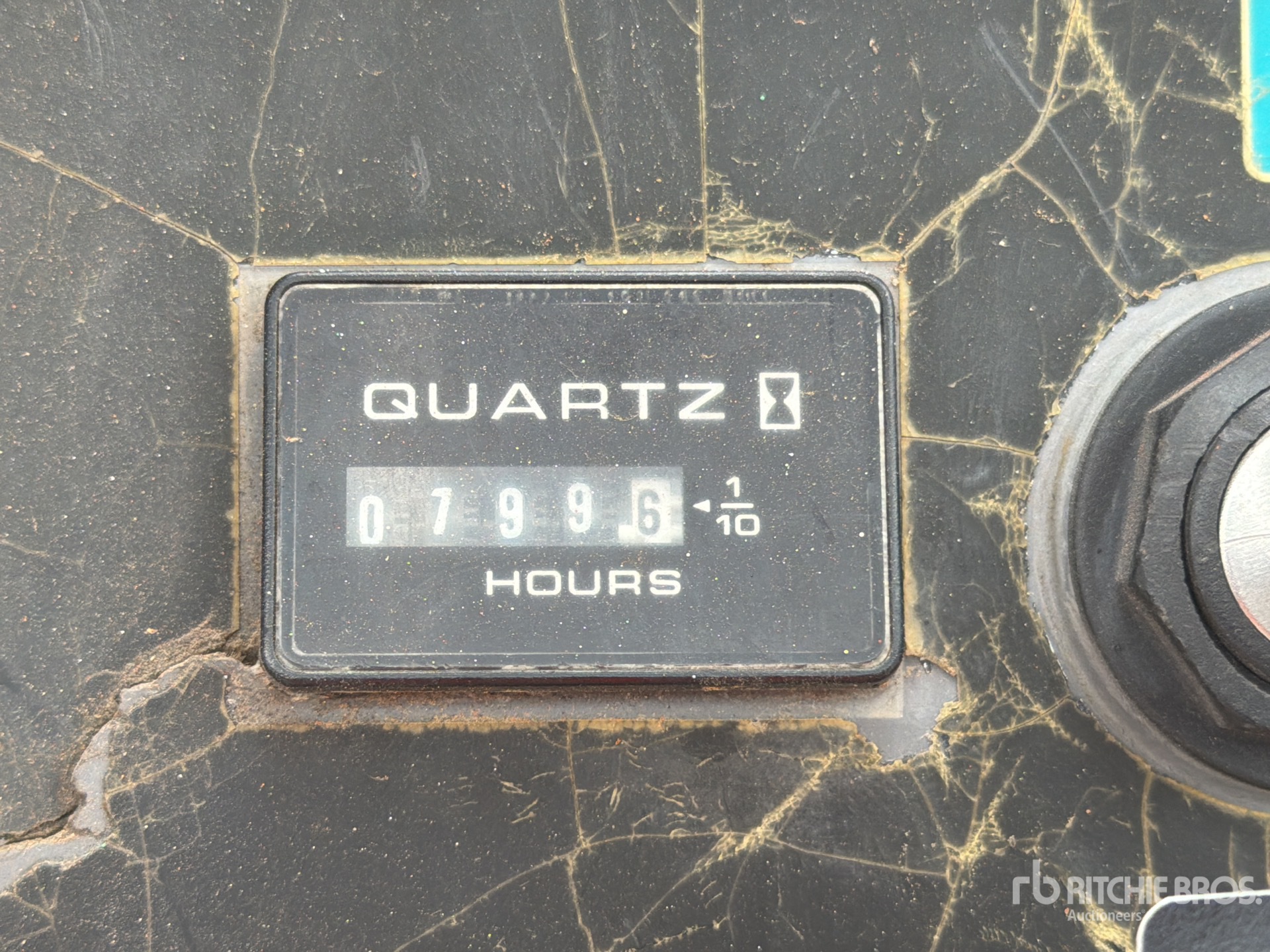

| Hours: | 799 |

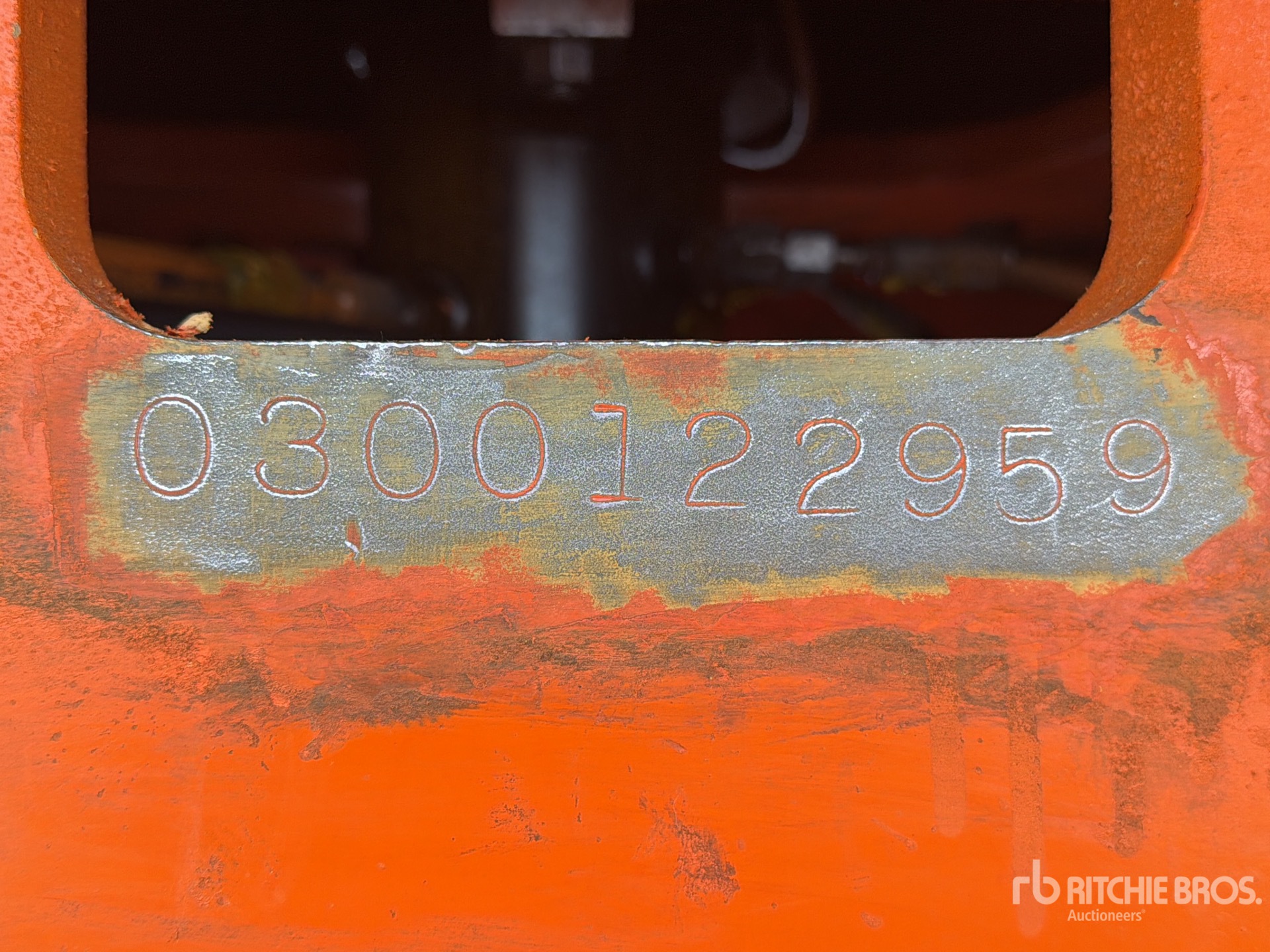

| Serial Number: | 0300122959 |
| Machine Location: | POLOTITLAN, MEX |
Description:
80 ft Max Platform Height, 500 lb Max Weight Capacity, Jib, Power to Platform, 2007 US EPA Label, Deutz 4 Cylinder Diesel Engine, 445/55D19.5 Tires, / Elevacion Max 80 ft, Capacidad Max 500 lb, Aguilon, Energia en Plataforma, EPA 2007, Motor Deutz 4 Cilindros Diesel, Llantas 445/55D19.5 ; US-EPA-Certified US EPA Certified / Certificado con EPA / (US E-P-A Certified) // Uso obligatorio de arnes de seguridad y linea de vida para retirar el equipo del patio / Safety harness and lifeline required to remove the equipment, Closing Time: 2026-10-09 11:01:21 AM
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The JLG 800AJ is a diesel-powered articulating boom lift in the aerial lifts category, designed for elevated access in construction, maintenance, and industrial applications. It offers a maximum platform height of 80 feet and a horizontal outreach of 51 feet, 9 inches, providing access over obstacles and around structures. The 800AJ typically features four-wheel drive, oscillating axle, and proportional controls for maneuverability on rough terrain. Its articulating boom design supports precise positioning at height, while the platform commonly accommodates two occupants. The JLG 800AJ is used for tasks requiring safe, elevated work access on job sites, facilities, and infrastructure projects.
| Dimensions |
|
Ground Clearance |
12 in (30 cm)
|
|
Ground Clearance |
12 in (30 cm)
|
|
Height |
10 ft (3 m)
|
|
Length |
37 ft (11 m)
|
|
Overall Height - Mast Lowered |
10 ft (3 m)
|
|
Overall Height - Mast Lowered |
10 ft (3 m)
|
|
Overall Length |
37 in (93 cm)
|
|
Overall Length |
37 in (93 cm)
|
|
Overall Width |
8 ft (2 m)
|
|
Overall Width |
8 ft (2 m)
|
|
Platform Dimension A |
3 ft (1 m)
|
|
Platform Dimension A |
3 ft (1 m)
|
|
Platform Dimension B |
8 ft (2 m)
|
|
Platform Dimension B |
8 ft (2 m)
|
|
Turning Radius |
12 ft (4 m)
|
|
Turning Radius |
20 ft (6 m)
|
|
Up And Over Height |
32 ft (10 m)
|
|
Up And Over Height |
32 ft (10 m)
|
|
Weight |
34,300 lbs (15,558 kg)
|
|
Wheelbase |
10 ft (3 m)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|
| Engine |
|
Diesel Engine Power |
67 hp (50 kw)
|
|
Diesel Engine Power |
67 hp (50 kw)
|
|
Diesel Engine Type |
DEUTZ TD 2.9L Tier 4 Final |
|
Diesel Engine Type |
DEUTZ TD 2.9L Tier 4 Final |
|
Dual Fuel Engine Power |
84 hp (63 kw)
|
|
Dual Fuel Engine Power |
84 hp (63 kw)
|
|
Dual Fuel Engine Type |
Ford MSG425 |
|
Dual Fuel Engine Type |
Ford MSG425 |
|
Engine Make |
2,349 |
|
Engine Make |
2,349 |
|
Engine Model |
F4M2011 |
|
Engine Model |
F4M2011 |
|
Fuel Type |
Diesel |
|
Fuel Type |
Diesel |
|
Gross Power |
64 hp (48 kw)
|
|
Gross Power |
64 hp (48 kw)
|
|
Maximum Ground Bearing Pressure |
76 psi |
|
Maximum Ground Bearing Pressure |
76 psi |
|
System Voltage |
12 V |
|
System Voltage |
12 V |
| Operational |
|
Fuel Capacity |
39 gal (148 l)
|
|
Fuel Capacity |
39 gal (148 l)
|
|
Hydraulic System Fluid Capacity |
40 gal (151 l)
|
|
Hydraulic System Fluid Capacity |
40 gal (151 l)
|
|
Max Speed |
3 mph (5 kph)
|
|
Max Speed |
3 mph (5 kph)
|
|
Operating Weight |
34,302 lbs (15,559 kg)
|
|
Operating Weight |
34,302 lbs (15,559 kg)
|
|
Tire Fill/Type |
Pneumatic |
|
Tire Fill/Type |
Pneumatic |
|
Tire Size |
445/55D x 19.5 |
|
Tire Size |
445/55D x 19.5 |
| Performance |
|
Axle Oscillation |
|
|
Axle Oscillation |
|
|
Drive Speed |
3 mph (5 kph)
|
|
Drive Speed |
3 mph (5 kph)
|
|
Gradeability |
45 % |
|
Gradeability |
30 % |
|
Swing |
360 degrees |
|
Swing |
360 degrees |
|
Swing Type |
Continuous |
|
Swing Type |
Continuous |
| Platform |
|
Max Horizontal Reach |
52 ft (16 m)
|
|
Max Horizontal Reach |
52 ft (16 m)
|
|
Max Platform Height |
80 ft (24 m)
|
|
Max Platform Height |
80 ft (24 m)
|
|
Max Platform Weight Capacity |
500 lbs (227 kg)
|
|
Max Platform Weight Capacity |
500 lbs (227 kg)
|
|
Platform Capacity - Unrestricted |
500 lbs (227 kg)
|
|
Platform Capacity - Unrestricted |
500 lbs (227 kg)
|
|
Platform Inner Length |
96 in (244 cm)
|
|
Platform Inner Length |
96 in (244 cm)
|
|
Platform Inner Width |
36 in (91 cm)
|
|
Platform Inner Width |
36 in (91 cm)
|
|
Platform Rotation |
180 degrees |
|
Platform Rotation |
180 degrees |
