2019 JLG T500J

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-09-16 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

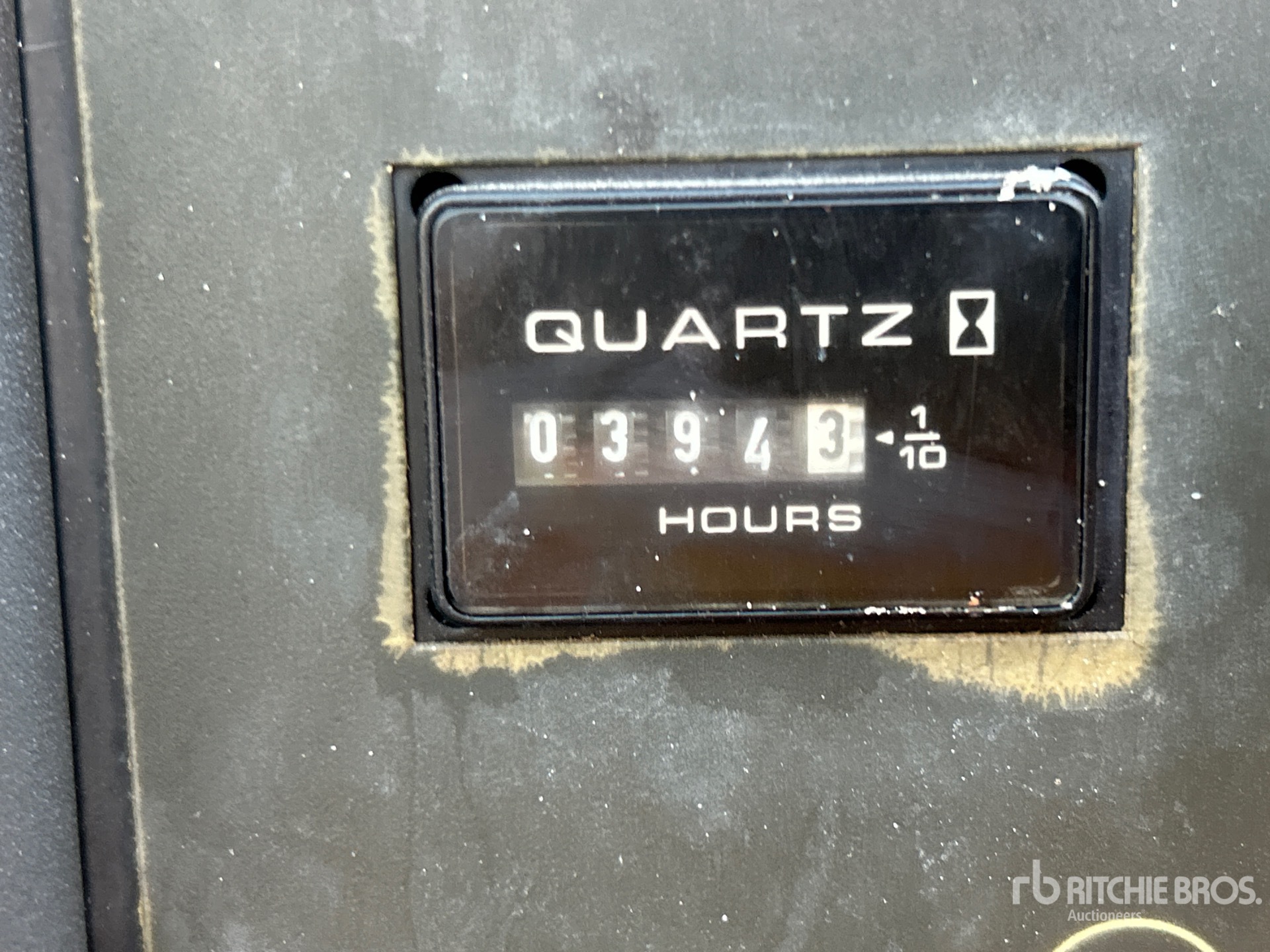

Hours:	394

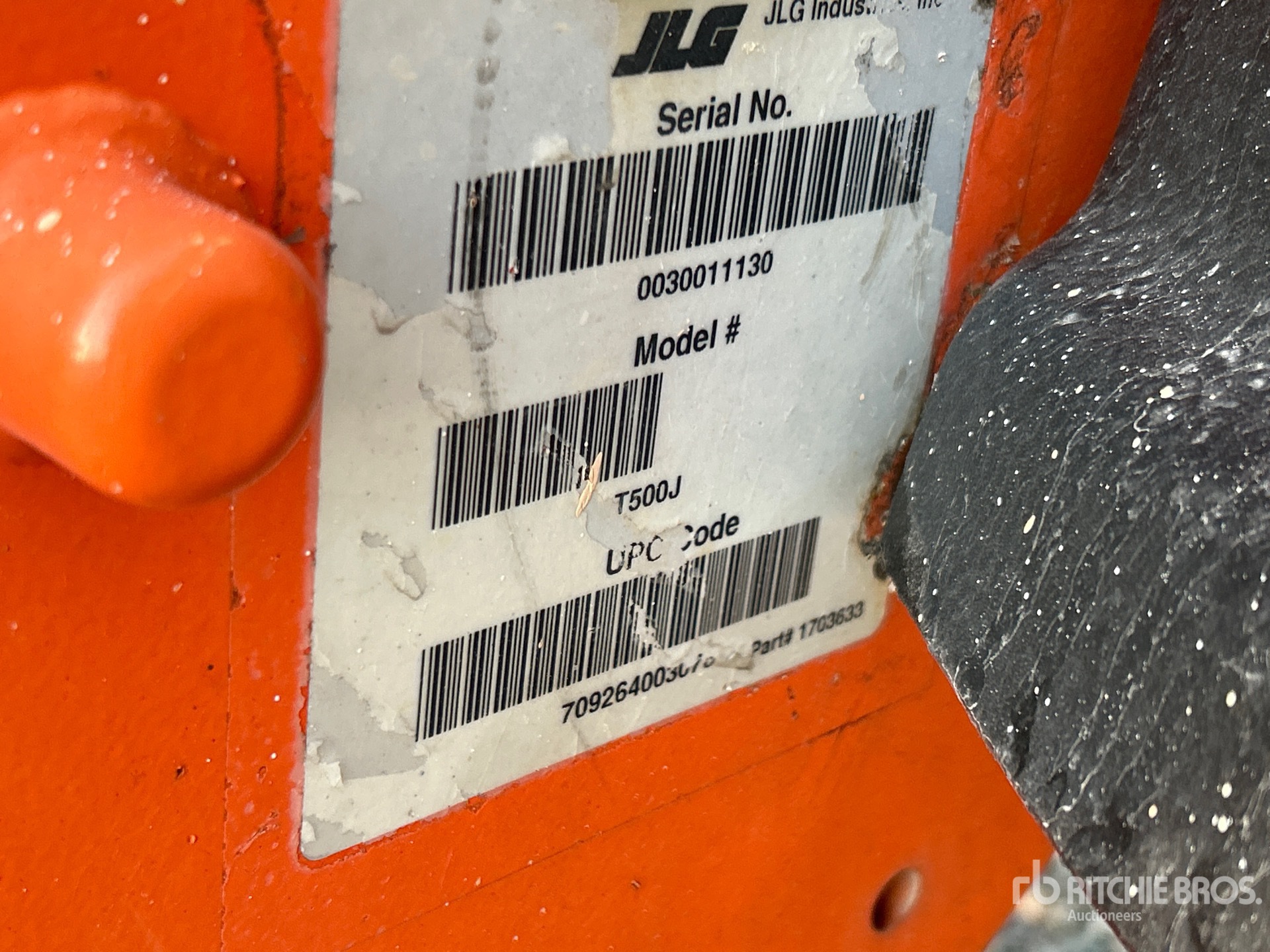

Serial Number:	0030011130
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 71, 50 ft Max Platform Height, 500 lb Max Weight Capacity, Jib, Power to Platform Inoperable items must be removed from yard by October 2nd and cannot be relisted; Buyer's responsibility for removal. RBA will not be able to assist with loading. Closing Time: 2026-09-16 04:42:54 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JLG T500J is a towable boom lift in the aerial lifts category, designed for elevated access in construction, maintenance, and facility work. It features a telescopic boom mounted on a trailer-style chassis for transport behind a suitable vehicle. The T500J is commonly used for tasks requiring reach over obstacles and access to elevated work areas. Typical applications include building maintenance, electrical work, signage installation, and tree care. As a JLG aerial lift, the T500J is part of a product line known for compact transport, setup flexibility, and jobsite mobility in light to medium-duty access applications.

Dimensions
Ground Clearance	1 in (3 cm)
Ground Height	1 in (3 cm)
Ground Pressure	31 psi
Height	7 ft (2 m)
Length	27 ft (8 m)
Outrigger Footprint Length	12 ft (4 m)
Outrigger Footprint Width	13 ft (4 m)
Overall Height - Mast Lowered	8 ft (2 m)
Overall Length	27 in (70 cm)
Overall Width	6 ft (2 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	4 ft (1 m)
Weight	4,800 lbs (2,177 kg)
Width	6 ft (2 m)
Engine
Battery Amp Hours	220
Number Of Batteries	4
System Voltage	24 V
Hydraulic
Hydraulic Reservoir	6 gal (23 l)
Operational
Operating Weight	4,800 lbs (2,177 kg)
Tire Fill/Type	Pneumatic
Tire Size	225/75 R15
Performance
Frame Leveling	11 degrees
Jib - Range Of Articulation	130 degrees
Leveling Capability	11 degrees
Platform Capacity	500 lbs (227 kg)
Swing	410 degrees
Towing Speed Rating	65 mph (105 kph)
Platform
Max Horizontal Reach	30 ft (9 m)
Max Platform Height	50 ft (15 m)
Max Platform Weight Capacity	500 lbs (227 kg)
Max Working Height	18 ft (5 m)
Platform Inner Length	5 in (12 cm)
Platform Inner Width	3 in (8 cm)
