| Cooling |
|
Engine Coolant Rating (Since 2026)
|
-40 f |
|
Engine Oil Cooler Type (Since 2026)
|
Oil-to-water |
|
Engine Radiator (Fins Per In.) (Since 2026)
|
10 |
|
Fan Type (Since 2026)
|
Electronically controlled, variable rate, suction type cooling fan, Standard |
|
Hydraulic Cooler Type (Since 2026)
|
Oil-to-air |
|
Transmission Cooler Type (Since 2026)
|
oil-to-water |
| Electrical |
|
Alternator Rating (Since 2026)
|
145 amp |
|
Battery Capacity (1 Battery) (Since 2026)
|
950.0 CCA |
|
Battery Capacity (2 Batteries) (Since 2026)
|
1900.0 CCA |
|
Lighting Options (Since 2026)
|
10 halogen: 4 front, 4 rear, and 2 side docking (32,500 candlepower each); turn signals and flashers: 2 front and 2 rear; stop and taillights; and 2 rear reflectors; factory installed option for 2 LED spot lights and 8 LED flood lights in lieu of the standard halogen light package |
|
Number Of Batteries (Since 2026)
|
2 |
|
Reserve Capacity (1 Battery) (Since 2026)
|
175.0 min. |
|
Reserve Capacity (2 Batteries) (Since 2026)
|
350.0 min. |
|
Voltage (Since 2026)
|
12 v |
| Engine |
|
Air Cleaner (Since 2026)
|
Dual stage dry type with safety element and evacuator valve |
|
Bore and Stroke (Since 2026)
|
4.19 x 5.00 in. |
|
Cylinders (Since 2026)
|
4 |
|
Displacement (Since 2026)
|
276 cu in (4,523 cu cm)
|
|
Fuel System (Since 2026)
|
Level 34 electronic fuel system with Denso high pressure common rail |
|
Gross Peak Power At Peak Power Speed (Since 2026)
|
115 hp (86 kw)
|
|
Gross Peak Torque At Peak Torque Speed (Since 2026)
|
344 lbs ft (466 nm)
|
|
Gross Power At Rated Speed (Since 2026)
|
111 hp (83 kw)
|
|
Lubrication (Since 2026)
|
Pressure system with spin-on filter and cooler |
|
Manufacturer (Since 2026)
|
John Deere |
|
Net Peak Torque At Peak Torque Speed (ISO9249) (Since 2026)
|
339 lbs ft (460 nm)
|
|
Net Power At Rated Speed (ISO9249) (Since 2026)
|
109 hp (81 kw)
|
|
Net Torque Rise (Since 2026)
|
30.0 % |
|
Non-Road Emission Standards (Since 2026)
|
EPA Final Tier 4/EU Stage IV |
|
Oil Specification (Since 2026)
|
JD Torq-Gard or equivalent |
|
Peak Power Speed (Since 2026)
|
1,900 rpm |
|
Peak Torque Speed (Since 2026)
|
1,600 rpm |
|
Rated Speed (Since 2026)
|
2,200 rpm |
|
Valves Per Cylinder (Since 2026)
|
2 |
| General Specifications |
|
Backhoe Loading Height (Since 2023)
|
11 ft (3 m)
|
|
Backhoe Loading Height (2024)
|
11 ft (3 m)
|
|
Backhoe Loading Height (2025)
|
11 ft (3 m)
|
|
Backhoe Loading Height (2026)
|
11 ft (3 m)
|
|
Loader Breakout Force (Since 2023)
|
10,541 lbs (4,781 kg)
|
|
Loader Breakout Force (2024)
|
10,541 lbs (4,781 kg)
|
|
Loader Breakout Force (Since 2025)
|
10,563 lbs (4,791 kg)
|
|
Loader Breakout Force (2026)
|
10,563 lbs (4,791 kg)
|
|
Loader Lift Capacity (Since 2023)
|
7,390 lbs (3,352 kg)
|
|
Loader Lift Capacity (2024)
|
7,390 lbs (3,352 kg)
|
|
Loader Lift Capacity (Since 2025)
|
7,693 lbs (3,489 kg)
|
|
Loader Lift Capacity (2026)
|
7,693 lbs (3,489 kg)
|
|
Loader SAE (Since 2023)
|
113 hp (84 kw)
|
|
Loader SAE (2024)
|
113 hp (84 kw)
|
|
Loader SAE (2025)
|
113 hp (84 kw)
|
|
Loader SAE (2026)
|
113 hp (84 kw)
|
|
Max Digging Depth (Since 2023)
|
14 ft (4 m)
|
|
Max Digging Depth (2024)
|
14 ft (4 m)
|
|
Max Digging Depth (2025)
|
14 ft (4 m)
|
|
Max Digging Depth (2026)
|
14 ft (4 m)
|
|
Operating Weight (Since 2023)
|
15,754 lbs (7,146 kg)
|
|
Operating Weight (2024)
|
15,754 lbs (7,146 kg)
|
|
Operating Weight (Since 2025)
|
17,081 lbs (7,748 kg)
|
|
Operating Weight (2026)
|
17,081 lbs (7,748 kg)
|
|
Travel Speed 4th Gear Fwd (Since 2023)
|
23 mph (37 kph)
|
|
Travel Speed 4th Gear Fwd (2024)
|
23 mph (37 kph)
|
|
Travel Speed 4th Gear Fwd (Since 2025)
|
23 mph (37 kph)
|
|
Travel Speed 4th Gear Fwd (2026)
|
23 mph (37 kph)
|
| Hydraulics |
|

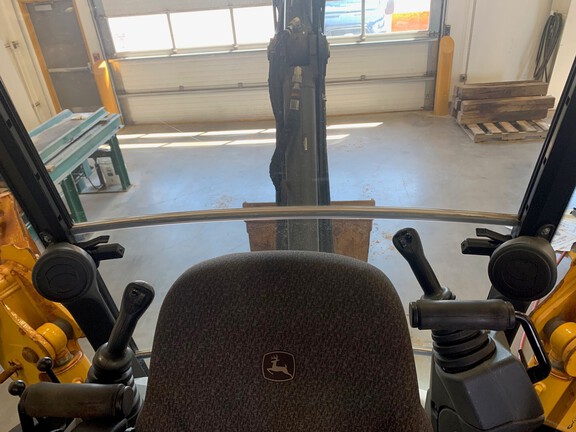

Backhoe Controls (Since 2026)
|
2-lever mechanical standard; pilot control with pattern select with electrohydraulic (EH) auxiliary functions optional |
|
Backhoe Lift Mode System Relief Pressure (Since 2026)
|
4,000 psi |
|
Backhoe Pump Flow (Since 2026)
|
43 gpm (163 lpm)
|
|
Backhoe System Relief Pressure (Since 2026)
|
3,625 psi |
|
Hydraulics System Type (Since 2026)
|
Pressure compensated load sensing (PCLS), axial piston pump |
|
Loader Controls (Since 2026)
|
Single-lever control with electric clutch cutoff switch and MFWD (momentary) standard; single-lever control with electric clutch cutoff switch, electrohydraulic (EH) proportional auxiliary roller, MFWD (momentary), and transmission quick-shift optional |
|
Loader Pump Flow (Since 2026)
|
43 gpm (163 lpm)
|
|
Loader System Relief Pressure (Since 2026)
|
3,625 psi |
|
Rated Rpm (Since 2026)
|
2,200 rpm |
| Lift Capacity with Quick-Coupler Forks |
|
At Ground Line With Maximum Tines (Since 2026)
|
8,306 lbs (3,768 kg)
|
|
At Ground Line With Minimum Tines (Since 2026)
|
8,863 lbs (4,020 kg)
|
|
At Maximum Height With Maximum Tines (Since 2026)
|
4,260 lbs (1,932 kg)
|
|
At Maximum Height With Minimum Tines (Since 2026)
|
4,558 lbs (2,067 kg)
|
|
At Maximum Reach With Maximum Tines (Since 2026)
|
6,617 lbs (3,001 kg)
|
|
At Maximum Reach With Minimum Tines (Since 2026)
|
7,017 lbs (3,183 kg)
|
|
Below Ground Line With Maximum Tines (Since 2026)
|
8 in (20 cm)
|
|
Below Ground Line With Minimum Tines (Since 2026)
|
7 in (19 cm)
|
|
Hydraulic Capacity Maximum Tines (Since 2026)
|
60 in (152 cm)
|
|
Hydraulic Capacity Minimum Tines (Since 2026)
|
48 in (122 cm)
|
|
Rated Capacity Of Maximum Tines (Since 2026)
|
8,598 lbs (3,900 kg)
|
|
Rated Capacity Of Minimum Tines (Since 2026)
|
8,598 lbs (3,900 kg)
|

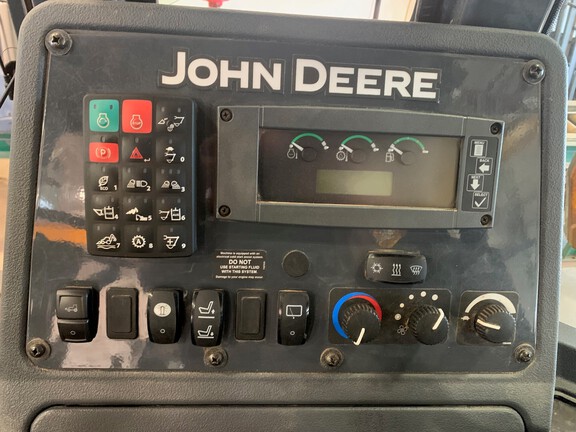

| Monitoring |
|
Aftertreatment Temperature High (Since 2026)
|
Indicator light |
|
Alternator, Low Voltage (Since 2026)
|
Indicator light, Audible |
|
Diesel-Exhaust Fluid (DEF) Level (Since 2026)
|
Indicator light, Audible, Digital |
|
Engine Air Filter Restriction (Since 2026)
|
Indicator light, Audible, Digital |
|
Engine Coolant Temperature (Since 2026)
|
Indicator light, Audible, Gauge |
|
Engine Oil Pressure (Since 2026)
|
Indicator light, Audible |
|
Engine Preheat (Since 2026)
|
Indicator light, Digital |
|
Engine Rpm (Since 2026)
|
Digital |
|
Fuel Level (Since 2026)
|
Indicator light, Audible, Gauge, Digital |
|
Hourmeter (Since 2026)
|
Digital |
|
Hydraulic Oil Filter Restriction (Since 2026)
|
Audible, Digital |
|
Hydraulics Enabled (Since 2026)
|
Indicator light |
|

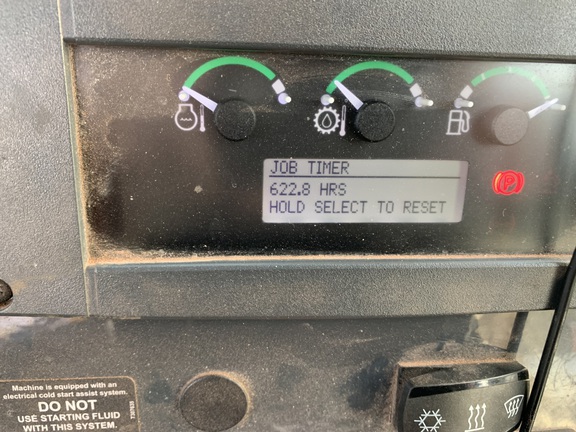

Job Timer (Since 2026)
|
Digital |
|
Machine Information And Configuration (Since 2026)
|
Digital |
|
MFWD Active (Since 2026)
|
Indicator light |
|
Park Brake On/Off (Since 2026)
|
Indicator light |
|
Seat Belt Reminder (Since 2026)
|
Indicator light, Digital |
|
Service Code Indicator (Since 2026)
|
Indicator light |
|
Sight Gauges (Since 2026)
|
Hydraulic Reservoir |
|
Stop Indicator (Since 2026)
|
Indicator light, Audible |
|
System Voltage (Since 2026)
|
Digital |
|
Torque Converter Oil Temp (Since 2026)
|
Indicator light, Audible, Gauge, Digital |
| Operating Weights |
|
Backhoe Bucket Coupler (Since 2026)
|
138 lbs (63 kg)
|
|
Cab (Since 2026)
|
580 lbs (263 kg)
|
|
Extendable Dipperstick (Since 2026)
|
490 lbs (222 kg)
|
|
Front Loader Coupler (Since 2026)
|
566 lbs (257 kg)
|
|
Mechanical Front-Wheel Drive With Tires (Since 2026)
|
485 lbs (220 kg)
|
|
Operator And Standard Equipment With Full Fuel Tank (Since 2026)
|
17,081 lbs (7,748 kg)
|
|
Standard With Bumper (Since 2026)
|
15,872 lbs (7,199 kg)
|
|
Typical With Cab, Extendible Dipperstick, And 750-Lb Counterweight (Since 2026)
|
17,692 lbs (8,025 kg)
|

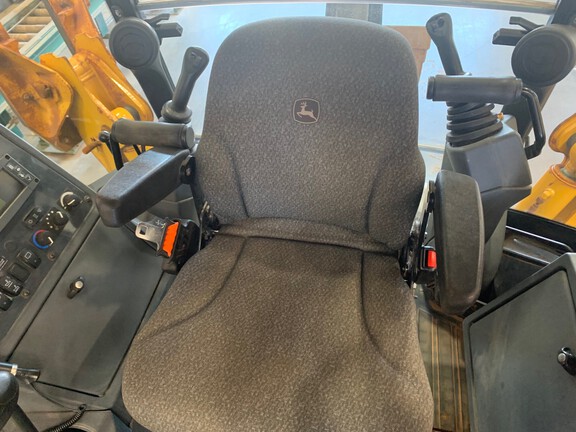

| Operator Station |
|
Operator Station Type (Since 2026)
|
Fully enclosed cab, isolation mounted, ROPS/FOPS, left/right access, with molded roof; optional quarter cab (front glass only) and canopy |
| Powertrain |
|
Axle Oscillation Stop To Stop, Front Axle (Since 2026)
|
22.0 degree (angle) |
|
Brakes (Since 2026)
|
Conform to ISO 3450 |
|
Bucket Clearance Circle, With Brakes, With MFWD Axle (Since 2026)
|
33, 0 ft, in. |
|
Bucket Clearance Circle, With Brakes, With Non-Powered Front Axle (Since 2026)
|
32, 9 ft, in. |
|
Bucket Clearance Circle, Without Brakes, With MFWD Axle (Since 2026)
|
35, 6 ft, in. |
|
Bucket Clearance Circle, Without Brakes, With Non-Powered Front Axle (Since 2026)
|
35, 0 ft, in. |
|
Conditions For Measuring Travel Speeds (Since 2026)
|
Power-Shift, Standard Transmission with Tire Size 19.5L-24 Rear Tires |
|
Curb-Turning Radius, With Brakes, With MFWD Axle (Since 2026)
|
11, 7 ft, in. |
|
Curb-Turning Radius, With Brakes, With Non-Powered Front Axle (Since 2026)
|
11, 4 ft, in. |
|
Curb-Turning Radius, Without Brakes, With MFWD Axle (Since 2026)
|
13, 2 ft, in. |
|
Curb-Turning Radius, Without Brakes, With Non-Powered Front Axle (Since 2026)
|
12, 10 ft, in. |
|
Front Axle, Dynamic Rating (Since 2026)
|
19,800 lbs (8,981 kg)
|
|
Front Axle, Sae J43 Rating (Since 2026)
|
12,000 lbs (5,443 kg)
|
|
Front Axle, Static Rating (Since 2026)
|
58,400 lbs (26,490 kg)
|
|
Front Axle, Ultimate Rating (Since 2026)
|
97,000 lbs (43,999 kg)
|
|
Gear 1, Forward Maximum Speed (Since 2026)
|
3 mph (5 kph)
|
|
Gear 1, Reverse Maximum Speed (Since 2026)
|
4 mph (7 kph)
|
|
Gear 2, Forward Maximum Speed (Since 2026)
|
6 mph (10 kph)
|
|
Gear 2, Reverse Maximum Speed (Since 2026)
|
8 mph (12 kph)
|
|
Gear 3, Forward Maximum Speed (Since 2026)
|
13 mph (20 kph)
|
|
Gear 3, Reverse Maximum Speed (Since 2026)
|
12 mph (20 kph)
|
|
Gear 4, Forward Maximum Speed (Since 2026)
|
23 mph (37 kph)
|
|
Maximum Axle Torque (Since 2026)
|
46,100 lbs (20,911 kg)
|
|
Maximum Steer Angle, Mechanical Front-Wheel Drive (MFWD) Axle (Since 2026)
|
52.0 degree (angle) |
|
Maximum Steer Angle, Non-Powered Front Axle (Since 2026)
|
55.0 degree (angle) |
|
Mechanical Front Wheel Drive Axle Differential Type (Since 2026)
|
Automatic, limited-slip traction control |
|
MFWD Axle Final Drives And Gears (Since 2026)
|
Heavy duty, outboard planetary final drives distribute shock loads over 3 gears |
|
MFWD Axle Total Ratio (Since 2026)
|
14.759:1 |
|
Number Of Gears Forward (Since 2026)
|
5 |
|
Number Of Gears Reverse (Since 2026)
|
3 |
|
Number Of Steering Wheel Turns (Lock To Lock) With MFWD Axle (Since 2026)
|
4 |
|
Number Of Steering Wheel Turns (Lock To Lock) With Non-Powered Front Axle (Since 2026)
|
4 |
|
Rear Axle Differential Type (Since 2026)
|
Foot actuated, hydraulically engaged 100% mechanical lock |
|
Rear Axle Final Drives And Gears (Since 2026)
|
Heavy duty, outboard planetary final drives distribute shock loads over 4 gears |
|
Rear Axle Total Ratio (Since 2026)
|
19.911:1 |
|
Rear Axle, Dynamic Rating (Since 2026)
|
22,000 lbs (9,979 kg)
|
|
Rear Axle, SAE J43 Rating (Since 2026)
|
15,400 lbs (6,985 kg)
|
|
Rear Axle, Static Rating (Since 2026)
|
58,400 lbs (26,490 kg)
|
|
Rear Axle, Ultimate Rating (Since 2026)
|
97,000 lbs (43,999 kg)
|
|
Rear Differential Lock Pressure (Since 2026)
|
305 psi |
|
Service Brakes (Since 2026)
|
Power assisted, hydraulic wet disc, mounted inboard, self adjusting and self equalizing |
|
Service Brakes Friction Disc Area Per Side (Since 2026)
|
141900.0 mmByMm |
|
Shift Control Type (Since 2026)
|
Electric forward-neutral-reverse control lever with neutral start interlock |
|
Steering Pressure (Since 2026)
|
3,625 psi |
|
Steering Type (Since 2026)
|
Hydrostatic Power Steering and Emergency Steering (ISO 5010) |
|
Torque Converter (Since 2026)
|
11 in (28 cm)
|
|
Torque Converter Type (Since 2026)
|
Single stage, dual phase with 2.63:1 stall ratio |
|
Transmission Type (Since 2026)
|
5-speed, helical-cut gears, full PowerShift™ transmission with hydraulic reverser standard; electric clutch cutoff on loader lever; AutoShift transmission standard |
| Serviceability |
|
Diagnostics (Since 2026)
|
In-Cab Monitor Information |
|
Refill Capacity Cooling System (Cab) (Since 2026)
|
29.1 qt |
|
Refill Capacity Cooling System (Canopy) (Since 2026)
|
27.2 qt |
|
Refill Capacity Diesel-Exhaust Fluid (DEF) Tank (Since 2026)
|
4 gal (14 l)
|
|
Refill Capacity Engine Oil (Since 2026)
|
13.7 qt |
|
Refill Capacity Fuel Tank (Since 2026)
|
34 gal (129 l)
|
|
Refill Capacity Hydraulic Reservoir (Since 2026)
|
12 gal (45 l)
|
|
Refill Capacity Hydraulic System (Since 2026)
|
34 gal (127 l)
|
|
Refill Capacity Mechanical Front-Wheel Drive Housing Axle (Since 2026)
|
6.9 qt |
|
Refill Capacity Mechanical Front-Wheel Drive Housing Planetary Each (Since 2026)
|
1.0 qt |
|
Refill Capacity Rear Axle Differential Housing (Since 2026)
|
19.0 qt |
|
Refill Capacity Torque Converter And Transmission (Since 2026)
|
16.0 qt |
