Equipment ↠ John Deere ↠ Backhoe Loaders ↠ 410G ↠ John Deere 410G

John Deere 410G For Sale in Foristell , WI

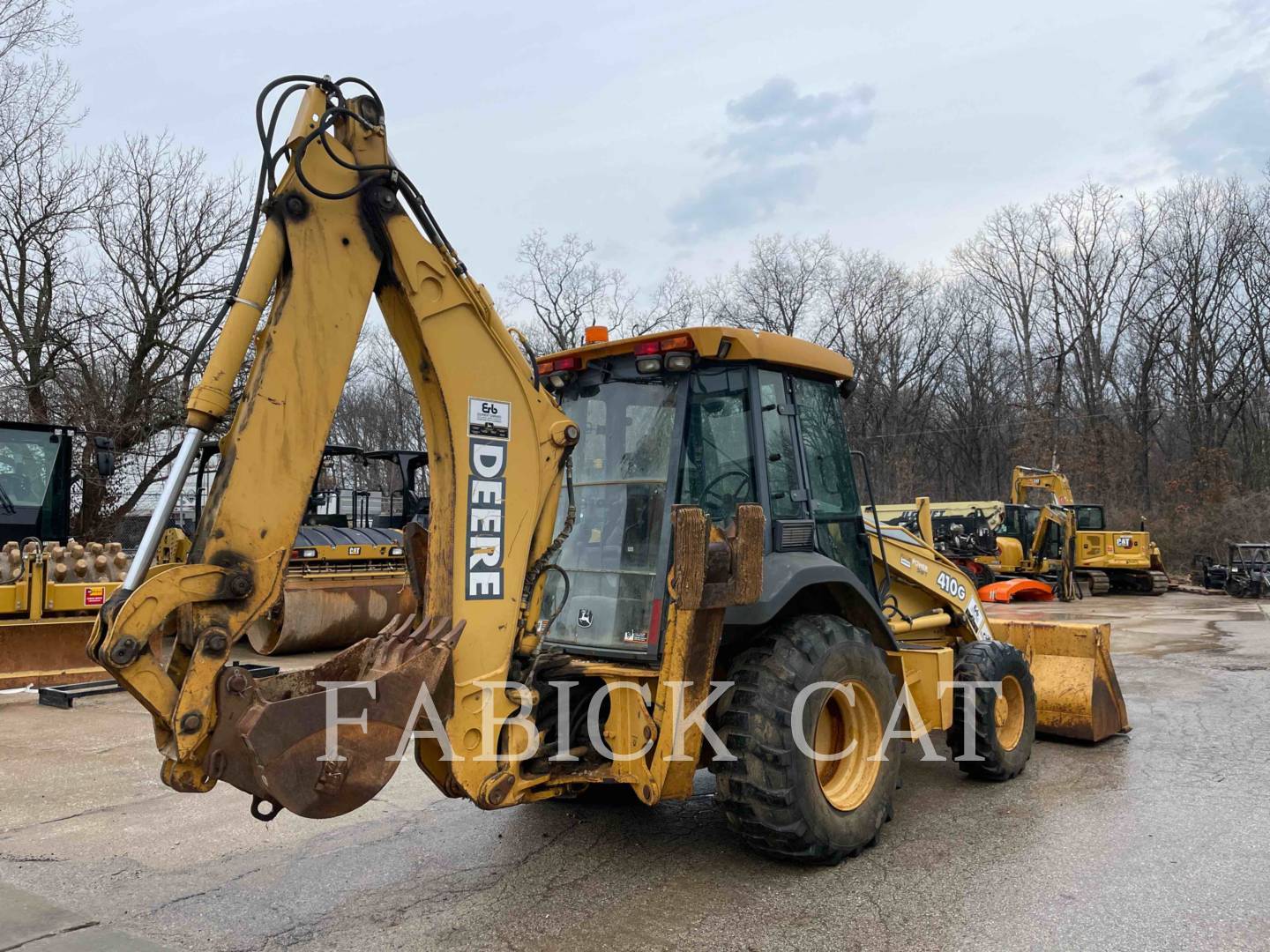

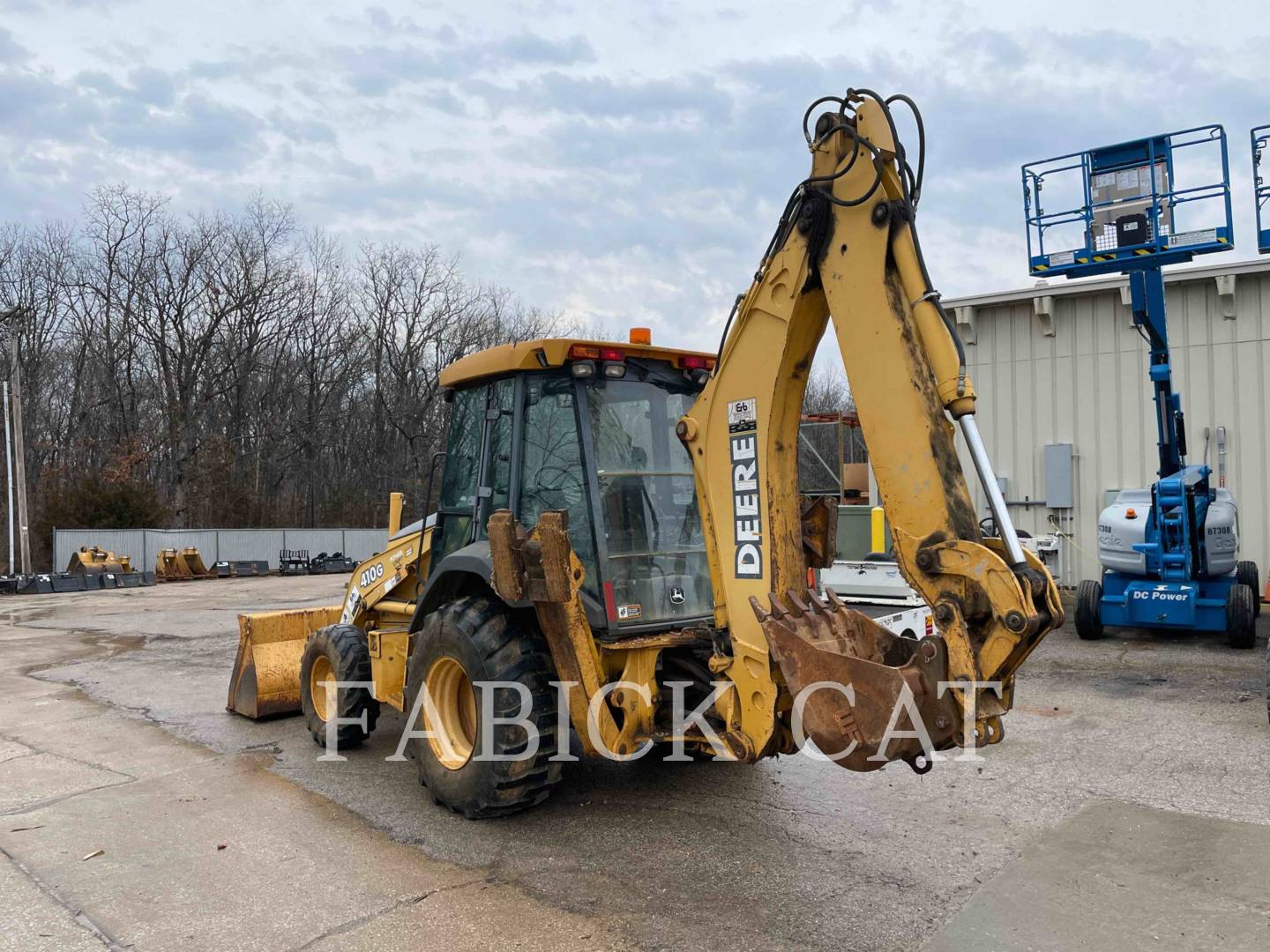

Name: John Deere 410G
Brand: John Deere
Price: 45000 USD
Availability: InStock

❮

❯

For Sale: $45,000.00 USD

Apply for Financing

Fabick Cat

Fabick Cat Dealer Info

Fabick Cat Website

Click here to email Fabick Cat.

Contact: Used Equipment Sales

Click for Phone Number

Machine Info:

Hours:	3766

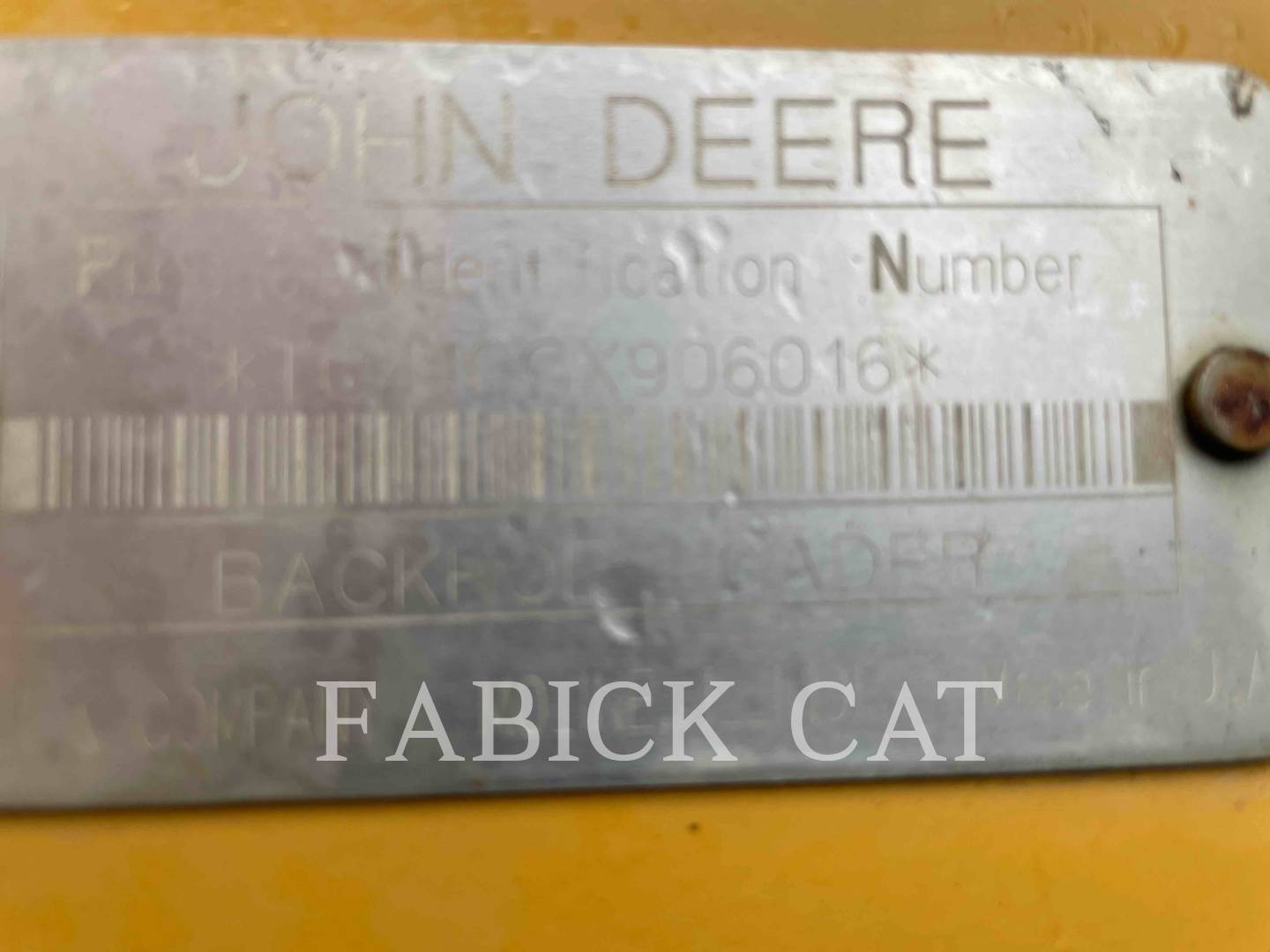

Serial Number:	TO410GX906016
Machine Location:	FORISTELL , WI
More Information:	https://catused.com/cu/10037752

Description:

AM FM RADIO, ULTRA LOW SULFUR DIESEL FUEL, 2 WHEEL DRIVE, ALL WHEEL DRIVE, BEACON, AUTO SHIFT, BUCKET, GP, 4-WHEEL DRIVE, EROPS, BUCKET, REAR, LIGHTING, CONTROLS, JOYSTICK, ENGINE ENCLOSURES, AIR CONDITIONER, STICK, EXTENDED, DIFFERENTIAL LOCK, COUNTER WEIGHT, REAR COUPLER

Machine Details:

GENERAL APPEARANCE
Cleaning Required	Yes
S.O.S. Taken	No
SAFETY ITEMS
ROPS	Yes
ROPS Certification Plate	No
GAUGES, OPERATOR STATION, CONSOLE
Current O&MM	No
Current Parts Manual	No
Current Safety Manual	No

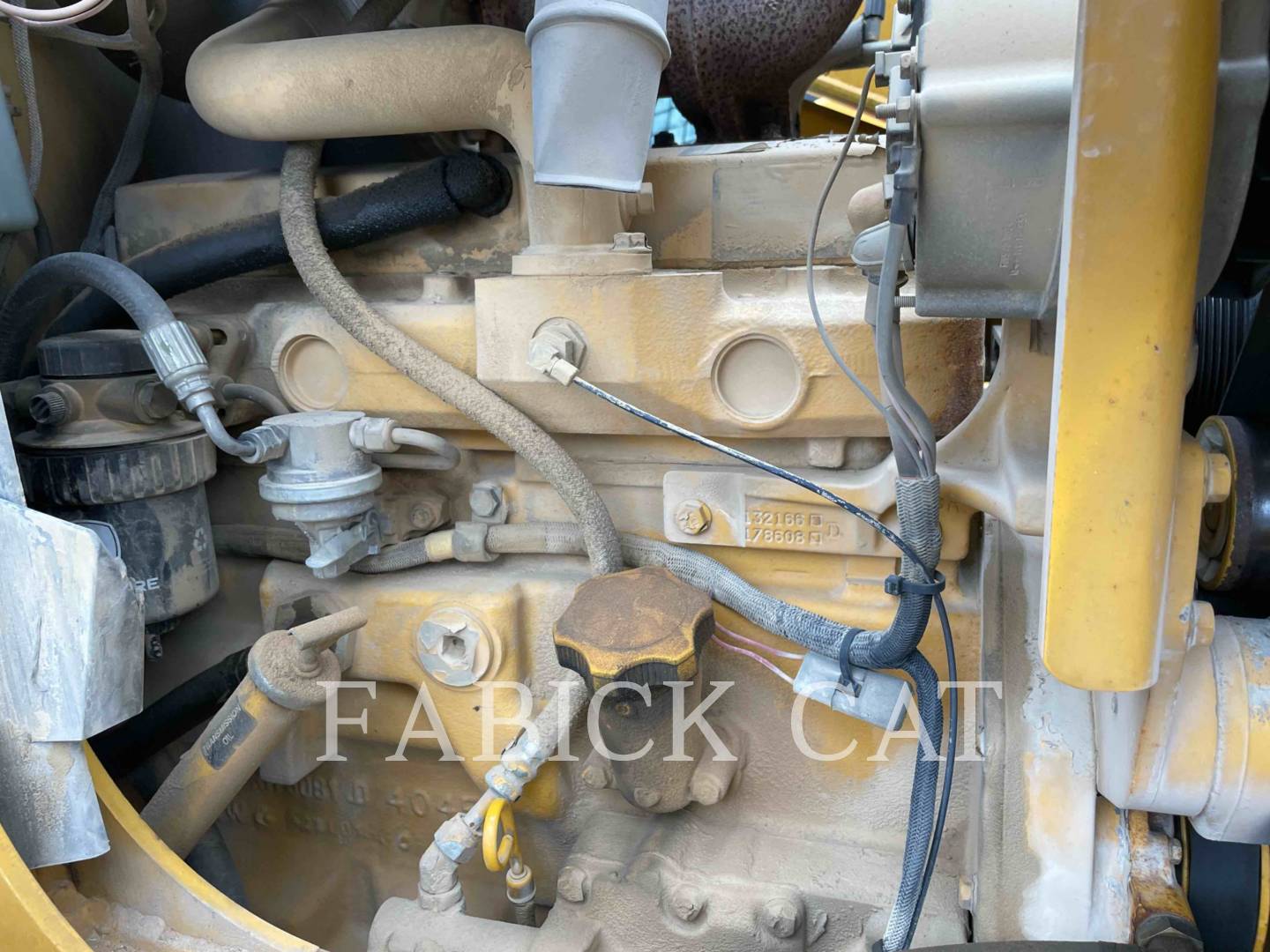

ENGINE
Blow By	No
Compression in Radiator	No
Fluid Levels OK?	Yes
Knocking	No
Oil Leaks	No
Water in Oil	No
COOLING SYSTEM
Leaks - COOLING SYSTEM	No
ELECTRICAL, STARTING AND CHARGING SYSTEM
Ether Aid	No
Signal Lights	No
TRANSMISSION
Leaks - TRANSMISSION	No
Transmission - Noisy	No
STEERING
Transmission - Noisy	Overall good condition
BRAKE
Leaks - BRAKE	No
HYDRAULICS
Leaks - HYDRAULICS	Yes
ATTACHMENTS / WORK TOOLS
Asphalt Cutter	No
Fork	No
Hydraulic Hammer	No
Hydraulic Sweeper	No
Material Handling	No
Vibratory Plate	No
BOOM & STICK
Vibratory Plate	Overall fair-good condition
FRONT BUCKET
Vibratory Plate	1.5 or so yards
REAR BUCKET
Vibratory Plate	24”
Vibratory Plate	Overall good condition
AXLES / FINAL DRIVES
Differential Supports	Good
Differentials	Good
Front Final Drives	Good
Rear Axle	Good
Rear Final Drives	Good
Trunion	Good
Universal Joints	Good
Wheel Lugs & Rims	Good
TIRES
Spare	No
COMMENTS, MISC. REPAIRS, GENERAL REMARKS
Spare	Overall fair condition

From the manufacturer:

Backhoe
Bucket Dig Force	14,801 lbs (6,714 kg)
Bucket Dig Force - Extended	14,801 lbs (6,714 kg)
Dig Depth	16 ft (5 m)
Dig Depth - Extended	21 ft (6 m)
Load Height	13 ft (4 m)
Load Height - Extended	16 ft (5 m)
Reach at Load Height - Extended	27 ft (8 m)
Reach From Swivel	20 ft (6 m)
Reach From Swivel - Extended	24 ft (7 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height to Top of Suspended Cab	9 ft (3 m)
Transport Length	24 ft (7 m)
Transport Width	8 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	Turbocharged
Engine Model	4045T
Net Max Torque	279 lbs/ft
Net Power	96 hp (72 kw)
Net Torque Rise	0
Power Measured @	2,100 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	43 gal/min (163 l/min)
Pump Type	Axial-piston, PCLS system
Relief Valve Pressure	3,625 psi
Loader
Bucket Breakout Force	10,210 lbs (4,631 kg)
Bucket Capacity	1 cu yds (1 m)
Bucket Width	36 in (91 cm)
Clearance at Max Dump Height	12 ft (4 m)
Dig Depth	4 in (10 cm)
Reach at Max Dump Height	3 ft (1 m)
Operating Specifications
Alternator Supplied Amperage	90 A
Cooling System Fluid Capacity	4 gal (15 l)
Front Axle Fluid Capacity	2 gal (8 l)
Fuel Capacity	36 gal (136 l)
Hydraulic System Fluid Capacity	26 gal (98 l)
Max Weight	15,000 lbs (6,804 kg)
Oil System Fluid Capacity	4 gal (11 l)
Operating Voltage	12 V V
Operating Weight 2wd	1,628 lbs (739 kg)
Operating Weight 4wd	1,262 lbs (572 kg)
Rear Axle Fluid Capacity	4 gal (15 l)
Tire Size Front - 2wd / 4wd	11L-16 F3
Transmission Fluid Capacity	4 gal (15 l)
Turning Radius	12 ft (3 m)
Tires
Rear Tires Size	19.5L-24 R4
Transmission
Max Speed	21 mph (32 kph)
Max Speed - Reverse	16 mph (26 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	4-speed, helical cut gear, full power shifted transmission with hydraulic reverser
