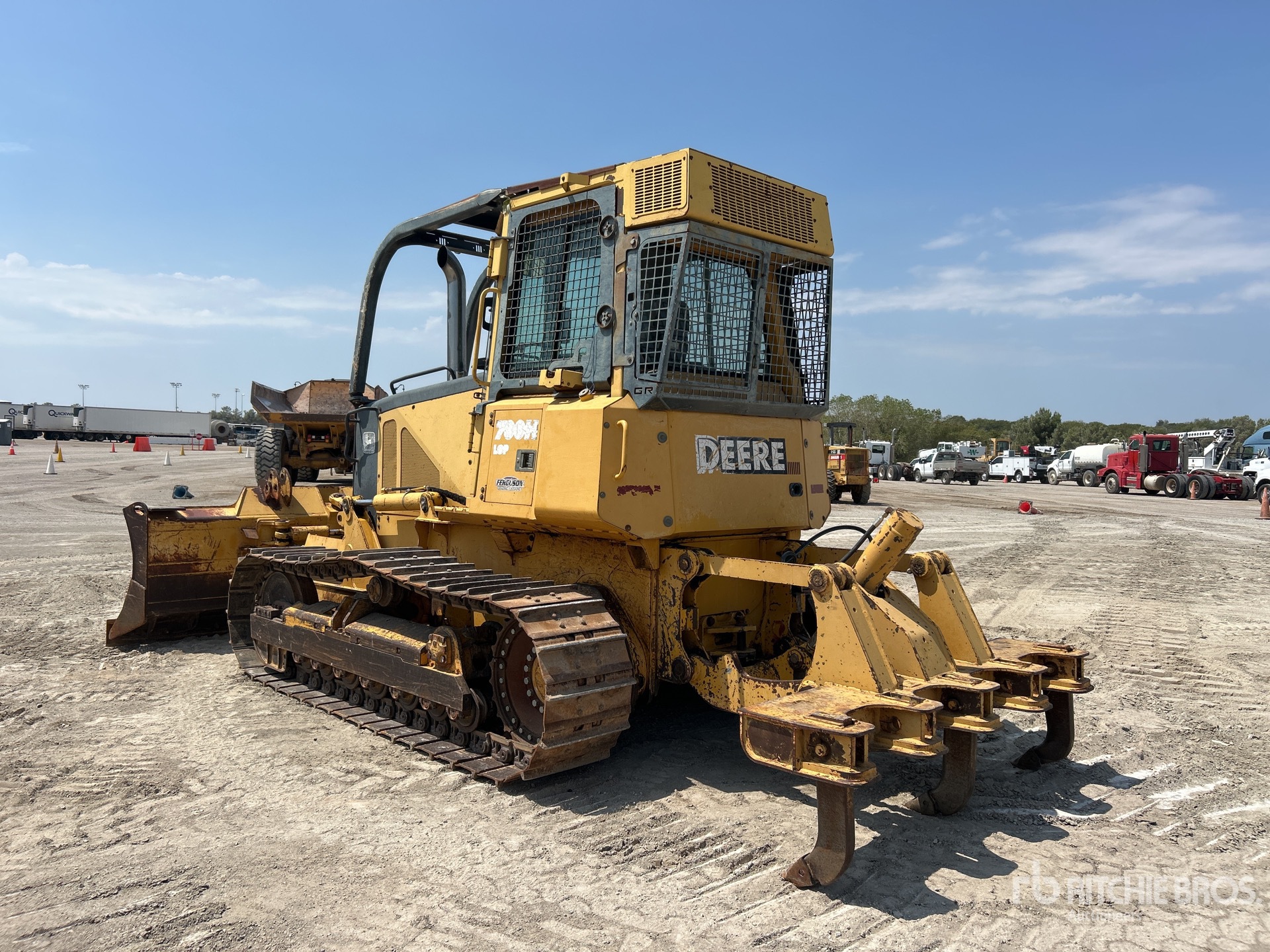

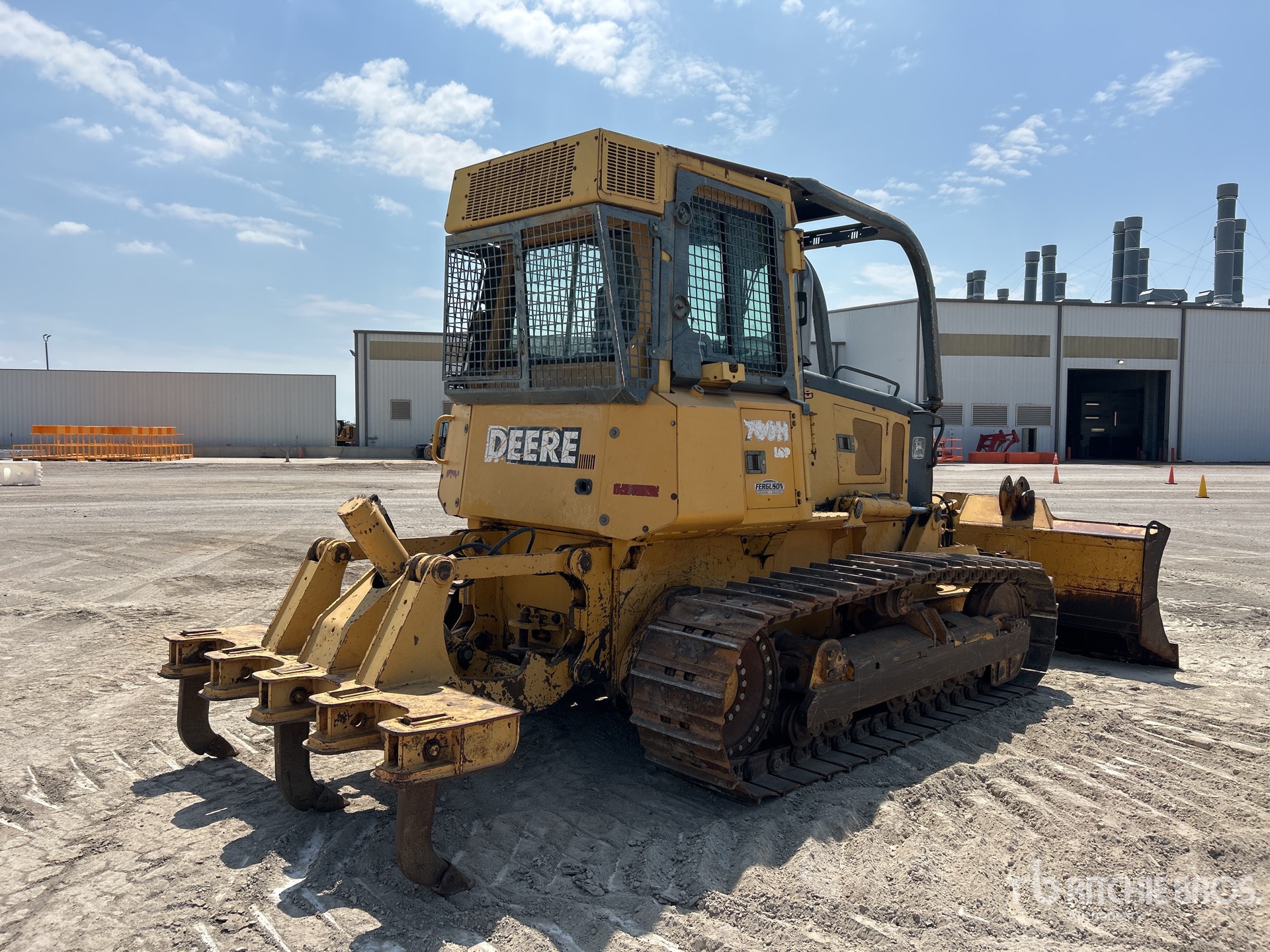

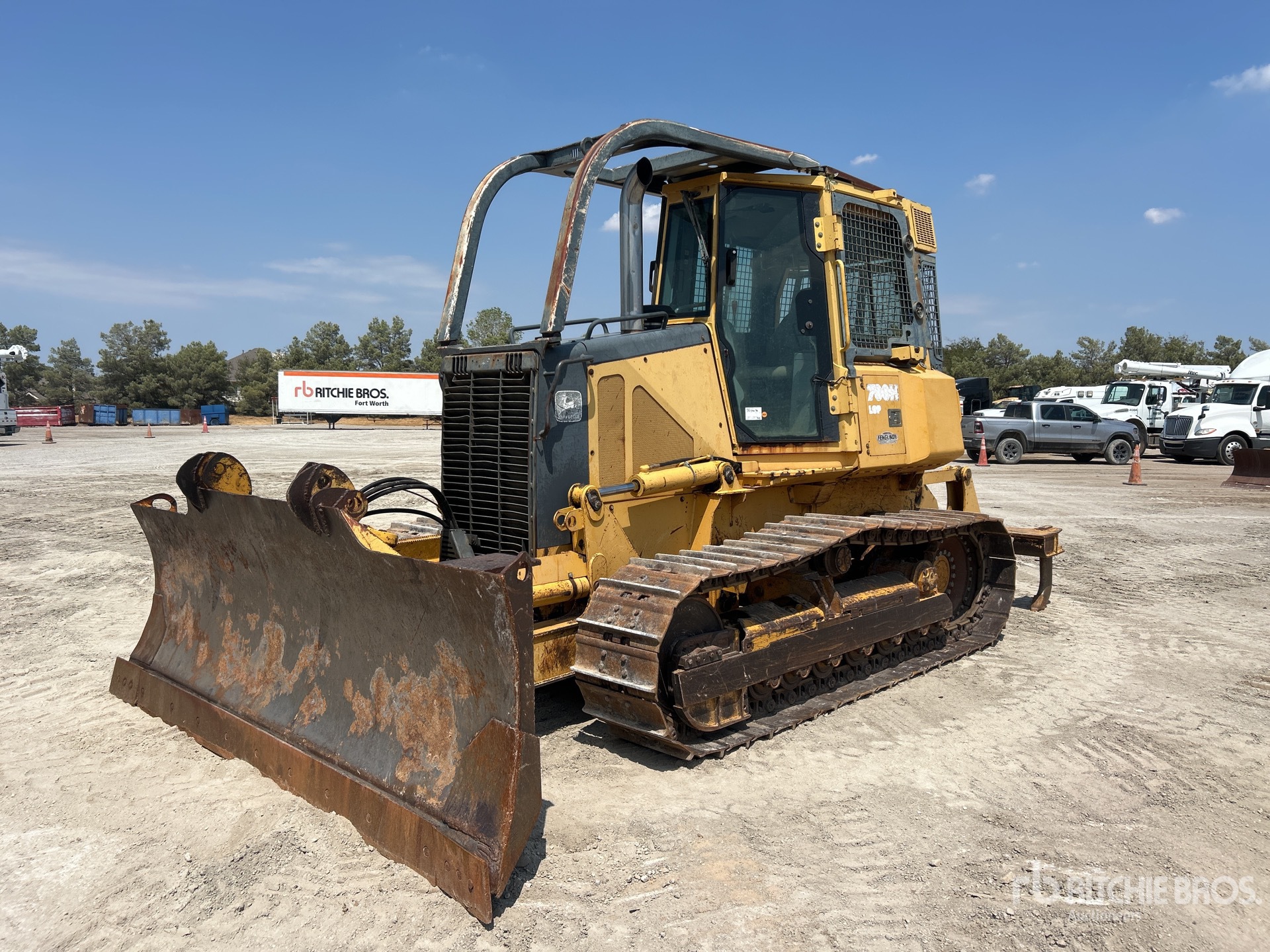

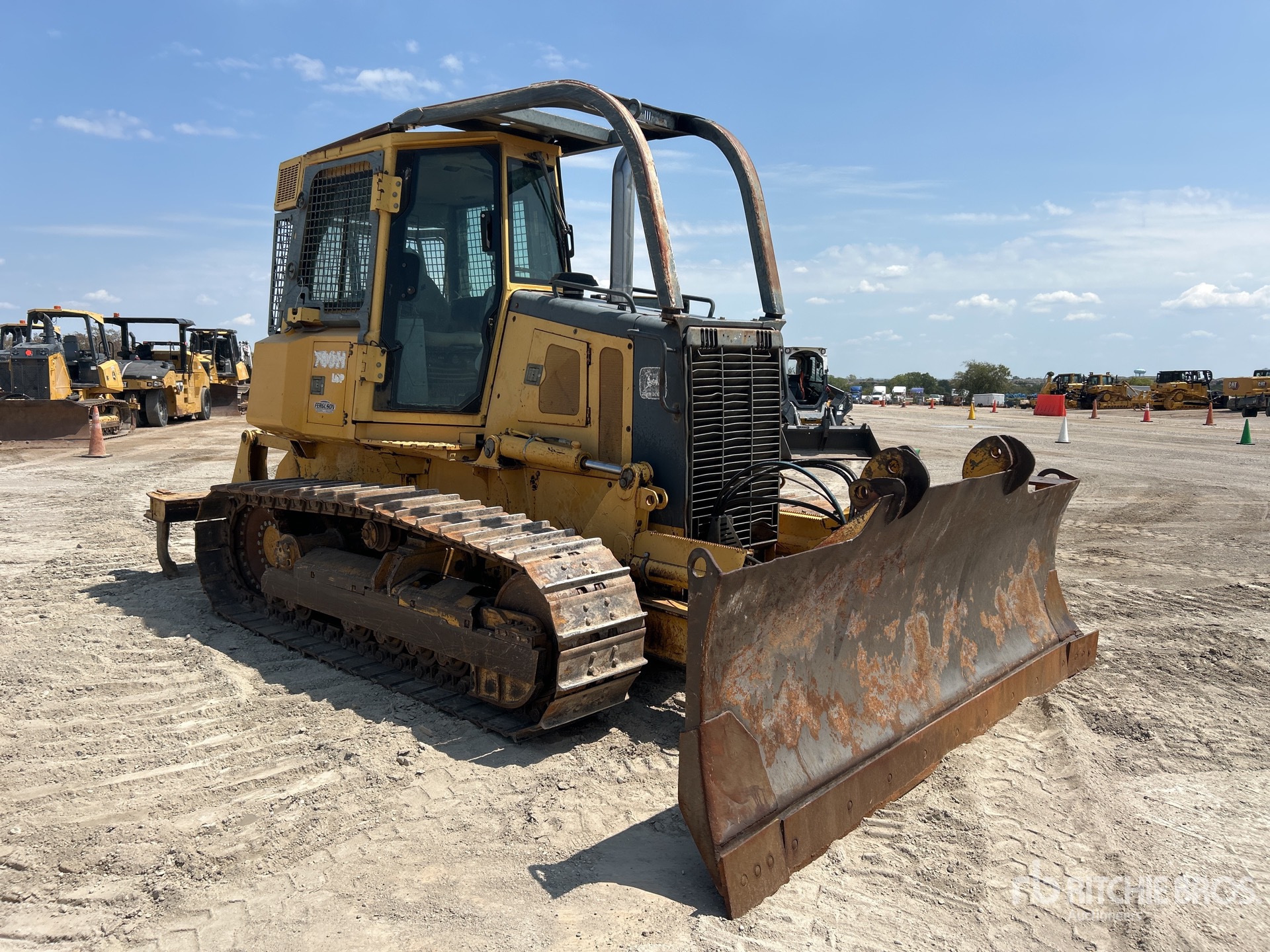

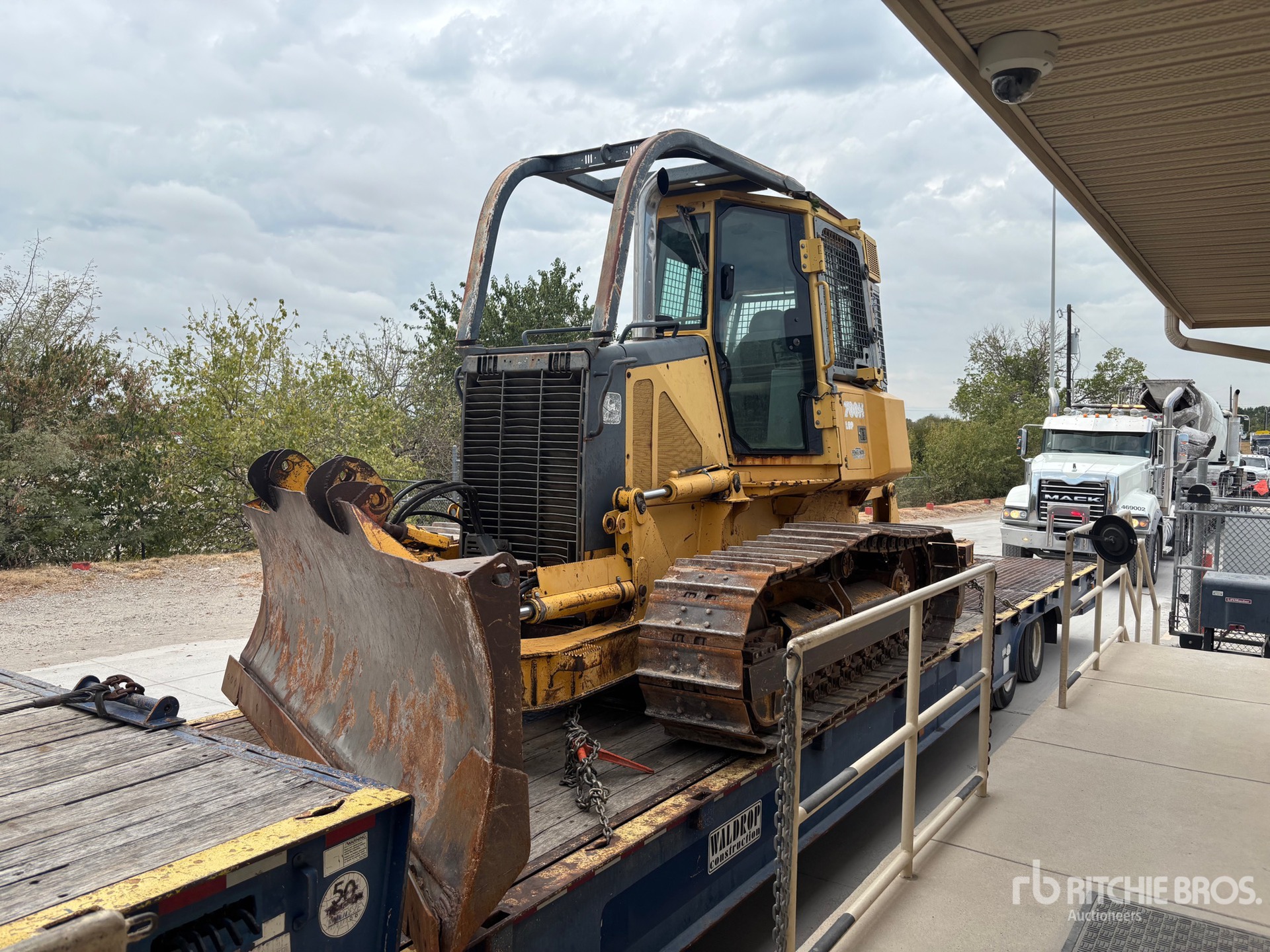

2002 John Deere 700H LGP For Sale in Fort Worth, Tx

2002 John Deere 700H LGP
2002 John Deere 700H LGP
2002 John Deere 700H LGP
2002 John Deere 700H LGP
2002 John Deere 700H LGP
2002 John Deere 700H LGP
2002 John Deere 700H LGP
2002 John Deere 700H LGP
2002 John Deere 700H LGP 2002 John Deere 700H LGP 2002 John Deere 700H LGP 2002 John Deere 700H LGP 2002 John Deere 700H LGP 2002 John Deere 700H LGP 2002 John Deere 700H LGP 2002 John Deere 700H LGP

/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-09-16   Click here to place a bid


Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info
Ritchie Bros. Auctioneers Website
Click here to email Ritchie Bros. Auctioneers.

Request an equipment inspection

Get shipping quotes
Click for Phone Number


Machine Info:

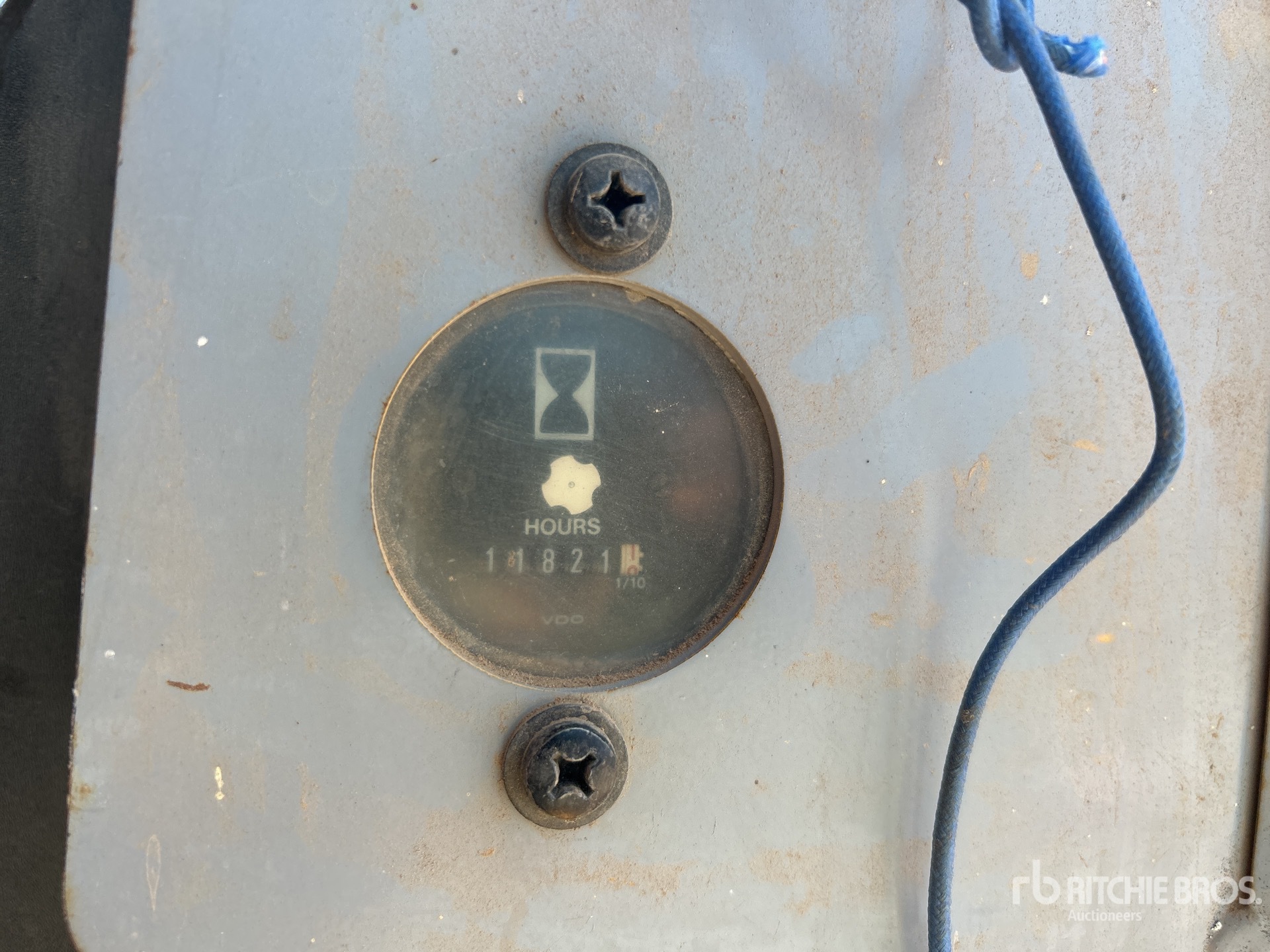

Hours:11821

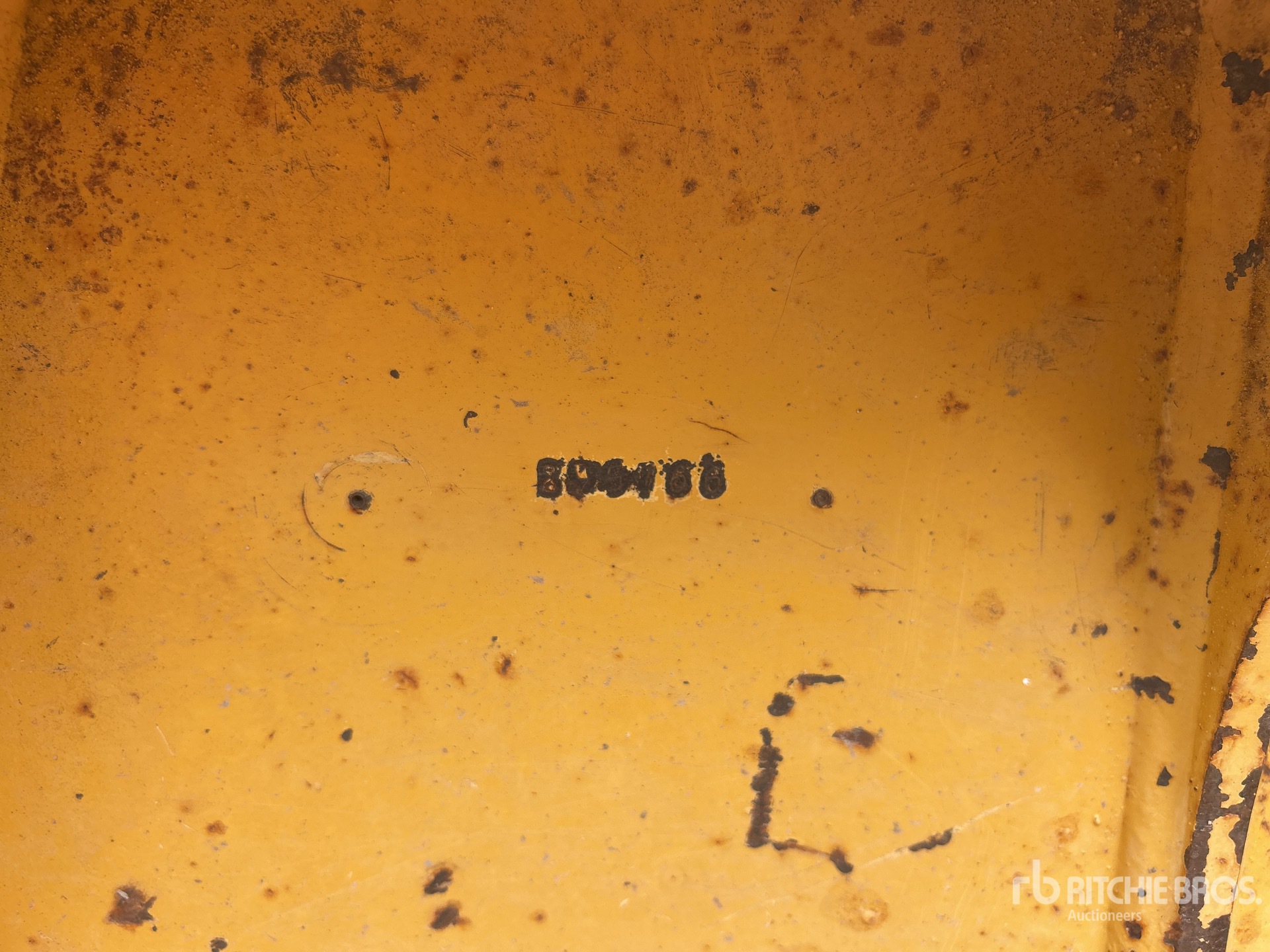

Serial Number:845766
Machine Location:FORT WORTH, TX

Description:

Enclosed Cab, Air Conditioner, 2001 US EPA Label, Sweeps, 132 in Wide PAT Blade, 20 in Single Grouser Track Shoes, 1 Cylinder Multi-Shank Ripper Closing Time: 2026-09-16 04:00:00 PM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The John Deere 700H LGP is a crawler dozer designed for grading, pushing, and site preparation in soft or low-ground-pressure conditions. The LGP configuration uses wider tracks to reduce ground pressure and improve flotation on wet, sandy, or unstable terrain. It is part of John Deere's 700H series and is commonly used in construction, land clearing, road building, and earthmoving applications. Typical features include a hydrostatic drive system, a front blade for material movement, and a heavy-duty undercarriage built for durability. The 700H LGP is classified as a crawler dozer for general earthmoving and finish grading work.
Dimensions
Ground Clearance 1 ft (0 m)
Height 10 ft (3 m)
Height To Top Of Cab 10 ft (3 m)
Length 16 ft (5 m)
Length Of Track On Ground 9 ft (3 m)
Length W/O Blade 16 ft (5 m)
Weight 27,900 lbs (12,655 kg)
Width 9 ft (3 m)
Width Over Tracks 9 ft (3 m)
Engine
Aspiration Turbocharger
Displacement 414 cu in (6,784 cu cm)
Engine Make 2,240
Engine Model PowerTech 6068T
Gross Power 123 hp (92 kw)
Max Torque 410 lbs ft (556 nm)
Net Power 115 hp (86 kw)
Number Of Cylinders 6
Power Measured @ 2,100 rpm
Torque Measured @ 1,300 rpm
Hydraulic System
Pump Flow Capacity 25 gpm (95 lpm)
Pump Type Gear, fixed-displacement pump
Relief Valve Pressure 3,200 psi
Operational
Alternator Supplied Amperage 55 amps
Cooling System Fluid Capacity 6 gal (21 l)
Engine Oil Capacity 5 gal (19 l)
Final Drives Fluid Capacity 4 gal (13 l)
Fuel Capacity 60 gal (227 l)
Hydraulic Fluid Capacity 14 gal (51 l)
Operating Voltage 24 V
Operating Weight 27,900 lbs (12,653 kg)
Powertrain Fluid Capacity 17 gal (65 l)
Standard Blade
Blade Angle (Both Directions) 25 degrees
Capacity 4 cu yd
Cutting Depth 21 in (53 cm)
Height 39 in (99 cm)
Width 11 ft (3 m)
Transmission
Max Speed - Forward 6 mph (9 kph)
Max Speed - Reverse 6 mph (9 kph)
Transmission Type Dual-path, electronic-controlled, hydrostatic drive
Undercarriage
Ground Contact Area 4111 in2
Ground Pressure 7 psi
Number Of Shoes Per Side 42
Number Of Track Rollers Per Side 7
Track Pitch 7 in (18 cm)
