2018 John Deere 160G LC For Sale in Edmonton, Ab

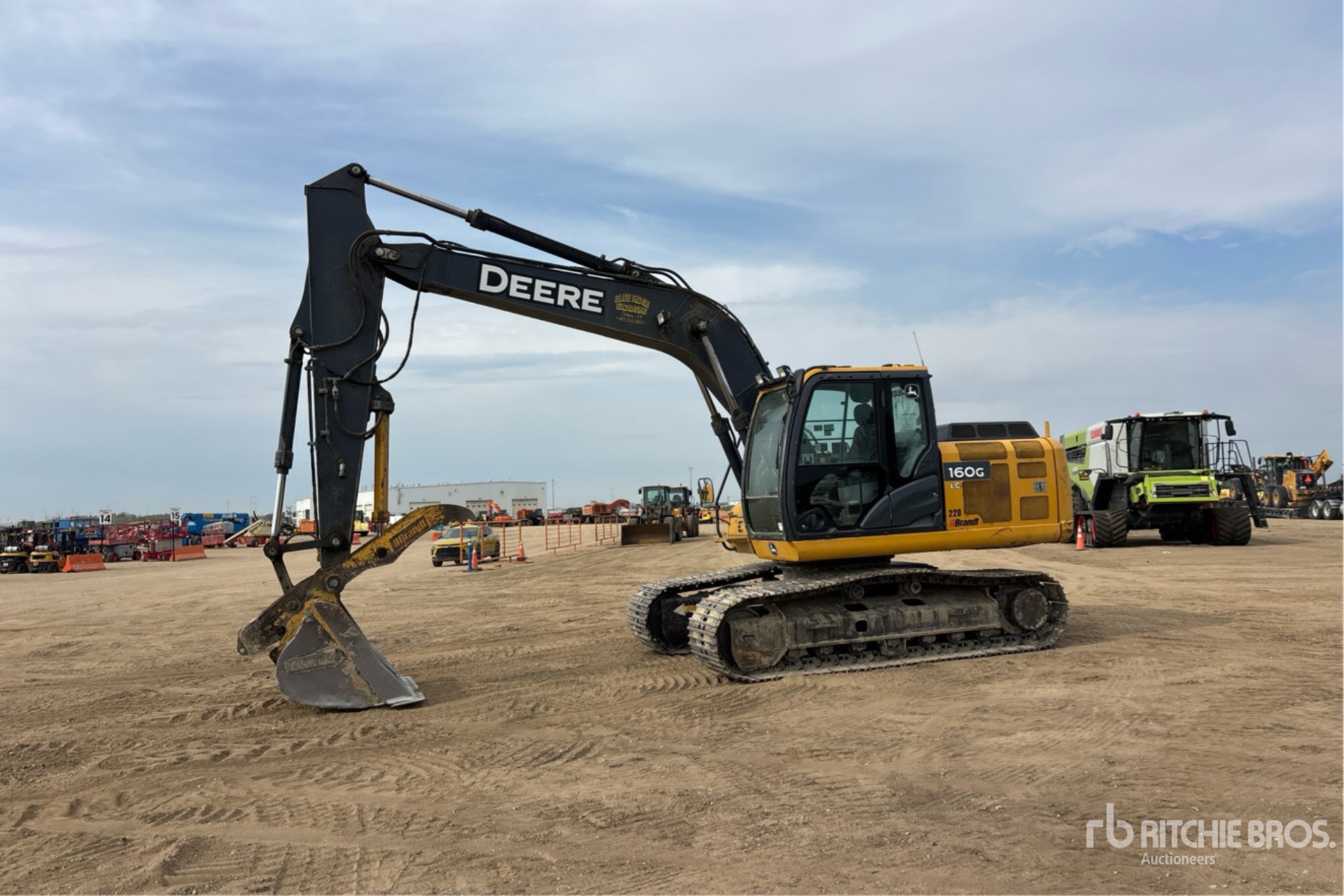

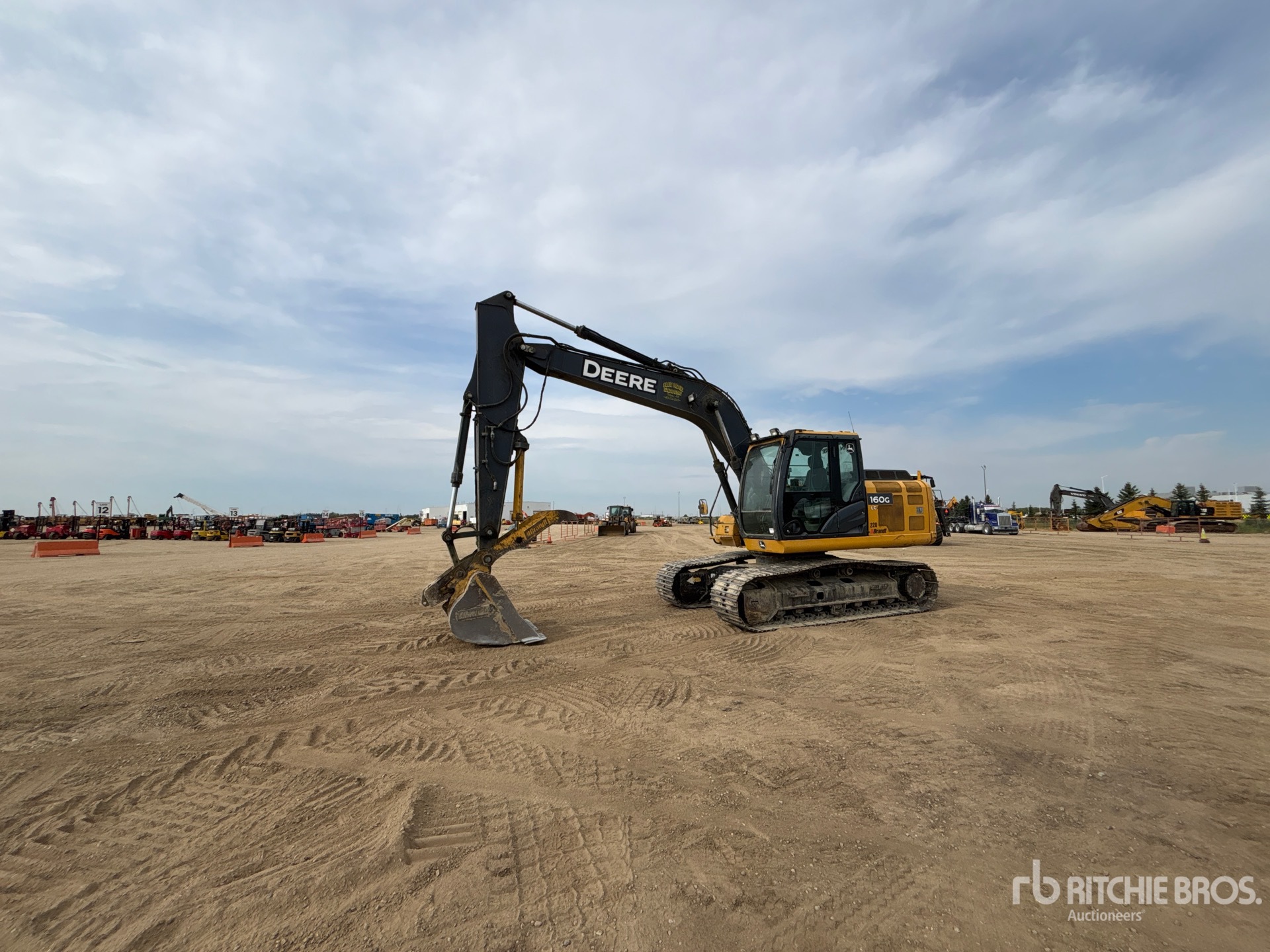

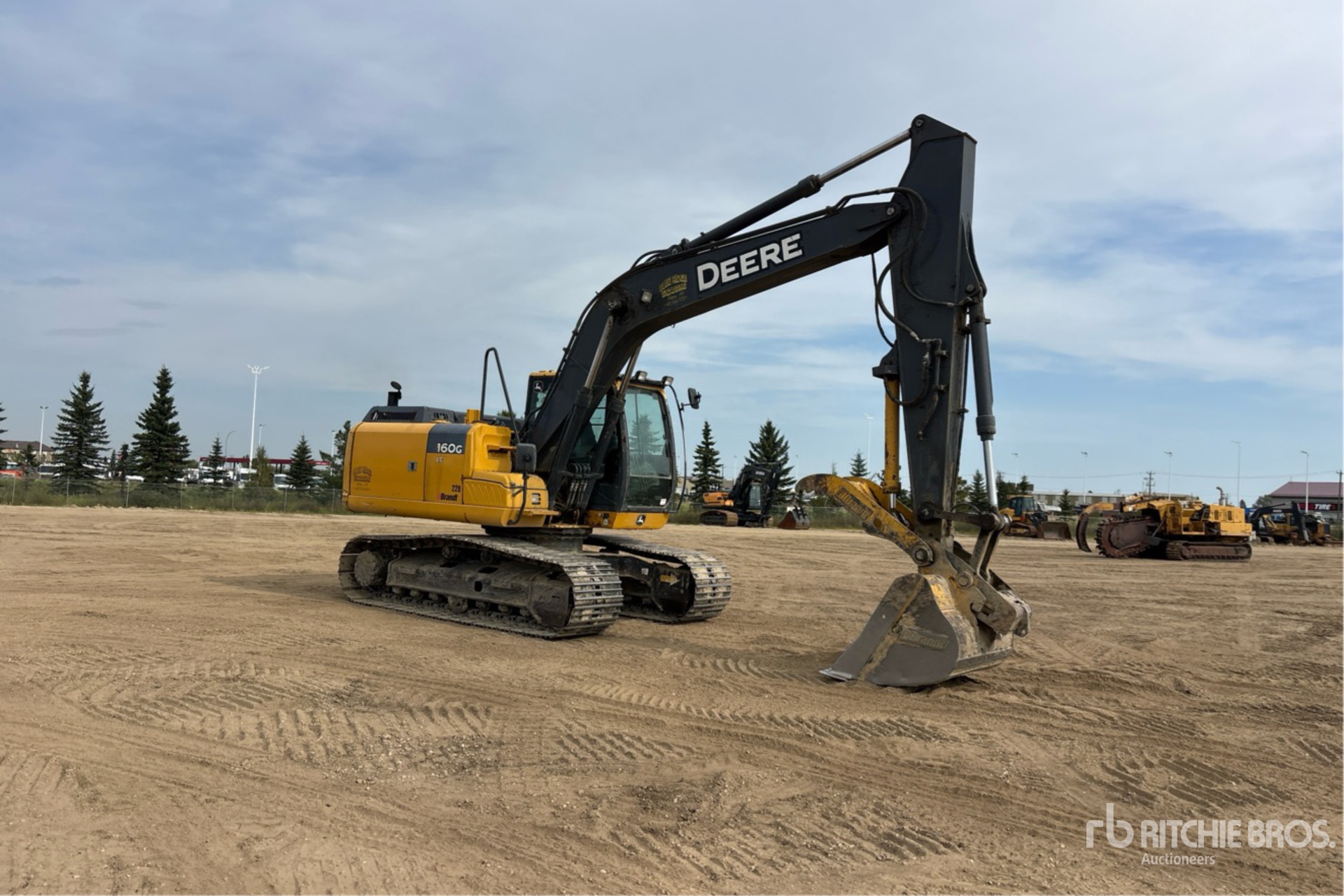

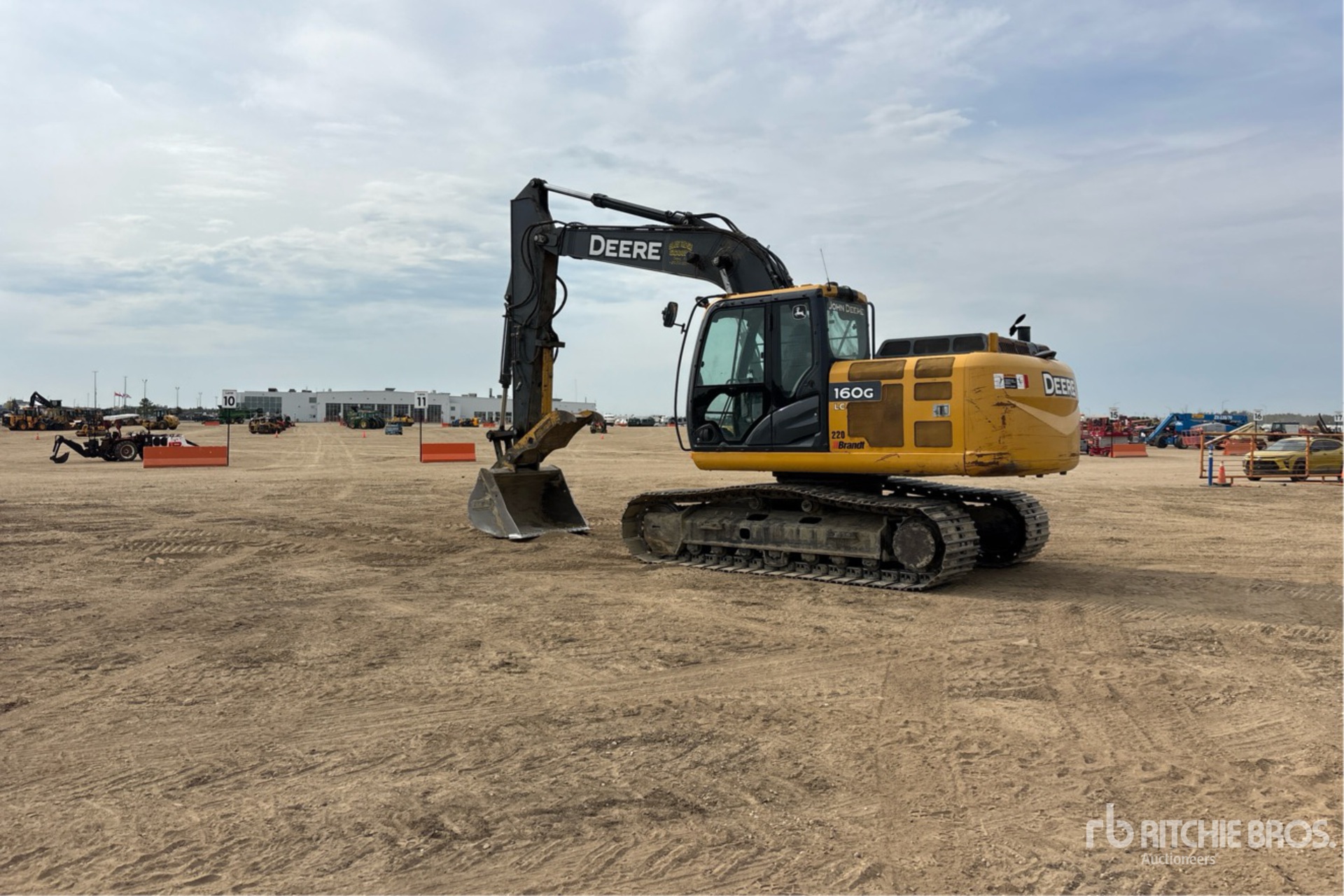

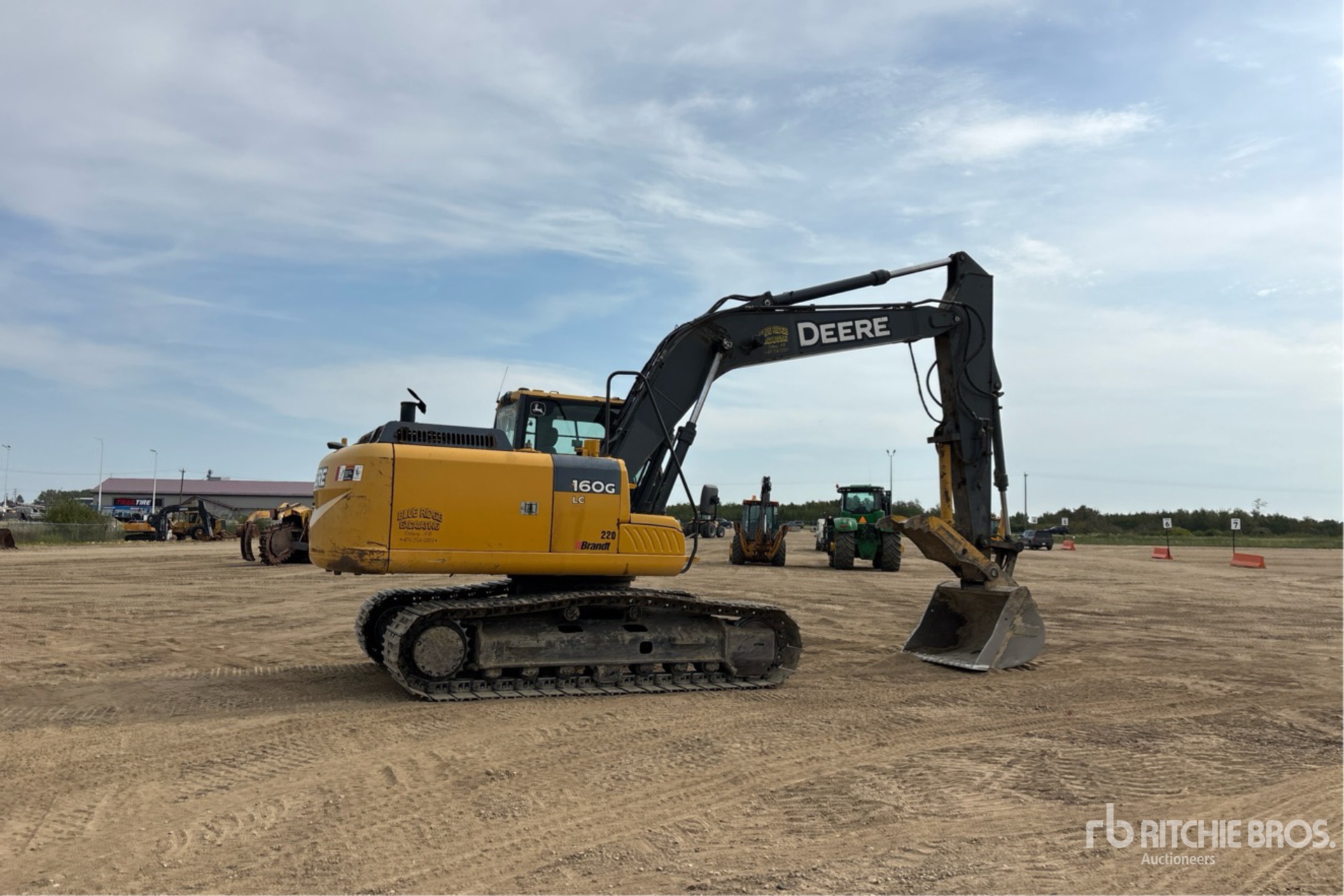

Name: 2018 John Deere 160G LC
Brand: John Deere
SKU: 89139819
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-22

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

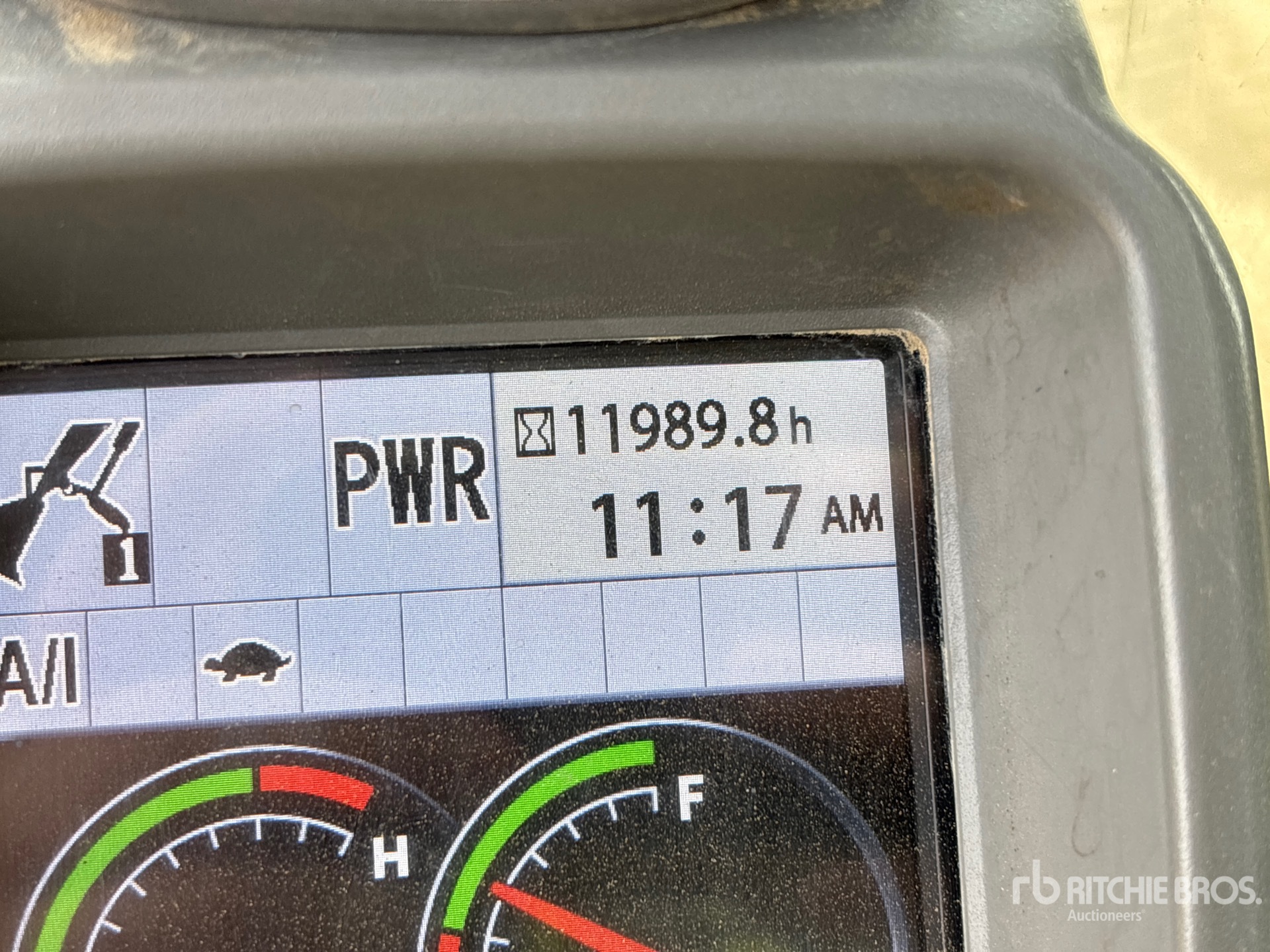

Hours:	11989

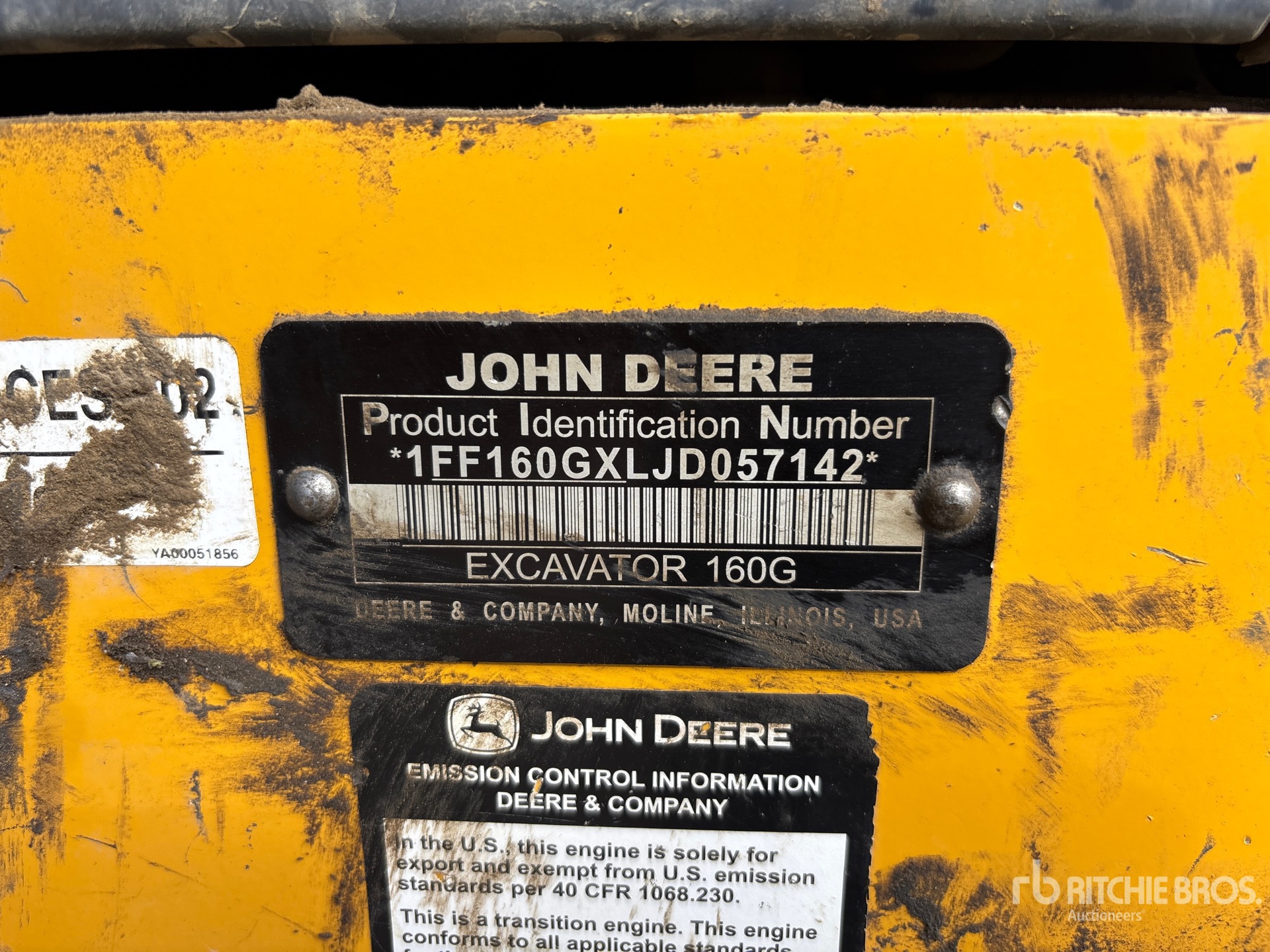

Serial Number:	1FF160GXLJD057142
Machine Location:	EDMONTON, AB

Description:

Located in Lane 6 Spot 30, Air Conditioner, 10 ft Stick, Auxiliary Hydraulic Plumbing, 28 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, 52 in Cleanup Bucket, Hydraulic Thumb Closing Time: 2026-09-22 10:14:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 160G LC is a hydraulic excavator in the 16-ton class, designed for general construction, utility work, site preparation, and material handling. It features a long-carriage undercarriage for improved stability and a reduced-tail-swing design for operation in confined spaces. The 160G LC is typically equipped with a fuel-efficient diesel engine, advanced hydraulic controls, and a comfortable operator cab with monitoring and control systems. Common attachments include buckets, thumbs, and hydraulic tools. The model is used in earthmoving, trenching, grading, and demolition support applications. It is part of John Deere's G-Series excavator lineup.

Capacities
Fuel Tank - Diesel	58 gal (220 l)
Hydraulic Tank	16 gal (60 l)
Number Of Batteries	2
System Voltage	24 V
Dimensions
Dig Depth - 2.44m 8 Ft Flat Bottom	21 ft (6 m)
Dig Depth - Mono Boom	21 ft (6 m)
Dig Height - Mono Boom	30 ft (9 m)
Digging Reach - Mono Boom	31 ft (9 m)
Dump Height - Mono Boom	21 ft (6 m)
Ground Clearance	2 ft (0 m)
Ground Clearance	2 ft (0 m)
Ground Level Reach - Mono Boom	30 ft (9 m)
Height	10 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Length	28 ft (9 m)
Overall Width	9 ft (3 m)
Removal Counterweight Clearance	3 ft (1 m)
Standard Dipper	10 ft (3 m)
Tail Swing Radius	10 ft (3 m)
Tail Swing Radius	8 ft (3 m)
Track Gauge	7 ft (2 m)
Track Length On Ground	10 ft (3 m)
Transport Height - Maximum	10 ft (3 m)
Transport Length Mono Boom	28 ft (9 m)
Undercarriage Overall Length	13 ft (4 m)
Weight	39,685 lbs (18,001 kg)
Width	9 ft (3 m)
Width Over Standard Tracks	9 ft (3 m)
Driveline
Displacement	275 cu in (4,502 cu cm)
Emission Rating	Tier 4
Engine Manufacturer	John Deere Power Tech
Engine Output - Net	121 hp (90 kw)
Number Of Carrier Rollers - Each Side	1
Number Of Cylinders	4
Number Of Track Rollers - Each Side	7
Rated Speed	2,200 rpm
Track Shoe Width	28 in (70 cm)
Engine
Displacement	275 cu in (4,502 cu cm)
Engine Make	2,240
Engine Model	PowerTech PWS 4.5 L
Net Power	122 hp (91 kw)
Operational
Cooling System Fluid Capacity	6 gal (24 l)
Engine Oil Capacity	5 gal (17 l)
Fuel Capacity	75 gal (285 l)
Hydraulic System Fluid Capacity	33 gal (125 l)
Operating Weight	29,526 lbs (13,390 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Performance
Boost Pressure	5,511 psi
Breakout - Bucket	26,752 lbs (12,133 kg)
Bucket Pressure	343
Dipper Tearout	18,434 lbs (8,360 kg)
End Lift - 7.5m Reach	6,945 lbs (3,149 kg)
Gradeability	70 %
Ground Bearing Pressure	5 psi
Main Pumps - Maximum Flow	101 gpm (382 lpm)
Side Lift - 7.5m Reach	4,189 lbs (1,900 kg)
Slew Torque	33 lbs ft (44 nm)
Tractive Force	35,520 lbs (16,109 kg)
Travel Speed - High	3 mph (5 kph)
Swing Mechanism
Swing Speed	13 rpm
Swing Torque	32,353 lbs ft (43,864 nm)
Undercarriage
Drawbar Pull	35,521 lbs (16,109 kg)
Max Travel Speed	3 mph (5 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	43
Number Of Track Rollers Per Side	7
Weights
Operating Weight	39,562 lbs (17,942 kg)
