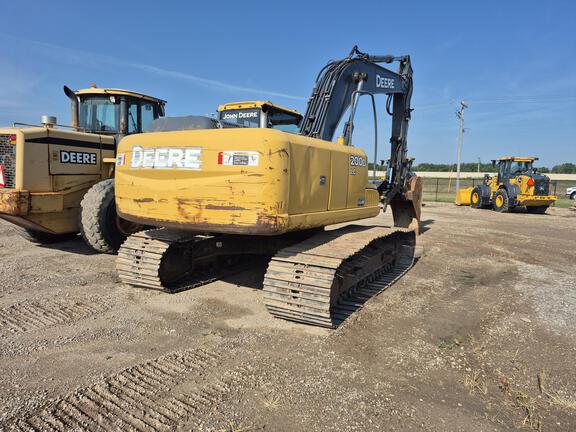

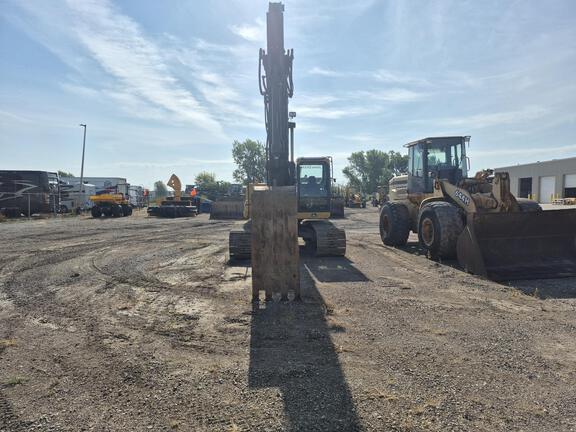

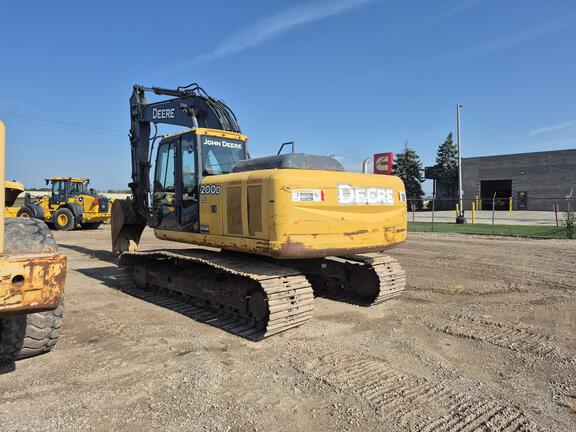

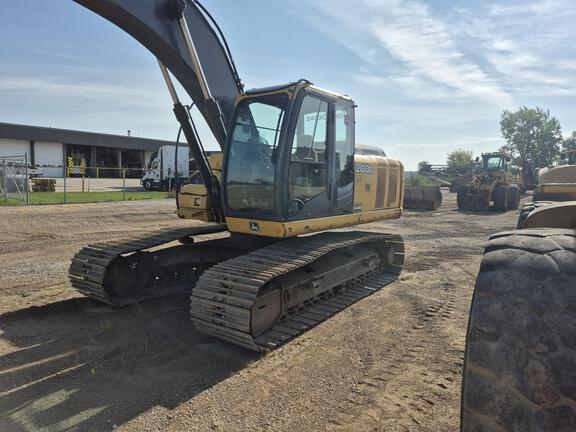

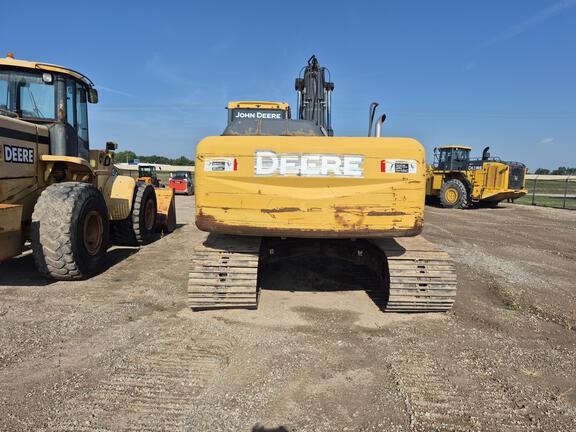

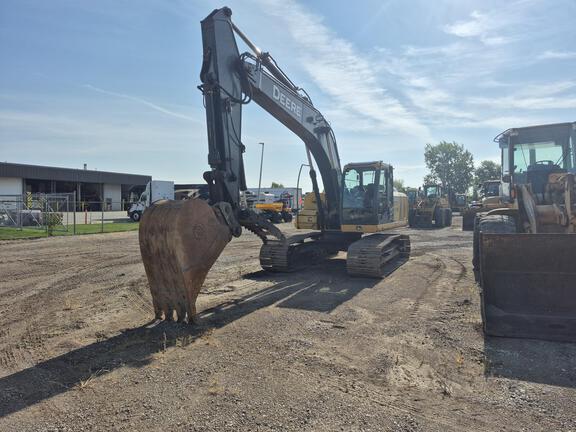

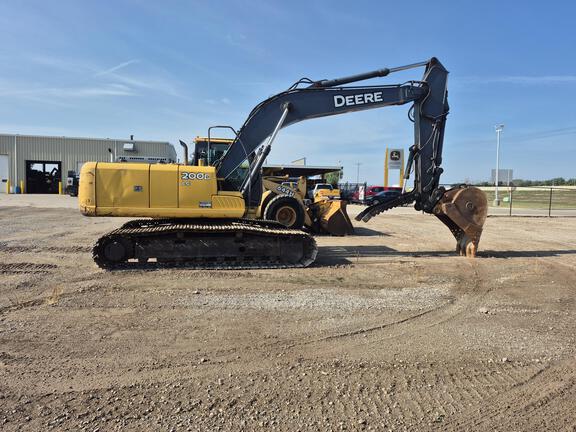

2009 John Deere 200D LC For Sale in Sparta, WI

Name: 2009 John Deere 200D LC
Brand: John Deere
SKU: 89117943
Price: 48000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $48,000.00 USD

Apply for Financing

Brooks Tractor

Brooks Tractor Dealer Info

Brooks Tractor Website

Click here to email Brooks Tractor.

Contact: Lewis Brooks

Click for Phone Number

Machine Info:

Serial Number:	FF200DX511735
Stock Number:	C00902
Machine Location:	SPARTA, WI

Description:

Cab w/ AC, Control Pattern, Coupler, Hydraulic Thumb, 30" Bucket, AUX Hyd

Machine Details:

General Specifications

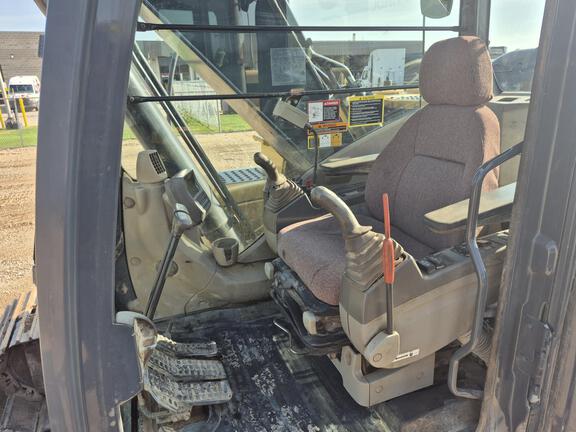

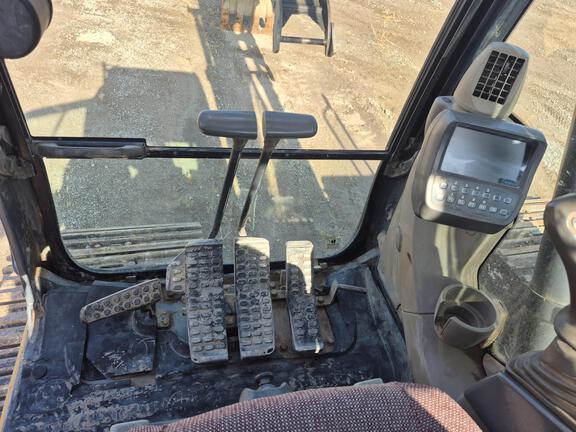

Operators Station	Cab w/ AC
Arms	Long Arm
Booms	Standard Boom

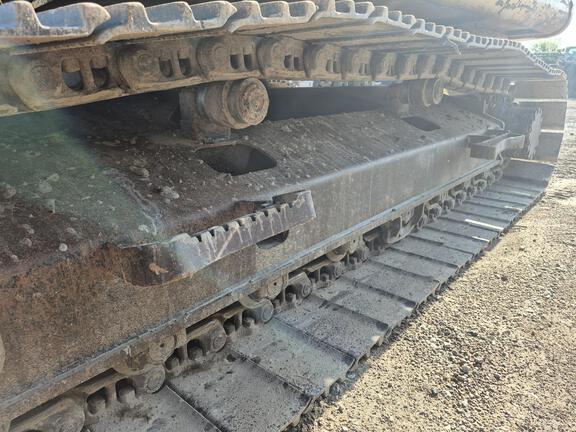

Tracks	Long Track
Attachments	Coupler
Options	Aux Hydraulics
Buckets	30" Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

John Deere 200D LC excavator is a hydraulic crawler excavator designed for earthmoving, trenching, site preparation, and general construction work. The 200D LC features a long-carriage undercarriage for improved stability and digging performance, along with a diesel engine, hydraulic boom and arm system, and a rotating upper structure for 360-degree operation. It is commonly used in utility, roadbuilding, demolition, and material handling applications. The machine supports a range of buckets and attachments, making it suitable for varied jobsite tasks. John Deere 200D LC excavators are recognized for their balance of digging depth, reach, and operating efficiency in medium-duty applications.

Boom/Stick 1
Boom/Stick 1	9\'7\" (2910mm) stick
Max Cutting Height	33 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	31 ft (10 m)
Boom/Stick 2
Boom/Stick 2	7\'11\" (2420mm) stick
Max Cutting Height	32 ft (10 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	32 ft (10 m)
Buckets
Maximum Bucket Capacity	2 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	1 cu yd
Dimensions
Ground Clearance	1 ft (0 m)
Height	10 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Length	31 ft (10 m)
Length Of Track On Ground	12 ft (4 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	9 ft (3 m)
Weight	49,940 lbs (22,649 kg)
Width	11 ft (3 m)
Width To Outside Of Tracks	10 ft (3 m)

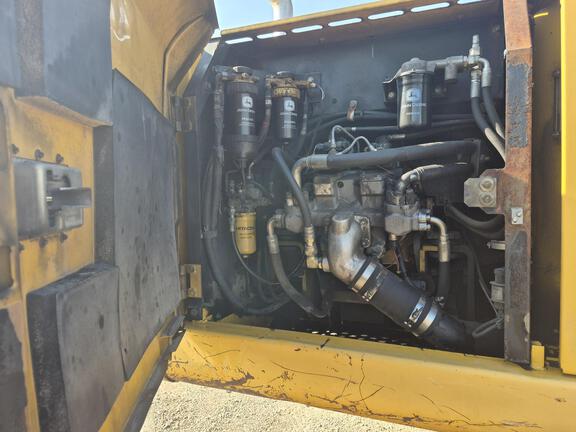

Engine
Aspiration	Turbocharged air to air charge cooler
Displacement	414 cu in (6,784 cu cm)
Engine Make	2,240
Engine Model	6068H
Net Power	159 hp (119 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Operational
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	7 gal (26 l)
Engine Oil Capacity	6 gal (23 l)
Fuel Capacity	106 gal (400 l)
Hydraulic Pump Flow Capacity	112 gpm (424 lpm)
Hydraulic System Fluid Capacity	64 gal (240 l)
Hydraulic System Relief Valve Pressure	4,980 psi
Operating Voltage	24 V
Operating Weight	49,986 lbs (22,673 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	13 rpm
Swing Torque	50,662 lbs ft (68,688 nm)

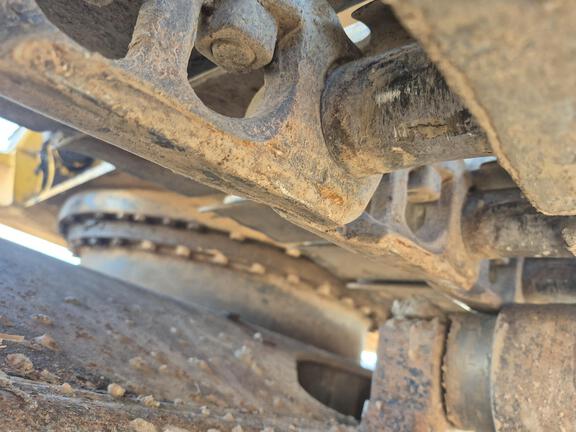

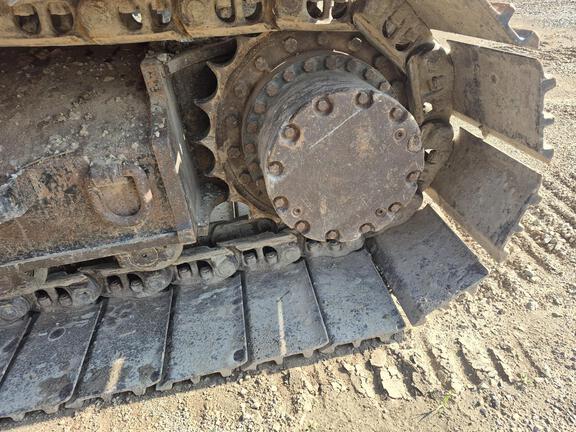

Undercarriage
Drawbar Pull	45,620 lbs (20,693 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (6 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	49
Number Of Track Rollers Per Side	8
Shoe Size	32 in (80 cm)
Track Gauge	8 ft (2 m)
