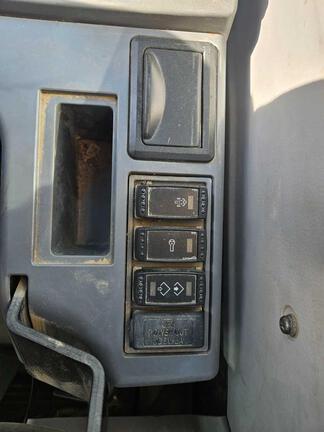

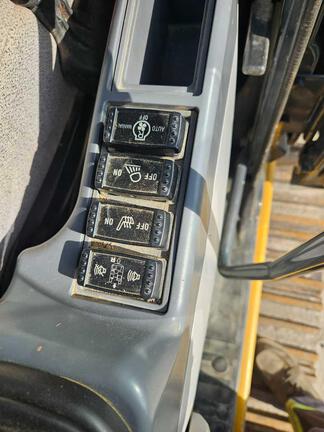

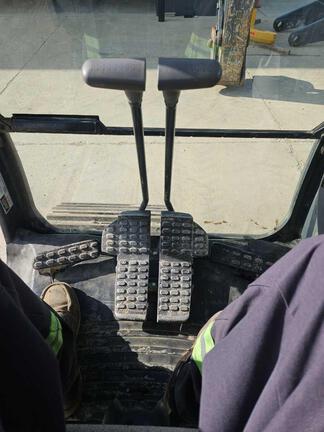

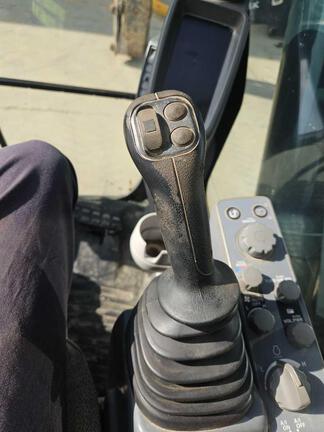

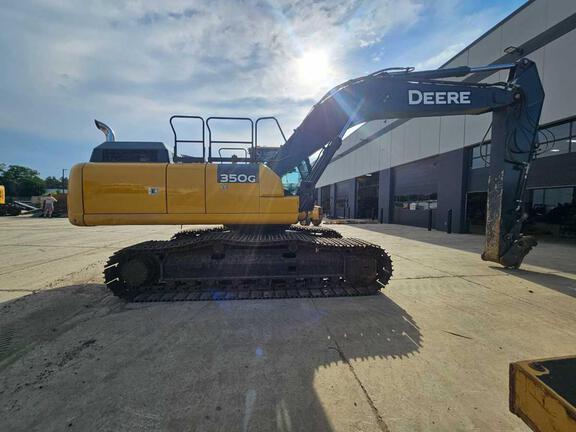

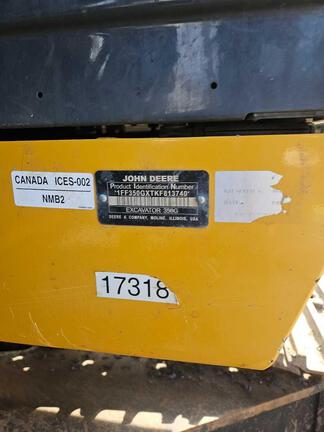

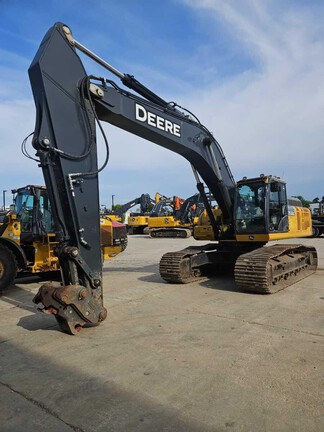

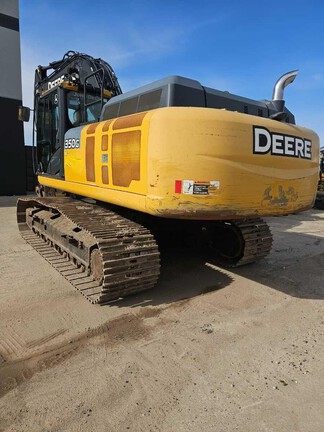

| Boom/Stick 1 |
|
Boom/Stick 1 |
Arm Length 2.66 m (8 ft. 9 in.) |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
18 ft (6 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
37 ft (11 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Arm Length 3.2 m (10 ft. 6 in.) |
|
Max Cutting Height |
34 ft (10 m)
|
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
36 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
21 ft (6 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
37 ft (11 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Arm Length 4.0 m (13 ft. 1 in.) |
|
Max Cutting Height |
35 ft (11 m)
|
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Loading Height |
25 ft (8 m)
|
|
Max Reach Along Ground |
38 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
24 ft (7 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
37 ft (11 m)
|
| Capacities |
|
Fuel Tank - Diesel |
166 gal (628 l)
|
|
Hydraulic Tank |
51 gal (193 l)
|
|
Number Of Batteries |
2 |
|
System Voltage |
24 V |
| Dimensions |
|
Dig Depth - 2.44m 8 Ft Flat Bottom |
26 ft (8 m)
|
|
Dig Depth - Mono Boom |
27 ft (8 m)
|
|
Dig Height - Mono Boom |
35 ft (11 m)
|
|
Digging Reach - Mono Boom |
39 ft (12 m)
|
|
Dump Height - Mono Boom |
25 ft (8 m)
|
|
Ground Clearance |
2 ft (1 m)
|
|
Ground Clearance |
0 ft (0 m)
|
|
Ground Level Reach - Mono Boom |
38 ft (12 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
37 ft (11 m)
|
|
Length Of Track On Ground |
13 ft (4 m)
|
|
Overall Width |
11 ft (3 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Standard Dipper |
13 ft (4 m)
|
|
Tail Swing Radius |
15 ft (4 m)
|
|
Tail Swing Radius |
12 ft (4 m)
|
|
Track Gauge |
9 ft (3 m)
|
|
Track Length On Ground |
13 ft (4 m)
|
|
Transport Height - Maximum |
12 ft (4 m)
|
|
Transport Length Mono Boom |
37 ft (11 m)
|
|
Undercarriage Overall Length |
16 ft (5 m)
|
|
Weight |
78,550 lbs (35,630 kg)
|
|
Width |
11 ft (3 m)
|
|
Width Over Standard Tracks |
11 ft (3 m)
|
|
Width To Outside Of Tracks |
11 ft (3 m)
|
| Driveline |
|
Displacement |
549 cu in (9,001 cu cm)
|
|
Emission Rating |
Tier 4 |
|
Engine Manufacturer |
John Deere |
|
Engine Output - Net |
271 hp (202 kw)
|
|
Number Of Carrier Rollers - Each Side |
2 |
|
Number Of Cylinders |
6 |
|
Number Of Track Rollers - Each Side |
8 |
|
Rated Speed |
1,900 rpm |
|
Track Shoe Width |
32 in (80 cm)
|
| Engine |
|
Aspiration |
Turbocharged, air-to-air charge-air cooler |
|
Displacement |
549 cu in (9,001 cu cm)
|
|
Engine Make |
2,240 |
|
Engine Model |
PowerTech™ PSX 9.0 L |
|
Net Power |
299 hp (223 kw)
|
|
Number Of Cylinders |
6 |
| Operational |
|
Cooling System Fluid Capacity |
11 gal (40 l)
|
|
Engine Oil Capacity |
7 gal (27 l)
|
|
Fuel Capacity |
166 gal (628 l)
|
|
Hydraulic Pump Flow Capacity |
76 gpm (288 lpm)
|
|
Hydraulic System Fluid Capacity |
77 gal (290 l)
|
|
Operating Weight |
76,558 lbs (34,720 kg)
|
|
Swing Drive Fluid Capacity |
3 gal (12 l)
|
| Performance |
|
Boost Pressure |
55 psi |
|
Breakout - Bucket |
55,303 lbs (25,081 kg)
|
|
Bucket Pressure |
343 |
|
Dipper Tearout |
35,745 lbs (16,211 kg)
|
|
End Lift - 7.5m Reach |
20,135 lbs (9,131 kg)
|
|
Gradeability |
70 % |
|
Ground Bearing Pressure |
7 psi |
|
Main Pumps - Maximum Flow |
125 gpm (472 lpm)
|
|
Side Lift - 7.5m Reach |
11,874 lbs (5,385 kg)
|
|
Slew Speed |
11 rpm |
|
Slew Torque |
89 lbs ft (120 nm)
|
|
Tractive Force |
66,903 lbs (30,342 kg)
|
|
Travel Speed - High |
3 mph (5 kph)
|
| Swing Mechanism |
|
Swing Speed |
11 rpm |
|
Swing Torque |
88,508 lbs ft (119,998 nm)
|

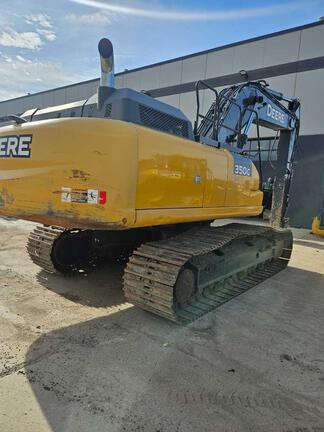

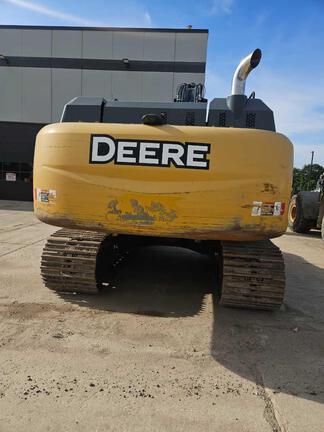

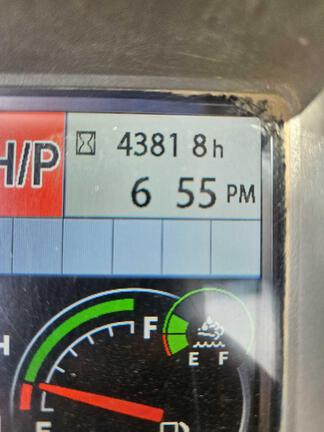

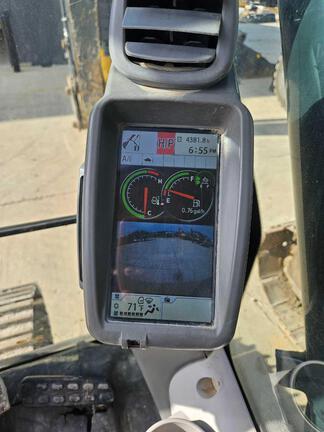

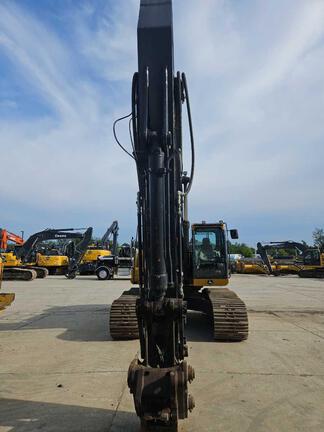

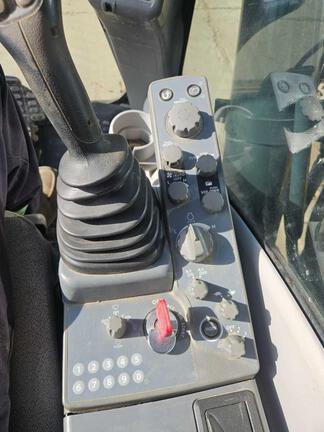

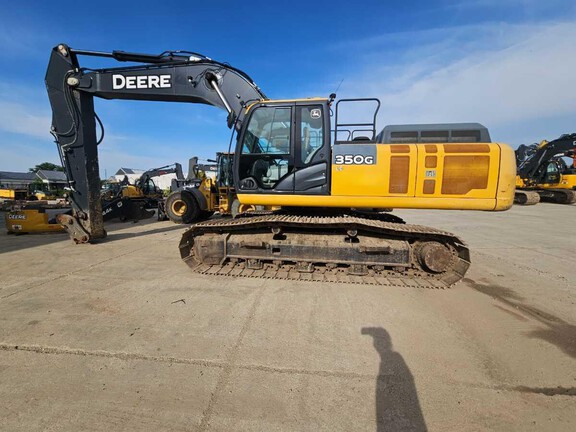

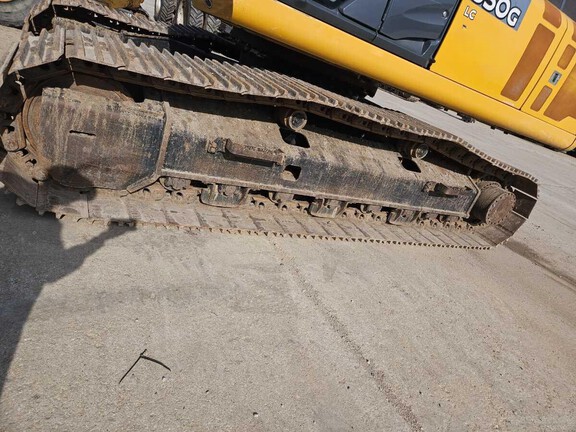

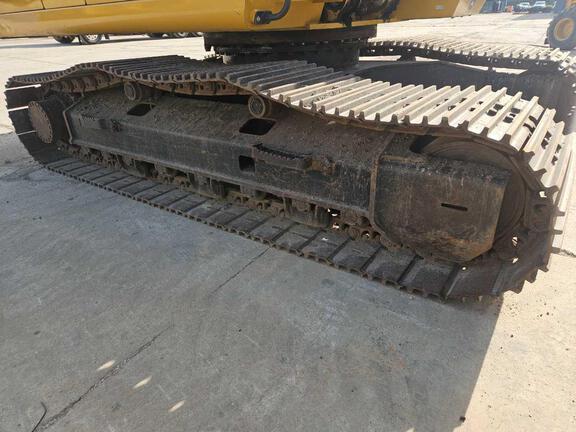

| Undercarriage |
|
Drawbar Pull |
64,375 lbs (29,195 kg)
|
|
Ground Pressure |
8 psi |
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
48 |
|
Number Of Track Rollers Per Side |
8 |
|
Track Gauge |
9 ft (3 m)
|
| Weights |
|
Operating Weight |
78,595 lbs (35,644 kg)
|
