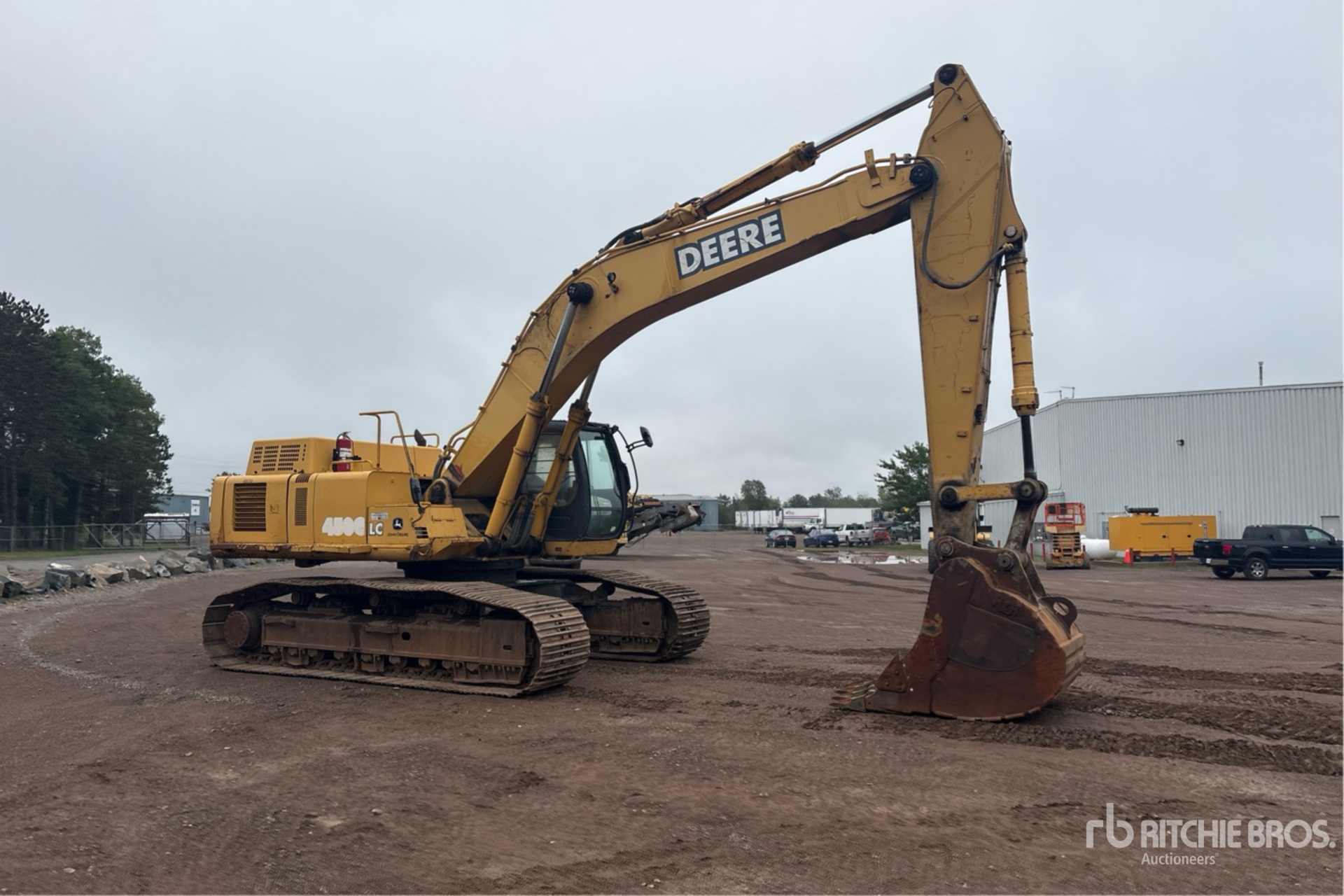

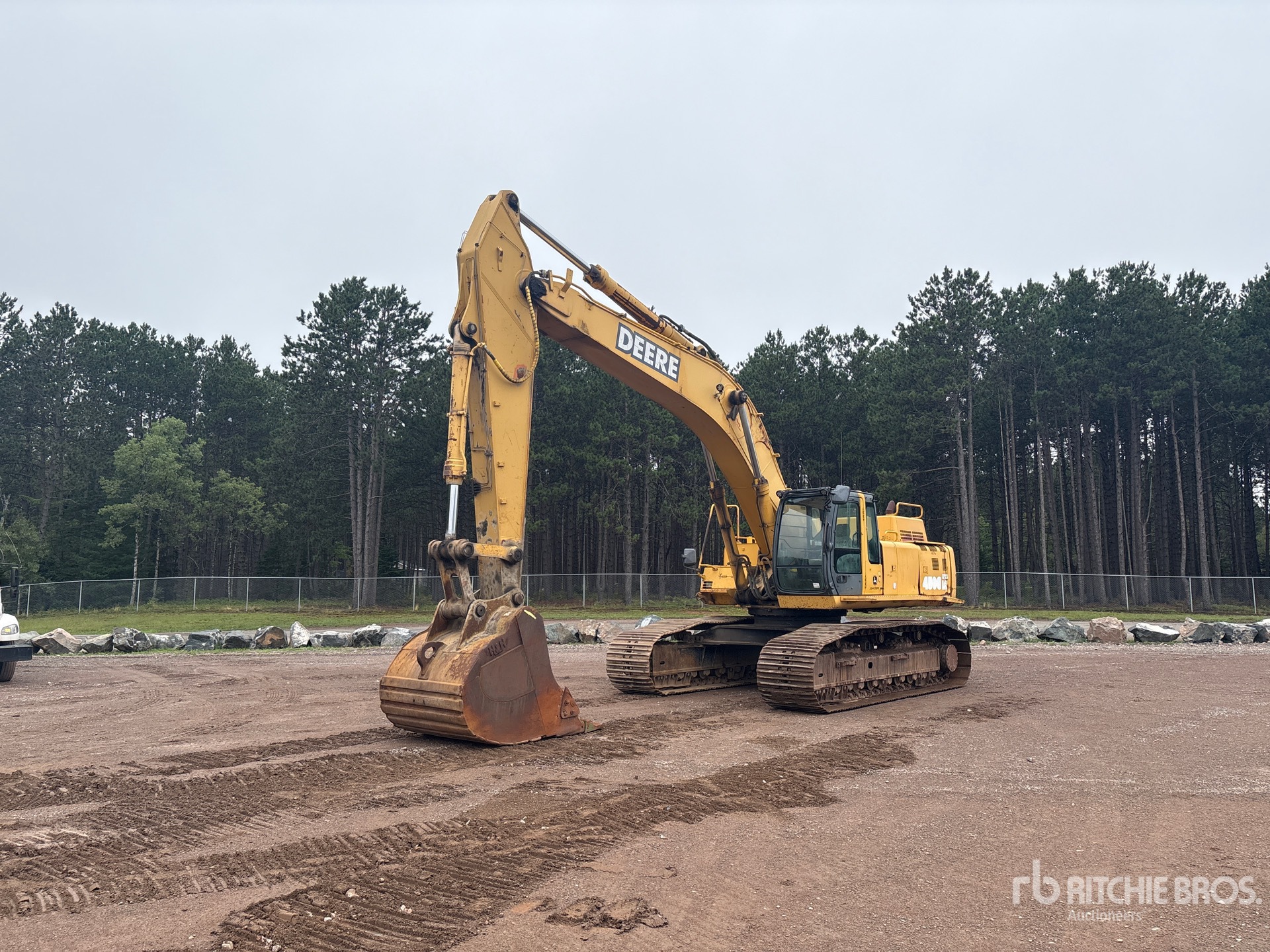

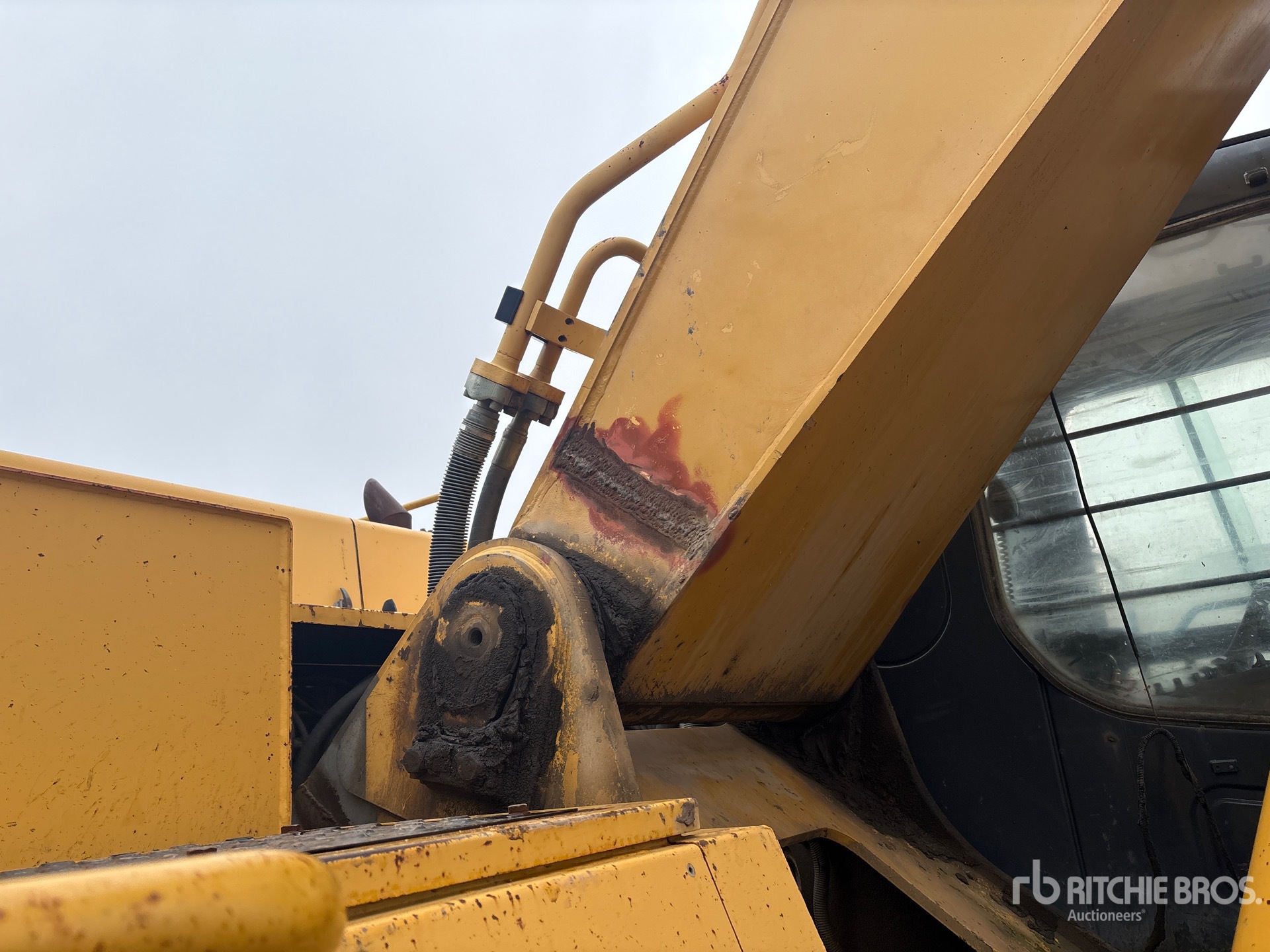

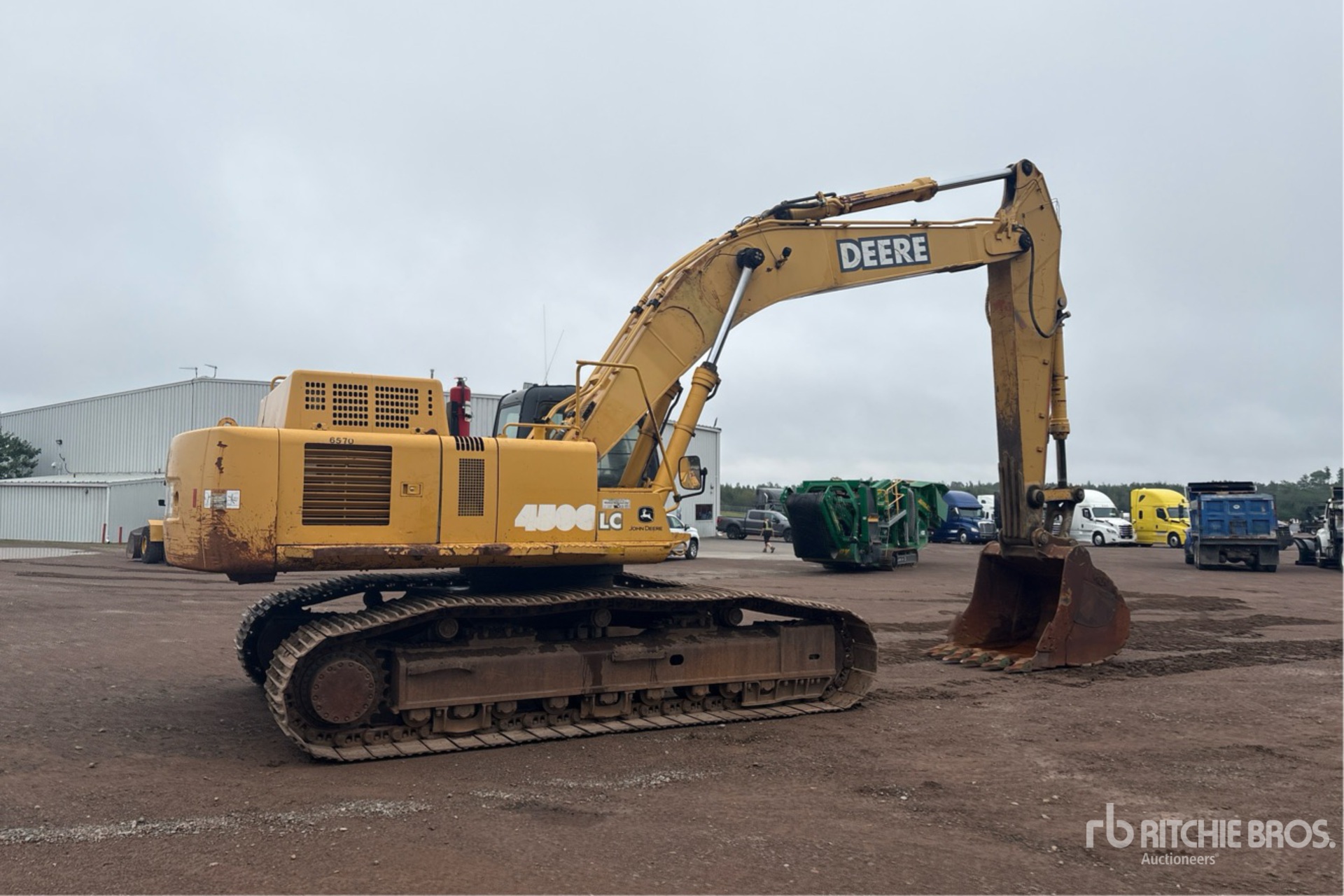

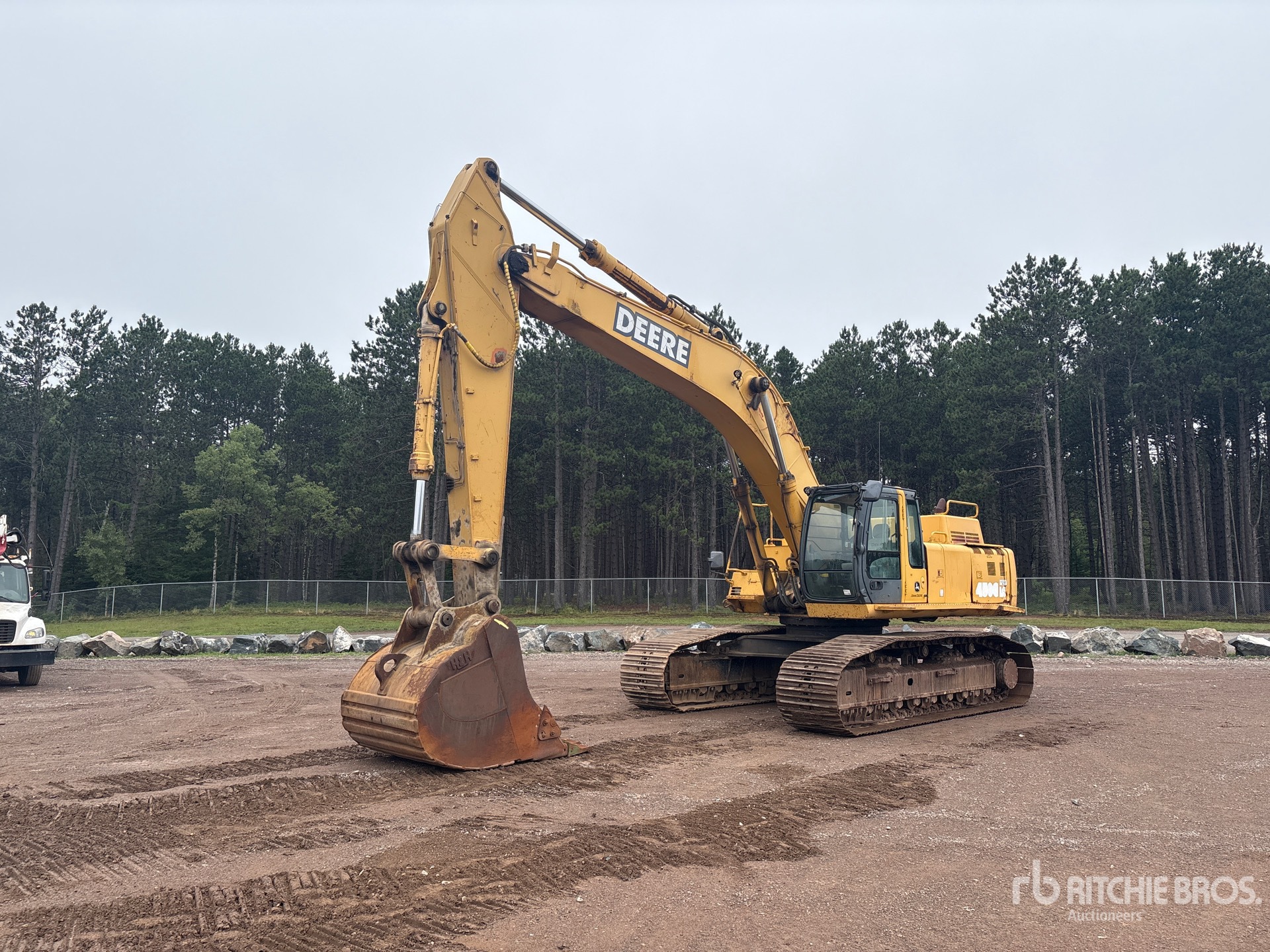

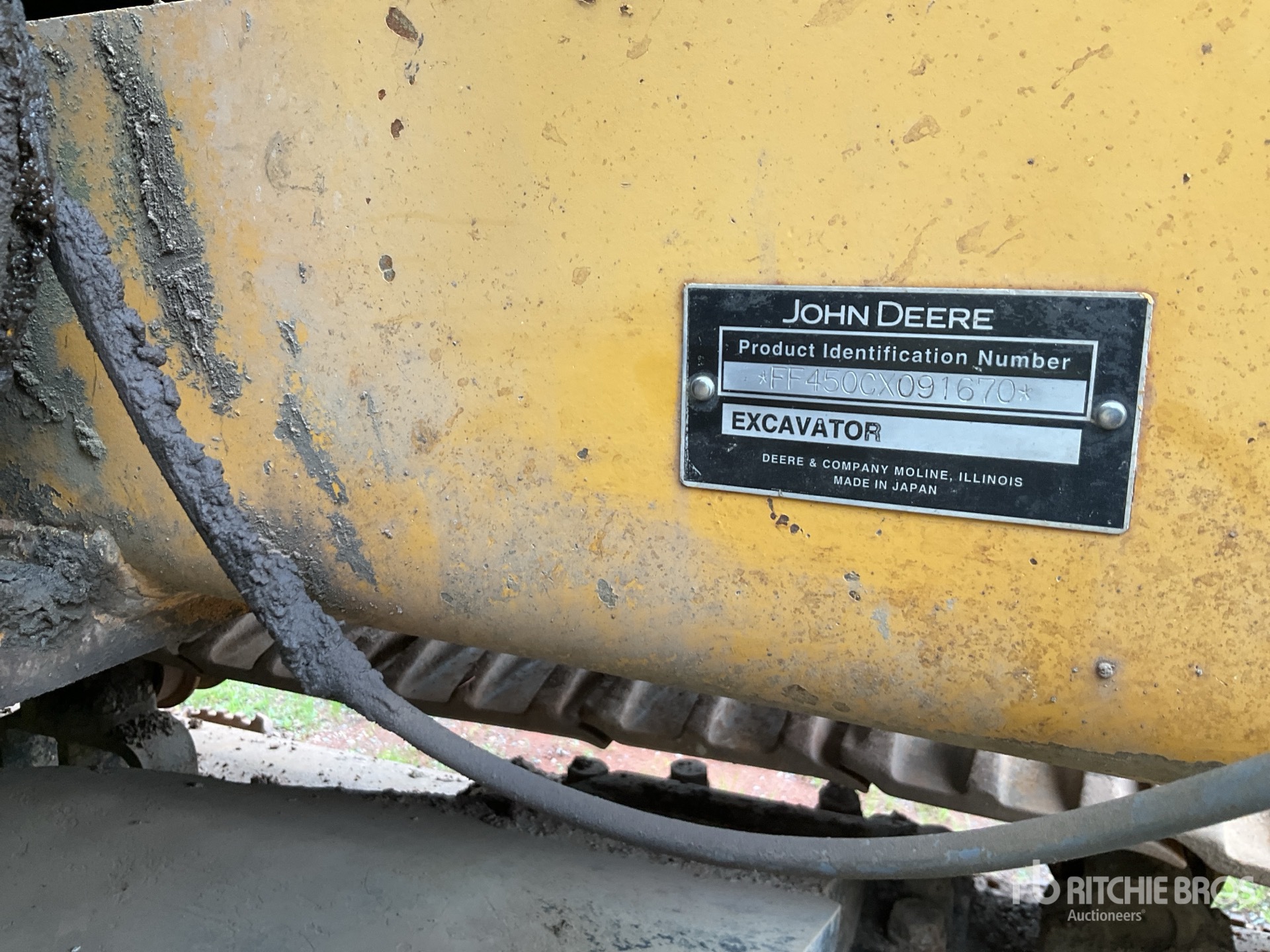

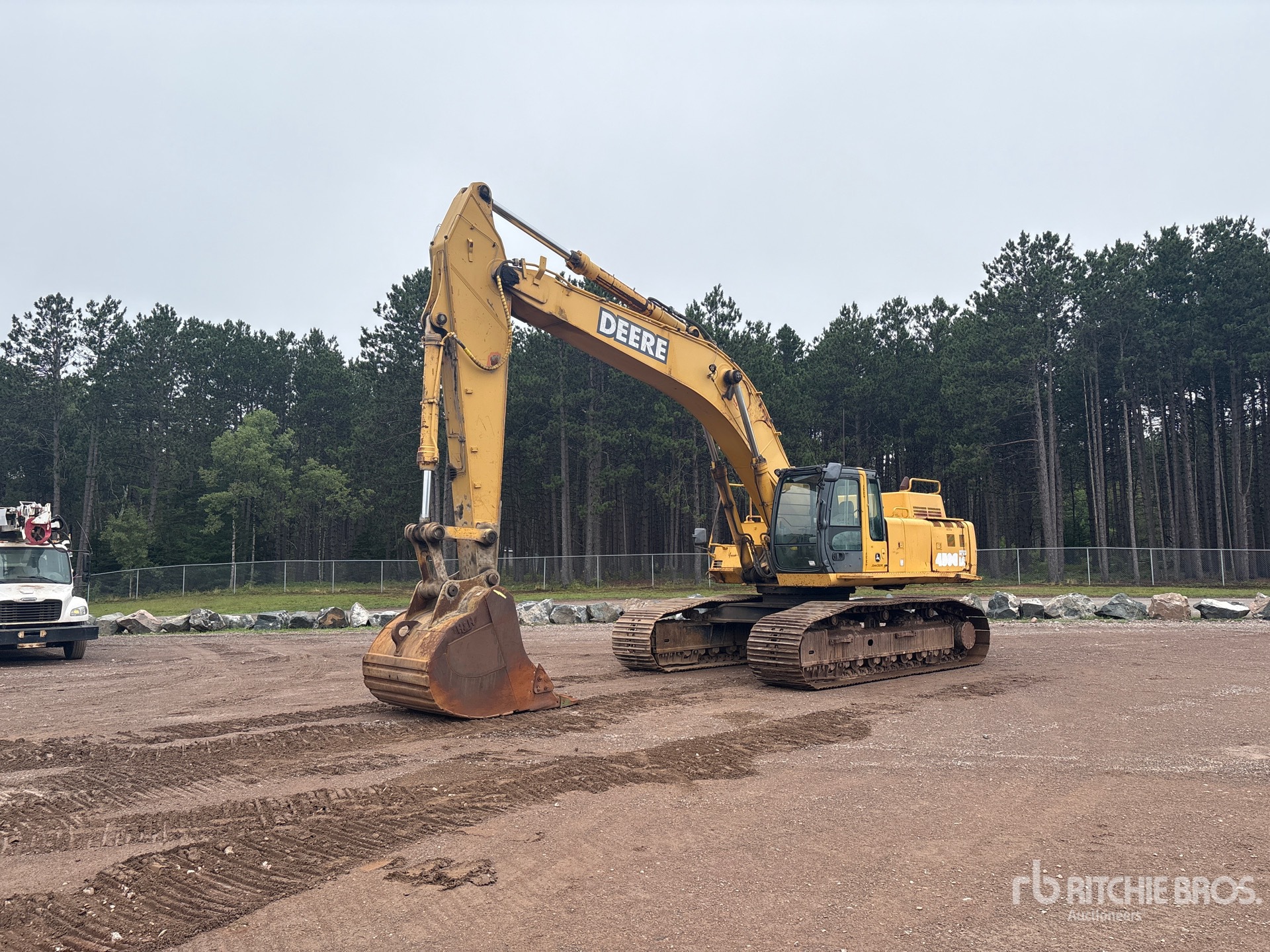

| Boom/Stick 1 |
|
Boom/Stick 1 |
Arm Length 9ft. 6in. (2.9m ) |
|
Max Cutting Height |
34 ft (10 m)
|
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
37 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
18 ft (5 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Arm Length 11ft. 2in. (3.4m ) |
|
Max Cutting Height |
36 ft (11 m)
|
|
Max Digging Depth |
25 ft (8 m)
|
|
Max Loading Height |
25 ft (8 m)
|
|
Max Reach Along Ground |
39 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
22 ft (7 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Arm Length 12ft. 10in.(3.9m) |
|
Max Cutting Height |
37 ft (11 m)
|
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
40 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
23 ft (7 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Arm Length 16ft. 1in. (4.9m ) |
|
Max Cutting Height |
39 ft (12 m)
|
|
Max Digging Depth |
30 ft (9 m)
|
|
Max Loading Height |
29 ft (9 m)
|
|
Max Reach Along Ground |
43 ft (13 m)
|
|
Max Vertical Wall Dig Depth |
28 ft (8 m)
|
|
Shipping Height Of Unit |
15 ft (5 m)
|
|
Shipping Length Of Unit |
38 ft (12 m)
|
| Boom/Stick 5 |
|
Boom/Stick 5 |
ME Arm Length 9ft 6in. (2.9m ) |
|
Max Cutting Height |
36 ft (11 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
35 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
17 ft (5 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
34 ft (10 m)
|

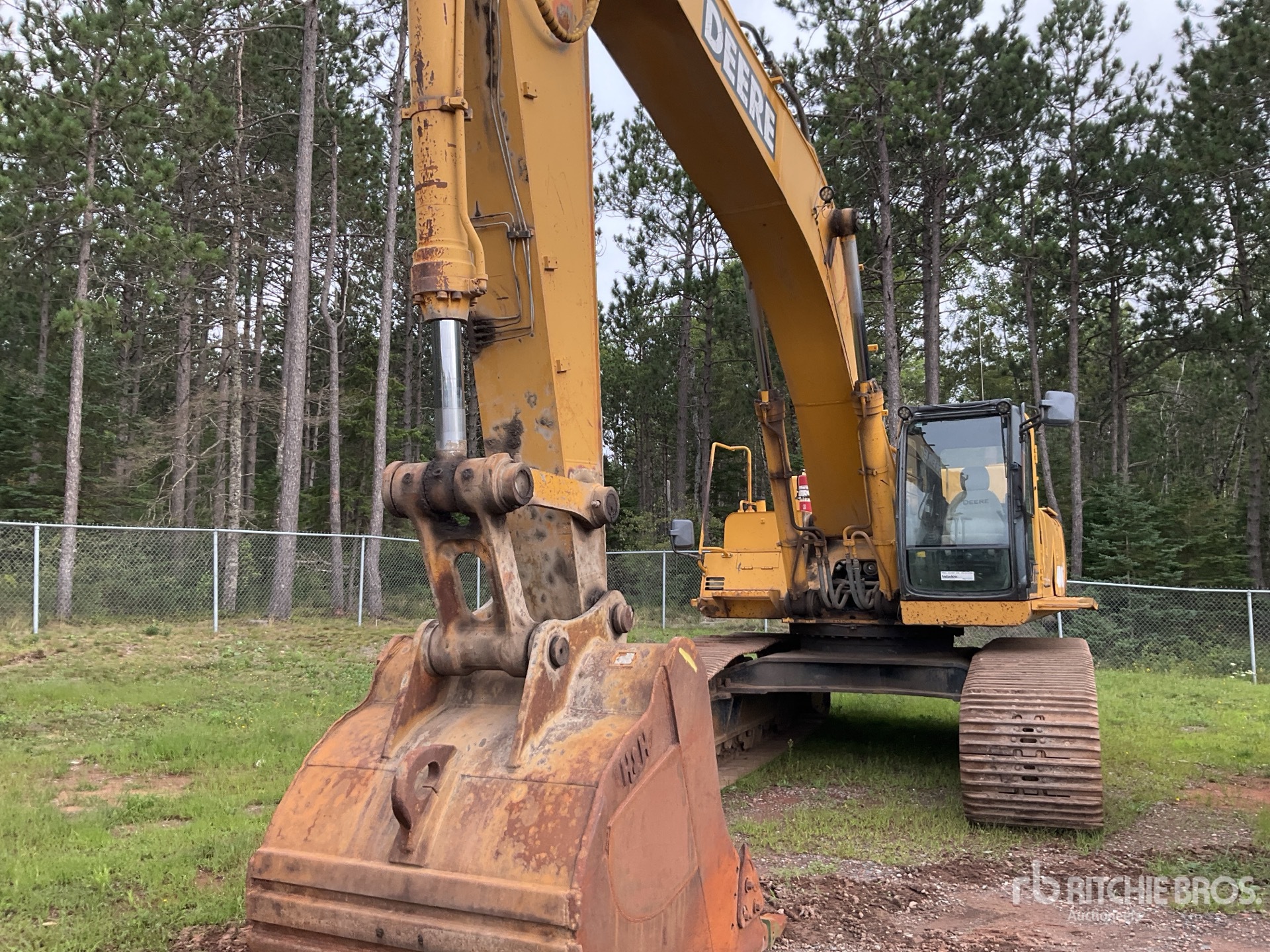

| Buckets |
|
Maximum Bucket Capacity |
7 cu yd |
|
Minimum Bucket Capacity |
2 cu yd |
|
Reference Bucket Capacity |
3 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height |
12 ft (4 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Length |
39 ft (12 m)
|
|
Length Of Track On Ground |
15 ft (4 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
11 ft (3 m)
|
|
Weight |
102,560 lbs (46,512 kg)
|
|
Width |
12 ft (4 m)
|
|
Width To Outside Of Tracks |
12 ft (4 m)
|
| Engine |
|
Aspiration |
Turbocharger |
|
Displacement |
763 cu in (12,503 cu cm)
|
|
Engine Make |
2,240 |
|
Engine Model |
6125H |
|
Max Torque |
955 lbs ft (1,295 nm)
|
|
Net Power |
316 hp (236 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,800 rpm |
|
Torque Measured @ |
1,300 rpm |
| Operational |
|
Alternator Supplied Amperage |
45 amps |
|
Cooling System Fluid Capacity |
13 gal (50 l)
|
|
Engine Oil Capacity |
11 gal (42 l)
|
|
Fuel Capacity |
171 gal (647 l)
|
|
Hydraulic Pump Flow Capacity |
100 gpm (379 lpm)
|
|
Hydraulic System Fluid Capacity |
74 gal (280 l)
|
|
Hydraulic System Relief Valve Pressure |
4,410 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
102,560 lbs (46,520 kg)
|
|
Swing Drive Fluid Capacity |
2 gal (7 l)
|
| Swing Mechanism |
|
Swing Speed |
9 rpm |
|
Swing Torque |
107,004 lbs ft (145,076 nm)
|
| Undercarriage |
|
Drawbar Pull |
79,590 lbs (36,101 kg)
|
|
Ground Pressure |
9 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
3 |
|
Number Of Shoes Per Side |
53 |
|
Number Of Track Rollers Per Side |
9 |
|
Shoe Size |
30 in (76 cm)
|
|
Track Gauge |
9 ft (3 m)
|
