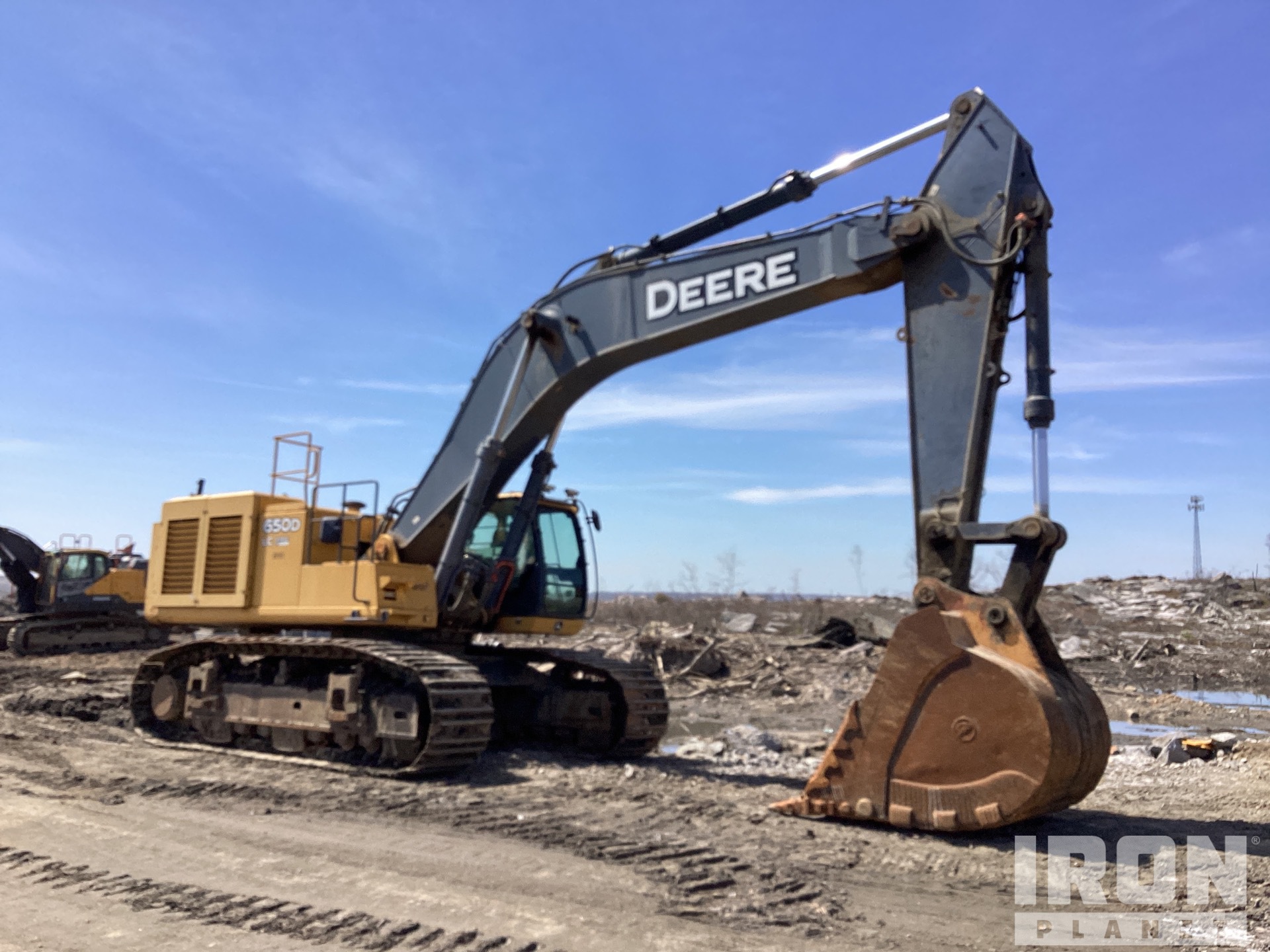

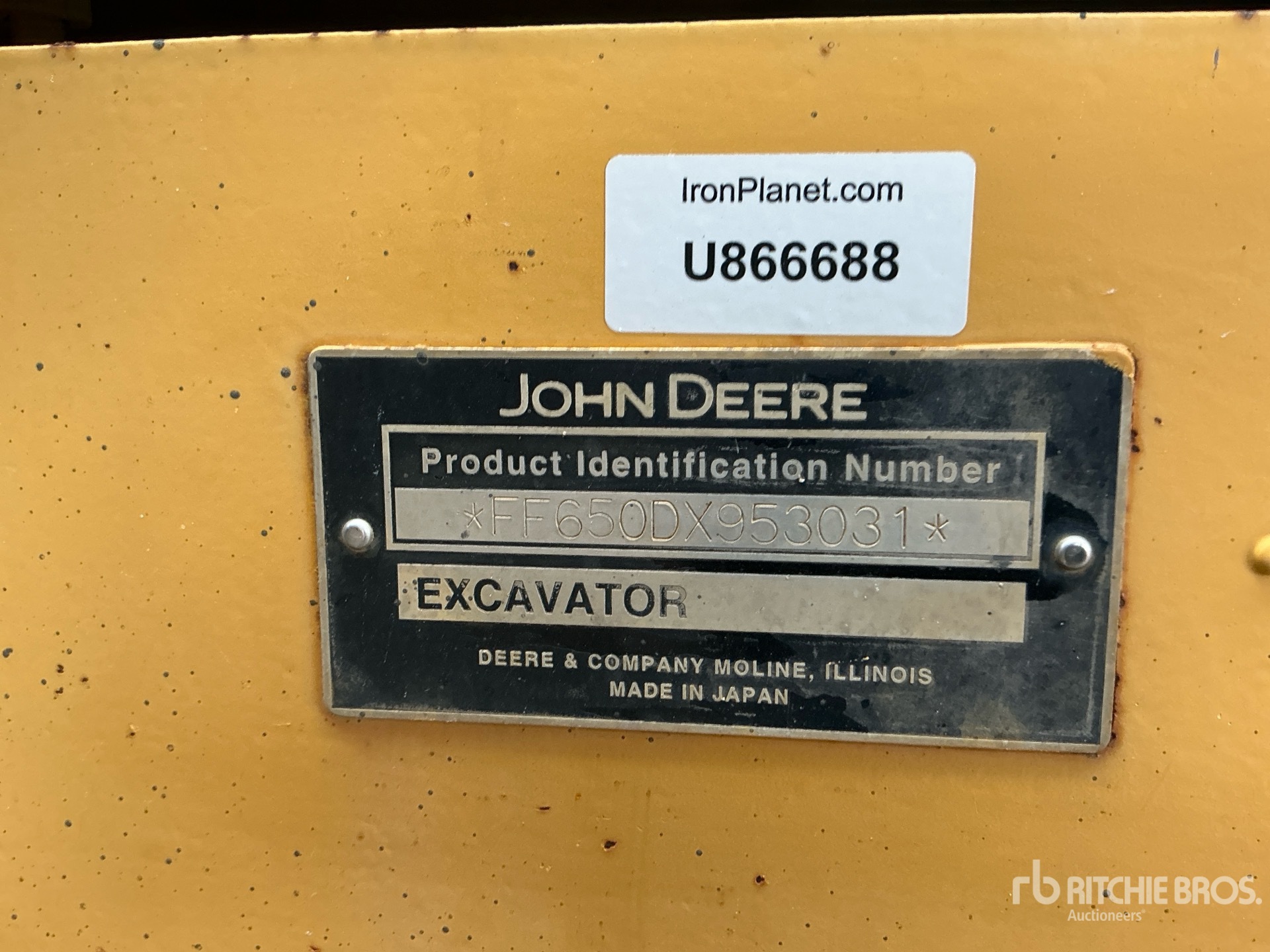

| Boom/Stick 1 |
|
Boom/Stick 1 |
25ft.7in. 7.8m Boom w/ 11ft. 10in. 3.6m Arm |
|
Max Cutting Height |
39 ft (12 m)
|
|
Max Digging Depth |
28 ft (9 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
43 ft (13 m)
|
|
Max Vertical Wall Digging Depth |
24 ft (7 m)
|
|
Shipping Height Of Unit |
15 ft (4 m)
|
|
Shipping Length Of Unit |
43 ft (13 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
25ft. 7in. 7.8m Boom w/ 13ft.9in. 4.2m Arm |
|
Max Cutting Height |
40 ft (12 m)
|
|
Max Digging Depth |
30 ft (9 m)
|
|
Max Loading Height |
27 ft (8 m)
|
|
Max Reach Along Ground |
45 ft (14 m)
|
|
Max Vertical Wall Digging Depth |
27 ft (8 m)
|
|
Shipping Height Of Unit |
16 ft (5 m)
|
|
Shipping Length Of Unit |
43 ft (13 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
25ft. 7in. 7.8m Boom w/ 17ft.5in. 5.3m Arm |
|
Max Cutting Height |
42 ft (13 m)
|
|
Max Digging Depth |
33 ft (10 m)
|
|
Max Loading Height |
30 ft (9 m)
|
|
Max Reach Along Ground |
48 ft (15 m)
|
|
Max Vertical Wall Digging Depth |
31 ft (10 m)
|
|
Shipping Height Of Unit |
17 ft (5 m)
|
|
Shipping Length Of Unit |
43 ft (13 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
22ft. 4in. 6.8m Mass Excavating Boom w/ 9ft. 6in. 2.9m Arm |
|
Max Cutting Height |
37 ft (11 m)
|
|
Max Digging Depth |
23 ft (7 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
38 ft (12 m)
|
|
Max Vertical Wall Dig Depth |
17 ft (5 m)
|
|
Shipping Height Of Unit |
16 ft (5 m)
|
|
Shipping Length Of Unit |
40 ft (12 m)
|
| Buckets |
|
Maximum Bucket Capacity |
6 cu yd |
|
Minimum Bucket Capacity |
2 cu yd |
|
Reference Bucket Capacity |
4 cu yd |

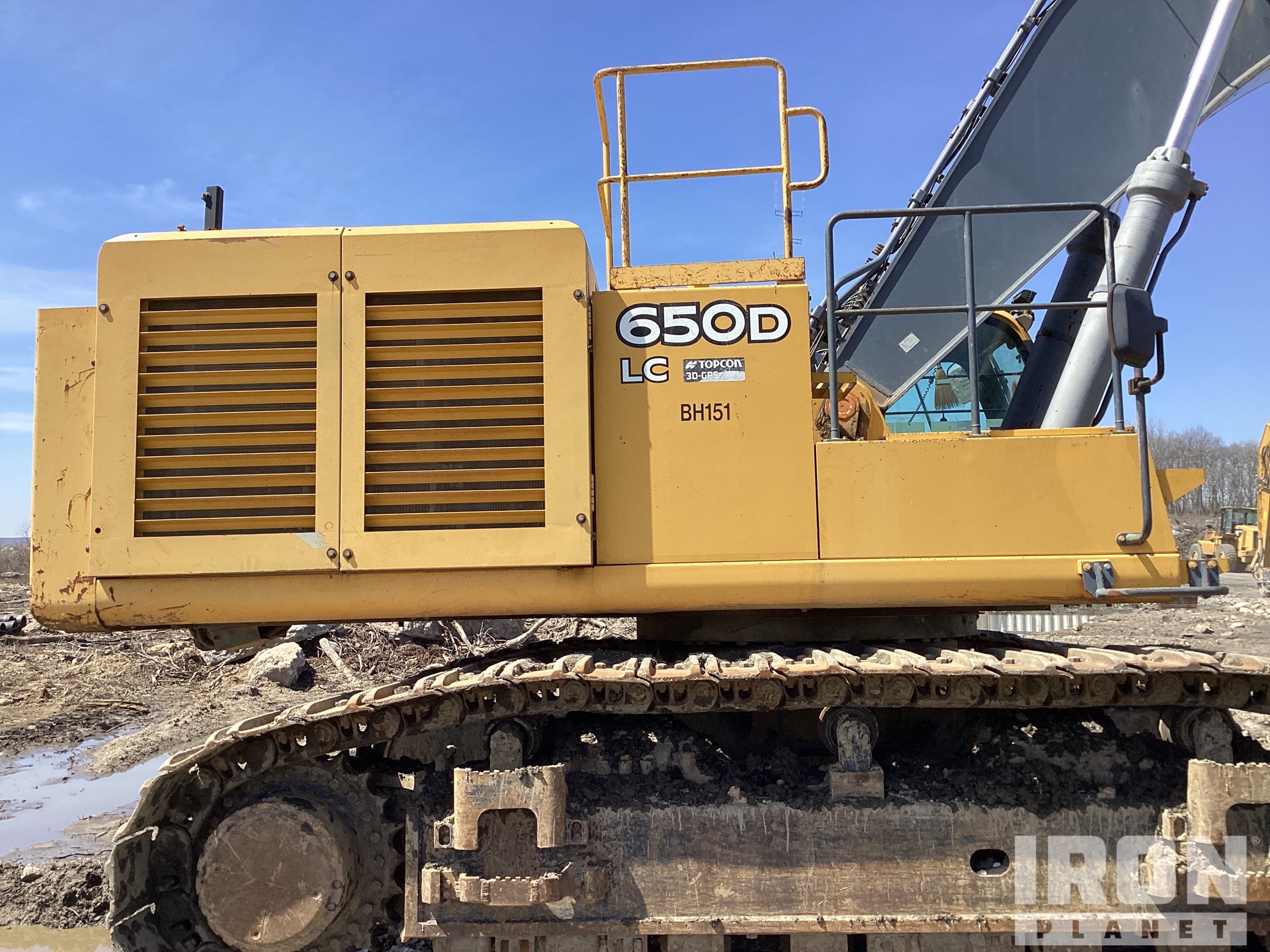

| Dimensions |
|
Ground Clearance |
3 ft (1 m)
|
|
Height |
15 ft (4 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Length |
43 ft (13 m)
|
|
Length Of Track On Ground |
15 ft (5 m)
|
|
Removal Counterweight Clearance |
5 ft (2 m)
|
|
Tail Swing Radius |
12 ft (4 m)
|
|
Weight |
152,190 lbs (69,020 kg)
|
|
Width |
14 ft (4 m)
|
|
Width To Outside Of Tracks |
14 ft (4 m)
|
| Engine |
|
Aspiration |
Turbocharged w/ charge cooler |
|
Displacement |
957 cu in (15,682 cu cm)
|
|
Engine Make |
2,353 |
|
Engine Model |
AH-6WG1XYSA-02 |
|
Net Power |
463 hp (345 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,800 rpm |
| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
15 gal (56 l)
|
|
Engine Oil Capacity |
14 gal (51 l)
|
|
Fuel Capacity |
238 gal (901 l)
|
|
Hydraulic Pump Flow Capacity |
120 gpm (454 lpm)
|
|
Hydraulic System Fluid Capacity |
190 gal (720 l)
|
|
Hydraulic System Relief Valve Pressure |
4,975 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
152,190 lbs (69,032 kg)
|
|
Swing Drive Fluid Capacity |
5 gal (18 l)
|
| Swing Mechanism |
|
Swing Speed |
10 rpm |
|
Swing Torque |
142,839 lbs ft (193,661 nm)
|

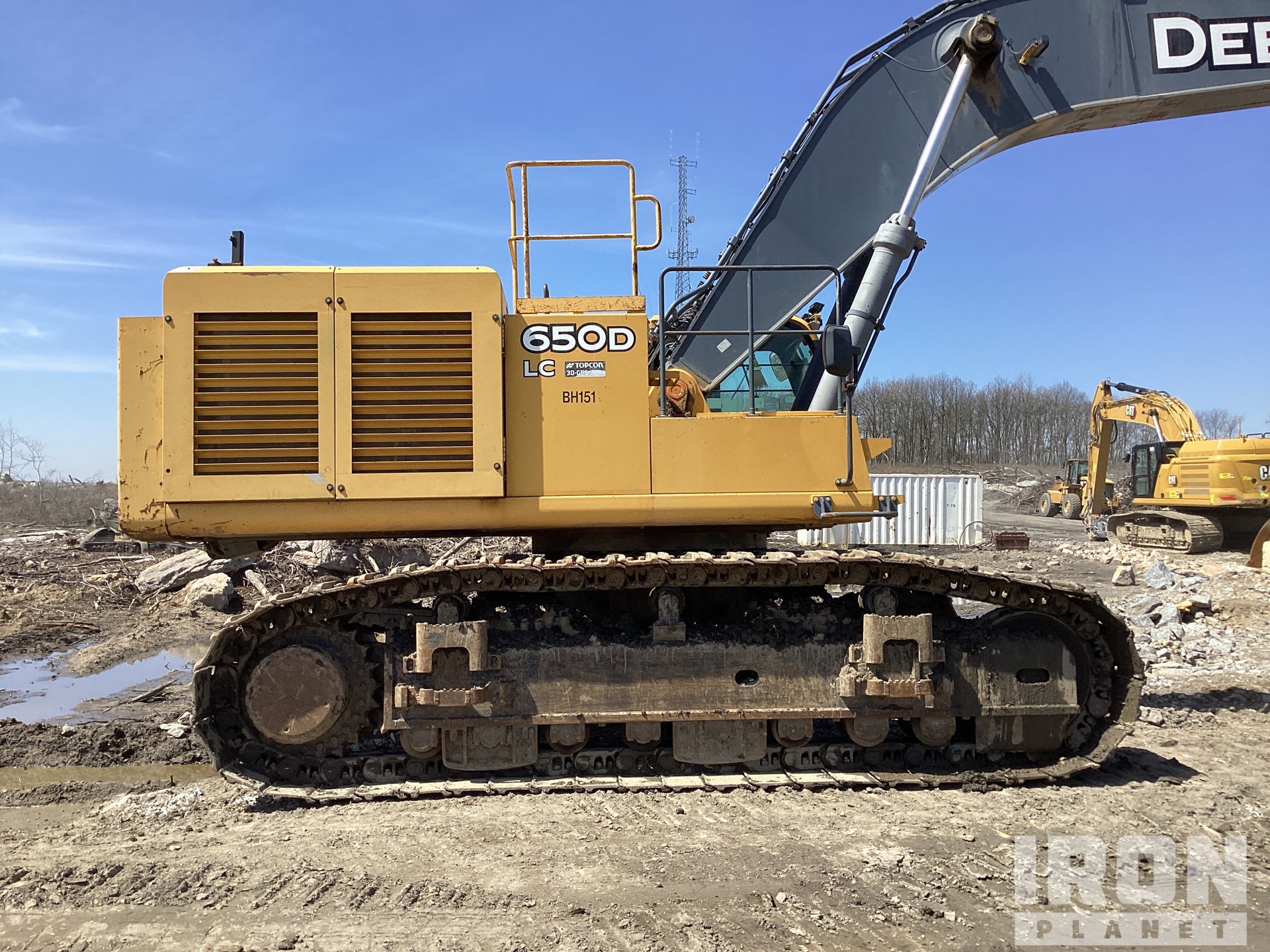

| Undercarriage |
|
Drawbar Pull |
101,666 lbs (46,115 kg)
|
|
Ground Pressure |
10 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
3 |
|
Number Of Shoes Per Side |
47 |
|
Number Of Track Rollers Per Side |
8 |
|
Shoe Size |
36 in (91 cm)
|
|
Track Gauge |
11 ft (3 m)
|
