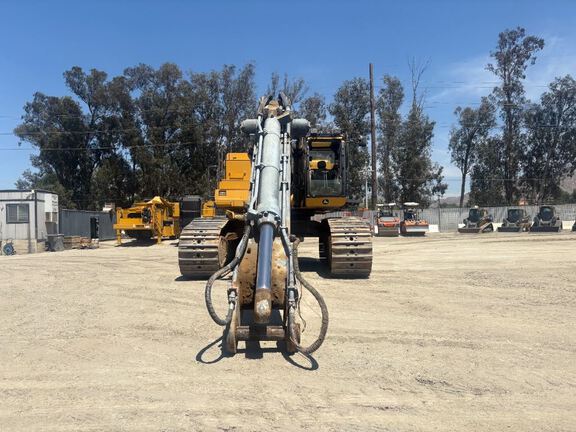

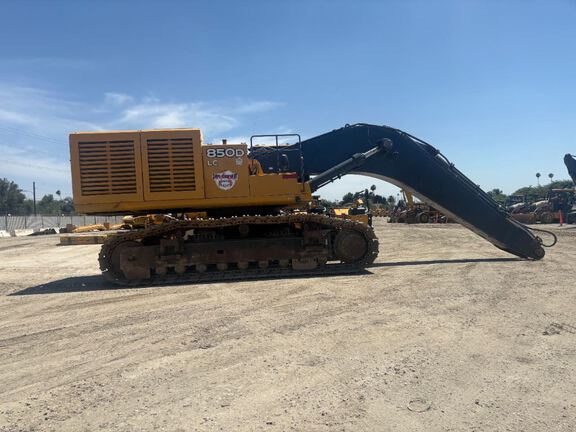

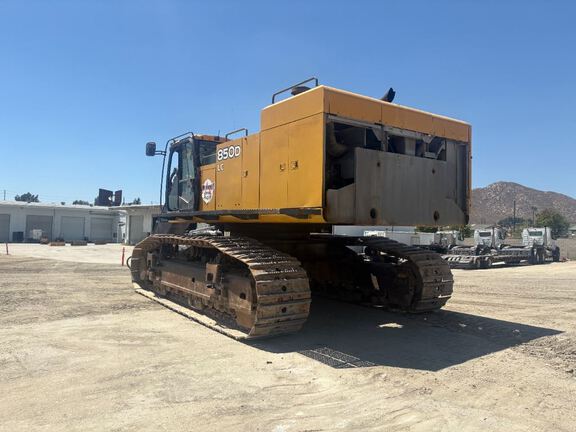

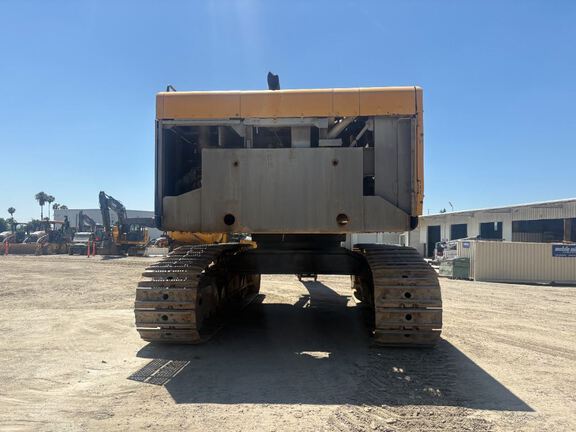

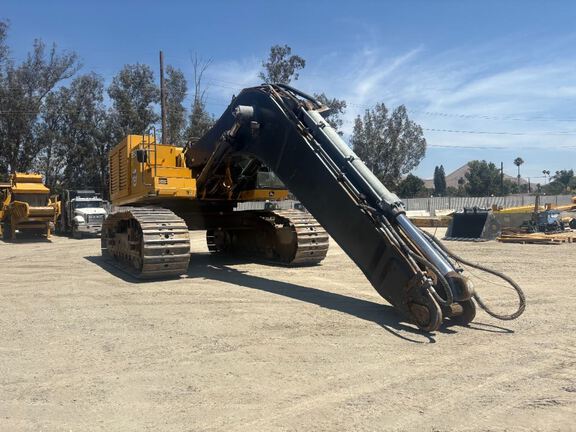

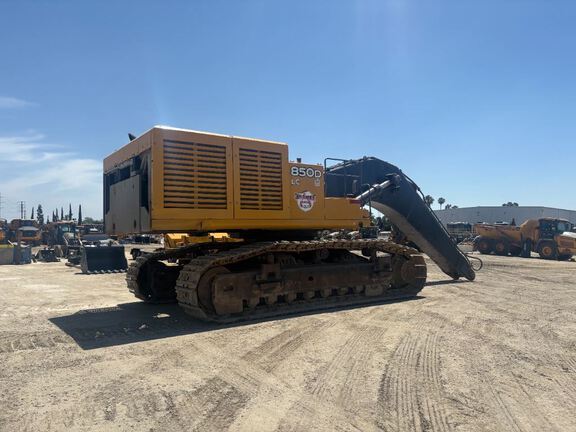

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 27' 7" (8.4 m) / Stick - 12' 2" (3.7 m ) |
|
Max Cutting Height |
43 ft (13 m)
|
|
Max Digging Depth |
29 ft (9 m)
|
|
Max Loading Height |
30 ft (9 m)
|
|
Max Reach Along Ground |
45 ft (14 m)
|
|
Max Vertical Wall Digging Depth |
24 ft (7 m)
|
|
Shipping Height Of Unit |
15 ft (5 m)
|
|
Shipping Length Of Unit |
49 ft (15 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom - 27' 7" (8.4 m) / Stick - 14' 5" (4.4 m) |
|
Max Cutting Height |
45 ft (14 m)
|
|
Max Digging Depth |
31 ft (10 m)
|
|
Max Loading Height |
32 ft (10 m)
|
|
Max Reach Along Ground |
48 ft (15 m)
|
|
Max Vertical Wall Digging Depth |
28 ft (8 m)
|
|
Shipping Height Of Unit |
16 ft (5 m)
|
|
Shipping Length Of Unit |
49 ft (15 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom - 27' 7" (8.4 m) / Stick - 17' 9" (5.4 m) |
|
Max Cutting Height |
48 ft (15 m)
|
|
Max Digging Depth |
35 ft (11 m)
|
|
Max Loading Height |
34 ft (10 m)
|
|
Max Reach Along Ground |
51 ft (16 m)
|
|
Max Vertical Wall Digging Depth |
32 ft (10 m)
|
|
Shipping Height Of Unit |
19 ft (6 m)
|
|
Shipping Length Of Unit |
48 ft (15 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Mass Boom - 23' 4" (7.1 m) / Mass Stick - 9' 8" (2.95 m) |
|
Max Cutting Height |
39 ft (12 m)
|
|
Max Digging Depth |
23 ft (7 m)
|
|
Max Loading Height |
27 ft (8 m)
|
|
Max Reach Along Ground |
39 ft (12 m)
|
|
Max Vertical Wall Dig Depth |
13 ft (4 m)
|
|
Shipping Height Of Unit |
17 ft (5 m)
|
|
Shipping Length Of Unit |
44 ft (14 m)
|
| Boom/Stick 5 |
|
Boom/Stick 5 |
Mass Boom - 23\' 4\" (7.1 m) / Mass Stick - 14\' 5\" (4.4 m) |
|
Max Cutting Height |
48 ft (15 m)
|
|
Max Digging Depth |
37 ft (11 m)
|
|
Max Loading Height |
35 ft (11 m)
|
|
Max Reach Along Ground |
54 ft (16 m)
|
|
Max Vertical Wall Dig Depth |
32 ft (10 m)
|
| Boom/Stick 6 |
|
Boom/Stick 6 |
Mass Boom - 23\' 4\" (7.1 m) / Mass Stick - 17\' 9\" (5.4 m) |
|
Max Cutting Height |
50 ft (15 m)
|
|
Max Digging Depth |
40 ft (12 m)
|
|
Max Loading Height |
37 ft (11 m)
|
|
Max Reach Along Ground |
57 ft (17 m)
|
|
Max Vertical Wall Dig Depth |
37 ft (11 m)
|
| Buckets |
|
Maximum Bucket Capacity |
7 cu yd |
|
Minimum Bucket Capacity |
3 cu yd |
|
Reference Bucket Capacity |
5 cu yd |
| Dimensions |
|
Ground Clearance |
3 ft (1 m)
|
|
Height |
12 ft (4 m)
|
|
Height To Top Of Cab |
12 ft (4 m)
|
|
Length |
48 ft (15 m)
|
|
Length Of Track On Ground |
17 ft (5 m)
|
|
Removal Counterweight Clearance |
6 ft (2 m)
|
|
Tail Swing Radius |
15 ft (5 m)
|
|
Weight |
185,520 lbs (84,151 kg)
|
|
Width |
14 ft (4 m)
|
|
Width To Outside Of Tracks |
14 ft (4 m)
|
| Engine |
|
Aspiration |
Turbocharged w/ cooler |
|
Displacement |
957 cu in (15,682 cu cm)
|
|
Engine Make |
2,353 |
|
Engine Model |
AH-6WG1XYSA-03 |
|
Net Power |
532 hp (397 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,800 rpm |
| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
22 gal (81 l)
|
|
Engine Oil Capacity |
14 gal (53 l)
|
|
Fuel Capacity |
296 gal (1,120 l)
|
|
Hydraulic Pump Flow Capacity |
139 gpm (526 lpm)
|
|
Hydraulic System Fluid Capacity |
209 gal (790 l)
|
|
Hydraulic System Relief Valve Pressure |
4,975 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
185,874 lbs (84,311 kg)
|
|
Swing Drive Fluid Capacity |
3 gal (12 l)
|
| Swing Mechanism |
|
Swing Speed |
7 rpm |
|
Swing Torque |
182,362 lbs ft (247,246 nm)
|
| Undercarriage |
|
Drawbar Pull |
126,193 lbs (57,240 kg)
|
|
Ground Pressure |
12 psi |
|
Max Travel Speed |
3 mph (4 kph)
|
|
Number Of Carrier Rollers Per Side |
3 |
|
Number Of Shoes Per Side |
51 |
|
Number Of Track Rollers Per Side |
9 |
|
Shoe Size |
36 in (91 cm)
|
|
Track Gauge |
11 ft (3 m)
|
