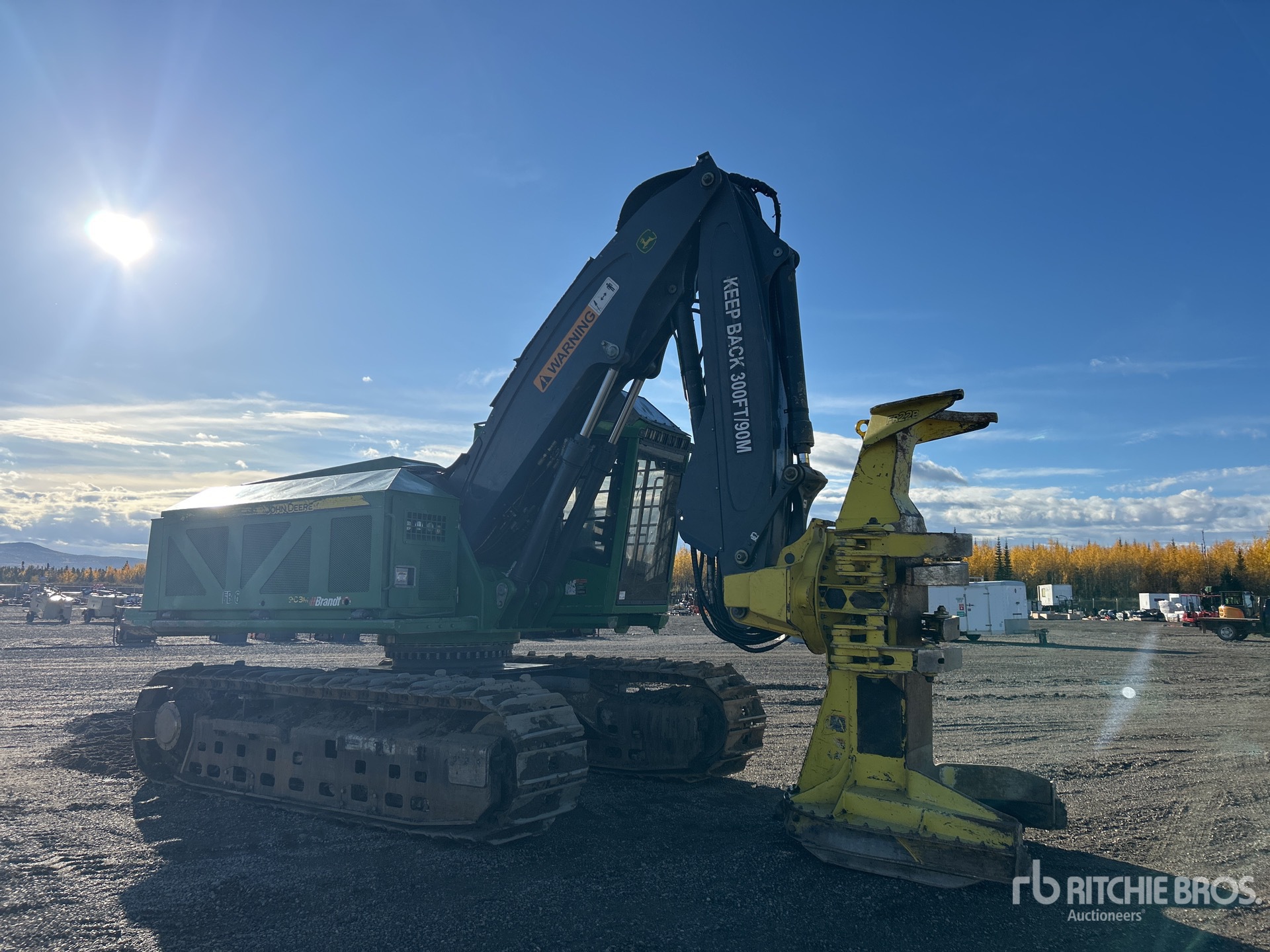

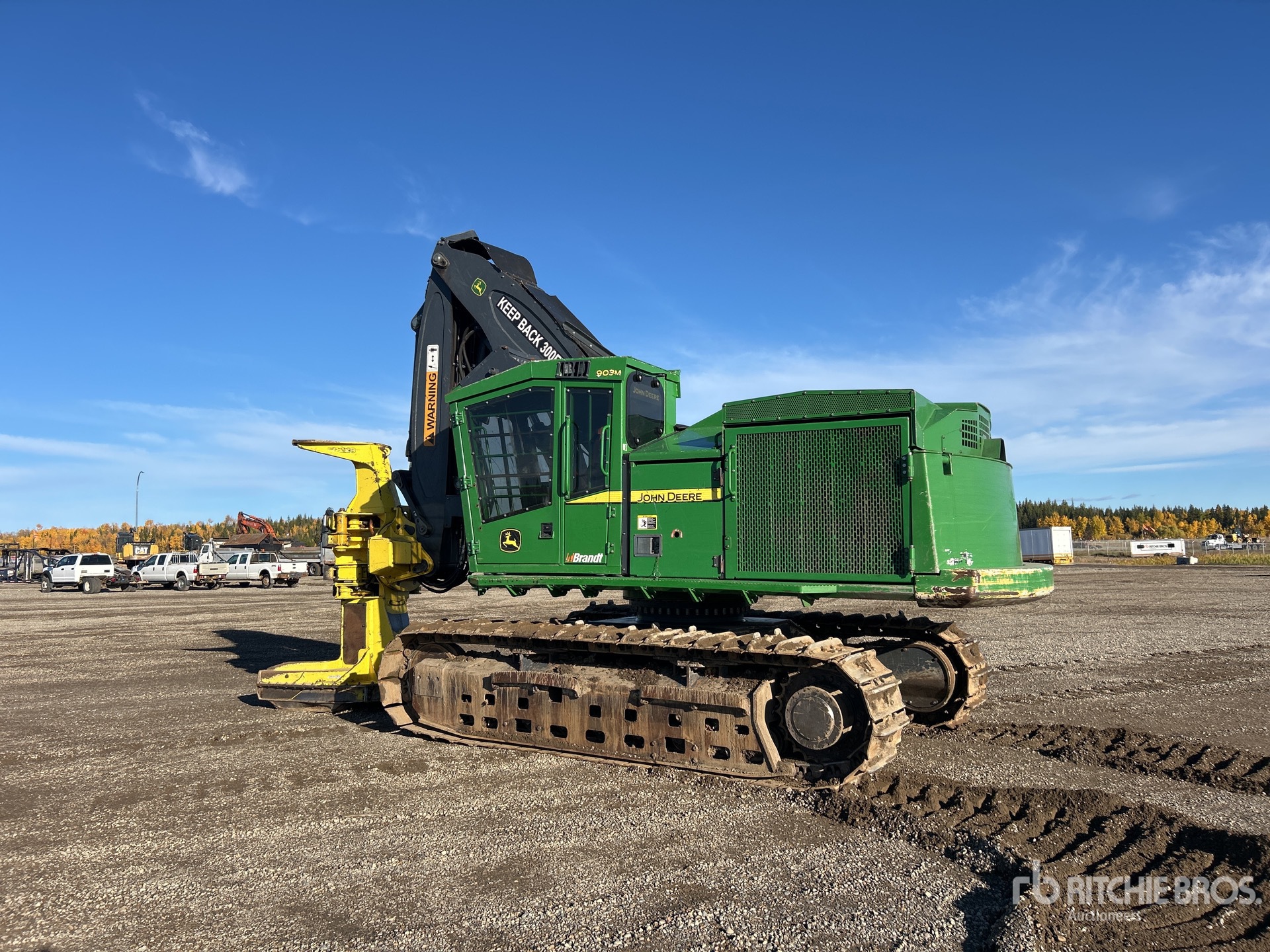

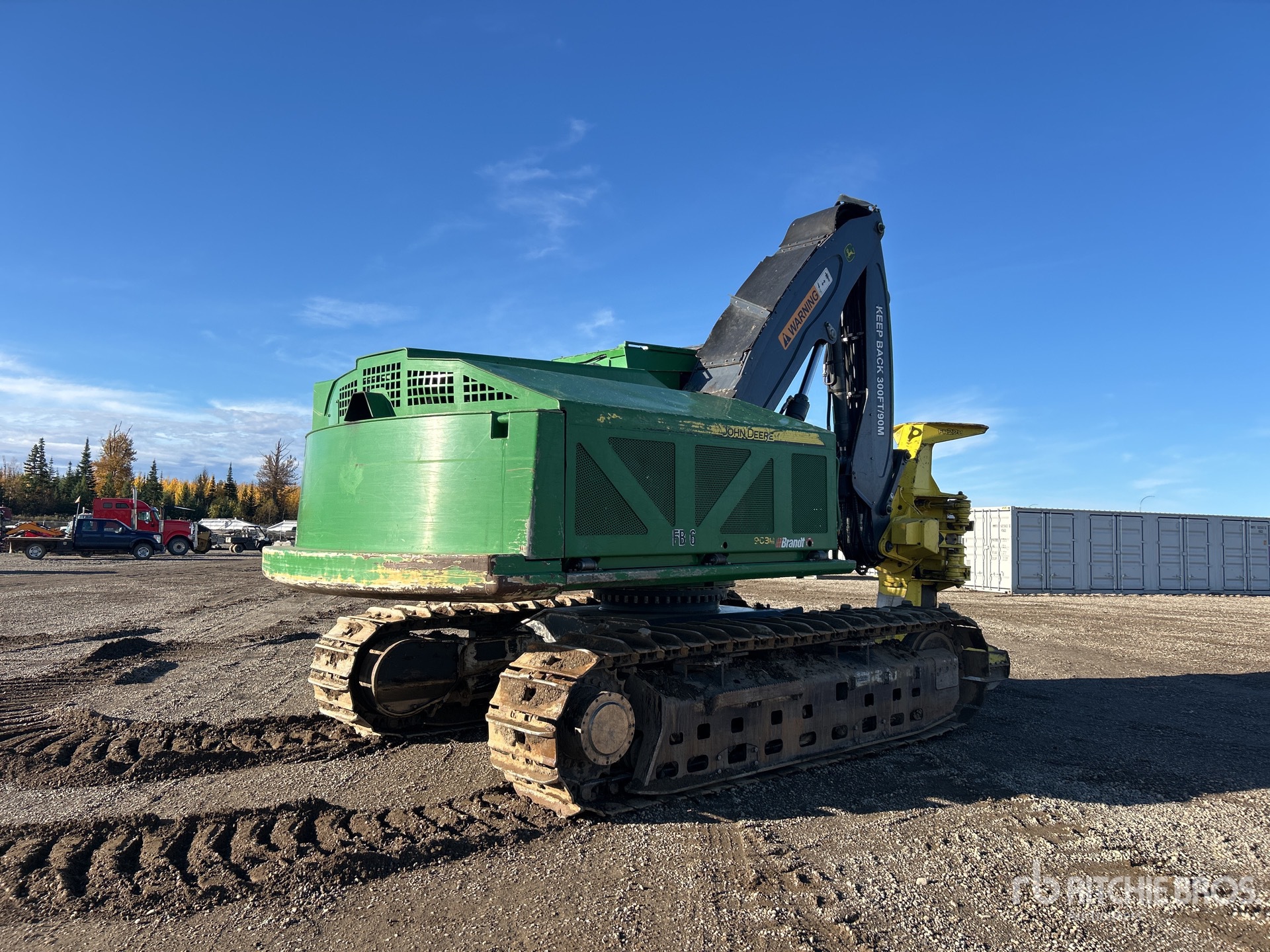

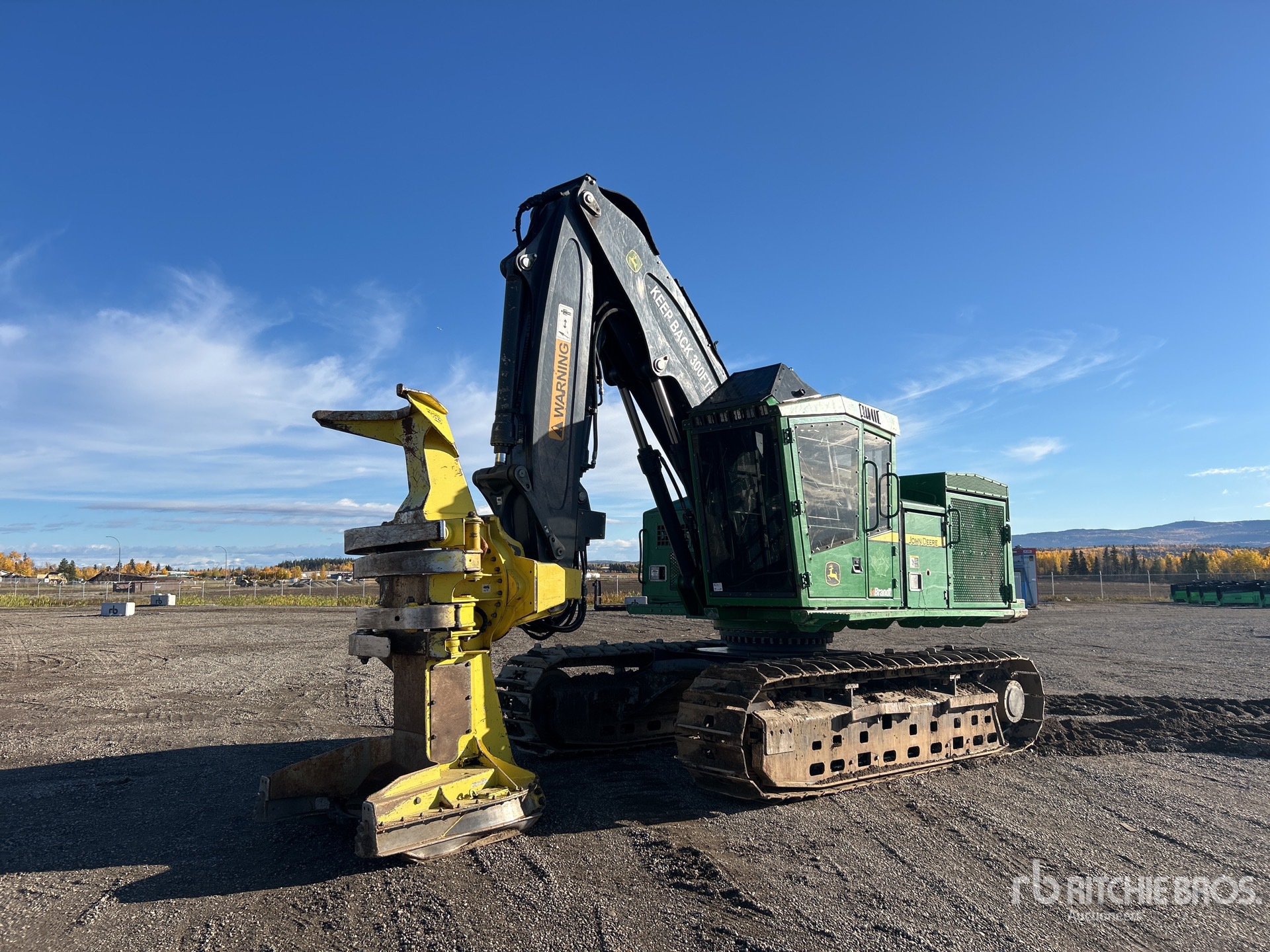

| 7.01-m (23-ft) Boom Performance |
|
Conditions For Measuring Boom Performance (Since 2026)
|
With FR22B |
|
Cutting Swath (Since 2026)
|
13 ft (4 m)
|
|
Lift Capacity, High-Lift Option With RCS, Bare Pin At 20 ft (Since 2026)
|
20,660 lbs (9,371 kg)
|
|
Lift Capacity, High-Lift Option With RCS, Bare Pin At Full Reach (Since 2026)
|
16,010 lbs (7,262 kg)
|
|
Lift Capacity, Standard Without RCS, Bare Pin At 20 ft (Since 2026)
|
16,930 lbs (7,679 kg)
|
|
Lift Capacity, Standard Without RCS, Bare Pin At Full Reach (Since 2026)
|
12,990 lbs (5,892 kg)
|
|
Lift Option(s) (Since 2026)
|
Standard Without Rapid Cycle System (RCS) |
|
Maximum Reach (To Tip Of Saw Blade) (Since 2026)
|
29 ft (9 m)
|
|
Minimum Reach (To Tip Of Saw Blade) (Since 2026)
|
16 ft (5 m)
|
| 8.08-m (26-ft, 6-in.) Boom Performance |
|
Conditions For Measuring Boom Performance (Since 2026)
|
With FR21B |
|
Cutting Swath (Since 2026)
|
17 ft, in. |
|
Lift Capacity, Bare Pin At 20 ft (Since 2026)
|
16,470 lbs (7,471 kg)
|
|
Lift Capacity, Bare Pin At Full Reach (Since 2026)
|
10,780 lbs (4,890 kg)
|
|
Lift Option(s) (Since 2026)
|
Standard With and Without RCS |
|
Maximum Reach (To Tip Of Saw Blade) (Since 2026)
|
32 ft (10 m)
|
|
Minimum Reach (To Tip Of Saw Blade) (Since 2026)
|
15 ft (5 m)
|
| Capacities |
|
Fuel Tank - Diesel |
285 gal (1,080 l)
|
| Cooling |
|
Fan Type (Since 2026)
|
Suction type, hydraulically driven, variable speed, reversing |
| Dimensions |
|
Carrier/Base Length |
16 ft (5 m)
|
|
Ground Clearance |
30 in (76 cm)
|
|
Height |
13 ft (4 m)
|
|
Height Over Cab |
12 ft (4 m)
|
|
Length |
31 ft (9 m)
|
|
Length Of Track On Ground |
13 ft (4 m)
|
|
Overall Width |
10 ft (3 m)
|
|
Super Structure Width |
10 ft (3 m)
|
|
Tail Swing Radius |
10 ft (3 m)
|
|
Track Gauge |
9 ft (3 m)
|
|
Weight |
67,220 lbs (30,491 kg)
|
|
Width |
11 ft (3 m)
|
| Driveline |
|
Carrier Rollers - Each Side |
2 |
|
Engine Manufacturer |
John Deere |
|
Engine Model |
PowerTech Plus 6090PSS |
|
Engine Output |
330 hp (246 kw)
|
|
Engine Torque |
1,027 lbs ft (1,392 nm)
|
|
Rated Speed |
1,900 rpm |
|
Track Rollers - Each Side |
9 |
|
Track Shoe Width |
24 in (61 cm)
|
| Final Tier 4/EU Stage V Electrical |
|
Alternator Rating (Since 2026)
|
200 amp |
|
Number Of Batteries (Since 2026)
|
2 |
|
Service Lights (Since 2026)
|
LED (3) |
|
Total Voltage (Since 2026)
|
24 v |
|
Voltage Per Battery (Since 2026)
|
12 v |
|
Work Lights (Since 2026)
|
LED (13) |
| Final Tier 4/EU Stage V Engine |
|
Displacement (Since 2026)
|
549 cu in (8,997 cu cm)
|
|
Manufacturer (Since 2026)
|
John Deere |
|
Net Peak Torque (Since 2026)
|
1,027 lbs ft (1,392 nm)
|
|
Non-road Emission Standards (Since 2026)
|
EPA Final Tier 4/EU Stage V |
|
Peak Power (Since 2026)
|
330 hp (246 kw)
|
|
Speed Net Peak Torque (Since 2026)
|
1,500 rpm |
|
Speed Peak Power (Since 2026)
|
1,900 rpm |
| Final Tier 4/EU Stage V Ground Pressure |
|
24-in. Double Grouser (Since 2026)
|
9 psi |
|
24-in. Single Grouser (Since 2026)
|
9 psi |
|
28-in. Single Grouser (Since 2026)
|
8 psi |
|
30-in. Double Grouser (Since 2026)
|
7 psi |
|
36-in. Triple Grouser (Soft Terrain Only) (Since 2026)
|
6 psi |
|
Conditions For Measuring Ground Pressure (Since 2026)
|
Includes standard equipment, 7.01-m (23 ft.) boom, half-full fuel tank, and all fluids, less attachment |
|
Counterweight Size (Since 2026)
|
Small |
|
Standard Boom (Since 2026)
|
23 ft (7 m)
|
|
Travel Performance And Rating (Since 2026)
|
SAE J1309 |
|
Undercarriage Size (Since 2026)
|
U7 EXD |
| Final Tier 4/EU Stage V Operating Weight |
|
Approximate Weight Of Base Machine (Since 2026)
|
69,080 lbs (31,334 kg)
|
|
Conditions For Measuring Operating Weight (Since 2026)
|
Includes standard equipment, 7.01-m (23 ft.) boom, 610-mm (24 in.) double-grouser tracks, half-full fuel tank, and all fluids, less attachment |
|
Counterweight Size (Since 2026)
|
Small |
|
Standard Boom (Since 2026)
|
23 ft (7 m)
|
|
Undercarriage Size (Since 2026)
|
U7 EXD |
| Final Tier 4/EU Stage V Refill Capacities |
|
Diesel-Exhaust Fluid (DEF) (Since 2026)
|
11 gal (42 l)
|
|
Fuel Tank (Since 2026)
|
285 gal (1,079 l)
|
| Final Tier 4/EU Stage V Undercarriage |
|
Carrier Slides/Rollers (Per Side) (Since 2026)
|
2 |
|
Lower Rollers (Per Side) (Since 2026)
|
9 |
|
Number Of Track Links (Per Side) (Since 2026)
|
47 |
|
Size (Since 2026)
|
U7 Extreme Duty (EXD) |
|
Track Chain (Since 2026)
|
9 in (22 cm)
|
|
Tractive Effort (Since 2026)
|
72300.0 lbf |
|
Travel Speed - High, Forward and Reverse (Since 2026)
|
3 mph (4 kph)
|
|
Travel Speed - Low, Forward and Reverse (Since 2026)
|
1 mph (2 kph)
|
|
Type (Since 2026)
|
Integral track guides, thick high-abrasion-resistant material, ramp angles, hydraulic track adjustment |
| Hydraulics |
|
Hydraulics Type (Since 2026)
|
Closed center, load sense, pressure compensated |
|
Oil Filtration (Since 2026)
|
2 main return filters, 10-micron return with bypass, 1 case-drain strainer, 25 micron |
|
Standard Travel System Attachment Pump Type (Since 2026)
|
Dedicated variable-displacement axial piston |
|
Standard Travel System Continuous Saw Pump Type (Since 2026)
|
Dedicated variable-displacement axial piston |
|
Standard Travel System Main Pump Type (Since 2026)
|
Variable-displacement axial piston |
|
Standard Travel System, Attachment Pump Maximum Rated Flow (Since 2026)
|
36 gpm (136 lpm)
|
|
Standard Travel System, Continuous Saw Pump Maximum Rated Flow (Since 2026)
|
30 gpm (114 lpm)
|
|
Standard Travel System, Main Pump Maximum Rated Flow (Since 2026)
|
141 gpm (534 lpm)
|
| Key Specs |
|
Displacement (Since 2026)
|
549 cu in (8,997 cu cm)
|
|
Hydraulics Type (Since 2026)
|
Closed center, load sense, pressure compensated |
|
Manufacturer (Since 2026)
|
John Deere |
|
Maximum Reach (To Tip Of Saw Blade) (Since 2026)
|
32 ft (10 m)
|
|
Minimum Reach (To Tip Of Saw Blade) (Since 2026)
|
15 ft (5 m)
|
|
Peak Power (Since 2026)
|
330 hp (246 kw)
|
|
Standard Boom (Since 2026)
|
23 ft (7 m)
|
|
Travel Speed - High, Forward and Reverse (Since 2026)
|
3 mph (4 kph)
|
|
Travel Speed - Low, Forward and Reverse (Since 2026)
|
1 mph (2 kph)
|
| Machine Dimensions |
|
Boom Size Used For Measuring Dimensions (Since 2026)
|
23 ft (7 m)
|
|
Cutting Swath, Boom Reach (To Attachment Pin) With 23-ft Boom (Since 2026)
|
13 ft (4 m)
|
|
Cutting Swath, Boom Reach (To Attachment Pin) With 26-ft, 6-in. Boom (Since 2026)
|
17 ft (5 m)
|
|
Ground Clearance, Double Grouser (Since 2026)
|
30 in (76 cm)
|
|
Ground Clearance, Single Grouser (Since 2026)
|
31 in (79 cm)
|
|
Ground Clearance, Triple Grouser (Since 2026)
|
29 in (74 cm)
|
|
Maximum Boom Reach (To Attachment Pin) With 23-ft Boom (Since 2026)
|
23 ft (7 m)
|
|
Maximum Boom Reach (To Attachment Pin) With 26-ft, 6-in. Boom (Since 2026)
|
10 ft (3 m)
|
|
Minimum Boom Reach (To Attachment Pin) With 23-ft Boom (Since 2026)
|
10 ft (3 m)
|
|
Minimum Boom Reach (To Attachment Pin) With 26-ft, 6-in. Boom (Since 2026)
|
10 ft (3 m)
|
|
Overall Height, Top Of Boom, Extended, Attachment Vertical (Since 2026)
|
13 ft (4 m)
|
|
Overall Height, Top Of Cab With Flat Skylight (Since 2026)
|
12 ft (4 m)
|
|
Overall Height, Top Of Cab With Peaked Skylight (Since 2026)
|
12 ft (4 m)
|
|
Overall Track Length (Since 2026)
|
16 ft (5 m)
|
|
Standard Undercarriage Type (Since 2026)
|
U7 EXD |
|
Tail Swing (From Swing Center) (Since 2026)
|
10 ft (3 m)
|
|
Track Gauge (Since 2026)
|
9 ft (3 m)
|
|
Track Length (Idler To Sprocket Center) (Since 2026)
|
13 ft (4 m)
|
|
Upperstructure Width, Standard (Since 2026)
|
10 ft (3 m)
|
|
Upperstructure Width, With Optional Walkway (Since 2026)
|
11 ft (3 m)
|
|
Width Over Tracks With 24-in. Track Shoes (Since 2026)
|
11 ft (3 m)
|
|
Width Over Tracks With 28-in. Track Shoes (Since 2026)
|
11 ft (3 m)
|
|
Width Over Tracks With 30-in. Track Shoes (Since 2026)
|
11 ft (3 m)
|
|
Width Over Tracks With 36-in. Track Shoes (Since 2026)
|
12 ft (4 m)
|
| Performance |
|
Cutting Radius - Maximum |
29 ft (9 m)
|
|
Cutting Radius - Minimum |
16 ft (5 m)
|
|
Cutting Swath Horizontal |
13 ft (4 m)
|
|
Felling Diameter |
22 in (56 cm)
|
|
Lift Capacity At Max - Reach |
12,985 lbs (5,890 kg)
|
|
Pump Flow |
141 gpm (532 lpm)
|
|
Pump Type |
Var. axial-piston |
|
Reference Harvesting Head |
FR22B |
|
Reference Head Saw Type |
Disc |
|
Reference Head Type |
Felling |
|
Tractive Force |
72,389 lbs (32,835 kg)
|
|
Travel Speed |
3 mph (4 kph)
|
| Rotating Upper |
|
Swing Brake (Since 2026)
|
Sealed wet multi-disc, manually applied/released |
|
Swing Speed - Maximum, Standard Swing System (Since 2026)
|
7 rpm |
|
Swing Torque, Standard Swing System (Since 2026)
|
59,130 lbs ft (80,168 nm)
|
| Tier 2/EU Stage II Ground Pressure |
|
Counterweight Size (Since 2026)
|
Small |
|
Standard Boom (Since 2026)
|
23 ft (7 m)
|
| Tier 3/EU Stage IIIA Ground Pressure |
|
Counterweight Size (Since 2026)
|
Small |
|
Standard Boom (Since 2026)
|
23 ft (7 m)
|
| Transmission |
|
System Voltage |
24 V |
| Weights |
|
Operating Weight |
68,551 lbs (31,094 kg)
|
