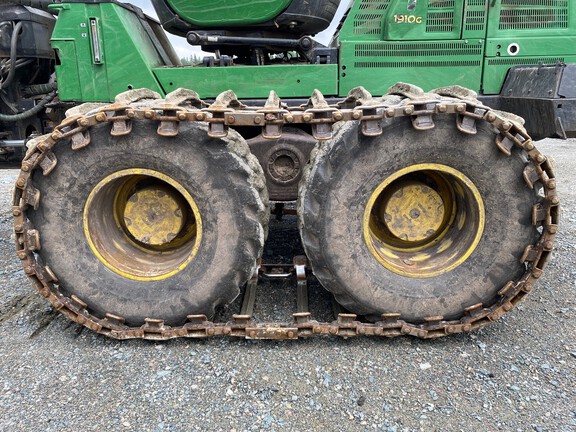

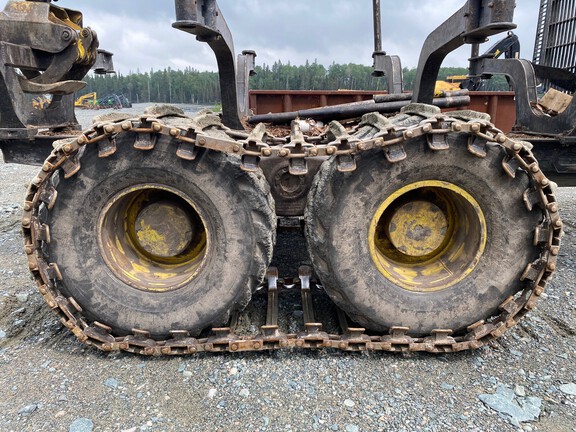

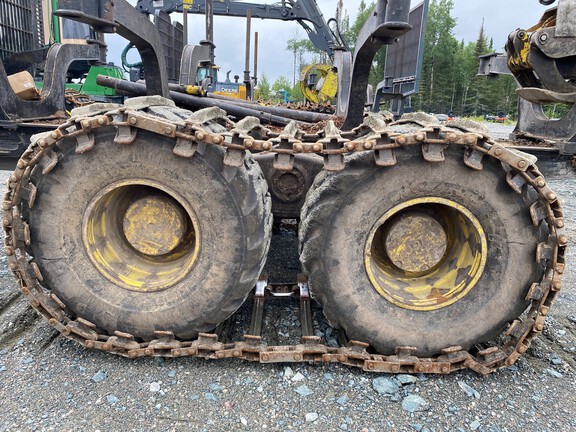

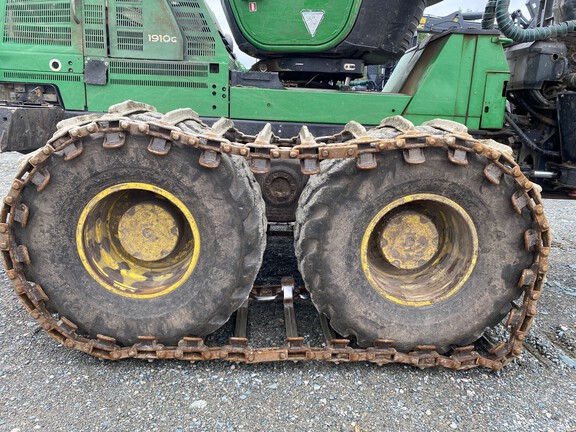

| Axles And Bogies |
|
Axles Front (Since 2026)
|
Single rigid axle, non-balanced- or balanced-gear heavy-duty (HD) bogie axle |
|
Axles Rear (Since 2026)
|
Balanced-gear HD bogie axle or unbalanced long bogie (LGP) |
|
Type (Since 2026)
|
Hydromechanical differential lock in front and rear |
| Boom CF7S |
|
Gross Lifting Torque (Since 2026)
|
105,500 lbs ft (143,037 nm)
|
|
Maximum Reach Length (Since 2026)
|
33 ft (10 m)
|
|
Slewing Angle (Since 2026)
|
380 degrees |
|
Slewing Torque (Since 2026)
|
24,000 lbs ft (32,539 nm)
|
| Boom CF8 |
|
Gross Lifting Torque (Since 2026)
|
111,372 lbs ft (150,998 nm)
|
|
Maximum Reach Length (Since 2026)
|
28 ft (9 m)
|
|
Slewing Angle (Since 2026)
|
380 degrees |
|
Slewing Torque (Since 2026)
|
30,240 lbs ft (40,999 nm)
|
| Brakes |
|
Frame (Since 2026)
|
Automated |
|
Parking/Emergency (Since 2026)
|
Spring actuated |
|
Service (Since 2026)
|
Hydraulically actuated, oil-immersed, multi-disc |
| Capacities |
|
Alternator Output |
150 amps |
|
Fuel Tank - Diesel |
49 gal (184 l)
|
|
Hydraulic Tank |
49 gal (185 l)
|
| Dimensions |
|
Carrier/Base Length |
38 ft (11 m)
|
|
Ground Clearance |
3 ft (1 m)
|
|
Horizontal Reach |
28 ft (9 m)
|
|
Load Length |
222 in (564 cm)
|
|
Transport Height |
13 ft (4 m)
|
|
Wheelbase |
21 ft (6 m)
|
|
Width |
3,090 mm (122 in)
|
|
Width Of Bunk Area |
10 ft (3 m)
|
| Driveline |
|
Displacement |
549 cu in (9,001 cu cm)
|
|
Drive Configuration |
8 x 8 |
|
Engine Manufacturer |
John Deere |
|
Engine Model |
PowerTech Plus 6090 |
|
Engine Output |
268 hp (200 kw)
|
|
Engine Torque |
970 lbs ft (1,315 nm)
|
|
Std Tire Size Front |
26.5 - 20 |
|
Std Tire Size Rear |
26.5 - 20 |
|
Transmission |
Hydrostatic-Mechanical |
| Electrical |
|
Alternator (Since 2026)
|
150 amp |
|
Batteries (Since 2026)
|
149.0 amp-hr |
|
Lights (Since 2026)
|
Halogen |
|
Voltage (Since 2026)
|
24 v |
| Engine |
|
Engine Speed Used For Net Peak Power (Since 2026)
|
1,900 rpm |
|
Engine Speed Used For Net Peak Torque (Since 2026)
|
1,400 rpm |
|
Fuel tank capacity (Since 2026)
|
49 gal (185 l)
|
|
Load Rating, Standard (Since 2026)
|
41,888 lbs (19,000 kg)
|
|
Manufacturer (Since 2026)
|
John Deere |
|
Net Peak Power At Engine Speed Power (Since 2026)
|
268 hp (200 kw)
|
|
Net Peak Power At Engine Speed Torque (Since 2026)
|
970 lbs ft (1,315 nm)
|
|
Non-Road Emission Standards (Since 2026)
|
EPA Final Tier 4 (FT4)/EU Stage V |
| Hydraulics |
|
Hydraulic Tank (Since 2026)
|
49 gal (185 l)
|
|
Operating pressure (Since 2026)
|
3,480 psi |
|
Pump Capacity (Since 2026)
|
11 cu in (180 cu cm)
|
|
Type (Since 2026)
|
Load sensing |
| Key Specs |
|
Gross Lifting Torque (Since 2026)
|
111,372 lbs ft (150,998 nm)
|
|
Load Rating, Standard (Since 2026)
|
41,888 lbs (19,000 kg)
|
|
Net Peak Power At Engine Speed Power (Since 2026)
|
268 hp (200 kw)
|
|
Slewing Torque (Since 2026)
|
30,240 lbs ft (40,999 nm)
|
|
Tractive Force (Since 2026)
|
51704.0 lbf |
| Load-Space Options (Measurements Are Guidelines Only And May Vary Depending On Production Tolerances) |
|
Cross-Sectional Area VLS (Since 2026)
|
73.2 sq ft |
|
Headboard - Bogie Center, Plus Bogie Center - Rear, Long Wheelbase Load Space (Since 2026)
|
16 ft (5 m)
|
|
Headboard - Bogie Center, Plus Bogie Center - Rear, Short Wheelbase Load Space (Since 2026)
|
19 ft (6 m)
|
|
Load-Space Width Maximum (Since 2026)
|
12 ft (4 m)
|
|
Load-Space Width Minimum (Since 2026)
|
10 ft (3 m)
|
|
Load-Space Width VLS (Since 2026)
|
9 ft (3 m)
|
| Machine Dimensions |
|
700-Series Width With Tires (Since 2026)
|
10 ft (3 m)
|
|
Approach Angle - 8 Wheel (Since 2026)
|
39 degrees |
|
Bogie Center - Middle Joint (Since 2026)
|
7 ft (2 m)
|
|
Bogie Center - Middle Joint Plus Long Wheelbase, Middle Joint - Bogie Center (Since 2026)
|
21 ft (6 m)
|
|
Bogie Center - Middle Joint Plus Medium Wheelbase, Middle Joint - Bogie Center (Since 2026)
|
19 ft (6 m)
|
|
Front Tires - 6-Wheel Options (Since 2026)
|
34–16 |
|
Front Tires - 8-Wheel Options (Since 2026)
|
26.5–20 |
|
Ground Clearance - 8 Wheel (Since 2026)
|
32 in (80 cm)
|
|
Inner Turning Radius With 700-Series Tires And Long Wheelbase (Since 2026)
|
20 ft (6 m)
|
|
Inner Turning Radius With 700-Series Tires And Short Wheelbase (Since 2026)
|
10 ft (3 m)
|
|
Long Wheelbase Length (Since 2026)
|
20 ft (6 m)
|
|
Long Wheelbase, Bogie Center - Rear (Since 2026)
|
8 ft (3 m)
|
|
Long Wheelbase, Headboard - Bogie Center (Since 2026)
|
10 ft (3 m)
|
|
Long Wheelbase, Middle Joint - Bogie Center (Since 2026)
|
13 ft (4 m)
|
|
Minimum Machine Weight With 6 Wheels (Since 2026)
|
42,957 lbs (19,485 kg)
|
|
Minimum Machine Weight With 8 Wheels (Since 2026)
|
49,002 lbs (22,227 kg)
|
|
Outer Turning Radius With 700-Series Tires And Long Wheelbase (Since 2026)
|
33 ft (10 m)
|
|
Outer Turning Radius With 700-Series Tires And Short Wheelbase (Since 2026)
|
31 ft (9 m)
|
|
Rear Tires Options (Since 2026)
|
26.5–20 |
|
Short Wheelbase Length (Since 2026)
|
18 ft (5 m)
|
|
Short Wheelbase, Bogie Center - Rear (Since 2026)
|
7 ft (2 m)
|
|
Short Wheelbase, Headboard - Bogie Center (Since 2026)
|
9 ft (3 m)
|
|
Short Wheelbase, Middle Joint - Bogie Center (Since 2026)
|
12 ft (4 m)
|
|
Transport Height With Tires (Since 2026)
|
13 ft (4 m)
|
|
Turning Angle (Since 2026)
|
42 degrees |

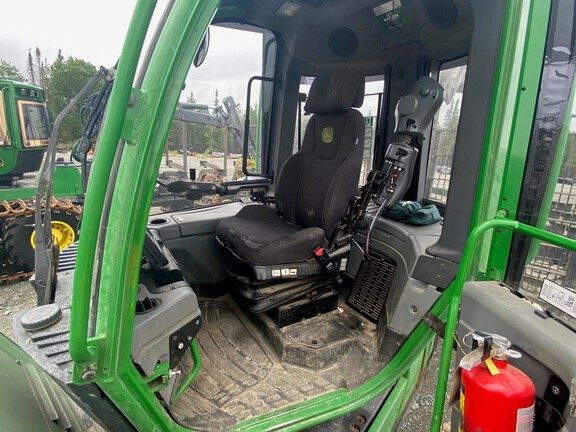

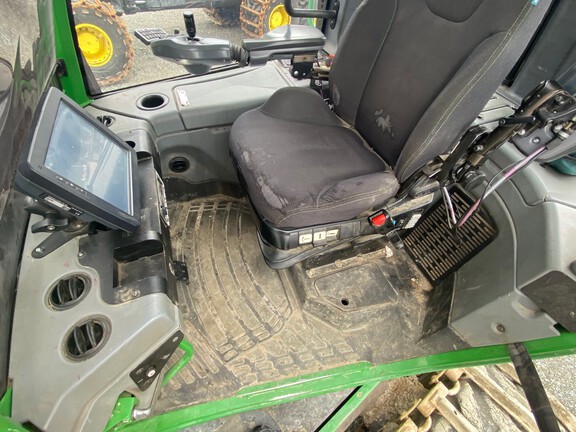

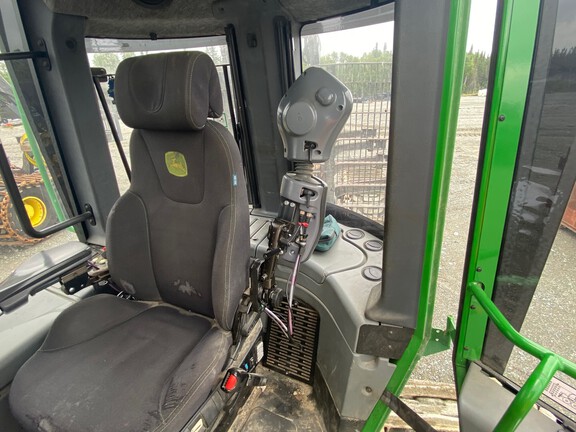

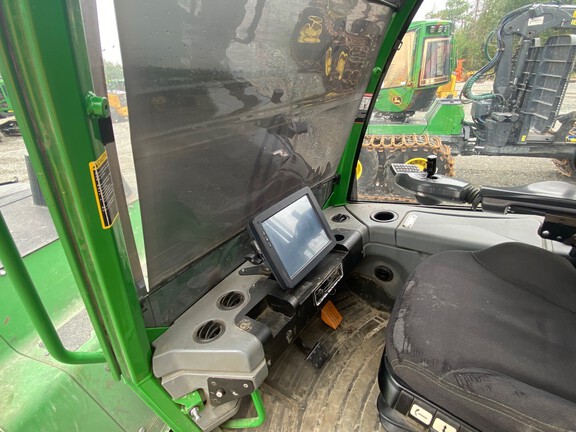

| Operator Station |
|
Forward And Backward Tilt (Since 2026)
|
6 degrees |
|
Rotating Angle (Since 2026)
|
290 degrees |
|
Sideways Tilt (Since 2026)
|
10 degrees |
|
Type (Since 2026)
|
Fixed or rotating and leveling |
| Performance |
|
Lifting Moment - Standard Crane |
151 kNm |
|
Load Capacity |
19 tonnes |
|
Pump Capacity |
2 in (6 cm)
|
|
System Voltage |
24 V |
|
Tractive Force |
51,706 lbs (23,454 kg)
|
|
Travel Speed |
13 mph (21 kph)
|

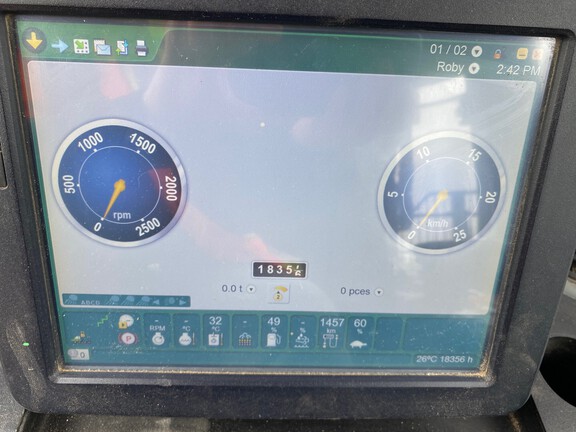

| Precision Forestry |
|
Optional Boom Control Aid (Since 2026)
|
Intelligent Boom Control (IBC) on CF7, CF7S, and CF8 |
|
Software/Operating System Type (Since 2026)
|
PC / Windows®-based TimberMatic™ F-16 |
|
Standard Boom Control Aid (Since 2026)
|
Smooth Boom Control (SBC) algorithm |
| Steering |
|
Turning Angle (Since 2026)
|
42 degrees |
|
Type (Since 2026)
|
Proportional steering with electrical joystick |
| Transmission |
|
Gear 1 Travel Speed Range (Since 2026)
|
4 mph (7 kph)
|
|
Gear 2 Travel Speed Range (Since 2026)
|
13 mph (21 kph)
|
|
Tractive Force (Since 2026)
|
51704.0 lbf |
|
Type (Since 2026)
|
Hydrostatic-mechanical, 2-speed gearbox |
