    Equipment ↠ John Deere ↠ Motor Graders ↠ 1984 John Deere 770A

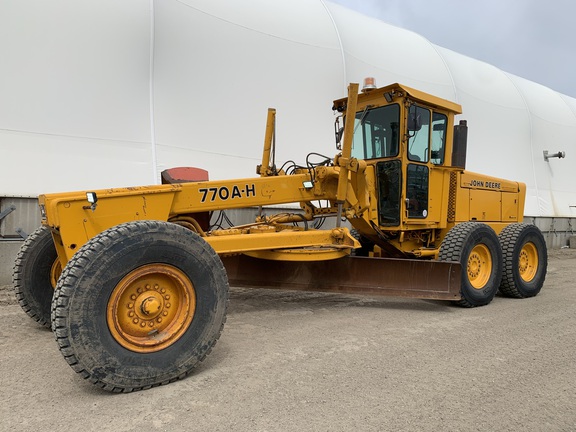

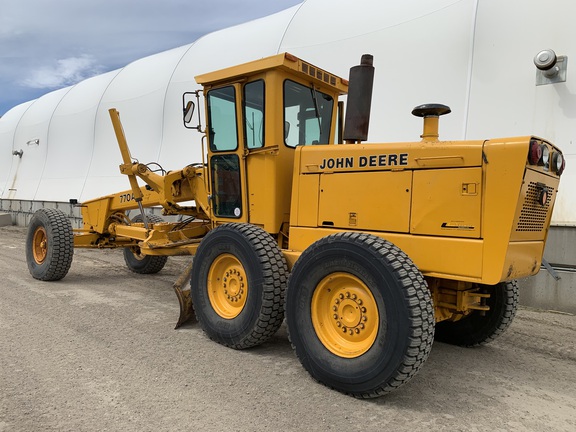

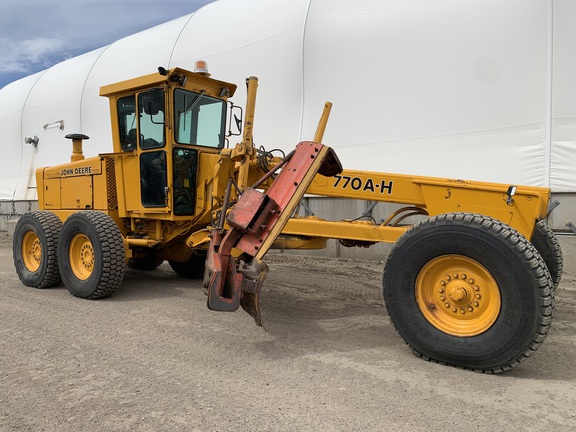

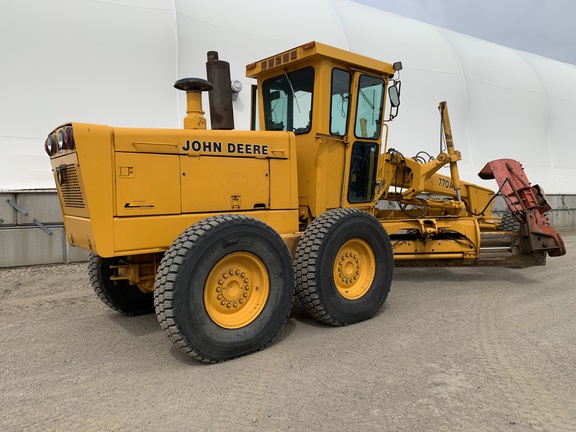

    1984 John Deere 770A For Sale in Regina, SK


    / Save to Watch List

    For Sale: $25,471.00 USD
    Converted From: 35,900.00 CAD

    Apply for Financing

    Brandt Tractor LTD

    Brandt Tractor LTD Dealer Info
    Brandt Tractor LTD Website
    Click here to email Brandt Tractor LTD.

    Request an equipment inspection

    Get shipping quotes


    Contact: Equipment Sales

    Click for Phone Number

    Machine Info:

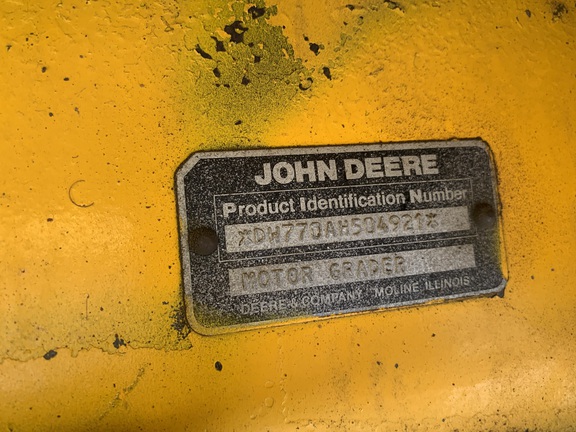

    Serial Number:DW770AH504921
    Stock Number:1U504921
    Machine Location:REGINA, SK

    Description:

    Cab w/ AC, Antler Rack Controls; 4.27 m (14 ft.) Blade; 14.00 Tires; Snow Wing

    Machine Details:

    General Specifications

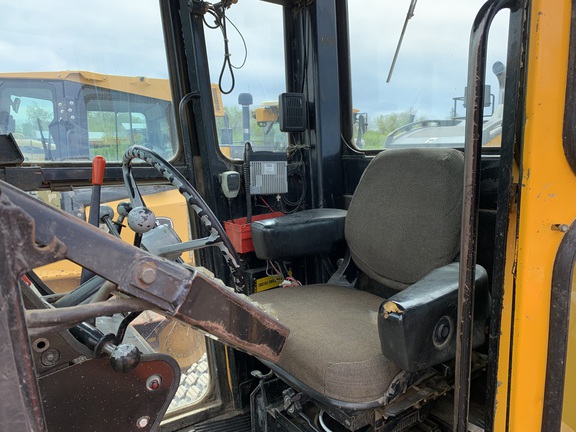

    Operators StationCab w/ AC
    Blades4.27 m (14 ft.) Blade
    Tires14.00 Tires

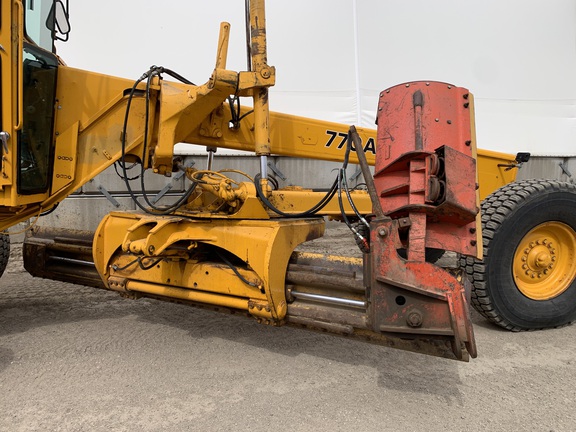

    AttachmentsSnow Wing


    From the manufacturer:

    Supplied by HeavyEquipmentData.com →


    John Deere 770A motor grader is a heavy equipment machine used for road construction, grading, ditching, and surface finishing. Designed for precision earthmoving, the 770A features a moldboard blade mounted between the front and rear axles to control grade and slope. It is commonly used in highway maintenance, site preparation, and municipal work. As part of John Deere's motor grader lineup, the 770A is built for operator control, traction, and blade accuracy on varied terrain. This model is referenced in equipment inventories, parts lookup, and used machinery listings for grading applications.
    Circle
    Blade Tip Angle - Front 44 degrees
    Blade Tip Angle - Rear 10 degrees
    Diameter 59 in (150 cm)
    Max Lift Above Ground 17 in (43 cm)
    Max Reach Outside Tires - Left 90 in (228 cm)
    Max Reach Outside Tires - Right 89 in (225 cm)
    Rotation 360 degrees
    Shift Left 34 in (85 cm)
    Shift Right 32 in (82 cm)
    Dimensions
    Blade Base 9 ft (3 m)
    Front Ground Clearance 2 ft (1 m)
    Height to Top of Isomount Cab 11 ft (3 m)
    Overall Length 28 ft (8 m)
    Tandem Axle Wheelbase 5 ft (2 m)
    Wheelbase 20 ft (6 m)
    Width Over Tires 8 ft (2 m)
    Engine
    Aspiration Turbocharged with Intercooler
    Displacement 466 cu in (7,636 cu cm)

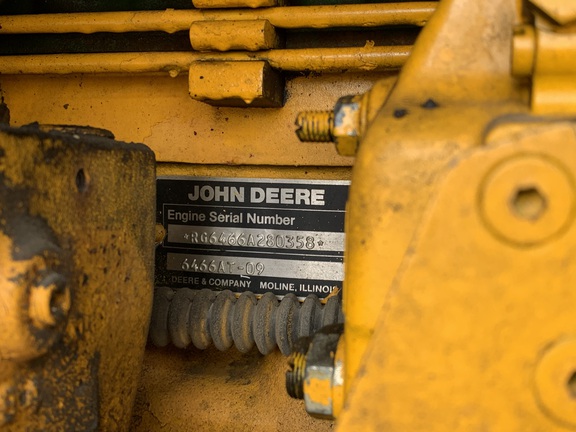

    Engine Model 6-466A
    Max Power 150 hp (112 kw)
    Net Power Gears 7-8 150 hp (112 kw)
    Net Torque Gears 7-8 465 lbs ft (630 nm)
    Number of Cylinders 6
    Power Measured @ 2,200 rpm
    Torque Measured @ 1,300 rpm
    Front Axle
    Ground Clearance 2 ft (1 m)
    Oscillation - Total 30 degrees
    Wheel Lean 20 degrees
    Hydraulic System
    Pump Flow 36 gpm (136 lpm)
    Pump Type Closed Center Variable Displacement
    Moldboard
    Moldboard Height 24 in (61 cm)
    Moldboard Thickness 1 in (2 cm)
    Moldboard Width 12 ft (4 m)
    Side Shift Left 27 in (68 cm)
    Side Shift Right 27 in (68 cm)
    Operating Specifications
    Alternator Supplied Amperage 42 amps
    Circle Gearbox Fluid Capacity 1 gal (4 l)
    Cooling System Fluid Capacity 7 gal (27 l)
    Fuel Capacity 70 gal (265 l)
    Hydraulic System Fluid Capacity 31 gal (117 l)
    Max Operation Weight - Front Axle 9,091 lbs (4,124 kg)
    Max Operation Weight - Rear Axle 24,758 lbs (11,230 kg)
    Max Operation Weight - Total 33,849 lbs (15,354 kg)
    Oil System Fluid Capacity 5 gal (19 l)
    Operating Voltage 24 volts
    Std Operation Weight - Front Axle 8,548 lbs (3,877 kg)
    Std Operation Weight - Rear Axle 21,712 lbs (9,848 kg)
    Std Operation Weight - Total 30,260 lbs (13,726 kg)
    Tandem Case Fluid Capacity (each) 5 gal (19 l)
    Tire Size 14.00-25
    Steering System
    Articulation Angle 25 degrees
    Turning Radius 22 ft (7 m)
    Transmission
    Max Speed - Forward 25 mph (40 kph)
    Max Speed - Reverse 9 mph (14 kph)
    Number of Gears - Forward 8
    Number of Gears - Reverse 4
    Transmission Type Power Shift
