2008 John Deere 772D For Sale in Duluth, MN

Name: 2008 John Deere 772D
Brand: John Deere
SKU: 88587688
Price: 94000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $94,000.00 USD

Apply for Financing

McCoy Construction & Forestry

McCoy Construction & Forestry Dealer Info

McCoy Construction & Forestry Website

Click here to email McCoy Construction & Forestry.

Contact: Chad Benz Cell 715-218-0030

Click for Phone Number

Machine Info:

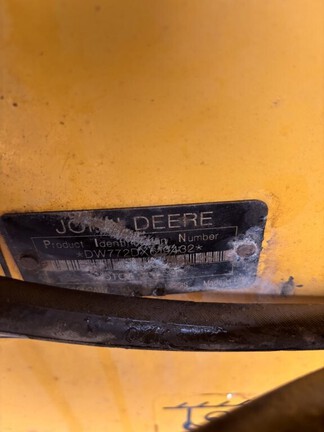

Serial Number:	DW772DX619432
Stock Number:	309347
Machine Location:	DULUTH, MN

Description:

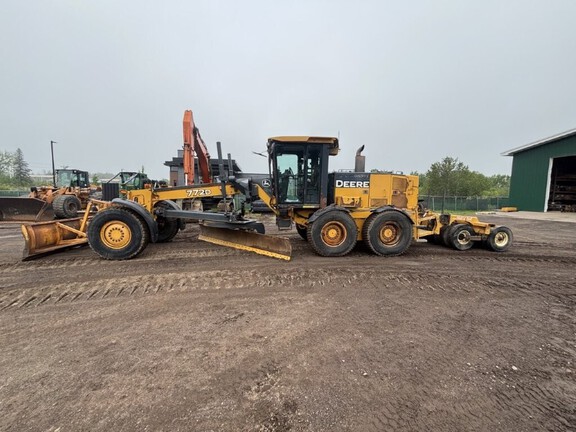

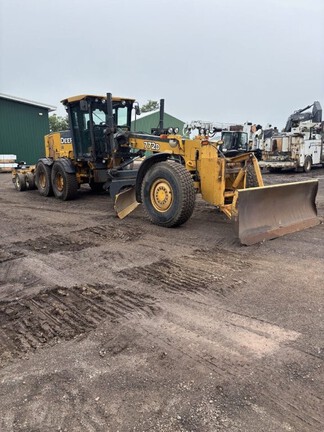

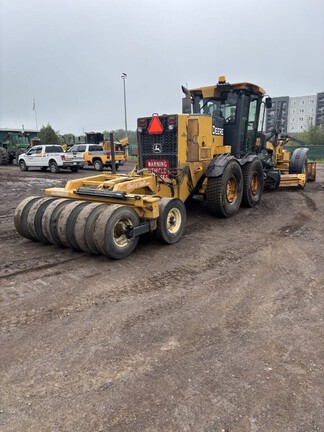

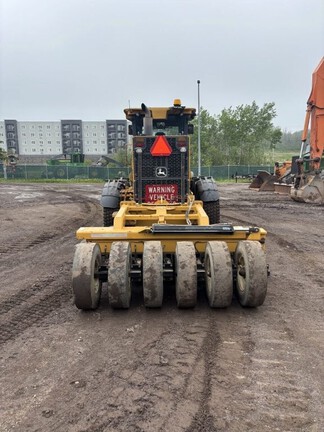

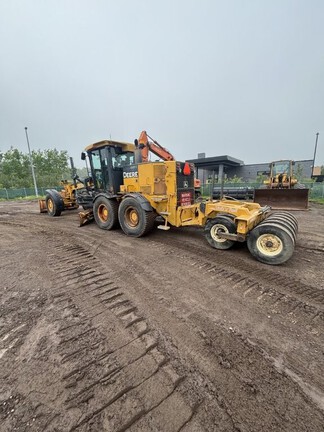

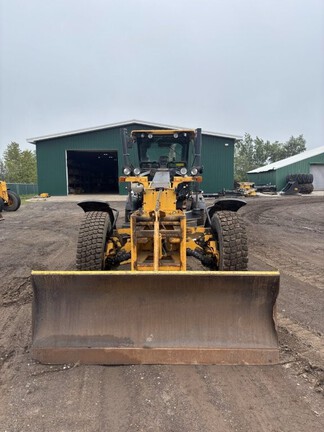

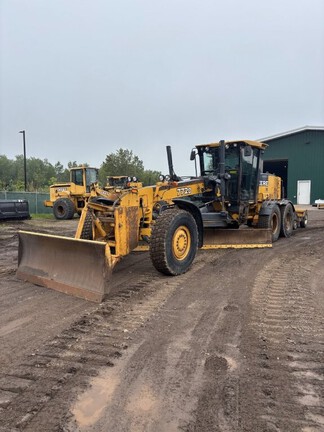

Cab w/ AC, Antler Rack Controls; 4.27 m (14 ft.) Blade; 14.00 Tires; All Wheel Drive; Aux Hydraulics, Dozer Blade, Snow Wing

Machine Details:

General Specifications

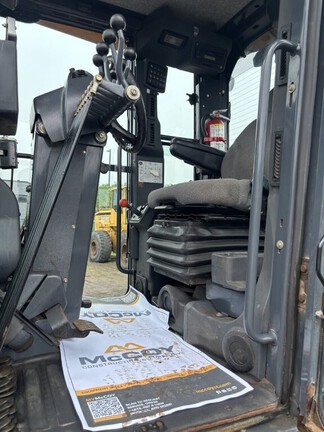

Operators Station	Antler Rack Controls
Blades	4.27 m (14 ft.) Blade
Tires	14.00 Tires
Powertrain	All Wheel Drive
Options	Aux Hydraulics
Attachments	Snow Wing

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 772D is a motor grader designed for road construction, maintenance, and grading applications. It is part of John Deere's 772D series and is used to shape surfaces, maintain haul roads, and perform fine grading work on job sites, quarries, and municipal projects. The machine typically features a front-mounted moldboard, articulated frame, and operator controls suited for precise blade positioning. As a heavy equipment grader, the 772D is commonly associated with earthmoving, site preparation, and roadway finishing tasks. It is recognized in equipment listings, fleet inventories, and used machinery markets as a John Deere motor grader model.

Circle
Blade Tip Angle - Front	42 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (152 cm)
Max Lift Above Ground	19 in (47 cm)
Max Reach Outside Tires - Left	83 in (210 cm)
Max Reach Outside Tires - Right	82 in (208 cm)
Rotation	360 degrees
Shift Left	31 in (79 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	11 ft (3 m)
Overall Length	29 ft (9 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharged with air-to-air aftercooler
Displacement	494 cu in (8,095 cu cm)
Engine Model	6081H
Max Power	230 hp (172 kw)
Net Power Gear 1-2	185 hp (138 kw)
Net Power Gear 4-6	215 hp (160 kw)
Net Power Gear 5-6	230 hp (172 kw)
Net Power Gears 7-8	215 hp (160 kw)
Net Torque Gears 1-2	738 lbs ft (1,001 nm)
Net Torque Gears 3-4	778 lbs ft (1,055 nm)
Net Torque Gears 5-6	929 lbs ft (1,260 nm)
Net Torque Gears 7-8	929 lbs ft (1,260 nm)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,000 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	20 degrees
Hydraulic System
Pump Flow	55 gpm (207 lpm)
Pump Type	Variable displacement piston
Relief Valve Pressure	2,750 psi
Moldboard
Blade Pull at Max Weight	43,200 lbs (19,595 kg)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (68 cm)
Side Shift Right	27 in (68 cm)
Operating Specifications
Alternator Supplied Amperage	100 amps
Circle Gearbox Fluid Capacity	2 gal (6 l)
Cooling System Fluid Capacity	13 gal (49 l)
Fuel Capacity	106 gal (401 l)
Hydraulic System Fluid Capacity	14 gal (53 l)
Max Operation Weight - Front Axle	15,840 lbs (7,185 kg)
Max Operation Weight - Rear Axle	32,159 lbs (14,587 kg)
Max Operation Weight - Total	47,999 lbs (21,772 kg)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	10 gal (36 l)
Std Operation Weight - Front Axle	9,620 lbs (4,364 kg)
Std Operation Weight - Rear Axle	24,660 lbs (11,186 kg)
Std Operation Weight - Total	34,280 lbs (15,549 kg)
Tandem Case Fluid Capacity (each)	20 gal (76 l)
Tire Size	14.00R24 Radial PR
Transmission Fluid Capacity	6 gal (23 l)
Steering System
Articulation Angle	22 degrees
Turning Radius	24 ft (7 m)
Transmission
Max Speed - Forward	26 mph (42 kph)
Max Speed - Reverse	26 mph (42 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	8
Transmission Type	Powershift with direct drive
