| Additional Information |
|
Manufacturing Location (Since 2026)
|
Greeneville, Tennessee, USA |
| Buyer's Notes |
|
Notes (Since 2026)
|
Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame Bright LED headlights |
|
Warranty (Since 2026)
|
2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Chassis |
|
Cup Holder (Since 2026)
|
Yes |
|
Equipment Mounting (Since 2026)
|
CargO Mount™ system |
|
Fender Deck Material (Since 2026)
|
Stamped steel |
|
Fender Handles/Grips (Since 2026)
|
No |
|
Floor Mats (Since 2026)
|
Yes, with debris removing channels |
|
Frame (Since 2026)
|
Full-length welded steel |
|
Front Axle (Since 2026)
|
Cast-iron front axle, front wheel sealed ball bearings |
|
Front Tires (Since 2026)
|
15x6-6 |
|
Hood Material (Since 2026)
|
Molded-in color material reduces sound, will not rust or dent |
|
Maximum Towing Capacity (Since 2026)
|
500 lbs (227 kg)
|
|
Primer/Paint (Since 2026)
|
E-coat/powder |
|
Rear Tires (Since 2026)
|
20x8-8 |
|
Receiver Hitch (Since 2026)
|
No |
|
Service Interval Decal (Since 2026)
|
Yes |
|
Spindle Bushings (Since 2026)
|
No |
|
Storage (Since 2026)
|
Storage tray with optional cover |
|
Weight Bracket (Since 2026)
|
Optional rear |
| Dimensions |
|
Height (Since 2026)
|
40 in (102 cm)
|
|
Overall Length (Since 2026)
|
70 in (177 cm)
|
|
Weight (Since 2026)
|
414 lbs (188 kg)
|
|
Wheelbase (Since 2026)
|
49 in (124 cm)
|
|
Width With Mower (Since 2026)
|
55 in (140 cm)
|
|
Width With Mower (Deflector Raised For Storage) (Since 2026)
|
47 in (118 cm)
|
|
Width Without Mower (Since 2026)
|
39 in (100 cm)
|
| Electrical System |
|
12-V Outlet (Since 2026)
|
No |
|
Backup Lights (Since 2026)
|
No |
|
Battery Cold Crank Amps (Since 2026)
|
300.0 CCA |
|
Charging System (Since 2026)
|
Regulated |
|
Charging System (Since 2026)
|
8 amp |
|
Engine Starter (Since 2026)
|
Bendix type |
|
Headlights (Since 2026)
|
Two standard, LED |
|

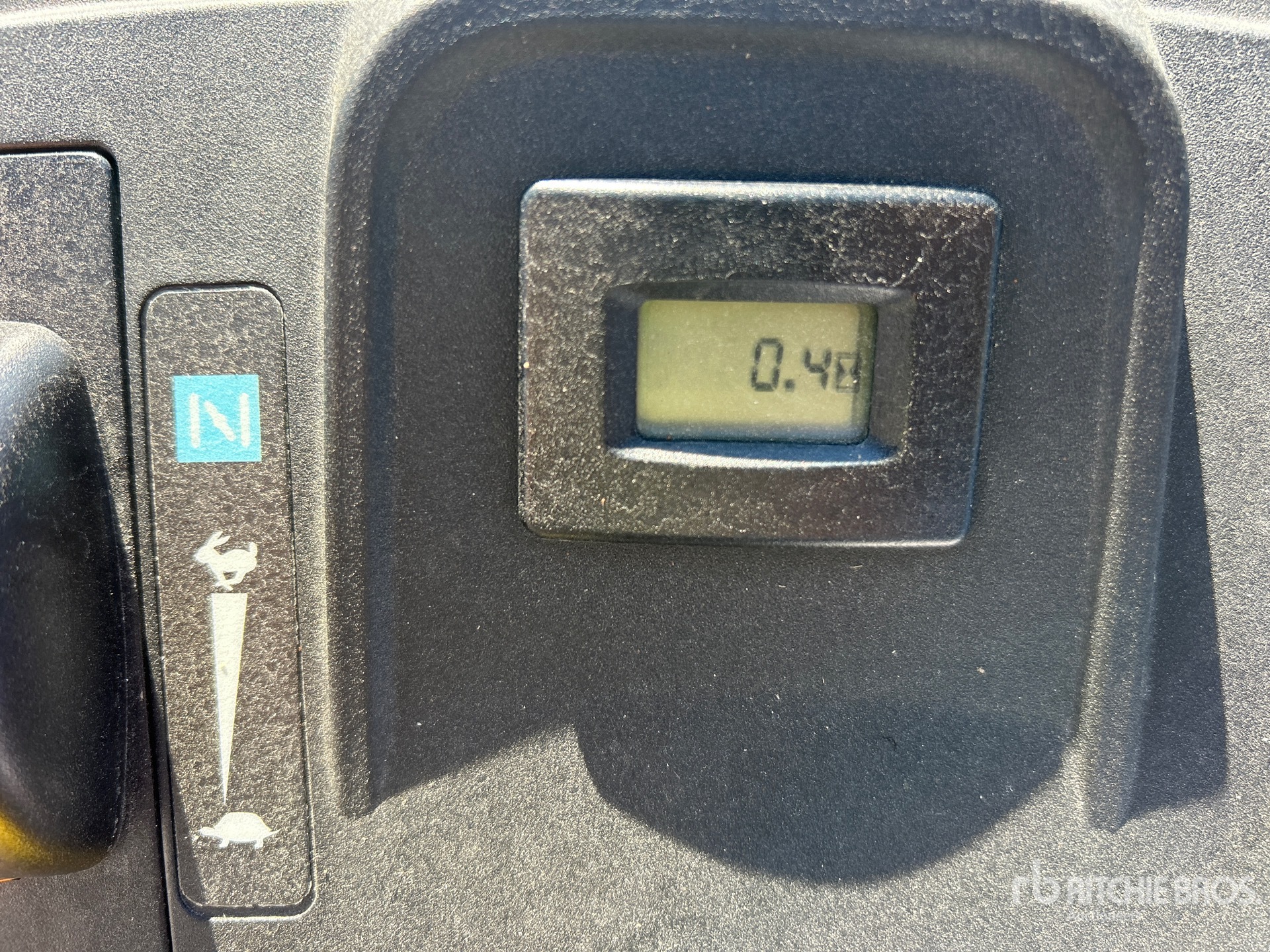

Hour Meter (Since 2026)
|
Yes |
|
Rear Work Lights (Since 2026)
|
No |
|
Taillights Or Reflector (Since 2026)
|
No |
| Engine |
|
Air Cleaner (Since 2026)
|
Cartridge |
|
Choke/Speed Control (Since 2026)
|
Single lever with spring-return on choke |
|
Cooling Method (Since 2026)
|
Air |
|
Cylinders (Since 2026)
|
One |
|
Displacement (Since 2026)
|
31 cu in (500 cu cm)
|
|
Engine Manufacturer/Model (Since 2026)
|
31R977 (M31) |
|
Engine Power (Since 2026)
|
18 hp (13 kw)
|
|
Engine Type (Since 2026)
|
Overhead valve, full-pressure lube, oil filter |
|
Governor (Since 2026)
|
Mechanical |
|
Oil Change (Since 2026)
|
No-tools oil drain with replaceable filter |
| Fuel System |
|
Fuel Delivery (Since 2026)
|
Pulse pump and carburetor |
|
Fuel Fill Opening (Since 2026)
|
Center |
|
Fuel Fill Opening (Since 2026)
|
2 in (4 cm)
|
|
Fuel Gauge (Since 2026)
|
Mechanical, viewable from seat |
|
Fuel Tank Capacity (Since 2026)
|
2 gal (9 l)
|
|
Fuel Tank Location (Since 2026)
|
Rear |
|
Type (Since 2026)
|
Gasoline |
| Key Specs |
|
Cutting Width (Since 2026)
|
42 in (107 cm)
|
|
Engine Manufacturer/Model (Since 2026)
|
31R977 (M31) |
|
Engine Power (Since 2026)
|
18 hp (13 kw)
|
|
Lift System Type (Since 2026)
|
Spring-assisted hand-grip lever |
|
Rear Tires (Since 2026)
|
20x8-8 |
|
Transaxle Control (Since 2026)
|
Side-by-side pedals |
|
Transaxle Type (Since 2026)
|
Hydrostatic, 2-wheel drive |
|
Warranty (Since 2026)
|
2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Lift System |
|
Cut Height Increments (Since 2026)
|
0 in (1 cm)
|
|
Hydraulic Outlets (Since 2026)
|
No |
|
Lift System Type (Since 2026)
|
Spring-assisted hand-grip lever |
|
Mower Cut Height - Maximum (Since 2026)
|
4 in (10 cm)
|
|
Mower Cut Height - Minimum (Since 2026)
|
1 in (3 cm)
|
|
Preset Cut Height (Since 2026)
|
No |
| Mower Attachability |
|
Drive System (Since 2026)
|
Single belt |
|
Front Draft Arms (Since 2026)
|
One spring clip |
|
Mower Wheels Rotate (Since 2026)
|
No |
|
Rear Draft Arms (Since 2026)
|
Two spring clips |
|
Type (Since 2026)
|
Slide under tractor |
| Mower Deck |
|
Construction (Since 2026)
|
Stamped steel deck shell |
|
Cutting Width (Since 2026)
|
42 in (107 cm)
|
|
Mower Deck Material (Since 2026)
|
13.0 gauge |
|
Mower Deck Material (Since 2026)
|
0 in (0 cm)
|
|
Mower Drive System (Since 2026)
|
Manual power take-off (PTO) |
|
Mower Level Adjustment (Since 2026)
|
Easy-level deck |
|
Mower Wash Port (Since 2026)
|
Yes |
|
Mower Wheel Adjustment (Since 2026)
|
One bolt |
|
Mower Wheels (Since 2026)
|
Two |
|
Type (Since 2026)
|
Side discharge |
| Optional Equipment |
|
Bucket Holder (Since 2026)
|
Yes, single bucket |
|
Front Blade (Since 2026)
|
46 in (117 cm)
|
|
Front Bumper (Since 2026)
|
Styled front bumper |
|
Grass Striping (Since 2026)
|
Lawn striping kit |
|
Mulching System (Since 2026)
|
Mulch cover or high-performance plug |
|
Rear Bagger (Since 2026)
|
7 bu |
|
Snow Blower (Since 2026)
|
44 in (112 cm)
|
|
Sprayer - Mounted (Since 2026)
|
15 gal (57 l)
|
|
Sprayer - Tow-Behind (Since 2026)
|
25 gal (95 l)
|
|
Spreader - Tow-Behind (Since 2026)
|
175 lbs (79 kg)
|
|
Sun Canopy (Since 2026)
|
Sun canopy |
|
Tow-Behind Tools (Since 2026)
|
16 |
|
Weather Protection (Since 2026)
|
Weather enclosure |
| Safety |
|
Backup Protection (Since 2026)
|
Reverse Implement Option (RIO) |
|
Meets ANSI Standard (Since 2026)
|
Yes |
|
Meets OPEI Standard (Since 2026)
|
Yes |
|
Safety Video (Since 2026)
|
Yes |
| Seat |
|
Armrests (Since 2026)
|
No |
|
Fore-Aft Adjustment (Since 2026)
|
6 in (14 cm)
|
|
Seat Back Height (Since 2026)
|
11 in (28 cm)
|
|
Seat Suspension (Since 2026)
|
Tilt, two coil springs |
|
Type (Since 2026)
|
One piece |
| Steering |
|
Four-Wheel Steer (Since 2026)
|
Not available on this model |
|
Steering Wheel (Since 2026)
|
12 in (30 cm)
|
|
Tilt Steering Wheel (Since 2026)
|
No |
|
Turning Radius (Since 2026)
|
18 in (46 cm)
|
|
Type (Since 2026)
|
Sector and pinion with single drag link and tie rod |
|
Uncut Circle Radius (Since 2026)
|
25 in (64 cm)
|
| Transaxle |
|
Brakes (Since 2026)
|
Internal wet disk |
|
Cruise Control (Since 2026)
|
No |
|
Differential Lock (Since 2026)
|
No |
|
Forward Speed (Since 2026)
|
6 mph (9 kph)
|
|
Oil Cooler (Since 2026)
|
Fins and fan on transaxle |
|
Oil Filter (Since 2026)
|
Yes, not serviceable |
|
Reverse Speed (Since 2026)
|
3 mph (5 kph)
|
|
Transaxle Control (Since 2026)
|
Side-by-side pedals |
|
Transaxle Type (Since 2026)
|
Hydrostatic, 2-wheel drive |
