| Additional Information |
|
Date Collected (Since 2026)
|
2023-08-01T00:00:00 |
|
Manufacturing Location (Since 2026)
|
Horicon, Wisconsin, USA |
| Buyer's Notes |
|
Notes (Since 2026)
|
Styled alloy wheels are standard equipment One-piece hood for easy engine access Hydraulic modulated PTO clutch for smooth mower and implement engagement |
|
Warranty (Since 2026)
|
4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Chassis |
|
Cup Holder (Since 2026)
|
Yes |
|
Equipment Mounting (Since 2026)
|
Optional category 1 3-point hitch |
|
Fender Deck Material (Since 2026)
|
Stamped steel |
|
Fender Handles/Grips (Since 2026)
|
Handles |
|
Floor Mats (Since 2026)
|
Sure-grip rubber |
|
Frame (Since 2026)
|
Welded heavy-duty |
|
Front Axle (Since 2026)
|
JDM BA8 nodular iron casting |
|
Front Tires (Since 2026)
|
18x7-8 turf |
|
Hood Material (Since 2026)
|
Noryl GTX902, painted |
|
Maximum Towing Capacity (Since 2026)
|
1,000 lbs (454 kg)
|
|
Primer/Paint (Since 2026)
|
E-coat/powder |
|
Rear Tires (Since 2026)
|
26x10.5-12 turf |
|
Receiver Hitch (Since 2026)
|
Yes, front |
|
Service Interval Decal (Since 2026)
|
Yes |
|
Spindle Bushings (Since 2026)
|
Metal, replaceable |
|
Storage (Since 2026)
|
Covered toolbox |
|
Weight Bracket (Since 2026)
|
Standard front - holds up to four Quik-Tatch weights, 42 lb / 19 kg |
| Dimensions |
|
Height (Since 2026)
|
55 in (138 cm)
|
|
Overall Length (Since 2026)
|
75 in (191 cm)
|
|
Weight (Since 2026)
|
997 lbs (452 kg)
|
|
Wheelbase (Since 2026)
|
55 in (138 cm)
|
|
Width Without Mower (Since 2026)
|
47 in (119 cm)
|
| Electrical System |
|
12-V Outlet (Since 2026)
|
Yes |
|
Backup Lights (Since 2026)
|
Yes |
|
Battery Cold Crank Amps (Since 2026)
|
500.0 CCA |
|
Charging System (Since 2026)
|
Engine-mounted alternator, regulated |
|
Charging System (Since 2026)
|
40 amp |
|
Engine Starter (Since 2026)
|
Solenoid shift |
|
Headlights (Since 2026)
|
Two standard, halogen, 37 W |
|

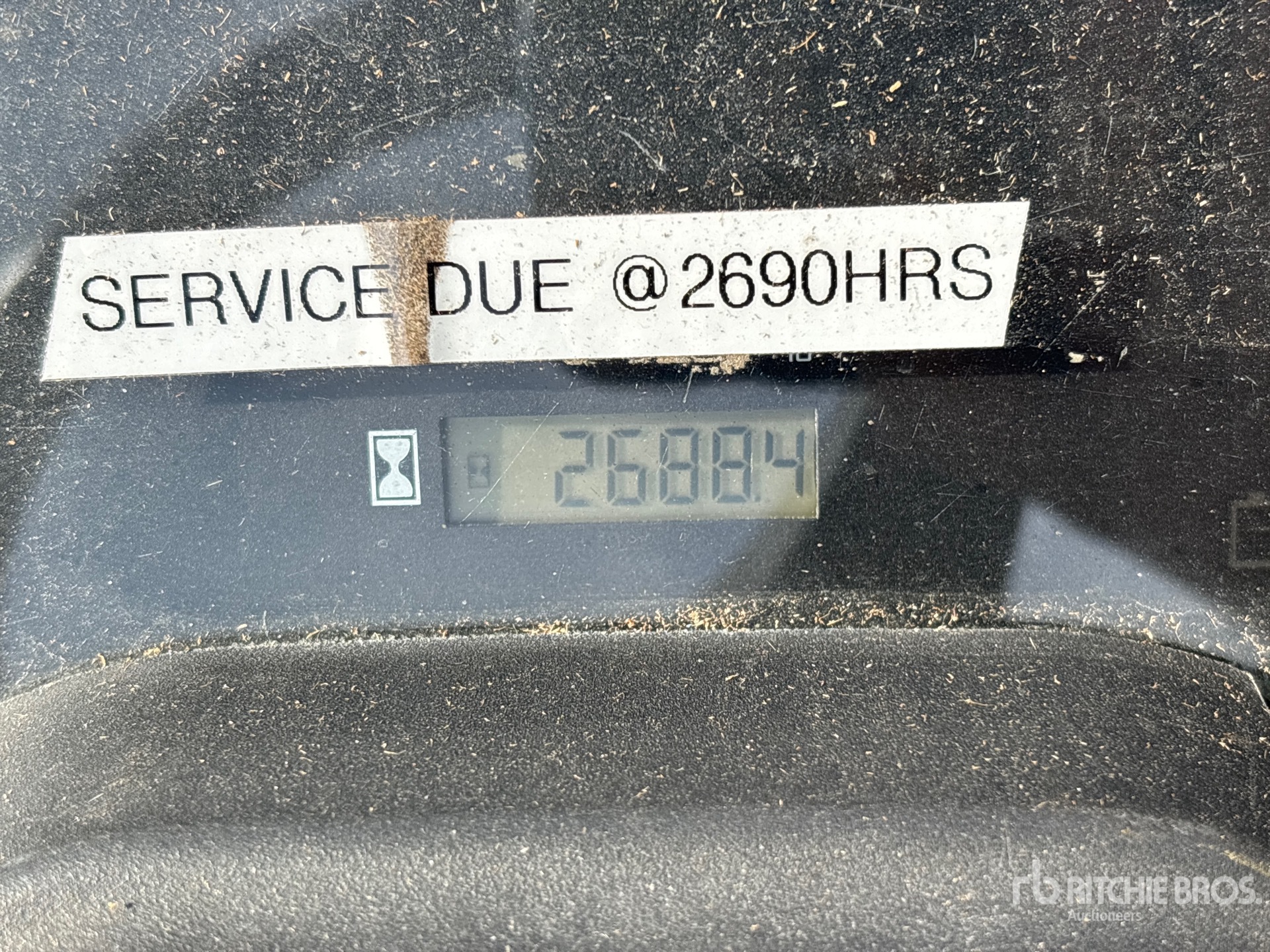

Hour Meter (Since 2026)
|
Yes |
|
Rear Work Lights (Since 2026)
|
Yes |
|
Taillights Or Reflector (Since 2026)
|
Taillights |
| Engine |
|
Air Cleaner (Since 2026)
|
Paper dry-type with primary and secondary elements |
|
Choke/Speed Control (Since 2026)
|
One lever |
|
Cooling Method (Since 2026)
|
Liquid |
|
Cylinders (Since 2026)
|
Three, cast-iron liners |
|
Displacement (Since 2026)
|
61 cu in (993 cu cm)
|
|
Engine Manufacturer/Model (Since 2026)
|
3TNM74F |
|
Engine Power (Since 2026)
|
24 hp (18 kw)
|
|
Engine Type (Since 2026)
|
Diesel, overhead valve, full-pressure lube, oil filter |
|
Governor (Since 2026)
|
Mechanical |
|
Oil Change (Since 2026)
|
No tools |
| Fuel System |
|
Fuel Delivery (Since 2026)
|
In-line indirect injection |
|
Fuel Fill Opening (Since 2026)
|
On left fender |
|
Fuel Fill Opening (Since 2026)
|
3 in (8 cm)
|
|
Fuel Gauge (Since 2026)
|
Gauge on dash |
|
Fuel Tank Capacity (Since 2026)
|
5 gal (20 l)
|
|
Fuel Tank Location (Since 2026)
|
Rear |
|
Type (Since 2026)
|
Diesel |
| Key Specs |
|
Cutting Width (Since 2026)
|
48/54/60 in. |
|
Engine Manufacturer/Model (Since 2026)
|
3TNM74F |
|
Engine Power (Since 2026)
|
24 hp (18 kw)
|
|
Lift System Type (Since 2026)
|
Two-function hydraulic |
|
Rear Tires (Since 2026)
|
26x10.5-12 turf |
|
Transaxle Control (Since 2026)
|
Twin Touch™ pedals |
|
Transaxle Type (Since 2026)
|
K90 hydrostatic integrated with transaxle |
|
Warranty (Since 2026)
|
4 year/700 hour bumper-to-bumper** (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Lift System |
|
Cut Height Increments (Since 2026)
|
0 in (1 cm)
|
|
Hydraulic Outlets (Since 2026)
|
Four, standard |
|
Lift System Type (Since 2026)
|
Two-function hydraulic |
|
Mower Cut Height - Maximum (Since 2026)
|
5 in (13 cm)
|
|
Mower Cut Height - Minimum (Since 2026)
|
1 in (3 cm)
|
|
Preset Cut Height (Since 2026)
|
Yes |
| Mower Attachability |
|
Drive System (Since 2026)
|
Shaft or AutoConnect |
|
Front Draft Arms (Since 2026)
|
Overcenter |
|
Mower Wheels Rotate (Since 2026)
|
Yes, 90 degrees for easy mower removal (48A), N/A (54 HC, 60 HC) |
|
Rear Draft Arms (Since 2026)
|
V-align |
|
Type (Since 2026)
|
Roll under tractor (48A) / Drive-over deck (54, 60 HC) |
| Mower Deck |
|
Construction (Since 2026)
|
Forged steel deck shell |
|
Cutting Width (Since 2026)
|
48/54/60 in. |
|
Mower Drive System (Since 2026)
|
Hydraulic clutch, shaft |
|
Mower Level Adjustment (Since 2026)
|
Exact Adjust ports and onboard deck-leveling gauge |
|
Mower Wash Port (Since 2026)
|
Yes |
|
Mower Wheel Adjustment (Since 2026)
|
Spring-loaded pin |
|
Mower Wheels (Since 2026)
|
48A, four and center front roller / 54 and 60 HC, four with optional center front roller |
|
Type (Since 2026)
|
Side discharge |
| Optional Equipment |
|
3-Point Hitch (Since 2026)
|
Category 1 |
|
Box Scraper (Since 2026)
|
48 in (122 cm)
|
|
Brush Guard (Since 2026)
|
Yes |
|
Bucket Holder (Since 2026)
|
Yes, double bucket |
|
Cultivator (Since 2026)
|
46 in (117 cm)
|
|
Disk Harrow (Since 2026)
|
52 in (132 cm)
|
|
Front Blade (Since 2026)
|
54 in (137 cm)
|
|
Front Bumper (Since 2026)
|
Standard bumper/weight bracket |
|
Front Loader (Since 2026)
|
Not available |
|
Front Thatcher (Since 2026)
|
54 in (137 cm)
|
|
Grass Striping (Since 2026)
|
Grass groomer kit, 48-in. (122-cm) mower only |
|
Landscape Rake (Since 2026)
|
60 in (152 cm)
|
|
Mowers (Since 2026)
|
48A, 54 HC, 60 HC |
|
Mulching System (Since 2026)
|
Yes, MulchControl™ |
|
Plow, Moldboard (Since 2026)
|
14 in (36 cm)
|
|
Powered Material Collection (Since 2026)
|
Power Flow, 7, 14, 19 bu / 250, 500, 670 L |
|
Rear Bagger (Since 2026)
|
19 bu |
|
Rear Blade (Since 2026)
|
60 in (152 cm)
|
|
Rear Power Take-Off (Since 2026)
|
540 rpm |
|
Rotary Broom (Since 2026)
|
60 in (152 cm)
|
|
Rotary Tiller (Since 2026)
|
48 in (122 cm)
|
|
Snow Blower (Since 2026)
|
54 in (137 cm)
|
|
Sprayer - Mounted (Since 2026)
|
25 gal (95 l)
|
|
Sprayer - Tow-Behind (Since 2026)
|
45 gal (170 l)
|
|
Spreader - Mounted (Since 2026)
|
125 lbs (57 kg)
|
|
Spreader - Tow-Behind (Since 2026)
|
175 lbs (79 kg)
|
|
Tow-Behind Tools (Since 2026)
|
21 |
|
Tractor Shovel (Since 2026)
|
54 in (137 cm)
|
|
Weather Protection (Since 2026)
|
Hard-side cab, weather enclosure |
| Safety |
|
Backup Protection (Since 2026)
|
Reverse Implement Option (RIO) |
|
Meets ANSI Standard (Since 2026)
|
Yes |
|
Meets OPEI Standard (Since 2026)
|
Yes |
|
Safety Video (Since 2026)
|
Yes |
| Seat |
|
Armrests (Since 2026)
|
Optional |
|
Fore-Aft Adjustment (Since 2026)
|
7 in (18 cm)
|
|
Seat Back Height (Since 2026)
|
21 in (53 cm)
|
|
Seat Suspension (Since 2026)
|
Six-position parallel arm |
|
Type (Since 2026)
|
Two-piece adjustable seat with brand embroidery |
| Steering |
|
Four-Wheel Steer (Since 2026)
|
Yes |
|
Steering Wheel (Since 2026)
|
14 in (36 cm)
|
|
Tilt Steering Wheel (Since 2026)
|
Standard, six position |
|
Turning Radius (Since 2026)
|
21 in (53 cm)
|
|
Type (Since 2026)
|
Hydraulic power |
| Transaxle |
|
Brakes (Since 2026)
|
Internal wet disc |
|
Cruise Control (Since 2026)
|
Yes |
|
Differential Lock (Since 2026)
|
Standard |
|
Forward Speed (Since 2026)
|
9 mph (14 kph)
|
|
Oil Cooler (Since 2026)
|
Yes |
|
Oil Filter (Since 2026)
|
Replaceable suction side 10 micron |
|
Reverse Speed (Since 2026)
|
6 mph (10 kph)
|
|
Transaxle Control (Since 2026)
|
Twin Touch™ pedals |
|
Transaxle Type (Since 2026)
|
K90 hydrostatic integrated with transaxle |
