| Additional Information |
|
Date Collected (Since 2026)
|
2021-12-01T00:00:00 |
|
Manufacturing Location (Since 2026)
|
Greeneville, Tennessee, USA |
| Buyer's Notes |
|
Note 1 (Since 2026)
|
Mower wash port makes cleaning the deck easier |
|
Note 2 (Since 2026)
|
Flip-up foot platform for easy service access |
|
Note 3 (Since 2026)
|
18-position adjustable motion-control levers |
|
Warranty (Since 2026)
|
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Chassis |
|
Cup Holder (Since 2026)
|
Yes |
|
Drive Tires (Since 2026)
|
23x10.5-12 |
|
Frame (Since 2026)
|
Heavy-duty frame tubing |
|
Front Caster Bearings (Since 2026)
|
Sealed ball bearings |
|
Front Caster Tires (Since 2026)
|
13x6.5-6 |
|

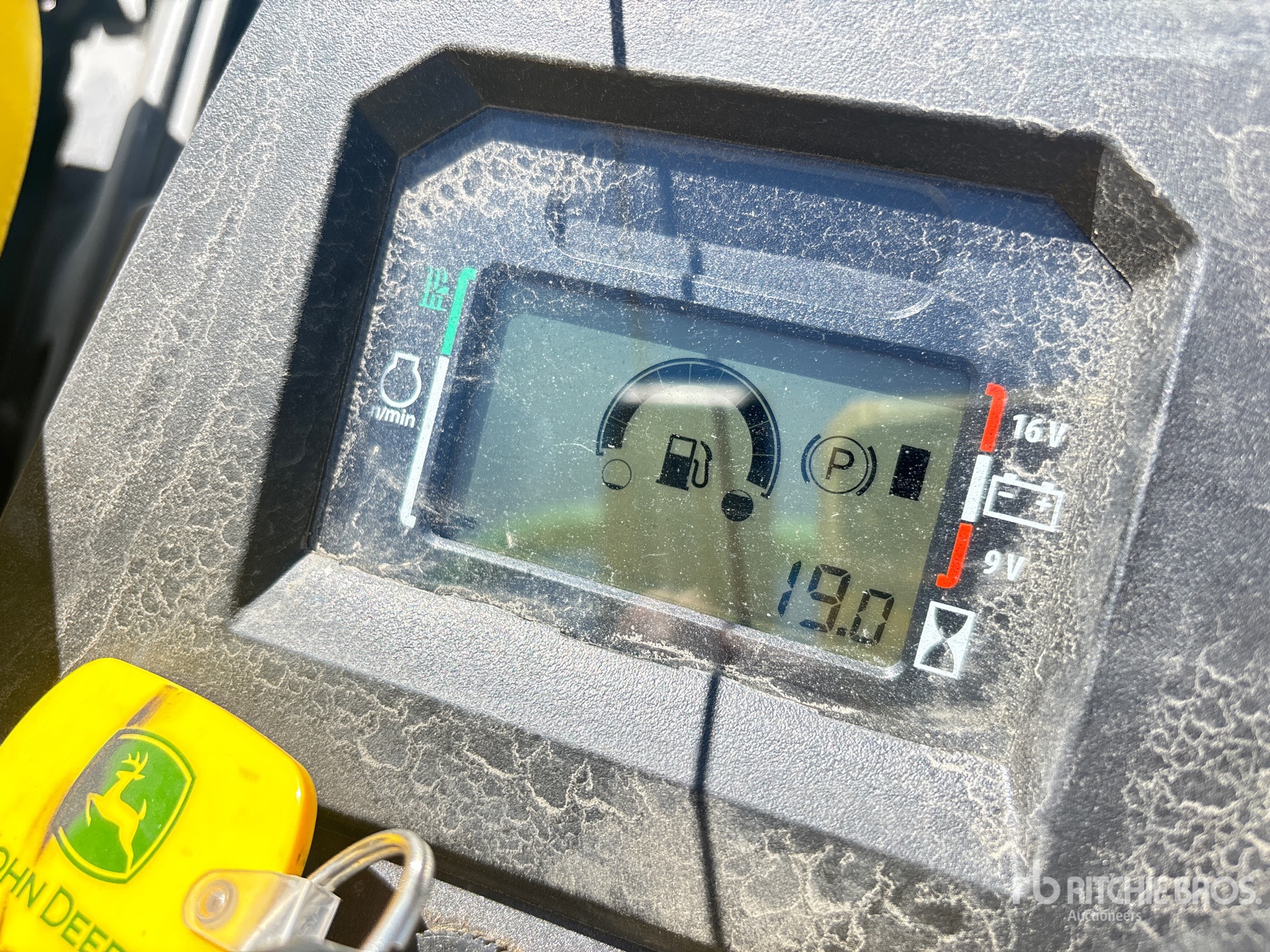

Hour Meter (Since 2026)
|
Yes |
|
Maximum Towing Capacity (Since 2026)
|
250 lbs (113 kg)
|
|
Primer/Paint (Since 2026)
|
E-coat/powder |
|
Service Interval Decal (Since 2026)
|
Yes |
|
Storage Compartment (Since 2026)
|
Yes and covered |
| Dimensions |
|
Height (Since 2026)
|
49 in (125 cm)
|
|
Overall Length (Since 2026)
|
82 in (208 cm)
|
|
Weight (Since 2026)
|
826 lbs (375 kg)
|
|
Wheelbase (Since 2026)
|
49 in (125 cm)
|
|
Width With Mower (Since 2026)
|
62 in (159 cm)
|
|
Width With Mower (Deflector Raised For Storage) (Since 2026)
|
54 in (136 cm)
|
|
Width Without Mower (Since 2026)
|
49 in (124 cm)
|
| Drivetrain |
|
Dual Hydros (Since 2026)
|
Tuff Torq TZT7-M with 1-in. (2.5-cm) axles |
| Engine |
|
Battery Cold Crank Amps (Since 2026)
|
300.0 CCA |
|
Choke/Speed Control (Since 2026)
|
Separate control levers |
|
Cooling Method (Since 2026)
|
Air |
|
Cylinders (Since 2026)
|
V-twin |
|
Displacement (Since 2026)
|
44 cu in (724 cu cm)
|
|
Engine Model Number (Since 2026)
|
HTR EFI/ETC |
|
Engine Power (Since 2026)
|
25 hp (19 kw)
|
|
Fuel Gauge (Since 2026)
|
Electric gauge and fuel level sight line |
|
Fuel Tank Capacity (Since 2026)
|
5 gal (17 l)
|
|
Lubrication (Since 2026)
|
2 qt |
|
Lubrication (Since 2026)
|
Full pressure with replaceable filter |
|
Type (Since 2026)
|
Overhead valve |
| Key Specs |
|
Cutting Width (Since 2026)
|
48/54/60 in. |
|
Drive Tires (Since 2026)
|
23x10.5-12 |
|
Engine Model Number (Since 2026)
|
HTR EFI/ETC |
|
Engine Power (Since 2026)
|
25 hp (19 kw)
|
|
Forward Speed (Since 2026)
|
9 mph (14 kph)
|
|
Front Caster Tires (Since 2026)
|
13x6.5-6 |
|
Mulching System (Since 2026)
|
Optional MulchControl attachment, 54 in. / 137 cm / Optional MulchControl kit, 60 in. / 152 cm |
|
Seat Back Height (Since 2026)
|
23 in (57 cm)
|
|
Warranty (Since 2026)
|
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Lift System |
|
Cut Height Increments (Since 2026)
|
0 in (1 cm)
|
|
Mower Cut Height - Maximum (Since 2026)
|
4 in (10 cm)
|
|
Mower Cut Height - Minimum (Since 2026)
|
1 in (3 cm)
|
|
Preset Cut Height (Since 2026)
|
Yes |
|
Type (Since 2026)
|
Foot lift |
| Mower Deck |
|
Cutting Width (Since 2026)
|
48/54/60 in. |
|
Mower Deck Material (Since 2026)
|
9.0 gauge |
|
Mower Deck Material (Since 2026)
|
0 in (0 cm)
|
|
Mower Drive System (Since 2026)
|
V-belt |
|
Type (Since 2026)
|
High-capacity side discharge |
| Operation |
|
Operator Presence System (Since 2026)
|
Yes |
|
Operator Video (Since 2026)
|
Yes |
|
Park Brake Interlock (Since 2026)
|
Yes |
|
Rollover Protective Structure (ROPS) (Since 2026)
|
Yes |
|
Slope 0perating Limit (Since 2026)
|
Standard: 15 degrees; With Material Collection System: 10 degree (angle) |
| Optional Attachments |
|
Light Kit (Since 2026)
|
4-point LED Light kit |
|
Material Collection System (Since 2026)
|
7 bu |
|
Material Collection System (Since 2026)
|
Power Flow rear bagger / Not available on 60HC |
|
Mounted Sprayer (Since 2026)
|
No U.S. gal. |
|
Mulching System (Since 2026)
|
Optional MulchControl attachment, 54 in. / 137 cm / Optional MulchControl kit, 60 in. / 152 cm |
|
Protective Cover (Since 2026)
|
Yes |
|
Rubber Floor Mat (Since 2026)
|
Foot platform and toe board |
|
Sun Shade (Since 2026)
|
Optional |
| Power Take-Off (PTO) |
|
Drive (Since 2026)
|
V-belt |
|
Type (Since 2026)
|
Electric |
|
Type (Since 2026)
|
125 lbs ft (169 nm)
|
| Seat |
|
Fore-Aft Adjustment (Since 2026)
|
3 in (8 cm)
|
|
Seat Back Height (Since 2026)
|
23 in (57 cm)
|
|
Seat Suspension (Since 2026)
|
Two springs and ComfortGlide |
| Travel Speed |
|
Control Adjustment (Since 2026)
|
2-height/9-fore-aft, 18 positions |
|
Forward Speed (Since 2026)
|
9 mph (14 kph)
|
|
Reverse Speed (Since 2026)
|
5 mph (7 kph)
|
|
Speed And Direction Control (Since 2026)
|
Twin levers |
