Auction Pricing
Auction Info: Starting on 2026-09-16 Click here to place a bid

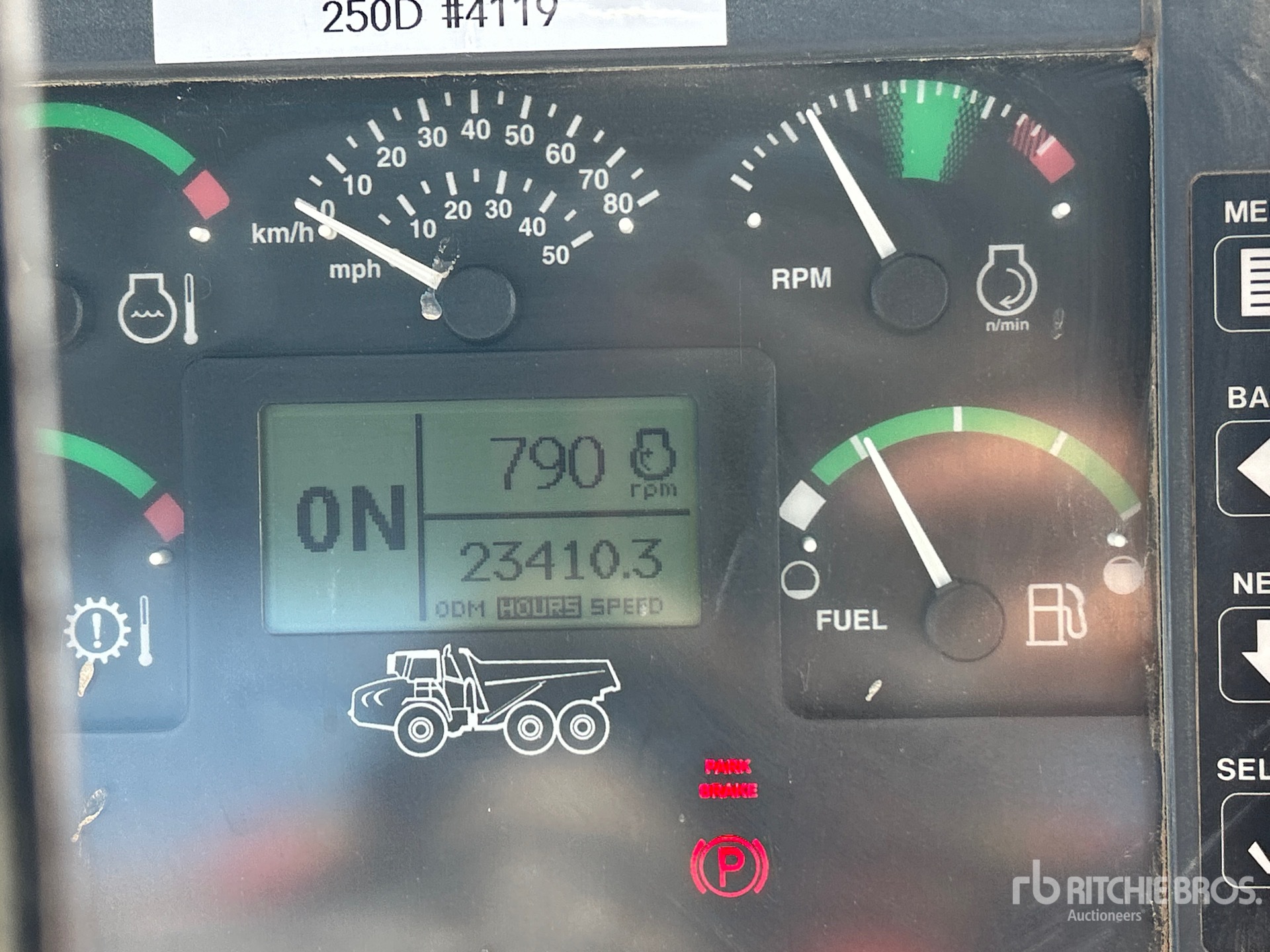

| Hours: | 23410 |

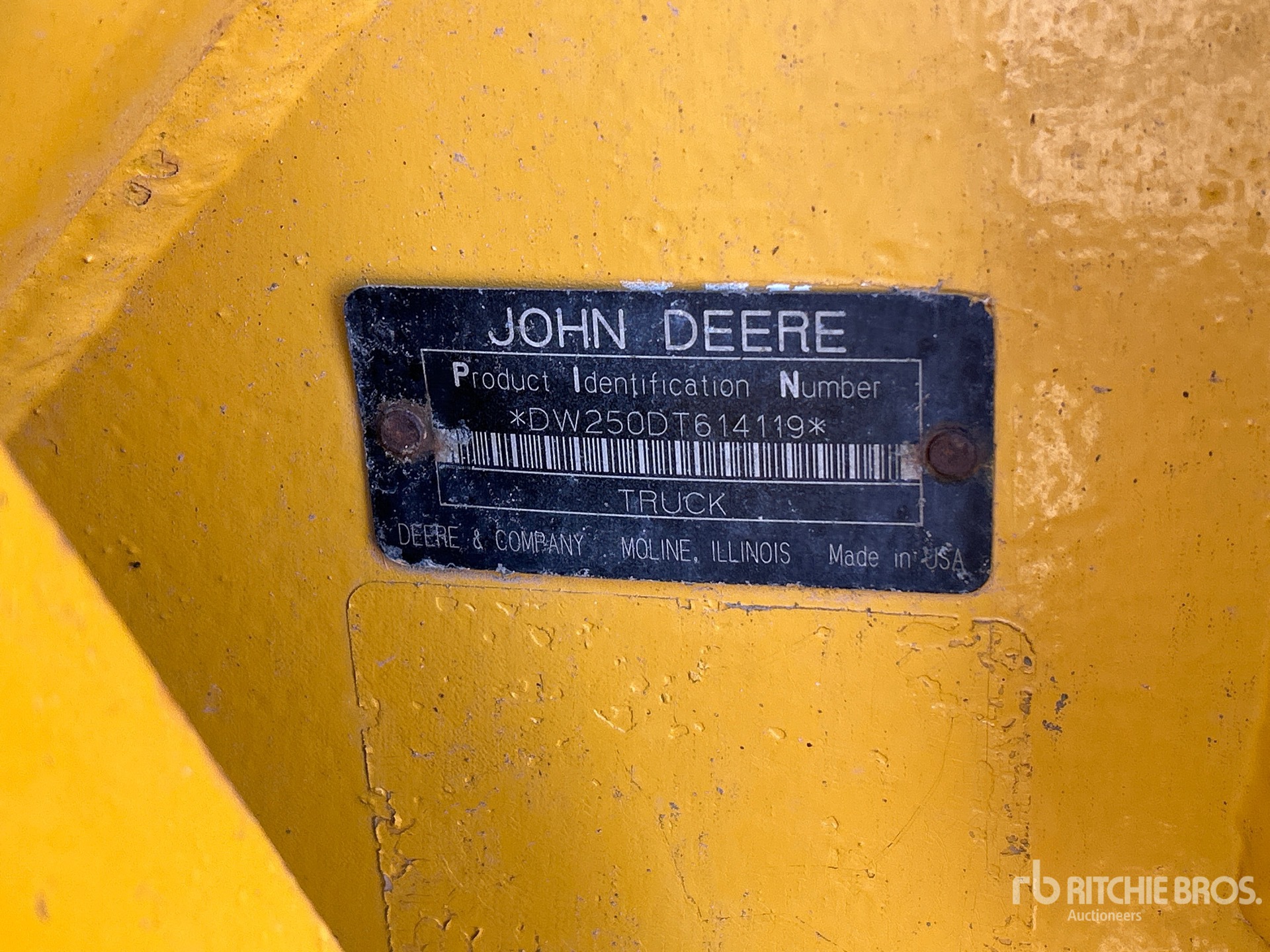

| Serial Number: | DW250DT614119 |
| Machine Location: | TORONTO, ON |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Dump Ground Clearance | 2 ft (1 m) |
| Dump Height | 20 ft (6 m) |
| Ground Clearance | 1 ft (0 m) |
| Height | 11 ft (3 m) |
| Length | 31 ft (9 m) |
| Overall Height | 11 ft (3 m) |
| Overall Length | 31 ft (10 m) |
| Overall Width | 9 ft (3 m) |
| Weight | 40,250 lbs (18,257 kg) |
| Wheelbase | 16 ft (5 m) |
| Width | 9 ft (3 m) |
| Dump | |
| Capacity - Heaped | 18 cu yd |
| Capacity - Struck | 14 cu yd |
| Dump Angle | 70 degrees |
| Lower Time | 6 sec |
| Raise Time | 12 sec |
| Rated Payload | 51,150 lbs (23,197 kg) |
| Engine | |
| Aspiration | Turbocharger charge air cooled |
| Displacement | 549 cu in (8,997 cu cm) |
| Engine Make | 2,240 |
| Engine Model | 6,090 |
| Max Torque | 789 lbs ft (1,070 nm) |
| Net Power | 265 hp (198 kw) |
| Number Of Cylinders | 6 |
| Power Measured @ | 2,000 rpm |
| Torque Measured @ | 1,400 rpm |
| Operational | |
| Alternator Supplied Amperage | 80 amps |
| Cooling System Fluid Capacity | 9 gal (33 l) |
| Engine Oil Capacity | 7 gal (25 l) |
| Fuel Capacity | 90 gal (341 l) |
| Hydraulic System Fluid Capacity | 21 gal (79 l) |
| Operating Voltage | 24 V |
| Tire Size | 23.5R25 |
| Transmission Fluid Capacity | 6 gal (22 l) |
| Transmission | |
| Max Speed | 31 mph (50 kph) |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Transmission Type | ZF 6HP592C fully automatic |
| Weights | |
| Center Axle - Empty | 8994.9 % |
| Center Axle - Loaded | 31393.9 % |
| Front Axle - Empty | 22,355 lbs (10,138 kg) |
| Front Axle - Loaded | 29012.9 % |
| Rear Axle - Empty | 8,973 lbs (4,069 kg) |
| Rear Axle - Loaded | 31,085 lbs (14,098 kg) |
| Total Empty | 40,345 lbs (18,297 kg) |
| Total Loaded | 91,492 lbs (41,493 kg) |
