| Additional Equipment |
|
Drawbar Hitch Adapters (Since 2026)
|
Optional |
|
Drawbar Hitch Adapters (2026)
|
Optional |
|
High-Speed Leveling Skid Pads (Since 2026)
|
Yes |
|
High-Speed Leveling Skid Pads (2026)
|
Yes |
|
Laser Receiver Bracket (Since 2026)
|
Optional |
|
Laser Receiver Bracket (2026)
|
Optional |
|
Quick-Attach Drawbars (Since 2026)
|
Optional |
|
Quick-Attach Drawbars (2026)
|
Optional |
|
Rear Bumper (Since 2026)
|
Optional |
|
Rear Bumper (2026)
|
Optional |
|
Scraper-To-Scraper Quick-Attach (Since 2026)
|
Optional |
|
Scraper-To-Scraper Quick-Attach (2026)
|
Optional |
|
Yoke-Type Drawbars (Since 2026)
|
Optional |
|
Yoke-Type Drawbars (2026)
|
Optional |
| Blades and Router |
|
6-in. Bolt-Hole Spacing (Since 2026)
|
Standard |
|
6-in. Bolt-Hole Spacing (2026)
|
Standard |
|
Adjustable Router Bits (Since 2026)
|
Standard |
|
Adjustable Router Bits (2026)
|
Standard |
|
Drop Center Configuration (Since 2026)
|
Optional |
|
Drop Center Configuration (2026)
|
Optional |
|
Straight Blade Configuration (Since 2026)
|
Standard |
|
Straight Blade Configuration (2026)
|
Standard |
|
Teeth Configuration (Since 2026)
|
Optional |
|
Teeth Configuration (2026)
|
Optional |
|
Two Rows Of Blade Bolts (Since 2026)
|
Standard |
|
Two Rows Of Blade Bolts (2026)
|
Standard |
| Capacity |
|
Heaped Capacity (Since 2026)
|
24.0 cu yd |
|
Heaped Capacity (2026)
|
24.0 cu yd |
|
Struck Capacity (Since 2026)
|
15.8 cu yd |
|
Struck Capacity (2026)
|
15.8 cu yd |
| Dimensions |
|
Bowl Length (Since 2026)
|
9 ft (3 m)
|
|
Bowl Length (2026)
|
9 ft (3 m)
|
|
Bowl Width (Since 2026)
|
12 ft (4 m)
|
|
Bowl Width (2026)
|
12 ft (4 m)
|
|
Height |
8 ft (2 m)
|
|
Length |
35 ft (11 m)
|
|
Overall Height (Since 2026)
|
8 ft (2 m)
|
|
Overall Height (2026)
|
8 ft (2 m)
|
|
Weight |
29,500 lbs (13,381 kg)
|
|
Width |
13 ft (4 m)
|

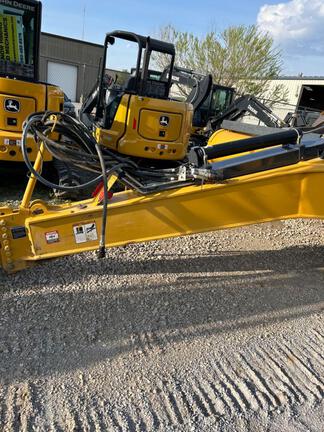

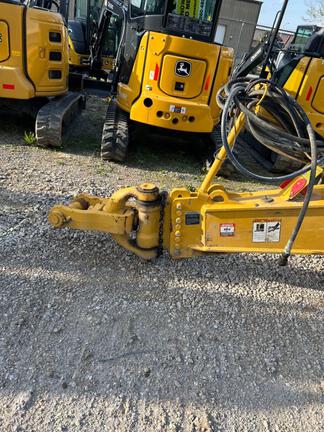

| Hitches and Drawbars |
|
Hitch Type (Since 2026)
|
Yoke |
|
Hitch Type (2026)
|
Yoke |
|
Special Tractor Drawbar Required (Since 2026)
|
Yes |
|
Special Tractor Drawbar Required (2026)
|
Yes |
| Horsepower Recommendations |
|
Maximum Horsepower (Since 2026)
|
575+ hp |
|
Maximum Horsepower (2026)
|
575+ hp |
|
Minimum Horsepower (Since 2026)
|
450 hp (336 kw)
|
|
Minimum Horsepower (2026)
|
450 hp (336 kw)
|
| Hydraulics |
|
Minimum Flow Required (Since 2026)
|
25 gpm (95 lpm)
|
|
Minimum Flow Required (2026)
|
25 gpm (95 lpm)
|
|
Minimum Pressure Required (Since 2026)
|
2,900 psi |
|
Minimum Pressure Required (2026)
|
2,900 psi |
|
Size Of Lines And Hoses (Since 2026)
|
1 in (2 cm)
|
|
Size Of Lines And Hoses (2026)
|
1 in (2 cm)
|
|
Tandem Lines (Since 2026)
|
Standard |
|
Tandem Lines (2026)
|
Standard |
| Loading Type |
|
Autoload (Since 2026)
|
Yes |
|
Autoload (2026)
|
Yes |
|
Direct Loading (Since 2026)
|
Yes |
|
Direct Loading (2026)
|
Yes |
|
Push Loading (Since 2026)
|
Yes |
|
Push Loading (2026)
|
Yes |
|
Top Loading (Since 2026)
|
Yes |
|
Top Loading (2026)
|
Yes |
| Precision Leveling |
|
GPS/Laser Adaptable (Since 2026)
|
Yes |
|
GPS/Laser Adaptable (2026)
|
Yes |
| Scraper Weight Distribution |
|
Tongue (Since 2026)
|
25.0 % |
|
Tongue (2026)
|
25.0 % |
|
Wheels (Since 2026)
|
75.0 % |
|
Wheels (2026)
|
75.0 % |

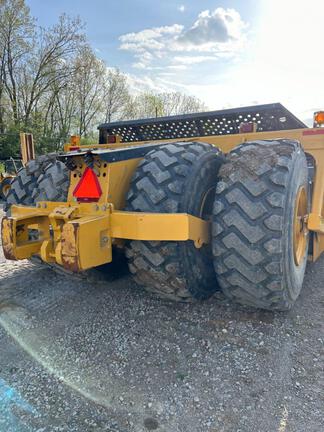

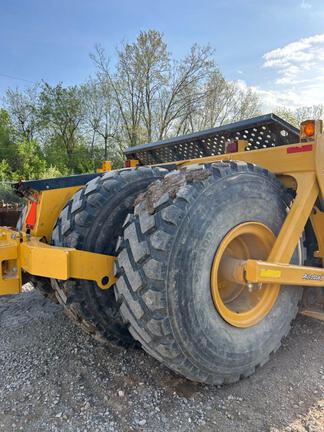

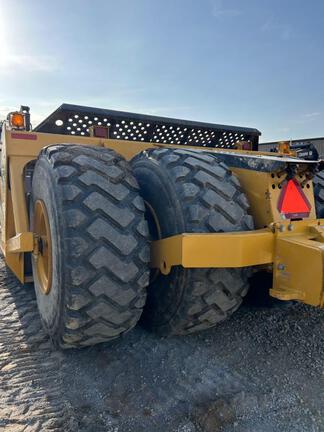

| Tires |
|
Number Of Tires Per Scraper (Since 2026)
|
2 |
|
Number Of Tires Per Scraper (Since 2026)
|
4 |
|
Tire Size - Option 1 (Since 2026)
|
26.5R25 Premium Radial |
|
Tire Size - Standard (Since 2026)
|
875/65R29 |
|
Tire Size - Standard (Since 2026)
|
23.5 X 25 |
| Warranty |
|
Extended Warranty (Since 2026)
|
No longer available |
|
Extended Warranty (2026)
|
No longer available |
|
Full Warranty (Since 2026)
|
Standard (1 year) |
|
Full Warranty (2026)
|
Standard (1 year) |
| Weight |
|
Approximate Shipping Weight (Since 2026)
|
29,500 lbs (13,381 kg)
|
|
Approximate Shipping Weight (Since 2026)
|
28,200 lbs (12,791 kg)
|
