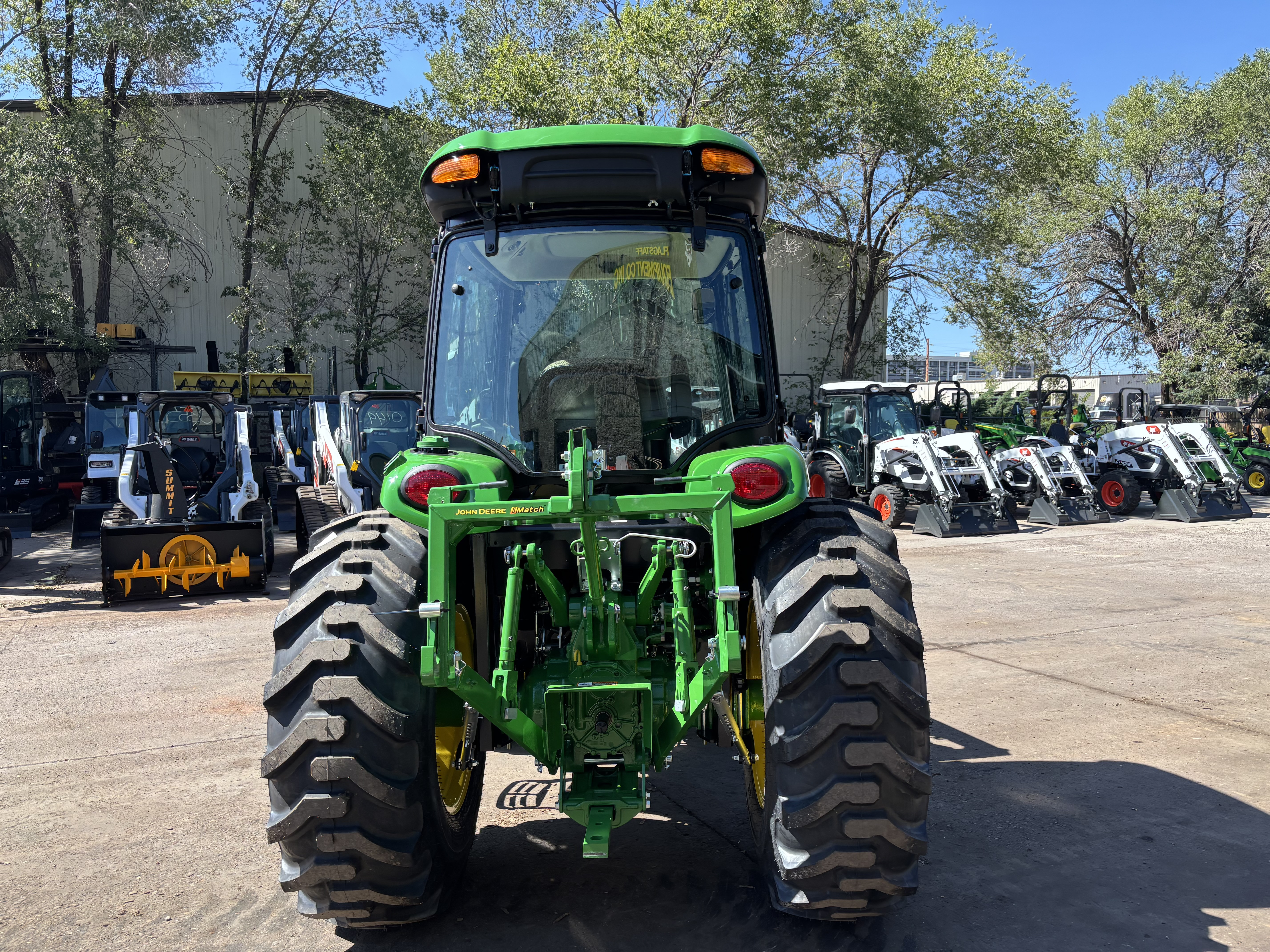

| 3-Point Hitch |
|
Lift capacity (24-in. behind link arms) |
1,135 kg (2,503 lbs)
|
| Dimensions |
|
Approximate shipping weight (open-station; cab) |
OOS - 1710 kg 3770 lb Cab - 2120 kg 4675 lb |
|
Front Axle Clearance |
16 in (40 cm)
|
|
Turning radius with brakes |
3 m (9 ft)
|
|
Turning radius without brakes |
10 ft (3 m)
|
|
Wheelbase |
73 ft (22 m)
|
| Electrical System |
|
Alternator (12-V) |
75 amp |
|
Battery size |
770 CCA |
|
Starter size |
3 hp (2 kw)
|
| Engine |
|
Air cleaner |
Dual element with electronic restriction indicator |
|
Aspiration |
Natural |
|
Bore |
4 in (9 cm)
|
|
Compression ratio |
19.1:1 |
|
Cooling system |
Liquid |
|
Cylinder liners |
Cast-In-Block |
|
Displacement |
134 cu in (2,189 cu cm)
|
|
Emissions compliance |
Final Tier 4 |
|
Engine Manufacturer |
Yanmar |
|
Engine Model |
4TNV88C-MJT |
|
Engine torque at rated speed |
116 Nm |
|
Engine Type |
Diesel |
|
Family |
EYDXL2.19NDA FYDXL2.19NDA GYDXL2.19NDA |
|
Fuel tank capacity |
Rollover protective structure (ROPS) - 50 L 13 U.S. gal. Cab - 52.2 L 13.8 U.S. gal. |
|
Gross Power |
31.7 kW 43.1 PS at 2600 rpm SAE J1995 rated power hp (24 kw)
|
|
Lubrication |
Pressurized |
|
Number of Cylinders |
4 |
|
Power take-off (PTO) power |
35 hp (26 kw)
|
|
Rated engine speed |
2,600 rpm |
|
Stroke |
4 in (9 cm)
|
| Final Drive |
|
Differential lock |
Yes |
|
Final Drive Type |
Planetary |
| Fluid Capacities |
|
Crankcase with filter |
5.3 L |
|
Transmission and hydraulic system |
44 L |
| Fuel System |
|
Fuel System Type |
High pressure common rail direct injection |
| Hydraulic System |
|
Draft control sensing |
Position control |
|
Hydraulic Type |
Open Center |
|
Pump rated output |
Steering Hydrostatic power steering 60.2 L/min 15.9 gpm |
|
Pump Type |
High pressure common rail direct injection |
|
Remote control valves available |
Three remotes optional |

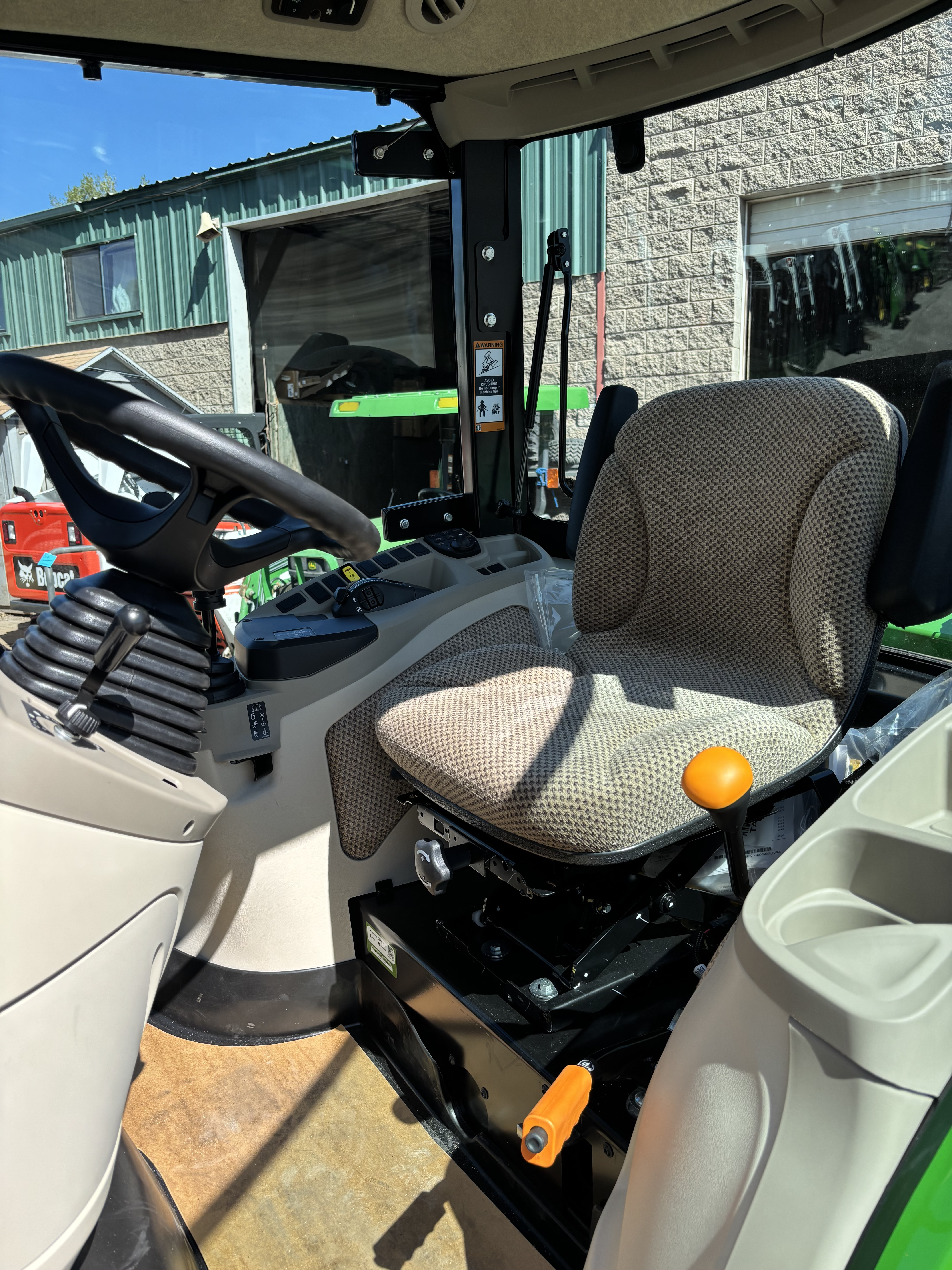

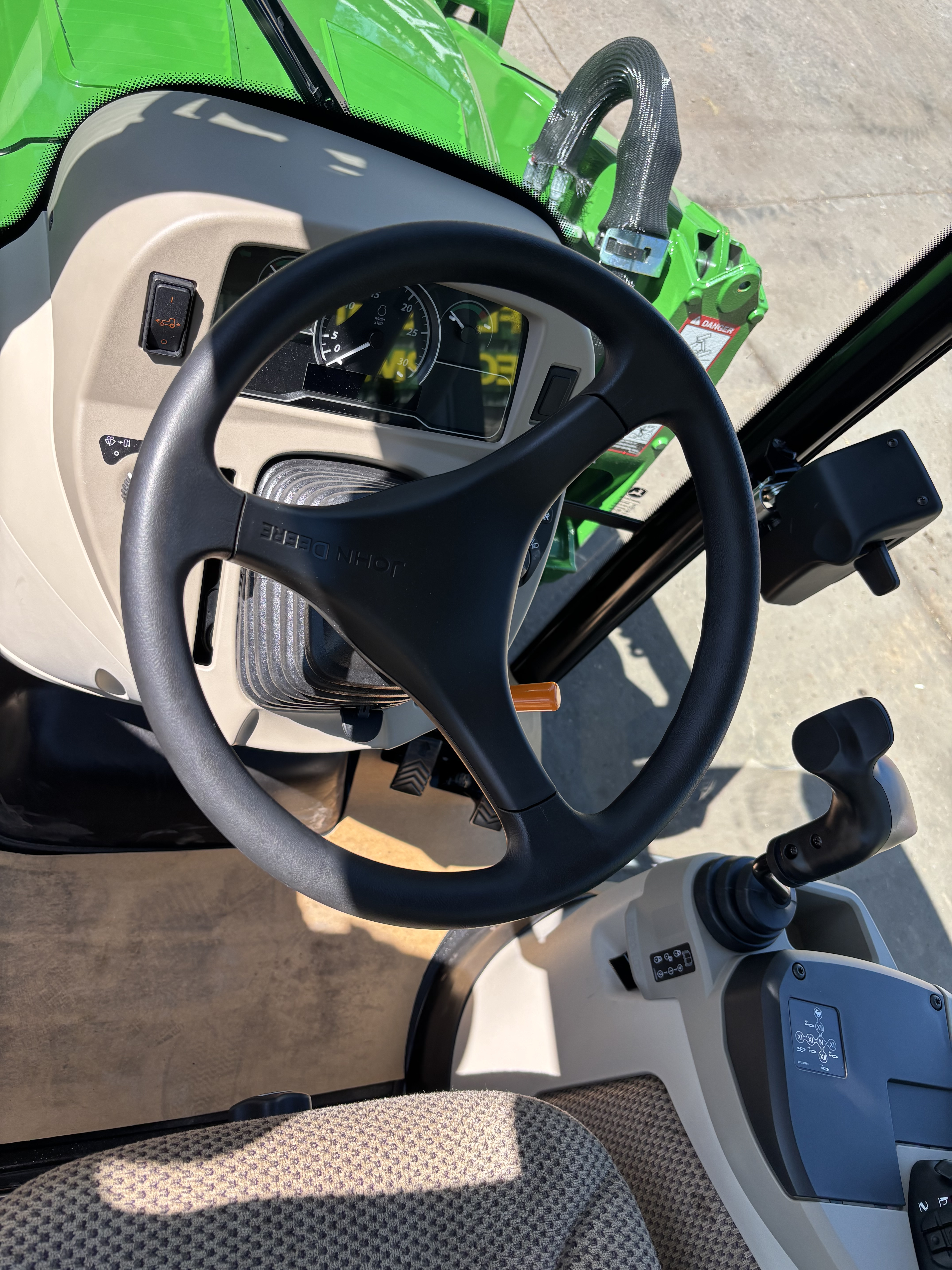

| Operator Station |
|
Gear shift location - console/floor |
Left Hand Side |
|
Platform - flat/straddle |
Flat |
|
Rollover protective structure |
Type Foldable Yes |
| Power Take-Off (PTO) |
|
Clutch |
Wet disc |
|
Control |
Position |
|
Engagement method |
Electro-hydraulic |
|
Optional |
540 rpm 540E rpm |
|
Standard |
Independent 540 rpm at 2600 rpm |
| Tires |
|
Front Tires Size |
Farm - 8-16 Turf - 27x10.5-15 or 27x12LL-15 R4 - 10-16.5 |
|
Front tread range |
148 cm (58 in)
|
|
Rear Tires Size |
Farm - 13.6-28 Turf - 44x18-20 or 22.5LL-16.1 R4 - 16.9Lx24 |
|
Rear tread spacing |
137 cm (54 in)
|
| Transmission |
|
Axle capacity |
Front 1600 kg 3528 lbRear 2400 kg 5292 lb Mechanical front-wheel drive (MFWD) - 1.6 kg 5.9 lb |
|
Brakes |
Multi-plate wet disc |
|
Clutch disk diameter wet clutch |
129 mm (5 in)
|
|
Clutch, wet/dry |
Wet |
|
Creeper |
Standard |
|
Cruise control |
Standard |
|
Differential lock |
Yes |
|
Final Drive Type |
Planetary |
|
Left-hand reverser |
Yes |
|
Optional transmission; forward/reverse |
3/3 Hydrostatic transmission (HST) |
|
Standard transmission; forward/reverse |
12/12 PowrReverser transmission (PRT) |
|
Steering |
Hydrostatic power steering |
|
Transmission gear ranges |
12F/12R PRT Infinitely-variable 3 range |
