| Dimensions - 4WD |
|
Approx. Shipping Weight |
17,200 lbs (7,802 kg)
|
|
Front Axle Clearance |
24 in (61 cm)
|
|
Front Tread Range |
1524 to 2235 mm 60 to 88 in. |
|
Limited Slip Differential |
Yes |
|
Unballasted Operating Weight |
17,200 lbs (7,802 kg)
|
|
Wheelbase |
110 in (280 cm)
|

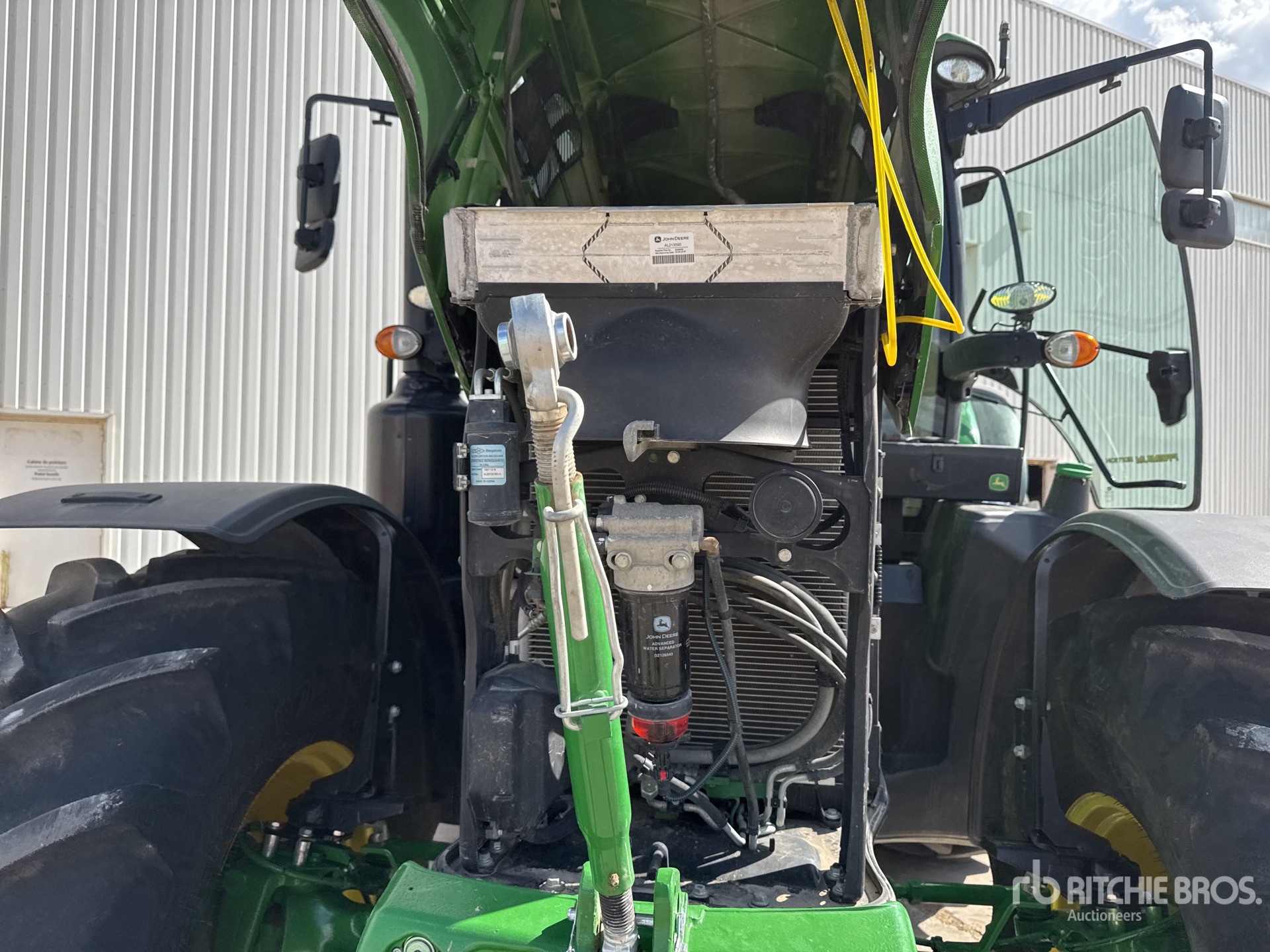

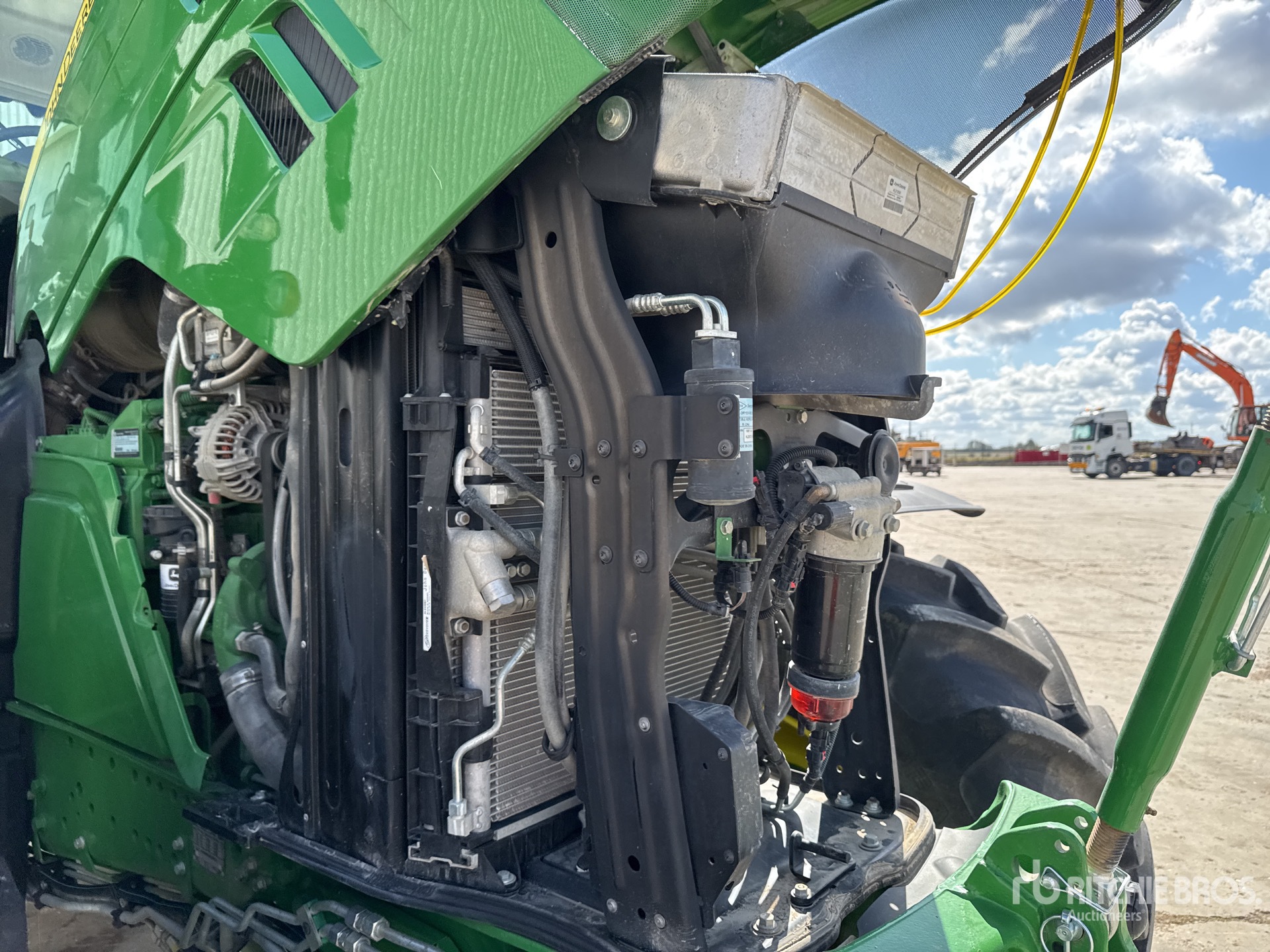

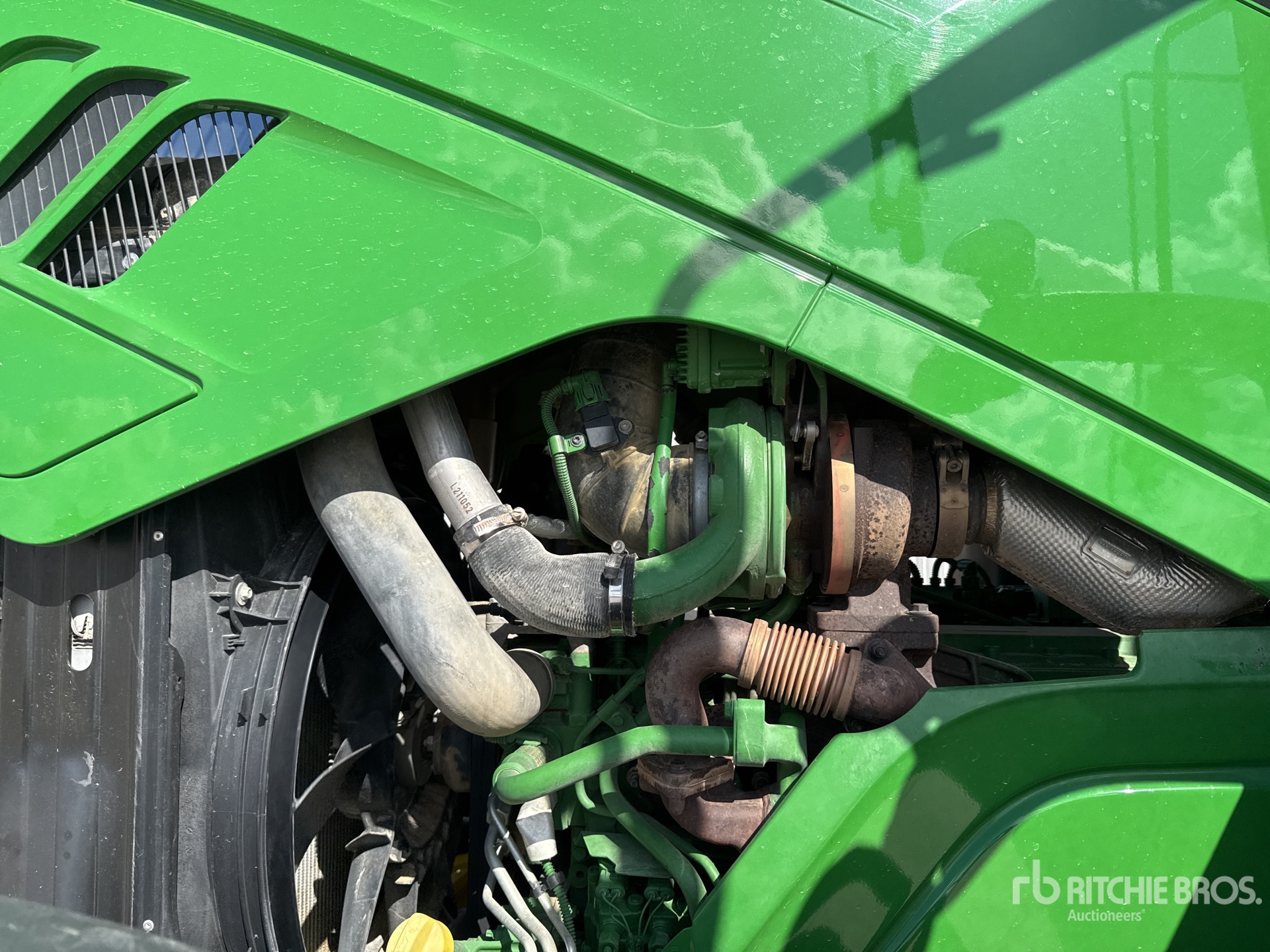

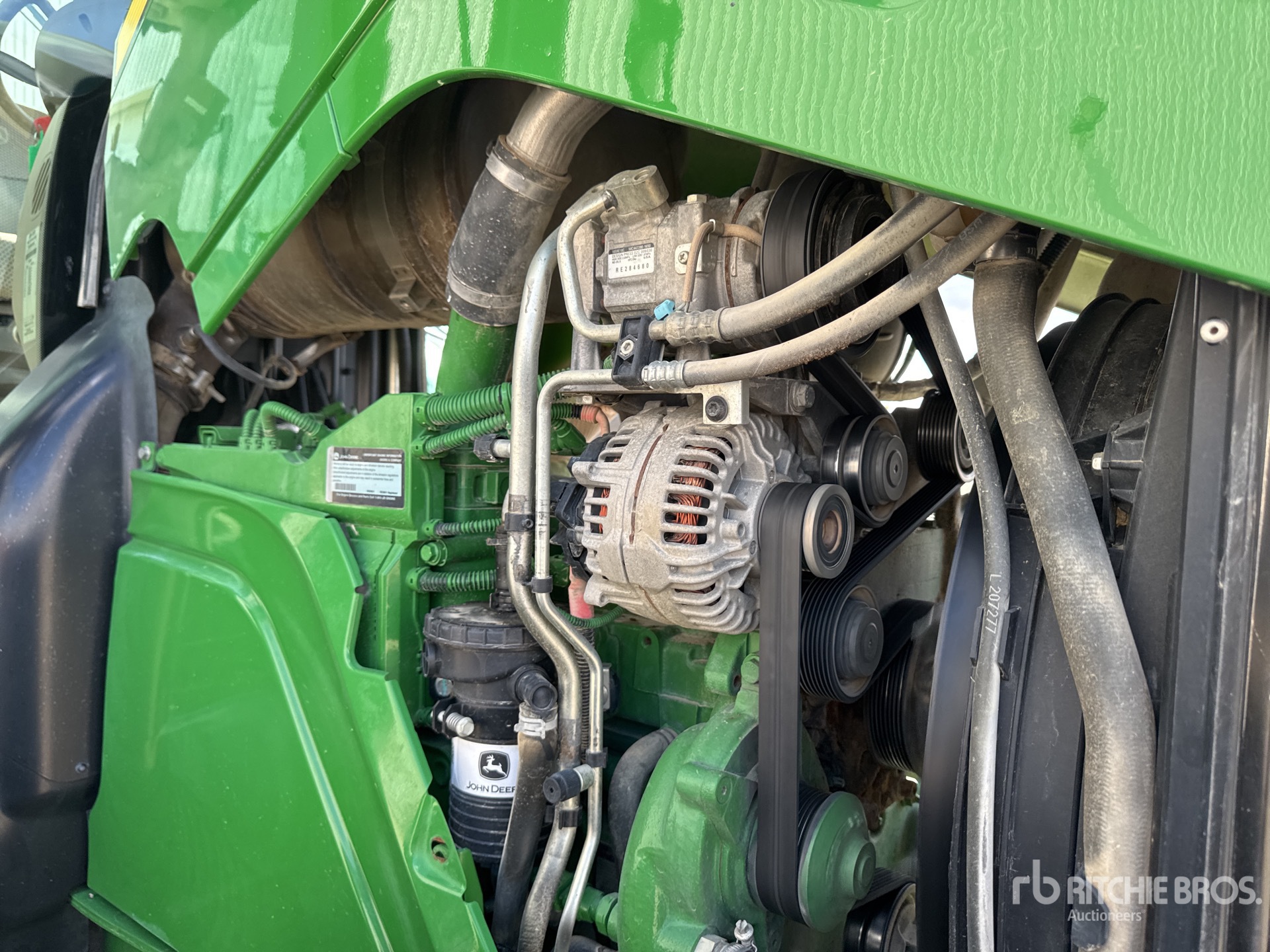

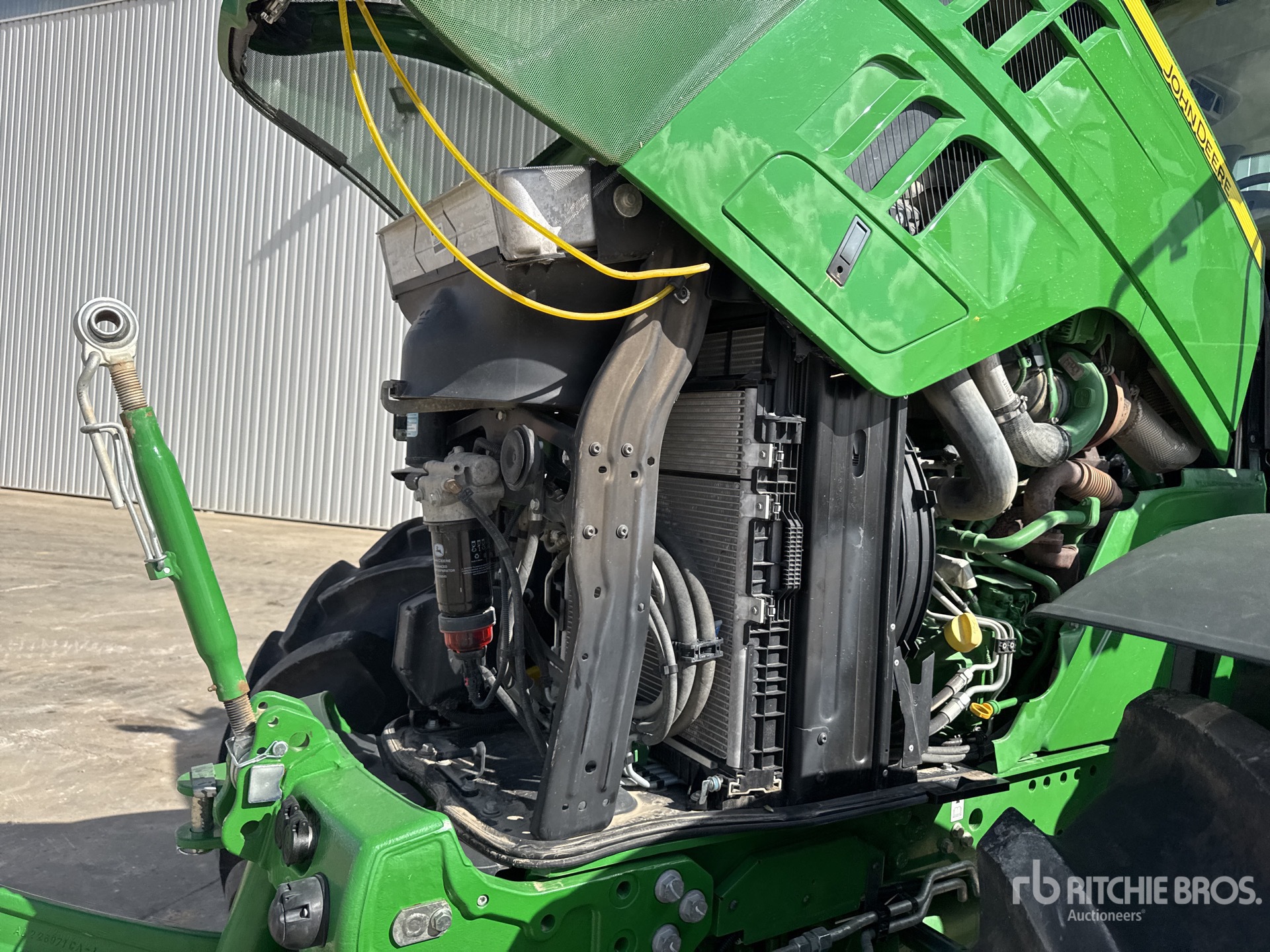

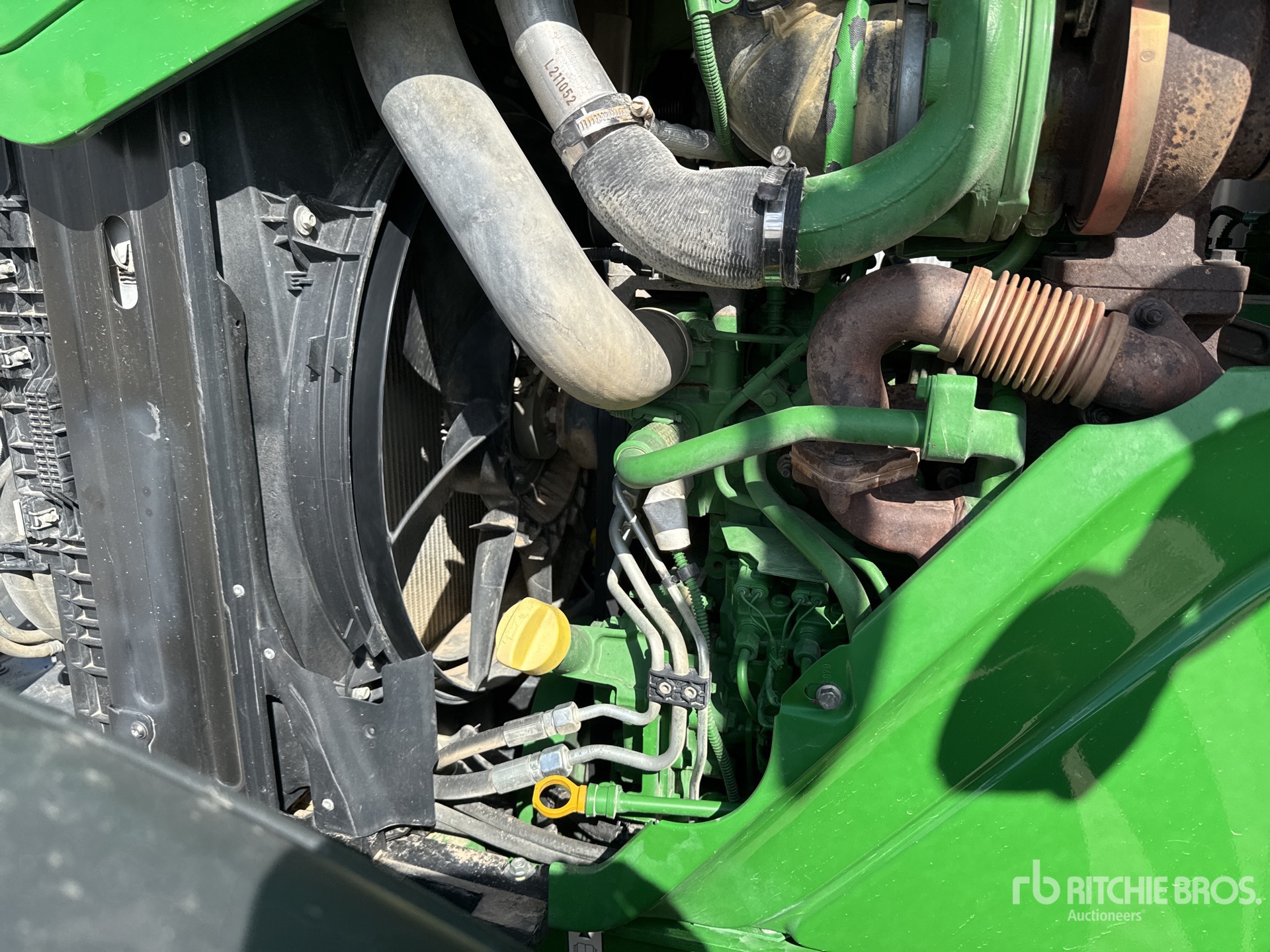

| Engine - 4WD |
|
Aspiration |
Dual series turbocharger with fixed geometry first-stage, variable geometry second-stage air-to-air aftercooling and cooled exhaust gas recirculation |
|
Cylinder Liners |
Wet sleeve |
|
Displacement |
415 cu in (6,801 cu cm)
|
|
Engine Manufacturer |
John Deere PowerTech PSS |
|
Fuel Tank Capacity |
87 gal (330 l)
|
|
Underhood Muffler |
Yes |

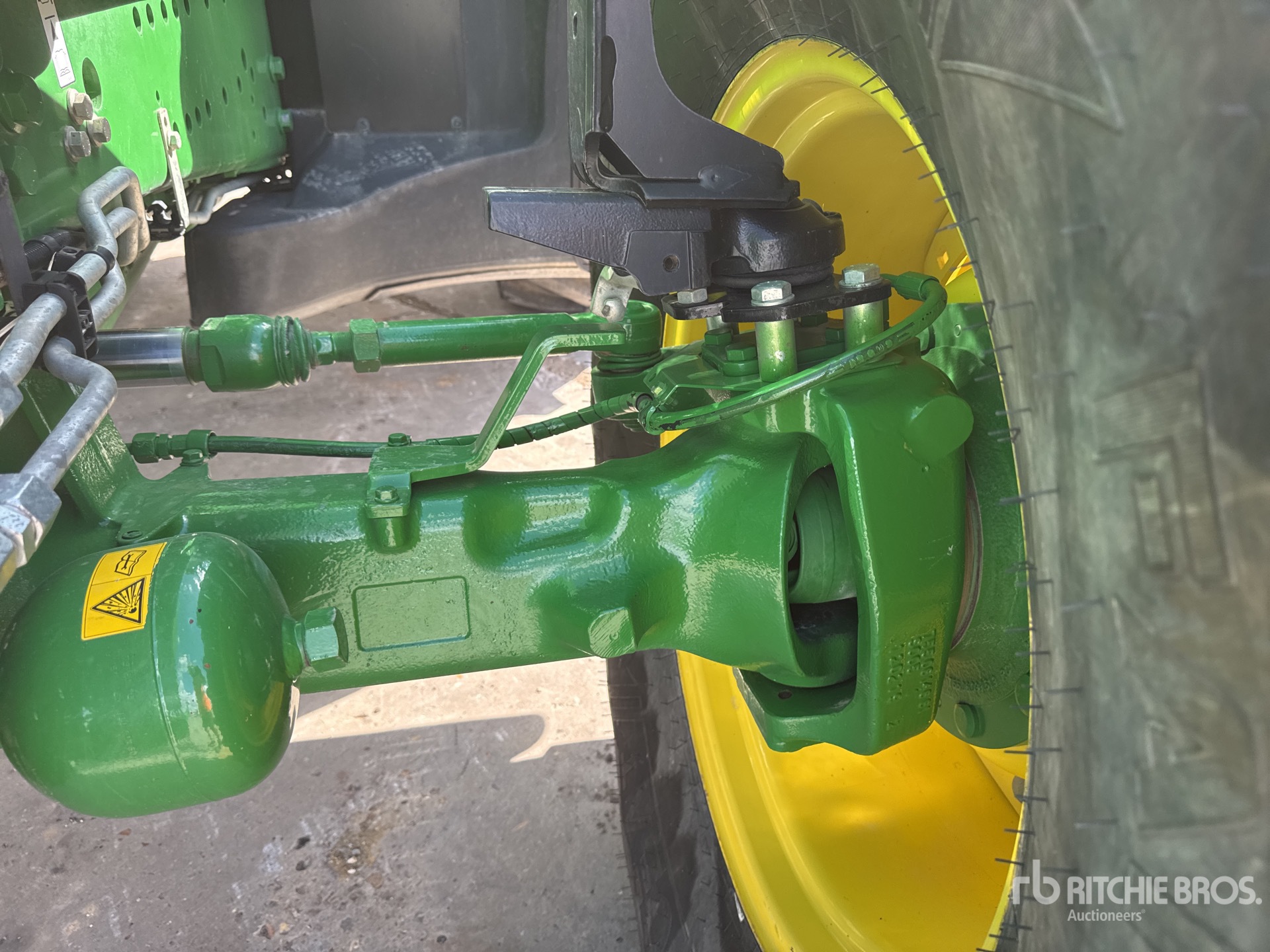

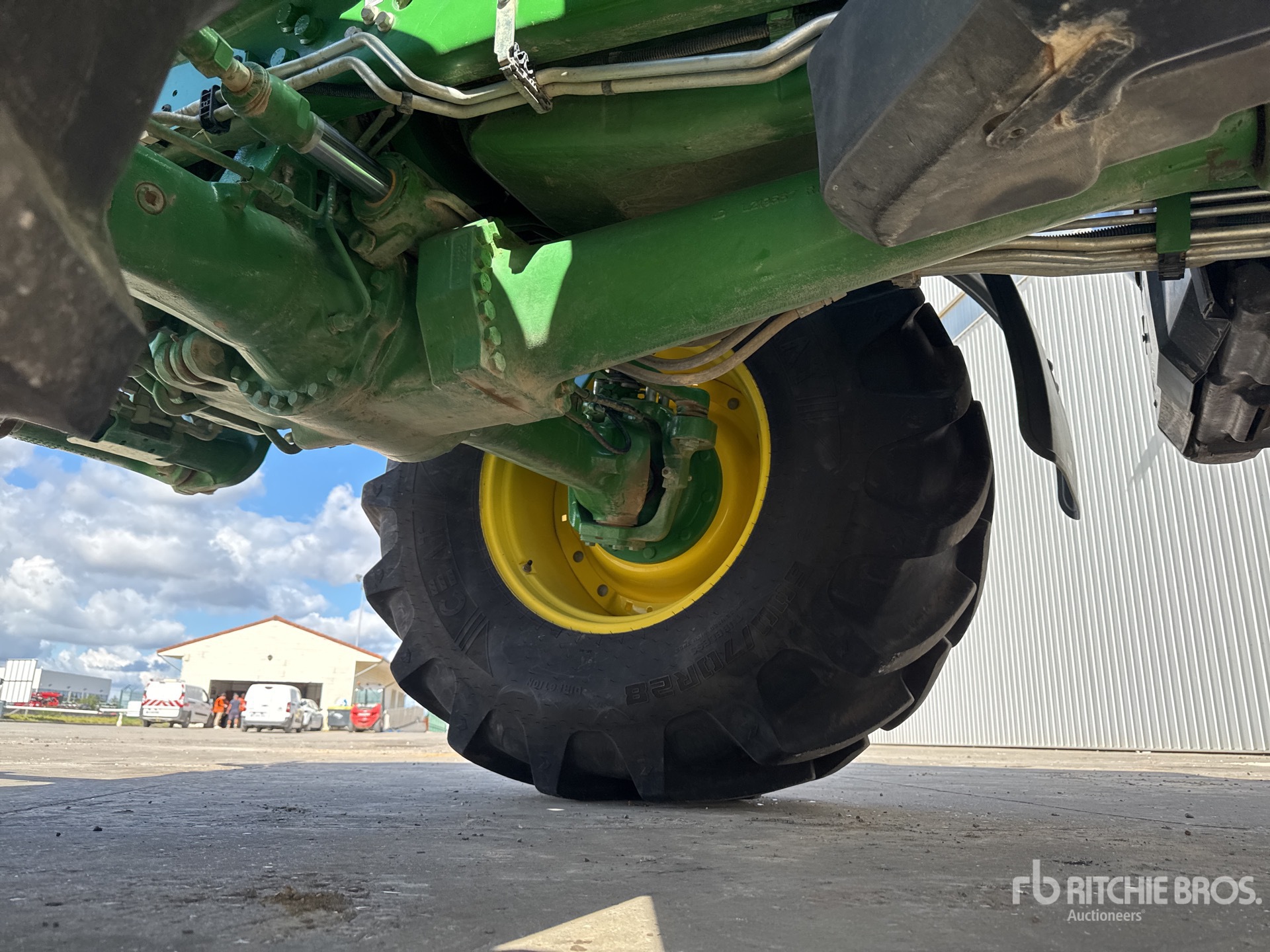

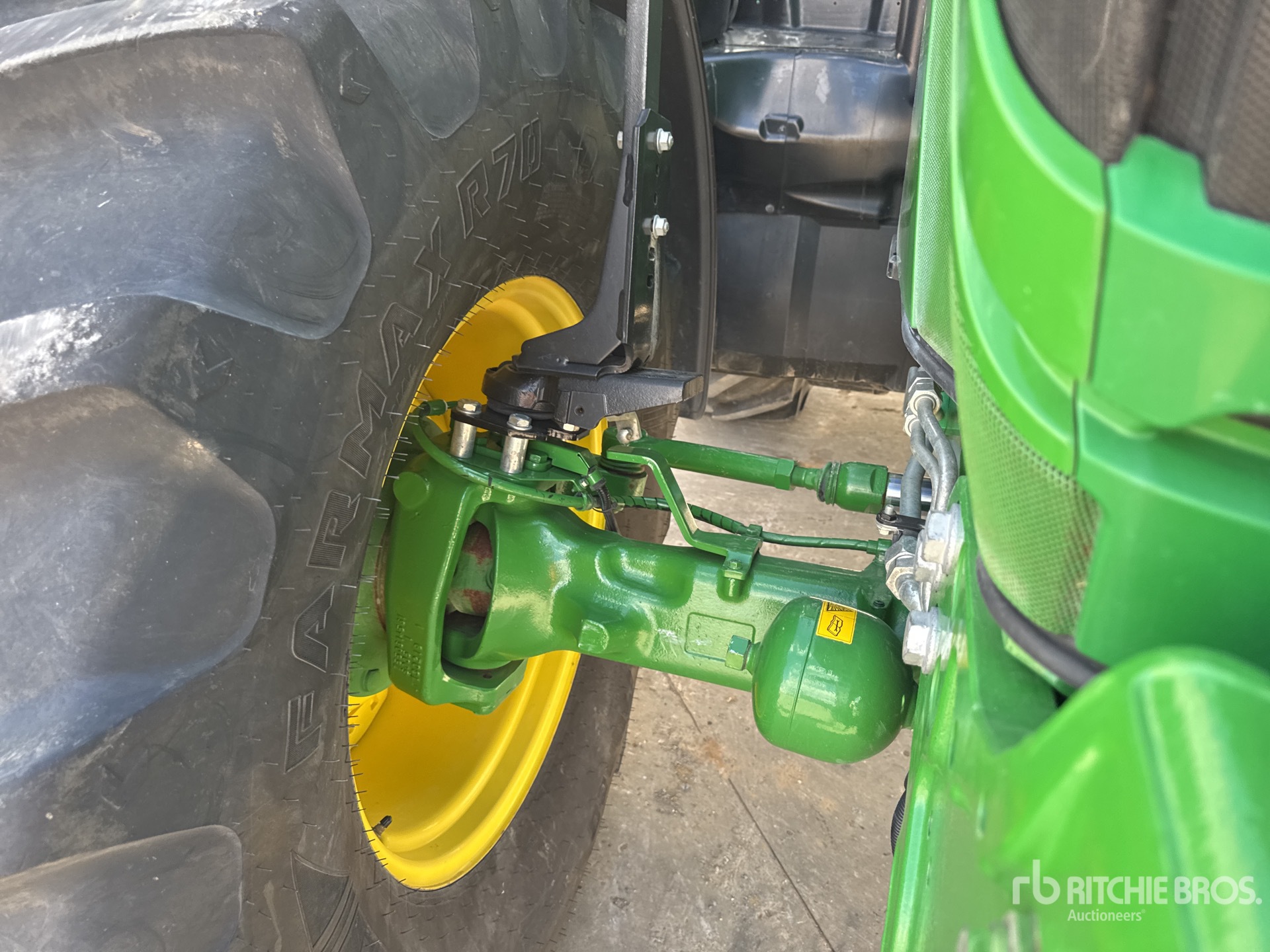

| Final Drive - 4WD |
|
Availability |
\"Front YesFront & Rear Yes\" |
|
Axle Type |
Rack and pinion |
|
Brakes, Type And Control |
Hydraulic wet disk |
|
Differential Controls |
Electrohydraulic |
|
Engage On-The-Go Rear Differential Lock |
Yes |
|
Final Drive Type |
Inboard planetary three pinion |

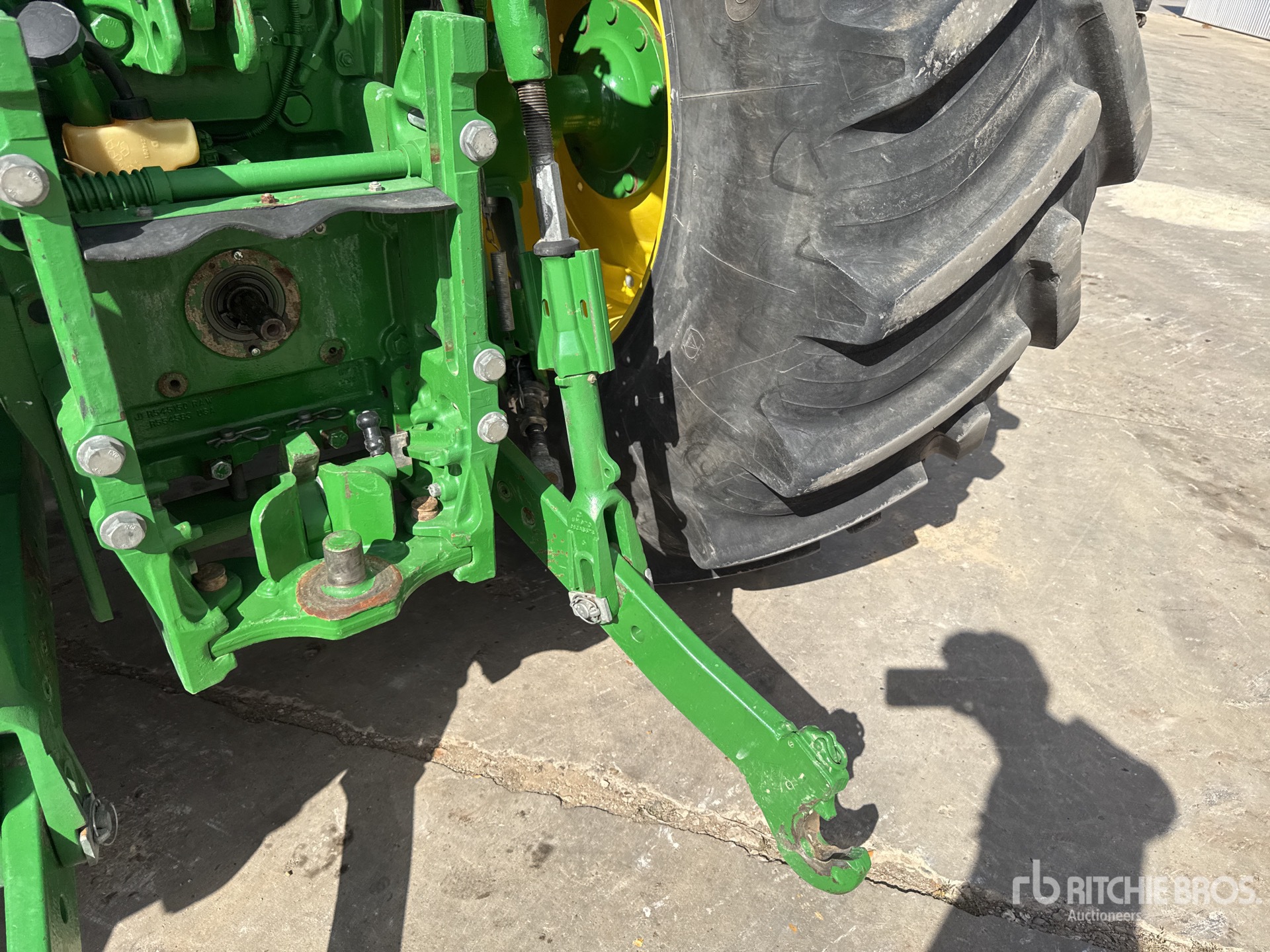

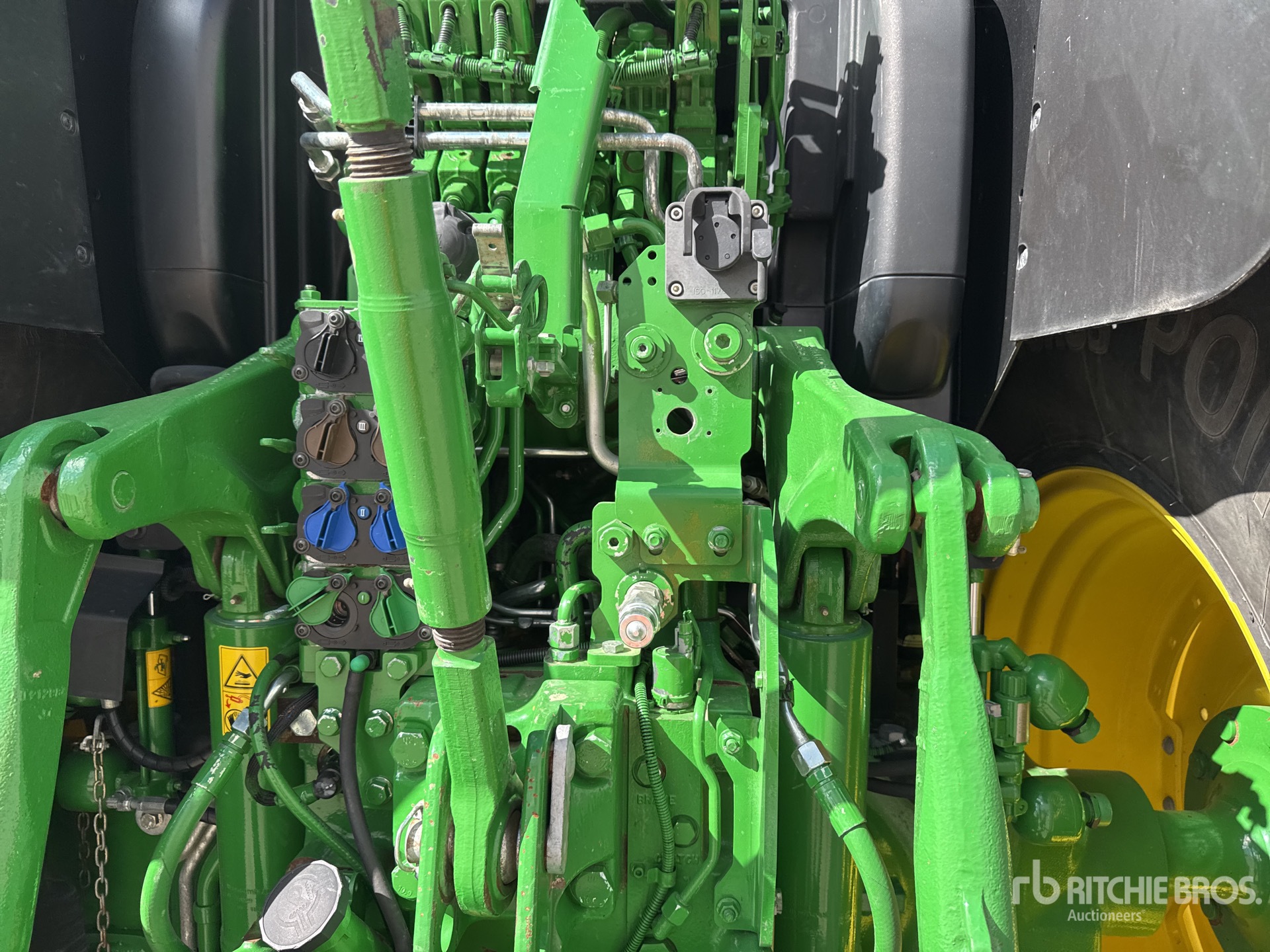

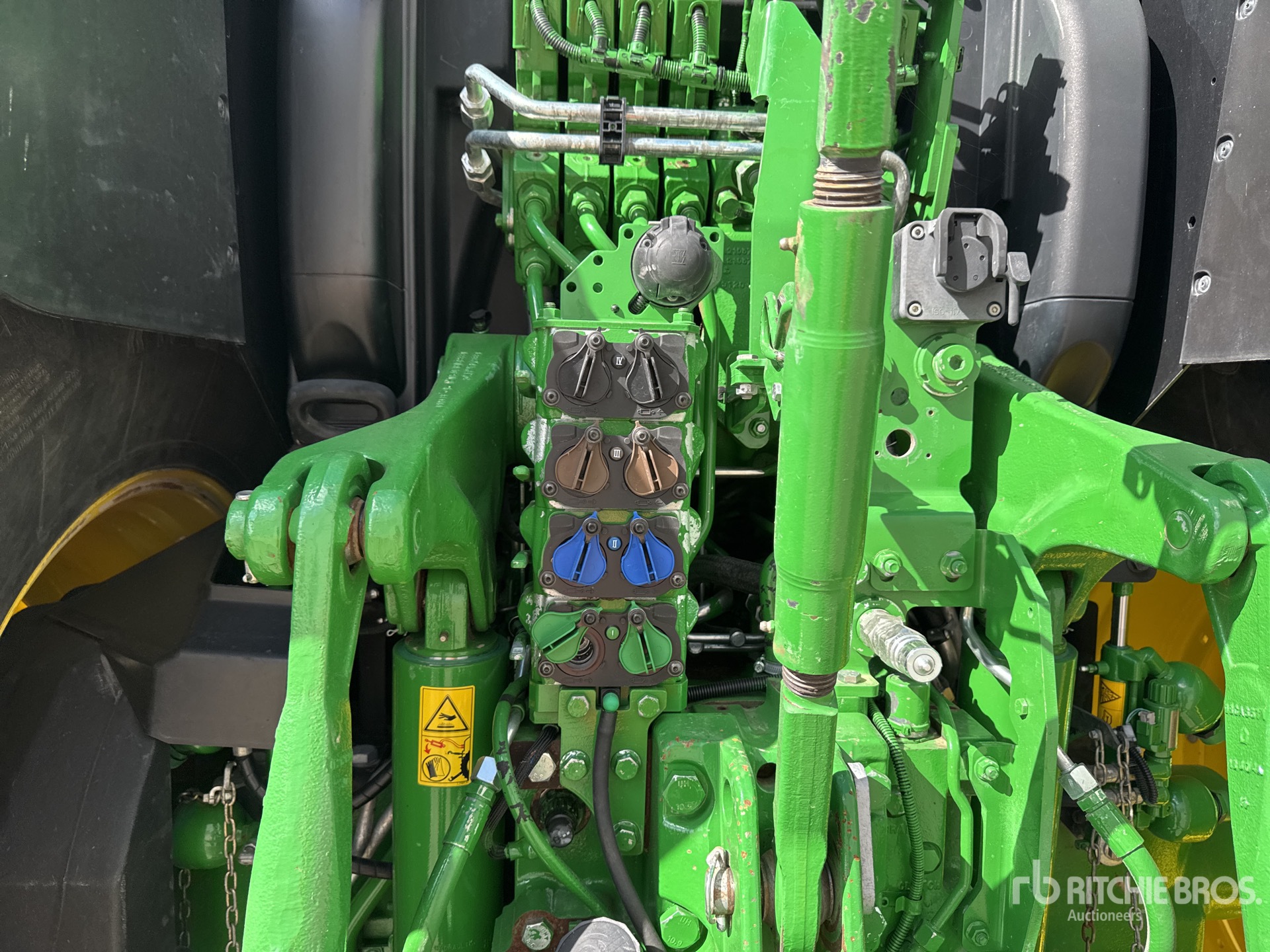

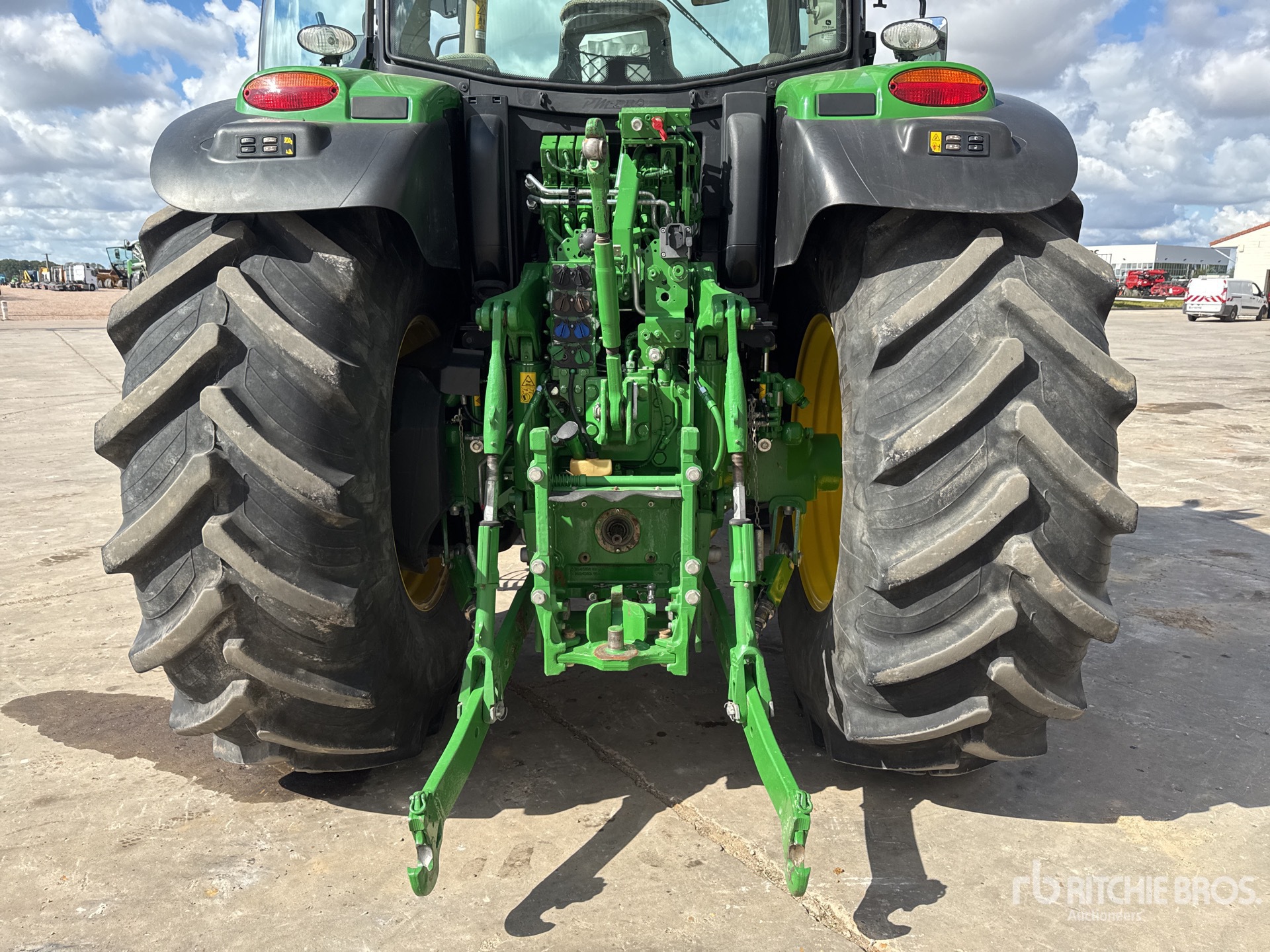

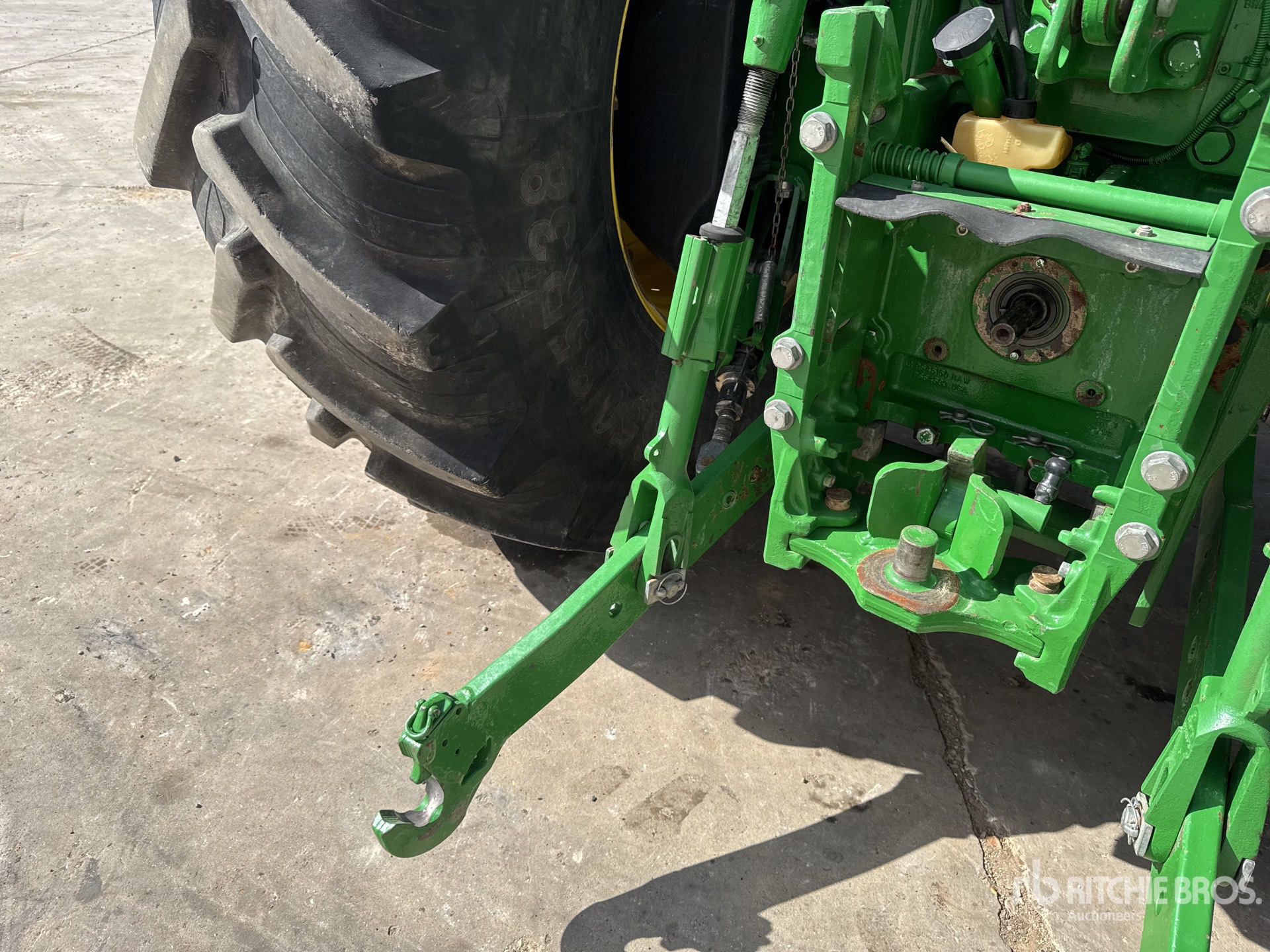

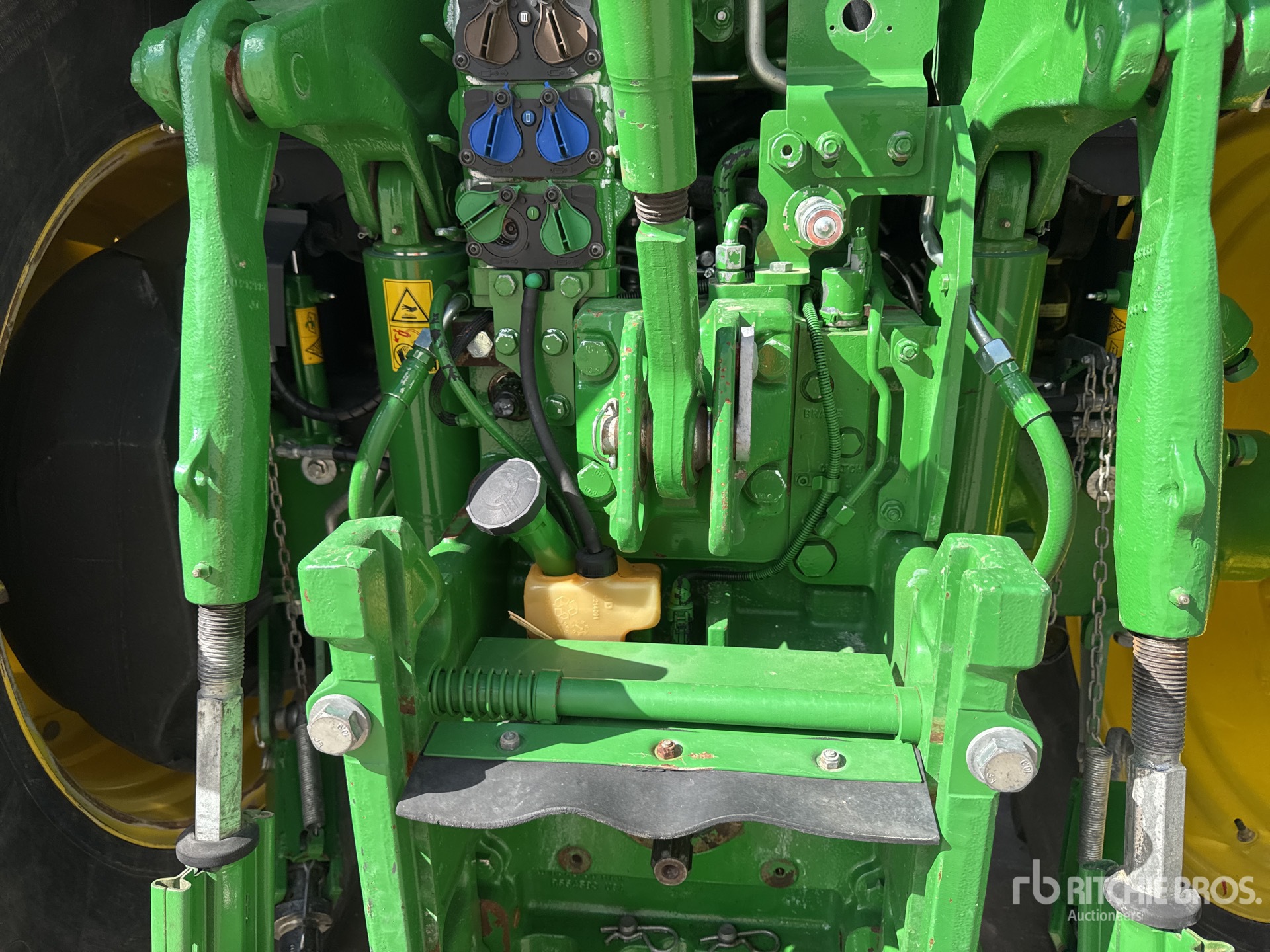

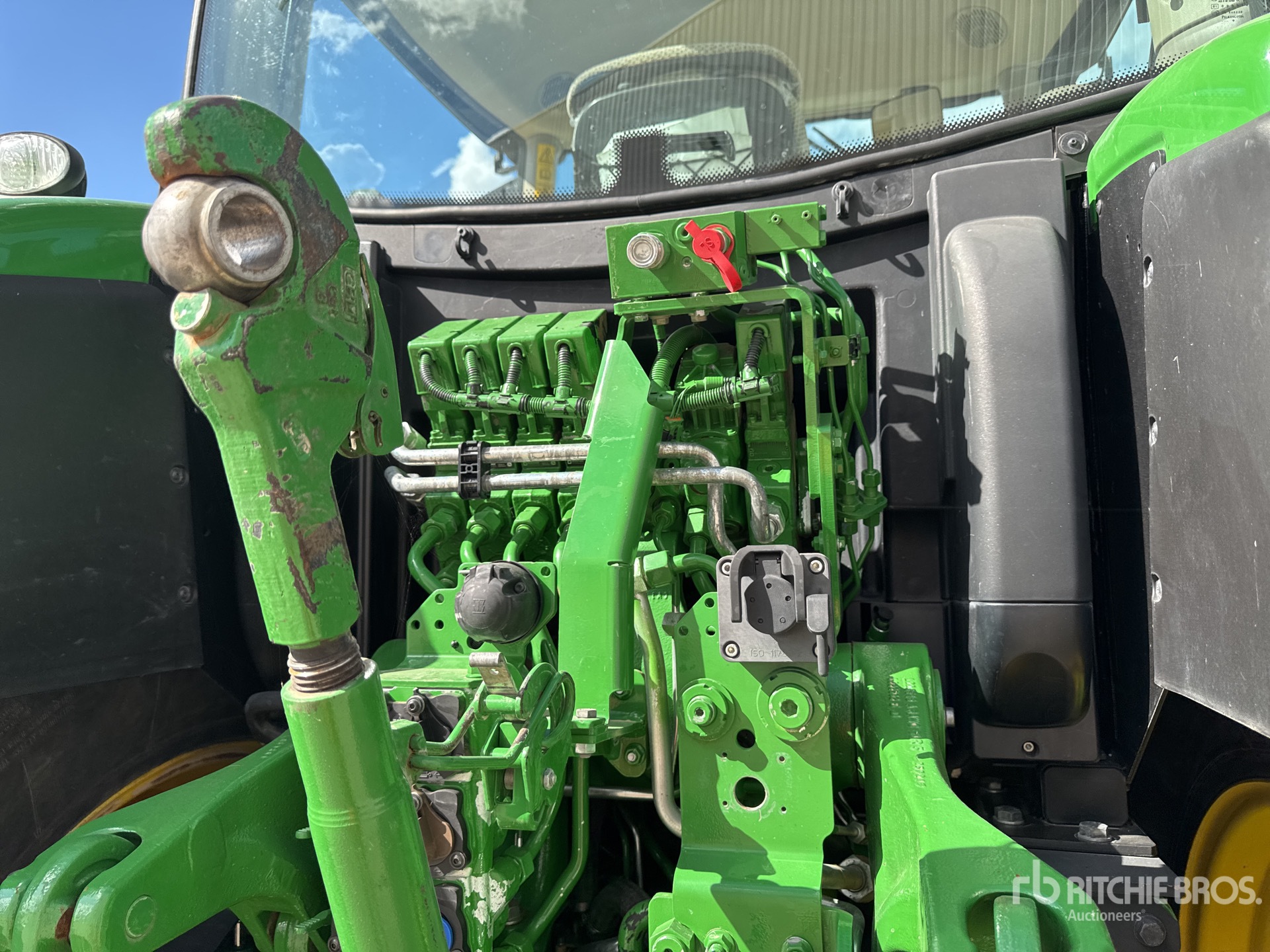

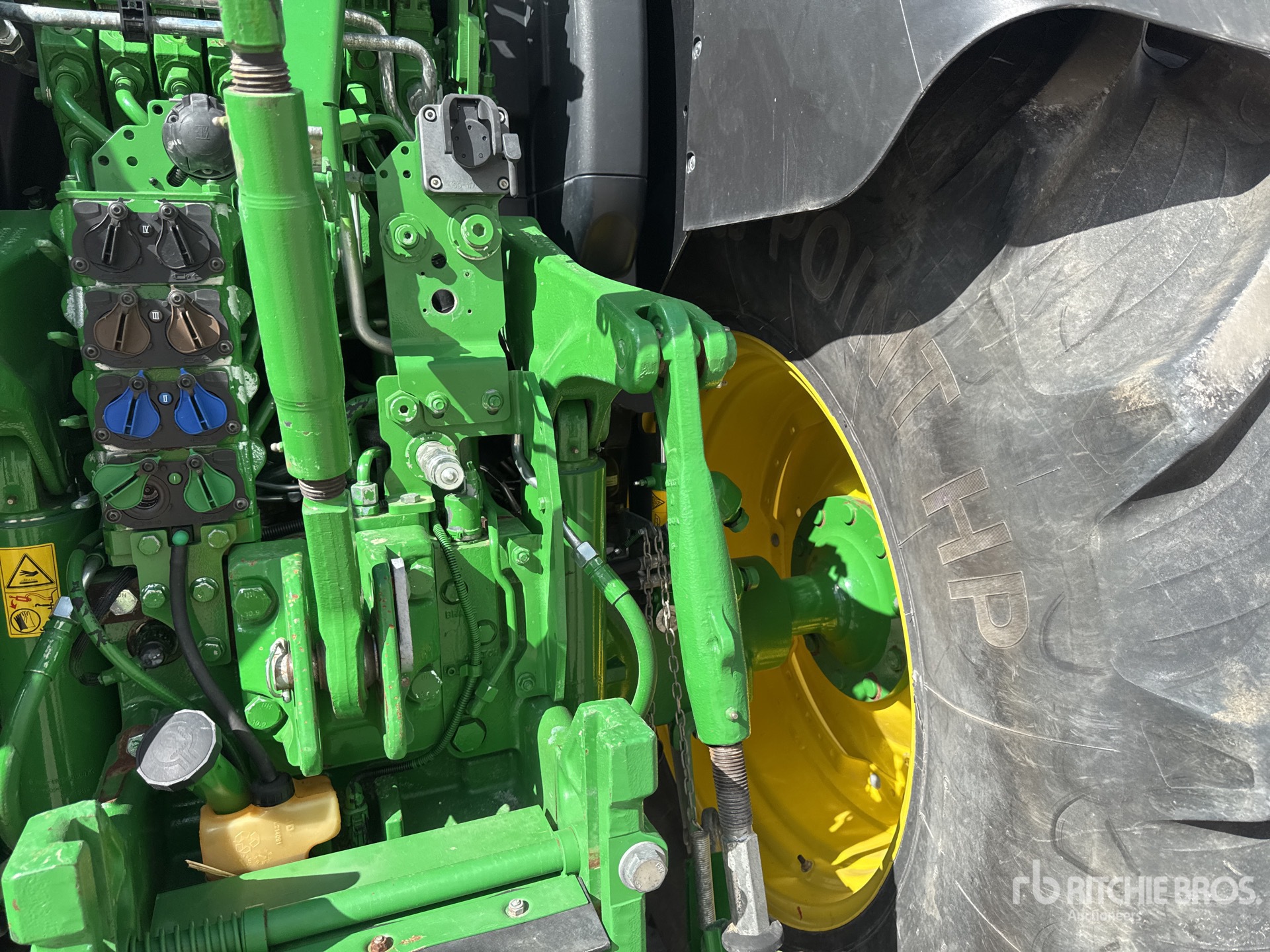

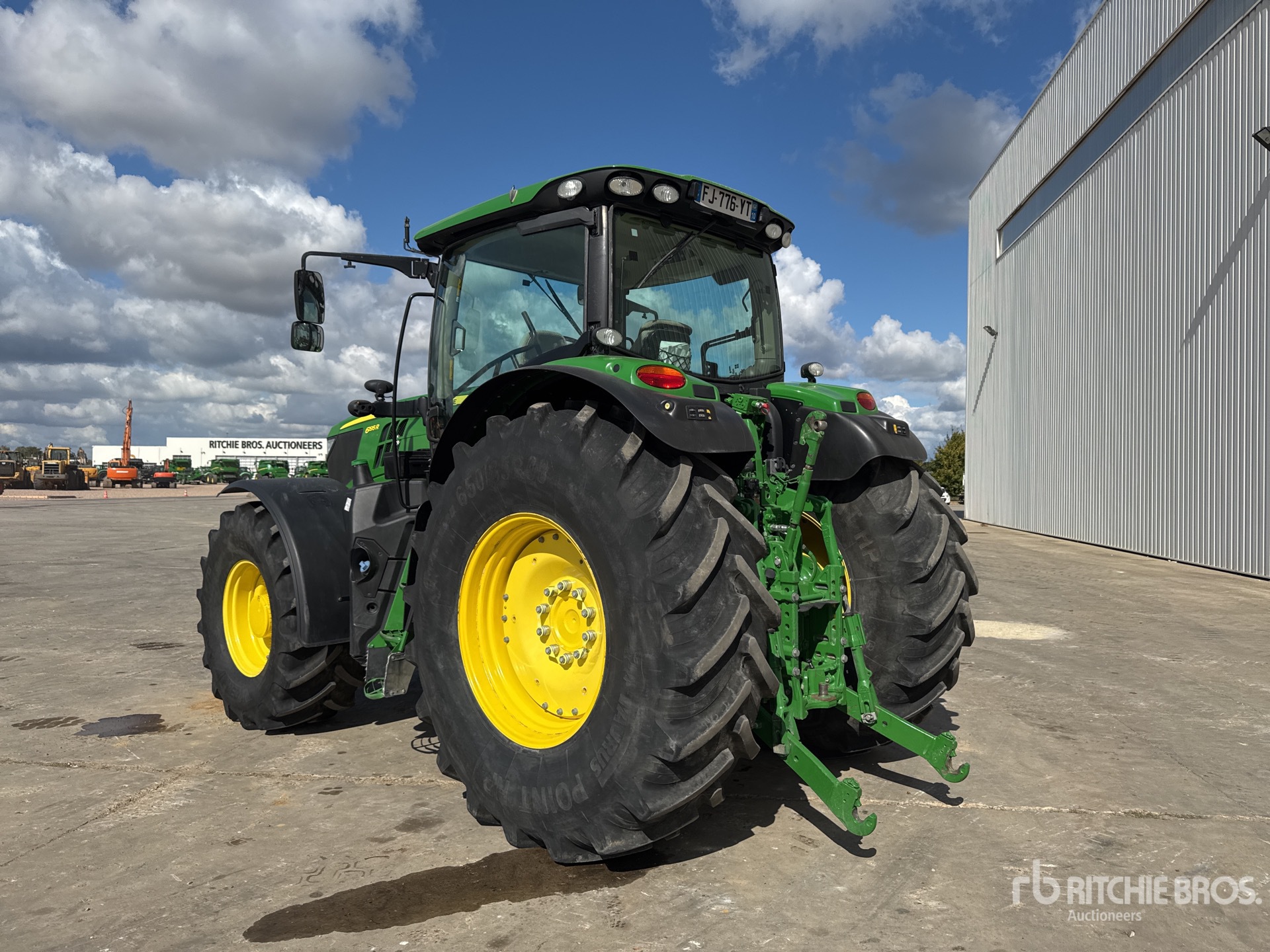

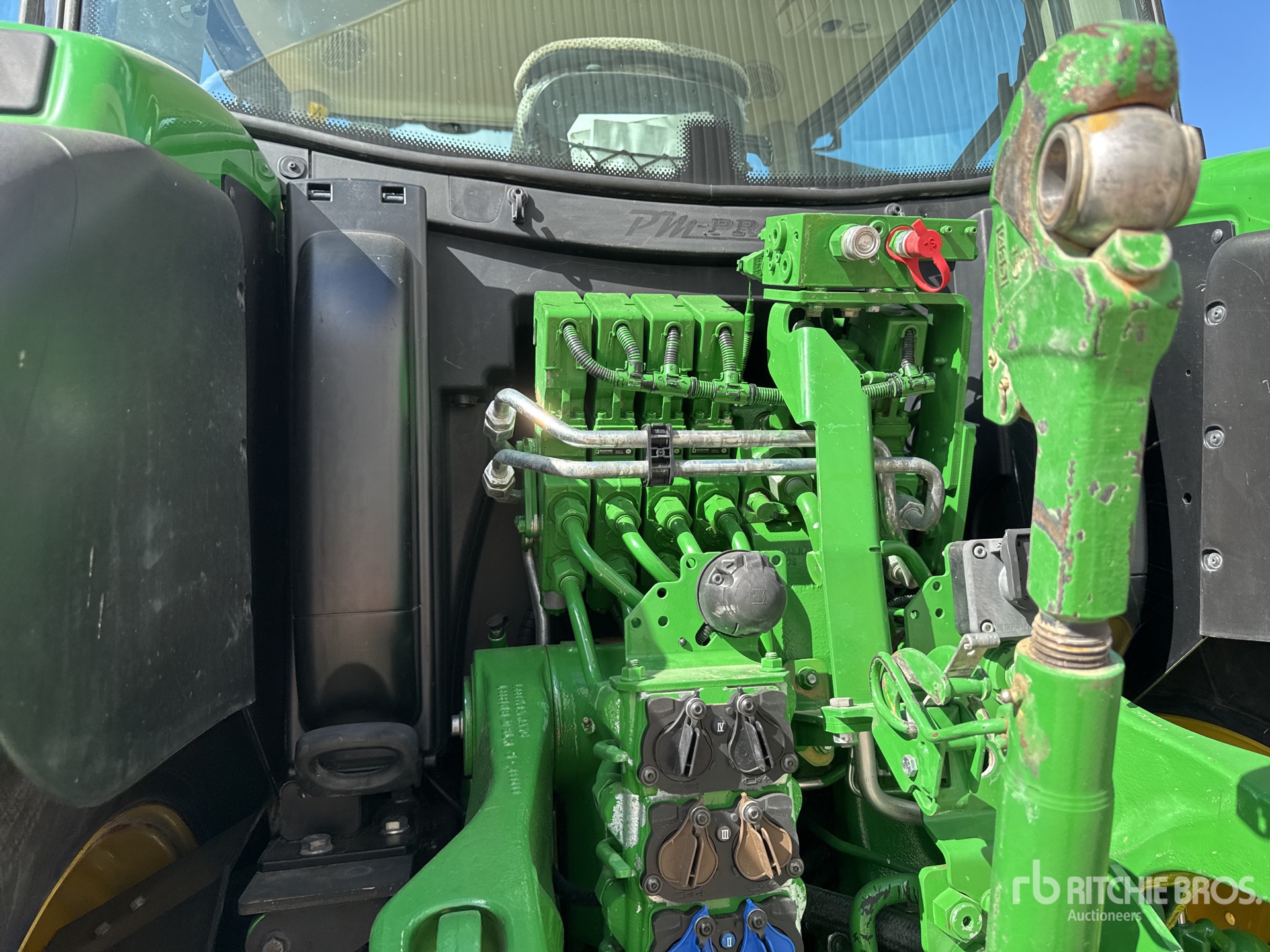

| Hydraulic - 4WD |
|
Hitch Category (Sae Designation) |
Category 3/3N |
|
Hitch Draft Control Load Sense Type |
Electrohydraulic |
|
Hitch Lift Cap. Lb (Kg) @24 In. Bhnd Lift Pt. |
Standard 3-450 Series Mechanical SCVs standard, 3 to 4 electrohydraulic SCVs; 2 or 4 mechanical SCVs are optionalOptional N/A |
|
Hydraulic Type |
Closed-center, pressure/flow compensated |
|
Joystick Scv Control |
Mechanical or electronic |
|
Max Output @ Scv Couplers |
41 gpm (154 lpm)
|
|
Maximum Hydraulic Power |
56 hp (42 kw)
|
|
Maximum Operating Pressure |
2,900 psi |
|
Pump Rated Output 1 |
41 gpm (155 lpm)
|
|
Rated Flow @ One Scv |
34 gpm (130 lpm)
|
|
Remote Control Valves Available |
3-450 Series Mechanical SCVs standard, 3 to 4 electrohydraulic SCVs; 2 or 4 mechanical SCVs are optional |
|
Sensing Type |
Electronic lower link |

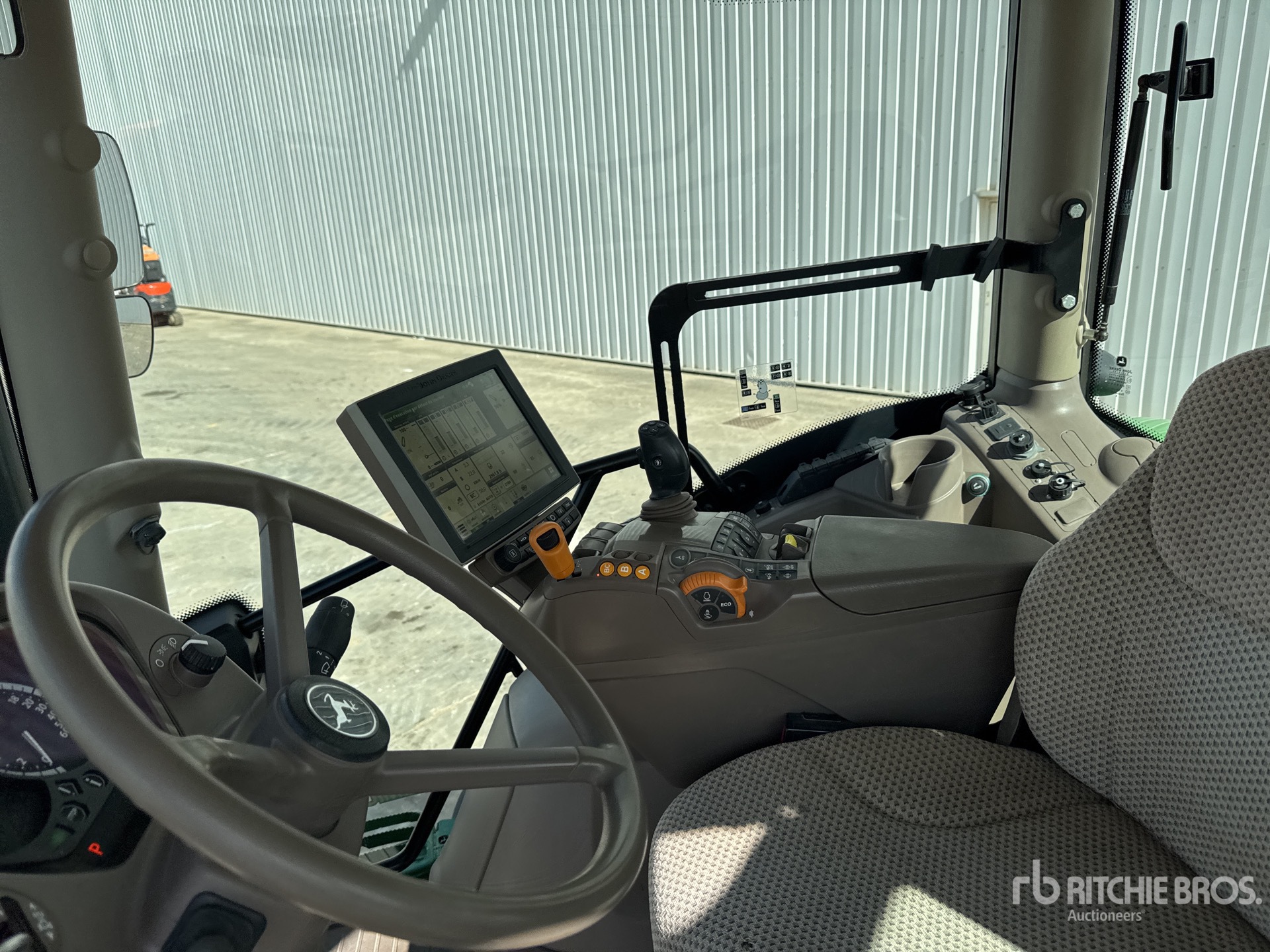

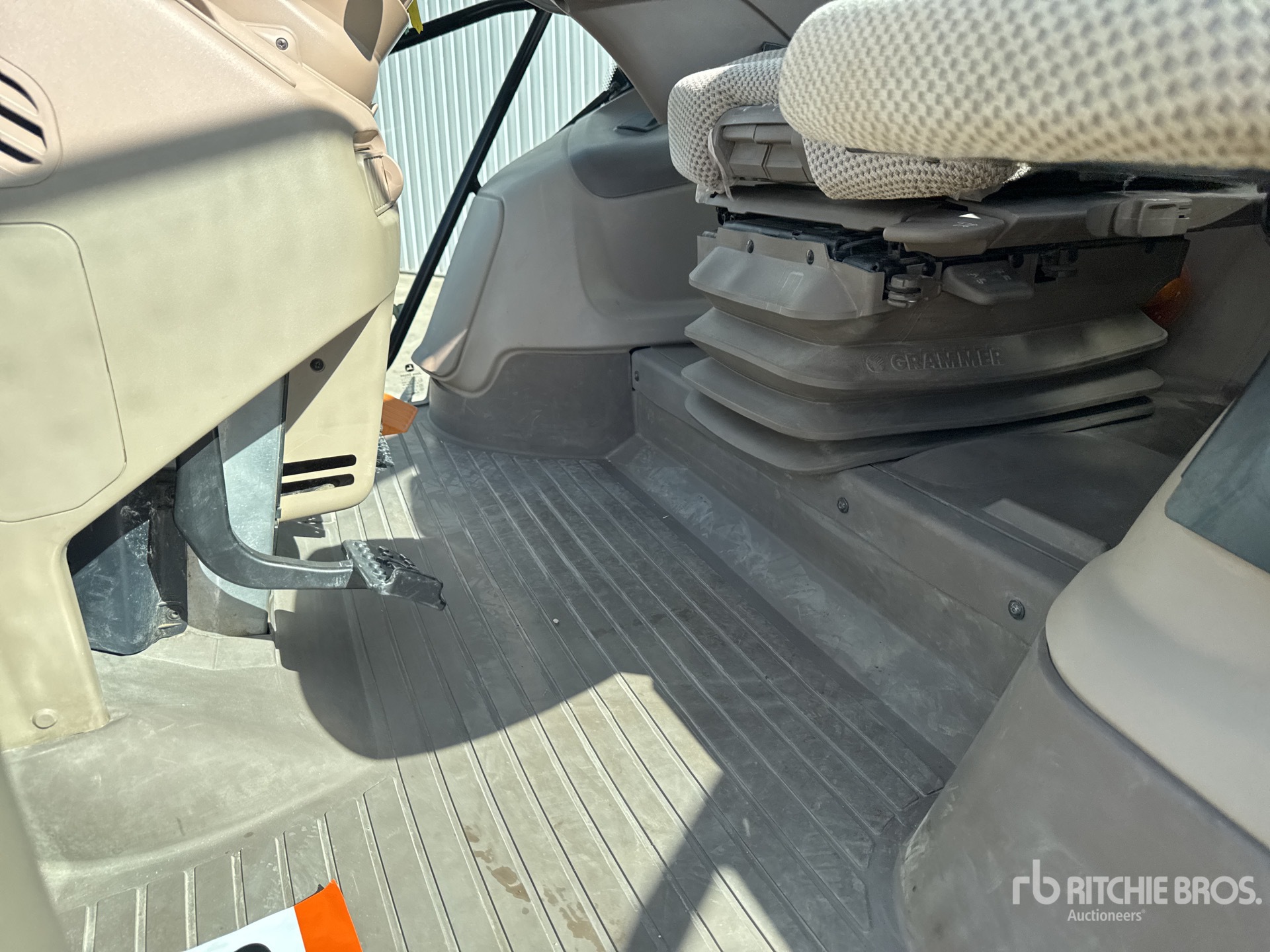

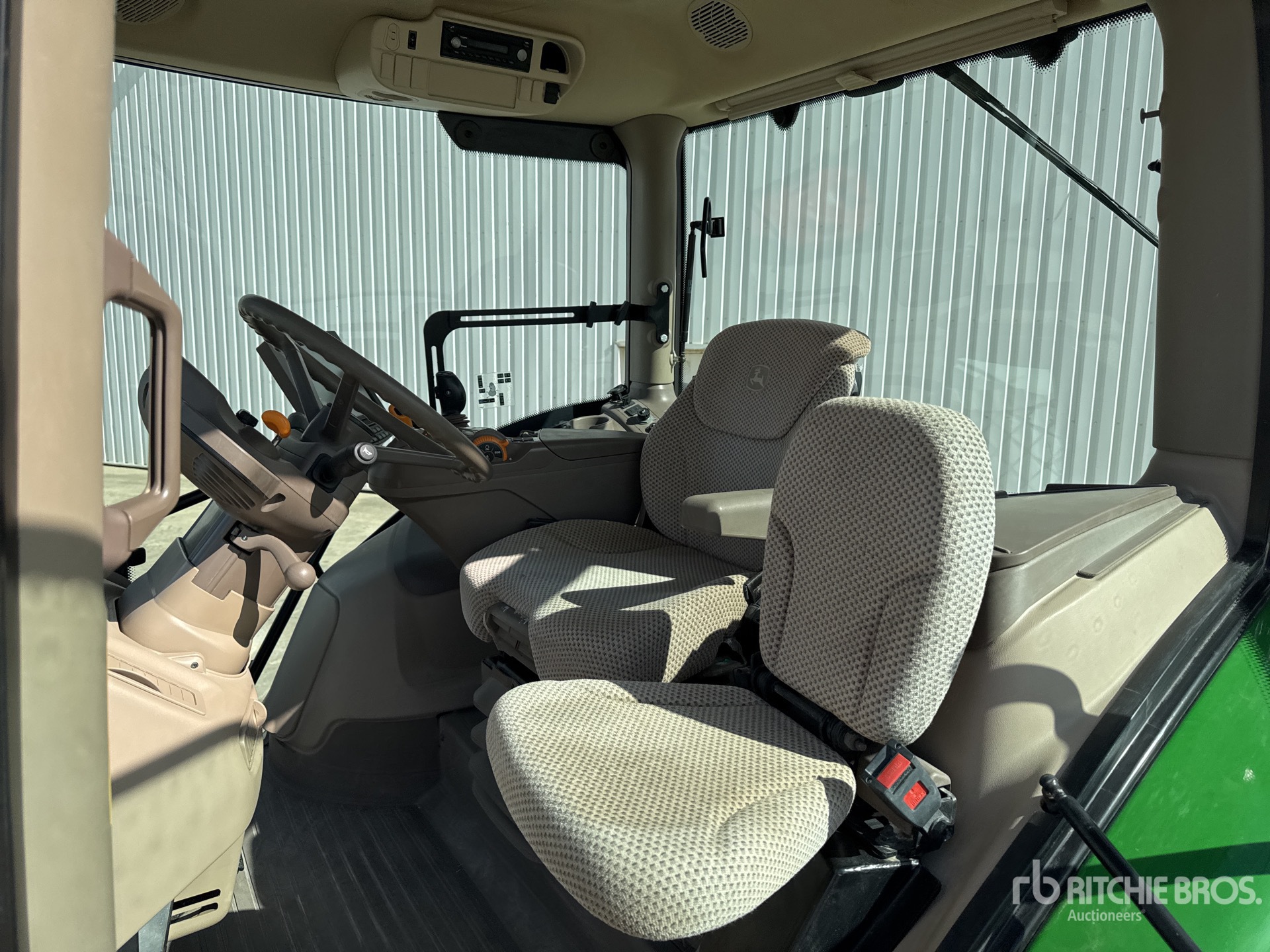

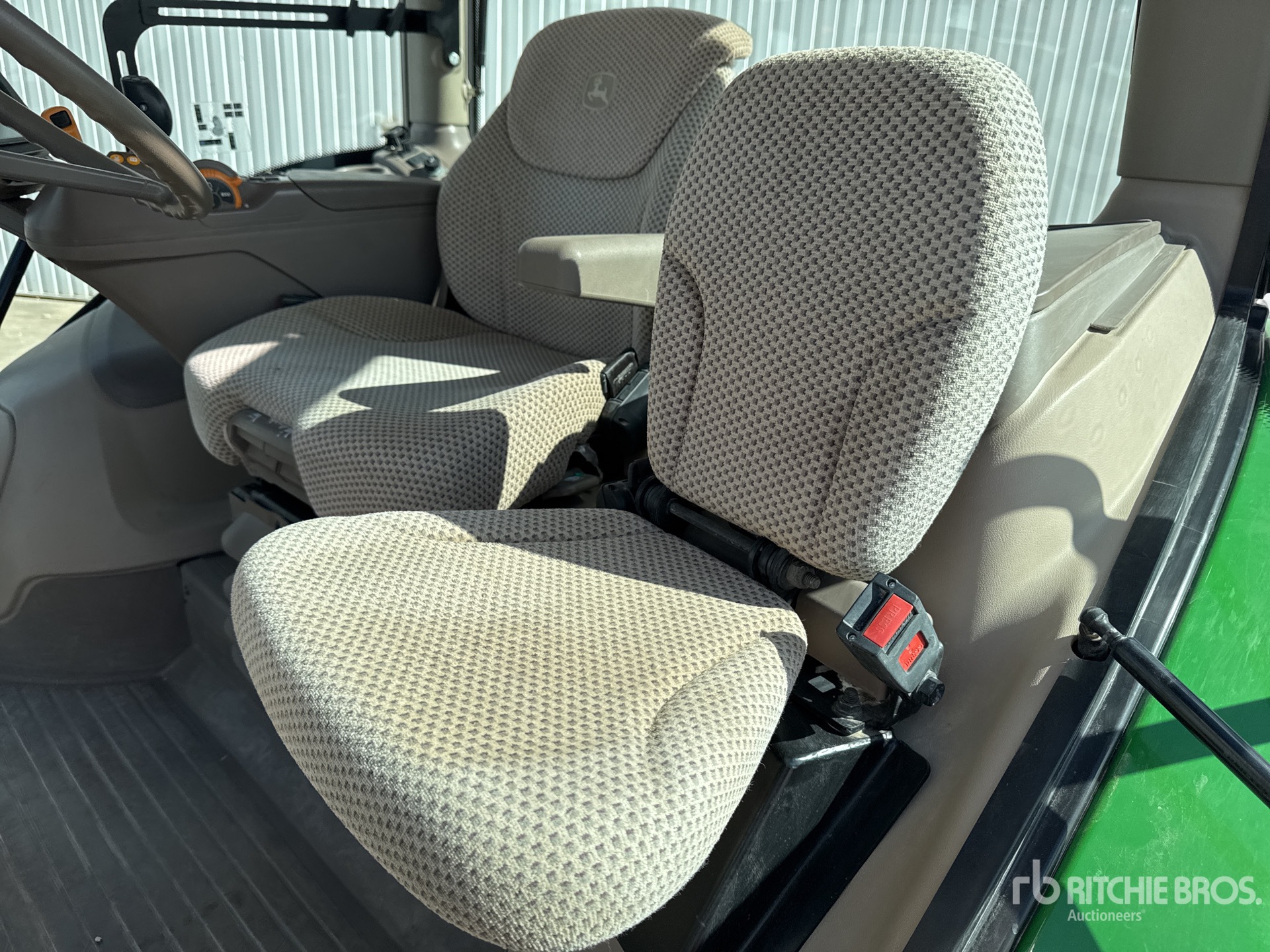

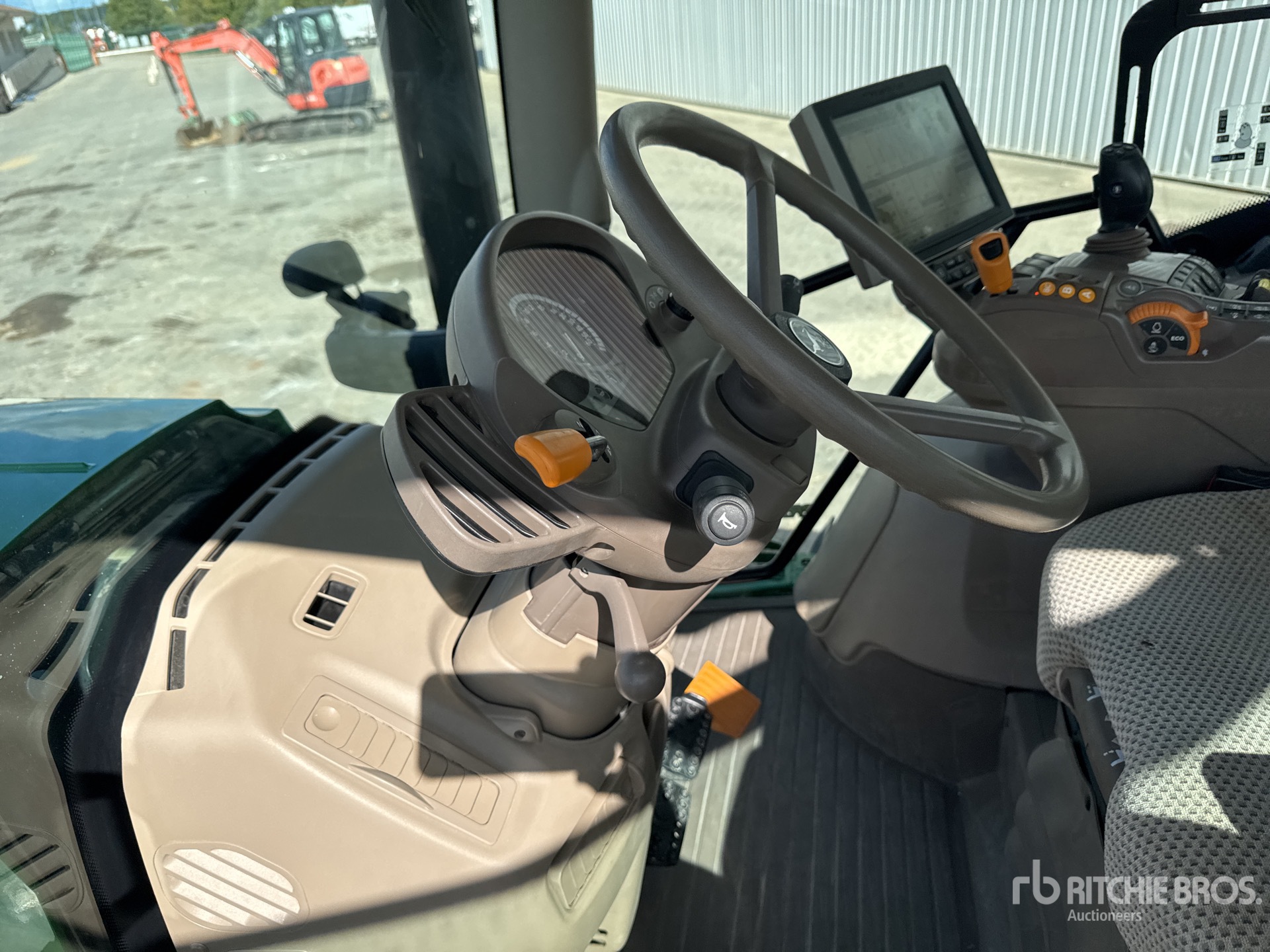

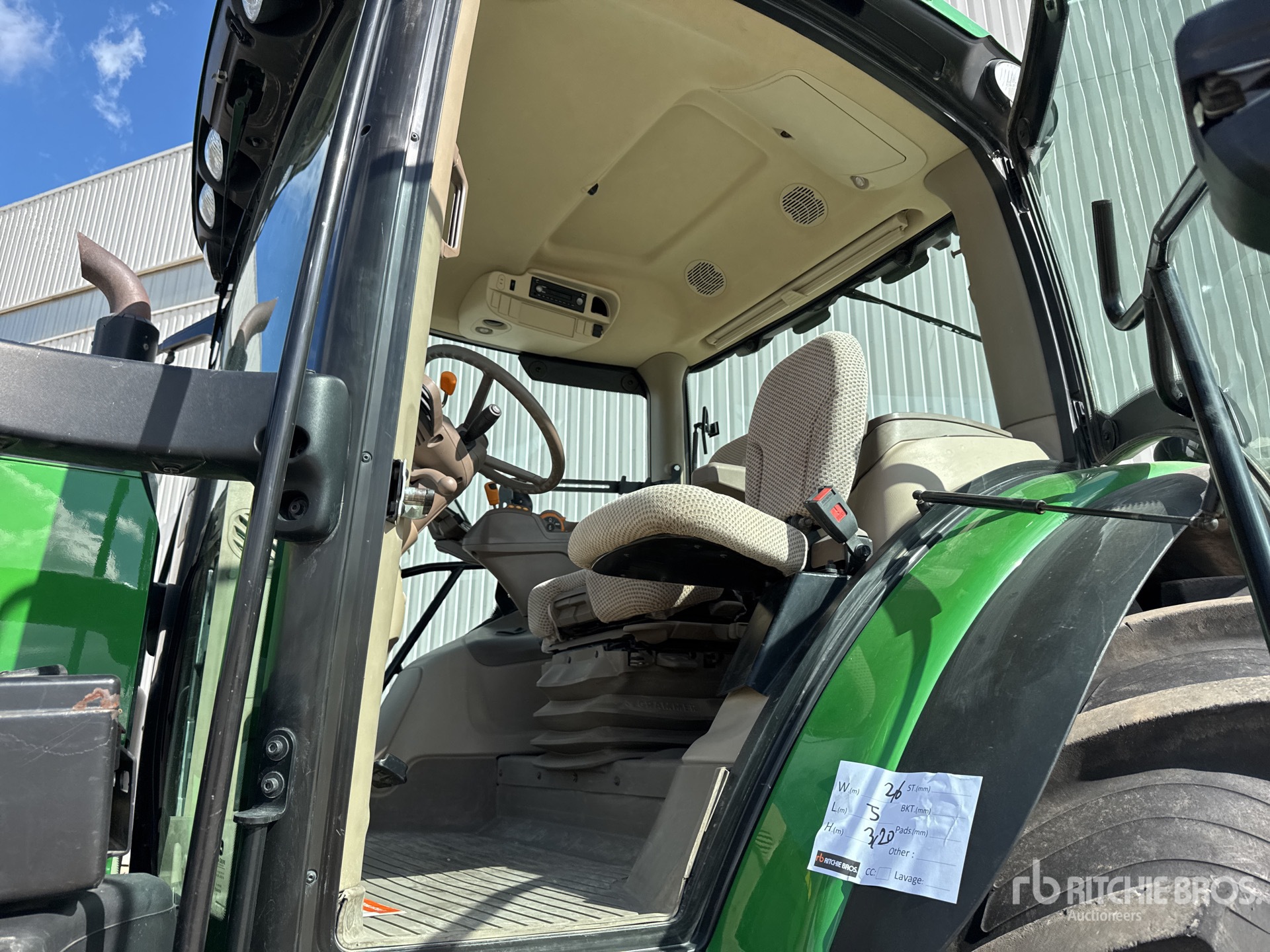

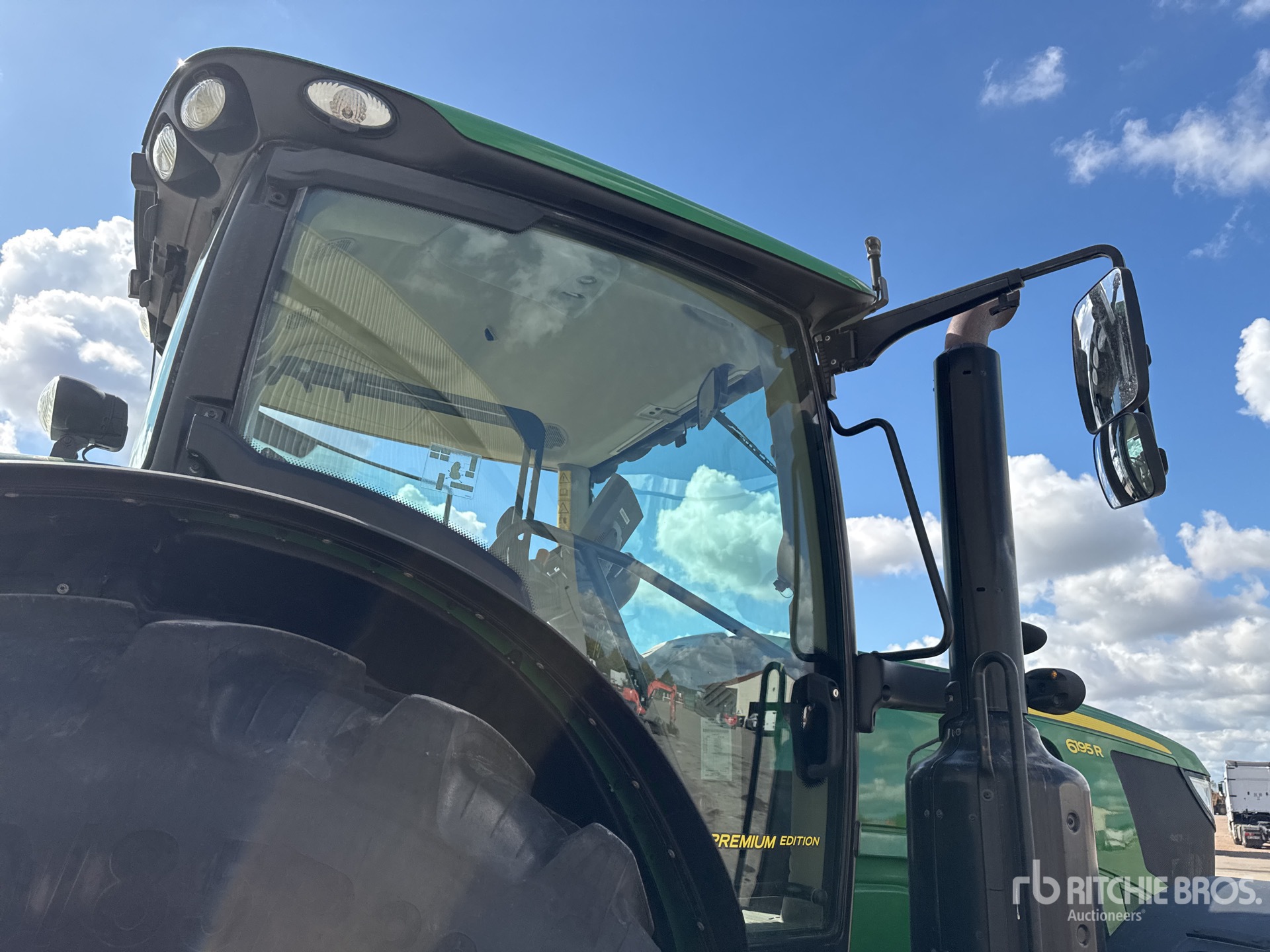

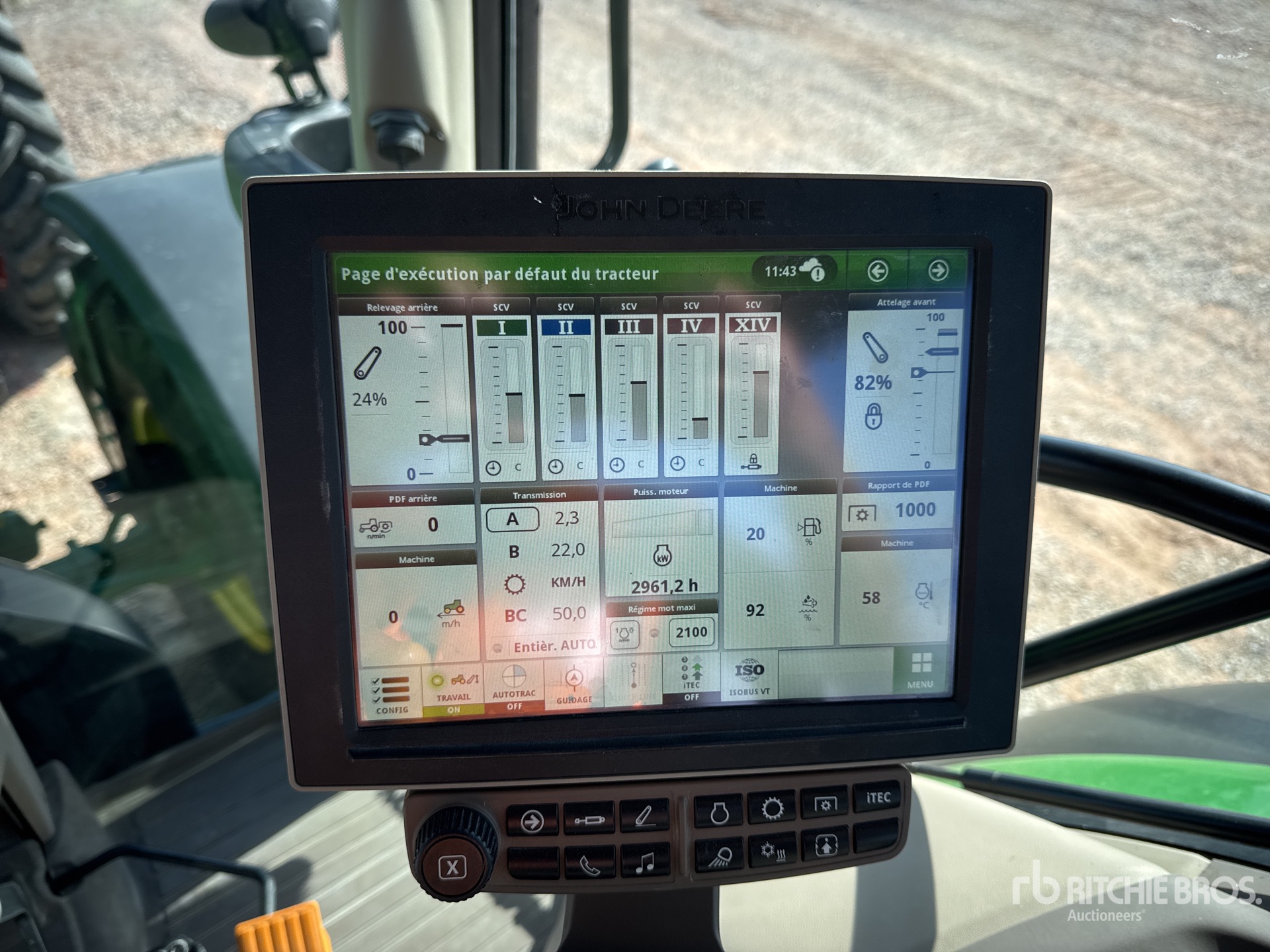

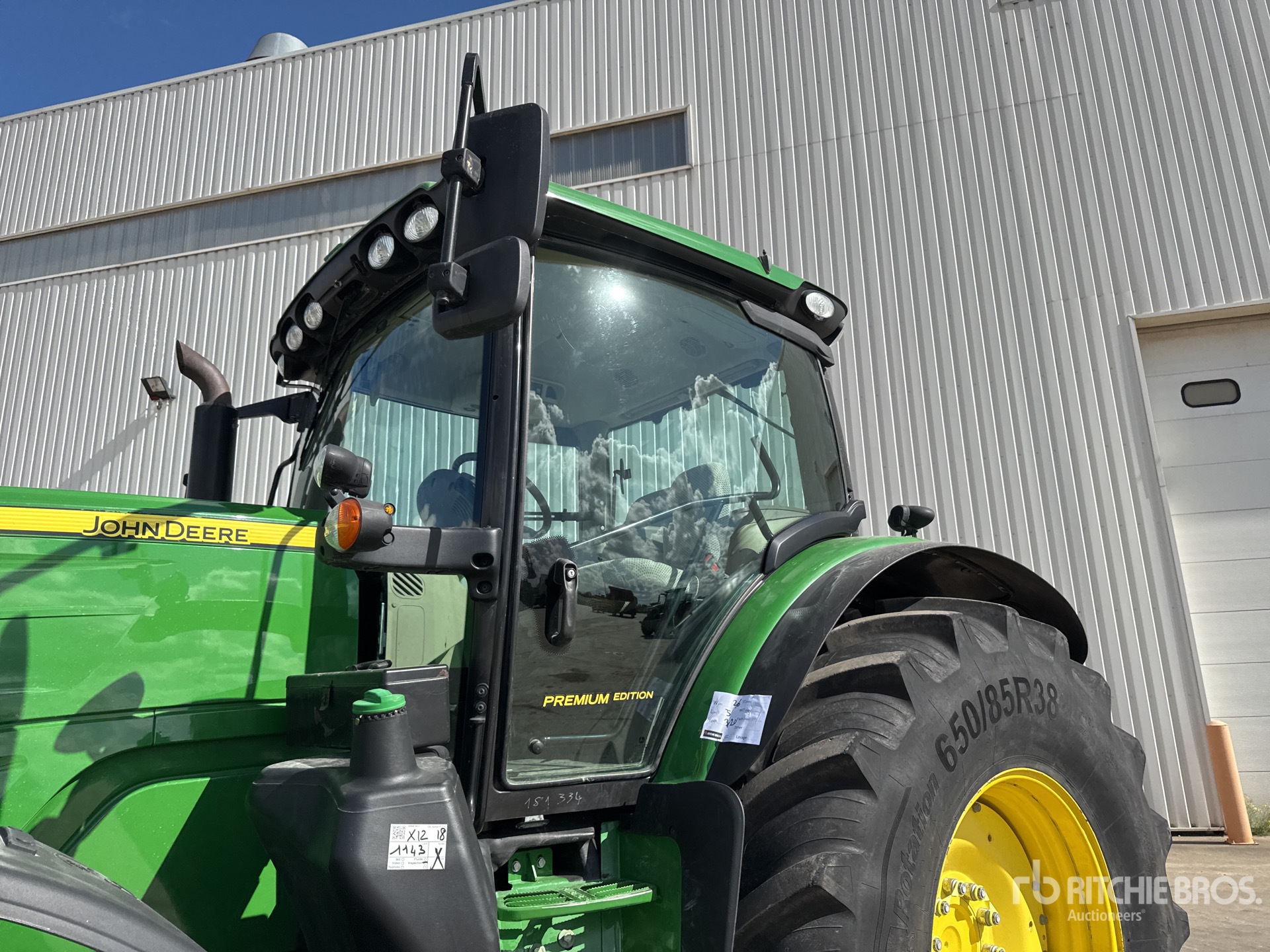

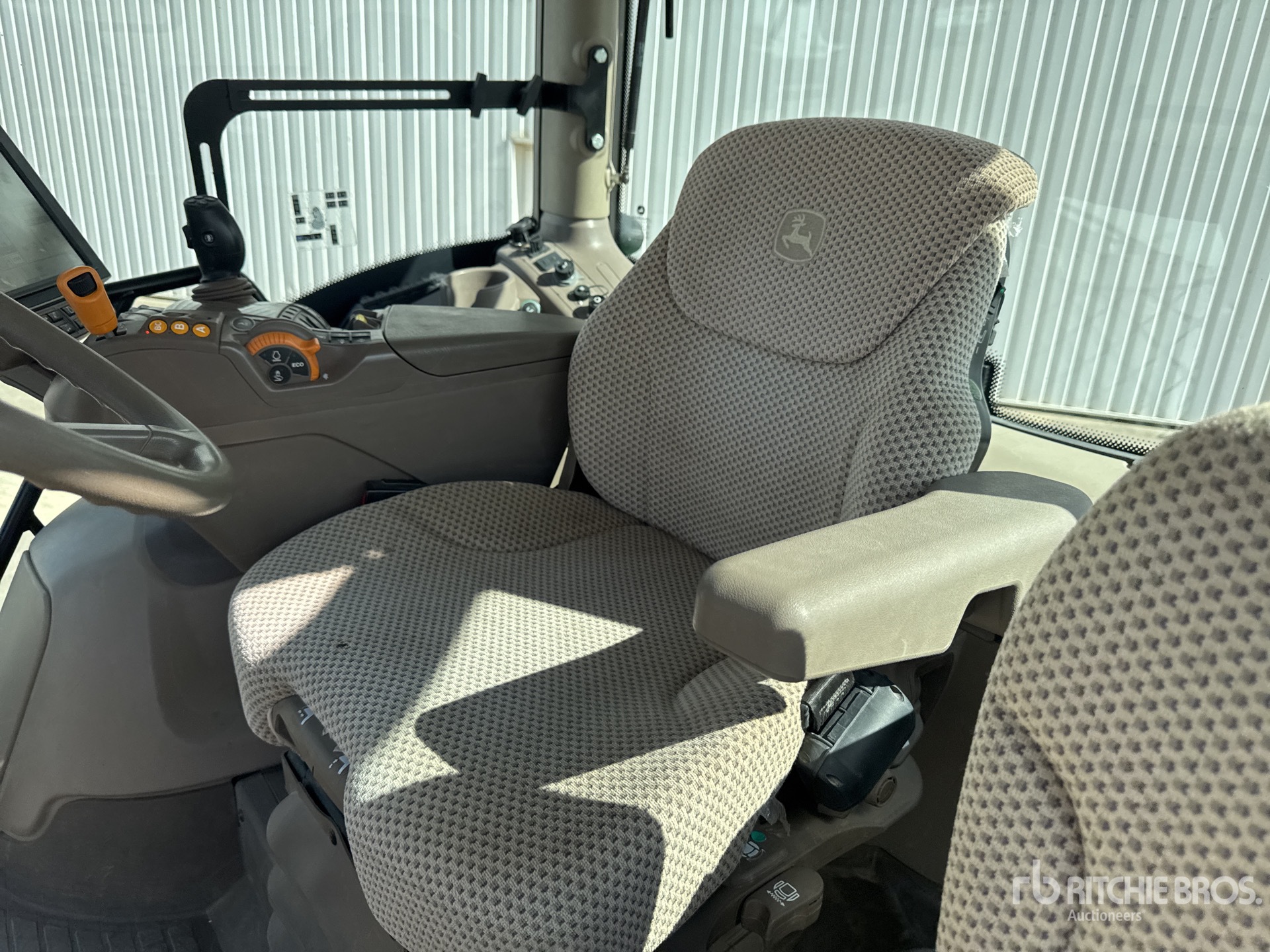

| Operator Station - 4WD |
|
Cab |
dB(A) Rating 69.3 - At no load in 6th gear, FWD engaged |
|
Rollover Protective Structure |
Rigid - Foldable - Telescopic N/APlatform - Flat/Straddle N/AGearshift Location - Console/Floor N/A |
| Performance - 4WD |
|
Advertised Engine |
195 hp (145 kw)
|
|
Advertised Pto |
118 @ 2100 kW 158 @ 2100 PTO hp |
|
Max Torque Rise |
43 % |
|
Max Unballast Drwbr Hp (Kw) @ Eng Rpm |
157 hp (117 kw)
|
|
Maximum Torque (Pto) |
628 lbs ft (851 nm)
|
|
Maximum Torque Rise % (Pto) @ Eng Rpm |
52.6 % |
|
Official Pto Hp (Kw) @ Rated Rpm Hp (Kw) |
@ Standard PTO @ Eng rpm 137.59 @ 1959 kW 184.51 rpmMaximum @ Eng rpm 141.11 @ 1750 kW 189.23 rpm 122.71 @ 2100 kW 164.56 rpm |

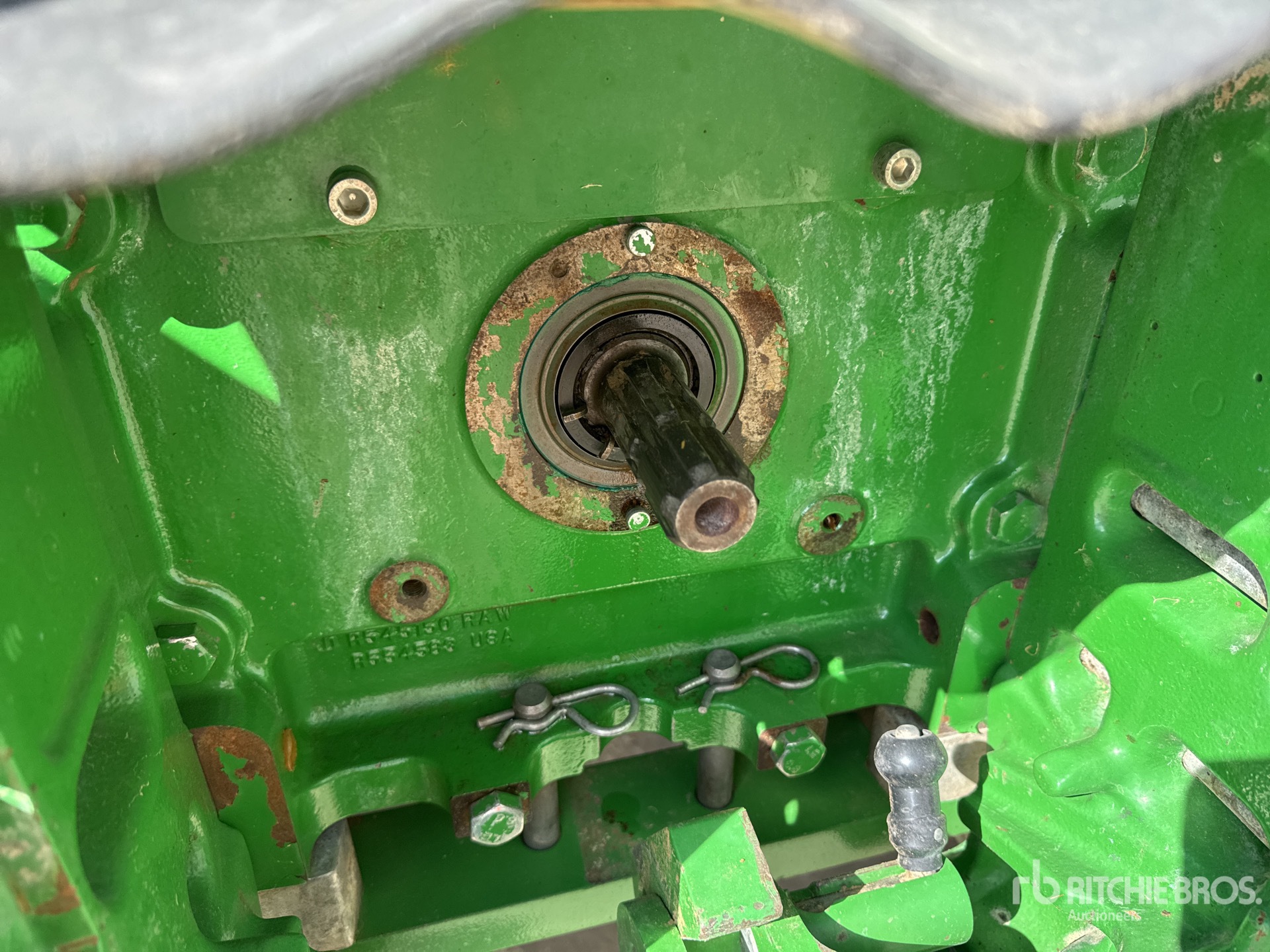

| Power Take-Off(Pto) - 4WD |
|
Optional |
1-3/8-in. 540/540E/1000 reversible shaft or 1-3/8-in. 540E/1000/1000E reversible shaft |
|
Pto Actuation |
Electrohydraulic |
|
Pto Speeds @ Engine Rpm |
1072 @ 2100 rpm |
|
Standard |
Independent 1-3/8 in., 540/1000 reversible shaft |

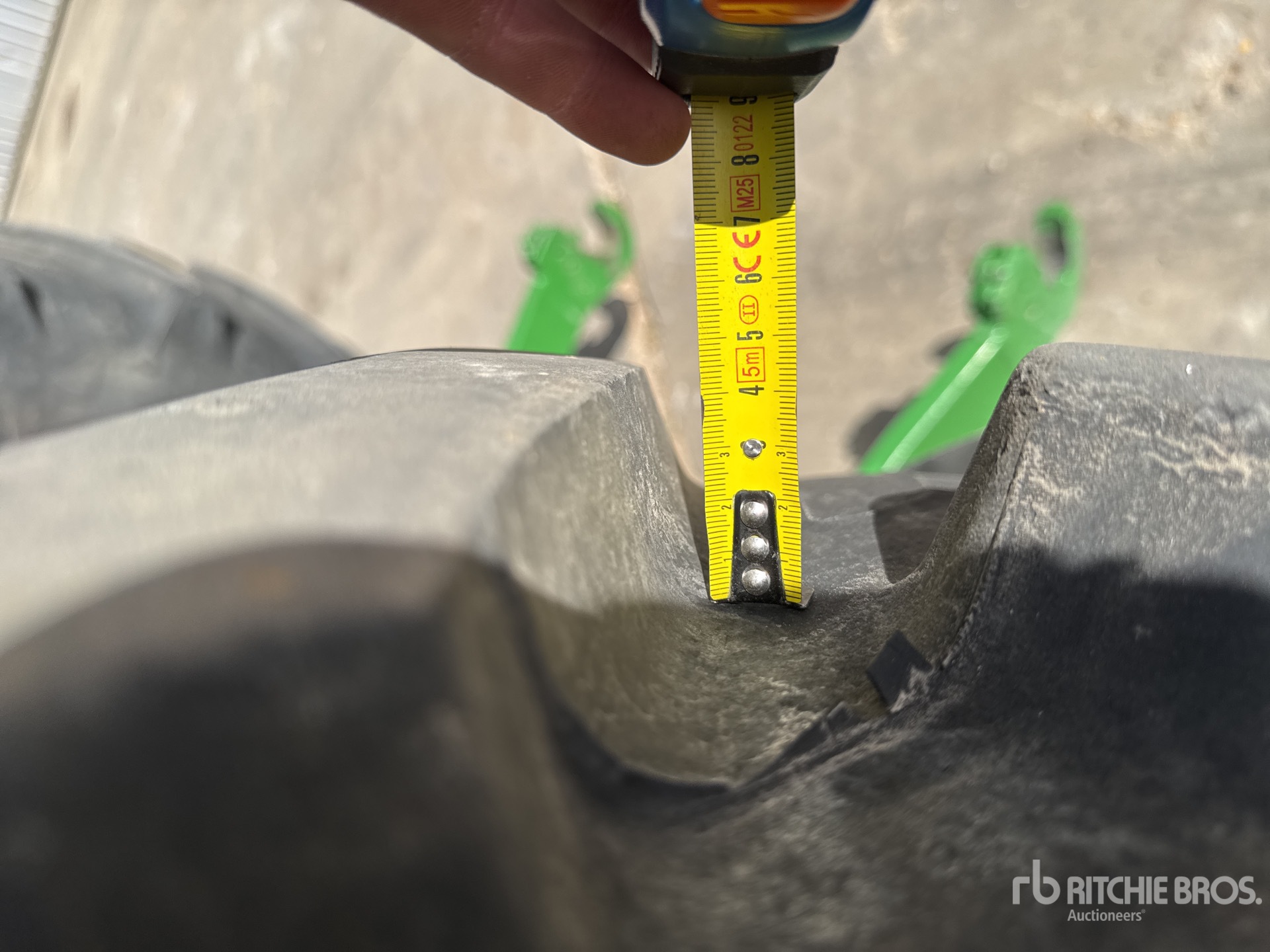

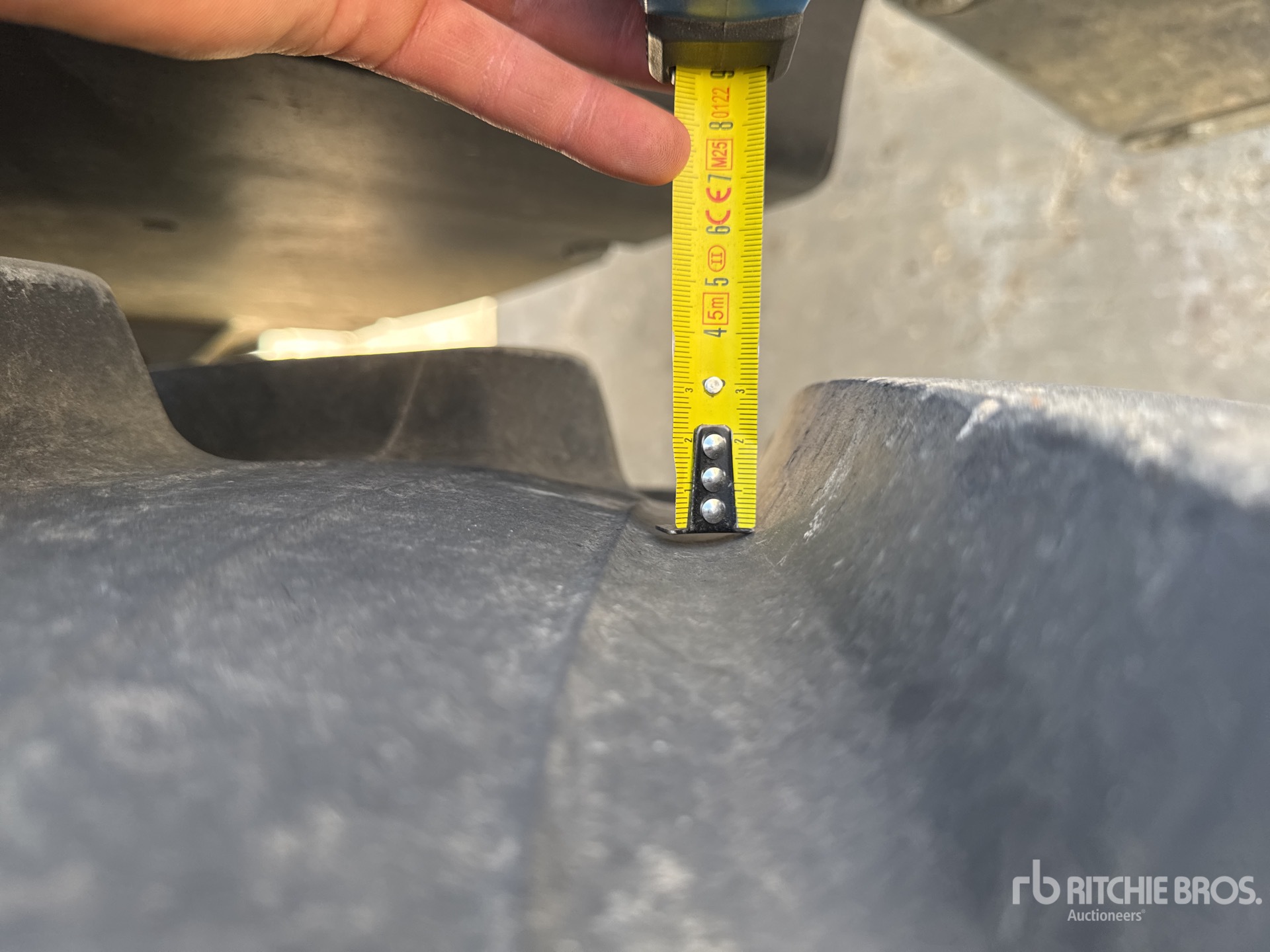

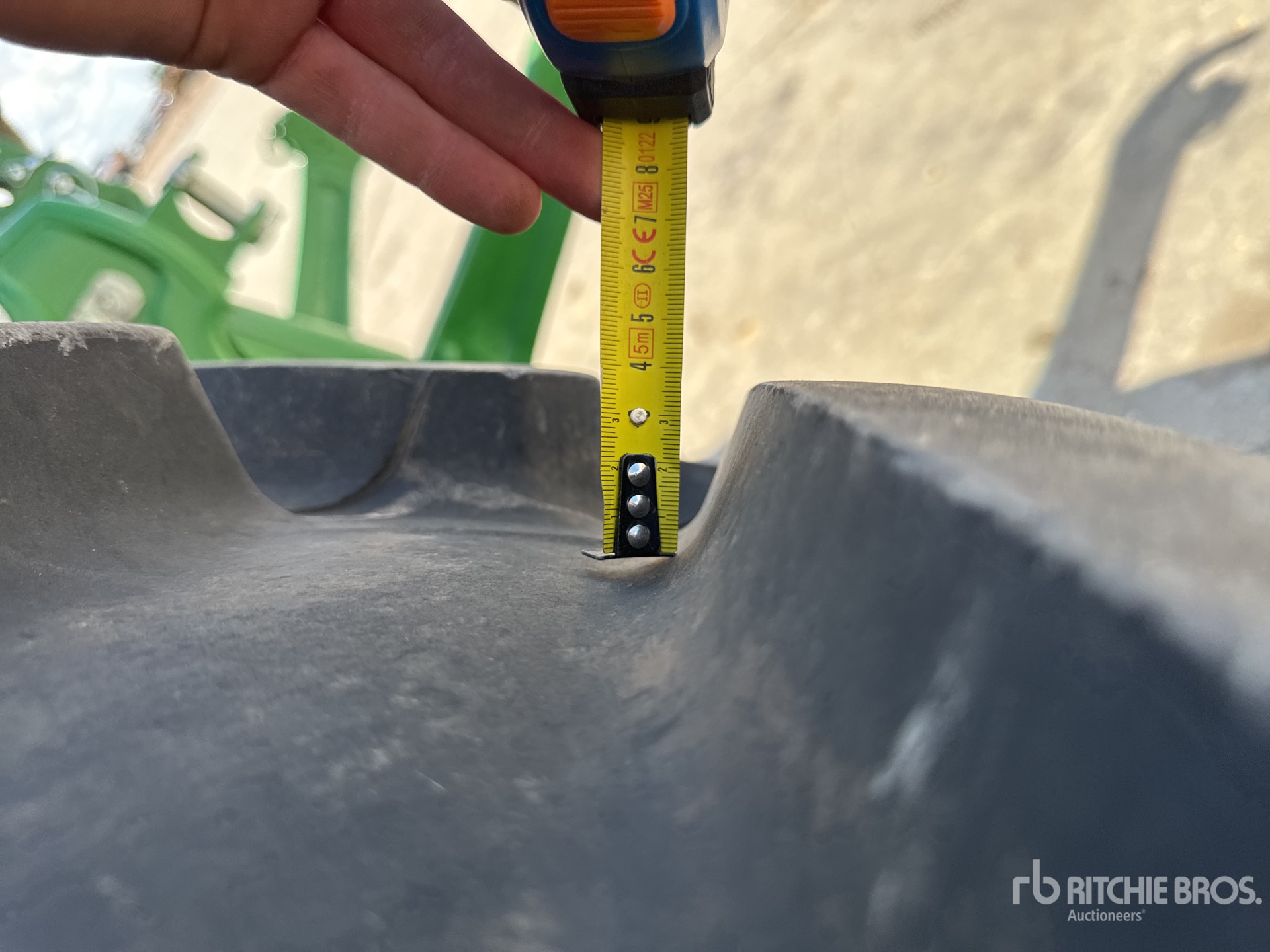

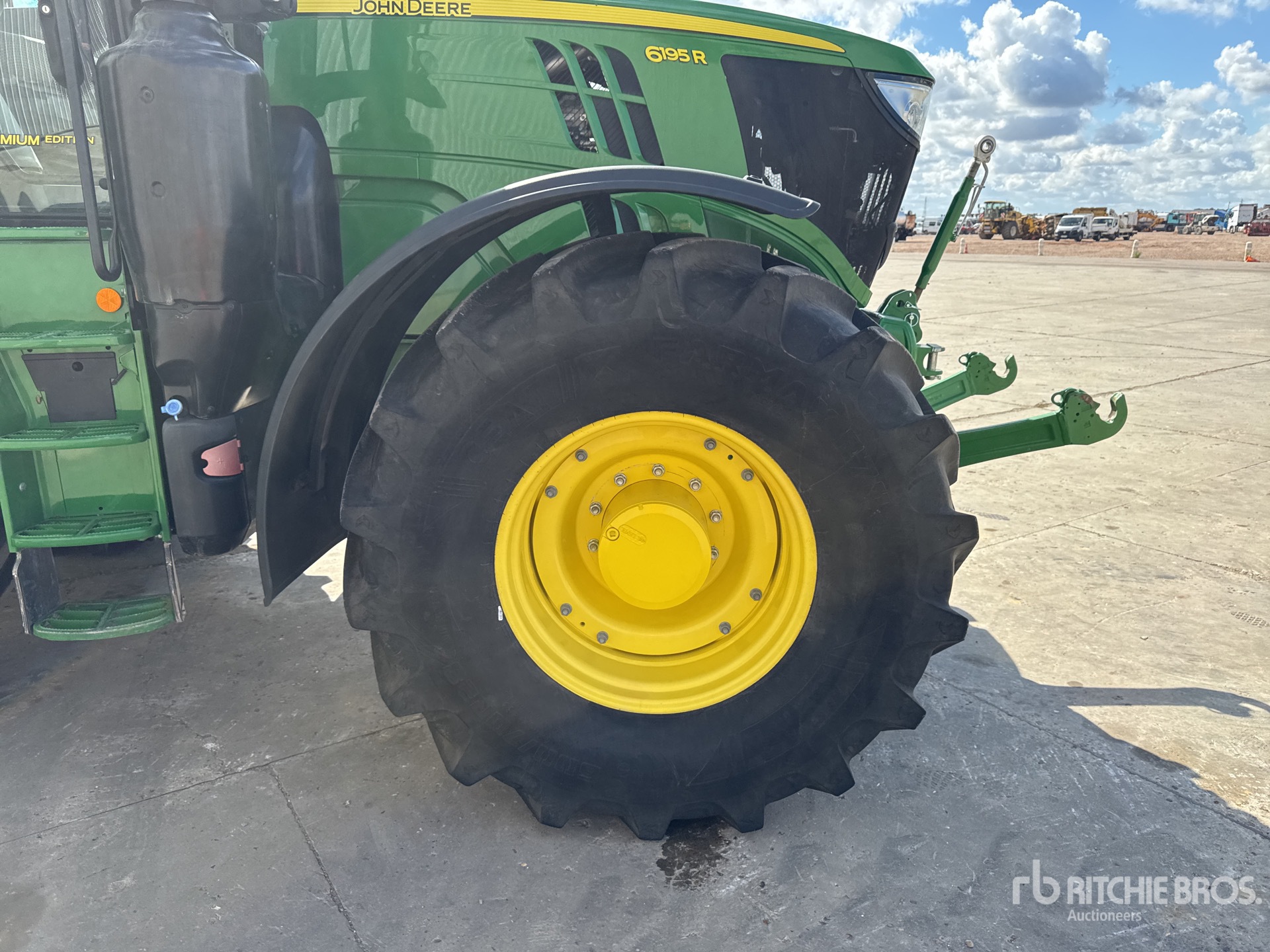

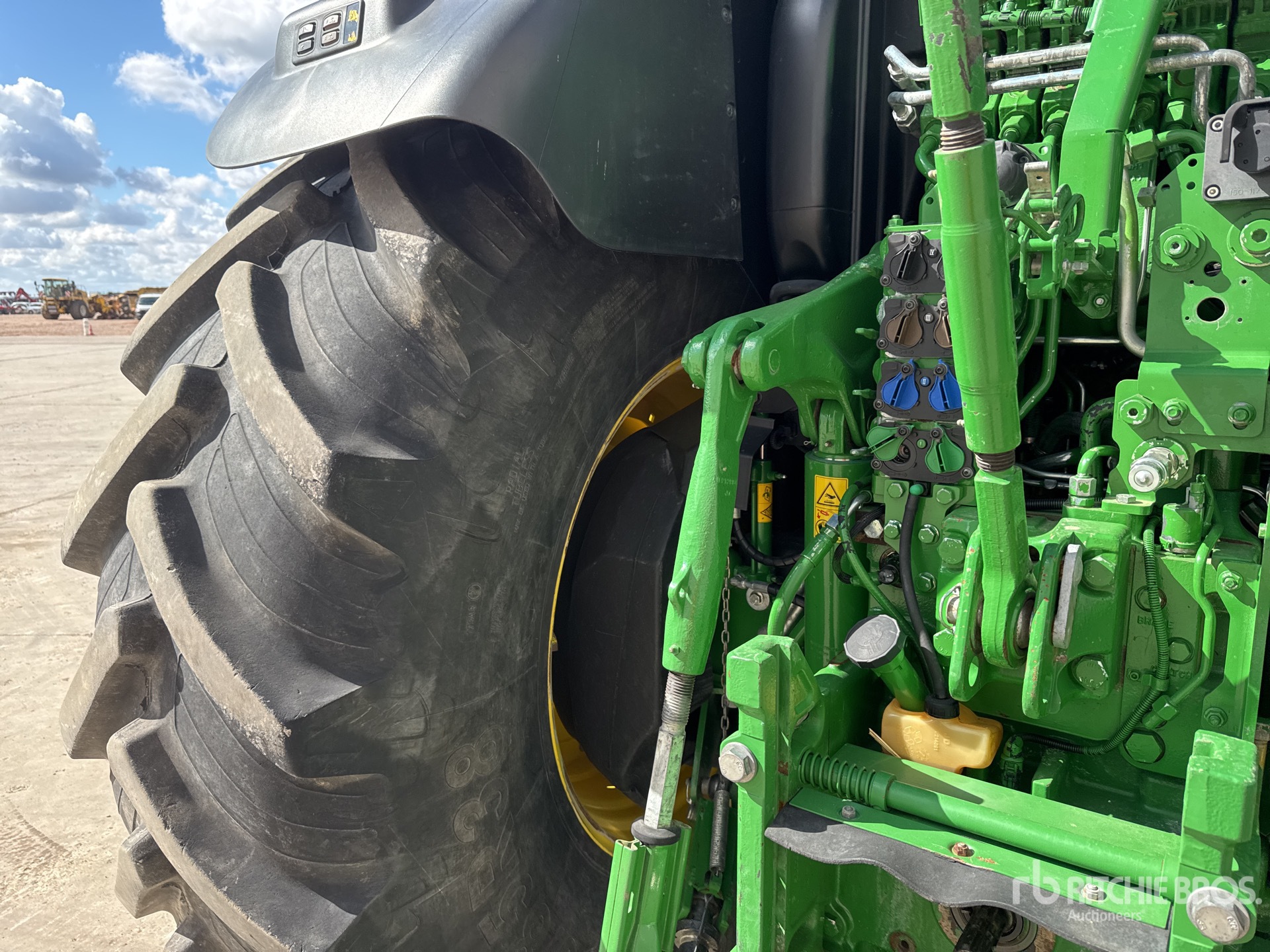

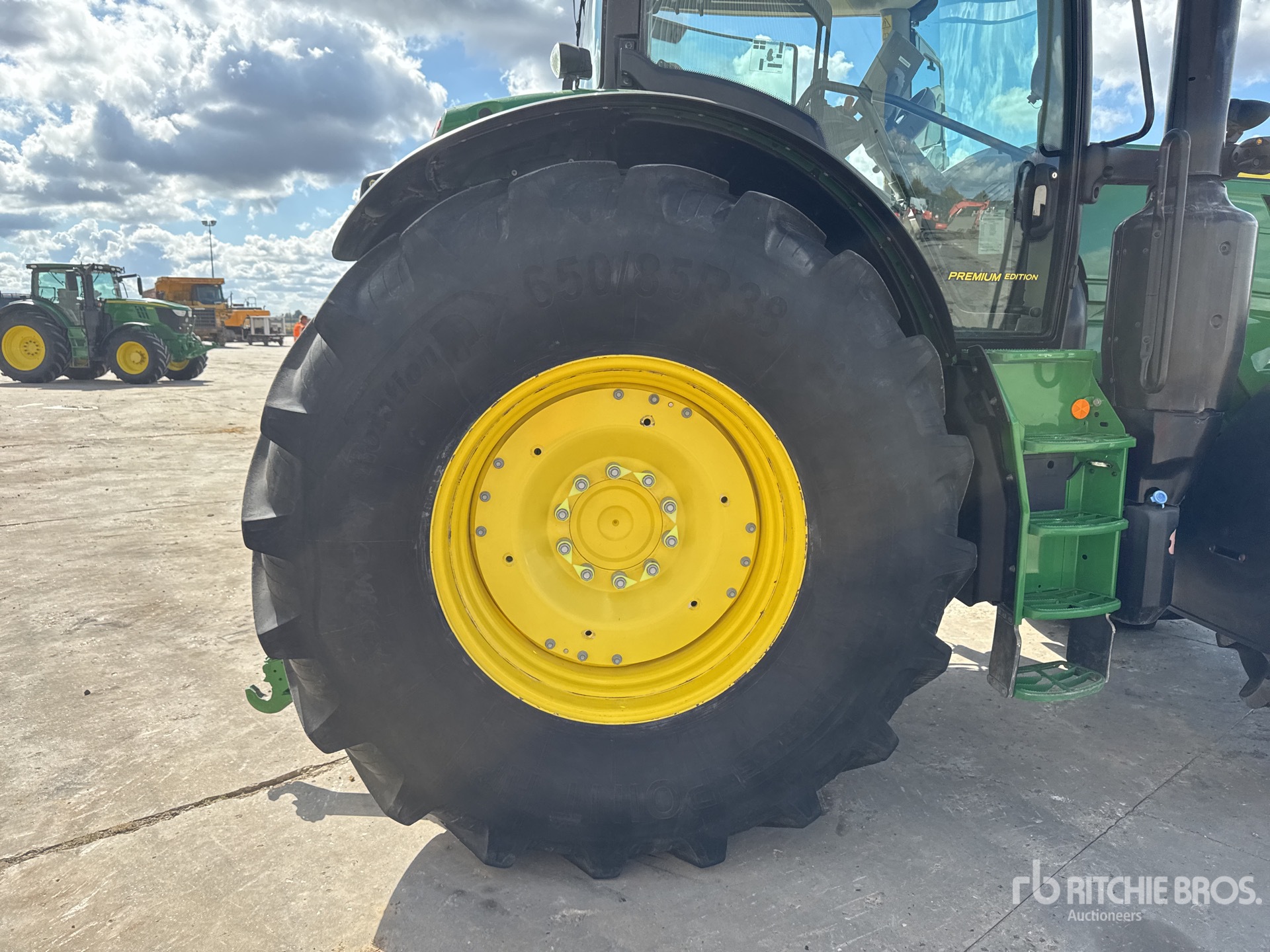

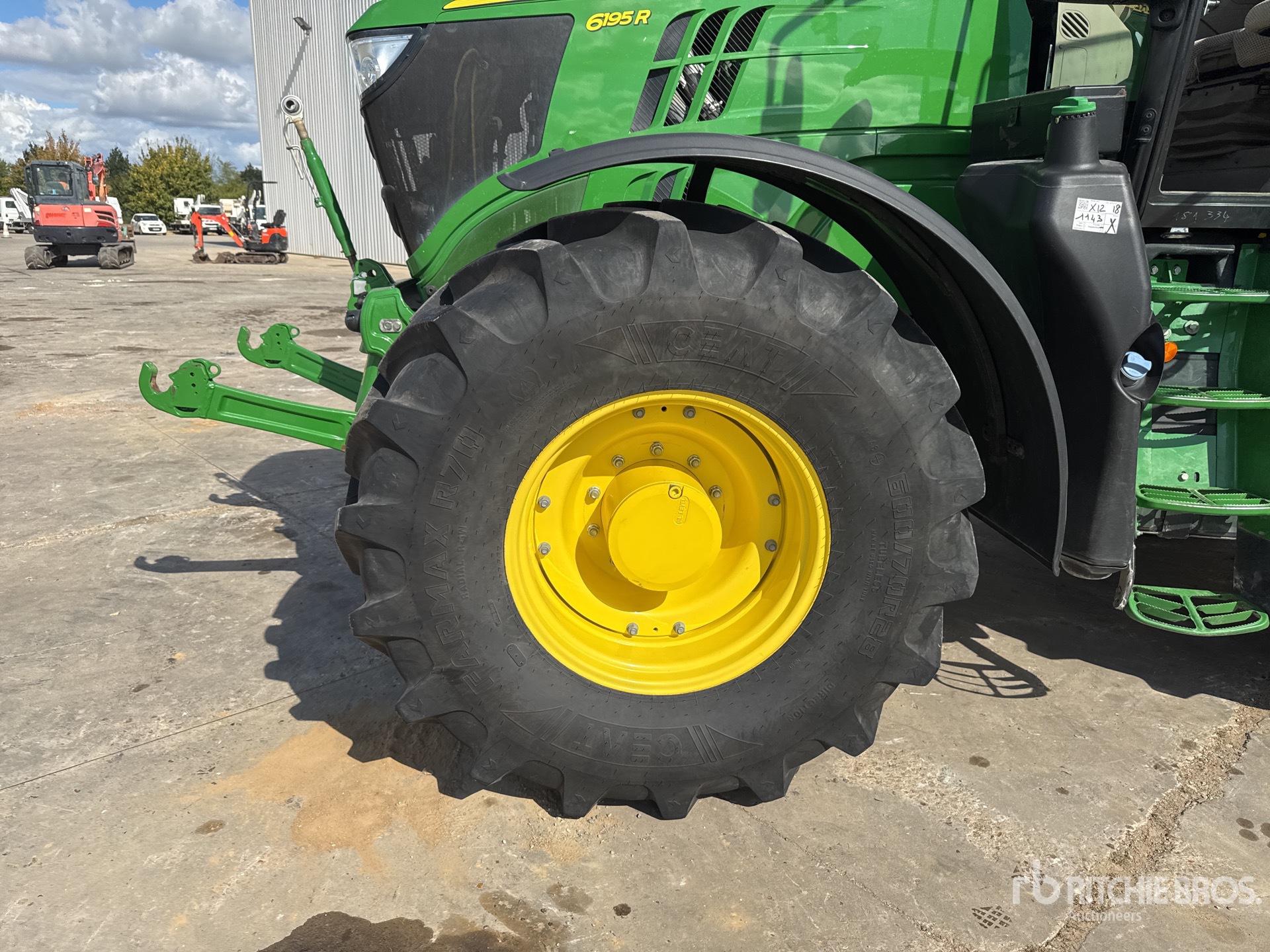

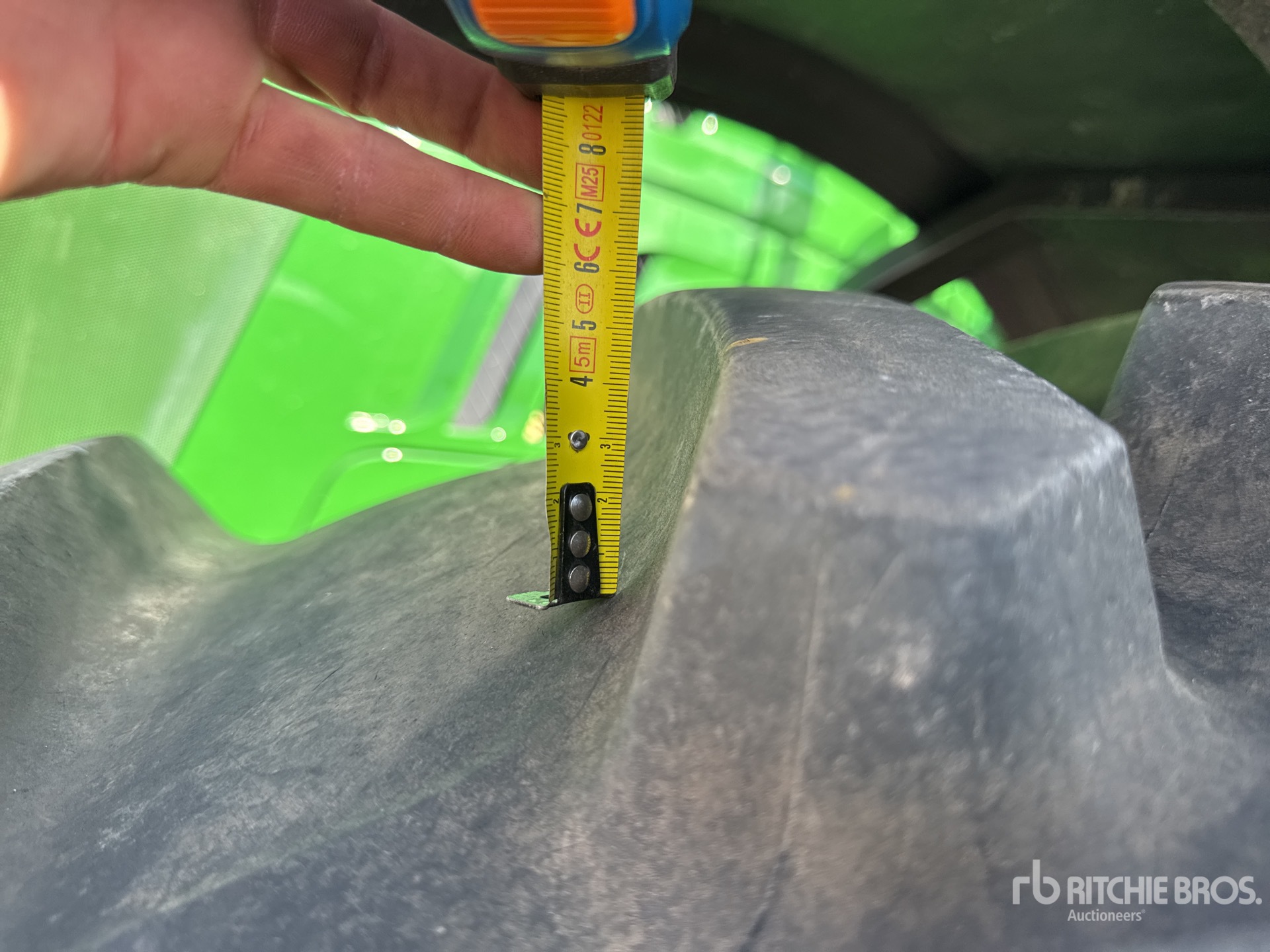

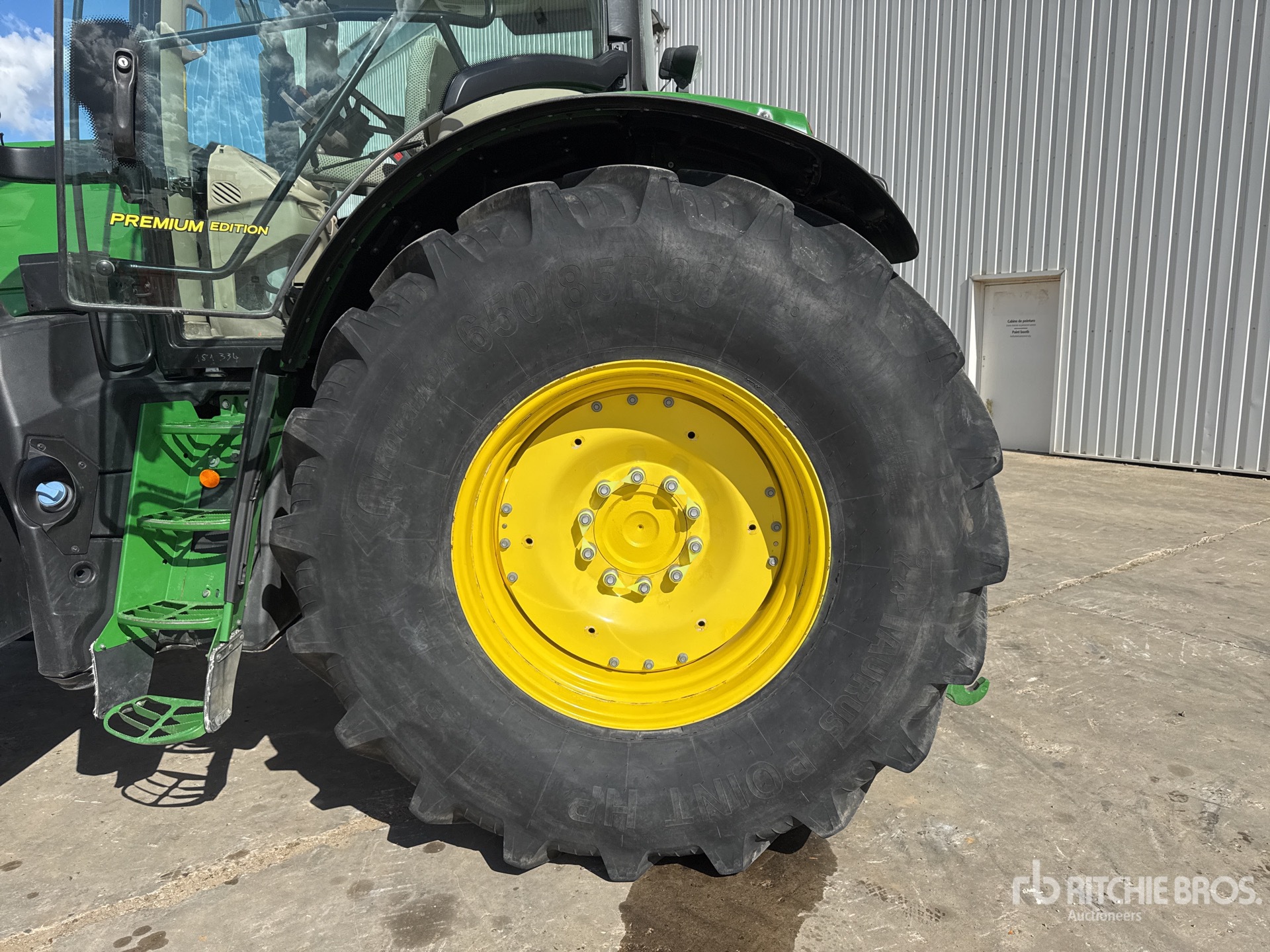

| Tires - 4WD |
|
Mfwd |
Front 420/90R30Rear 480/80R46 |
| Transmission - 4WD |
|
Clutch, Wet/Dry |
Wet |
|
Creeper |
Included with IVT |
|
On-The-Go Shifting (Yes/No/Partial) |
Yes |
|
Optional Transmission; Forward/Reverse |
\"16-speed PowrQuad PLUS transmission, 20-speed AutoQuad PLUS ECO transmission (50), John Deere Infinitely Variable Transmission (IVT) (0.050 to 42), or John Deere IVT (0.050 to 50), DirectDrive ECO transmission (40) 24X24 km/h 16-speed PowrQuad PLUS transmission, 20-speed AutoQuad PLUS ECO transmission (31), John Deere Infinitely Variable Transmission (IVT) (0.030 to 26), or John Deere IVT (0.030 to 31), DirectDrive ECO transmission (25) 24X24 mph\" |
|
Reverser |
Left-hand base |
|
Standard Transmission; Forward/Reverse |
20-speed AutoQuad PLUS ECO transmission 40 km/h 20-speed AutoQuad PLUS ECO transmission 25 mph |
