| Capacities - 4WD |
|
Cooling System |
16 gal (62 l)
|
|
Crankcase Oil Volume |
12 gal (44 l)
|
|
Diesel Exhaust Fluid (Def) Tank |
22 gal (83 l)
|
|
Fuel Tank - Diesel |
400 gal (1,514 l)
|
|
Transmission-Hydraulic System |
60 gal (227 l)
|
| Dimensions |
|
Height |
12 ft (4 m)
|
|
Length |
24 ft (7 m)
|
|
Weight |
41,820 lbs (18,969 kg)
|
|
Width |
15 ft (4 m)
|
| Dimensions - 4WD |
|
Approx. Shipping Weight |
43,420 lbs (19,692 kg)
|
|
Drawbar Clearance |
17 in (42 cm)
|
|
Overall Length |
303 in (770 cm)
|
|
Wheelbase |
154 in (391 cm)
|
| Electrical - 4WD |
|
Alternator Size |
200 amp |
|
Battery Options |
12 V |
| Engine - 4WD |
|
After Treatment Type |
DOC/DPF/SCR |
|
Aspiration |
Single Variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas re circulation |
|
Description |
Cummins QSX15 (B20 diesel compatible) |
|
Displacement |
912 cu in (14,945 cu cm)
|
|
Emission Level |
Final Tier 4 |
|
Engine Type |
Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head |
|
Peak Torque |
380 lbs ft (515 nm)
|
|
Power Boost (Available In Transport And/Or Mobile Pto Applications) |
8 percent |
|
Rated Engine Speed |
2,100 rpm |
|
Rated Power |
620 hp (462 kw)
|
|
Rated Pto Power |
335 hp (250 kw)
|
|
Torque Rise |
36 % |
| Front Axle - 4WD |
|
Front Axle Differential Lock |
Full-locking electrohydraulic |
|
Front Axle Type |
\"Standard: Diameter: 120 x 3,048 mm 4.72 x 120 in.\" |
| Hydraulic - 4WD |
|
Available Flow At A Single Rear Scv |
35 gpm (132 lpm)
|
|
Number Of Rear Selective Controls Valves (Scvs) |
Standard: ISO Couplers: 4-6 Optional: ISO Couplers: 7-8 (field installed) |
|
Pump Rated Output |
115 gpm (435 lpm)
|
|
Pump Rated Output 1 |
58 gpm (220 lpm)
|
|
Scv Control |
Electronic |
| Operator Station - 4WD |
|
Cab Glass Area |
6.52 m2 70.18 sq ft |
|

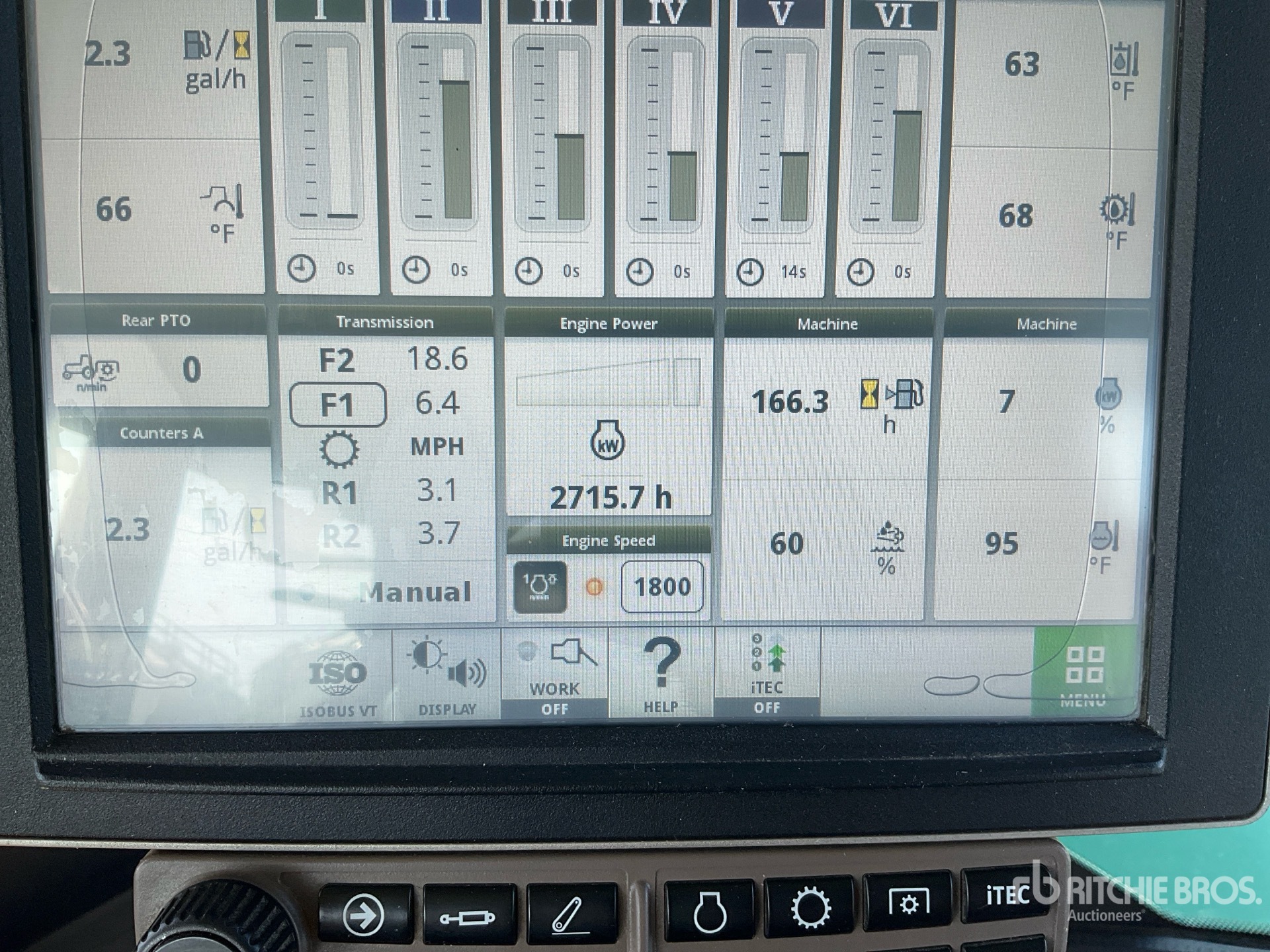

Display |
Standard: 4100 Generation 4 CommandCenter™ with 7 in. display Optional: 4600 Generation 4 CommandCenter™ with 10 in. display |
|
Inner Cab Volume |
3.597 m3 127 cu ft |
|
Instructional Seat |
Standard |
|
Radio |
Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna |
|
Seat |
Standard: ComfortCommand™ Optional: ActiveSeat™ |
| Rear Axle - 4WD |
|
Final Drive Type |
Inboard planetary with double-reduction axle |
|
Rear Axle Type |
\"Standard: Diameter: 120 x 3,048 mm 4.72 x 120 in.\" |
|
Rear Differential Lock |
Full-locking electrohydraulic |
| Rear Hitch - 4WD |
|
Hitch Category (Sae Designation) |
15,000 lbs (6,803 kg)
|
|
Maximum Lift Capacity Behind Lift Points |
20,000 lbs (9,070 kg)
|
|
Sensing Type |
Electrohydraulic with draft sensing |
| Rear Power Take -Off (Pto) - 4WD |
|
Rear Power Take -Off (Pto) Type |
2 in (5 cm)
|
| Steering - 4WD |
|
Steering Type |
Standard: Hydraulic power-steering Optional: ActiveCommand™ Steering (ACS) |
| Tires - 4WD |
|
Turning Radius Without Brakes |
20 ft (6 m)
|
| Transmission - 4WD |
|
Transmission Type |
Standard: John Deere e18™ 18-speed PowerShift with Efficiency Manager™: 40 km/h 25 mph |
| Weights - 4WD |
|
Base Machine Weight |
43,420 lbs (19,692 kg)
|
|
Maximum Ballast Level |
60,000 lbs (27,211 kg)
|
