| Capacities - 4WD |
|
Cooling System |
16 gal (62 l)
|
|
Crankcase Oil Volume |
12 gal (44 l)
|
|
Diesel Exhaust Fluid (Def) Tank |
22 gal (83 l)
|
|
Fuel Tank - Diesel |
400 gal (1,514 l)
|
|
Transmission-Hydraulic System |
60 gal (227 l)
|
| Dimensions - 4WD |
|
Approx. Shipping Weight |
54,000 lbs (24,494 kg)
|
|
Drawbar Clearance |
16 in (40 cm)
|
|
Overall Length |
324 in (822 cm)
|
|
Wheelbase |
163 in (413 cm)
|
| Electrical - 4WD |
|
Alternator Size |
200 |
|
Battery Options |
12 V |

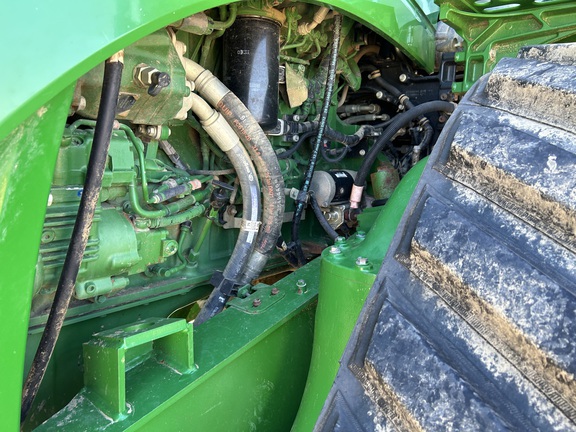

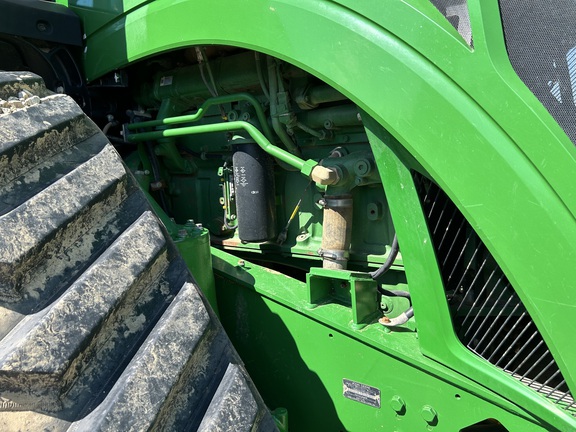

| Engine - 4WD |
|
After Treatment Type |
DOC/DPF/SCR |
|
Aspiration |
Single Variable geometry turbocharger air-to-air aftercooling and cooled exhaust gas recirculation |
|
Displacement |
15 cu in (244 cu cm)
|
|
Emission Level |
Final Tier 4 |
|
Engine Manufacturer |
Cummins QSX15 (B20 diesel compatible) |
|
Engine Peak Torque |
380 lbs ft (515 nm)
|
|
Engine Type |
Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves-in-head |
|
Power Boost (Available In Transport And/Or Mobile Pto Applications) |
8 percent |
|
Rated Engine Speed |
2,100 rpm |
|
Rated Power |
620 hp (462 kw)
|
|
Rated Pto Power |
335 hp (250 kw)
|
|
Torque Rise |
36 % |
| Final Drive - 4WD |
|
Brakes, Type And Control |
Hydraulic power, wet disk, self adjusting on front and rear axle |
|
Final Drive Type |
Bull gear and double idler with floating pinion |
| Front Axle - 4WD |
|
Front Axle Differential Lock |
Full-locking electrohydraulic |
| Hydraulic - 4WD |
|
Available Flow At A Single Rear Scv |
35 gpm (132 lpm)
|
|
Hydraulic Type |
Closed-center, pressure/flow compensated |
|
Number Of Rear Selective Controls Valves (Scvs) |
Standard: ISO Couplers: 4-6 Optional: ISO Couplers: 7-8 (field installed) |
|
Pump Rated Output |
115 gpm (435 lpm)
|
|
Pump Rated Output 1 |
58 gpm (220 lpm)
|
|
Scv Control |
Electronic |

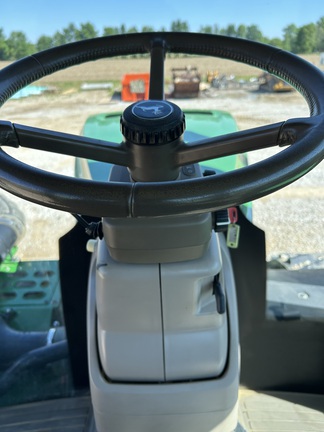

| Operator Station - 4WD |
|
Cab Glass Area |
6.52 m2 70.18 sq ft |
|
Cab Suspension |
Standard |
|

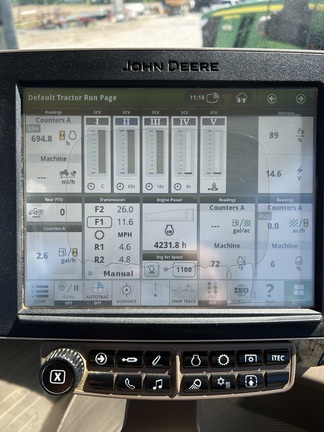

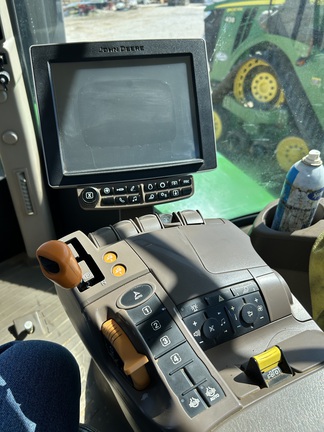

Display |
Standard: 4100 Generation 4 CommandCenter™ with 7 in. display Optional: 4600 Generation 4 CommandCenter™ with 10 in. display |
|
Inner Cab Volume |
3.597 m3 127 cu ft |
|
Instructional Seat |
Standard |
|
Radio |
Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna |
|

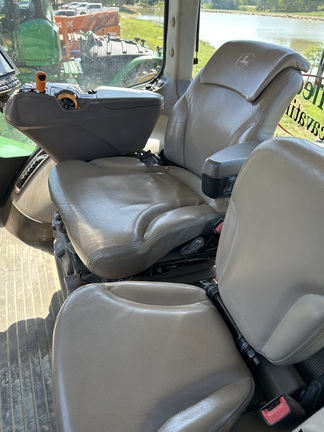

Seat |
ComfortCommand |
| Performance - 4WD |
|
Advertised Engine |
570 hp (425 kw)
|
|
Advertised Pto |
335 hp (250 kw)
|
|
Max Torque Rise |
38 % |
| Power Take-Off(Pto) - 4WD |
|
Optional |
45 mm 20-spline 1000 rpm 1.75 in. |
| Rear Axle - 4WD |
|
Final Drive Type |
Bull gear and double idler with floating pinion |
|
Rear Differential Lock |
Full-locking electrohydraulic |

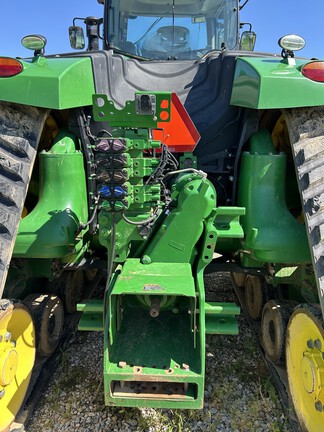

| Rear Hitch - 4WD |
|
Hitch Category (Sae Designation) |
15,000 lbs (6,804 kg)
|
|
Maximum Lift Capacity Behind Lift Points |
20,000 lbs (9,072 kg)
|
|
Sensing Type |
Electrohydraulic with draft sensing |
| Rear Power Take -Off (Pto) - 4WD |
|
Rear Power Take -Off (Pto) Type |
2 in (5 cm)
|
| Steering - 4WD |
|
Steering Type |
\"Standard: Hydraulic power-steering Optional: ActiveCommand™ Steering (ACS)\" |

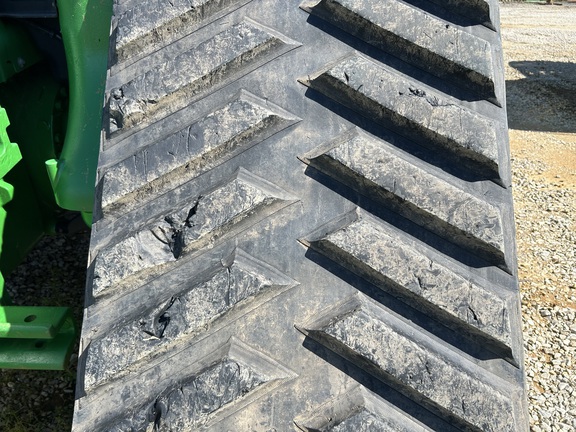

| Tires - 4WD |
|
Front Wheels |
18 in (46 cm)
|
|
Rear Wheels |
18 in (46 cm)
|
|
Turning Radius Without Brakes |
21 ft (6 m)
|
|
Wheel Tread Range |
88 in (224 cm)
|
| Transmission - 4WD |
|
Transmission Type |
\"Standard: John Deere e18™ 18-speed PowerShift with Efficiency Manager™: 40 km/h 25 mph\" |
| Weights - 4WD |
|
Base Machine Weight |
54,000 lbs (24,494 kg)
|
|
Maximum Ballast Level |
62,000 lbs (28,123 kg)
|
