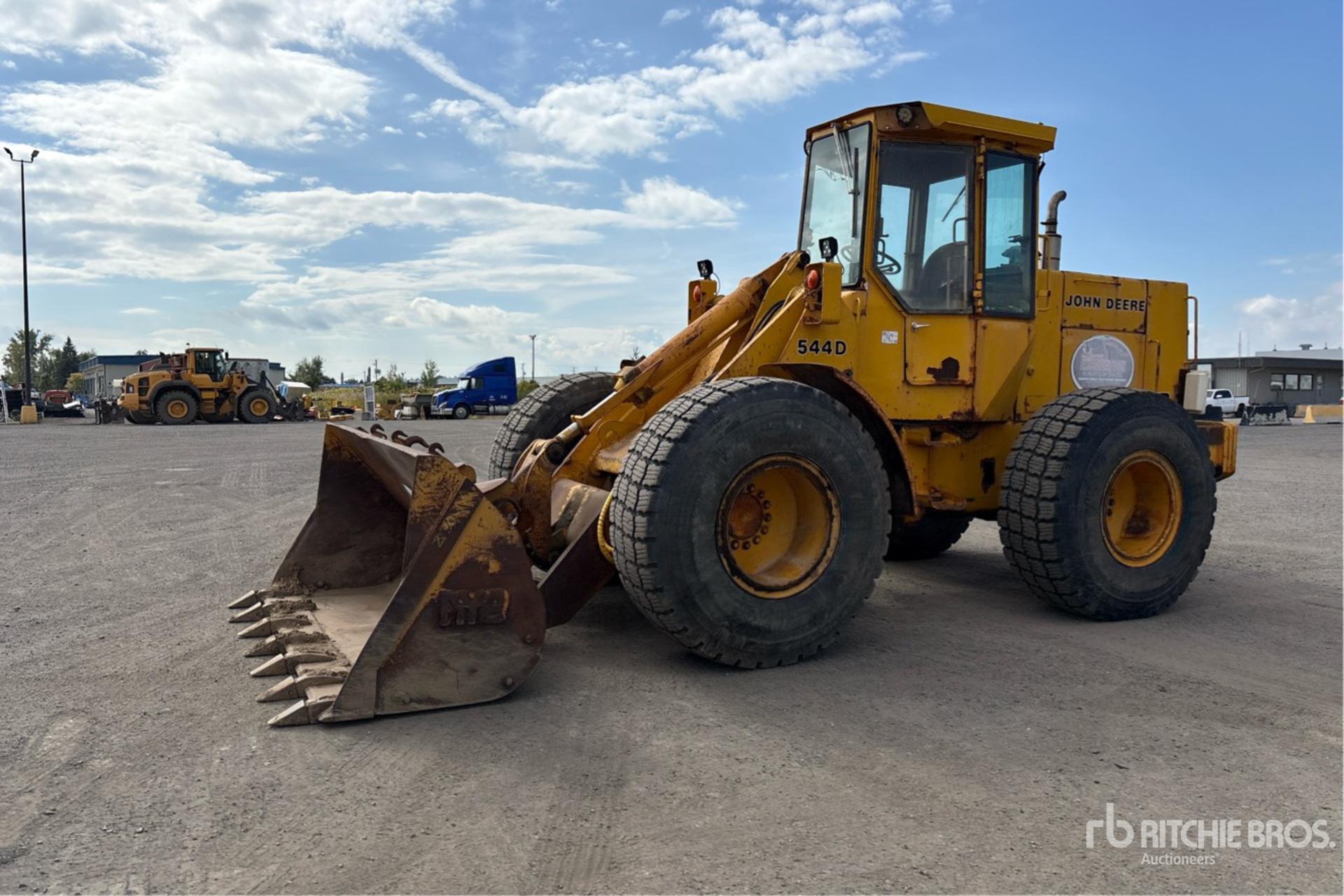

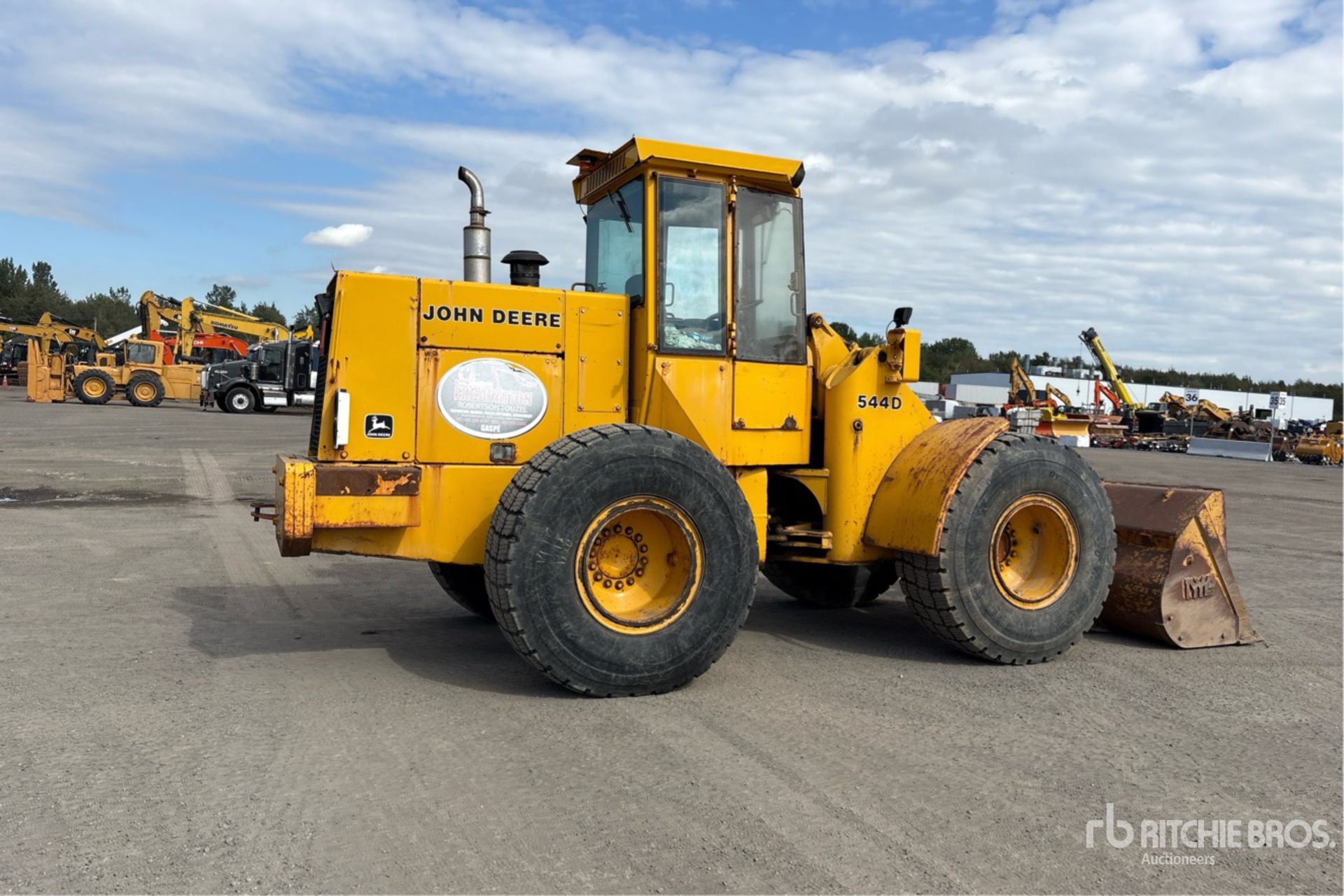

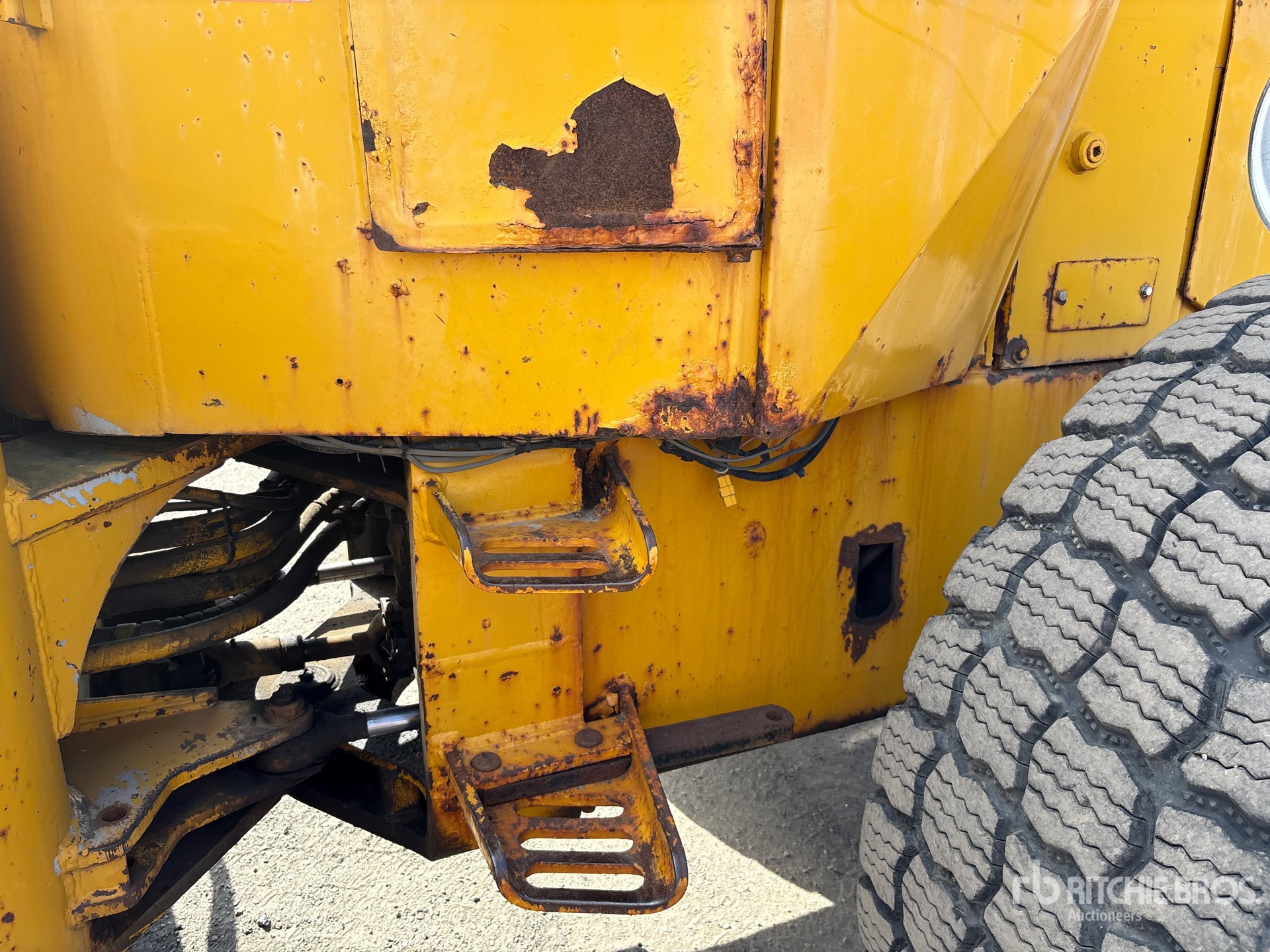

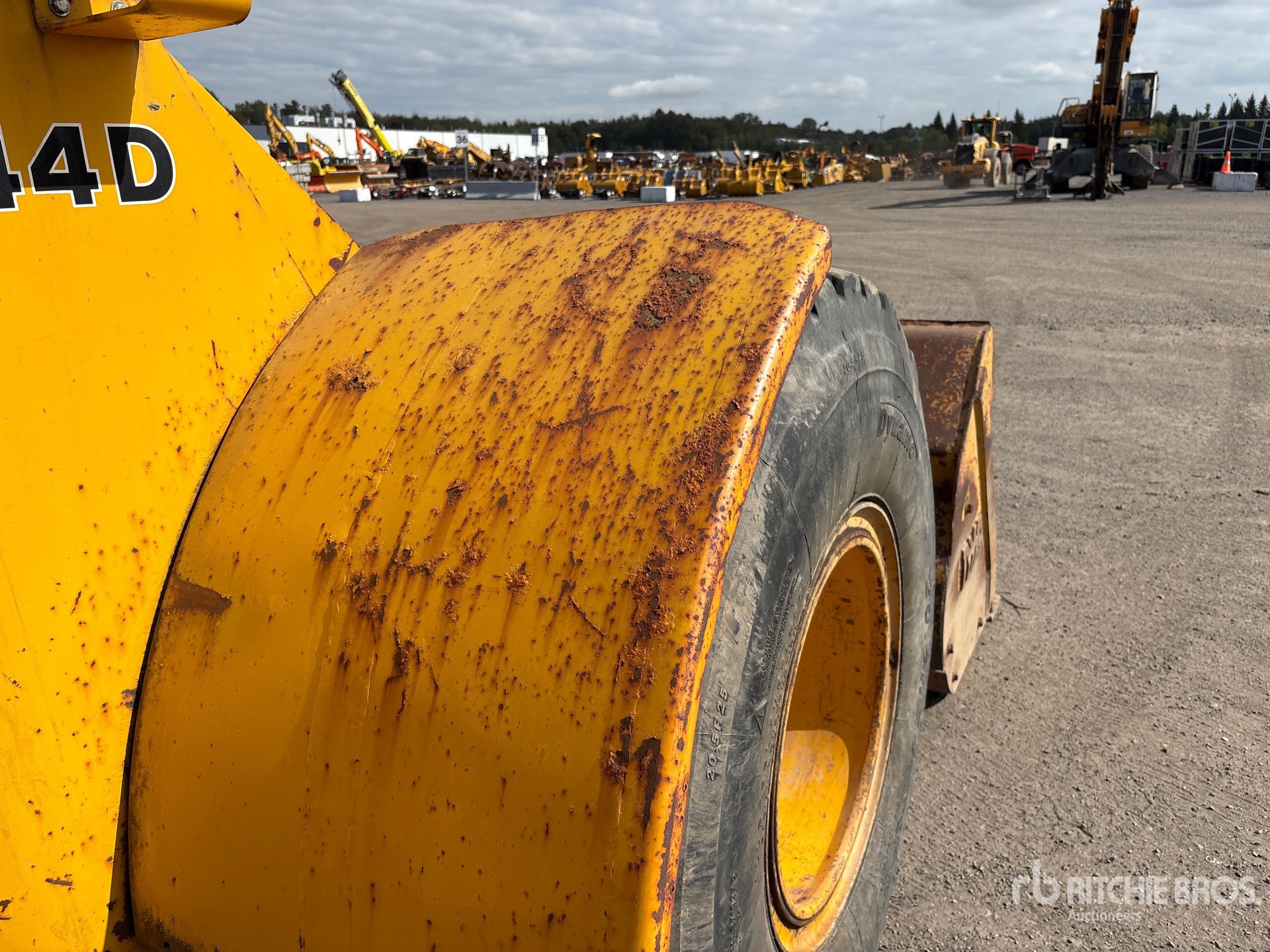

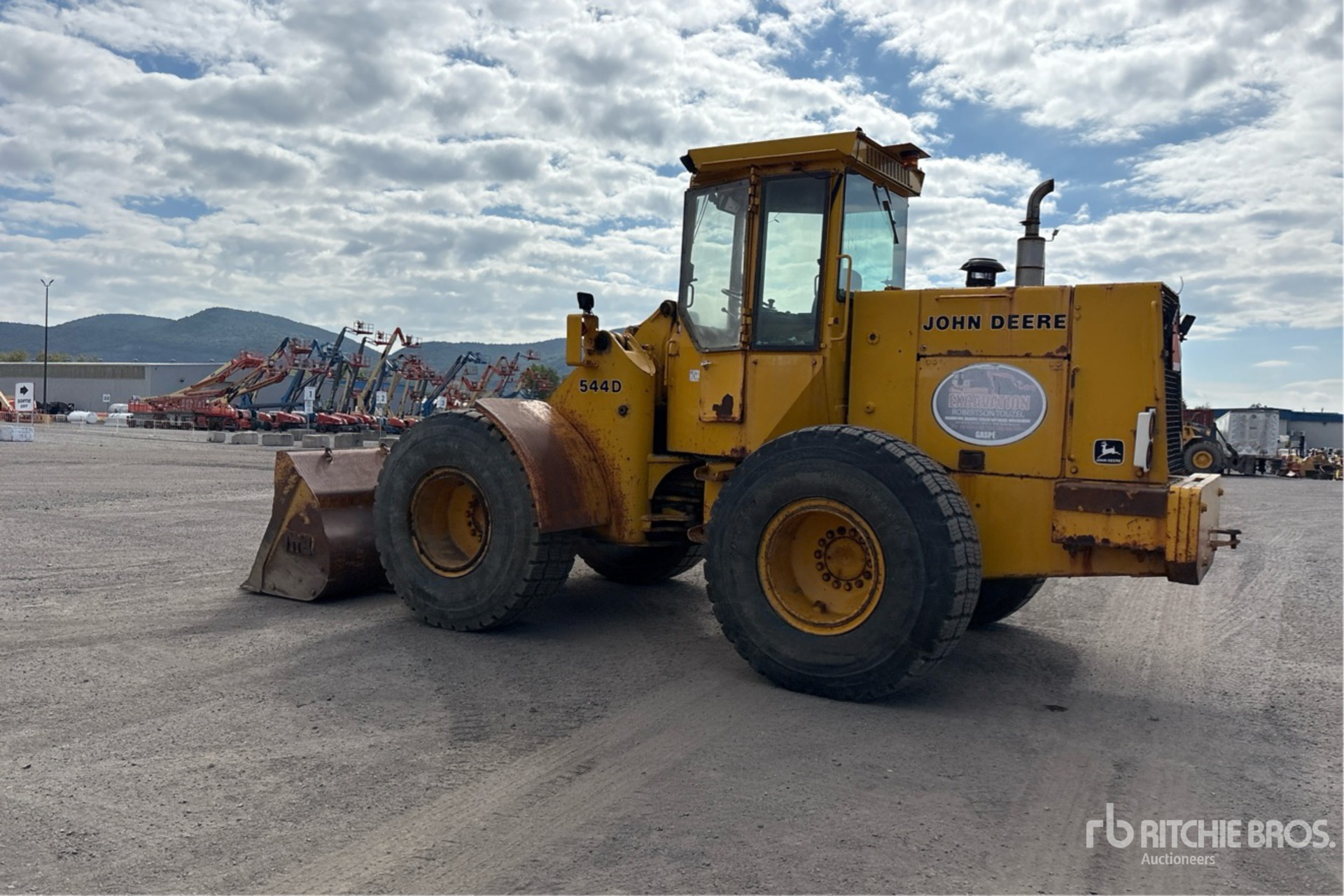

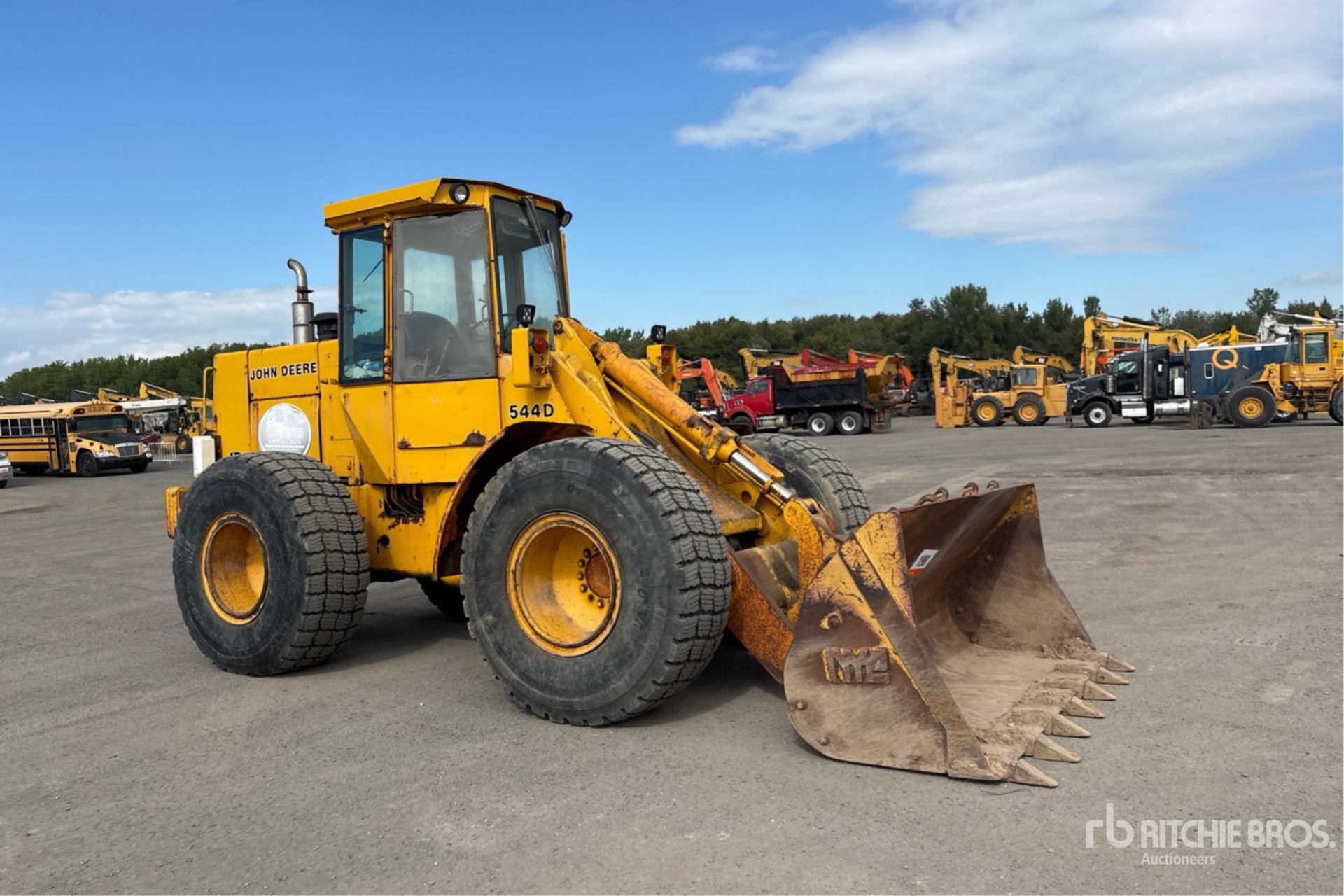

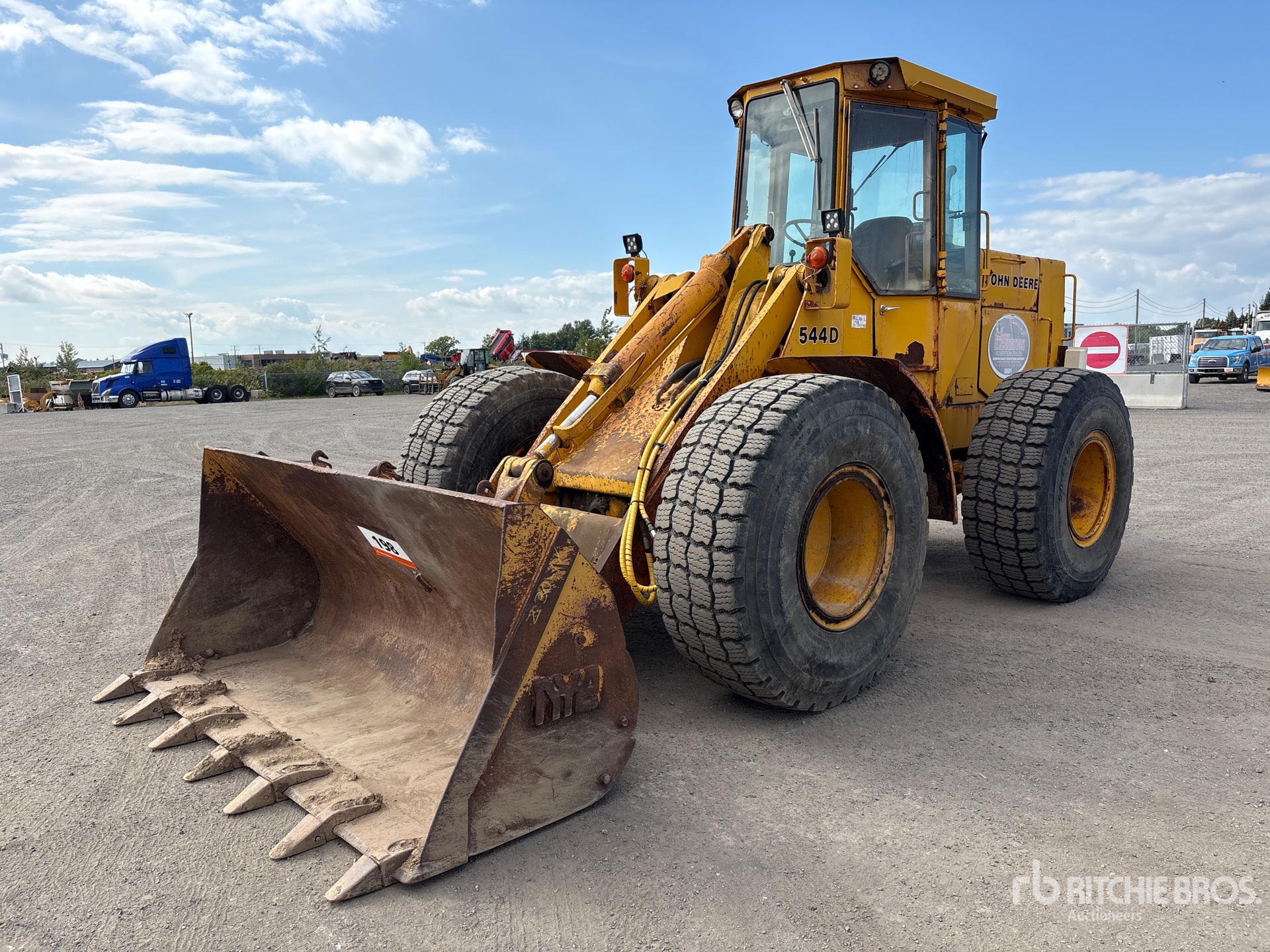

1986 John Deere 544D

Name: 1986 John Deere 544D
Brand: John Deere
SKU: 89236790
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-09-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

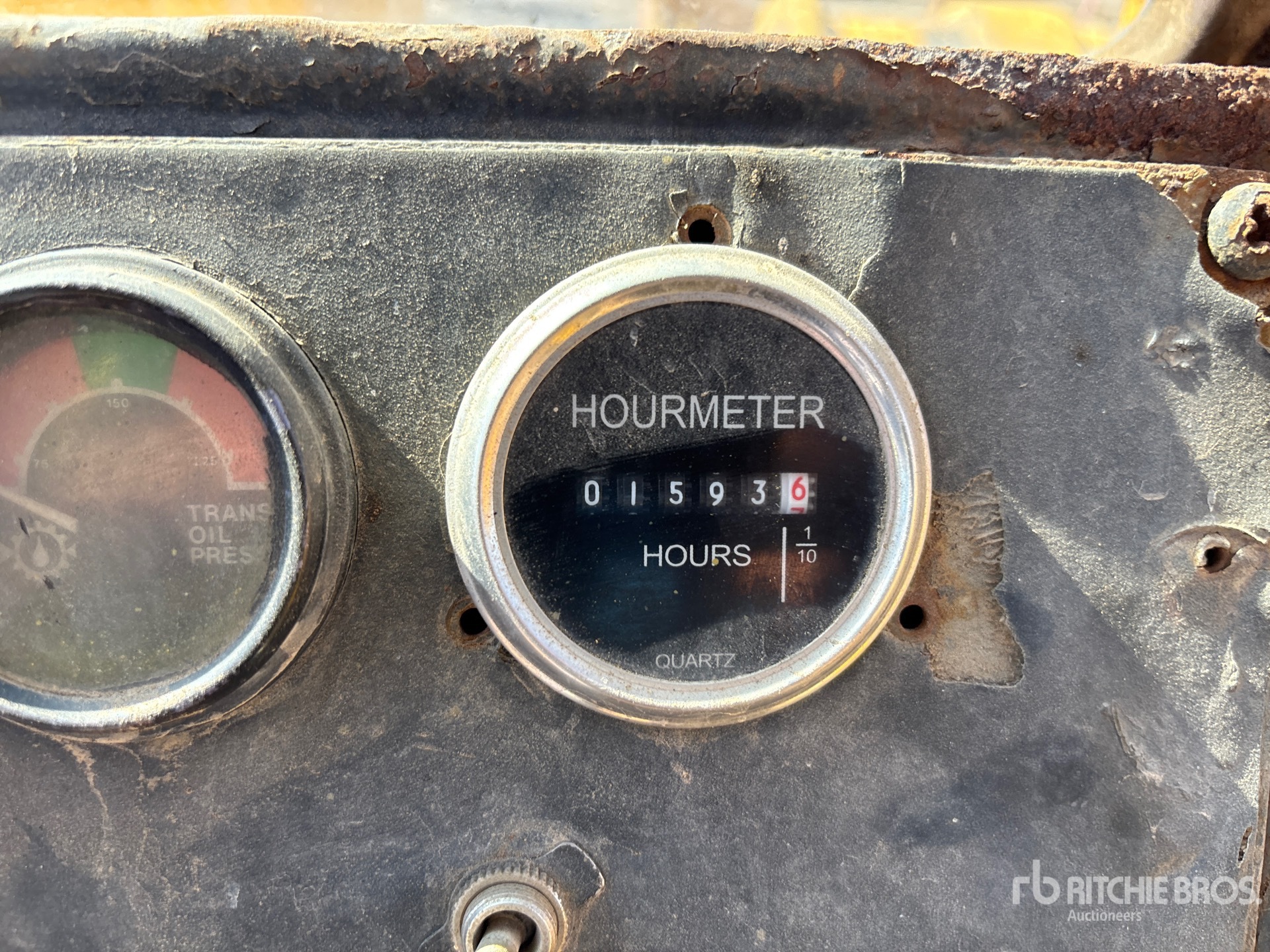

Hours:	1593
Serial Number:	DW544DB510655
Machine Location:	MONTREAL, QC

Description:

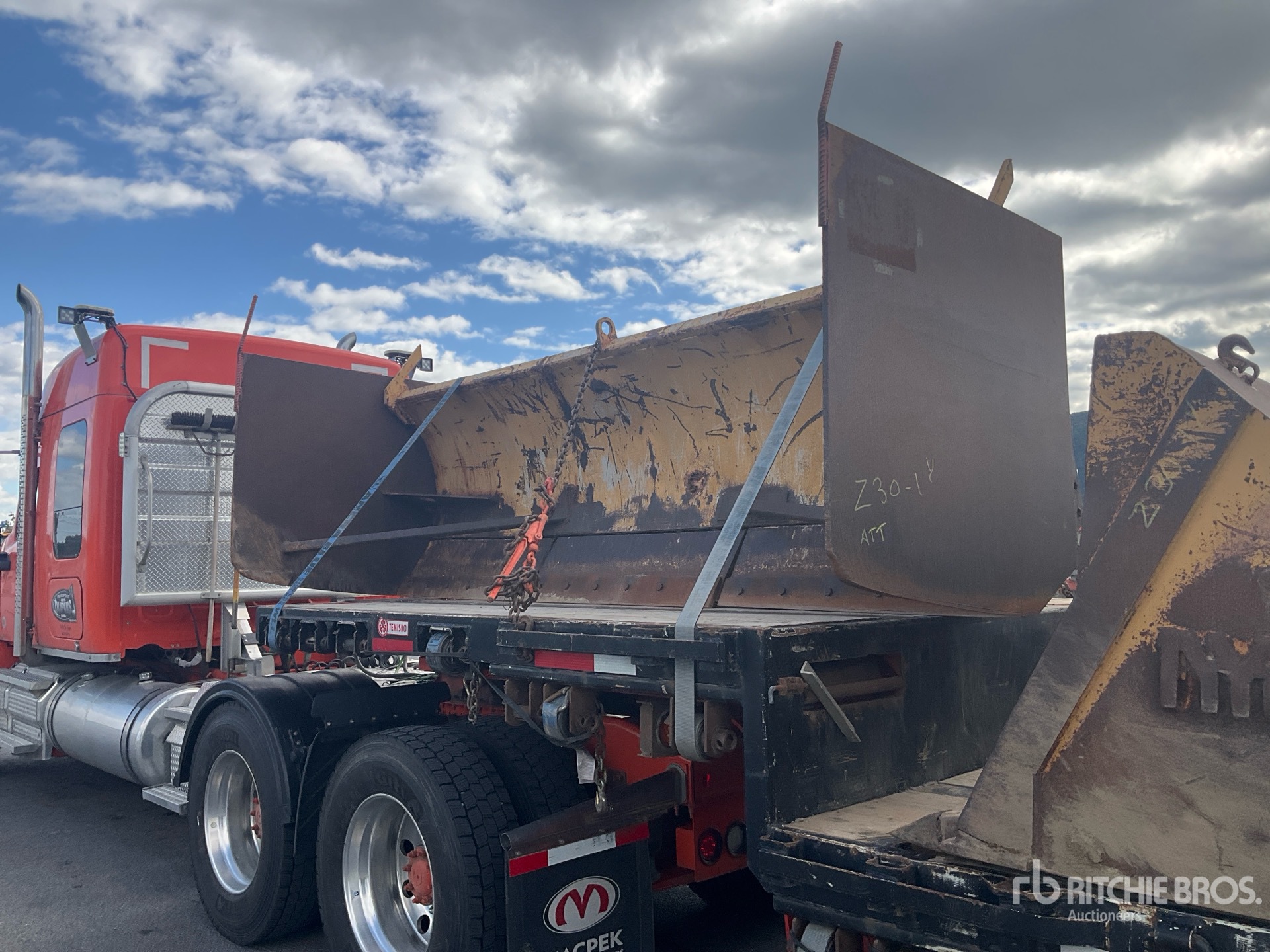

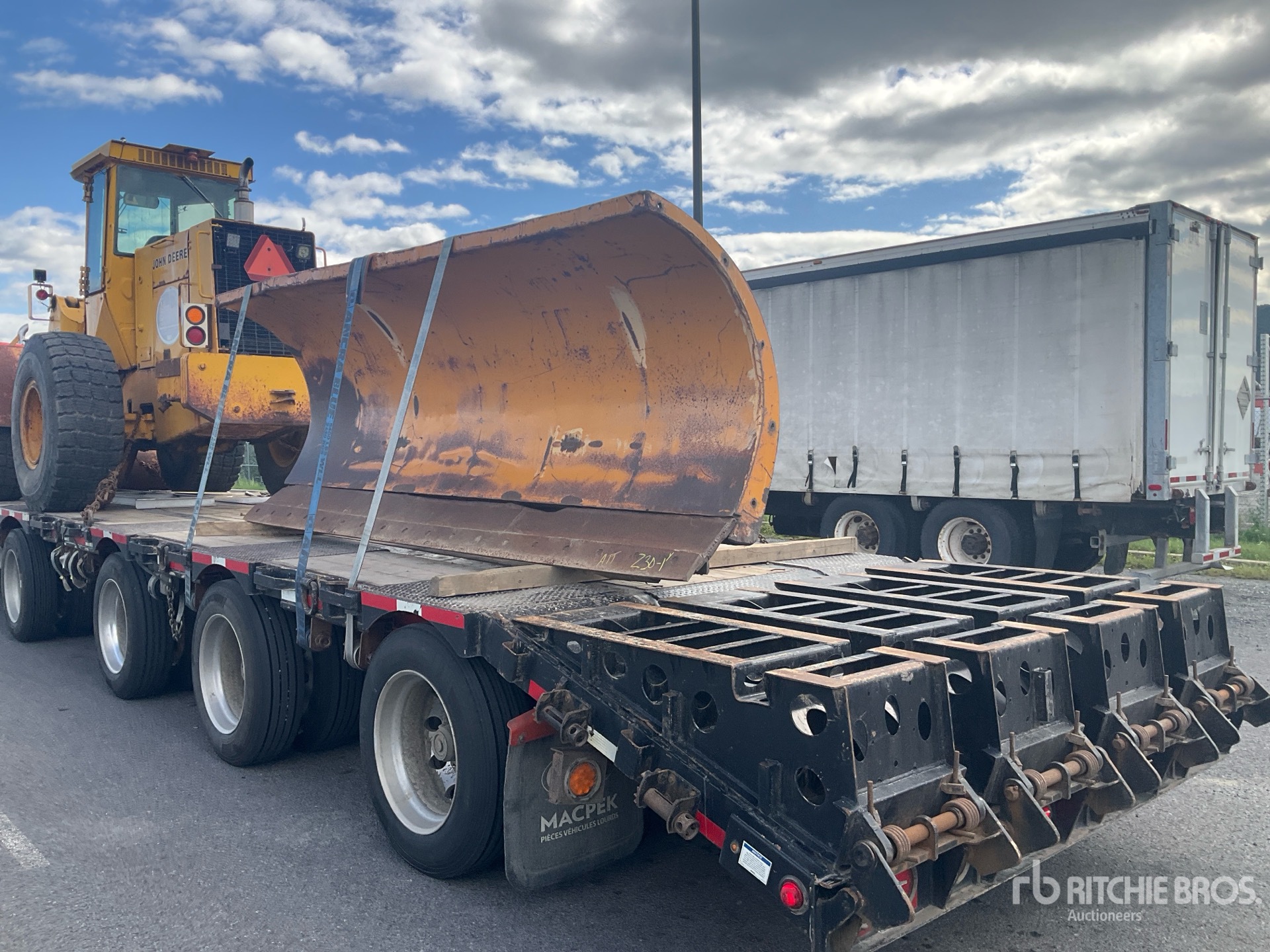

Enclosed Cab, Air Conditioner, 95 in Bucket, 20.5R25 Tires Transfert de proprit en cours / transfer of ownership being processed -, Closing Time: 2026-09-21 09:39:24 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	20,520 lbs (9,308 kg)
Bucket Capacity - Heaped	2 cu yd
Bucket Capacity - Struck	2 cu yd
Bucket Width	8 ft (2 m)
Dump Clearance At Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height	10 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Hinge Pin - Max Height	12 ft (4 m)
Length	20 ft (6 m)
Length With Bucket On Ground	21 ft (6 m)
Reach At Max Lift And Dump	3 ft (1 m)
Weight	22,660 lbs (10,278 kg)
Wheelbase	9 ft (3 m)
Width	7 ft (2 m)
Width Over Tires	7 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	414 cu in (6,784 cu cm)
Engine Make	2,240
Engine Model	6-414T
Gross Power	122 hp (91 kw)
Max Torque	352 lbs ft (477 nm)
Net Power	115 hp (86 kw)
Number Of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,300 rpm
Hydraulic System
Dump Time	2 sec
Lower Time	4 sec
Pump Flow Capacity	49 gpm (186 lpm)
Pump Type	Gear type pump
Raise Time	6 sec
Relief Valve Setting	2,625 psi
Operational
Alternator Supplied Amperage	42 amps
Cooling System Fluid Capacity	6 gal (23 l)
Engine Oil Fluid Capacity	5 gal (19 l)
Front Axle/Diff Fluid Capacity	6 gal (23 l)
Fuel Capacity	50 gal (189 l)
Hydraulic System Fluid Capacity	16 gal (61 l)
Operating Voltage	12 V
Operating Weight	22,660 lbs (10,278 kg)
Rear Axle Oscillation	22 degrees
Rear Axle/Diff Fluid Capacity	6 gal (23 l)
Static Tipping Weight	16,210 lbs (7,353 kg)
Tire Size	17.5-25
Transmission Fluid Capacity	10 gal (37 l)
Turning Radius	15 ft (4 m)
Transmission
Max Speed - Forward	28 mph (45 kph)
Max Speed - Reverse	10 mph (16 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	2
Transmission Type	Power shift Planetary
