2024 John Deere 544G For Sale in Fort Worth, Tx

Name: 2024 John Deere 544G
Brand: John Deere
SKU: 88965301
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-16 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	2672

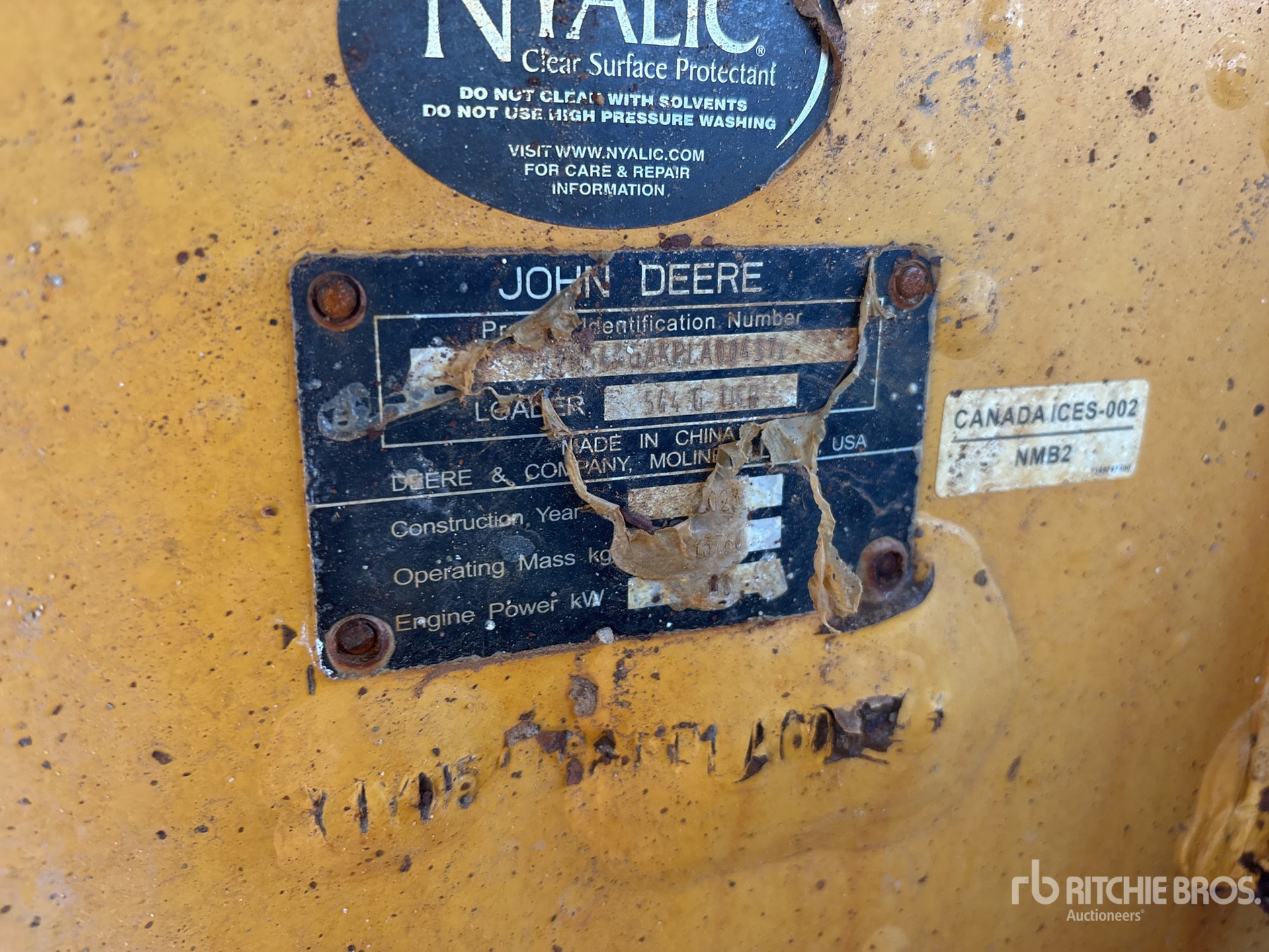

Serial Number:	1YN544GAKPLA00437
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 00 Spot 0 Comes with Full Powertrain & hydraulic systems warranty., Expires at 6k Hours or 4/29/2027 Closing Time: 2026-09-16 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

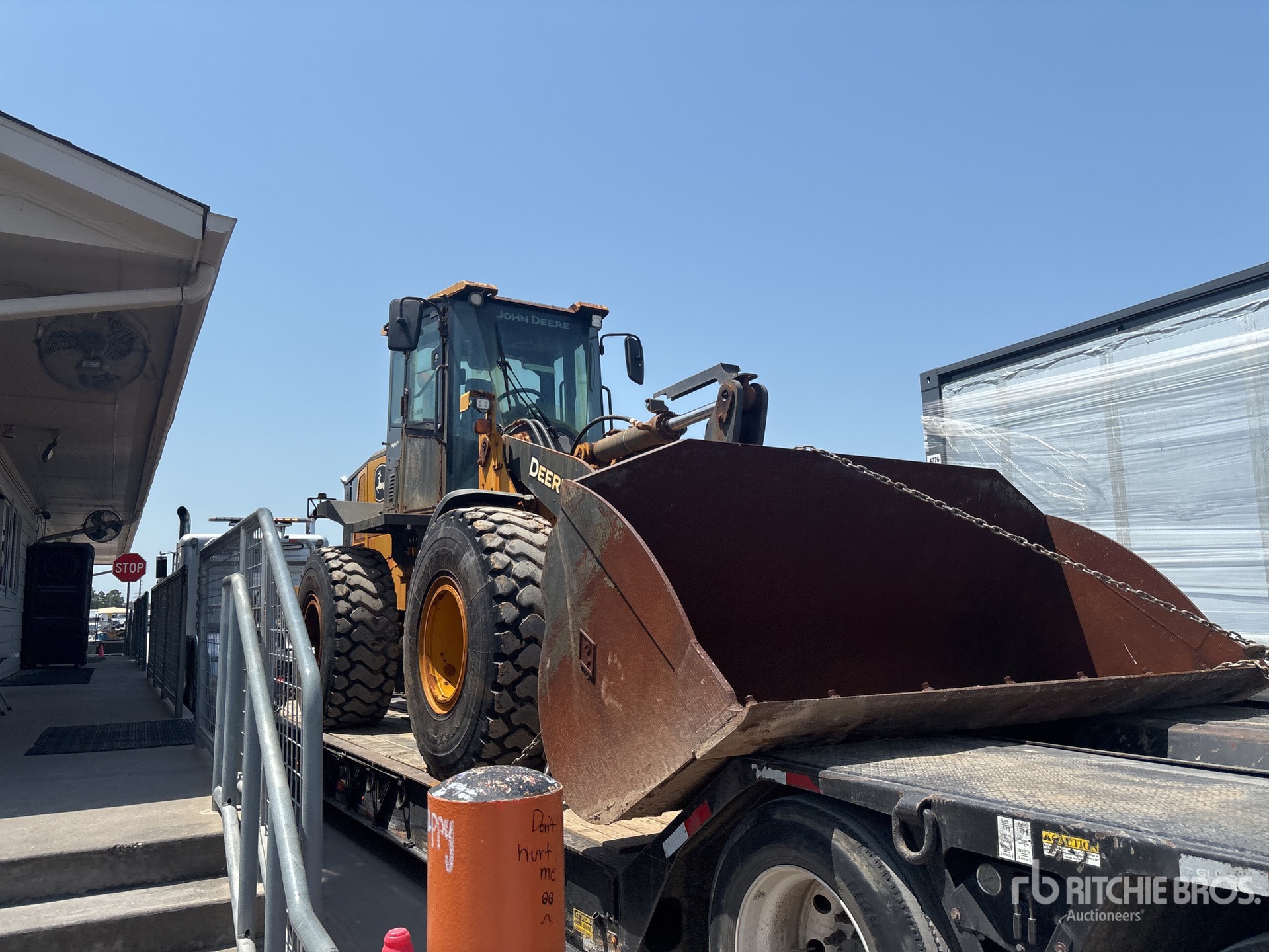

The John Deere 544G is a wheel loader designed for material handling, loading, stockpiling, and general construction applications. It is part of John Deere's G-series wheel loader lineup and is commonly used in aggregate yards, roadwork, site preparation, and industrial material movement. The 544G features a front-mounted loader bucket, articulated steering, and a diesel powertrain suited for repetitive loading cycles. Typical configurations include standard and high-lift arrangements, with compatibility for a range of buckets and attachments. The model is recognized for its use in earthmoving and bulk material operations where maneuverability, lift capacity, and cycle efficiency are important.

Bucket
Breakout Force	20,342 lbs (9,227 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Capacity - struck	2 cu yd (2 cu m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin Max Height	12 ft (4 m)
Hook Height at Max Lift - extended	22 ft (7 m)
Length w/ Bucket on Ground	23 ft (7 m)
Length with out Forks on Ground	25 ft (8 m)
Max Lift Height	11 ft (3 m)
Reach at Max Height and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	359 cu in (5,883 cu cm)
Engine Model	6059T
Gross Power	125 hp (93 kw)
Max Torque	388 lbs ft (526 nm)
Net Power	120 hp (89 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	46 gpm (175 lpm)
Pump Type	Gear type
Raise Time	6 seconds
Relief Valve Setting	2,750 psi
Operating Specifications
Alternator Supplied Amperage	95 amps
Cooling System Fluid Capacity	6 gal (24 l)
Engine Oil Capacity	5 gal (19 l)
Front Diff Fluid Capacity	5 gal (19 l)
Fuel Capacity	58 gal (218 l)
Hydraulic System Fluid Capacity	20 gal (76 l)
Operating Voltage	12 volts
Operating Weight	24,092 lbs (10,928 kg)
Rear Axle Oscillation	22 degrees
Rear Diff Fluid Capacity	5 gal (19 l)
Static Tipping Load - Bucket	18,453 lbs (8,370 kg)
Static Tipping Load - Forks	13,665 lbs (6,198 kg)
Static Tipping Load - Material Handler	8,945 lbs (4,057 kg)
Tire Size	17.5-25
Transmission Fluid Capacity	3 gal (10 l)
Turning Radius	16 ft (5 m)
Transmission
Max Speed Forward	24 mph (38 kph)
Max Speed Reverse	17 mph (27 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Power shift
