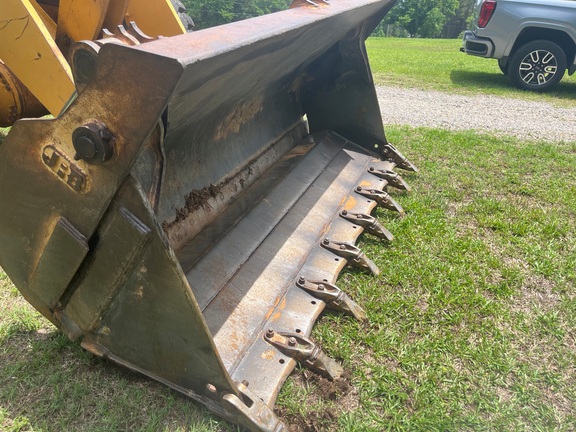

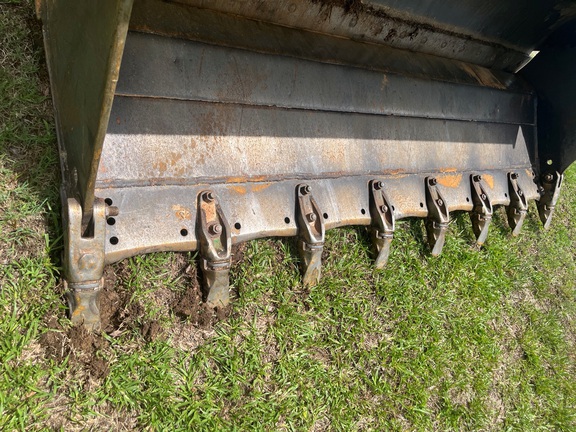

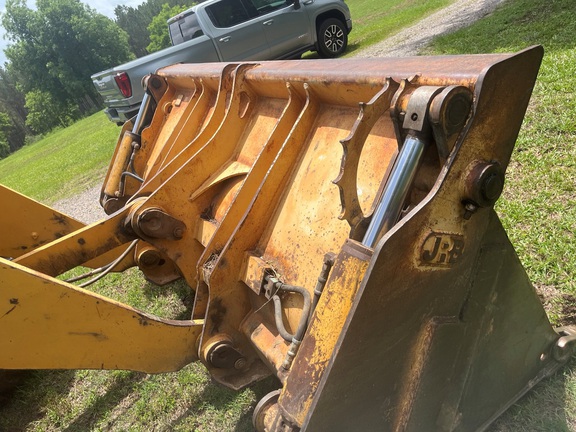

| Bucket |
|
Breakout Force |
22,487 lbs (10,198 kg)
|
|
Bucket Capacity - Heaped |
3 cu yd |
|
Bucket Capacity - Struck |
3 cu yd |
| Dimensions |
|
Dump Clearance At Max Lift |
9 ft (3 m)
|
|

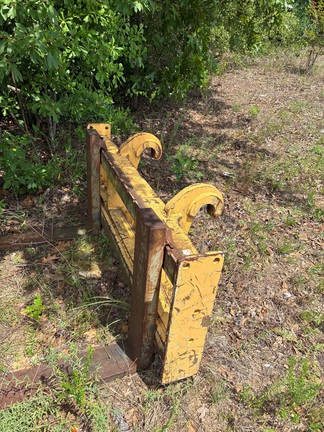

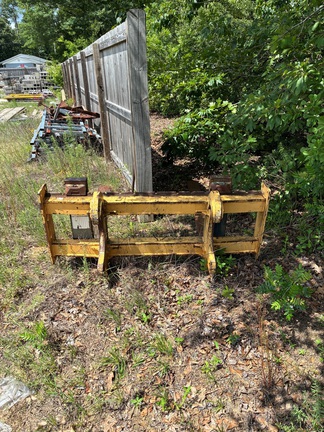

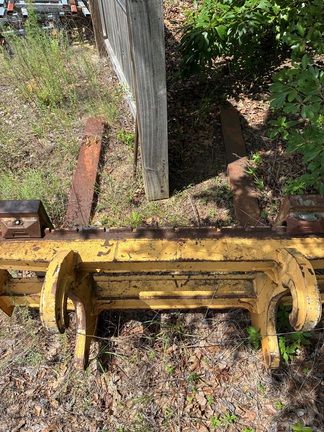

Fork Tine Length |
4 ft (1 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Hinge Pin Max Height |
13 ft (4 m)
|
|
Hook Height At Max Lift - Extended |
23 ft (7 m)
|
|
Hook Height At Max Lift - Standard |
19 ft (6 m)
|
|
Hook Reach At Max Lift - Extended |
11 ft (3 m)
|
|
Hook Reach At Max Lift - Standard |
7 ft (2 m)
|
|
Length |
24 ft (7 m)
|
|
Length W/ Bucket On Ground |
24 ft (7 m)
|
|
Length With Bucket On Ground |
24 ft (7 m)
|
|
Length With Out Forks On Ground |
19 ft (6 m)
|
|
Max Lift Height |
12 ft (4 m)
|
|
Reach At Max Height And Dump |
3 ft (1 m)
|
|
Weight |
25,873 lbs (11,736 kg)
|
|
Wheelbase |
10 ft (3 m)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|

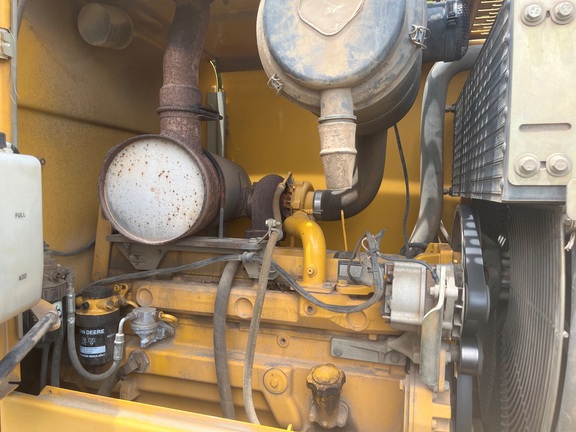

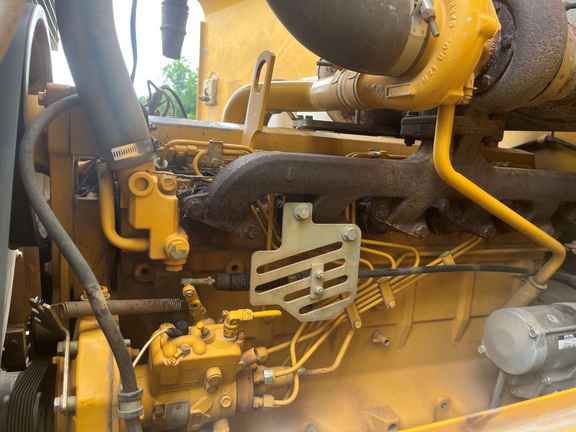

| Engine |
|
Aspiration |
TURBOCHARGED |
|
Aspiration |
Turbocharged |
|
Displacement |
414 cu in (6,784 cu cm)
|
|
Displacement |
414 cu in (6,784 cu cm)
|
|
Engine Make |
2,240 |
|
Engine Make |
2,240 |
|
Engine Model |
6068T |
|
Engine Model |
6068T |
|
Gross Power |
130 hp (97 kw)
|
|
Gross Power |
138 hp (103 kw)
|
|
Max Torque |
440 lbs ft (597 nm)
|
|
Max Torque |
440 lbs ft (597 nm)
|
|
Net Power |
130 hp (97 kw)
|
|
Net Power |
138 hp (103 kw)
|
|
Number Of Cylinders |
6 |
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,200 rpm |
|
Power Measured @ |
2,200 rpm |
|
Torque Measured @ |
1,300 rpm |
|
Torque Measured @ |
1,300 rpm |
| Hydraulic System |
|
Dump Time |
1 sec |
|
Dump Time |
1 sec |
|
Lower Time |
3 sec |
|
Lower Time |
3 sec |
|
Pump Flow Capacity |
41 gpm (155 lpm)
|
|
Pump Flow Capacity |
41 gpm (155 lpm)
|
|
Pump Type |
PISTON PUMP |
|
Pump Type |
Piston Pump |
|
Raise Time |
6 sec |
|
Raise Time |
6 sec |
|
Relief Valve Setting |
3,600 psi |
|
Relief Valve Setting |
3,600 psi |
| Operational |
|
Alternator Supplied Amperage |
55 amps |
|
Alternator Supplied Amperage |
55 amps |
|
Cooling System Fluid Capacity |
6 gal (23 l)
|
|
Cooling System Fluid Capacity |
6 gal (23 l)
|
|
Engine Oil Capacity |
5 gal (18 l)
|
|
Engine Oil Fluid Capacity |
5 gal (18 l)
|
|
Front Axle/Diff Fluid Capacity |
5 gal (19 l)
|
|
Front Diff Fluid Capacity |
5 gal (19 l)
|
|
Fuel Capacity |
65 gal (246 l)
|
|
Fuel Capacity |
65 gal (246 l)
|
|
Hydraulic System Fluid Capacity |
28 gal (106 l)
|
|
Hydraulic System Fluid Capacity |
28 gal (106 l)
|
|
Operating Voltage |
24 V |
|
Operating Voltage |
24 V |
|
Operating Weight |
25,873 lbs (11,734 kg)
|
|
Operating Weight |
25,873 lbs (11,734 kg)
|
|
Rear Axle Oscillation |
28 degrees |
|
Rear Axle/Diff Fluid Capacity |
5 gal (19 l)
|
|
Rear Diff Fluid Capacity |
5 gal (19 l)
|
|
Static Tipping Load - Bucket |
20,106 lbs (9,118 kg)
|
|
Static Tipping Load - Forks |
12,498 lbs (5,668 kg)
|
|
Static Tipping Load - Material Handler |
9,389 lbs (4,258 kg)
|
|

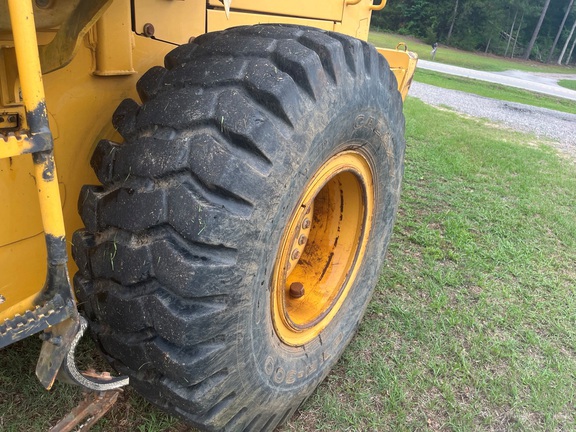

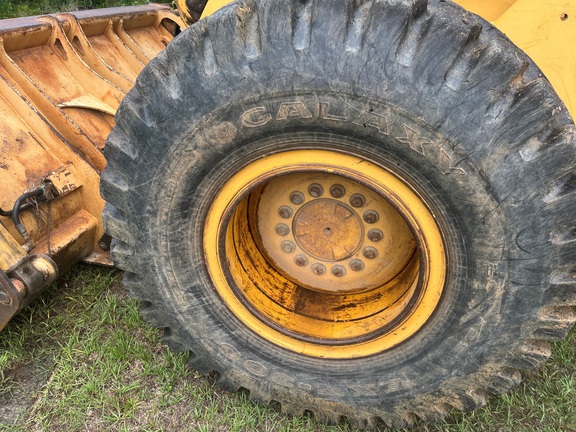

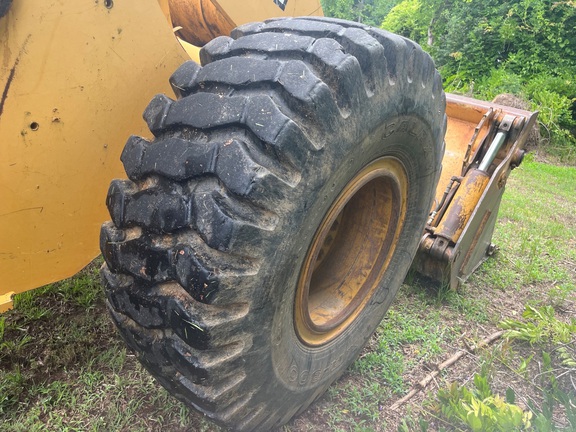

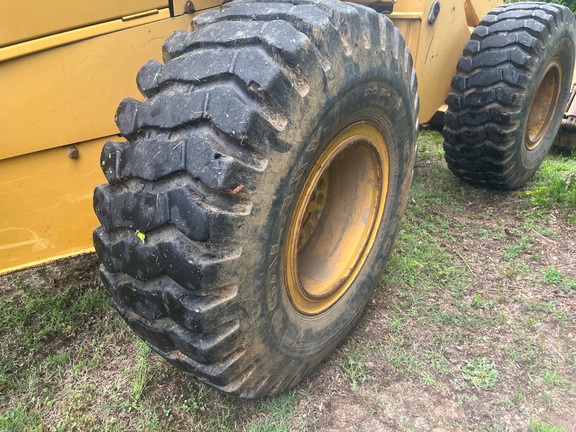

Tire Size |
17.5-25 |
|
Tire Size |
17.5-25 |
|
Transmission Fluid Capacity |
5 gal (20 l)
|
|
Transmission Fluid Capacity |
5 gal (20 l)
|
|
Turning Radius |
16 ft (5 m)
|

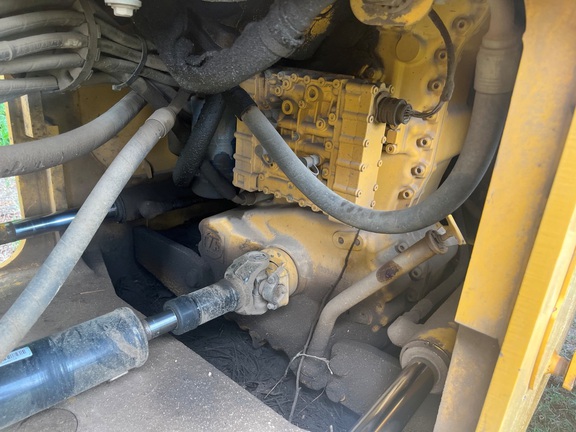

| Transmission |
|
Max Speed - Forward |
25 mph (40 kph)
|
|
Max Speed - Reverse |
16 mph (25 kph)
|
|
Max Speed Forward |
25 mph (40 kph)
|
|
Max Speed Reverse |
16 mph (25 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Number Of Reverse Gears |
3 |
|
Transmission Type |
Power Shift |
|
Transmission Type |
POWERSHIFT |
