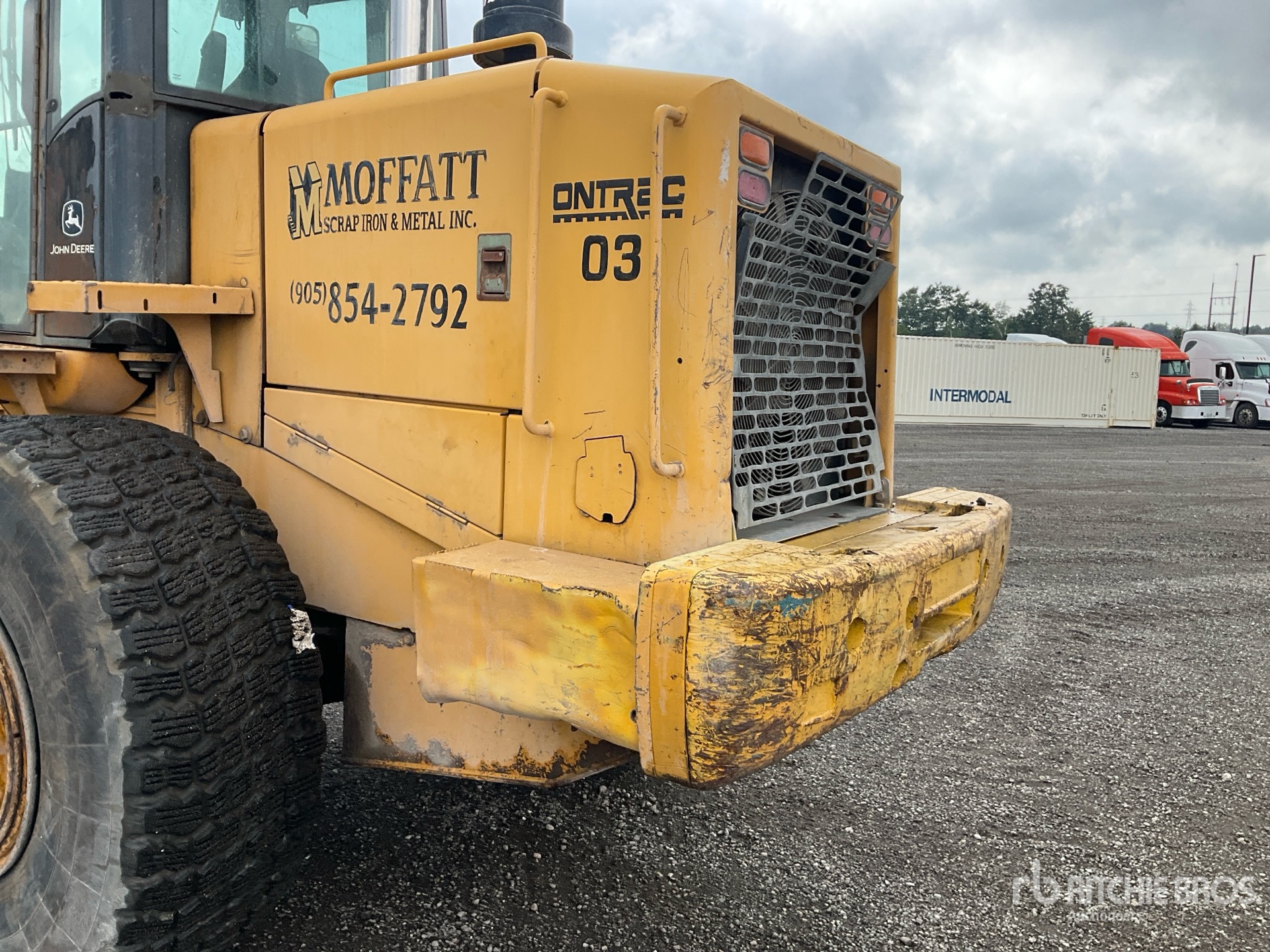

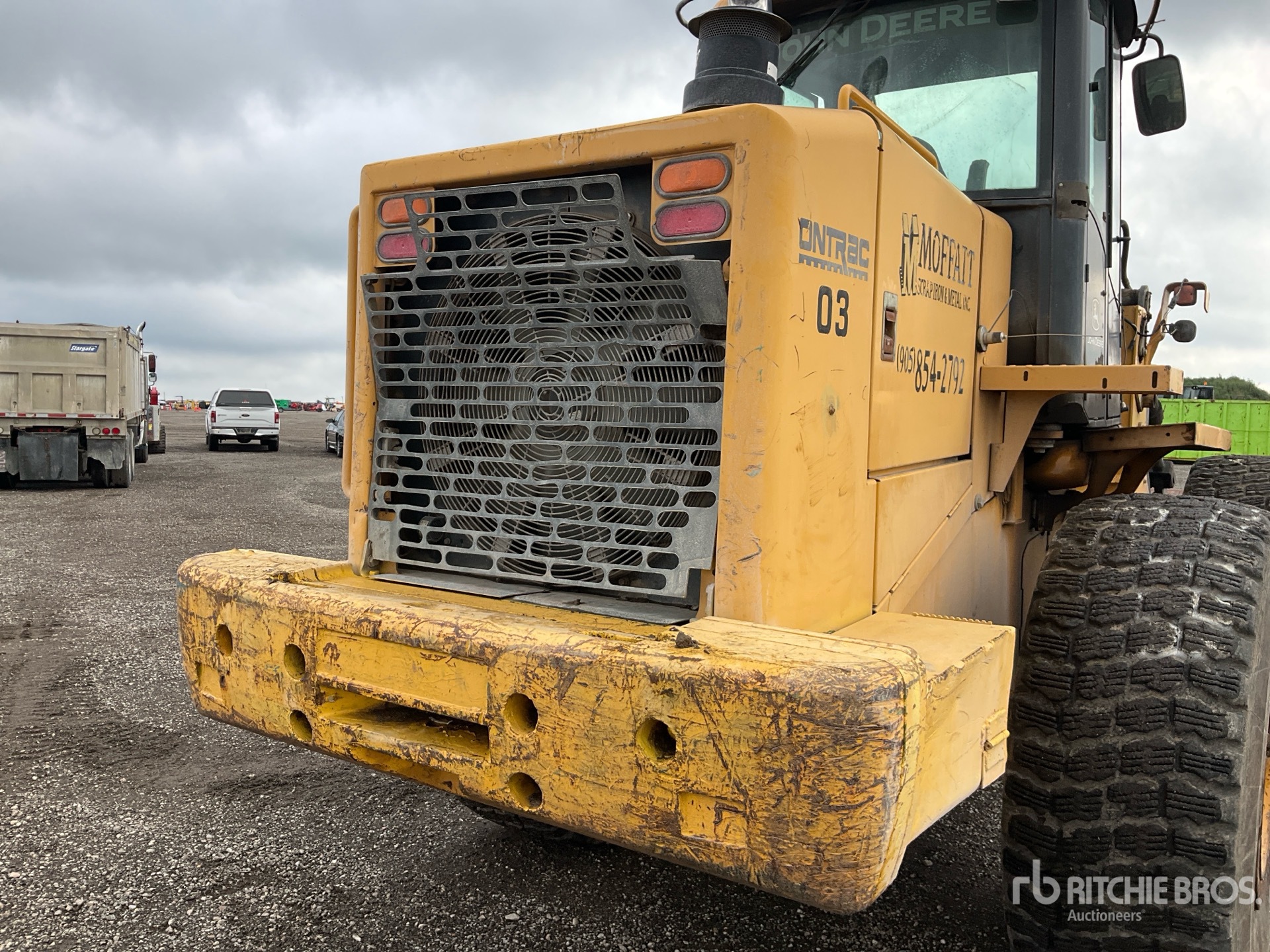

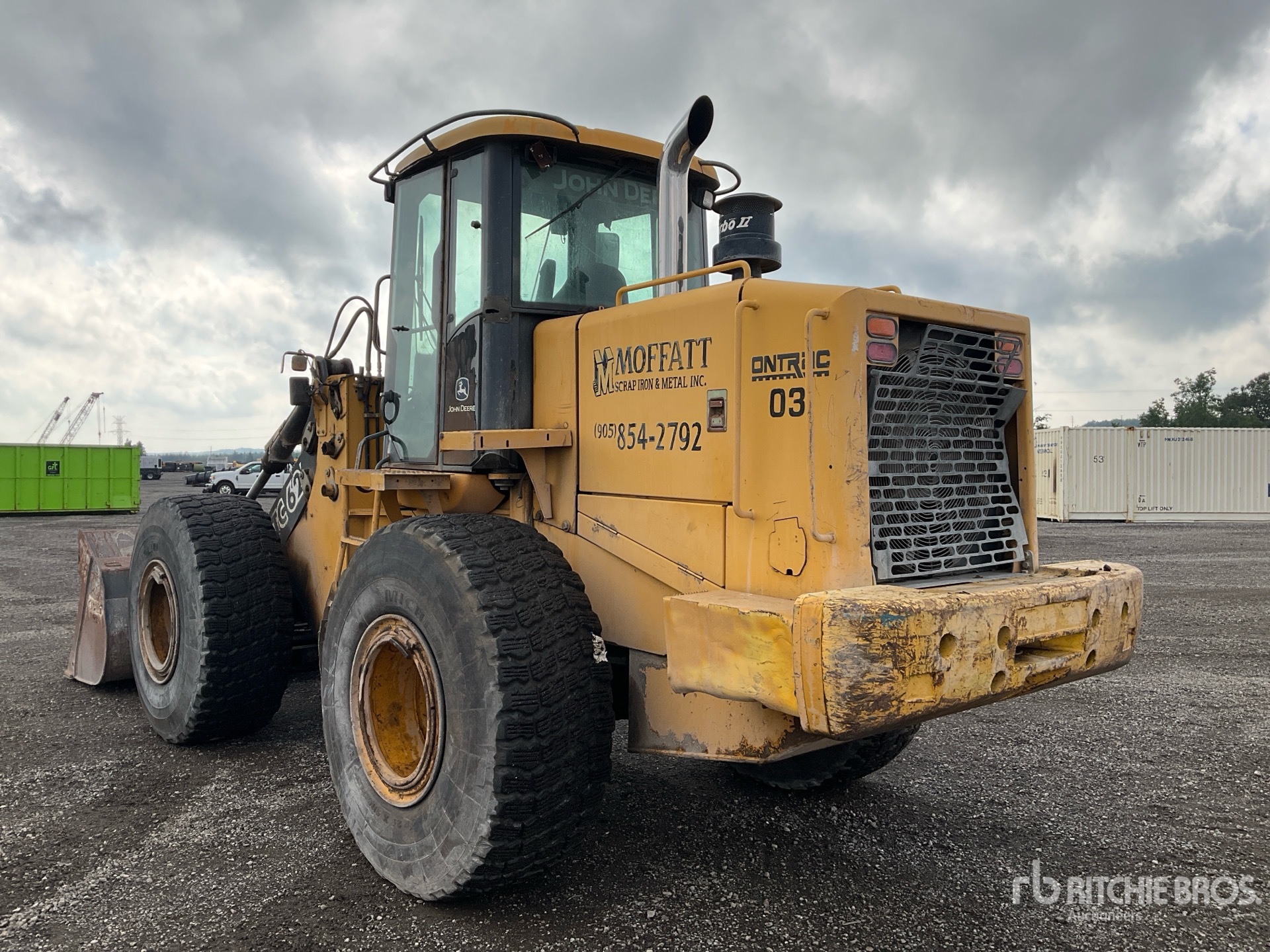

2003 John Deere 624H For Sale in Toronto, On

Name: 2003 John Deere 624H
Brand: John Deere
SKU: 89118615
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-16 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

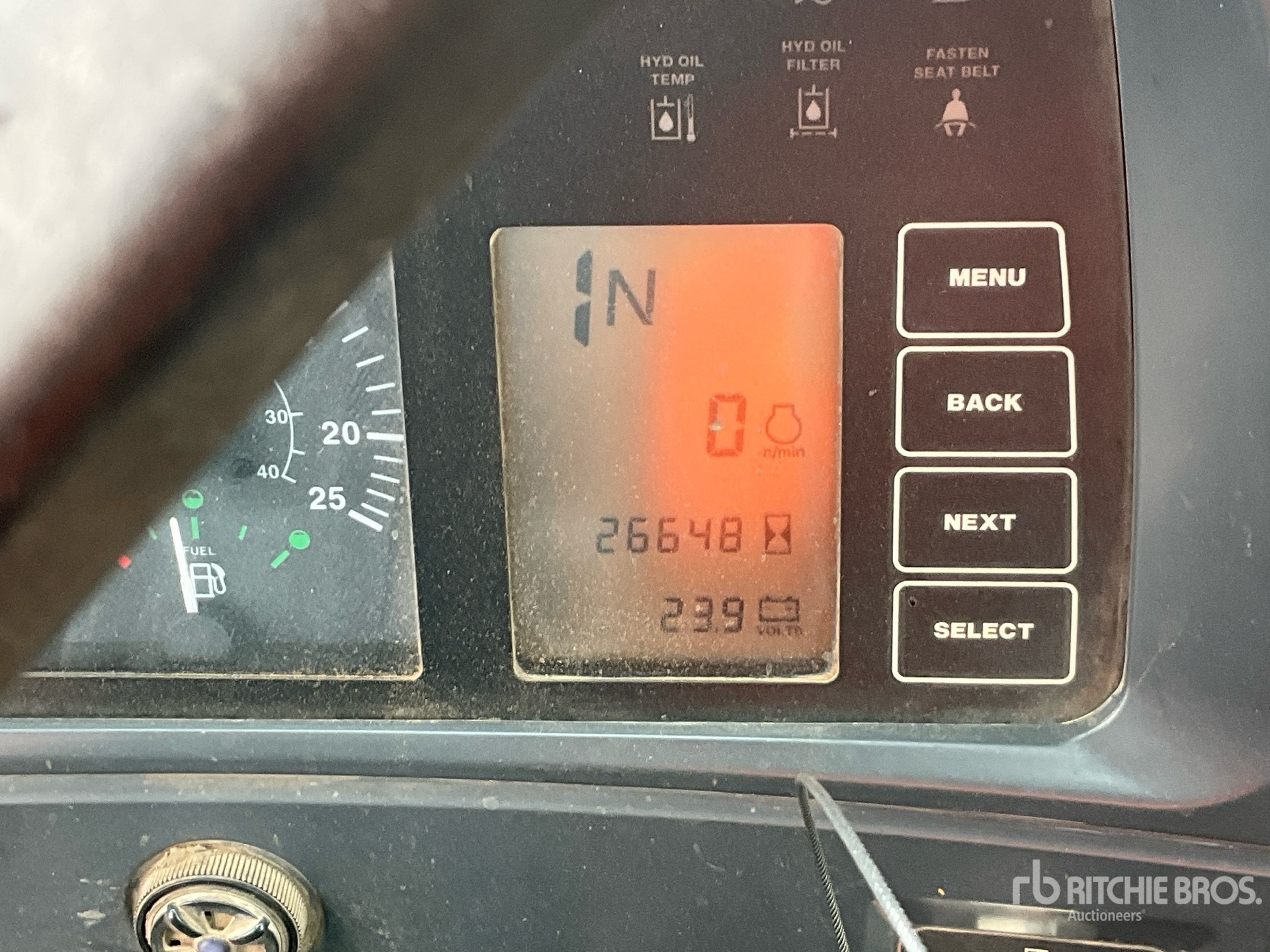

Hours:	26648

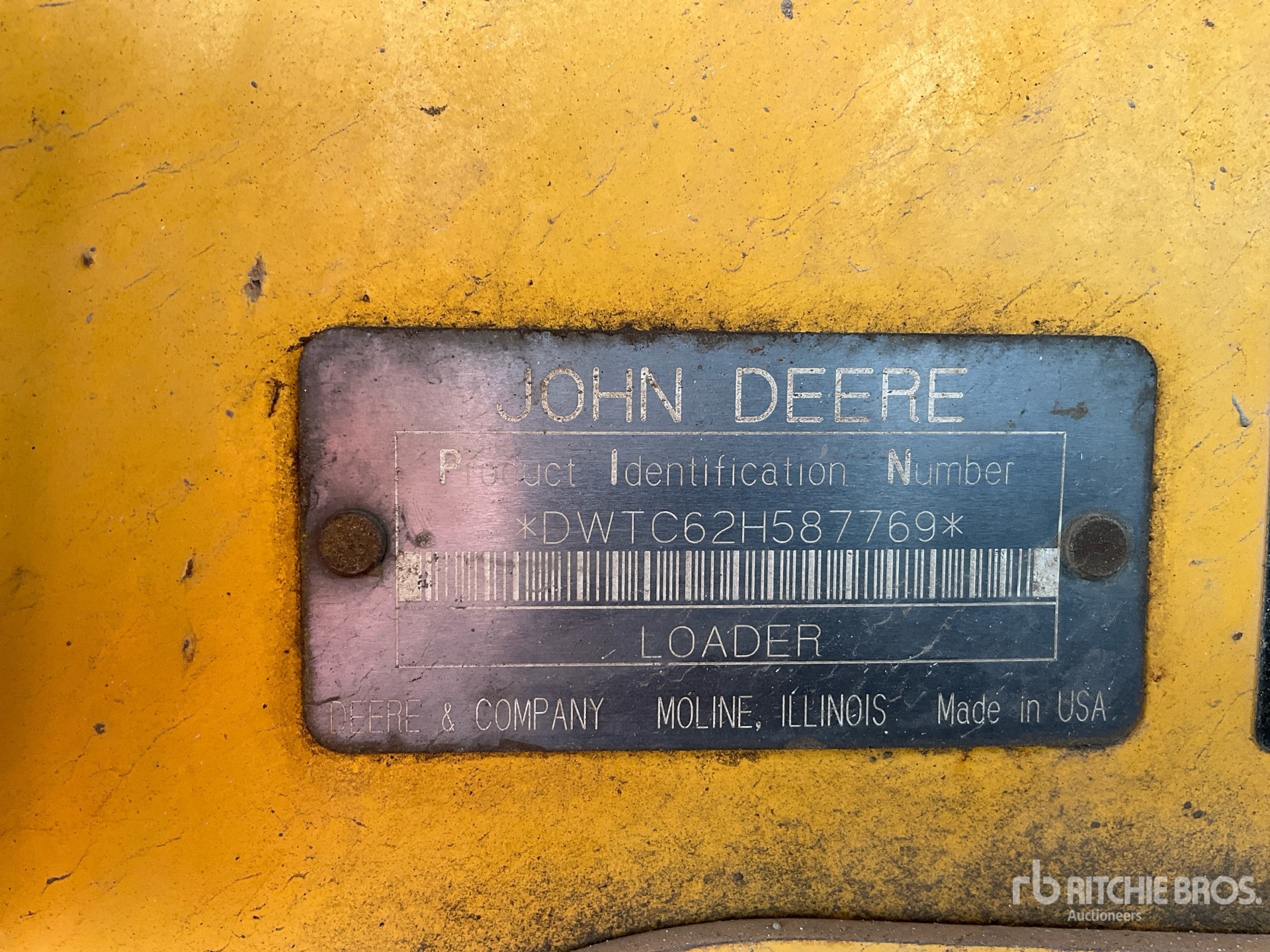

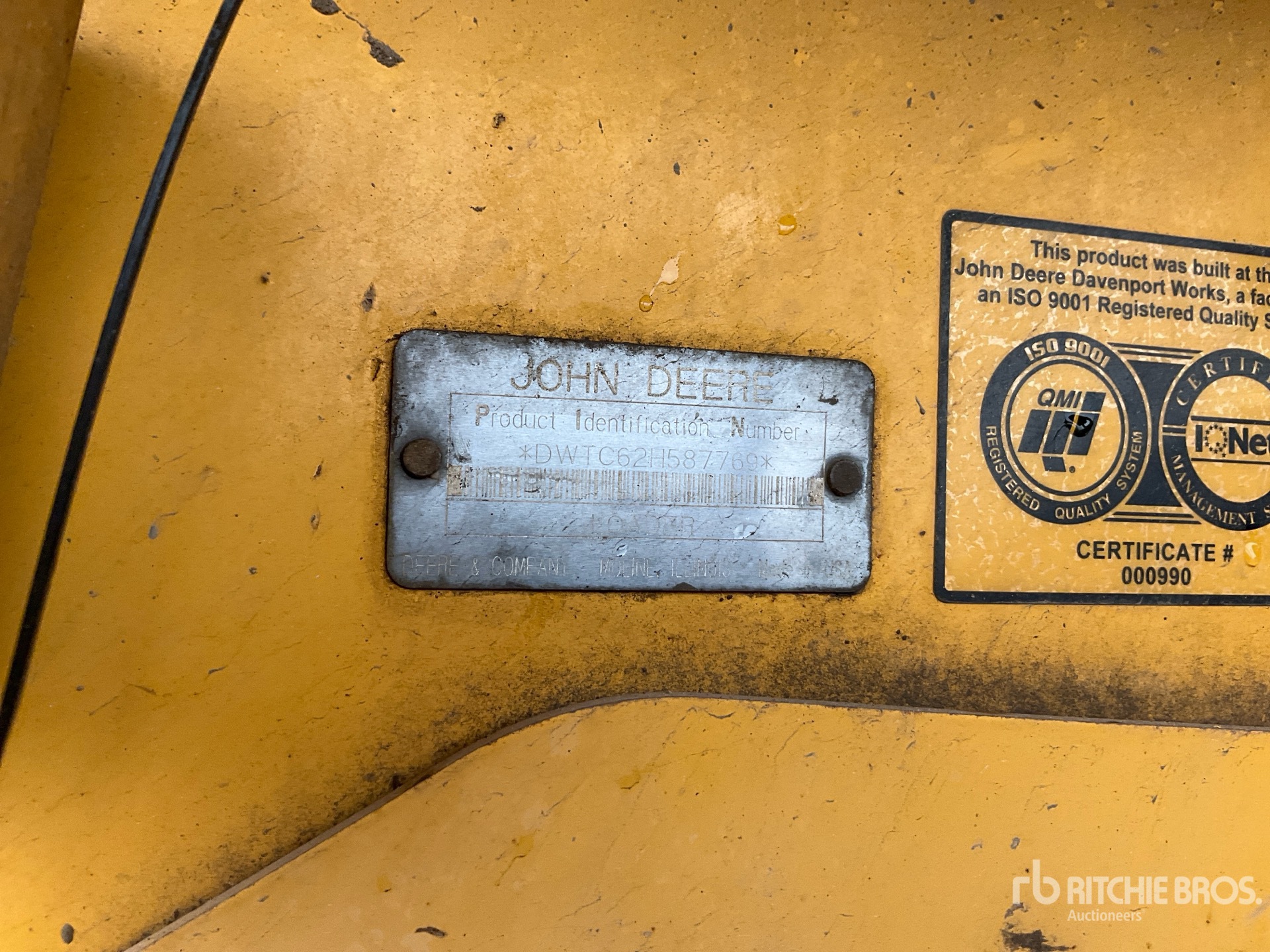

Serial Number:	DWTC62H587769
Machine Location:	TORONTO, ON

Description:

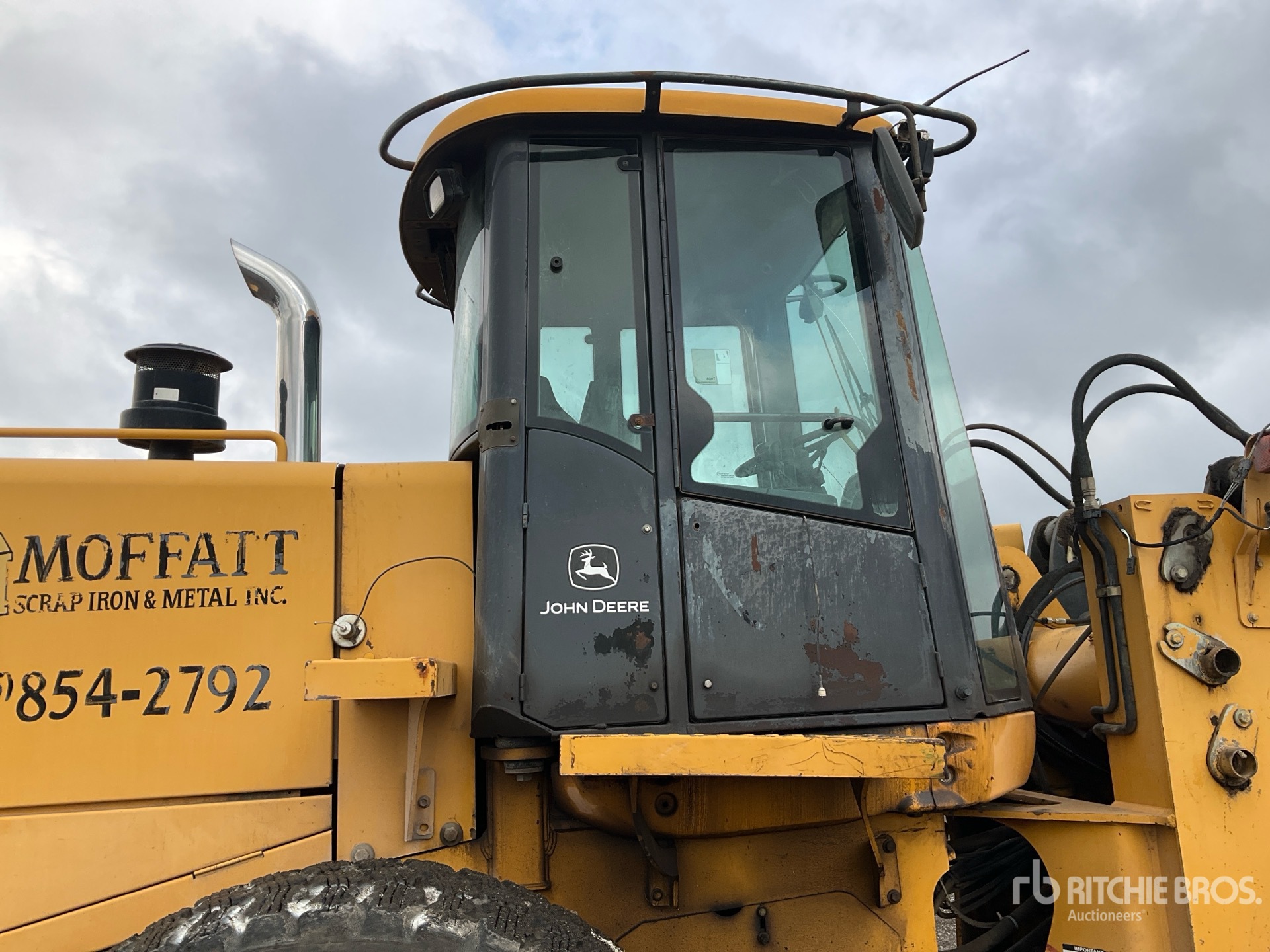

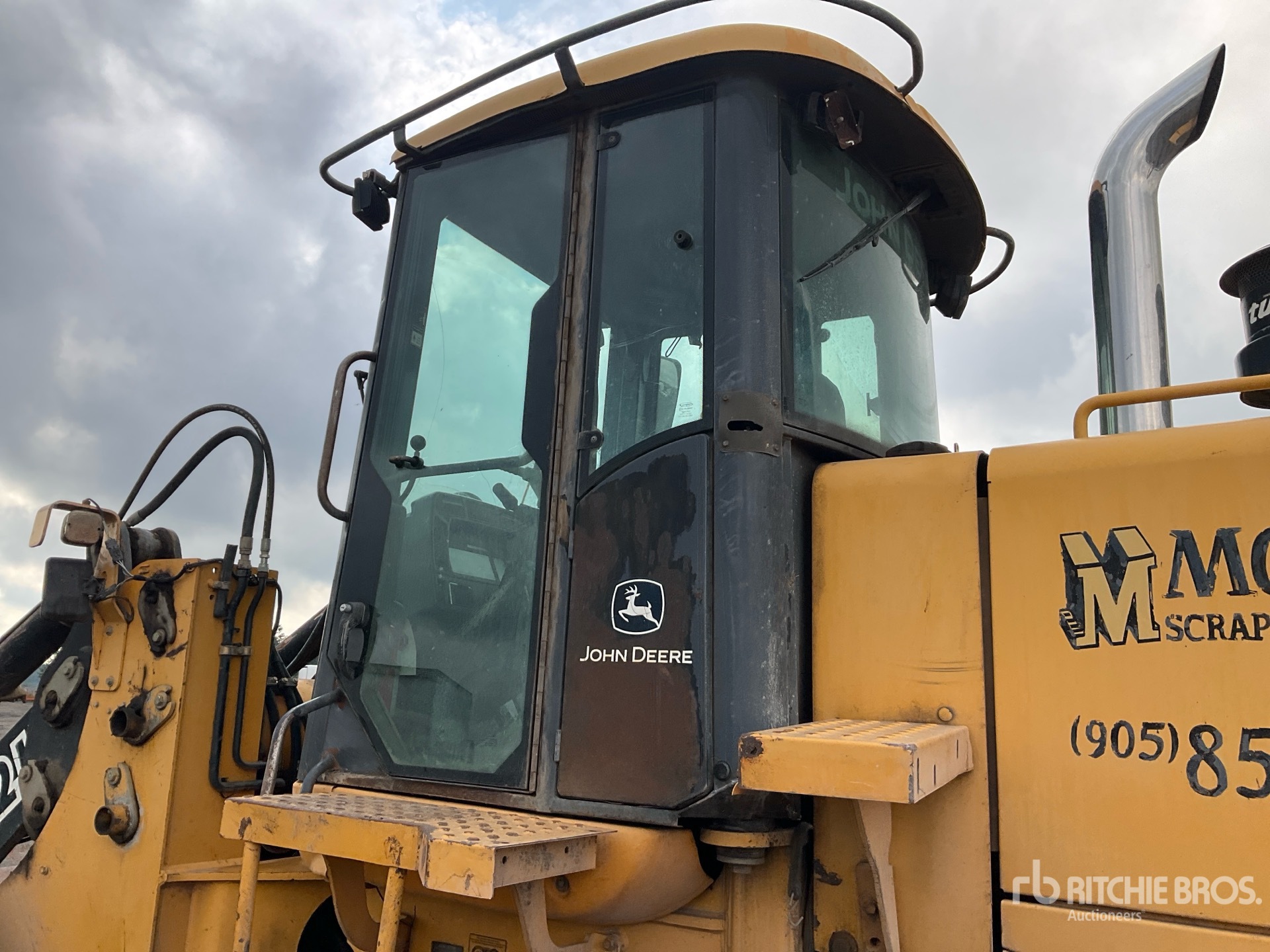

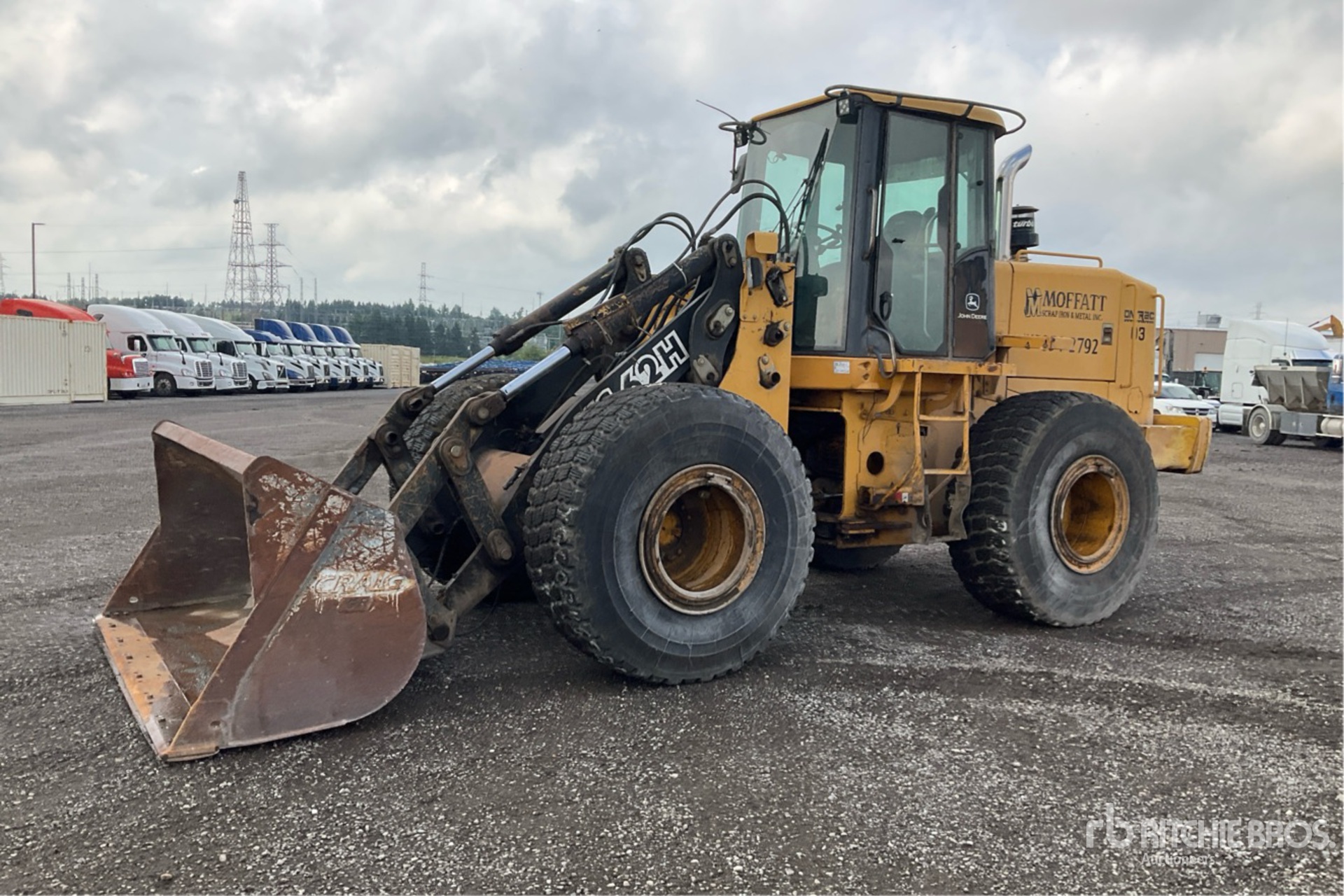

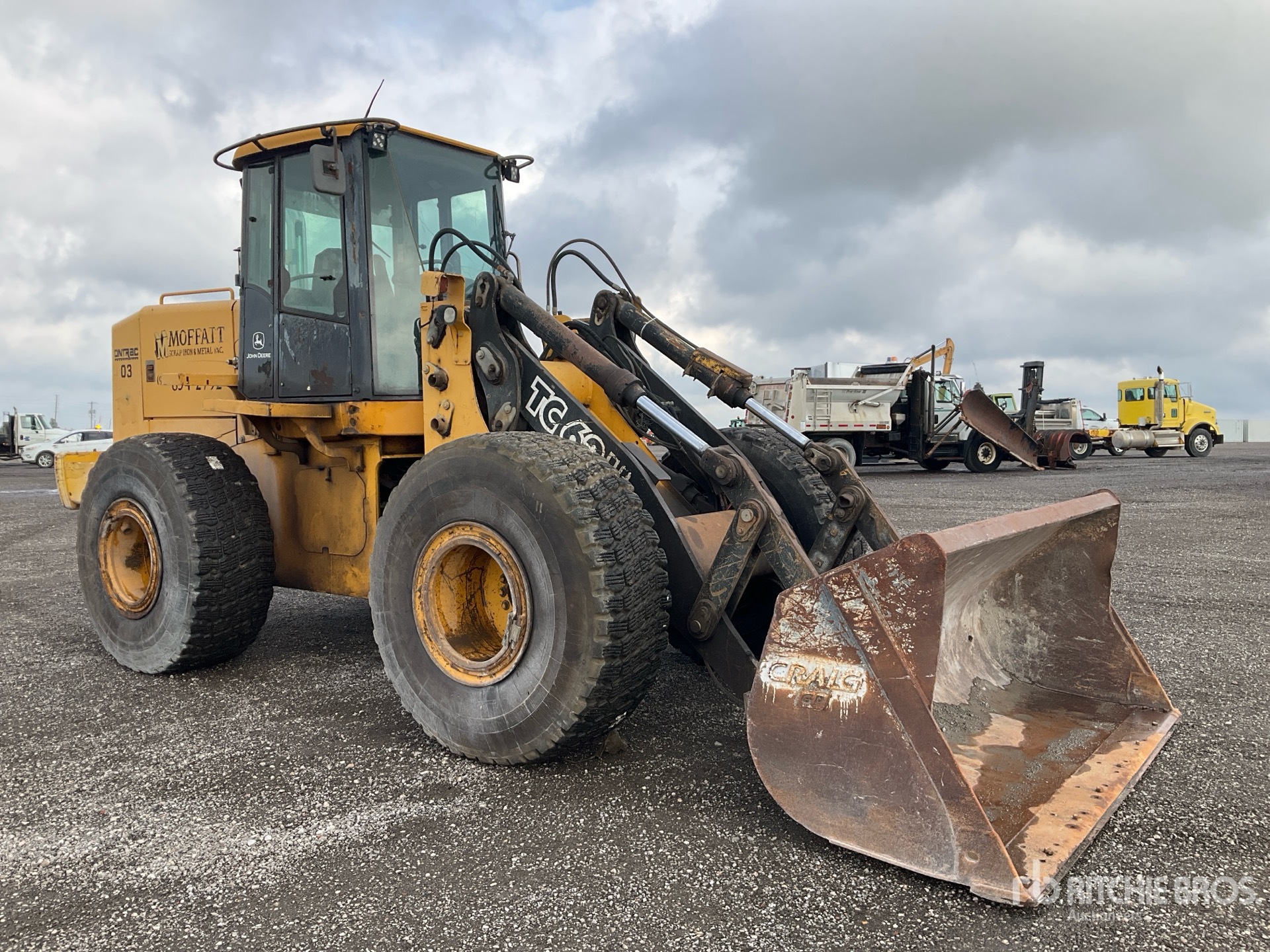

Located in Lane 3 Spot 26, Enclosed Cab, Air Conditioner, Auxiliary Hydraulics, Hydraulic Coupler, 106 in Bucket, 23.5R25 Tires, "NOTICE-TO-US-BIDDERS: this asset is likely exempt from US import tariffs as it was manufactured in the US. Bidders are responsible for confirming with their customs broker." Closing Time: 2026-09-16 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 624H is a wheel loader designed for material handling, loading, stockpiling, and general construction work. It is part of John Deere's H-series wheel loader lineup and is commonly used in aggregate yards, roadbuilding, site preparation, and industrial applications. The 624H features a front-mounted loader arm and bucket, articulated steering, and a diesel powertrain suited to repetitive loading cycles. Typical configurations may include general-purpose, multipurpose, or material-handling buckets, along with optional attachments. The model is recognized for its balance of lifting capacity, maneuverability, and operator visibility in medium-duty wheel loader applications.

Bucket
Breakout Force	27,711 lbs (12,567 kg)
Bucket Capacity - Heaped	4 cu yd
Bucket Capacity - Struck	3 cu yd
Dimensions
Dump Clearance At Max Lift	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Hinge Pin Max Height	13 ft (4 m)
Hook Height At Max Lift - Extended	23 ft (7 m)
Hook Height At Max Lift - Standard	19 ft (6 m)
Hook Reach At Max Lift - Extended	11 ft (3 m)
Hook Reach At Max Lift - Standard	7 ft (2 m)
Length	25 ft (8 m)
Length W/ Bucket On Ground	25 ft (8 m)
Length With Out Forks On Ground	26 ft (8 m)
Max Lift Height	12 ft (4 m)
Reach At Max Height And Dump	3 ft (1 m)
Weight	30,128 lbs (13,666 kg)
Wheelbase	10 ft (3 m)
Width	9 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharger with Aftercooler
Displacement	414 cu in (6,784 cu cm)
Engine Make	2,240
Engine Model	6068H
Gross Power	160 hp (119 kw)
Max Torque	575 lbs ft (780 nm)
Net Power	172 hp (128 kw)
Number Of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	1 sec
Lower Time	3 sec
Pump Flow Capacity	55 gpm (208 lpm)
Pump Type	Piston Pump
Raise Time	6 sec
Relief Valve Setting	3,600 psi
Operational
Alternator Supplied Amperage	55 amps
Cooling System Fluid Capacity	6 gal (22 l)
Engine Oil Capacity	5 gal (20 l)
Front Diff Fluid Capacity	7 gal (28 l)
Fuel Capacity	70 gal (265 l)
Hydraulic System Fluid Capacity	31 gal (117 l)
Operating Voltage	24 V
Operating Weight	29,894 lbs (13,557 kg)
Rear Axle Oscillation	26 degrees
Rear Diff Fluid Capacity	5 gal (20 l)
Static Tipping Load - Bucket	23,647 lbs (10,724 kg)
Static Tipping Load - Forks	14,740 lbs (6,685 kg)
Static Tipping Load - Material Handler	11,292 lbs (5,121 kg)
Tire Size	17.5-25
Transmission Fluid Capacity	7 gal (27 l)
Turning Radius	17 ft (5 m)
Transmission
Max Speed Forward	25 mph (39 kph)
Max Speed Reverse	15 mph (24 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Type	Power Shift
