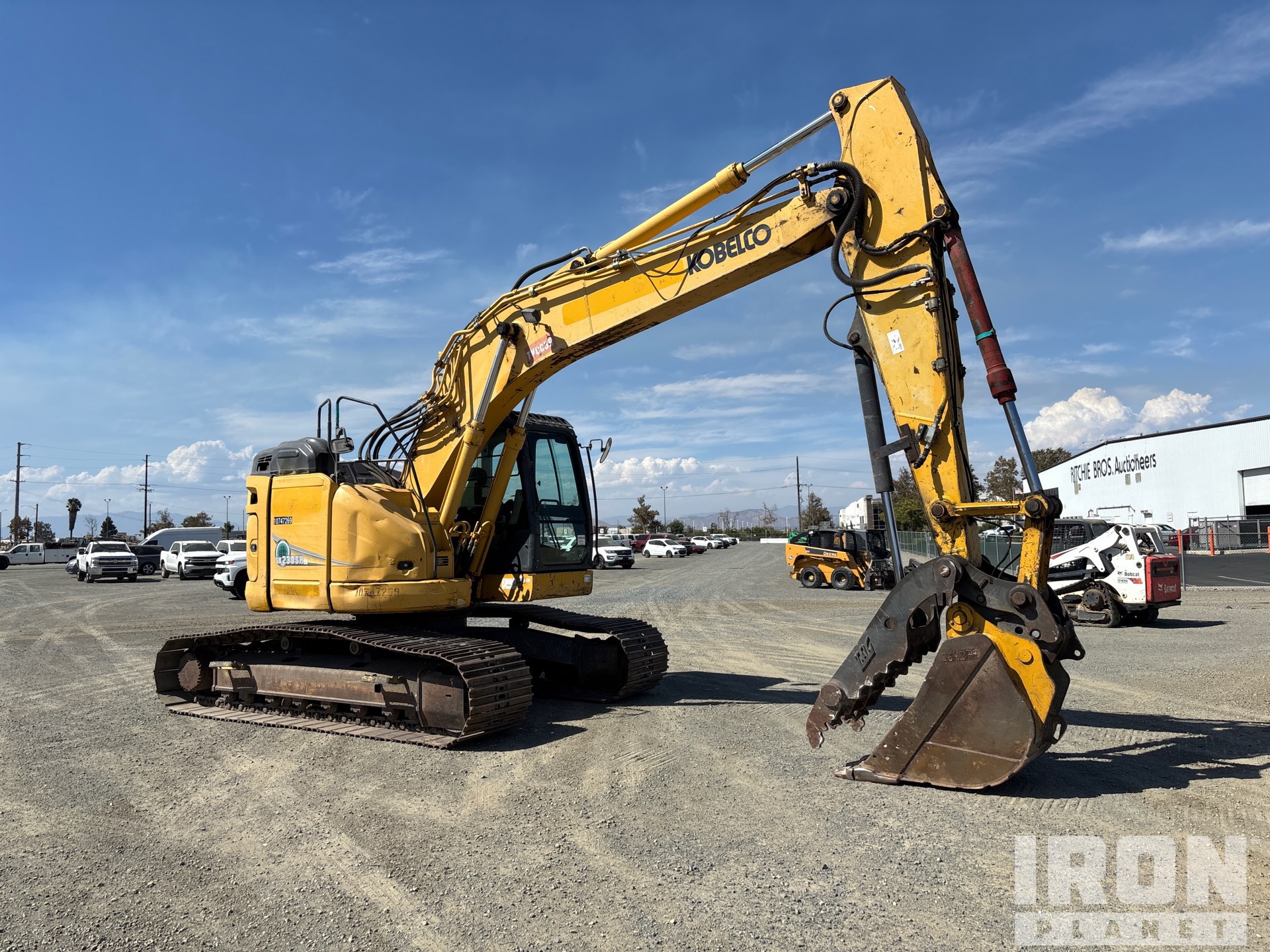

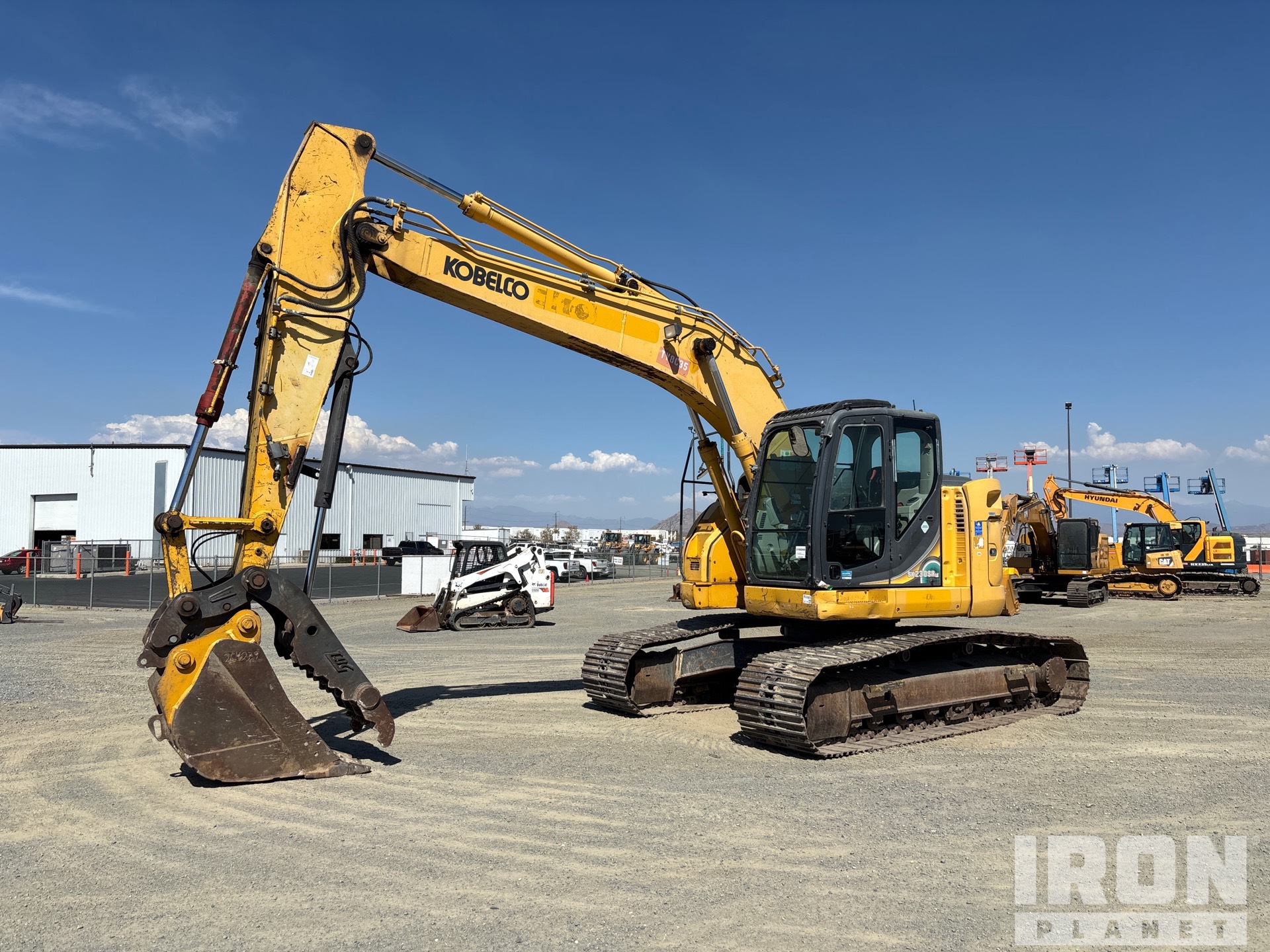

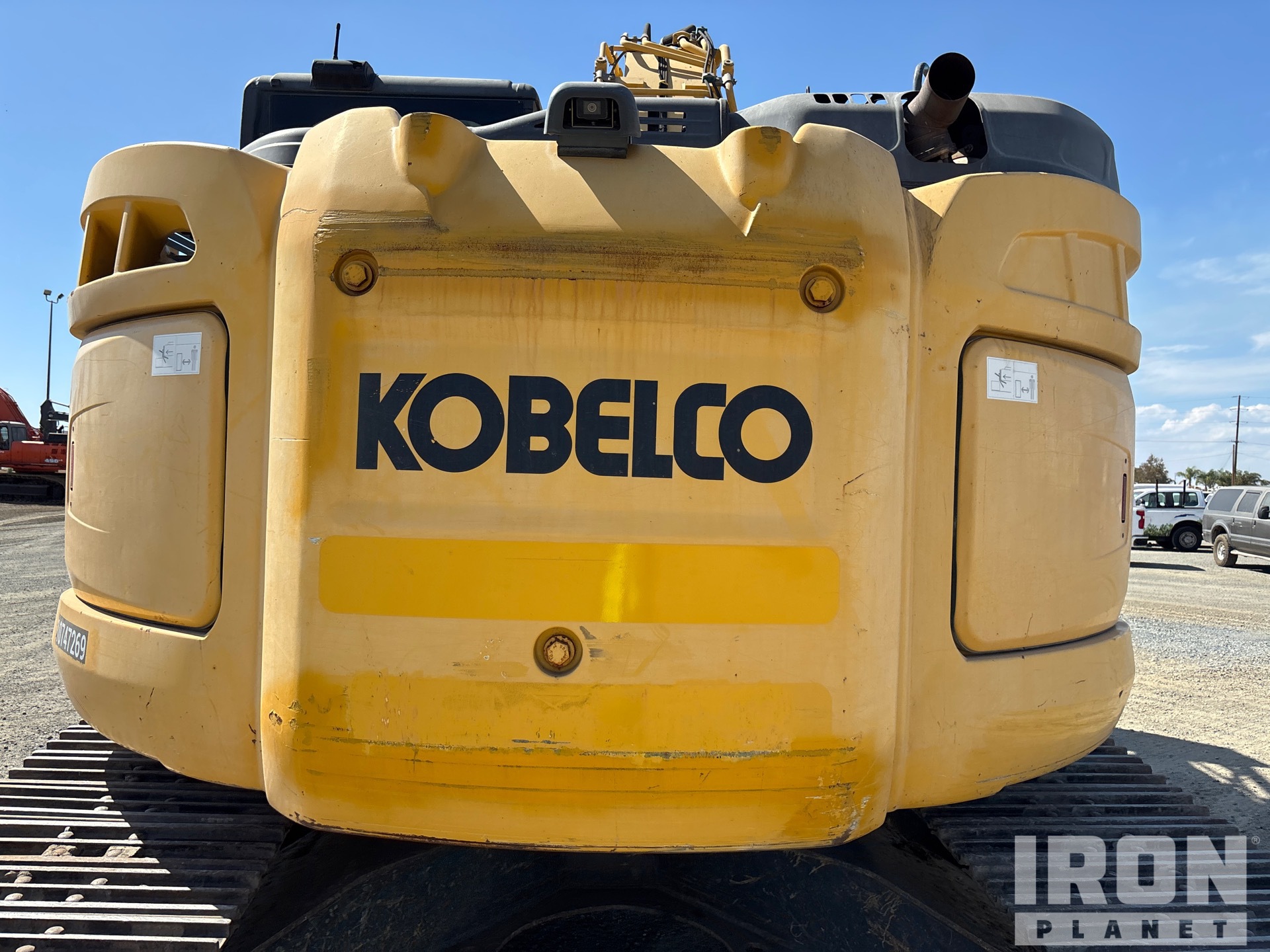

2018 Kobelco SK230SRLC-5 For Sale in Los Angeles, Ca

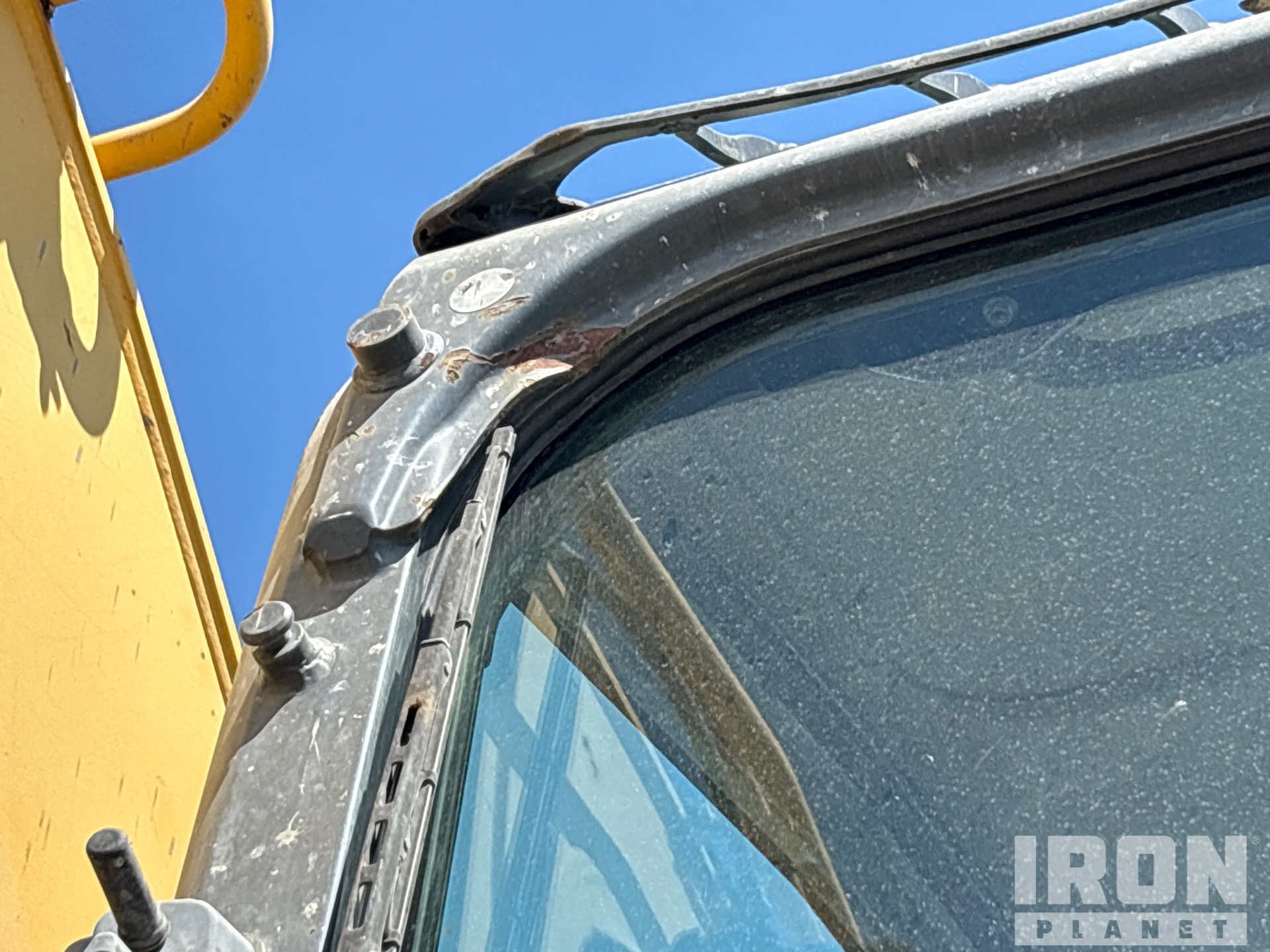

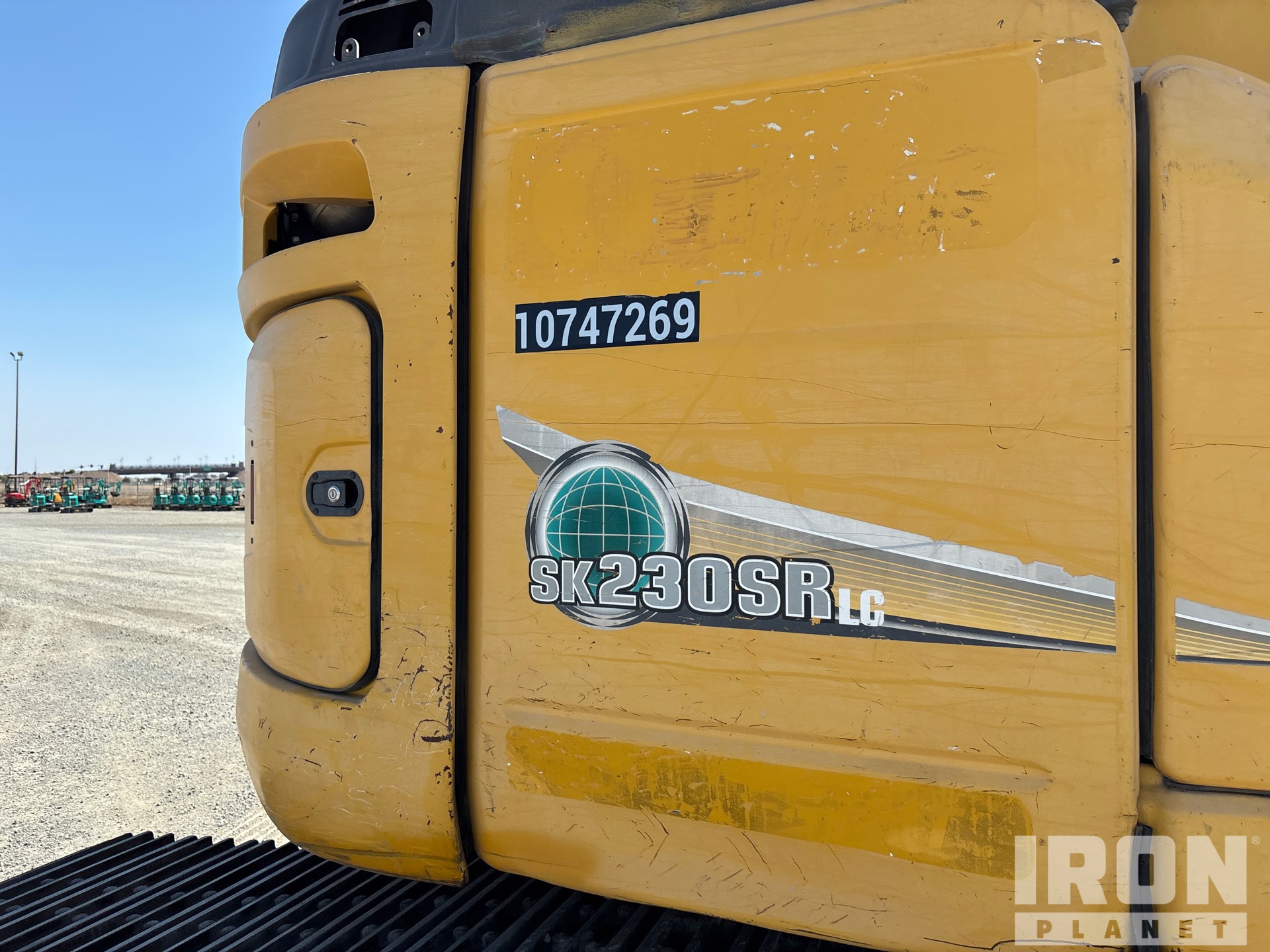

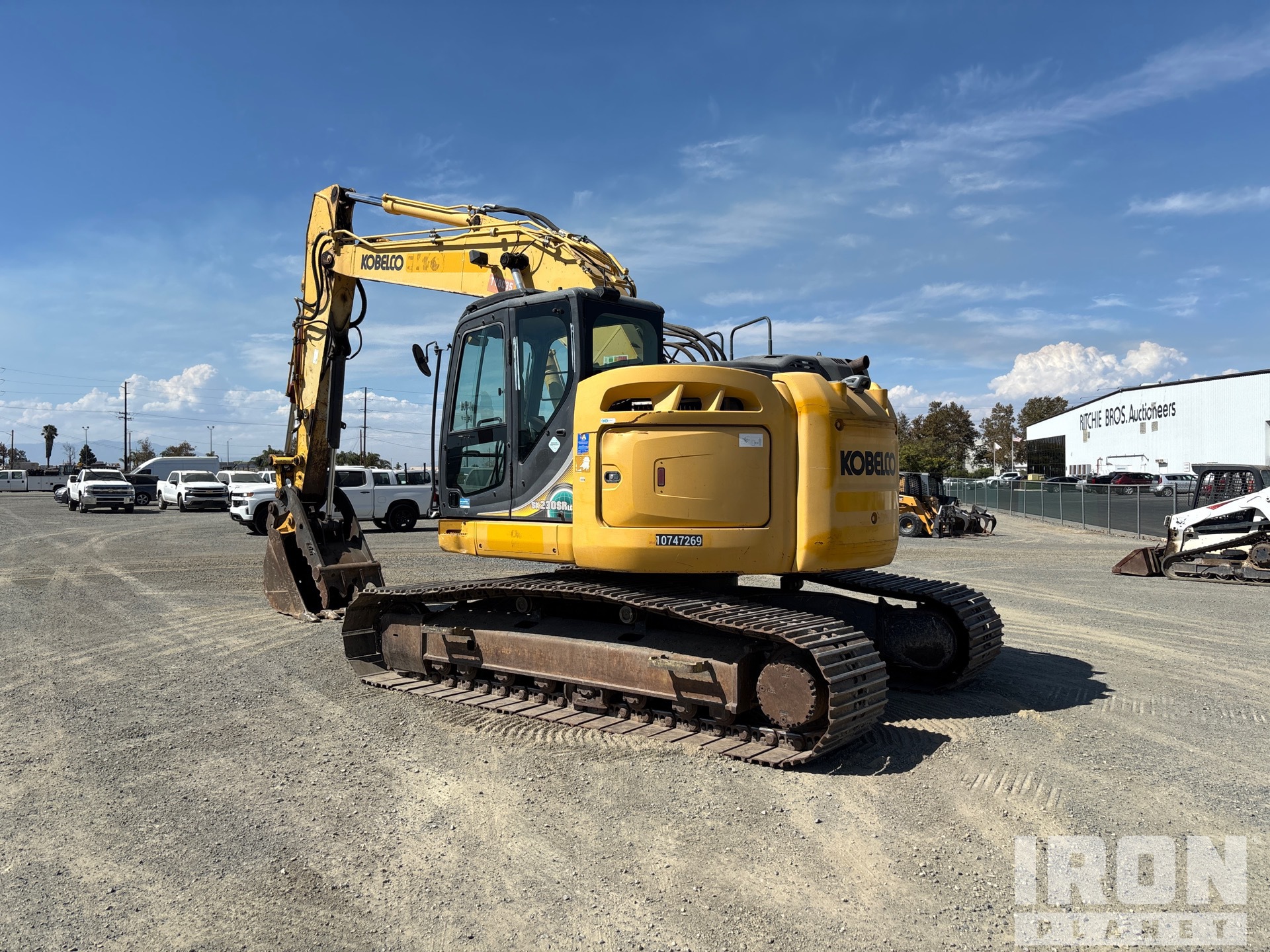

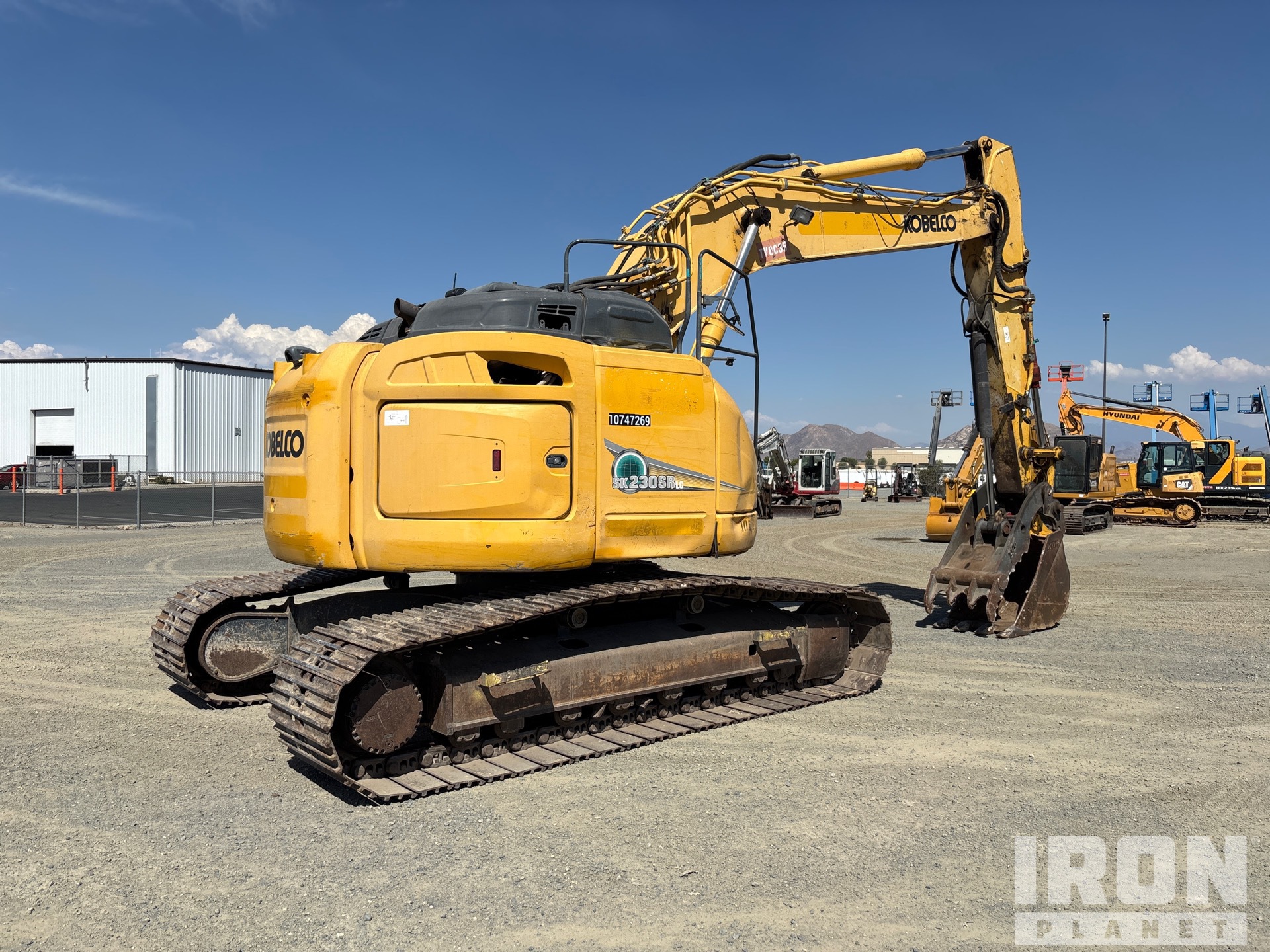

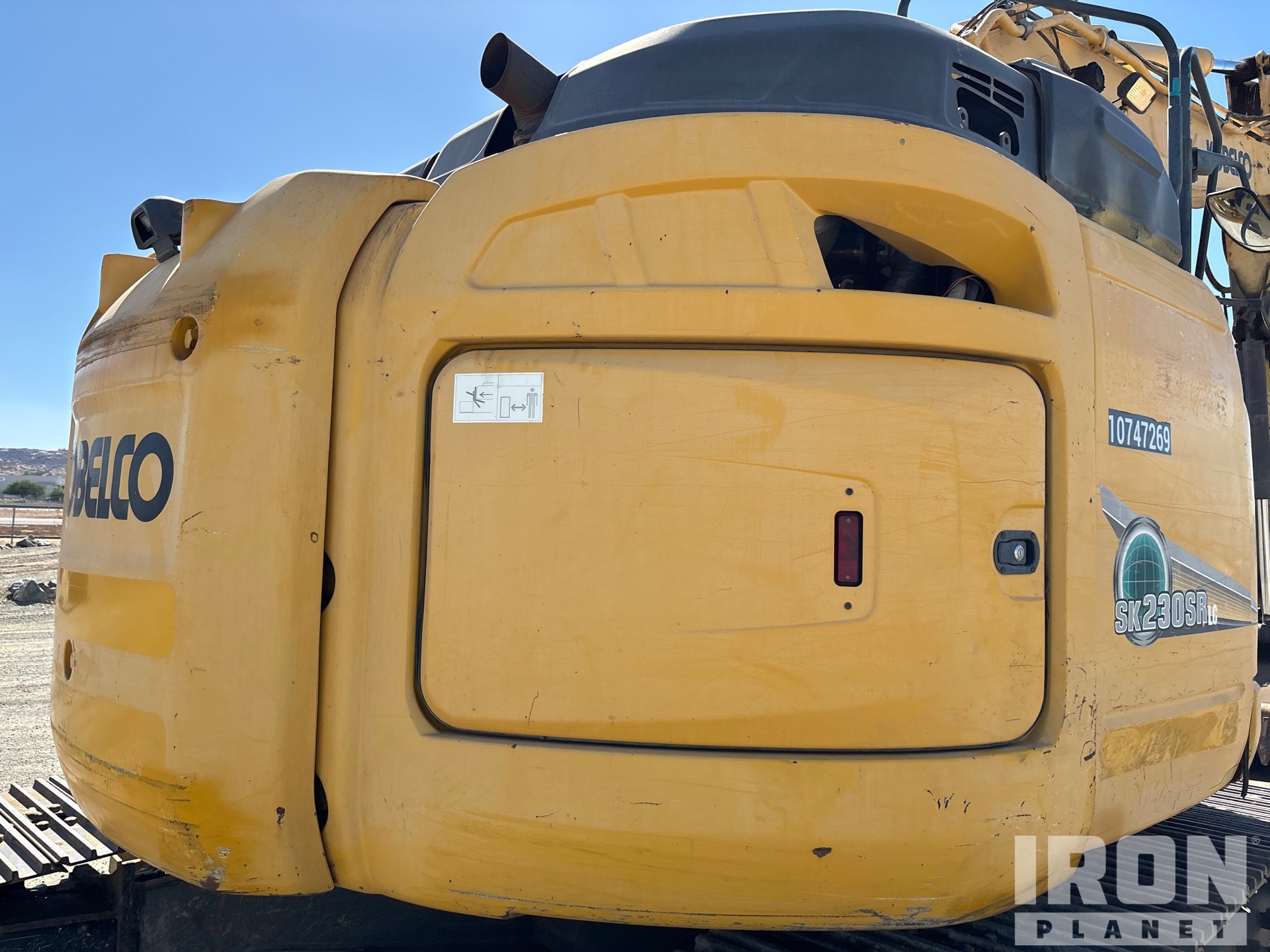

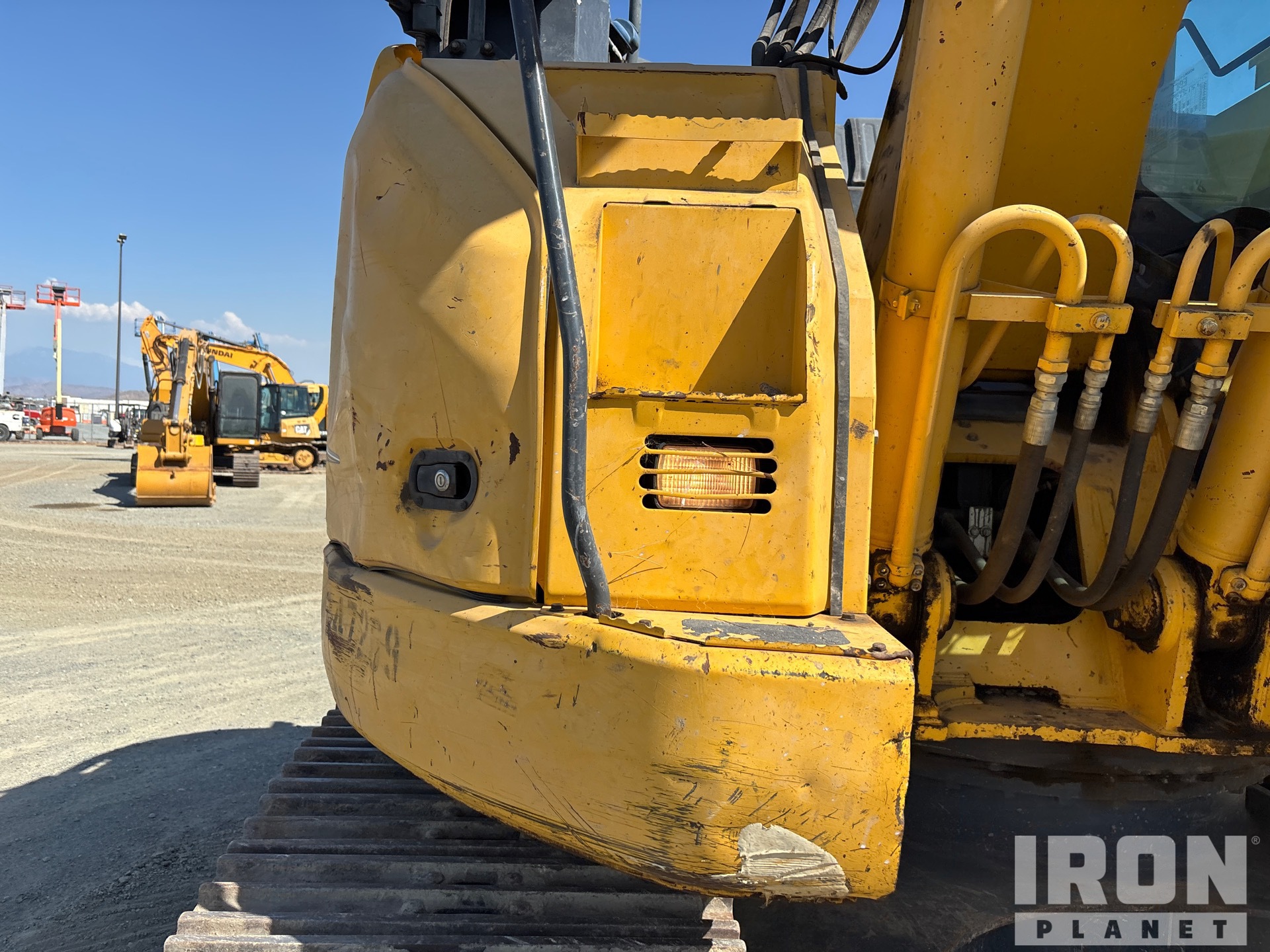

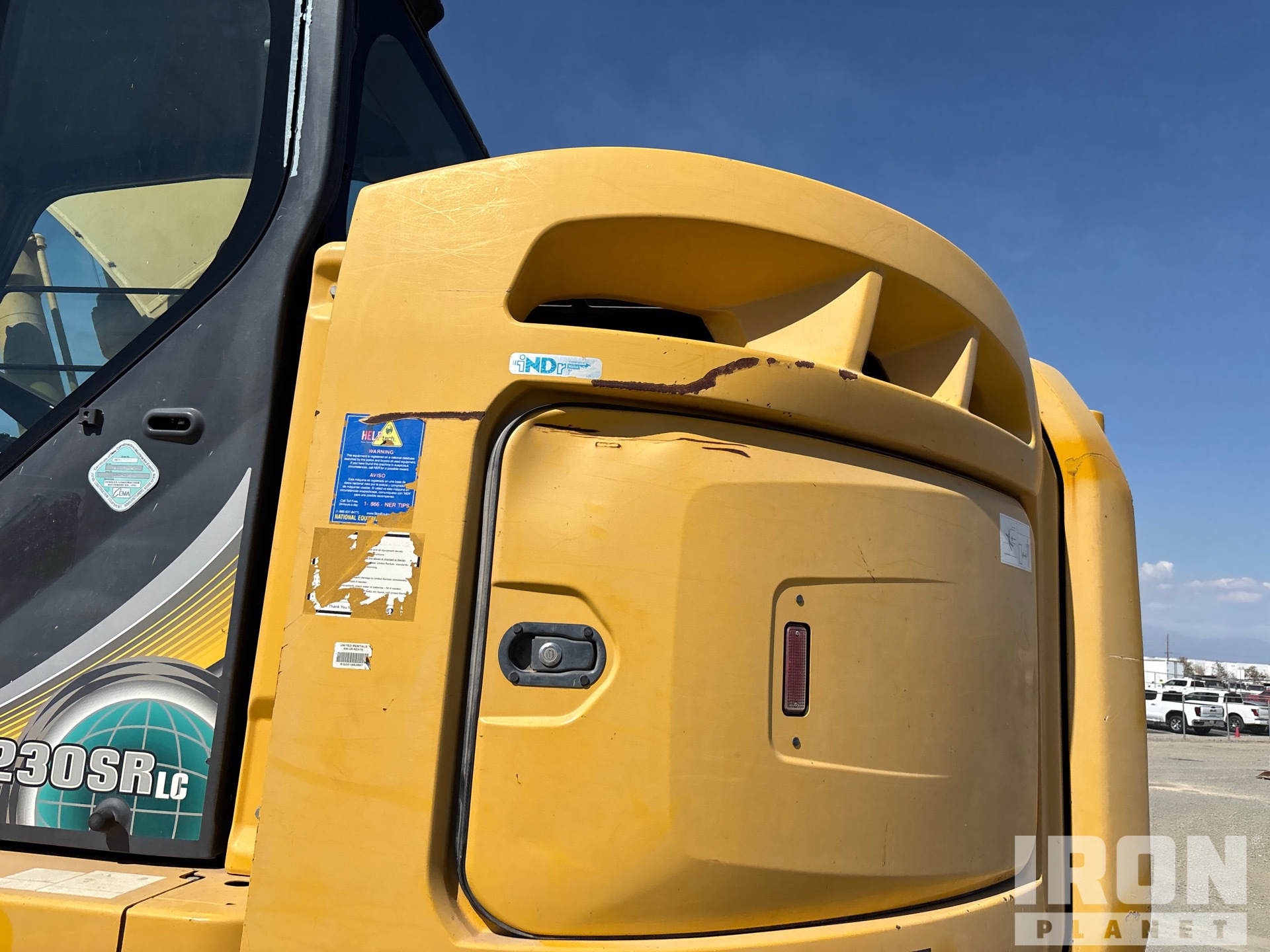

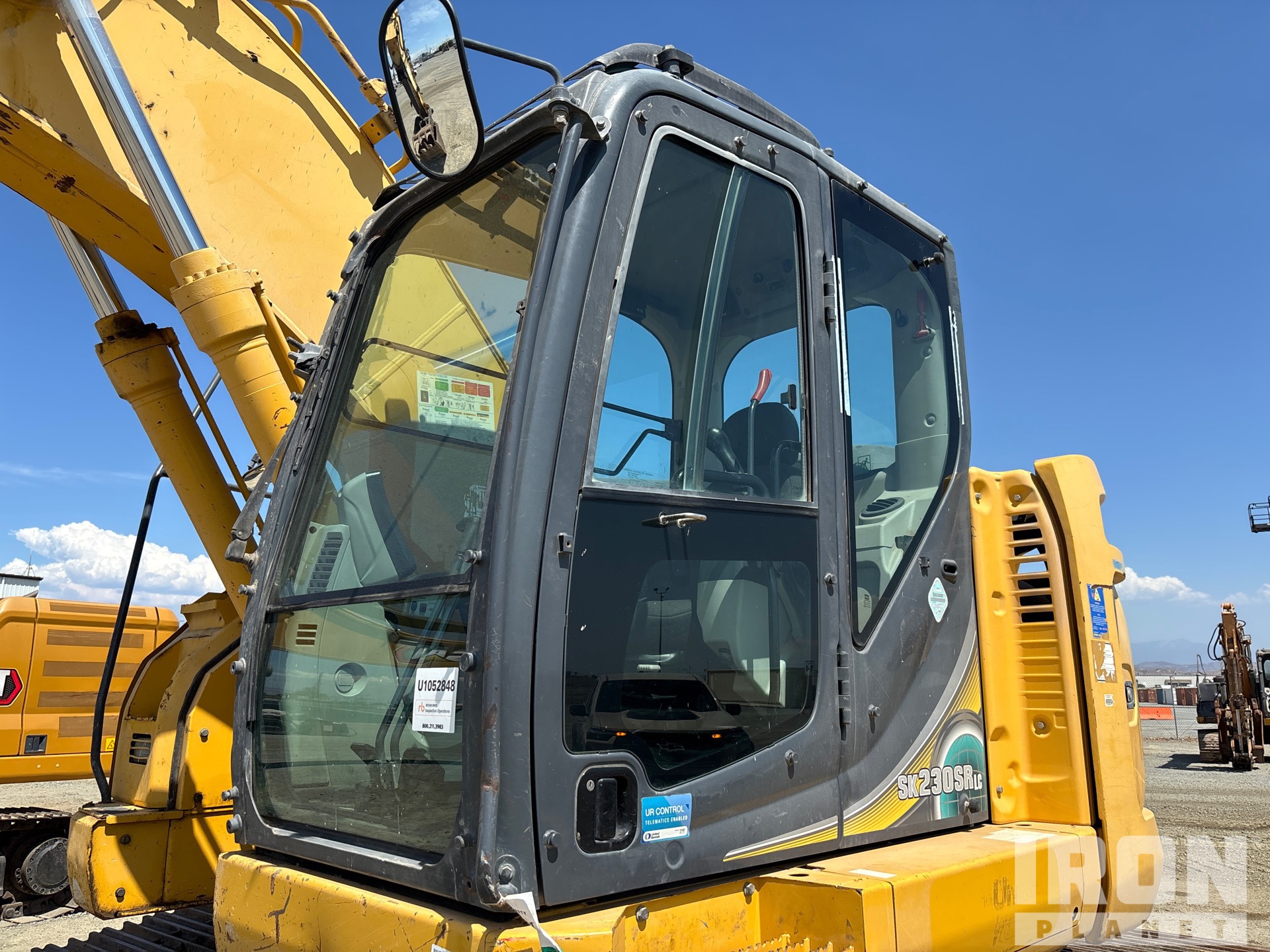

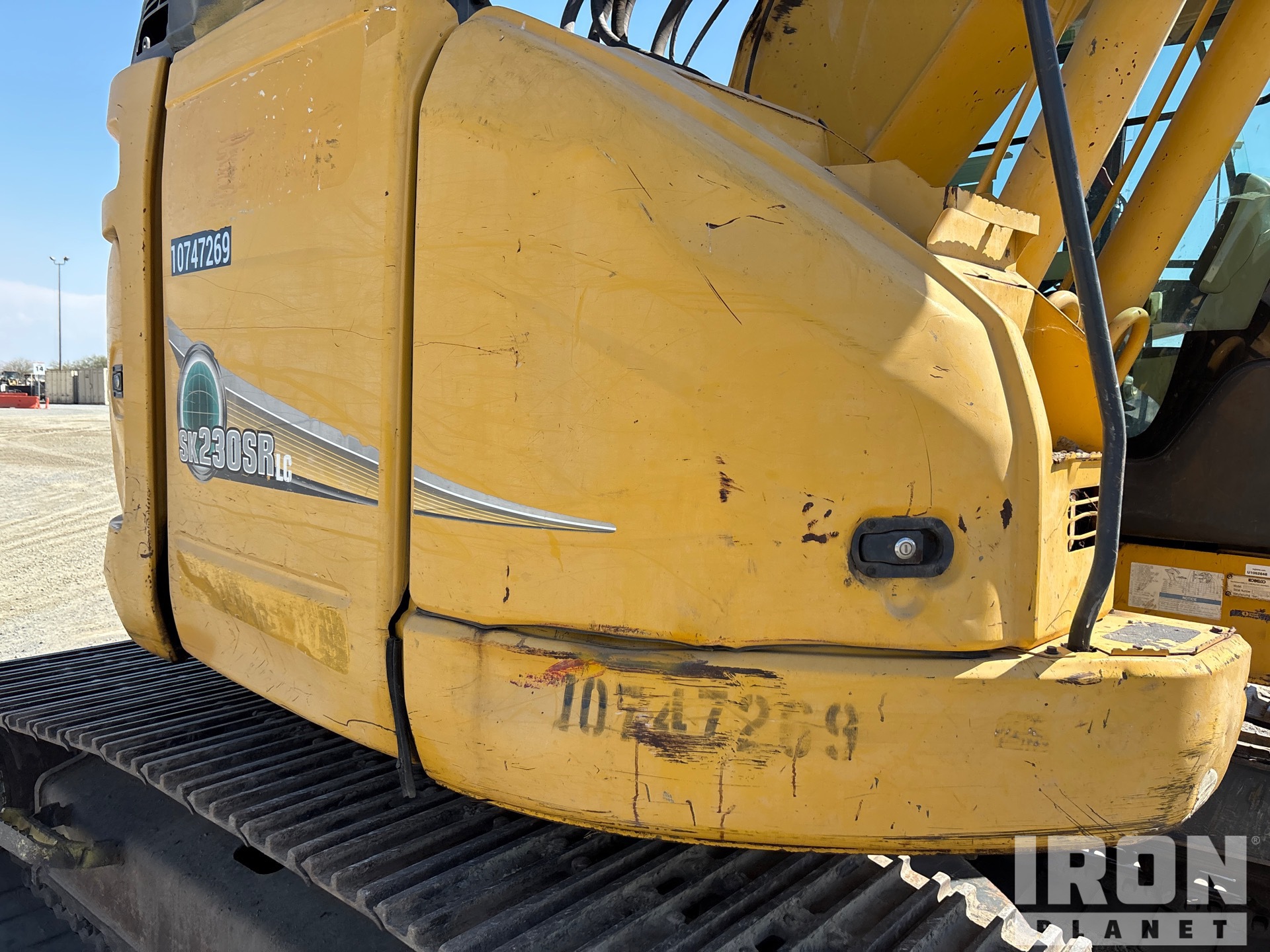

Name: 2018 Kobelco SK230SRLC-5
Brand: Kobelco
SKU: 89158936
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

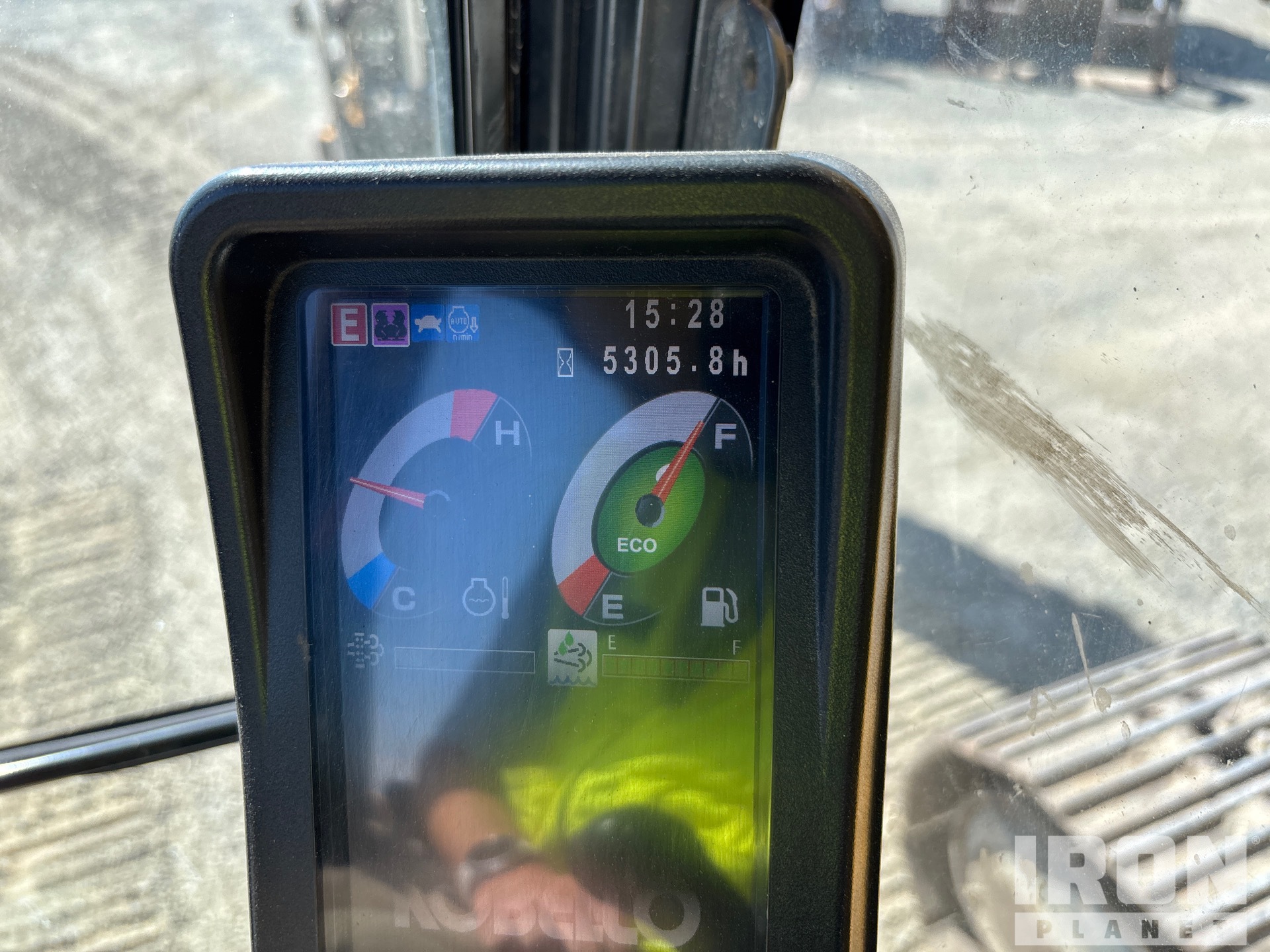

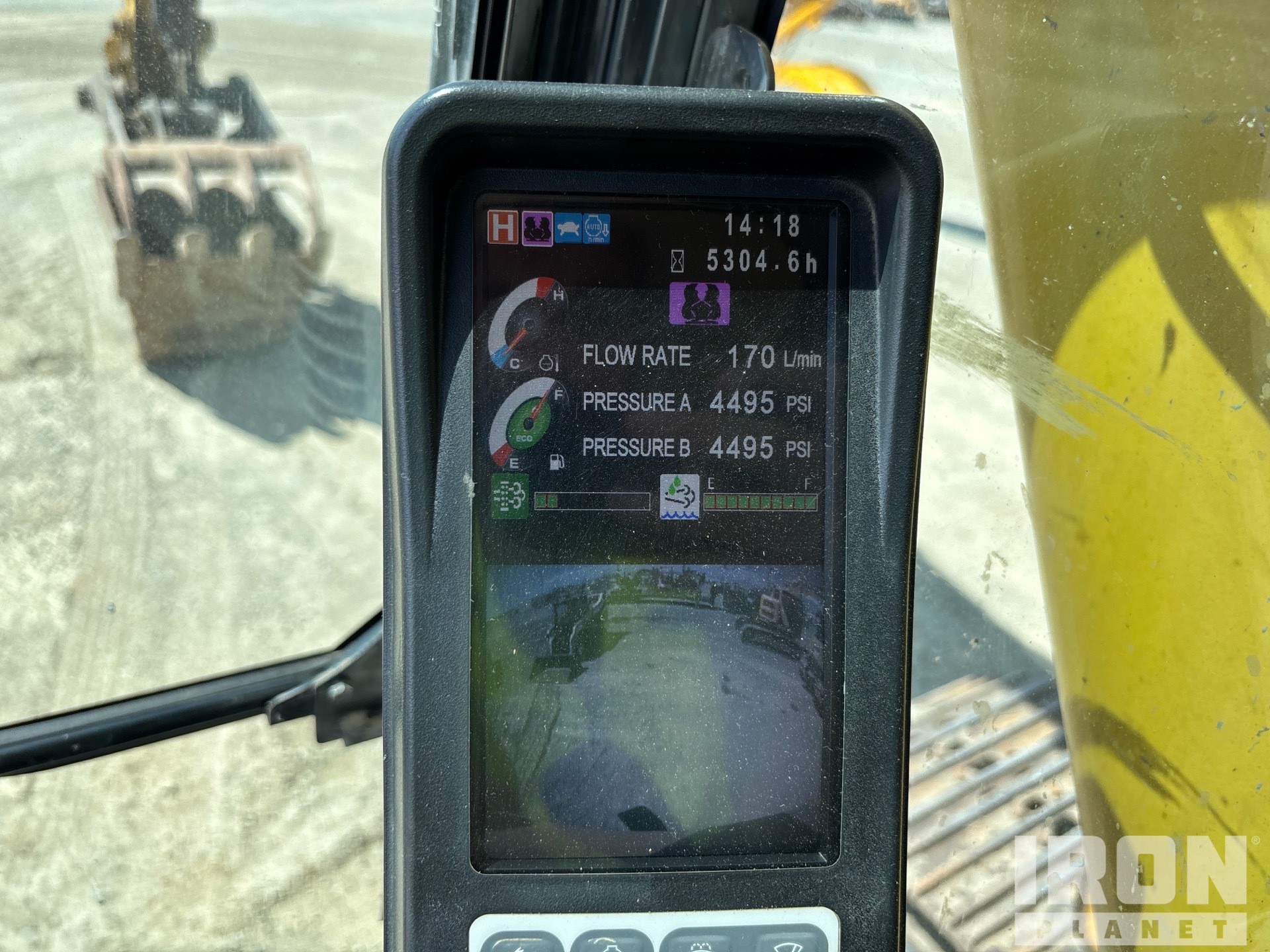

Hours:	5305

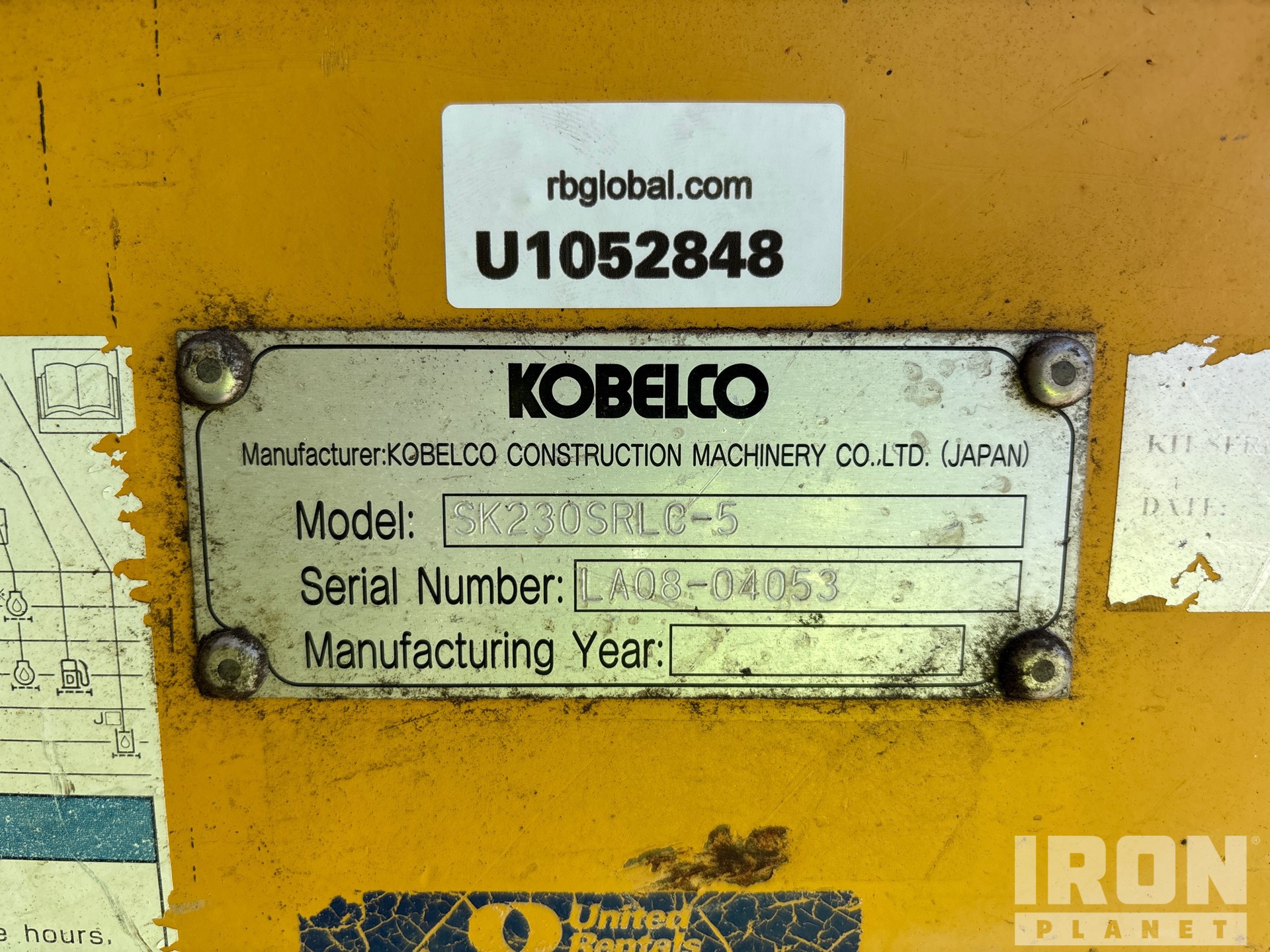

Serial Number:	LA08-04053
Machine Location:	LOS ANGELES, CA

Description:

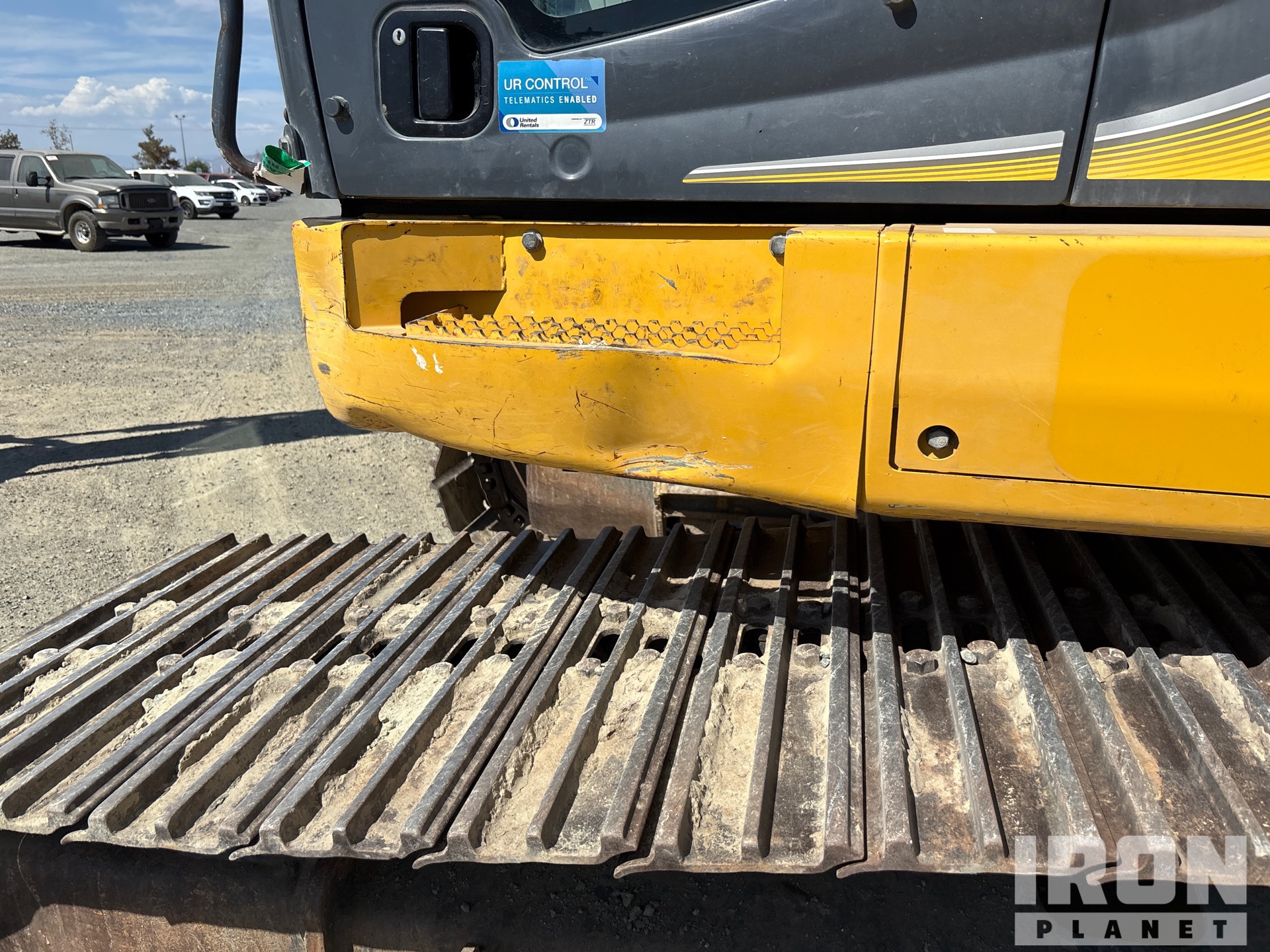

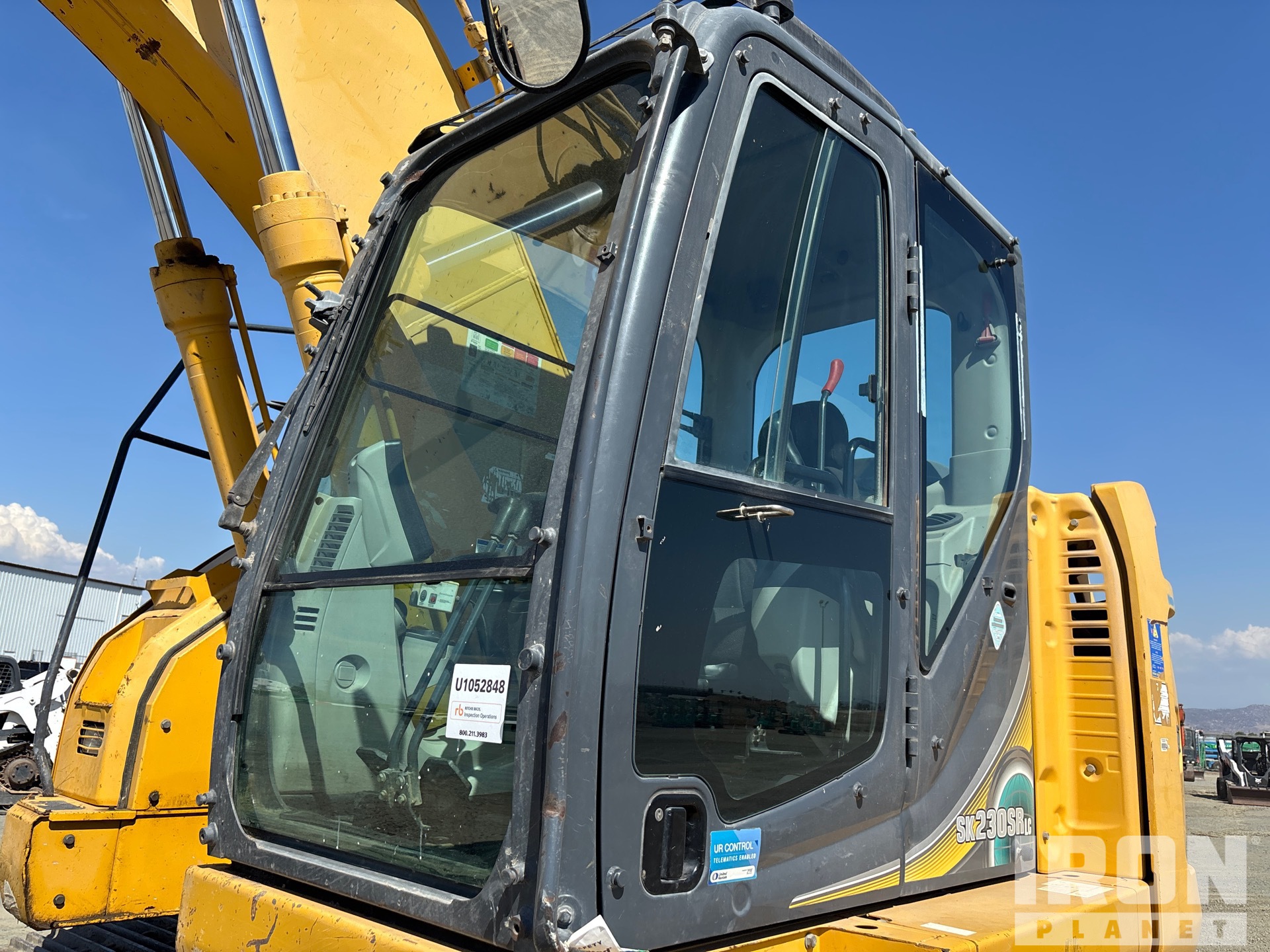

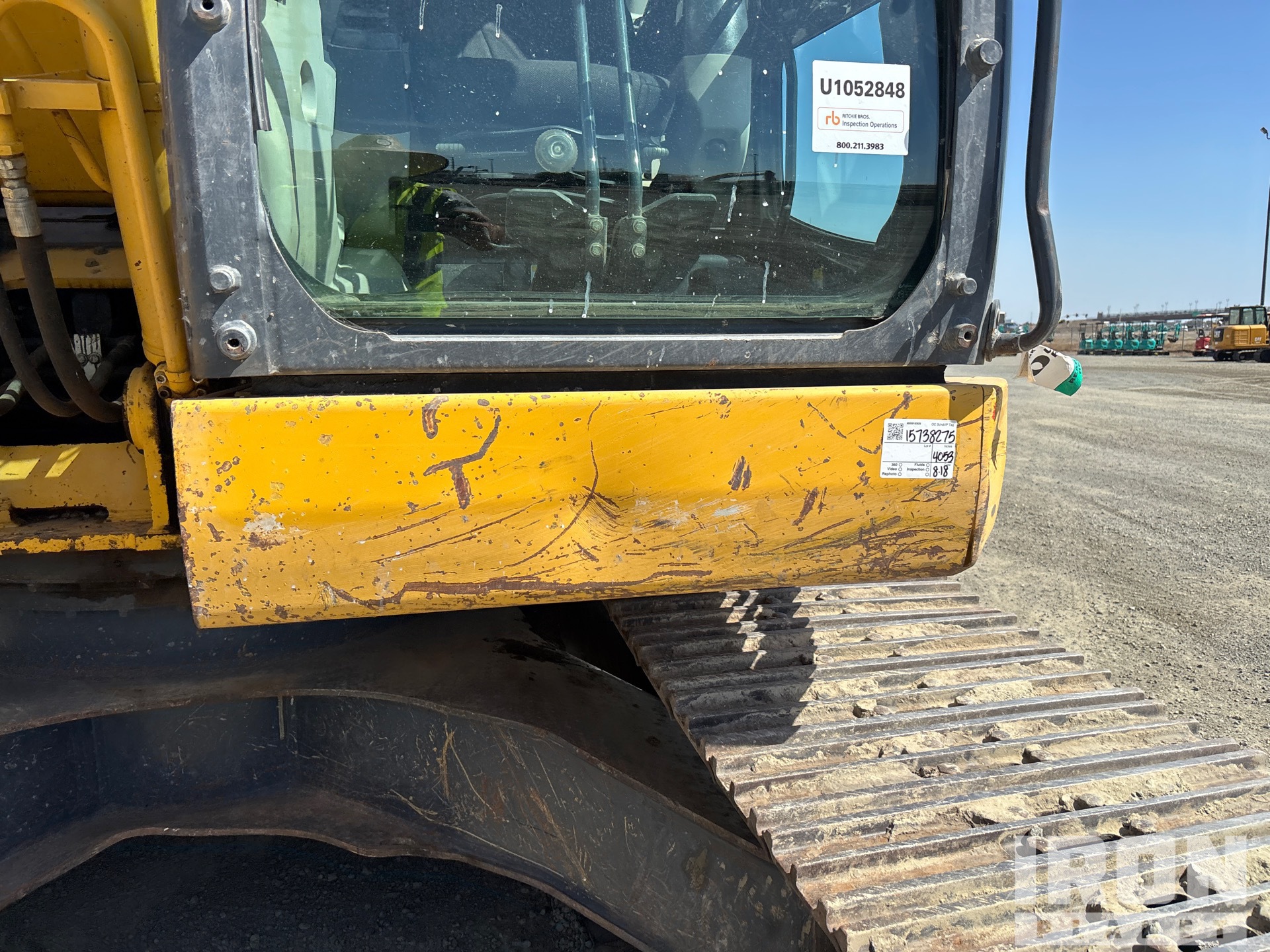

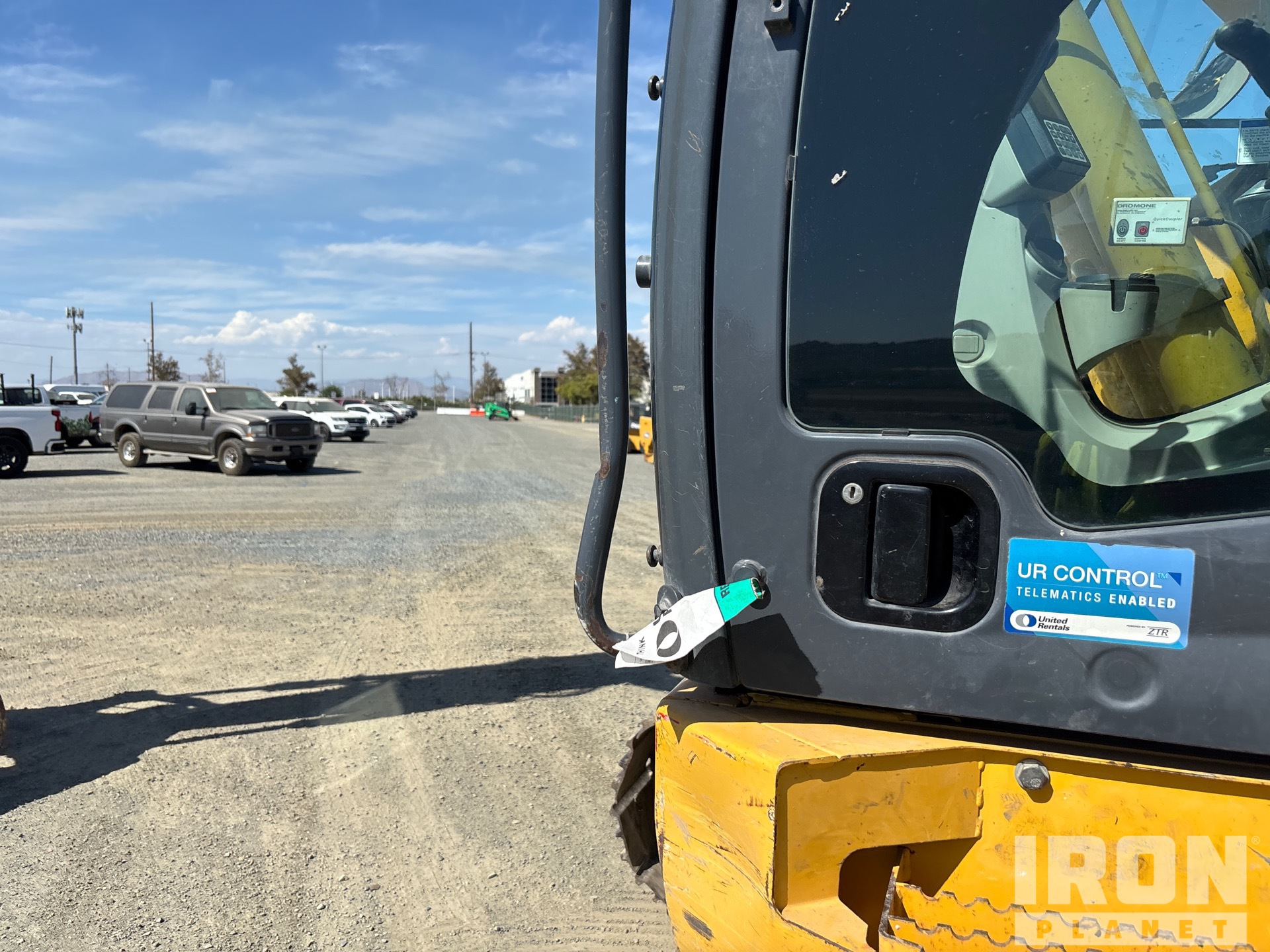

Located in Lane 2 Spot 8, Air Conditioner, Control Pattern Changer, 2016 US EPA Label, Requires Diesel Exhaust Fluid, 9 ft 5 in Stick, Auxiliary Hydraulic Plumbing, 31 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, 30 in Digging Bucket, Hydraulic Thumb Closing Time: 2026-09-15 09:28:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

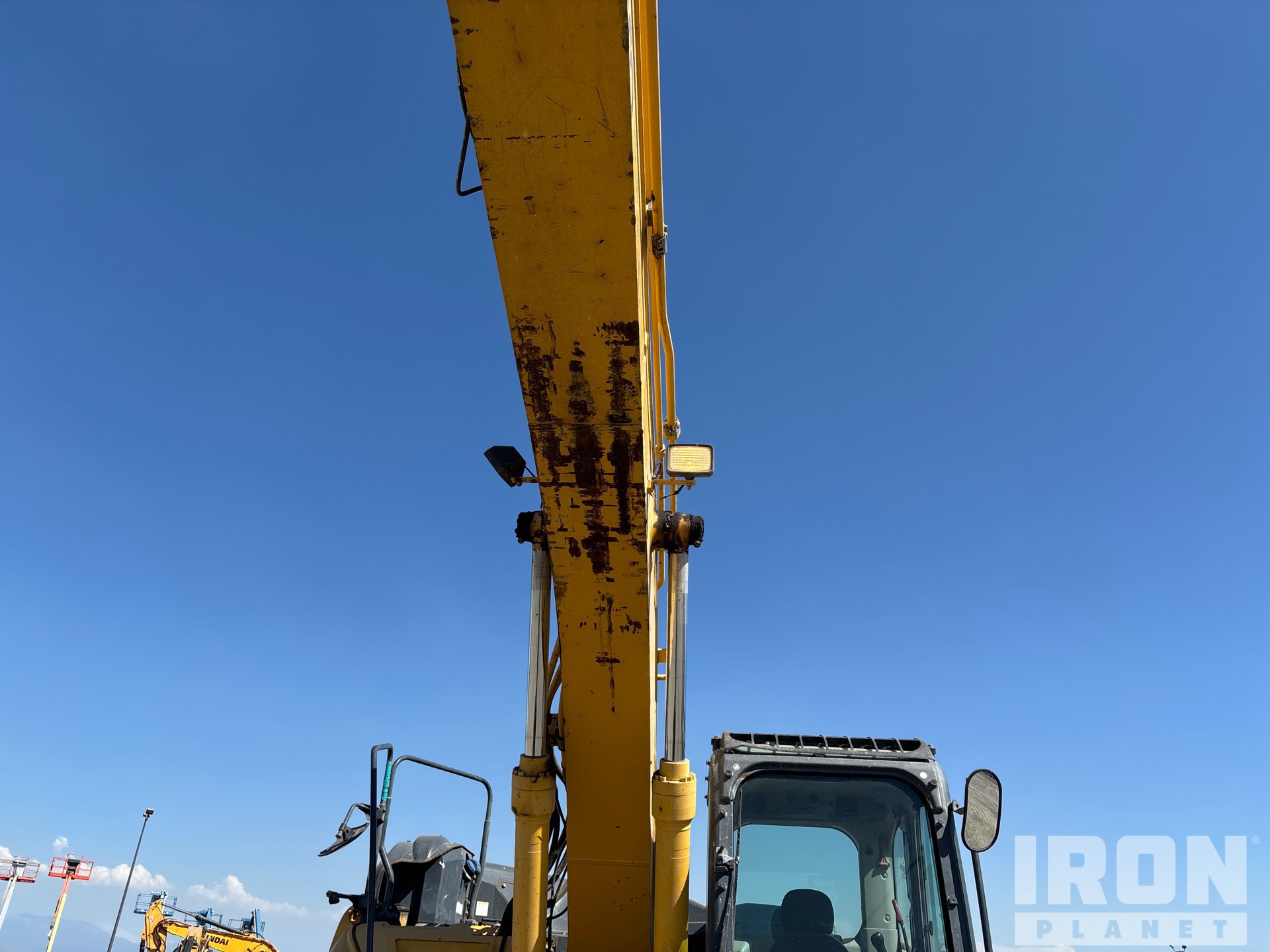

Boom/Stick 1
Arm Crowd Force - Sae	21,200 lbs (9,616 kg)
Arm Crowd Force-Iso	21,800 lbs (9,888 kg)
Boom/Stick 1	Boom-5.62 m, Arm(2.87m)
Bucket Digging Force - Iso	29,700 lbs (13,472 kg)
Bucket Digging Force - Sae	26,800 lbs (12,156 kg)
Max Digging Depth	22 ft (7 m)
Max Digging Height	35 ft (11 m)
Max Digging Reach	31 ft (9 m)
Max Dumping Clearance	25 ft (8 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Maximum Reach At Ground Level	31 ft (10 m)
Min Dumping Clearance	10 ft (3 m)
Minimum Swing Radius	93,307 in (237,000 cm)
Brakes
Gradeability	70 %
Parking Brake	Oil disc brake per motor
Travel Speed	4 mph (6 kph)
Capacities
Cooling System	6 gal (24 l)
Engine Oil	6 gal (21 l)
Fuel Tank	87 gal (330 l)
Hydraulic Oil Tank	30 gal (114 l)
Hydraulic System	61 gal (230 l)
Travel Reduction	3 gal (10 l)
Cylinders
Bore (Arm)	5 in (13 cm)
Bore (Boom)	5 in (12 cm)
Bore (Bucket)	4 in (11 cm)
Stroke (Arm)	55 in (141 cm)
Stroke (Boom)	53 in (136 cm)
Stroke (Bucket)	42 in (106 cm)
Dimensions
Crawler Length	15 ft (4 m)
Ground Clearance	2 ft (0 m)
Height To Top Of Cab	10 ft (3 m)
Overall Length	29 ft (9 m)
Shoe Width	3 ft (1 m)
Tail Swing Radius	6 ft (2 m)
Width	10 ft (3 m)
Engine
Bore	5 in (11 cm)
Displacement	313 cu in (5,124 cu cm)
Engine Make	Hino JO5E
Engine Model	J05EUM-KSSL
Engine Type	Direct injection
Max Torque	472 lbs ft (640 nm)
Net Power	166 hp (124 kw)
Number Of Cylinders	4
Power Measured @	2,000 rpm
Stroke	5 in (13 cm)
Torque Measured @	1,600 rpm
Hydraulic System
Hydraulic System Type	Two variable displacement pumps
Max. Discharge Flow	5 gpm (20 lpm)
Travel Circuit	4,970 psi
Operational
Operating Weight	56,438 lbs (25,600 kg)
Swing Mechanism
Swing Speed	13 rpm
Swing Torque	52,700 lbs ft (71,451 nm)

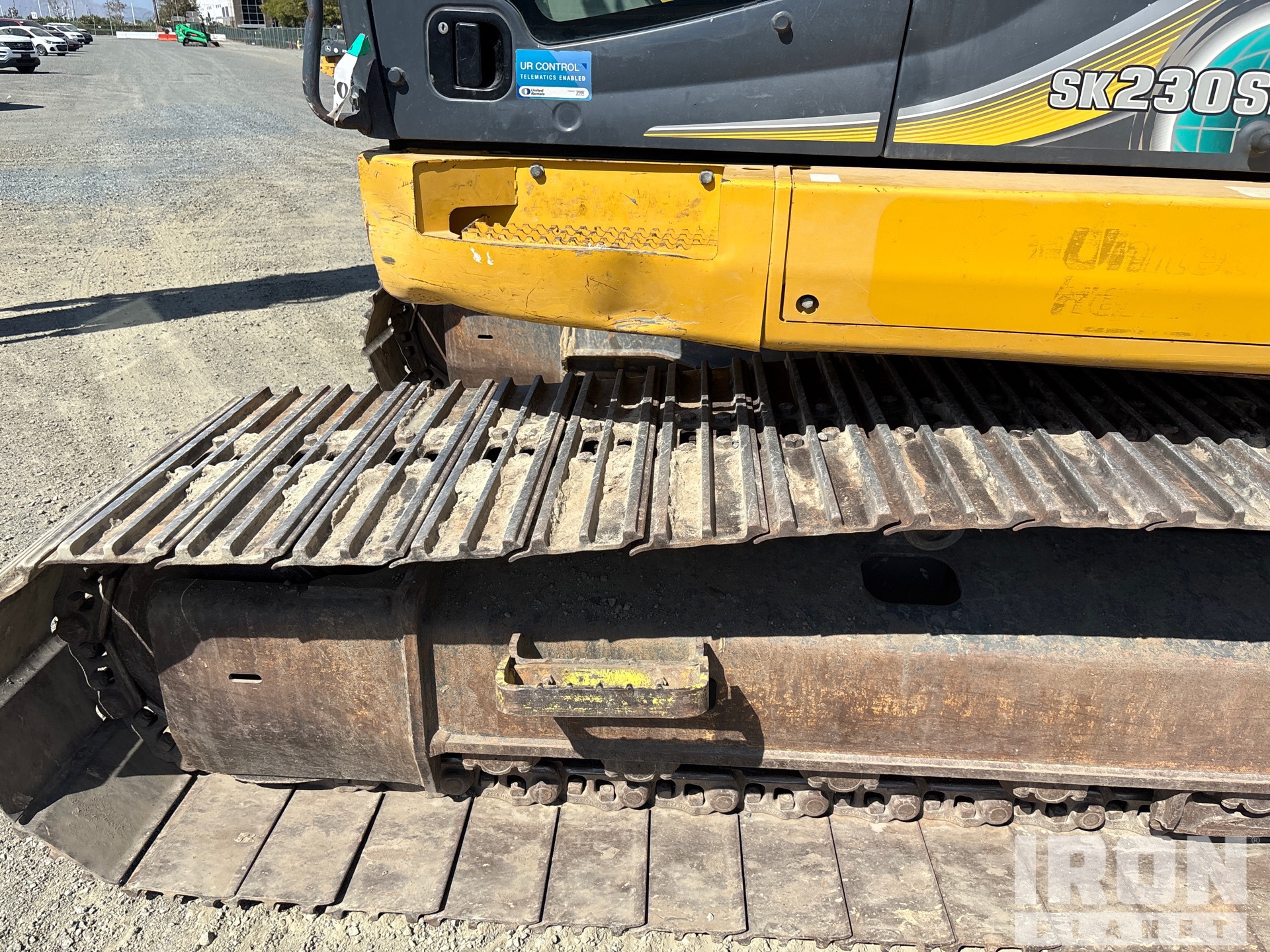

Undercarriage
Drawbar Pull	44,063 lbs (19,986 kg)
Number Of Shoes Per Side	49
Track Gauge	8 ft (2 m)
