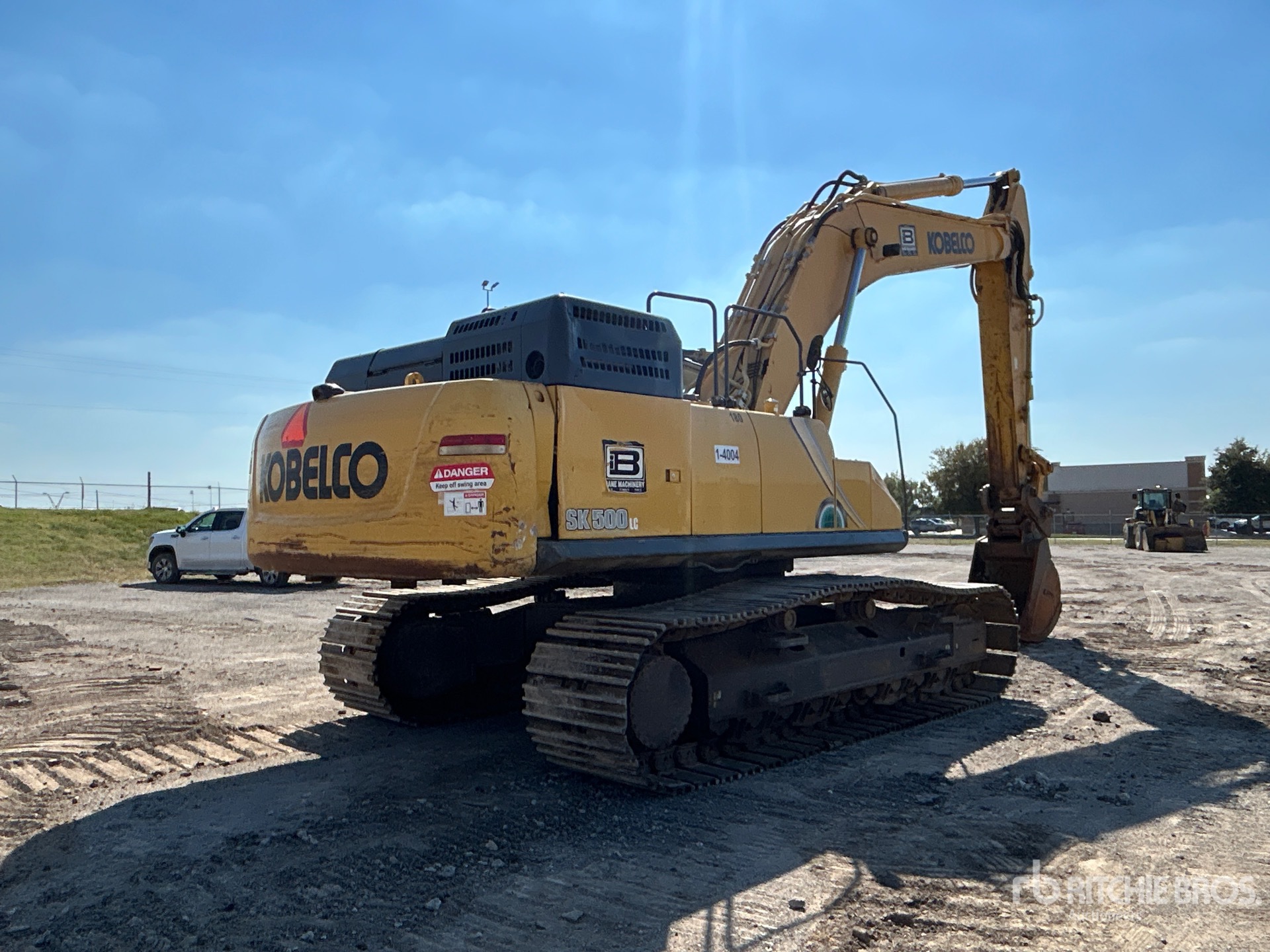

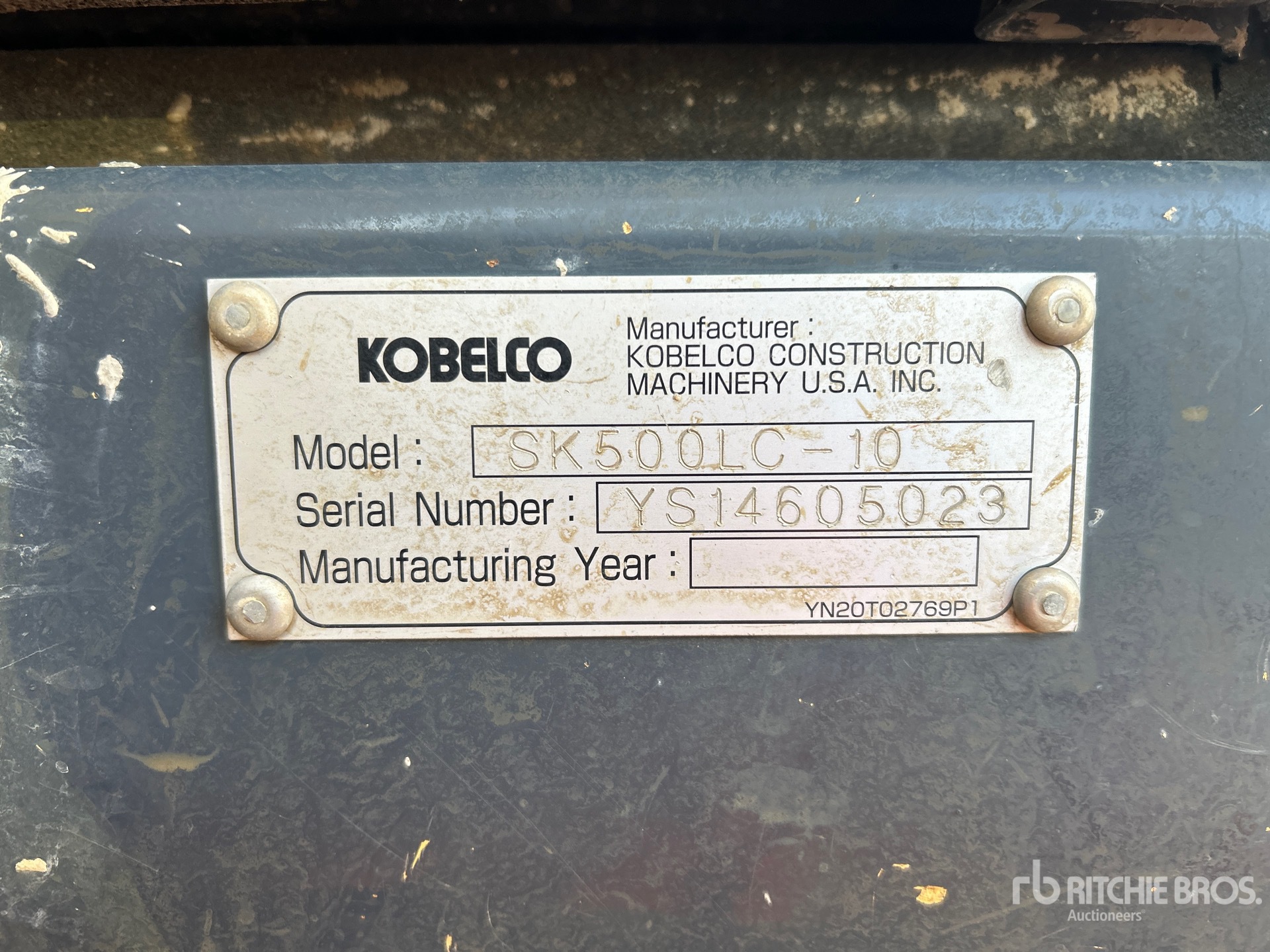

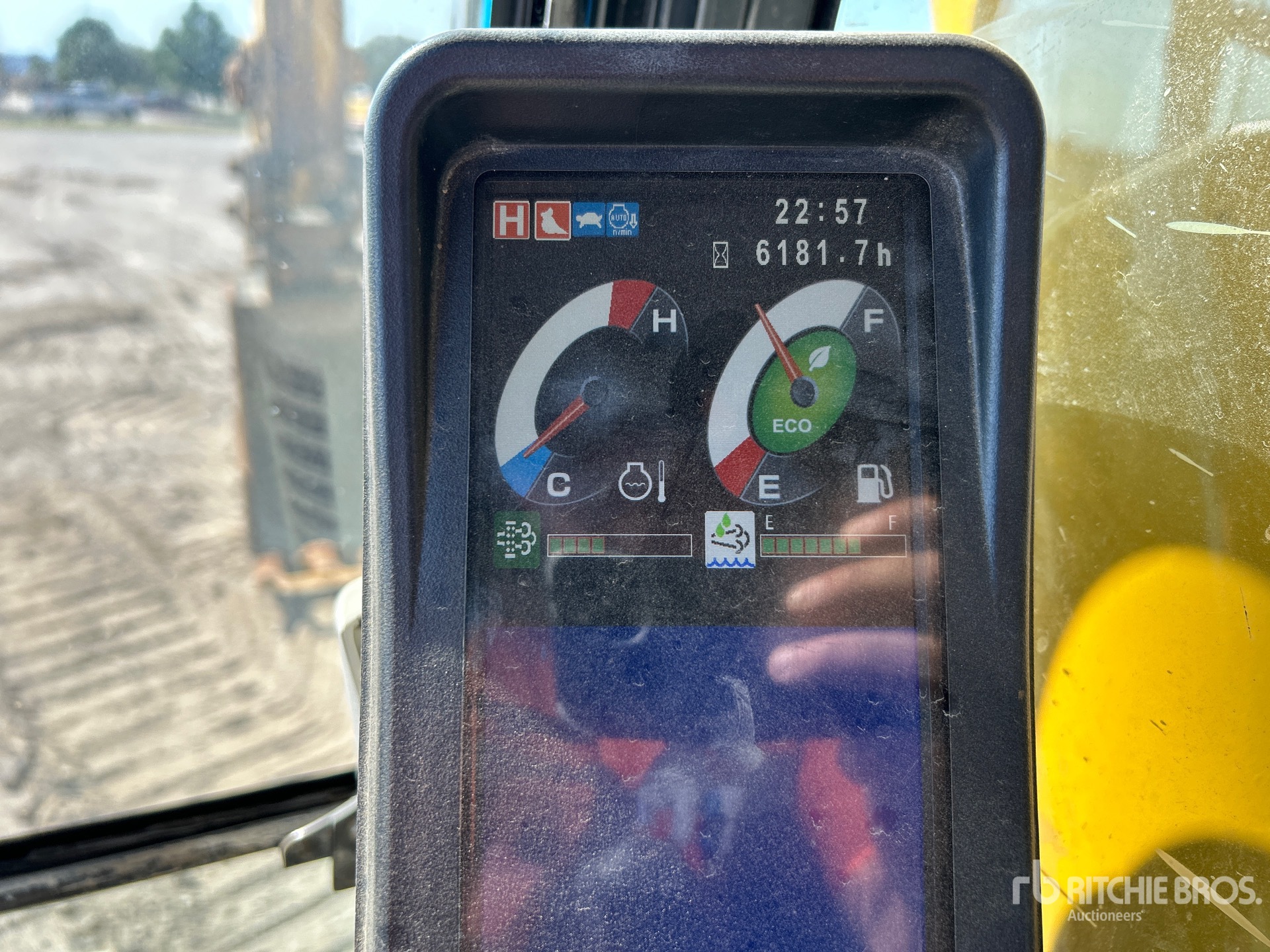

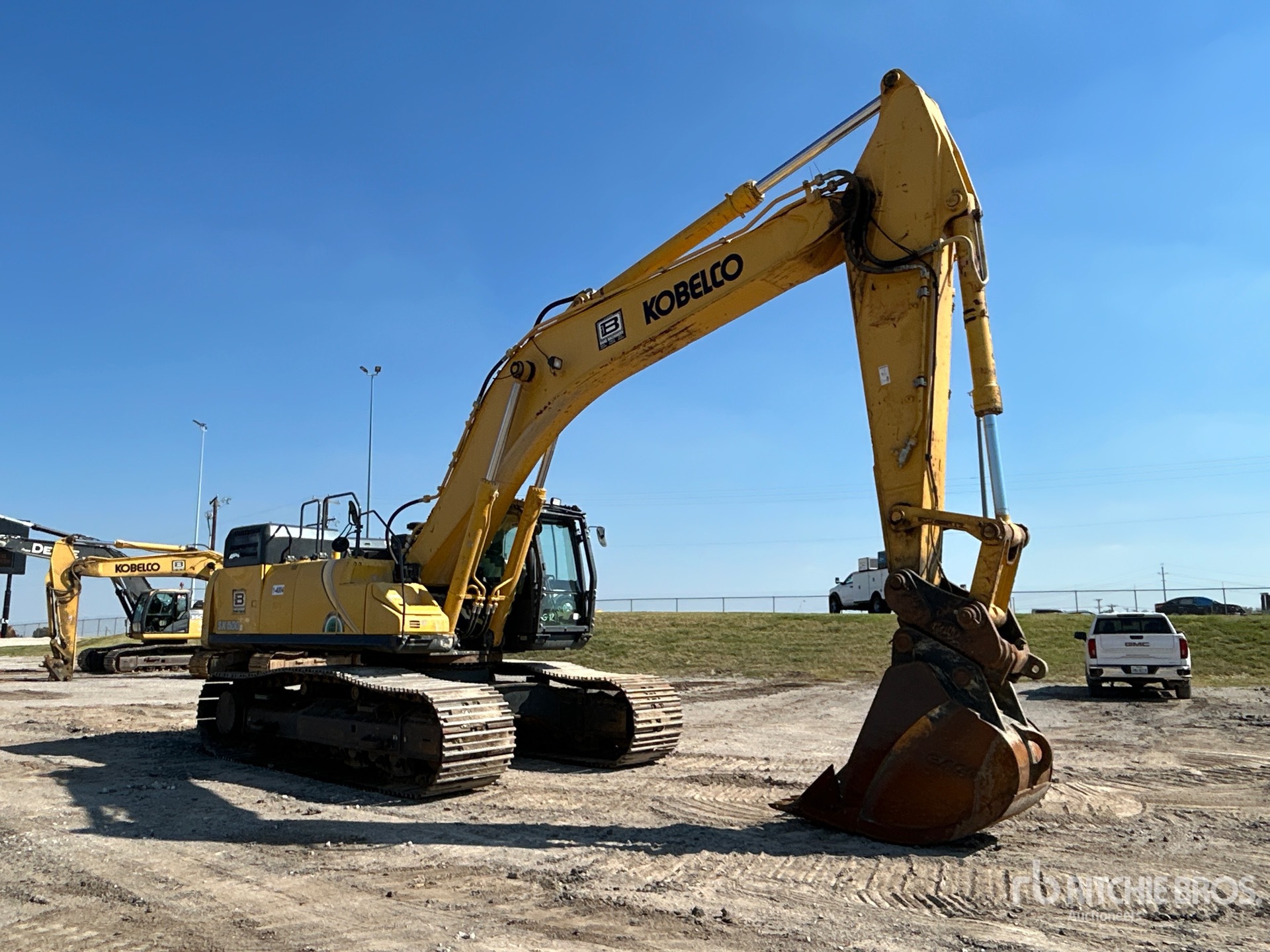

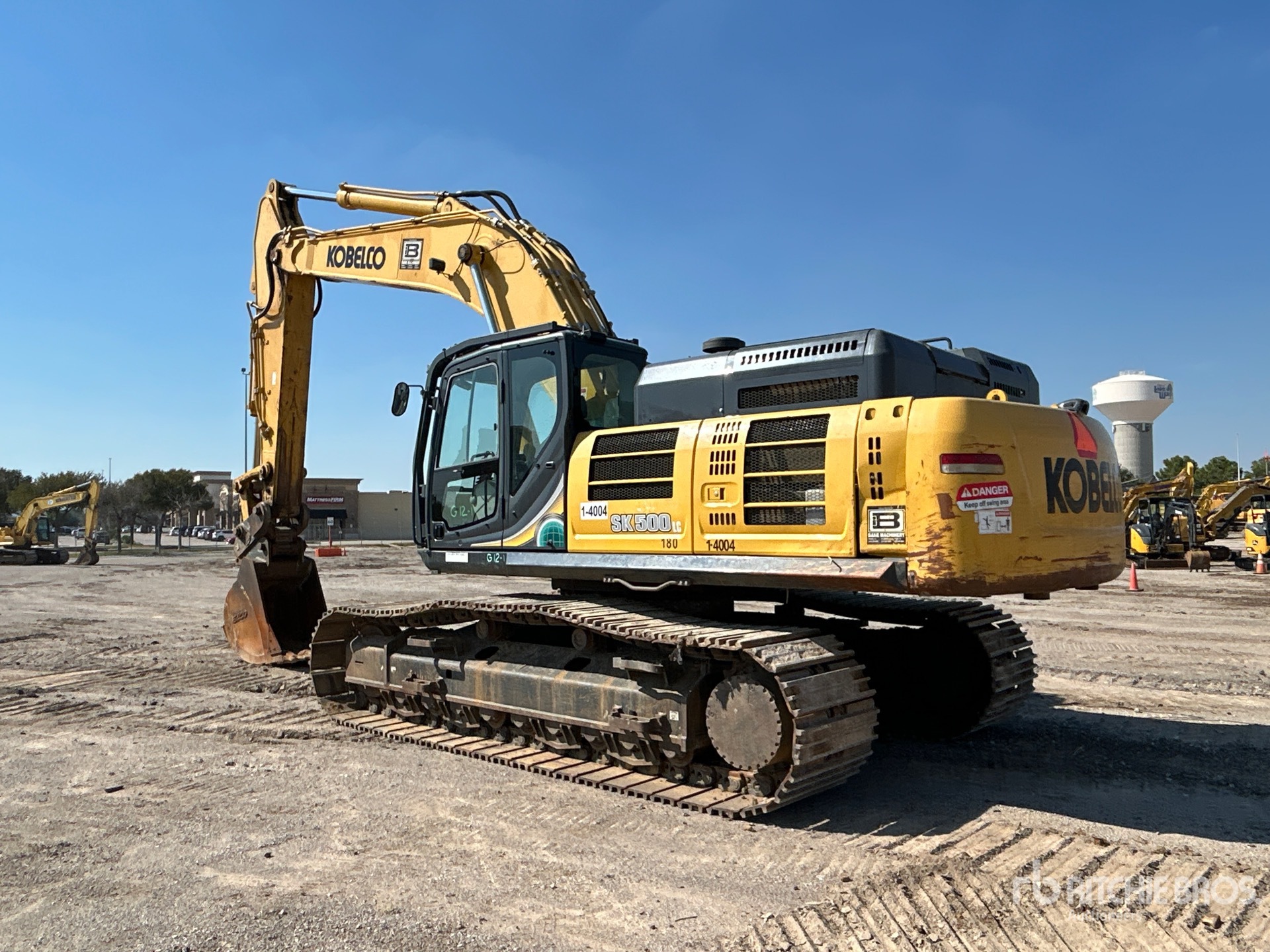

| Boom/Stick 1 |
|
Arm Crowd Force - Sae |
48,109 lbs (21,822 kg)
|
|
Boom/Stick 1 |
Boom - 23.0 ft in ,7.00 m / Standard Arm - 11.4 ft in , 3.45 m |
|
Bucket Digging Force - Iso |
65,644 lbs (29,776 kg)
|
|
Bucket Digging Force - Sae |
57,551 lbs (26,105 kg)
|
|
Max Digging Depth |
26 ft (8 m)
|
|
Max Digging Height |
35 ft (11 m)
|
|
Max Digging Reach |
40 ft (12 m)
|
|
Max Digging Reach On Ground |
38 ft (12 m)
|
|
Max Dumping Clearance |
24 ft (7 m)
|
|
Max Vertical Wall Digging Depth |
23 ft (7 m)
|
|
Min Dumping Clearance |
9 ft (3 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom- 23.0 ft in , 7.00 m / Semi long Arm - 13.3 ft in , 4.04 m |
|
Max Digging Depth |
28 ft (8 m)
|
|
Max Digging Reach |
41 ft (13 m)
|
|
Max Digging Reach On Ground |
41 ft (12 m)
|
|
Max Dumping Clearance |
26 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
25 ft (8 m)
|
|
Min Dumping Clearance |
7 ft (2 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom - 23.0 ft in , 7.00 m / Long Arm- 16.1 ft in , 4.90 m |
|
Max Digging Depth |
31 ft (9 m)
|
|
Max Digging Reach |
44 ft (14 m)
|
|
Max Digging Reach On Ground |
44 ft (13 m)
|
|
Max Dumping Clearance |
27 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
28 ft (8 m)
|
|
Min Dumping Clearance |
4 ft (1 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Boom - 20.8 ft in , 6.30 m / ME Arm - 7.10 ft in |
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Digging Reach |
36 ft (11 m)
|
|
Max Digging Reach On Ground |
34 ft (10 m)
|
|
Max Vertical Wall Dig Depth |
13 ft (4 m)
|
|
Max. Dumping Clearance |
23 ft (7 m)
|
|
Min Dumping Clearance |
10 ft (3 m)
|
| Capacities |
|
Cooling System |
13 gal (48 l)
|
|
Diesel Exhaust Fluid (Def) Tank |
22 gal (83 l)
|
|
Engine Oil |
11 gal (43 l)
|
|
Fuel Tank |
169 gal (638 l)
|
|
Hydraulic Oil Tank |
98 gal (371 l)
|
|
Hydraulic System |
167 gal (631 l)
|
|
Travel Reduction |
8 gal (30 l)
|
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Overall Height (To Top Of Boom) |
12 ft (4 m)
|
|
Overall Height (To Top Of Cab) |
11 ft (3 m)
|
|
Overall Length |
478 in (1,214 cm)
|
|
Overall Length Of Crawler |
18 ft (5 m)
|
|
Overall Width |
12 ft (4 m)
|
|
Overall Width -Upper Structure |
10 ft (3 m)
|
|
Shoe Width |
3 ft (1 m)
|
|
Tail Swing Radius |
12 ft (4 m)
|
|
Track Gauge |
9 ft (3 m)
|
| Engine |
|
Bore |
5 in (12 cm)
|
|
Displacement |
642 cu in (10,521 cu cm)
|
|
Emission Tier Level |
Tier IV final certified |
|
Engine Model |
HINO P11C-VN |
|
Engine Type |
Diesel engine with turbocharger and intercooler |
|
Max Torque |
1,084 lbs ft (1,470 nm)
|
|
Net Power |
364 hp (271 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,850 rpm |
|
Stroke |
6 in (15 cm)
|
|
Torque Measured @ |
1,400 rpm |
| Hydraulic System |
|
Boom Cylinder |
332 in (843 cm)
|
|
Bucket Cylinder |
22 ft (7 m)
|
|
Control Valve |
8-spool |
|
Max. Discharge Flow |
196 gpm (740 lpm)
|
|
Power Boost |
4,970 psi |
|
Pump Type |
Two variable displacement pumps + One gear pump |
|
Swing Circuit |
3,740 psi |
|
Travel Circuit |
4,970 psi |
| Swing Mechanism |
|
Swing Motor |
Axial piston motor |
|
Swing Radius |
13 ft (4 m)
|
|
Swing Speed |
8 rpm |
|
Swing Torque |
134,980 lbs ft (183,006 nm)
|
| Undercarriage |
|
Max Travel Speed |
3 mph (5 kph)
|
| Weights |
|
Operating Weight |
117,947 lbs (53,500 kg)
|
