2017 Kobelco SK85CS-3E For Sale in Fort Worth, Tx

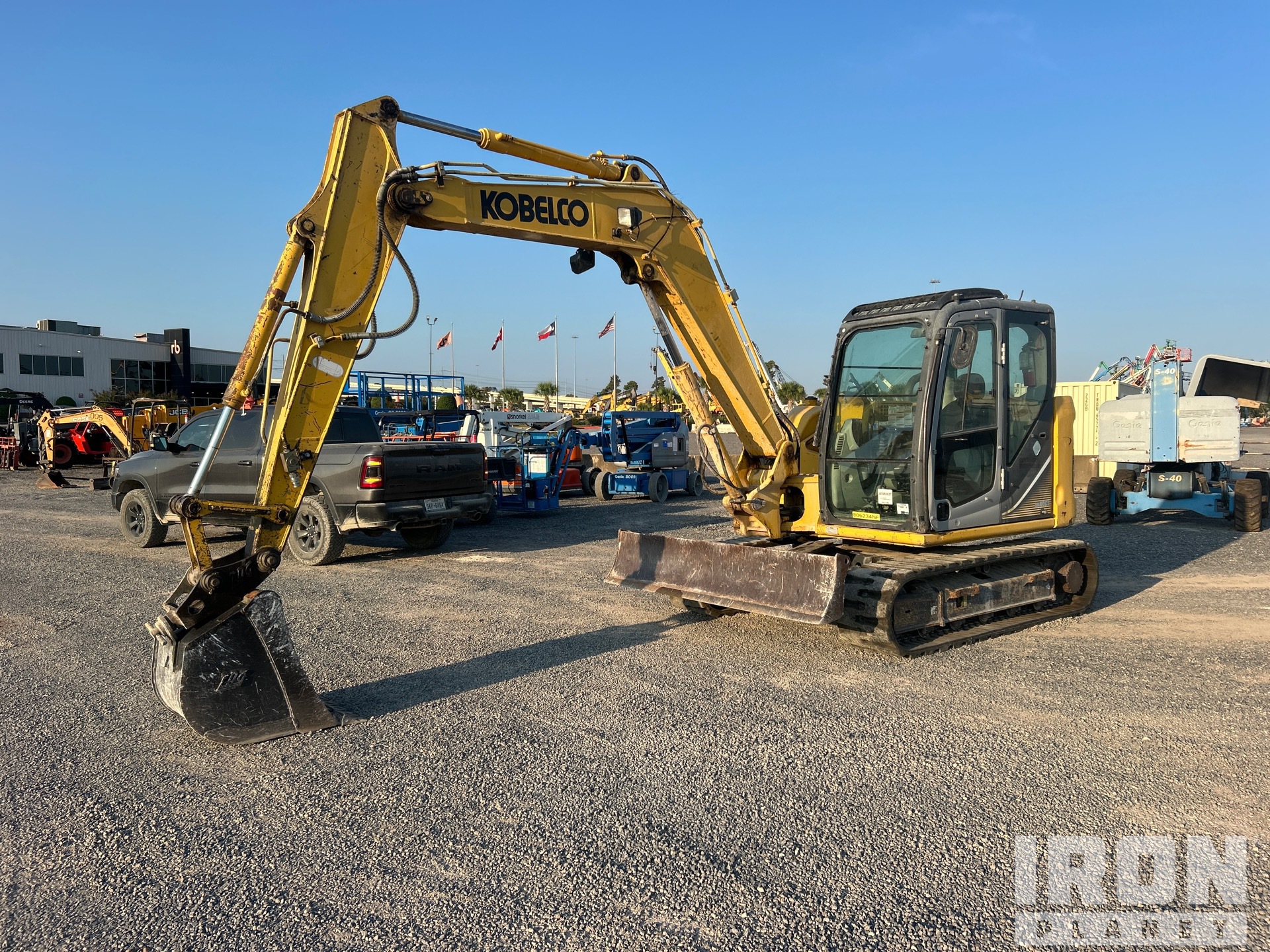

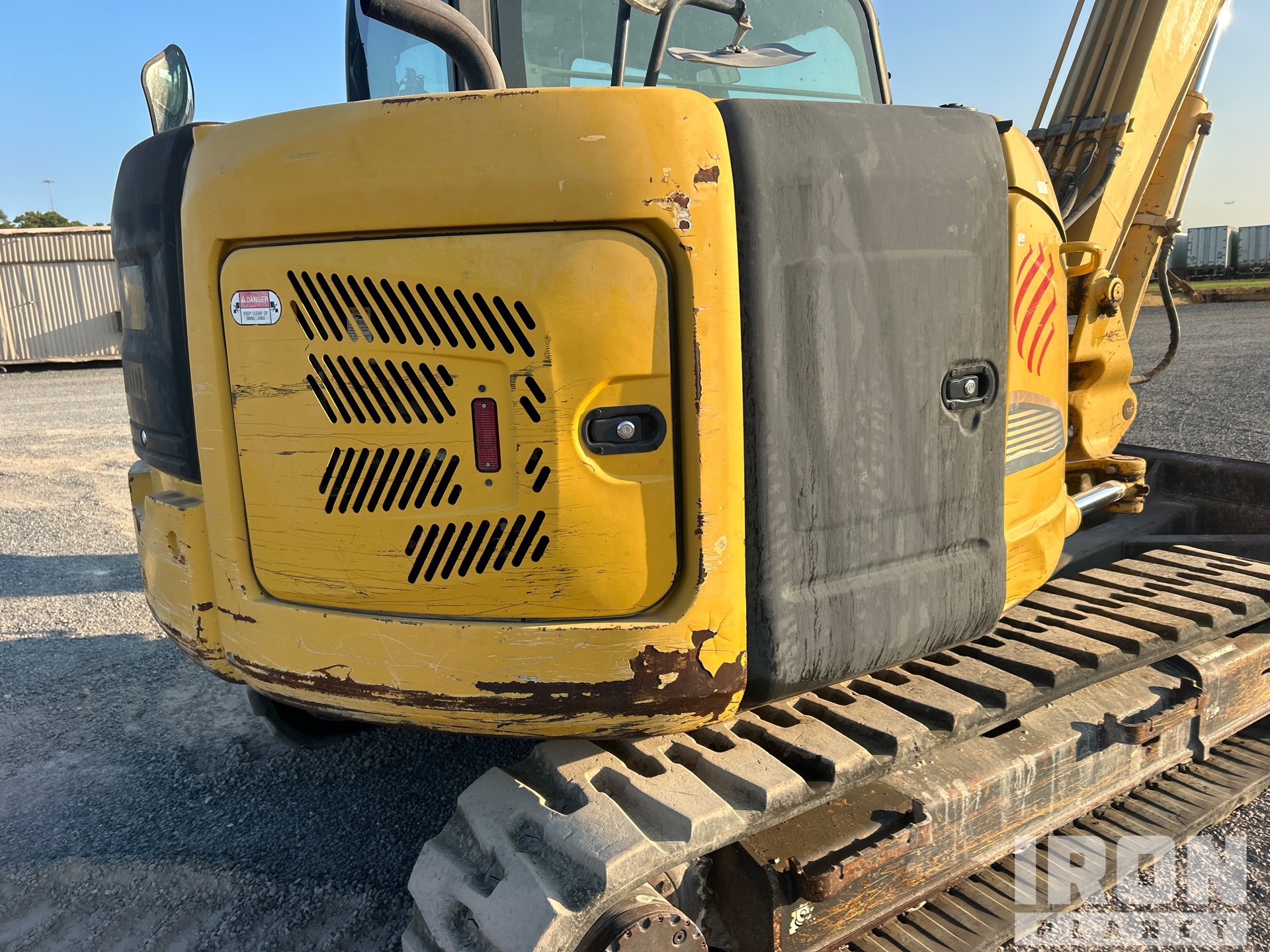

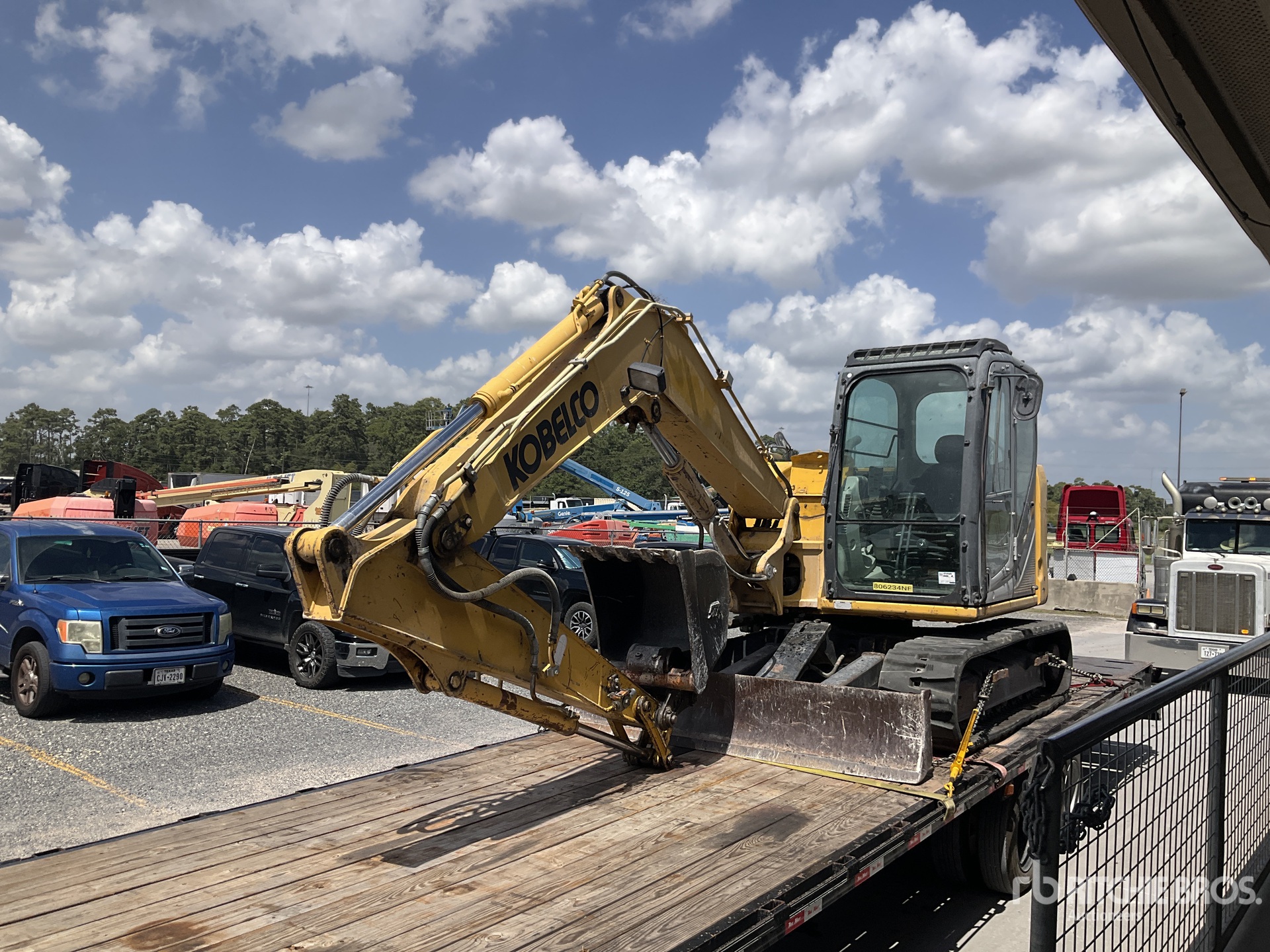

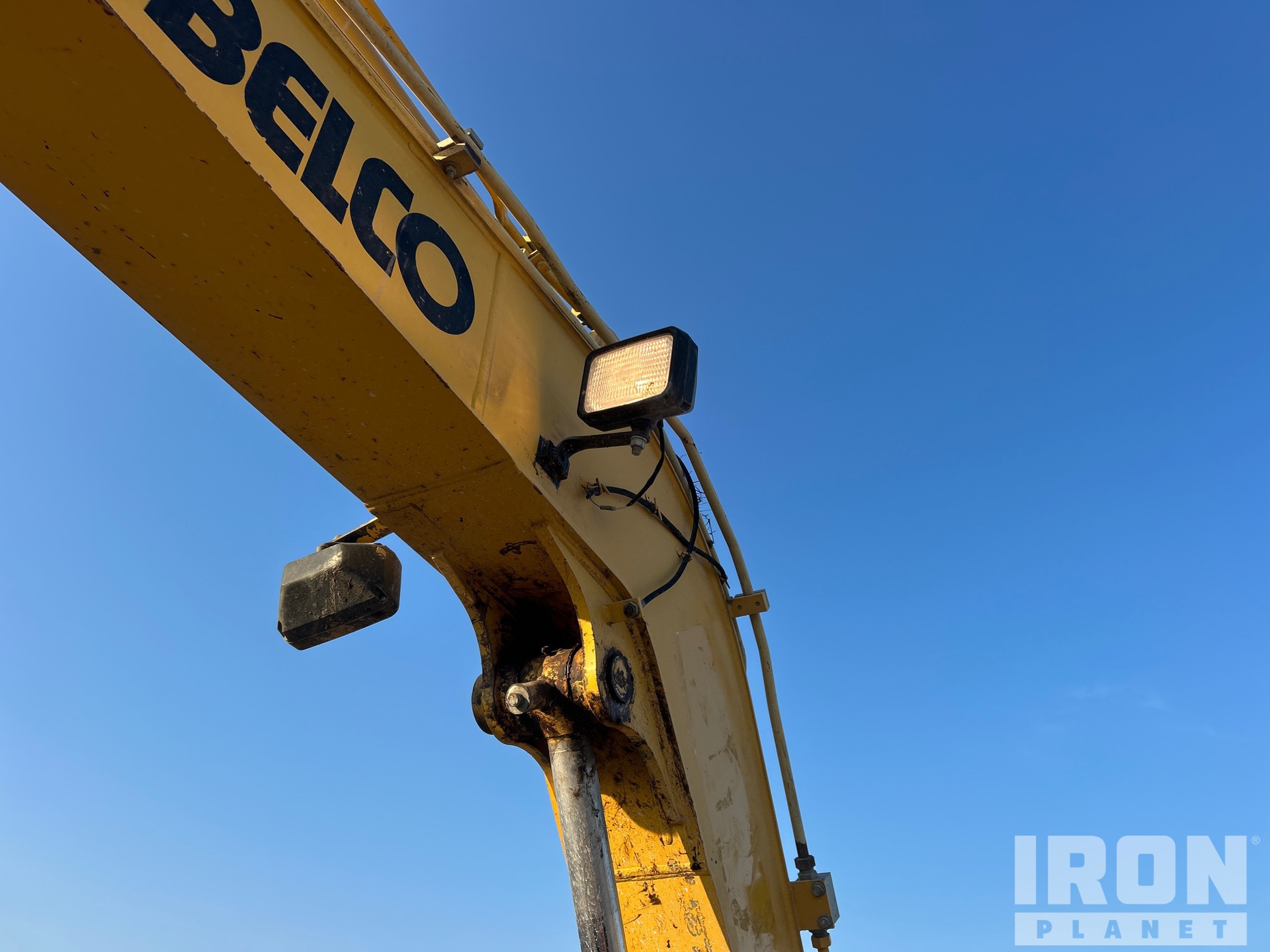

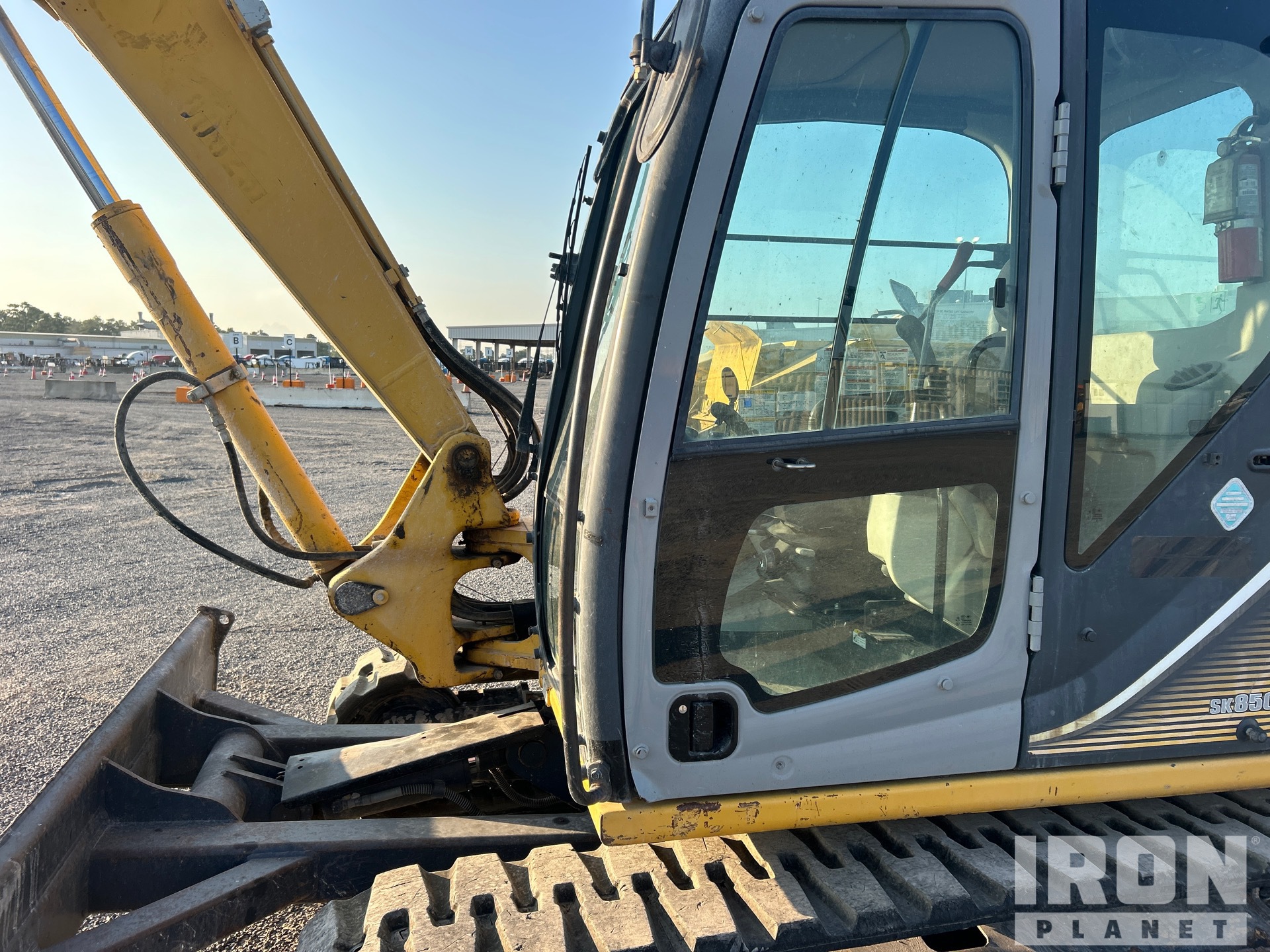

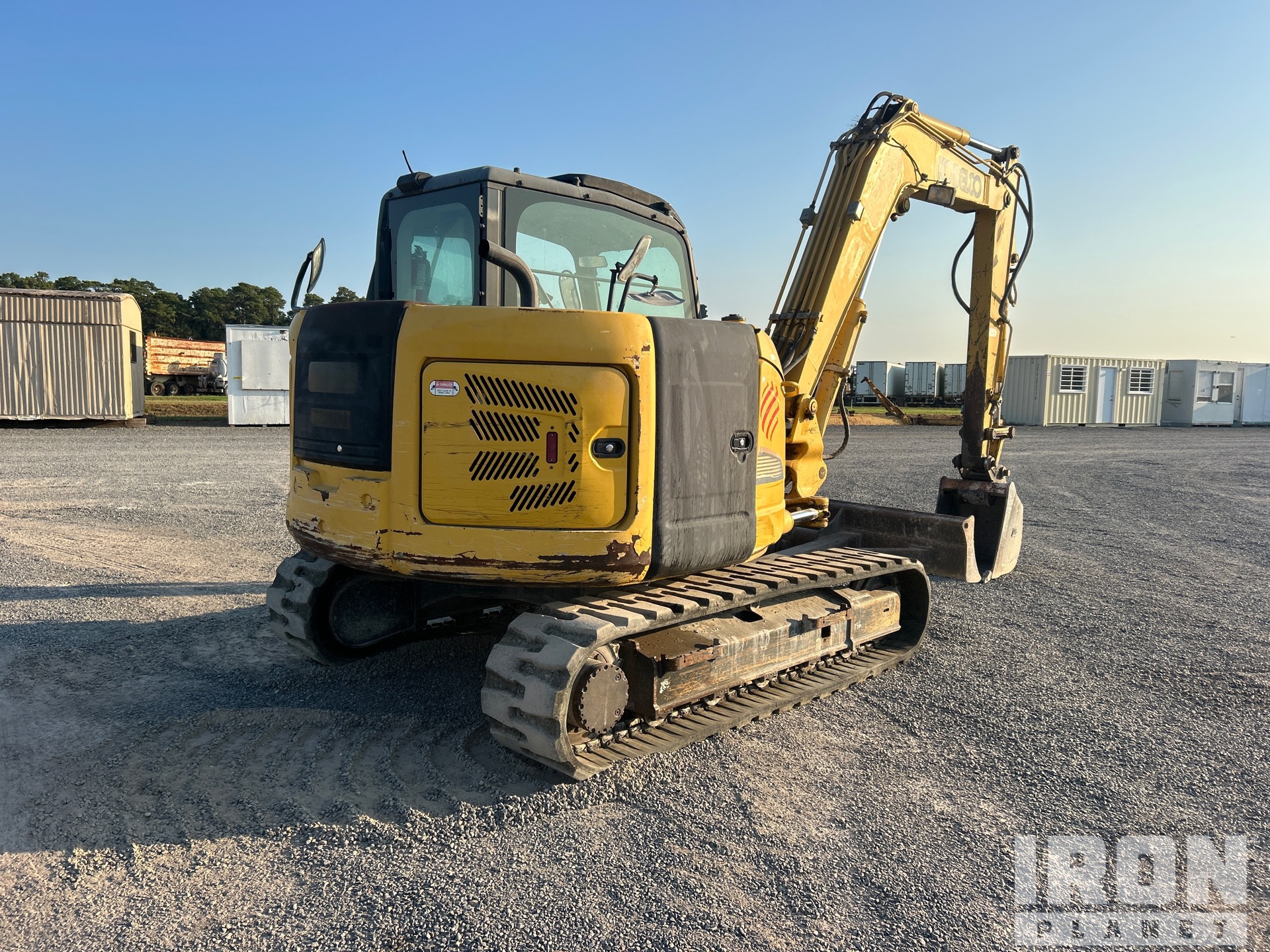

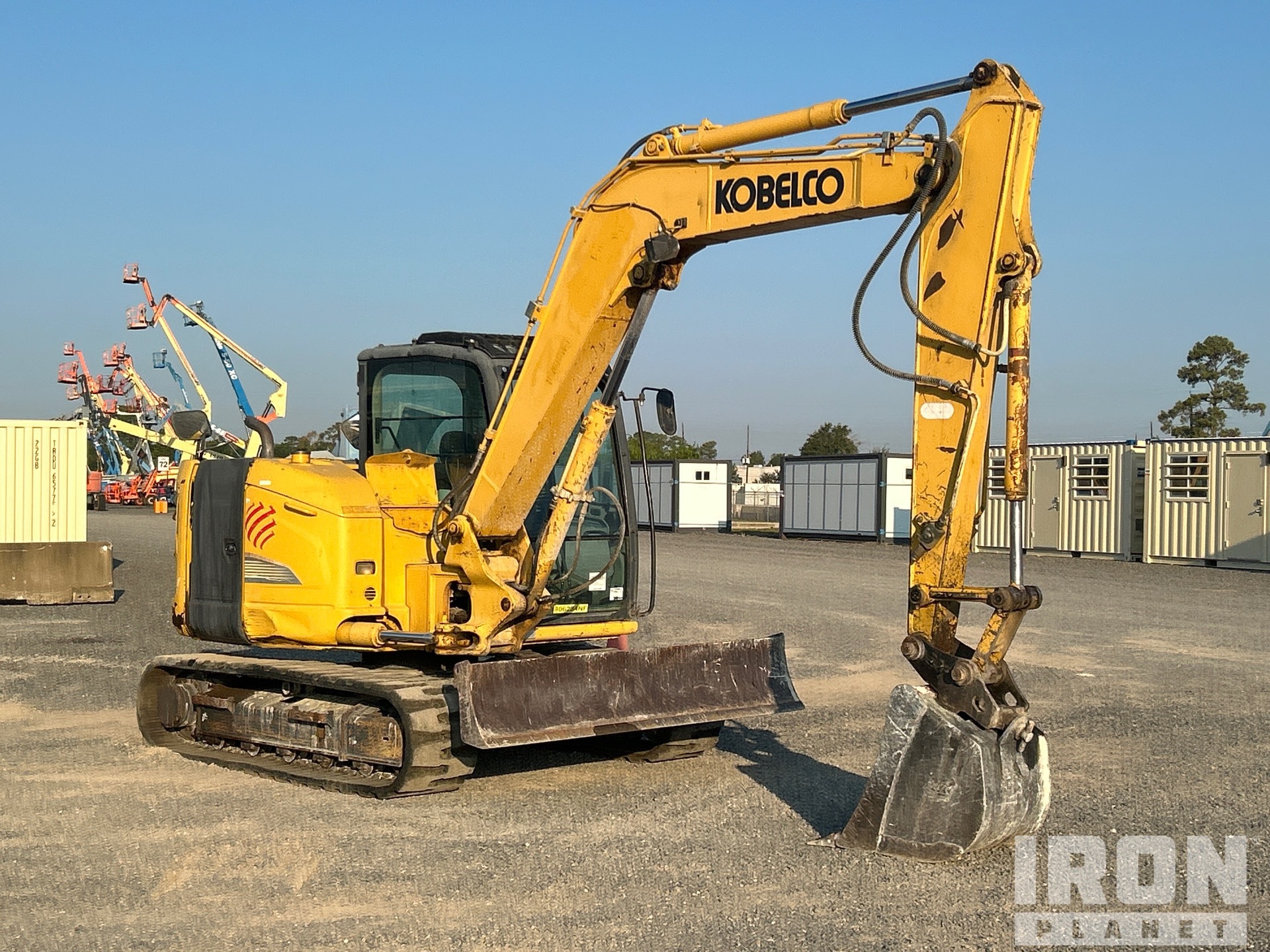

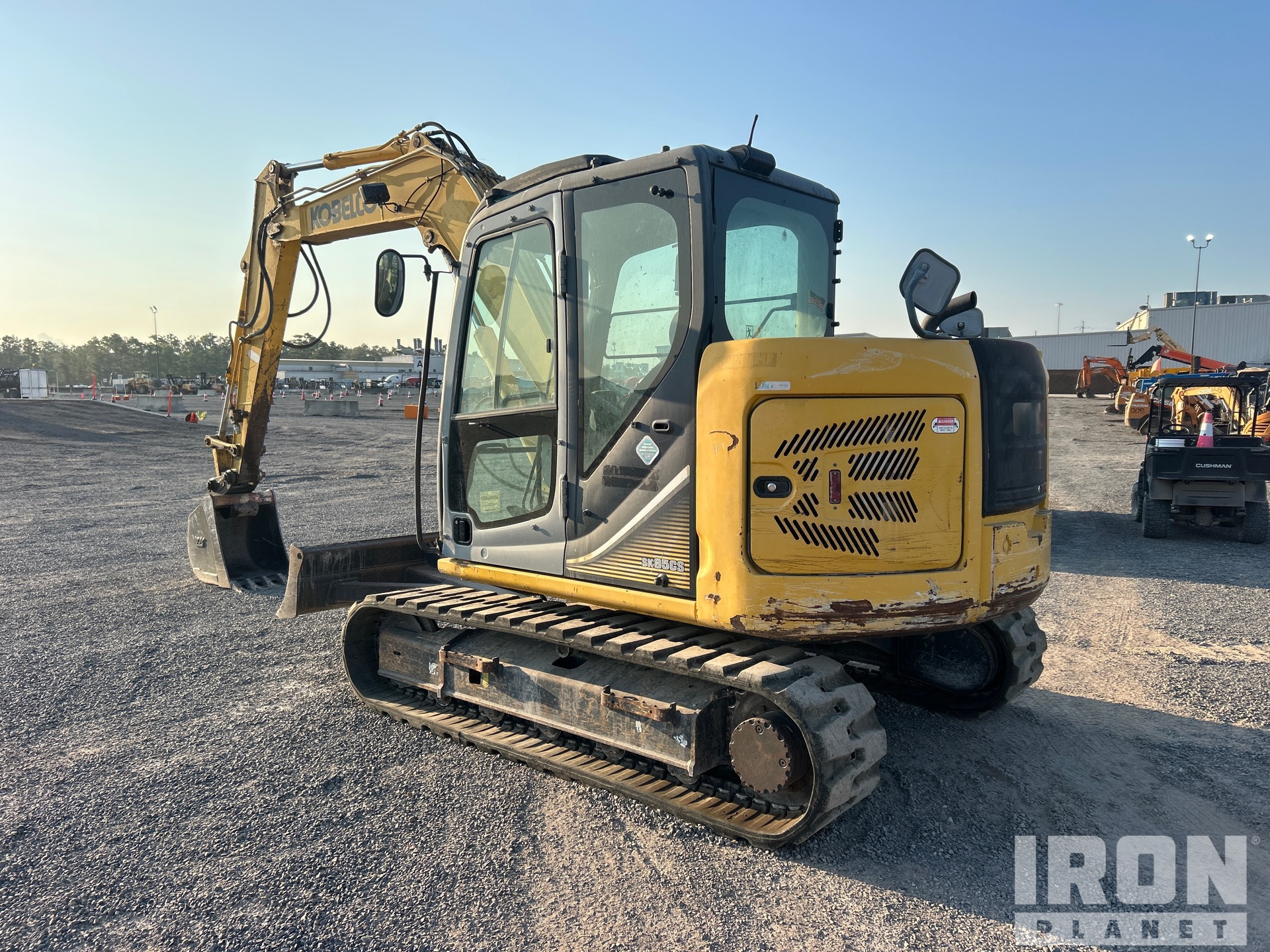

Name: 2017 Kobelco SK85CS-3E
Brand: Kobelco
SKU: 89415010
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-14 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

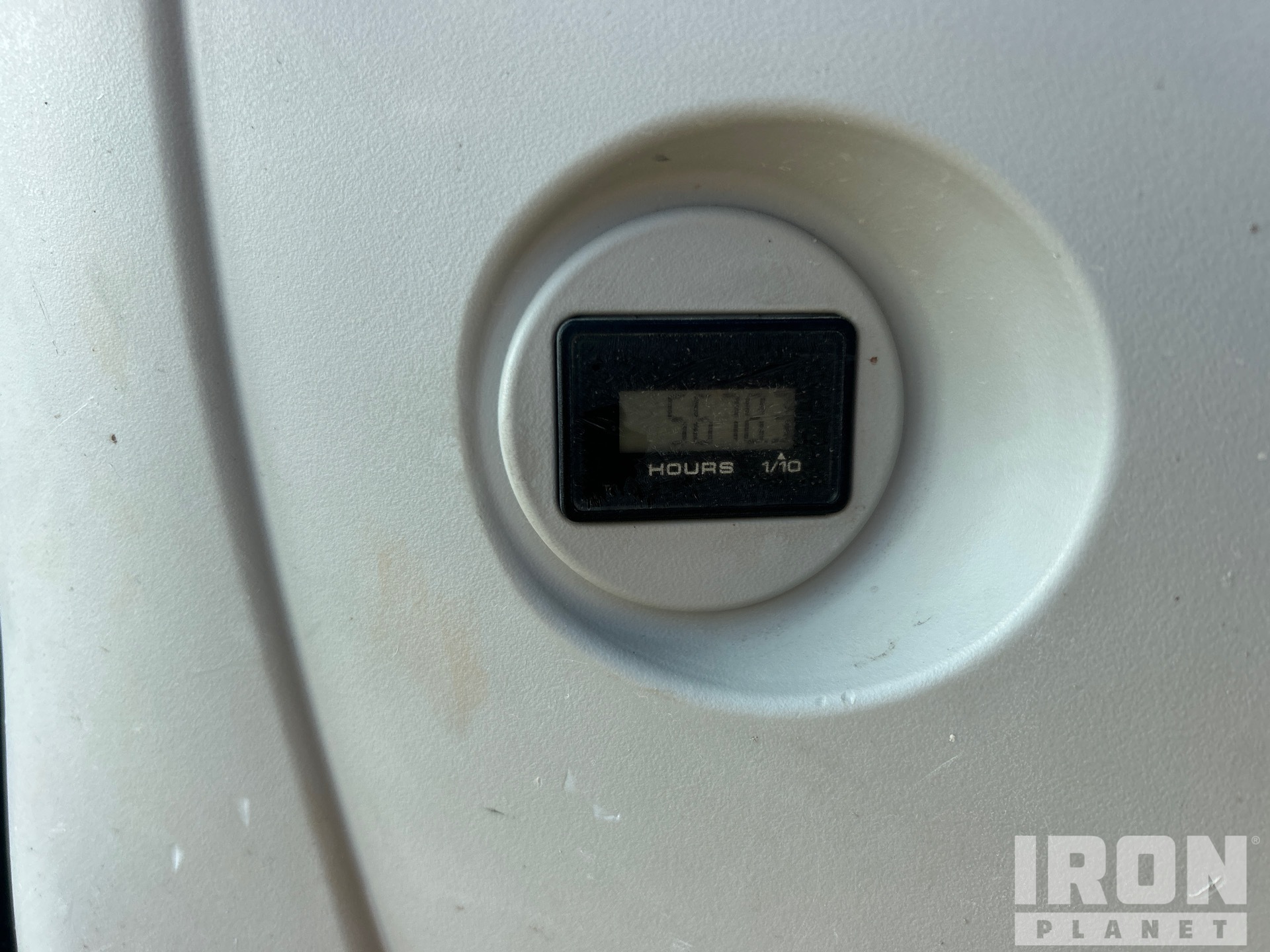

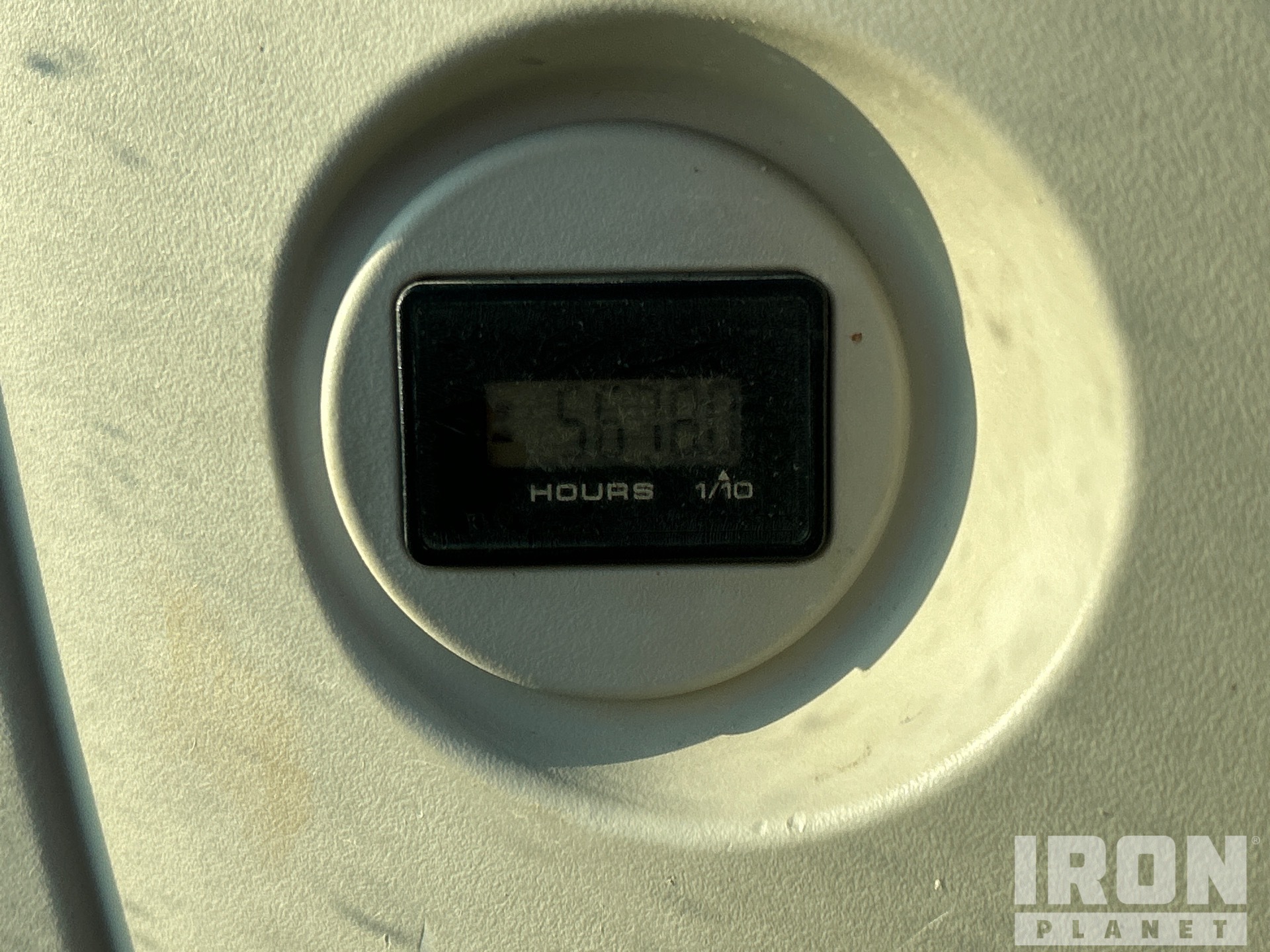

Hours:	5678

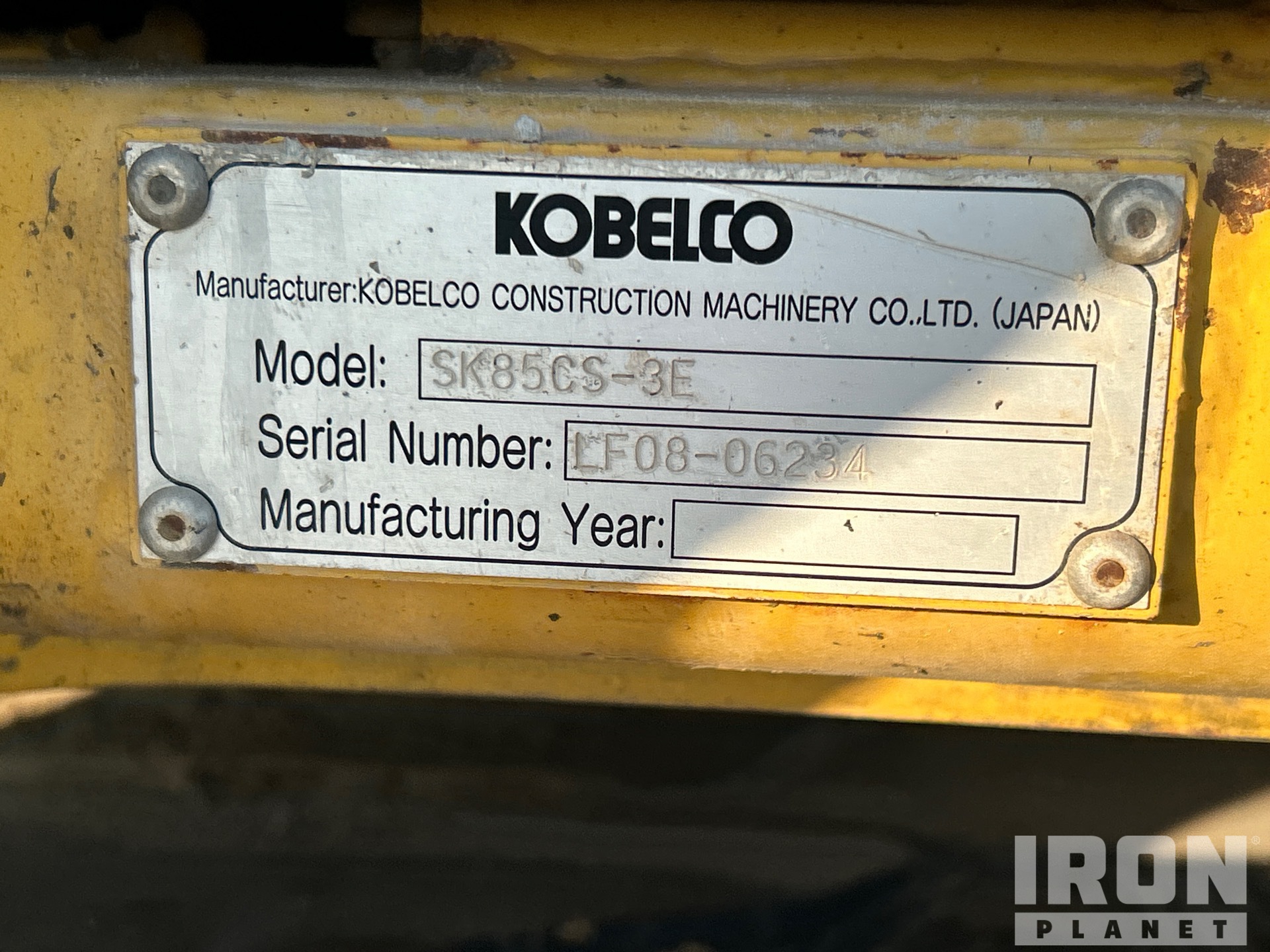

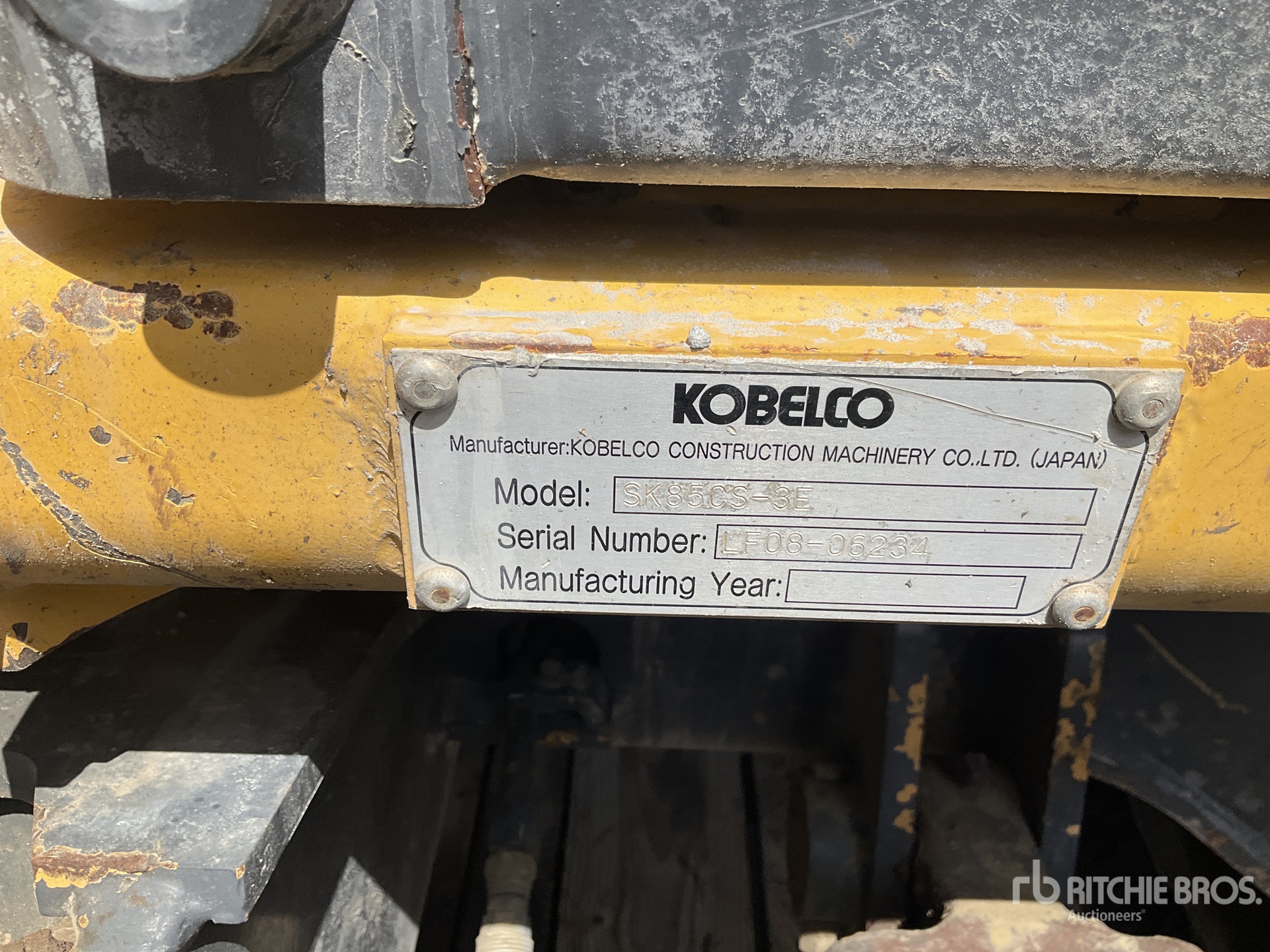

Serial Number:	LF08-06234
Machine Location:	FORT WORTH, TX

Description:

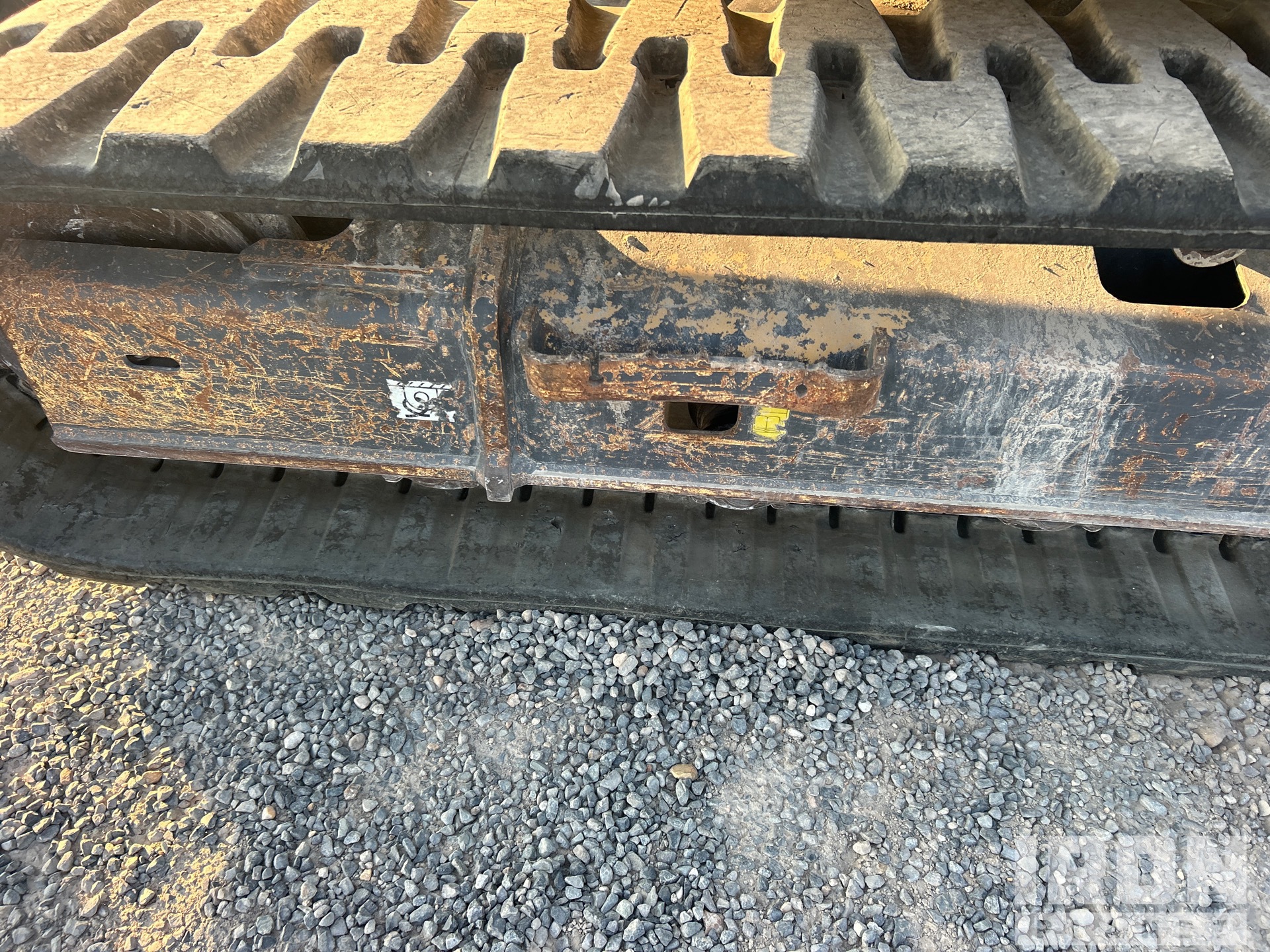

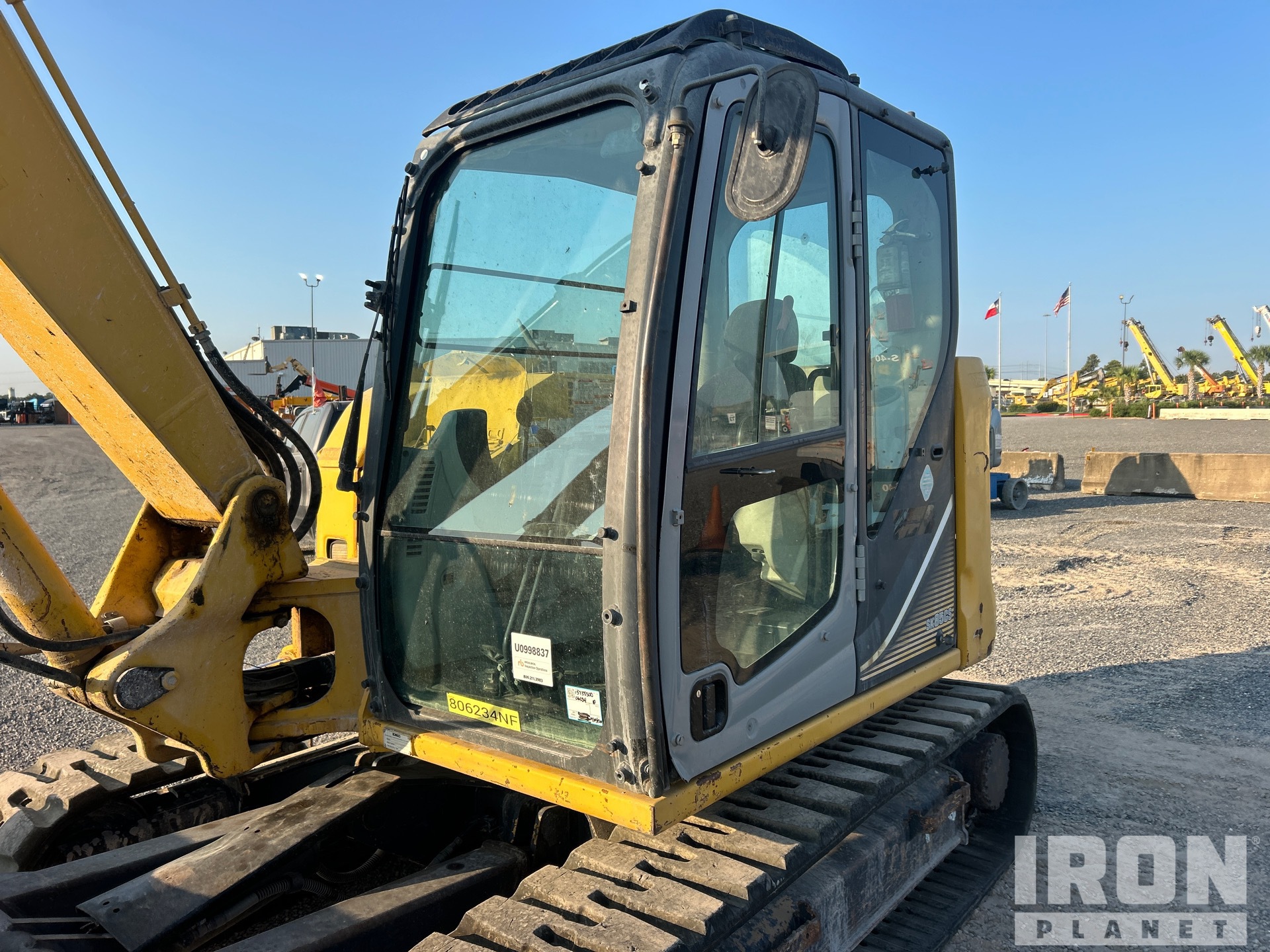

Air Conditioner, Control Pattern Changer, 2016 US EPA Label, Swing Boom, 7 ft Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 18 in Rubber Tracks, Manual Quick Coupler, 24 in Digging Bucket Closing Time: 2026-10-14 12:17:30 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Kobelco SK85CS-3E is a compact excavator in the Kobelco SK series, designed for construction, utility, landscaping, and site preparation work. As an excavator, it is used for digging, trenching, grading, lifting, and material handling in confined jobsite conditions. The SK85CS-3E features a compact footprint for improved maneuverability and transportability, along with a cab layout intended for operator visibility and control. It is commonly selected for applications that require a balance of digging performance, stability, and access to restricted work areas. This model is part of Kobelco's excavator lineup for light to medium-duty earthmoving tasks.

Boom/Stick 1
Arm Crowd Force - Sae	8,100 lbs (3,674 kg)
Arm Crowd Force-Iso	8,300 lbs (3,765 kg)
Boom/Stick 1	Boom-3.67 m, Arm(1.87 m)
Bucket Digging Force - Iso	16,456 lbs (7,464 kg)
Bucket Digging Force - Sae	14,658 lbs (6,649 kg)
Max Digging Depth	14 ft (4 m)
Max Digging Height	23 ft (7 m)
Max Digging Reach	24 ft (7 m)
Max Dumping Clearance	16 ft (5 m)
Max Reach Along Ground	23 ft (7 m)
Max Vertical Wall Digging Depth	12 ft (4 m)
Min Dumping Clearance	6 ft (2 m)
Minimum Swing Radius	138 in (350 cm)
Boom/Stick 2
Arm Crowd Force-Iso	7,900 lbs (3,583 kg)
Arm Crowd Force-Sae	7,700 lbs (3,493 kg)
Boom/Stick 2	Boom-3.67 m, Arm(2.13 m)
Bucket Digging Force - Iso	16,456 lbs (7,464 kg)
Bucket Digging Force - Sae	14,658 lbs (6,649 kg)
Max Digging Depth	15 ft (5 m)
Max Digging Reach	25 ft (8 m)
Max Digging Reach On Ground	24 ft (7 m)
Max Dumping Clearance	16 ft (5 m)
Max Vertical Wall Digging Depth	13 ft (4 m)
Max. Digging Height	24 ft (7 m)
Min Dumping Clearance	6 ft (2 m)
Minimum Swing Radius	109 in (278 cm)
Brakes
Gradeability	70 %
Parking Brake	Oil disc brake per motor
Travel Speed	3 mph (5 kph)
Capacities
Cooling System	2 gal (9 l)
Engine Oil	3 gal (11 l)
Fuel Tank	32 gal (120 l)
Hydraulic Oil Tank	10 gal (36 l)
Hydraulic System	23 gal (85 l)
Travel Reduction	1 gal (3 l)
Cylinders
Bore (Arm)	4 in (10 cm)
Bore (Boom)	4 in (11 cm)
Bore (Bucket)	3 in (8 cm)
Stroke (Arm)	33 in (83 cm)
Stroke (Boom)	36 in (92 cm)
Stroke (Bucket)	29 in (74 cm)
Dimensions
Crawler Length	9 ft (3 m)
Ground Clearance	14 ft (4 m)
Height	9 ft (3 m)
Height To Top Of Cab	9 ft (3 m)
Length	22 ft (7 m)
Shoe Width	24 ft (7 m)
Tail Swing Radius	5 ft (2 m)
Weight	18,700 lbs (8,482 kg)
Width	8 ft (2 m)
Engine
Bore	3 in (9 cm)
Displacement	133 cu in (2,179 cu cm)
Engine Model	ISUZU AU-4LE2X
Engine Type	Direct injection
Max Torque	155 lbs ft (210 nm)
Net Power	55 hp (41 kw)
Number Of Cylinders	4
Power Measured @	2,000 rpm
Stroke	4 in (10 cm)
Torque Measured @	1,800 rpm
Hydraulic System
Control Valve	730 psi
Hydraulic System Type	Two variable displacement pumps
Max. Discharge Flow	12 gpm (46 lpm)
Travel Circuit	4,260 psi
Operational
Operating Weight	41,227 lbs (18,700 kg)
Swing Mechanism
Swing Speed	12 rpm
Swing Torque	12,500 lbs ft (16,948 nm)
Undercarriage
Drawbar Pull	17,300 lbs (7,847 kg)
Track Gauge	6 ft (2 m)
